HZJ80L-GNPNS (1990)
Toyota Land Cruiser
Production
Jan 1990
-
Aug 1992
Engine
1HZ
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9001-9805)1HZ

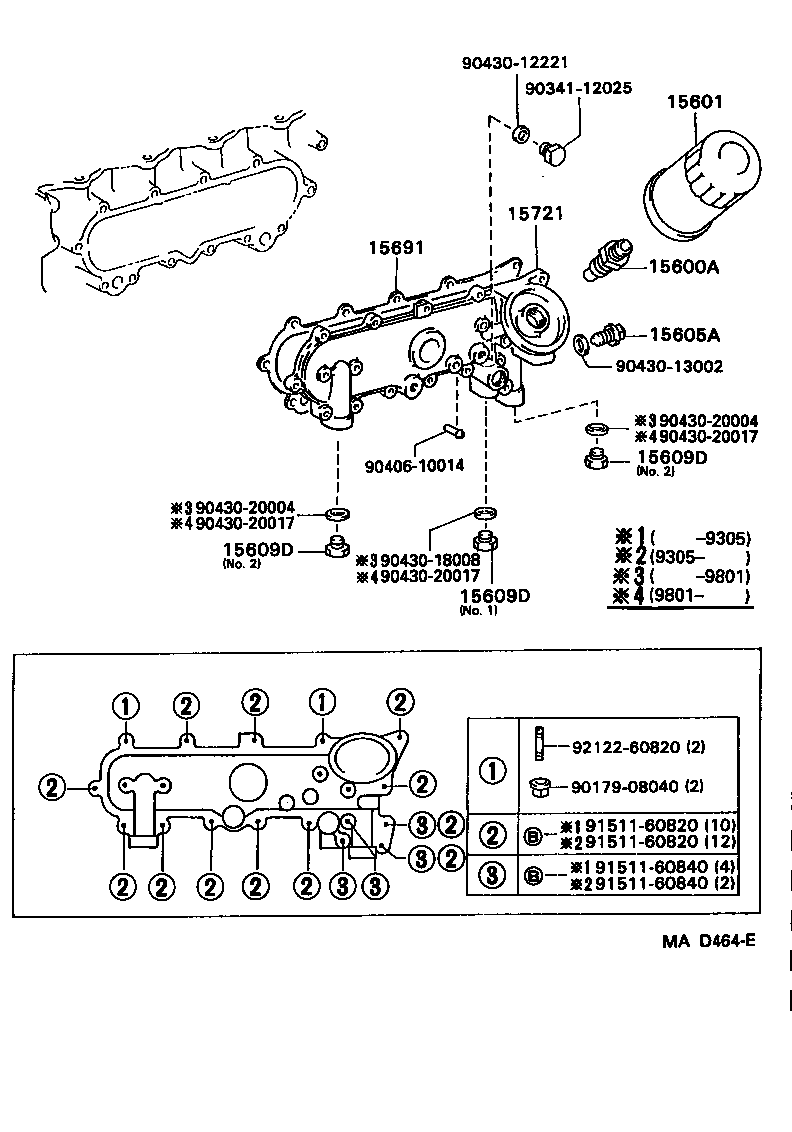

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90179-08040 | ||||
| 90341-12025 | ||||
| 90430-12221 | ||||
| 90430-13002 | ||||
| 90430-18008 | ||||
| 90430-20004 | ||||
| 90430-20017 | ||||
| 91511-J0820 | ||||
| 91511-J0840 | ||||
| 92122-60820 | ||||
(9001- )1HZ
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 15600A - UNION(FOR OIL FILTER) | ||||
| 90404-27001 |
1H#..HDJ80,HZJ80 |
1 | ||
| 15601 - FILTER SUB-ASSY, OIL | ||||
| 90915-03006 |
1H#..HDJ80,HZJ80 |
1 | ||
| 90915-30002 |
1H#..HDJ80,HZJ80 |
1 | ||
| 15605A - VALVE SUB-ASSY, OIL CHECK | ||||
| 15605-17020 |
1H#..HDJ80,HZJ80 |
1 | ||
| 15609D - PLUG, W/HEAD STRAIGHT SCREW(FOR OIL FILTER BRACKET) | ||||
| 90341-20002 |
1H#..HDJ80,HZJ80 NO.2 |
2 | ||
| 90341-18006 |
1H#..HDJ80,HZJ80 NO.1 |
1 | ||
| 15609D - PLUG, W/HEAD STRAIGHT SCREW(FOR OIL FILTER BRACKET) | ||||
| 90341-20002 |
1H#..HDJ80,HZJ80 NO.2 |
2 | ||
| 90341-18006 |
1H#..HDJ80,HZJ80 NO.1 |
1 | ||
| 15609D - PLUG, W/HEAD STRAIGHT SCREW(FOR OIL FILTER BRACKET) | ||||
| 90341-20002 |
1H#..HDJ80,HZJ80 NO.2 |
2 | ||
| 90341-18006 |
1H#..HDJ80,HZJ80 NO.1 |
1 | ||
| 15691 - GASKET, OIL FILTER | ||||
| 15725-17010 |
1H#..HDJ80,HZJ80 |
1 | ||
| 15721 - COVER, OIL COOLER | ||||
| 15721-17010 |
1HZ..HZJ80 |
1 | ||
| Common parts | ||||
| 90179-08040 | ||||
| 90341-12025 | ||||
| 90406-10014 | ||||
| 90430-12221 | ||||
| 90430-13002 | ||||
| 90430-18008 | ||||
| 90430-20004 | ||||
| 90430-20017 | ||||
| 91511-60820 | ||||
| 91511-60840 | ||||
| 92122-60820 | ||||
