HZJ80L-GNMES (1990)

Toyota Land Cruiser

Production Jan 1990 - Jan 1998
Engine 1HZ
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

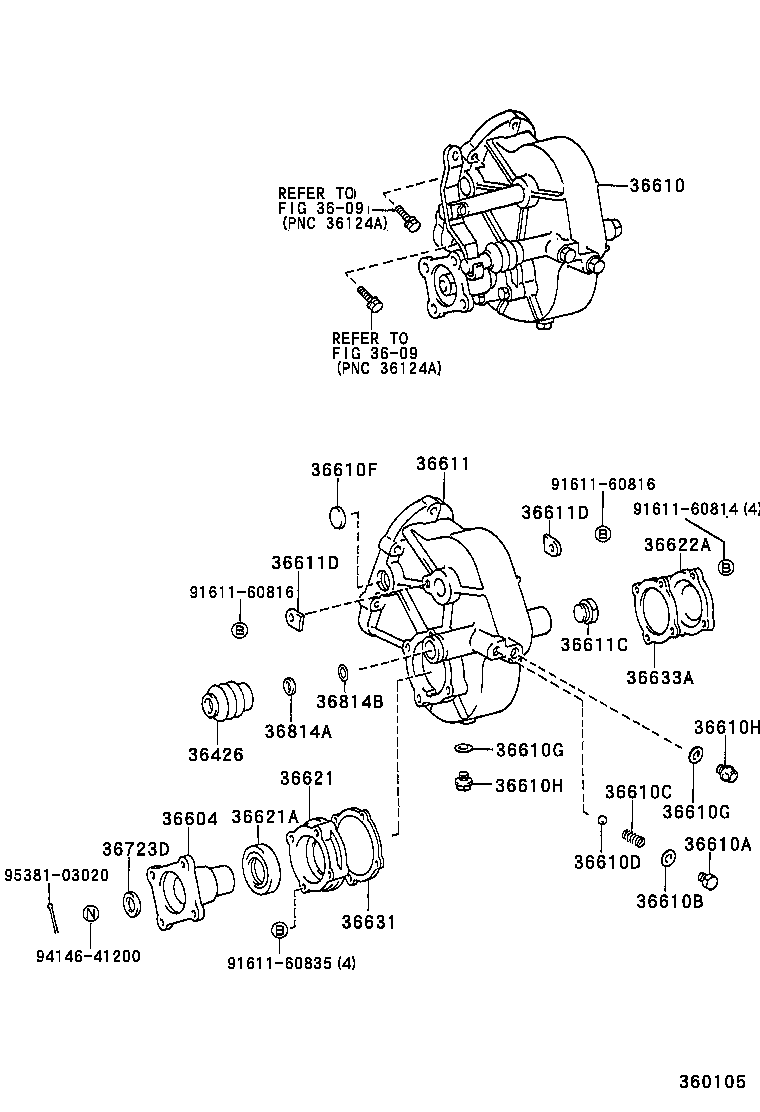

ILLUST NO. 1 OF 2(9001- )FZJ70,75..ARL ; (9001- )FJ7#,FZJ70,73,75,HJ75,HZJ70,73,75,KZJ7#,LJ7#,

Click highlighted areas on diagram

diagram 3609 3609 36426 36604 36610 36610A 36610B 36610C 36610D 36610F 36610G 36610G 36610H 36610H 36611 36611C 36611D 36611D 36621 36621A 36622A 36631 36633A 36723D 36814A 36814B 9161160814 9161160816 9161160816 9161160835 9414641200 9538103020
Part # Description Qty Price
Common parts
91611-60814
91611-60816
91611-60835
94146-41200
95381-03020
Linked diagrams
3609

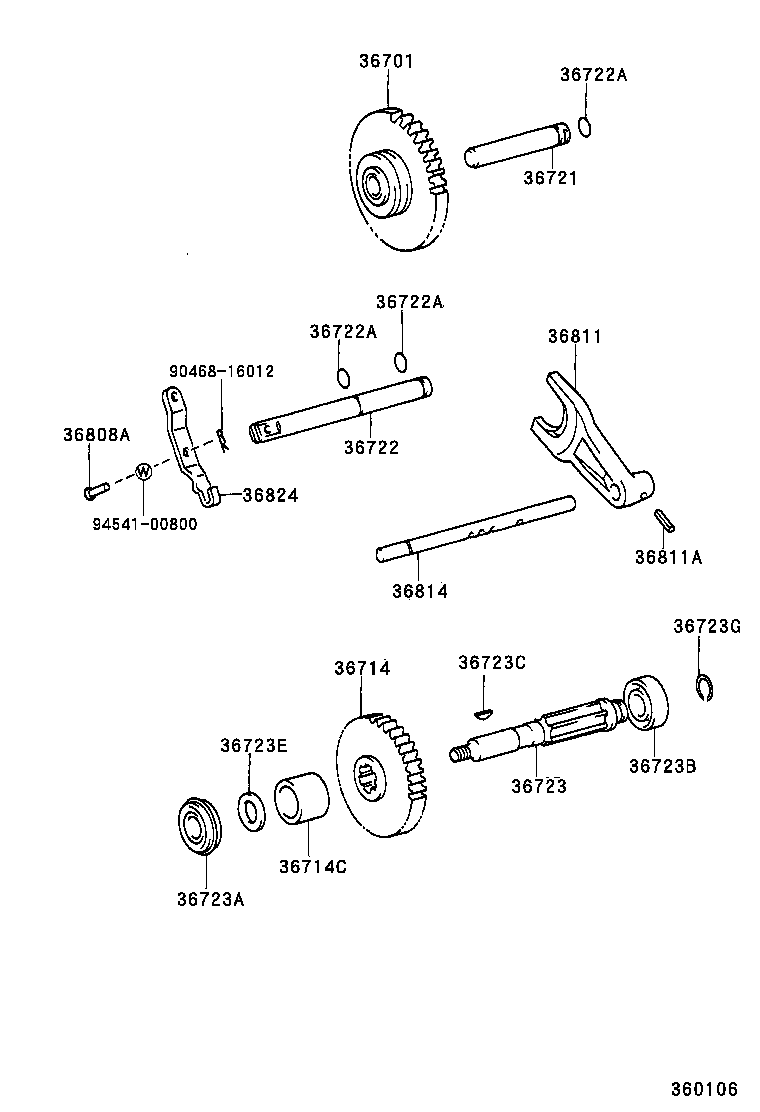

ILLUST NO. 2 OF 2(9001- )FZJ70,75..ARL ; (9001- )FJ7#,FZJ70,73,75,HJ75,HZJ70,73,75,KZJ7#,LJ7#,

Click highlighted areas on diagram

diagram 36701 36714 36714C 36721 36722 36722A 36722A 36722A 36723 36723A 36723B 36723C 36723E 36723G 36808A 36811 36811A 36814 36824 9046816012 9454100800
Part # Description Qty Price
Common parts
90468-16012
94541-00800

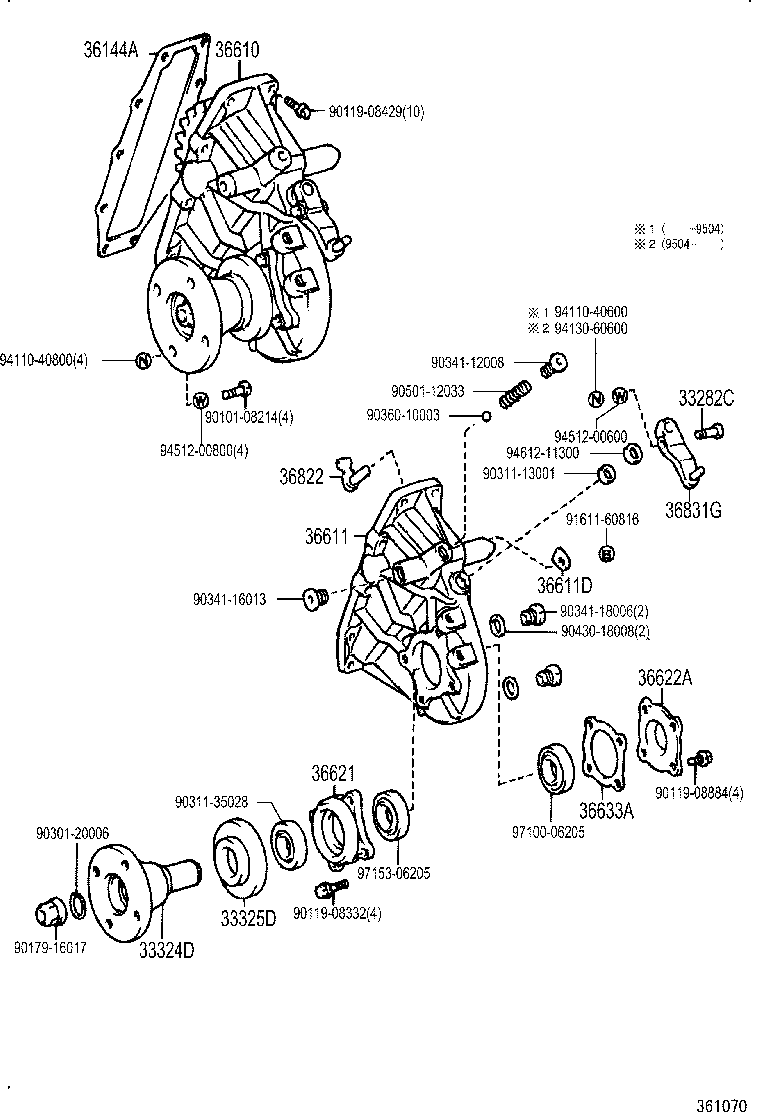

ILLUST NO. 1 OF 2(9001- )FZJ80..5F ; (9001- )FJ80,HDJ80,HZJ80 ; (9001- )FZJ80..4FC..GX,VX

Click highlighted areas on diagram

diagram 33282C 33324D 33325D 36144A 36610 36611 36611D 36621 36622A 36633A 36822 36831G 9010108214 9011908332 9011908429 9011908884 9017916017 9030120006 9031113001 9031135028 9034112008 9034116013 9034118006 9036010003 9043018008 9050112033 9161160816 9411040600 9411040800 9413060600 9451200600 9451200800 9461211300 9710006205 9715306205
Part # Description Qty Price
33282C - PIN, POWER TAKE-OFF SHIFT LEVER LOCK
33282-35010

FZJ80,HDJ80..LHD;HZJ80..5F..(GCC,GEN);FZJ80,HDJ80..RHD..5F..VX..GEN

 1
33282-35010

FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN

 1
33324D - FLANGE, OUTPUT SHAFT COMPANION
33324-60090

FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN

 1
33324-60090

FZJ80,HDJ80..LHD;HZJ80..5F..(GCC,GEN);FZJ80,HDJ80..RHD..5F..VX..GEN

 1
33325D - DEFLECTOR, DUST (FOR POWER TAKE-OFF)
33325-60080

FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN

 1
33325-60080

FZJ80,HDJ80..LHD;HZJ80..5F..(GCC,GEN);FZJ80,HDJ80..RHD..5F..VX..GEN

 1
36144A - GASKET, TRANSFER POWER TAKE-OFF COVER, NO.2
36144-60030

FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN

 1
36610 - POWER TAKE-OFF ASSY
36610-60090

FZJ80,HDJ80..LHD;HZJ80..5F..(GCC,GEN);FZJ80,HDJ80..RHD..5F..VX..GEN

 1
36610-60090

FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN

 1
36611 - CASE, POWER TAKE-OFF
36611-60050

FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN

 1
36611-60050

FZJ80,HDJ80..LHD;HZJ80..5F..(GCC,GEN);FZJ80,HDJ80..RHD..5F..VX..GEN

 1
36611D - PLATE, LOCK (FOR POWER TAKE-OFF CASE)
36726-60010

FZJ80,HDJ80..LHD;HZJ80..5F..(GCC,GEN);FZJ80,HDJ80..RHD..5F..VX..GEN

 1
36726-60010

FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN

 1
36621 - RETAINER, POWER TAKE-OFF BEARING
36621-60020

FZJ80,HDJ80..LHD;HZJ80..5F..(GCC,GEN);FZJ80,HDJ80..RHD..5F..VX..GEN

 1
36621-60020

FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN

 1
36622A - COVER, POWER TAKE-OFF
36622-60010

FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN

 1
36622-60010

FZJ80,HDJ80..LHD;HZJ80..5F..(GCC,GEN);FZJ80,HDJ80..RHD..5F..VX..GEN

 1
36633A - GASKET, POWER TAKE-OFF COVER
36633-60010

FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN

 1
36633-60010

FZJ80,HDJ80..LHD;HZJ80..5F..(GCC,GEN);FZJ80,HDJ80..RHD..5F..VX..GEN

 1
36822 - SHAFT, POWER TAKE-OFF SHIFT LEVER
36822-60020

FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN

 1
36822-60020

FZJ80,HDJ80..LHD;HZJ80..5F..(GCC,GEN);FZJ80,HDJ80..RHD..5F..VX..GEN

 1
36831G - LEVER, POWER TAKE-OFF SHIFT, NO.1
36831-60130

FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN

 1
36831-60130

FZJ80,HDJ80..LHD;HZJ80..5F..(GCC,GEN);FZJ80,HDJ80..RHD..5F..VX..GEN

 1
Common parts
90101-08214
90119-08332
90119-08429
90119-08884
90179-16017
90301-20006
90311-13001
90311-35028
90341-12008
90341-16013
90341-18006
90360-10003
90430-18008
90501-12033
91611-60816
94110-40600
94110-40800
94130-60600
94512-00600
94512-00800
94612-11300
97100-06205
97153-06205

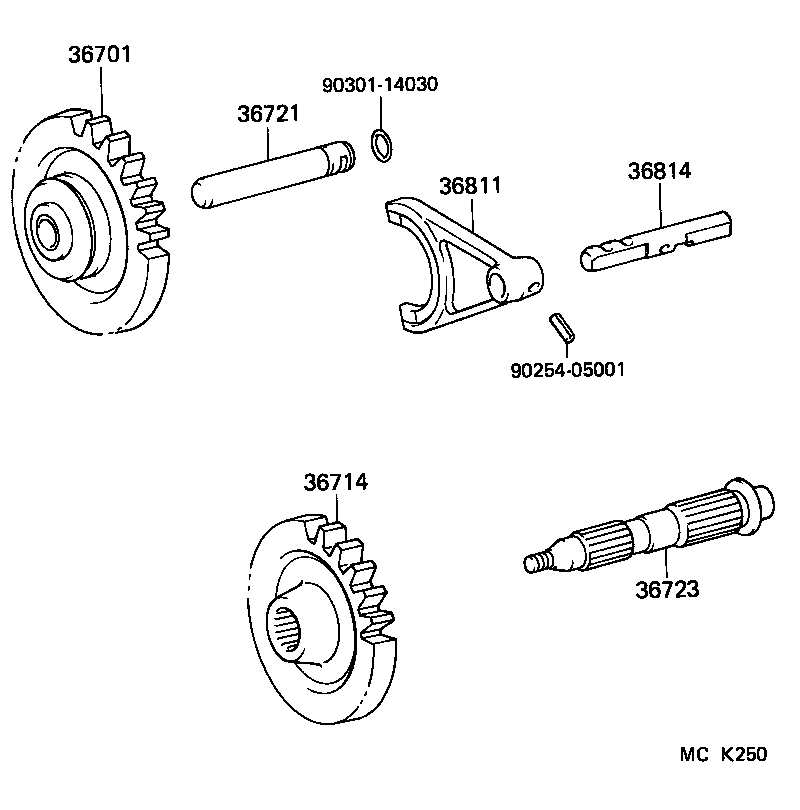

ILLUST NO. 2 OF 2(9001-9801)

Click highlighted areas on diagram

diagram 36701 36714 36721 36723 36811 36814 9025405001 9030114030
Part # Description Qty Price
36701 - GEAR SUB-ASSY, POWER TAKE-OFF INPUT
36701-60030

FZJ80,HDJ80..LHD;HZJ80..5F..(GCC,GEN);FZJ80,HDJ80..RHD..5F..VX..GEN

 1
36701-60030

FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN

 1
36714 - GEAR, POWER TAKE-OFF OUTPUT
36714-60030

FZJ80,HDJ80..LHD;HZJ80..5F..(GCC,GEN);FZJ80,HDJ80..RHD..5F..VX..GEN

 1
36714-60030

FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN

 1
36721 - SHAFT, POWER TAKE-OFF INPUT GEAR
36721-60020

FZJ80,HDJ80..LHD;HZJ80..5F..(GCC,GEN);FZJ80,HDJ80..RHD..5F..VX..GEN

 1
36721-60020

FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN

 1
36723 - SHAFT, POWER TAKE-OFF OUTPUT, NO.1
36723-60060

FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN

 1
36723-60060

FZJ80,HDJ80..LHD;HZJ80..5F..(GCC,GEN);FZJ80,HDJ80..RHD..5F..VX..GEN

 1
36811 - FORK, POWR TAKE-OFF SHIFT, NO.1
36811-60040

FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN

 1
36811-60040

FZJ80,HDJ80..LHD;HZJ80..5F..(GCC,GEN);FZJ80,HDJ80..RHD..5F..VX..GEN

 1
36814 - SHAFT, POWR TAKE-OFF FORK, NO.1
36814-60040

FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN

 1
36814-60040

FZJ80,HDJ80..LHD;HZJ80..5F..(GCC,GEN);FZJ80,HDJ80..RHD..5F..VX..GEN

 1
Common parts
90254-05001
90301-14030
