HZJ80L-GCMNSV (1990)
Toyota Land Cruiser
ILLUST NO. 3 OF 4(9001-0907)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 83791-60080 | ||||
| 83791-90K00 | ||||
| 90159-60081 | ||||
| 90179-06009 | ||||
| 90179-06070 | ||||
| 90189-06006 | ||||
| 90464-00165 | ||||
| 90989-01038 | ||||
| 90989-01039 | ||||
| 90989-01050 | ||||
| 93568-55012 | ||||
| Linked diagrams | ||||
| 5551 | ||||

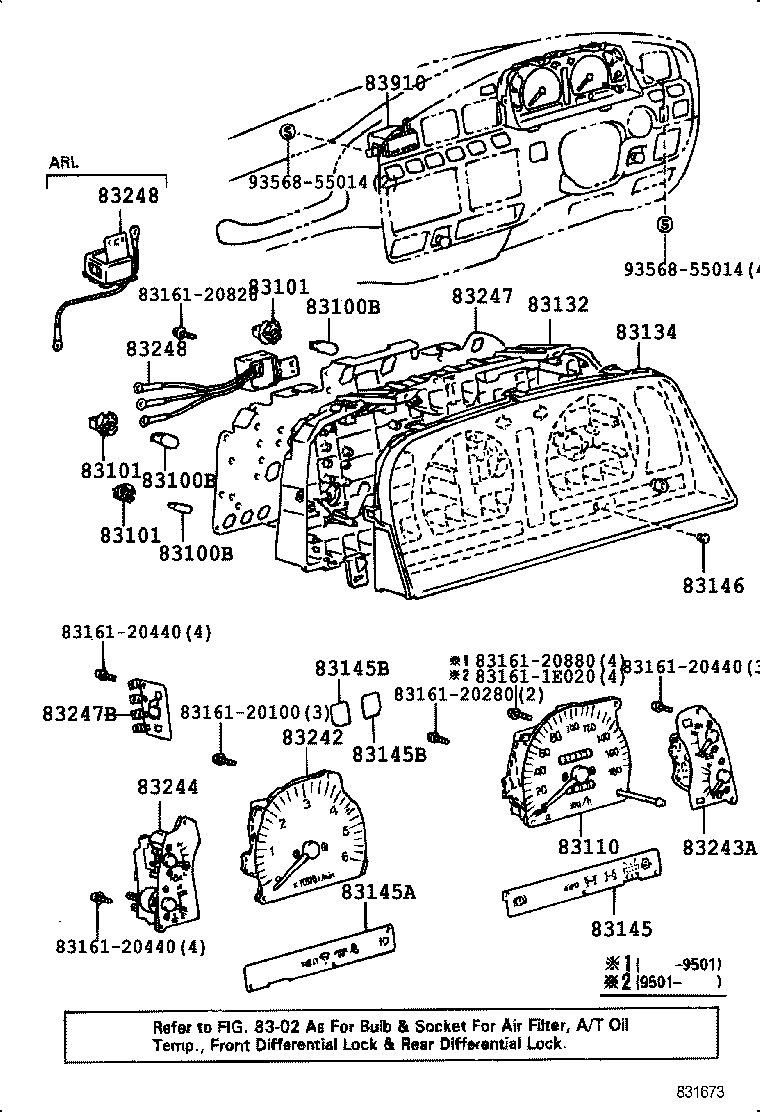

ILLUST NO. 1 OF 4(9001-9208) ; (9711- )FZJ80..LHD..GEN
SPEEDMETER(TACHOMETER) & CLOCK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11035 |
FJ80,FZJ80,HDJ80,HZJ80 14V 3.4W |
4 | ||
| 90981-11018 |
HZJ80..GCC 12V 1.2W W/O SOCKET |
10 | ||
| 99132-12034 |
FJ80,FZJ80,HDJ80,HZJ80 12V 3.4W |
3 | ||
| 83119-36080 |
FZJ80,HZJ80..GCC 12V 2.0W |
1 | ||
| 90981-11018 |
HDJ80..ARL;HZJ80..GX..GCC 12V 1.2W W/O SOCKET |
10 | ||
| 99132-12034 |
FJ80,HZJ80..5F..GX..GCC 12V 3.4W,W(SPEED METER + CONBIMETER) |
3 | ||
| 99132-12034 |
HZJ80..RHD..5F..STD..GEN;FJ80,FZJ80,HZJ80..5F..GX..GCC 12V 3.4W,W(SPEED METER + CONBIMETER) |
3 | ||
| 90981-11018 |
FZJ80..SOB..EFI;HDJ80..4FC..GEN;HZJ80..RHD..GEN;HZJ80..LHD..LUB;FZJ80..LUB..GCC..EFI;HZJ80..SOB..(GX,STD)..(ARL,GCC) 12V 1.2W W/O SOCKET |
10 | ||
| 83119-36080 |
HZJ80..GCC;FZJ80..(GX,STD)..GCC 12V 2.0W |
1 | ||
| 83119-36060 |
FZJ80,HDJ80,HZJ80 12V 3.0W GREEN CAP |
1 | ||
| 83119-36060 |
FZJ80,HDJ80,HZJ80..GCC,GEN 12V 3.0W GREEN CAP |
4 | ||
| 99132-12034 |
FZJ80,HDJ80,HZJ80 12V 3.4W |
1 | ||
| 90981-11018 |
HZJ80..GCC;FZJ80..STD..GEN;FZJ80..(GX,STD)..GCC 12V 1.2W W/O SOCKET |
6 | ||
| 99132-12034 |
FZJ80,HDJ80,HZJ80..GCC,GEN 12V 3.4W |
3 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11035 |
FJ80,FZJ80,HDJ80,HZJ80 14V 3.4W |
4 | ||
| 90981-11018 |
HZJ80..GCC 12V 1.2W W/O SOCKET |
10 | ||
| 99132-12034 |
FJ80,FZJ80,HDJ80,HZJ80 12V 3.4W |
3 | ||
| 83119-36080 |
FZJ80,HZJ80..GCC 12V 2.0W |
1 | ||
| 90981-11018 |
HDJ80..ARL;HZJ80..GX..GCC 12V 1.2W W/O SOCKET |
10 | ||
| 99132-12034 |
FJ80,HZJ80..5F..GX..GCC 12V 3.4W,W(SPEED METER + CONBIMETER) |
3 | ||
| 99132-12034 |
HZJ80..RHD..5F..STD..GEN;FJ80,FZJ80,HZJ80..5F..GX..GCC 12V 3.4W,W(SPEED METER + CONBIMETER) |
3 | ||
| 90981-11018 |
FZJ80..SOB..EFI;HDJ80..4FC..GEN;HZJ80..RHD..GEN;HZJ80..LHD..LUB;FZJ80..LUB..GCC..EFI;HZJ80..SOB..(GX,STD)..(ARL,GCC) 12V 1.2W W/O SOCKET |
10 | ||
| 83119-36080 |
HZJ80..GCC;FZJ80..(GX,STD)..GCC 12V 2.0W |
1 | ||
| 83119-36060 |
FZJ80,HDJ80,HZJ80 12V 3.0W GREEN CAP |
1 | ||
| 83119-36060 |
FZJ80,HDJ80,HZJ80..GCC,GEN 12V 3.0W GREEN CAP |
4 | ||
| 99132-12034 |
FZJ80,HDJ80,HZJ80 12V 3.4W |
1 | ||
| 90981-11018 |
HZJ80..GCC;FZJ80..STD..GEN;FZJ80..(GX,STD)..GCC 12V 1.2W W/O SOCKET |
6 | ||
| 99132-12034 |
FZJ80,HDJ80,HZJ80..GCC,GEN 12V 3.4W |
3 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11035 |
FJ80,FZJ80,HDJ80,HZJ80 14V 3.4W |
4 | ||
| 90981-11018 |
HZJ80..GCC 12V 1.2W W/O SOCKET |
10 | ||
| 99132-12034 |
FJ80,FZJ80,HDJ80,HZJ80 12V 3.4W |
3 | ||
| 83119-36080 |
FZJ80,HZJ80..GCC 12V 2.0W |
1 | ||
| 90981-11018 |
HDJ80..ARL;HZJ80..GX..GCC 12V 1.2W W/O SOCKET |
10 | ||
| 99132-12034 |
FJ80,HZJ80..5F..GX..GCC 12V 3.4W,W(SPEED METER + CONBIMETER) |
3 | ||
| 99132-12034 |
HZJ80..RHD..5F..STD..GEN;FJ80,FZJ80,HZJ80..5F..GX..GCC 12V 3.4W,W(SPEED METER + CONBIMETER) |
3 | ||
| 90981-11018 |
FZJ80..SOB..EFI;HDJ80..4FC..GEN;HZJ80..RHD..GEN;HZJ80..LHD..LUB;FZJ80..LUB..GCC..EFI;HZJ80..SOB..(GX,STD)..(ARL,GCC) 12V 1.2W W/O SOCKET |
10 | ||
| 83119-36080 |
HZJ80..GCC;FZJ80..(GX,STD)..GCC 12V 2.0W |
1 | ||
| 83119-36060 |
FZJ80,HDJ80,HZJ80 12V 3.0W GREEN CAP |
1 | ||
| 83119-36060 |
FZJ80,HDJ80,HZJ80..GCC,GEN 12V 3.0W GREEN CAP |
4 | ||
| 99132-12034 |
FZJ80,HDJ80,HZJ80 12V 3.4W |
1 | ||
| 90981-11018 |
HZJ80..GCC;FZJ80..STD..GEN;FZJ80..(GX,STD)..GCC 12V 1.2W W/O SOCKET |
6 | ||
| 99132-12034 |
FZJ80,HDJ80,HZJ80..GCC,GEN 12V 3.4W |
3 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-20040 |
FJ80,FZJ80,HDJ80,HZJ80 3.4W BULB |
7 | ||
| 83101-20040 |
FJ80,HZJ80..5F..GX..GCC W(SPEED METER + CONBIMETER),3.4W BULB |
7 | ||
| 83101-14040 |
HDJ80..ARL;HZJ80..GX..GCC 1.2W OR 1.4W BULB |
10 | ||
| 83101-14040 |
HZJ80..GCC 1.2W OR 1.4W BULB |
10 | ||
| 83101-20040 |
HZJ80..RHD..5F..STD..GEN;FJ80,FZJ80..SOB..STD..GEN;FJ80,FZJ80,HZJ80..5F..GX..GCC W(SPEED METER + CONBIMETER),3.4W BULB |
7 | ||
| 83101-20040 |
FJ80..STD..GEN;FJ80,HZJ80..5F..GX..GCC W(SPEED METER + CONBIMETER),3.4W BULB |
7 | ||
| 83101-14040 |
HZJ80..VX..GEN;HDJ80..4FC..GEN;FZJ80..SOB..EFI;HZJ80..GX..(GCC,GEN);FZJ80..LUB..GCC..EFI 1.2W OR 1.4W BULB |
10 | ||
| 83101-20040 |
HDJ80,HZJ80;FZJ80..GCC,GEN;FZJ80..STD..EFI 3.4W BULB |
7 | ||
| 83101-14040 |
FZJ80..GCC..CBR;HZJ80..RHD..GEN;HZJ80..LHD..(GX,VX) 1.2W OR 1.4W BULB |
7 | ||
| 83101-20040 |
HZJ80;FZJ80..GCC,GEN;FZJ80..STD..EFI 3.4W BULB |
7 | ||
| 83101-20040 |
FZJ80,HDJ80,HZJ80 3.4W BULB |
7 | ||
| 83101-20040 |
FZJ80,HDJ80,HZJ80..GCC,GEN 3.4W BULB |
7 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-20040 |
FJ80,FZJ80,HDJ80,HZJ80 3.4W BULB |
7 | ||
| 83101-20040 |
FJ80,HZJ80..5F..GX..GCC W(SPEED METER + CONBIMETER),3.4W BULB |
7 | ||
| 83101-14040 |
HDJ80..ARL;HZJ80..GX..GCC 1.2W OR 1.4W BULB |
10 | ||
| 83101-14040 |
HZJ80..GCC 1.2W OR 1.4W BULB |
10 | ||
| 83101-20040 |
HZJ80..RHD..5F..STD..GEN;FJ80,FZJ80..SOB..STD..GEN;FJ80,FZJ80,HZJ80..5F..GX..GCC W(SPEED METER + CONBIMETER),3.4W BULB |
7 | ||
| 83101-20040 |
FJ80..STD..GEN;FJ80,HZJ80..5F..GX..GCC W(SPEED METER + CONBIMETER),3.4W BULB |
7 | ||
| 83101-14040 |
HZJ80..VX..GEN;HDJ80..4FC..GEN;FZJ80..SOB..EFI;HZJ80..GX..(GCC,GEN);FZJ80..LUB..GCC..EFI 1.2W OR 1.4W BULB |
10 | ||
| 83101-20040 |
HDJ80,HZJ80;FZJ80..GCC,GEN;FZJ80..STD..EFI 3.4W BULB |
7 | ||
| 83101-14040 |
FZJ80..GCC..CBR;HZJ80..RHD..GEN;HZJ80..LHD..(GX,VX) 1.2W OR 1.4W BULB |
7 | ||
| 83101-20040 |
HZJ80;FZJ80..GCC,GEN;FZJ80..STD..EFI 3.4W BULB |
7 | ||
| 83101-20040 |
FZJ80,HDJ80,HZJ80 3.4W BULB |
7 | ||
| 83101-20040 |
FZJ80,HDJ80,HZJ80..GCC,GEN 3.4W BULB |
7 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-20040 |
FJ80,FZJ80,HDJ80,HZJ80 3.4W BULB |
7 | ||
| 83101-20040 |
FJ80,HZJ80..5F..GX..GCC W(SPEED METER + CONBIMETER),3.4W BULB |
7 | ||
| 83101-14040 |
HDJ80..ARL;HZJ80..GX..GCC 1.2W OR 1.4W BULB |
10 | ||
| 83101-14040 |
HZJ80..GCC 1.2W OR 1.4W BULB |
10 | ||
| 83101-20040 |
HZJ80..RHD..5F..STD..GEN;FJ80,FZJ80..SOB..STD..GEN;FJ80,FZJ80,HZJ80..5F..GX..GCC W(SPEED METER + CONBIMETER),3.4W BULB |
7 | ||
| 83101-20040 |
FJ80..STD..GEN;FJ80,HZJ80..5F..GX..GCC W(SPEED METER + CONBIMETER),3.4W BULB |
7 | ||
| 83101-14040 |
HZJ80..VX..GEN;HDJ80..4FC..GEN;FZJ80..SOB..EFI;HZJ80..GX..(GCC,GEN);FZJ80..LUB..GCC..EFI 1.2W OR 1.4W BULB |
10 | ||
| 83101-20040 |
HDJ80,HZJ80;FZJ80..GCC,GEN;FZJ80..STD..EFI 3.4W BULB |
7 | ||
| 83101-14040 |
FZJ80..GCC..CBR;HZJ80..RHD..GEN;HZJ80..LHD..(GX,VX) 1.2W OR 1.4W BULB |
7 | ||
| 83101-20040 |
HZJ80;FZJ80..GCC,GEN;FZJ80..STD..EFI 3.4W BULB |
7 | ||
| 83101-20040 |
FZJ80,HDJ80,HZJ80 3.4W BULB |
7 | ||
| 83101-20040 |
FZJ80,HDJ80,HZJ80..GCC,GEN 3.4W BULB |
7 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83110-60202 |
HDJ80,HZJ80..GCC,GEN KM |
1 | ||
| 83110-60240 |
HZJ80..GCC |
1 | ||
| 83110-60202 |
HZJ80..GCC |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-60100 |
FJ80..STD..ARL;FJ80..5F..GX..GCC;HZJ80..SOB..(ARL,GCC) W(SUB FUEL TANK) |
1 | ||
| 83132-60720 |
FZJ80,HZJ80..GX..GCC;HZJ80..RHD..STD..GEN W(TACHOMETER) |
1 | ||
| 83132-60100 |
HZJ80..RHD..5F..STD;FJ80,FZJ80..STD..(ARL,GEN);FJ80,FZJ80,HZJ80..5F..GX..GCC W(TACHOMETER) |
1 | ||
| 83132-60120 |
FJ80,FZJ80,HZJ80..STD..(ARL,GEN);FJ80,FZJ80,HZJ80..5F..(GX,STD)..GCC |
1 | ||
| 83132-60770 |
HZJ80..GX..GCC W(SUB FUEL TANK) |
1 | ||
| 83132-60100 |
FJ80,HZJ80..5F..GX..GCC W(SUB FUEL TANK) |
1 | ||
| 83134 - COVER, COMBINATION METER, NO.1 | ||||
| 83134-60120 |
HZJ80..SOB..(ARL,GCC) W(TACHOMETER) |
1 | ||
| 83134-60140 |
HZJ80..STD;HZJ80..GX..GCC |
1 | ||
| 83134-60120 |
HZJ80..GX..GCC;HZJ80..RHD..5F..STD W(TACHOMETER) |
1 | ||
| 83134-60120 |
HZJ80..GX..GCC;HZJ80..RHD..STD..GEN W(TACHOMETER) |
1 | ||
| 83134-60120 |
HZJ80..GX..GCC W(TACHOMETER) |
1 | ||
| 83145 - LENS, METER, NO.1 | ||||
| 83145-60560 |
FJ80..RHD..GEN;HZJ80..GX..GCC;FJ80..LHD..STD..GEN;FZJ80,HZJ80..STD..GEN |
1 | ||
| 83145-60140 |
HZJ80..GX..GCC W(TACHOMETER) |
1 | ||
| 83145-60140 |
FZJ80,HZJ80..GX..GCC W(TACHOMETER) |
1 | ||
| 83145-60560 |
FZJ80..LUB..ARL;FZJ80,HZJ80..STD..GEN;FZJ80,HZJ80..(GX,STD)..GCC W(DIFFERENTIAL LOCK) OR W(*RWD) OR W(*PW) OR W(SUB FUEL TANK) OR (DUAL *AIC)---EXCL(*TAC) |
1 | ||
| 83145-6A080 |
HZJ80..GX..GCC W(SUB FUEL TANK) |
1 | ||
| 83145-6A100 |
HZJ80..GX..GCC;HZJ80..STD..GEN |
1 | ||
| 83832-60450 |
HZJ80..GX..GCC W(SUB FUEL TANK) |
1 | ||
| 83832-60470 |
HZJ80..GX..GCC |
1 | ||
| 83145A - LENS, METER, NO.2 | ||||
| 83145-60660 |
HZJ80..GX..GCC |
1 | ||
| 83145-60440 |
HZJ80..GX..GCC W(TACHOMETER) |
1 | ||
| 83146-60480 |
HZJ80..GX..GCC W(TACHOMETER) |
1 | ||
| 83146-60640 |
HZJ80..GX..GCC |
1 | ||
| 83145-6A460 |
HZJ80..GX..GCC;HZJ80..STD..GEN |
1 | ||
| 83145-6A400 |
HZJ80..GX..GCC W(SUB TANK) |
1 | ||
| 83831-60530 |
HZJ80..GX..GCC W(SUB TANK) |
1 | ||
| 83145B - LENS, METER, NO.3 | ||||
| 83145-2B460 |
HZJ80..STD..ARL;FJ80..STD..(ARL,GEN);FJ80,HDJ80,HZJ80..GX,VX |
2 | ||
| 83145-2B460 |
FZJ80..LUB;HZJ80..RHD..5F;FZJ80..SOB..GEN;FJ80,HDJ80..GX,VX;HZJ80..LHD..(GX,VX);FJ80..STD..(ARL,GEN);FZJ80..SOB..(GX,VX)..GCC |
2 | ||
| 83145-2B460 |
FJ80,HZJ80..STD..ARL;FJ80,HDJ80,HZJ80..GX,VX |
2 | ||
| 83145-2B460 |
HDJ80;FZJ80..LUB;HZJ80..RHD;FZJ80..STD..ARL;FZJ80..SOB..(GX,VX);HZJ80..LHD..(GX,VX) |
2 | ||
| 83145B - LENS, METER, NO.3 | ||||
| 83145-2B460 |
HZJ80..STD..ARL;FJ80..STD..(ARL,GEN);FJ80,HDJ80,HZJ80..GX,VX |
2 | ||
| 83145-2B460 |
FZJ80..LUB;HZJ80..RHD..5F;FZJ80..SOB..GEN;FJ80,HDJ80..GX,VX;HZJ80..LHD..(GX,VX);FJ80..STD..(ARL,GEN);FZJ80..SOB..(GX,VX)..GCC |
2 | ||
| 83145-2B460 |
FJ80,HZJ80..STD..ARL;FJ80,HDJ80,HZJ80..GX,VX |
2 | ||
| 83145-2B460 |
HDJ80;FZJ80..LUB;HZJ80..RHD;FZJ80..STD..ARL;FZJ80..SOB..(GX,VX);HZJ80..LHD..(GX,VX) |
2 | ||
| 83146 - GROMMET, METER GLASS | ||||
| 83145-89318 |
HDJ80,HZJ80 |
1 | ||
| 83242 - TACHOMETER ASSY, ENGINE | ||||
| 83242-60280 |
HZJ80..RHD..5F;HZJ80..LHD..(GX,VX) |
1 | ||
| 83242-60280 |
HZJ80..GX,VX;HZJ80..STD..ARL |
1 | ||
| 83242-60820 |
HZJ80..RHD;HZJ80..LHD..(GX,VX) |
1 | ||
| 83243A - GAUGE SUB-ASSY, FUEL RECEIVER | ||||
| 83243-60040 |
FJ80..STD..ARL;HZJ80..SOB..(ARL,GCC) W(TACHOMETER) |
1 | ||
| 83243-60100 |
FJ80,FZJ80,HZJ80..5F..(GX,STD)..GCC |
1 | ||
| 83243-60120 |
FJ80,HZJ80..5F..(GX,STD)..GCC W(SUB FUEL TANK) |
1 | ||
| 83243-60040 |
FJ80..STD..ARL;HZJ80..GX..GCC;FZJ80..LUB..STD;HZJ80..RHD..5F..STD W(TACHOMETER) |
1 | ||
| 83243-60240 |
FZJ80,HZJ80..GX..GCC;HZJ80..RHD..STD..GEN W(TACHOMETER) |
1 | ||
| 83243-60300 |
FZJ80,HZJ80..5F..(GX,STD)..GCC |
1 | ||
| 83243-60240 |
HZJ80..GX..GCC W(SUB FUEL TANK) |
1 | ||
| 83244 - GAUGE SUB-ASSY, WATER TEMPERATURE RECEIVER | ||||
| 83244-60040 |
HZJ80..RHD..5F..GEN;HZJ80..LHD..(GX,VX);FJ80,HDJ80..(GX,VX)..GEN WIDE TYPE |
1 | ||
| 83244-60040 |
HZJ80..GCC |
1 | ||
| 83244-60040 |
FJ80,HZJ80..(GX,VX)..GCC |
1 | ||
| 83244-60320 |
HZJ80..GCC;HZJ80..RHD..STD..GEN |
1 | ||
| 83247 - PLATE, METER CIRCUIT | ||||
| 83247-60500 |
HZJ80..GCC W(SUB FUEL TANK) |
1 | ||
| 83247-60240 |
HZJ80..GX..GCC W(TACHOMETER) |
1 | ||
| 83247-60460 |
HZJ80..GX..GCC |
1 | ||
| 83247-6A060 |
HZJ80..GX..GCC;HZJ80..STD..GEN |
1 | ||
| 83149-60800 |
HZJ80..GX..GCC W(TACHOMETER) |
1 | ||
| 83247-6A320 |
HZJ80..GX..GCC W(SUB FUEL TANK) |
1 | ||
| 83247-6A400 |
HZJ80..GX..GCC;HZJ80..STD..GEN |
1 | ||
| 83861-60570 |
HZJ80..GX..GCC W(SUB FUEL TANK) |
1 | ||
| 83248 - CHIME, SPEED WARNING | ||||
| 86640-60010 |
FJ80,FZJ80,HZJ80..GCC |
1 | ||
| 86650-30110 |
FZJ80,HZJ80..GCC |
1 | ||
| 83910 - CLOCK ASSY | ||||
| 83910-60030 |
FJ80..(GX,STD)..GCC;FJ80,HDJ80..LHD..GEN;FZJ80,HZJ80..LHD..VX..GEN;FZJ80,HZJ80..LHD..(GX,STD) |
1 | ||
| 83910-60030 |
FZJ80,HZJ80..LHD..(GX,STD);FZJ80,HDJ80,HZJ80..LHD..VX..GEN |
1 | ||
| Common parts | ||||
| 83161-20100 | ||||
| 83161-20300 | ||||
| 83161-20440 | ||||
| 83161-20720 | ||||
| 93568-55014 | ||||
| Linked diagrams | ||||
| 8302 | ||||

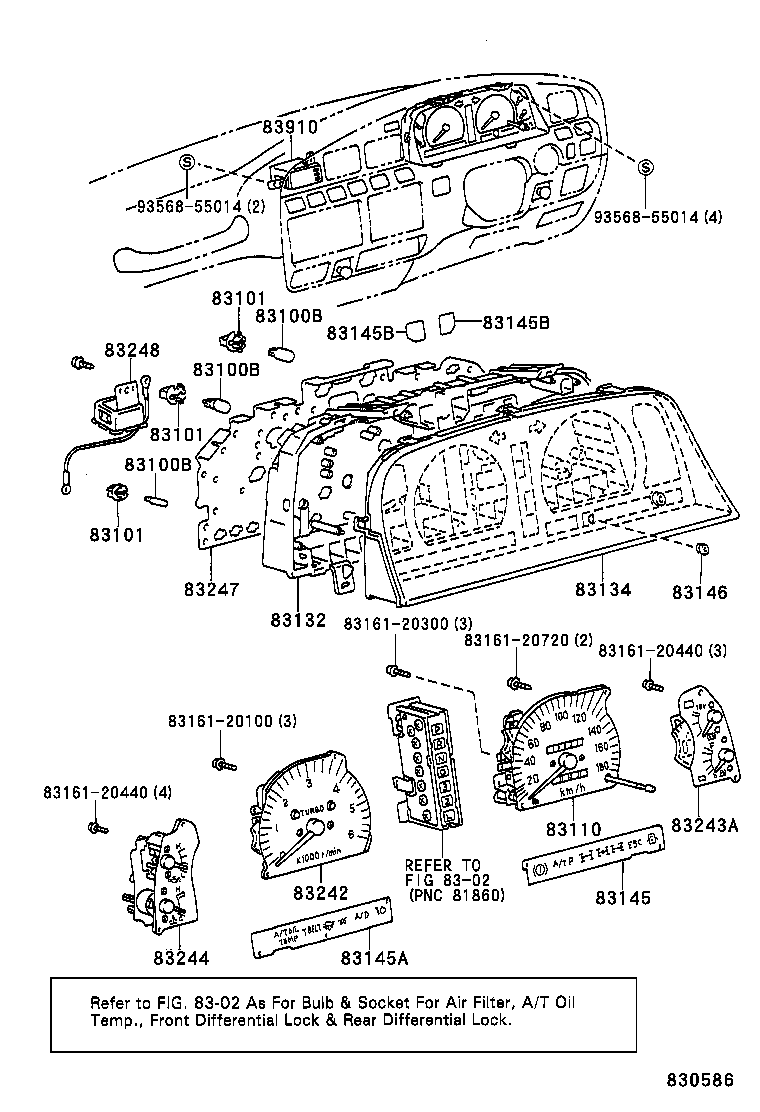

ILLUST NO. 1 OF 4(9208- )
SPEEDMETER & CLOCK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11035 |
FJ80,FZJ80,HDJ80,HZJ80 14V 3.4W |
4 | ||
| 90981-11018 |
HZJ80..GCC 12V 1.2W W/O SOCKET |
10 | ||
| 99132-12034 |
FJ80,FZJ80,HDJ80,HZJ80 12V 3.4W |
3 | ||
| 83119-36080 |
FZJ80,HZJ80..GCC 12V 2.0W |
1 | ||
| 90981-11018 |
HDJ80..ARL;HZJ80..GX..GCC 12V 1.2W W/O SOCKET |
10 | ||
| 99132-12034 |
FJ80,HZJ80..5F..GX..GCC 12V 3.4W,W(SPEED METER + CONBIMETER) |
3 | ||
| 99132-12034 |
HZJ80..RHD..5F..STD..GEN;FJ80,FZJ80,HZJ80..5F..GX..GCC 12V 3.4W,W(SPEED METER + CONBIMETER) |
3 | ||
| 90981-11018 |
FZJ80..SOB..EFI;HDJ80..4FC..GEN;HZJ80..RHD..GEN;HZJ80..LHD..LUB;FZJ80..LUB..GCC..EFI;HZJ80..SOB..(GX,STD)..(ARL,GCC) 12V 1.2W W/O SOCKET |
10 | ||
| 83119-36080 |
HZJ80..GCC;FZJ80..(GX,STD)..GCC 12V 2.0W |
1 | ||
| 83119-36060 |
FZJ80,HDJ80,HZJ80 12V 3.0W GREEN CAP |
1 | ||
| 83119-36060 |
FZJ80,HDJ80,HZJ80..GCC,GEN 12V 3.0W GREEN CAP |
4 | ||
| 99132-12034 |
FZJ80,HDJ80,HZJ80 12V 3.4W |
1 | ||
| 90981-11018 |
HZJ80..GCC;FZJ80..STD..GEN;FZJ80..(GX,STD)..GCC 12V 1.2W W/O SOCKET |
6 | ||
| 99132-12034 |
FZJ80,HDJ80,HZJ80..GCC,GEN 12V 3.4W |
3 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11035 |
FJ80,FZJ80,HDJ80,HZJ80 14V 3.4W |
4 | ||
| 90981-11018 |
HZJ80..GCC 12V 1.2W W/O SOCKET |
10 | ||
| 99132-12034 |
FJ80,FZJ80,HDJ80,HZJ80 12V 3.4W |
3 | ||
| 83119-36080 |
FZJ80,HZJ80..GCC 12V 2.0W |
1 | ||
| 90981-11018 |
HDJ80..ARL;HZJ80..GX..GCC 12V 1.2W W/O SOCKET |
10 | ||
| 99132-12034 |
FJ80,HZJ80..5F..GX..GCC 12V 3.4W,W(SPEED METER + CONBIMETER) |
3 | ||
| 99132-12034 |
HZJ80..RHD..5F..STD..GEN;FJ80,FZJ80,HZJ80..5F..GX..GCC 12V 3.4W,W(SPEED METER + CONBIMETER) |
3 | ||
| 90981-11018 |
FZJ80..SOB..EFI;HDJ80..4FC..GEN;HZJ80..RHD..GEN;HZJ80..LHD..LUB;FZJ80..LUB..GCC..EFI;HZJ80..SOB..(GX,STD)..(ARL,GCC) 12V 1.2W W/O SOCKET |
10 | ||
| 83119-36080 |
HZJ80..GCC;FZJ80..(GX,STD)..GCC 12V 2.0W |
1 | ||
| 83119-36060 |
FZJ80,HDJ80,HZJ80 12V 3.0W GREEN CAP |
1 | ||
| 83119-36060 |
FZJ80,HDJ80,HZJ80..GCC,GEN 12V 3.0W GREEN CAP |
4 | ||
| 99132-12034 |
FZJ80,HDJ80,HZJ80 12V 3.4W |
1 | ||
| 90981-11018 |
HZJ80..GCC;FZJ80..STD..GEN;FZJ80..(GX,STD)..GCC 12V 1.2W W/O SOCKET |
6 | ||
| 99132-12034 |
FZJ80,HDJ80,HZJ80..GCC,GEN 12V 3.4W |
3 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11035 |
FJ80,FZJ80,HDJ80,HZJ80 14V 3.4W |
4 | ||
| 90981-11018 |
HZJ80..GCC 12V 1.2W W/O SOCKET |
10 | ||
| 99132-12034 |
FJ80,FZJ80,HDJ80,HZJ80 12V 3.4W |
3 | ||
| 83119-36080 |
FZJ80,HZJ80..GCC 12V 2.0W |
1 | ||
| 90981-11018 |
HDJ80..ARL;HZJ80..GX..GCC 12V 1.2W W/O SOCKET |
10 | ||
| 99132-12034 |
FJ80,HZJ80..5F..GX..GCC 12V 3.4W,W(SPEED METER + CONBIMETER) |
3 | ||
| 99132-12034 |
HZJ80..RHD..5F..STD..GEN;FJ80,FZJ80,HZJ80..5F..GX..GCC 12V 3.4W,W(SPEED METER + CONBIMETER) |
3 | ||
| 90981-11018 |
FZJ80..SOB..EFI;HDJ80..4FC..GEN;HZJ80..RHD..GEN;HZJ80..LHD..LUB;FZJ80..LUB..GCC..EFI;HZJ80..SOB..(GX,STD)..(ARL,GCC) 12V 1.2W W/O SOCKET |
10 | ||
| 83119-36080 |
HZJ80..GCC;FZJ80..(GX,STD)..GCC 12V 2.0W |
1 | ||
| 83119-36060 |
FZJ80,HDJ80,HZJ80 12V 3.0W GREEN CAP |
1 | ||
| 83119-36060 |
FZJ80,HDJ80,HZJ80..GCC,GEN 12V 3.0W GREEN CAP |
4 | ||
| 99132-12034 |
FZJ80,HDJ80,HZJ80 12V 3.4W |
1 | ||
| 90981-11018 |
HZJ80..GCC;FZJ80..STD..GEN;FZJ80..(GX,STD)..GCC 12V 1.2W W/O SOCKET |
6 | ||
| 99132-12034 |
FZJ80,HDJ80,HZJ80..GCC,GEN 12V 3.4W |
3 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-20040 |
FJ80,FZJ80,HDJ80,HZJ80 3.4W BULB |
7 | ||
| 83101-20040 |
FJ80,HZJ80..5F..GX..GCC W(SPEED METER + CONBIMETER),3.4W BULB |
7 | ||
| 83101-14040 |
HDJ80..ARL;HZJ80..GX..GCC 1.2W OR 1.4W BULB |
10 | ||
| 83101-14040 |
HZJ80..GCC 1.2W OR 1.4W BULB |
10 | ||
| 83101-20040 |
HZJ80..RHD..5F..STD..GEN;FJ80,FZJ80..SOB..STD..GEN;FJ80,FZJ80,HZJ80..5F..GX..GCC W(SPEED METER + CONBIMETER),3.4W BULB |
7 | ||
| 83101-20040 |
FJ80..STD..GEN;FJ80,HZJ80..5F..GX..GCC W(SPEED METER + CONBIMETER),3.4W BULB |
7 | ||
| 83101-14040 |
HZJ80..VX..GEN;HDJ80..4FC..GEN;FZJ80..SOB..EFI;HZJ80..GX..(GCC,GEN);FZJ80..LUB..GCC..EFI 1.2W OR 1.4W BULB |
10 | ||
| 83101-20040 |
HDJ80,HZJ80;FZJ80..GCC,GEN;FZJ80..STD..EFI 3.4W BULB |
7 | ||
| 83101-14040 |
FZJ80..GCC..CBR;HZJ80..RHD..GEN;HZJ80..LHD..(GX,VX) 1.2W OR 1.4W BULB |
7 | ||
| 83101-20040 |
HZJ80;FZJ80..GCC,GEN;FZJ80..STD..EFI 3.4W BULB |
7 | ||
| 83101-20040 |
FZJ80,HDJ80,HZJ80 3.4W BULB |
7 | ||
| 83101-20040 |
FZJ80,HDJ80,HZJ80..GCC,GEN 3.4W BULB |
7 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-20040 |
FJ80,FZJ80,HDJ80,HZJ80 3.4W BULB |
7 | ||
| 83101-20040 |
FJ80,HZJ80..5F..GX..GCC W(SPEED METER + CONBIMETER),3.4W BULB |
7 | ||
| 83101-14040 |
HDJ80..ARL;HZJ80..GX..GCC 1.2W OR 1.4W BULB |
10 | ||
| 83101-14040 |
HZJ80..GCC 1.2W OR 1.4W BULB |
10 | ||
| 83101-20040 |
HZJ80..RHD..5F..STD..GEN;FJ80,FZJ80..SOB..STD..GEN;FJ80,FZJ80,HZJ80..5F..GX..GCC W(SPEED METER + CONBIMETER),3.4W BULB |
7 | ||
| 83101-20040 |
FJ80..STD..GEN;FJ80,HZJ80..5F..GX..GCC W(SPEED METER + CONBIMETER),3.4W BULB |
7 | ||
| 83101-14040 |
HZJ80..VX..GEN;HDJ80..4FC..GEN;FZJ80..SOB..EFI;HZJ80..GX..(GCC,GEN);FZJ80..LUB..GCC..EFI 1.2W OR 1.4W BULB |
10 | ||
| 83101-20040 |
HDJ80,HZJ80;FZJ80..GCC,GEN;FZJ80..STD..EFI 3.4W BULB |
7 | ||
| 83101-14040 |
FZJ80..GCC..CBR;HZJ80..RHD..GEN;HZJ80..LHD..(GX,VX) 1.2W OR 1.4W BULB |
7 | ||
| 83101-20040 |
HZJ80;FZJ80..GCC,GEN;FZJ80..STD..EFI 3.4W BULB |
7 | ||
| 83101-20040 |
FZJ80,HDJ80,HZJ80 3.4W BULB |
7 | ||
| 83101-20040 |
FZJ80,HDJ80,HZJ80..GCC,GEN 3.4W BULB |
7 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-20040 |
FJ80,FZJ80,HDJ80,HZJ80 3.4W BULB |
7 | ||
| 83101-20040 |
FJ80,HZJ80..5F..GX..GCC W(SPEED METER + CONBIMETER),3.4W BULB |
7 | ||
| 83101-14040 |
HDJ80..ARL;HZJ80..GX..GCC 1.2W OR 1.4W BULB |
10 | ||
| 83101-14040 |
HZJ80..GCC 1.2W OR 1.4W BULB |
10 | ||
| 83101-20040 |
HZJ80..RHD..5F..STD..GEN;FJ80,FZJ80..SOB..STD..GEN;FJ80,FZJ80,HZJ80..5F..GX..GCC W(SPEED METER + CONBIMETER),3.4W BULB |
7 | ||
| 83101-20040 |
FJ80..STD..GEN;FJ80,HZJ80..5F..GX..GCC W(SPEED METER + CONBIMETER),3.4W BULB |
7 | ||
| 83101-14040 |
HZJ80..VX..GEN;HDJ80..4FC..GEN;FZJ80..SOB..EFI;HZJ80..GX..(GCC,GEN);FZJ80..LUB..GCC..EFI 1.2W OR 1.4W BULB |
10 | ||
| 83101-20040 |
HDJ80,HZJ80;FZJ80..GCC,GEN;FZJ80..STD..EFI 3.4W BULB |
7 | ||
| 83101-14040 |
FZJ80..GCC..CBR;HZJ80..RHD..GEN;HZJ80..LHD..(GX,VX) 1.2W OR 1.4W BULB |
7 | ||
| 83101-20040 |
HZJ80;FZJ80..GCC,GEN;FZJ80..STD..EFI 3.4W BULB |
7 | ||
| 83101-20040 |
FZJ80,HDJ80,HZJ80 3.4W BULB |
7 | ||
| 83101-20040 |
FZJ80,HDJ80,HZJ80..GCC,GEN 3.4W BULB |
7 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83110-60202 |
HDJ80,HZJ80..GCC,GEN KM |
1 | ||
| 83110-60240 |
HZJ80..GCC |
1 | ||
| 83110-60202 |
HZJ80..GCC |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-60100 |
FJ80..STD..ARL;FJ80..5F..GX..GCC;HZJ80..SOB..(ARL,GCC) W(SUB FUEL TANK) |
1 | ||
| 83132-60720 |
FZJ80,HZJ80..GX..GCC;HZJ80..RHD..STD..GEN W(TACHOMETER) |
1 | ||
| 83132-60100 |
HZJ80..RHD..5F..STD;FJ80,FZJ80..STD..(ARL,GEN);FJ80,FZJ80,HZJ80..5F..GX..GCC W(TACHOMETER) |
1 | ||
| 83132-60120 |
FJ80,FZJ80,HZJ80..STD..(ARL,GEN);FJ80,FZJ80,HZJ80..5F..(GX,STD)..GCC |
1 | ||
| 83132-60770 |
HZJ80..GX..GCC W(SUB FUEL TANK) |
1 | ||
| 83132-60100 |
FJ80,HZJ80..5F..GX..GCC W(SUB FUEL TANK) |
1 | ||
| 83134 - COVER, COMBINATION METER, NO.1 | ||||
| 83134-60120 |
HZJ80..SOB..(ARL,GCC) W(TACHOMETER) |
1 | ||
| 83134-60140 |
HZJ80..STD;HZJ80..GX..GCC |
1 | ||
| 83134-60120 |
HZJ80..GX..GCC;HZJ80..RHD..5F..STD W(TACHOMETER) |
1 | ||
| 83134-60120 |
HZJ80..GX..GCC;HZJ80..RHD..STD..GEN W(TACHOMETER) |
1 | ||
| 83134-60120 |
HZJ80..GX..GCC W(TACHOMETER) |
1 | ||
| 83145 - LENS, METER, NO.1 | ||||
| 83145-60560 |
FJ80..RHD..GEN;HZJ80..GX..GCC;FJ80..LHD..STD..GEN;FZJ80,HZJ80..STD..GEN |
1 | ||
| 83145-60140 |
HZJ80..GX..GCC W(TACHOMETER) |
1 | ||
| 83145-60140 |
FZJ80,HZJ80..GX..GCC W(TACHOMETER) |
1 | ||
| 83145-60560 |
FZJ80..LUB..ARL;FZJ80,HZJ80..STD..GEN;FZJ80,HZJ80..(GX,STD)..GCC W(DIFFERENTIAL LOCK) OR W(*RWD) OR W(*PW) OR W(SUB FUEL TANK) OR (DUAL *AIC)---EXCL(*TAC) |
1 | ||
| 83145-6A080 |
HZJ80..GX..GCC W(SUB FUEL TANK) |
1 | ||
| 83145-6A100 |
HZJ80..GX..GCC;HZJ80..STD..GEN |
1 | ||
| 83832-60450 |
HZJ80..GX..GCC W(SUB FUEL TANK) |
1 | ||
| 83832-60470 |
HZJ80..GX..GCC |
1 | ||
| 83145A - LENS, METER, NO.2 | ||||
| 83145-60660 |
HZJ80..GX..GCC |
1 | ||
| 83145-60440 |
HZJ80..GX..GCC W(TACHOMETER) |
1 | ||
| 83146-60480 |
HZJ80..GX..GCC W(TACHOMETER) |
1 | ||
| 83146-60640 |
HZJ80..GX..GCC |
1 | ||
| 83145-6A460 |
HZJ80..GX..GCC;HZJ80..STD..GEN |
1 | ||
| 83145-6A400 |
HZJ80..GX..GCC W(SUB TANK) |
1 | ||
| 83831-60530 |
HZJ80..GX..GCC W(SUB TANK) |
1 | ||
| 83145B - LENS, METER, NO.3 | ||||
| 83145-2B460 |
HZJ80..STD..ARL;FJ80..STD..(ARL,GEN);FJ80,HDJ80,HZJ80..GX,VX |
2 | ||
| 83145-2B460 |
FZJ80..LUB;HZJ80..RHD..5F;FZJ80..SOB..GEN;FJ80,HDJ80..GX,VX;HZJ80..LHD..(GX,VX);FJ80..STD..(ARL,GEN);FZJ80..SOB..(GX,VX)..GCC |
2 | ||
| 83145-2B460 |
FJ80,HZJ80..STD..ARL;FJ80,HDJ80,HZJ80..GX,VX |
2 | ||
| 83145-2B460 |
HDJ80;FZJ80..LUB;HZJ80..RHD;FZJ80..STD..ARL;FZJ80..SOB..(GX,VX);HZJ80..LHD..(GX,VX) |
2 | ||
| 83145B - LENS, METER, NO.3 | ||||
| 83145-2B460 |
HZJ80..STD..ARL;FJ80..STD..(ARL,GEN);FJ80,HDJ80,HZJ80..GX,VX |
2 | ||
| 83145-2B460 |
FZJ80..LUB;HZJ80..RHD..5F;FZJ80..SOB..GEN;FJ80,HDJ80..GX,VX;HZJ80..LHD..(GX,VX);FJ80..STD..(ARL,GEN);FZJ80..SOB..(GX,VX)..GCC |
2 | ||
| 83145-2B460 |
FJ80,HZJ80..STD..ARL;FJ80,HDJ80,HZJ80..GX,VX |
2 | ||
| 83145-2B460 |
HDJ80;FZJ80..LUB;HZJ80..RHD;FZJ80..STD..ARL;FZJ80..SOB..(GX,VX);HZJ80..LHD..(GX,VX) |
2 | ||
| 83146 - GROMMET, METER GLASS | ||||
| 83145-89318 |
HDJ80,HZJ80 |
1 | ||
| 83243A - GAUGE SUB-ASSY, FUEL RECEIVER | ||||
| 83243-60040 |
FJ80..STD..ARL;HZJ80..SOB..(ARL,GCC) W(TACHOMETER) |
1 | ||
| 83243-60100 |
FJ80,FZJ80,HZJ80..5F..(GX,STD)..GCC |
1 | ||
| 83243-60120 |
FJ80,HZJ80..5F..(GX,STD)..GCC W(SUB FUEL TANK) |
1 | ||
| 83243-60040 |
FJ80..STD..ARL;HZJ80..GX..GCC;FZJ80..LUB..STD;HZJ80..RHD..5F..STD W(TACHOMETER) |
1 | ||
| 83243-60240 |
FZJ80,HZJ80..GX..GCC;HZJ80..RHD..STD..GEN W(TACHOMETER) |
1 | ||
| 83243-60300 |
FZJ80,HZJ80..5F..(GX,STD)..GCC |
1 | ||
| 83243-60240 |
HZJ80..GX..GCC W(SUB FUEL TANK) |
1 | ||
| 83243A - GAUGE SUB-ASSY, FUEL RECEIVER | ||||
| 83243-60040 |
FJ80..STD..ARL;HZJ80..SOB..(ARL,GCC) W(TACHOMETER) |
1 | ||
| 83243-60100 |
FJ80,FZJ80,HZJ80..5F..(GX,STD)..GCC |
1 | ||
| 83243-60120 |
FJ80,HZJ80..5F..(GX,STD)..GCC W(SUB FUEL TANK) |
1 | ||
| 83243-60040 |
FJ80..STD..ARL;HZJ80..GX..GCC;FZJ80..LUB..STD;HZJ80..RHD..5F..STD W(TACHOMETER) |
1 | ||
| 83243-60240 |
FZJ80,HZJ80..GX..GCC;HZJ80..RHD..STD..GEN W(TACHOMETER) |
1 | ||
| 83243-60300 |
FZJ80,HZJ80..5F..(GX,STD)..GCC |
1 | ||
| 83243-60240 |
HZJ80..GX..GCC W(SUB FUEL TANK) |
1 | ||
| 83247 - PLATE, METER CIRCUIT | ||||
| 83247-60500 |
HZJ80..GCC W(SUB FUEL TANK) |
1 | ||
| 83247-60240 |
HZJ80..GX..GCC W(TACHOMETER) |
1 | ||
| 83247-60460 |
HZJ80..GX..GCC |
1 | ||
| 83247-6A060 |
HZJ80..GX..GCC;HZJ80..STD..GEN |
1 | ||
| 83149-60800 |
HZJ80..GX..GCC W(TACHOMETER) |
1 | ||
| 83247-6A320 |
HZJ80..GX..GCC W(SUB FUEL TANK) |
1 | ||
| 83247-6A400 |
HZJ80..GX..GCC;HZJ80..STD..GEN |
1 | ||
| 83861-60570 |
HZJ80..GX..GCC W(SUB FUEL TANK) |
1 | ||
| 83248 - CHIME, SPEED WARNING | ||||
| 86640-60010 |
FJ80,FZJ80,HZJ80..GCC |
1 | ||
| 86650-30110 |
FZJ80,HZJ80..GCC |
1 | ||
| Common parts | ||||
| 83161-1E020 | ||||
| 83161-20440 | ||||
| 83161-20820 | ||||
| 83161-20880 | ||||
| 93568-55014 | ||||

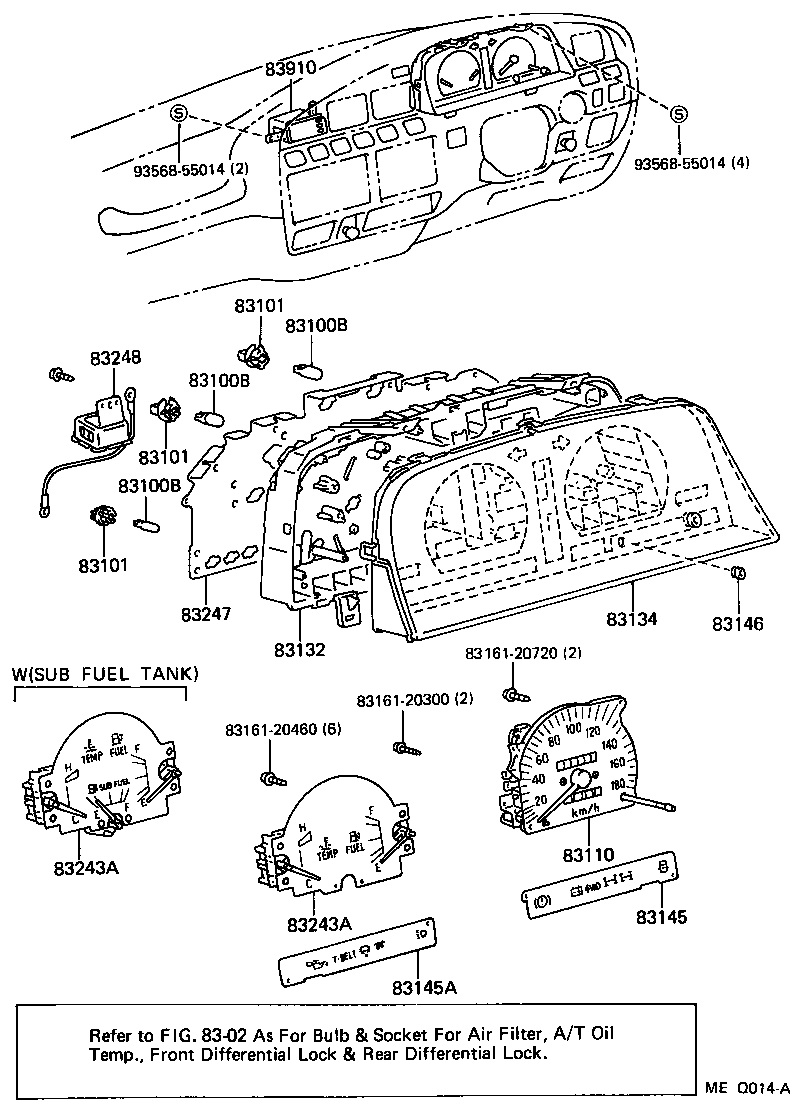

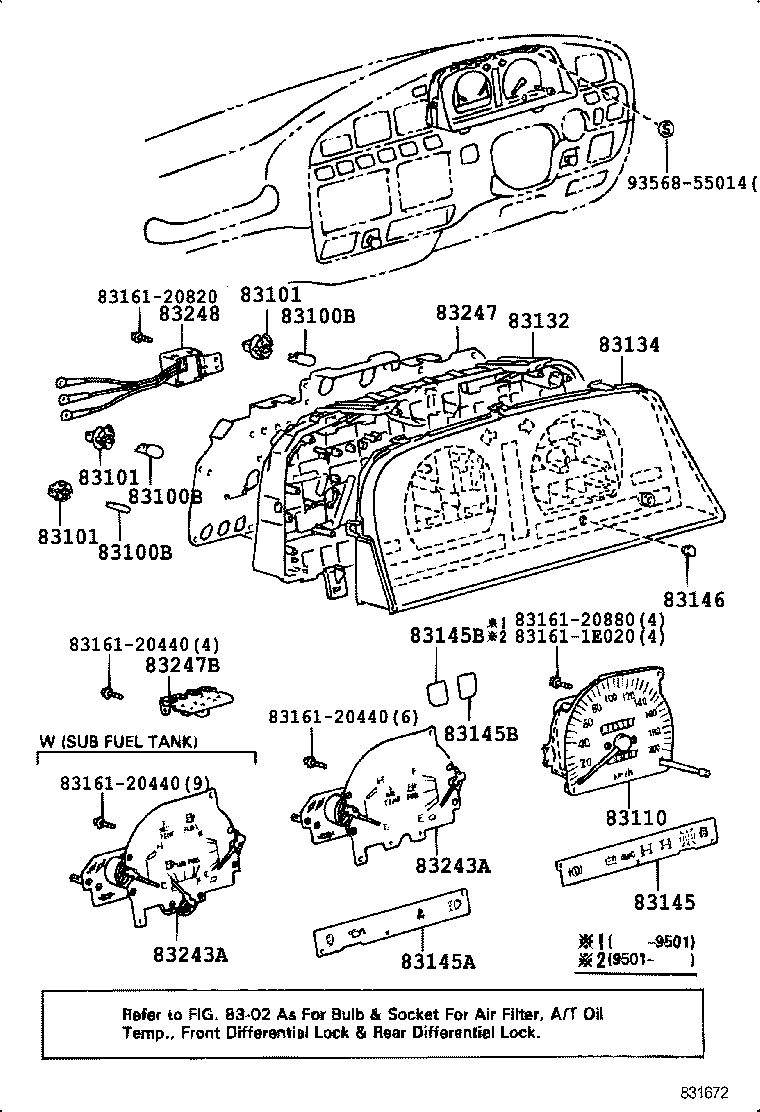

ILLUST NO. 1 OF 4(9208- )
SPEEDMETER(TACHOMETER) & CLOCK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11035 |
FJ80,FZJ80,HDJ80,HZJ80 14V 3.4W |
4 | ||
| 90981-11018 |
HZJ80..GCC 12V 1.2W W/O SOCKET |
10 | ||
| 99132-12034 |
FJ80,FZJ80,HDJ80,HZJ80 12V 3.4W |
3 | ||
| 83119-36080 |
FZJ80,HZJ80..GCC 12V 2.0W |
1 | ||
| 90981-11018 |
HDJ80..ARL;HZJ80..GX..GCC 12V 1.2W W/O SOCKET |
10 | ||
| 99132-12034 |
FJ80,HZJ80..5F..GX..GCC 12V 3.4W,W(SPEED METER + CONBIMETER) |
3 | ||
| 99132-12034 |
HZJ80..RHD..5F..STD..GEN;FJ80,FZJ80,HZJ80..5F..GX..GCC 12V 3.4W,W(SPEED METER + CONBIMETER) |
3 | ||
| 90981-11018 |
FZJ80..SOB..EFI;HDJ80..4FC..GEN;HZJ80..RHD..GEN;HZJ80..LHD..LUB;FZJ80..LUB..GCC..EFI;HZJ80..SOB..(GX,STD)..(ARL,GCC) 12V 1.2W W/O SOCKET |
10 | ||
| 83119-36080 |
HZJ80..GCC;FZJ80..(GX,STD)..GCC 12V 2.0W |
1 | ||
| 83119-36060 |
FZJ80,HDJ80,HZJ80 12V 3.0W GREEN CAP |
1 | ||
| 83119-36060 |
FZJ80,HDJ80,HZJ80..GCC,GEN 12V 3.0W GREEN CAP |
4 | ||
| 99132-12034 |
FZJ80,HDJ80,HZJ80 12V 3.4W |
1 | ||
| 90981-11018 |
HZJ80..GCC;FZJ80..STD..GEN;FZJ80..(GX,STD)..GCC 12V 1.2W W/O SOCKET |
6 | ||
| 99132-12034 |
FZJ80,HDJ80,HZJ80..GCC,GEN 12V 3.4W |
3 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11035 |
FJ80,FZJ80,HDJ80,HZJ80 14V 3.4W |
4 | ||
| 90981-11018 |
HZJ80..GCC 12V 1.2W W/O SOCKET |
10 | ||
| 99132-12034 |
FJ80,FZJ80,HDJ80,HZJ80 12V 3.4W |
3 | ||
| 83119-36080 |
FZJ80,HZJ80..GCC 12V 2.0W |
1 | ||
| 90981-11018 |
HDJ80..ARL;HZJ80..GX..GCC 12V 1.2W W/O SOCKET |
10 | ||
| 99132-12034 |
FJ80,HZJ80..5F..GX..GCC 12V 3.4W,W(SPEED METER + CONBIMETER) |
3 | ||
| 99132-12034 |
HZJ80..RHD..5F..STD..GEN;FJ80,FZJ80,HZJ80..5F..GX..GCC 12V 3.4W,W(SPEED METER + CONBIMETER) |
3 | ||
| 90981-11018 |
FZJ80..SOB..EFI;HDJ80..4FC..GEN;HZJ80..RHD..GEN;HZJ80..LHD..LUB;FZJ80..LUB..GCC..EFI;HZJ80..SOB..(GX,STD)..(ARL,GCC) 12V 1.2W W/O SOCKET |
10 | ||
| 83119-36080 |
HZJ80..GCC;FZJ80..(GX,STD)..GCC 12V 2.0W |
1 | ||
| 83119-36060 |
FZJ80,HDJ80,HZJ80 12V 3.0W GREEN CAP |
1 | ||
| 83119-36060 |
FZJ80,HDJ80,HZJ80..GCC,GEN 12V 3.0W GREEN CAP |
4 | ||
| 99132-12034 |
FZJ80,HDJ80,HZJ80 12V 3.4W |
1 | ||
| 90981-11018 |
HZJ80..GCC;FZJ80..STD..GEN;FZJ80..(GX,STD)..GCC 12V 1.2W W/O SOCKET |
6 | ||
| 99132-12034 |
FZJ80,HDJ80,HZJ80..GCC,GEN 12V 3.4W |
3 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11035 |
FJ80,FZJ80,HDJ80,HZJ80 14V 3.4W |
4 | ||
| 90981-11018 |
HZJ80..GCC 12V 1.2W W/O SOCKET |
10 | ||
| 99132-12034 |
FJ80,FZJ80,HDJ80,HZJ80 12V 3.4W |
3 | ||
| 83119-36080 |
FZJ80,HZJ80..GCC 12V 2.0W |
1 | ||
| 90981-11018 |
HDJ80..ARL;HZJ80..GX..GCC 12V 1.2W W/O SOCKET |
10 | ||
| 99132-12034 |
FJ80,HZJ80..5F..GX..GCC 12V 3.4W,W(SPEED METER + CONBIMETER) |
3 | ||
| 99132-12034 |
HZJ80..RHD..5F..STD..GEN;FJ80,FZJ80,HZJ80..5F..GX..GCC 12V 3.4W,W(SPEED METER + CONBIMETER) |
3 | ||
| 90981-11018 |
FZJ80..SOB..EFI;HDJ80..4FC..GEN;HZJ80..RHD..GEN;HZJ80..LHD..LUB;FZJ80..LUB..GCC..EFI;HZJ80..SOB..(GX,STD)..(ARL,GCC) 12V 1.2W W/O SOCKET |
10 | ||
| 83119-36080 |
HZJ80..GCC;FZJ80..(GX,STD)..GCC 12V 2.0W |
1 | ||
| 83119-36060 |
FZJ80,HDJ80,HZJ80 12V 3.0W GREEN CAP |
1 | ||
| 83119-36060 |
FZJ80,HDJ80,HZJ80..GCC,GEN 12V 3.0W GREEN CAP |
4 | ||
| 99132-12034 |
FZJ80,HDJ80,HZJ80 12V 3.4W |
1 | ||
| 90981-11018 |
HZJ80..GCC;FZJ80..STD..GEN;FZJ80..(GX,STD)..GCC 12V 1.2W W/O SOCKET |
6 | ||
| 99132-12034 |
FZJ80,HDJ80,HZJ80..GCC,GEN 12V 3.4W |
3 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-20040 |
FJ80,FZJ80,HDJ80,HZJ80 3.4W BULB |
7 | ||
| 83101-20040 |
FJ80,HZJ80..5F..GX..GCC W(SPEED METER + CONBIMETER),3.4W BULB |
7 | ||
| 83101-14040 |
HDJ80..ARL;HZJ80..GX..GCC 1.2W OR 1.4W BULB |
10 | ||
| 83101-14040 |
HZJ80..GCC 1.2W OR 1.4W BULB |
10 | ||
| 83101-20040 |
HZJ80..RHD..5F..STD..GEN;FJ80,FZJ80..SOB..STD..GEN;FJ80,FZJ80,HZJ80..5F..GX..GCC W(SPEED METER + CONBIMETER),3.4W BULB |
7 | ||
| 83101-20040 |
FJ80..STD..GEN;FJ80,HZJ80..5F..GX..GCC W(SPEED METER + CONBIMETER),3.4W BULB |
7 | ||
| 83101-14040 |
HZJ80..VX..GEN;HDJ80..4FC..GEN;FZJ80..SOB..EFI;HZJ80..GX..(GCC,GEN);FZJ80..LUB..GCC..EFI 1.2W OR 1.4W BULB |
10 | ||
| 83101-20040 |
HDJ80,HZJ80;FZJ80..GCC,GEN;FZJ80..STD..EFI 3.4W BULB |
7 | ||
| 83101-14040 |
FZJ80..GCC..CBR;HZJ80..RHD..GEN;HZJ80..LHD..(GX,VX) 1.2W OR 1.4W BULB |
7 | ||
| 83101-20040 |
HZJ80;FZJ80..GCC,GEN;FZJ80..STD..EFI 3.4W BULB |
7 | ||
| 83101-20040 |
FZJ80,HDJ80,HZJ80 3.4W BULB |
7 | ||
| 83101-20040 |
FZJ80,HDJ80,HZJ80..GCC,GEN 3.4W BULB |
7 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-20040 |
FJ80,FZJ80,HDJ80,HZJ80 3.4W BULB |
7 | ||
| 83101-20040 |
FJ80,HZJ80..5F..GX..GCC W(SPEED METER + CONBIMETER),3.4W BULB |
7 | ||
| 83101-14040 |
HDJ80..ARL;HZJ80..GX..GCC 1.2W OR 1.4W BULB |
10 | ||
| 83101-14040 |
HZJ80..GCC 1.2W OR 1.4W BULB |
10 | ||
| 83101-20040 |
HZJ80..RHD..5F..STD..GEN;FJ80,FZJ80..SOB..STD..GEN;FJ80,FZJ80,HZJ80..5F..GX..GCC W(SPEED METER + CONBIMETER),3.4W BULB |
7 | ||
| 83101-20040 |
FJ80..STD..GEN;FJ80,HZJ80..5F..GX..GCC W(SPEED METER + CONBIMETER),3.4W BULB |
7 | ||
| 83101-14040 |
HZJ80..VX..GEN;HDJ80..4FC..GEN;FZJ80..SOB..EFI;HZJ80..GX..(GCC,GEN);FZJ80..LUB..GCC..EFI 1.2W OR 1.4W BULB |
10 | ||
| 83101-20040 |
HDJ80,HZJ80;FZJ80..GCC,GEN;FZJ80..STD..EFI 3.4W BULB |
7 | ||
| 83101-14040 |
FZJ80..GCC..CBR;HZJ80..RHD..GEN;HZJ80..LHD..(GX,VX) 1.2W OR 1.4W BULB |
7 | ||
| 83101-20040 |
HZJ80;FZJ80..GCC,GEN;FZJ80..STD..EFI 3.4W BULB |
7 | ||
| 83101-20040 |
FZJ80,HDJ80,HZJ80 3.4W BULB |
7 | ||
| 83101-20040 |
FZJ80,HDJ80,HZJ80..GCC,GEN 3.4W BULB |
7 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-20040 |
FJ80,FZJ80,HDJ80,HZJ80 3.4W BULB |
7 | ||
| 83101-20040 |
FJ80,HZJ80..5F..GX..GCC W(SPEED METER + CONBIMETER),3.4W BULB |
7 | ||
| 83101-14040 |
HDJ80..ARL;HZJ80..GX..GCC 1.2W OR 1.4W BULB |
10 | ||
| 83101-14040 |
HZJ80..GCC 1.2W OR 1.4W BULB |
10 | ||
| 83101-20040 |
HZJ80..RHD..5F..STD..GEN;FJ80,FZJ80..SOB..STD..GEN;FJ80,FZJ80,HZJ80..5F..GX..GCC W(SPEED METER + CONBIMETER),3.4W BULB |
7 | ||
| 83101-20040 |
FJ80..STD..GEN;FJ80,HZJ80..5F..GX..GCC W(SPEED METER + CONBIMETER),3.4W BULB |
7 | ||
| 83101-14040 |
HZJ80..VX..GEN;HDJ80..4FC..GEN;FZJ80..SOB..EFI;HZJ80..GX..(GCC,GEN);FZJ80..LUB..GCC..EFI 1.2W OR 1.4W BULB |
10 | ||
| 83101-20040 |
HDJ80,HZJ80;FZJ80..GCC,GEN;FZJ80..STD..EFI 3.4W BULB |
7 | ||
| 83101-14040 |
FZJ80..GCC..CBR;HZJ80..RHD..GEN;HZJ80..LHD..(GX,VX) 1.2W OR 1.4W BULB |
7 | ||
| 83101-20040 |
HZJ80;FZJ80..GCC,GEN;FZJ80..STD..EFI 3.4W BULB |
7 | ||
| 83101-20040 |
FZJ80,HDJ80,HZJ80 3.4W BULB |
7 | ||
| 83101-20040 |
FZJ80,HDJ80,HZJ80..GCC,GEN 3.4W BULB |
7 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83110-60202 |
HDJ80,HZJ80..GCC,GEN KM |
1 | ||
| 83110-60240 |
HZJ80..GCC |
1 | ||
| 83110-60202 |
HZJ80..GCC |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-60100 |
FJ80..STD..ARL;FJ80..5F..GX..GCC;HZJ80..SOB..(ARL,GCC) W(SUB FUEL TANK) |
1 | ||
| 83132-60720 |
FZJ80,HZJ80..GX..GCC;HZJ80..RHD..STD..GEN W(TACHOMETER) |
1 | ||
| 83132-60100 |
HZJ80..RHD..5F..STD;FJ80,FZJ80..STD..(ARL,GEN);FJ80,FZJ80,HZJ80..5F..GX..GCC W(TACHOMETER) |
1 | ||
| 83132-60120 |
FJ80,FZJ80,HZJ80..STD..(ARL,GEN);FJ80,FZJ80,HZJ80..5F..(GX,STD)..GCC |
1 | ||
| 83132-60770 |
HZJ80..GX..GCC W(SUB FUEL TANK) |
1 | ||
| 83132-60100 |
FJ80,HZJ80..5F..GX..GCC W(SUB FUEL TANK) |
1 | ||
| 83134 - COVER, COMBINATION METER, NO.1 | ||||
| 83134-60120 |
HZJ80..SOB..(ARL,GCC) W(TACHOMETER) |
1 | ||
| 83134-60140 |
HZJ80..STD;HZJ80..GX..GCC |
1 | ||
| 83134-60120 |
HZJ80..GX..GCC;HZJ80..RHD..5F..STD W(TACHOMETER) |
1 | ||
| 83134-60120 |
HZJ80..GX..GCC;HZJ80..RHD..STD..GEN W(TACHOMETER) |
1 | ||
| 83134-60120 |
HZJ80..GX..GCC W(TACHOMETER) |
1 | ||
| 83145 - LENS, METER, NO.1 | ||||
| 83145-60560 |
FJ80..RHD..GEN;HZJ80..GX..GCC;FJ80..LHD..STD..GEN;FZJ80,HZJ80..STD..GEN |
1 | ||
| 83145-60140 |
HZJ80..GX..GCC W(TACHOMETER) |
1 | ||
| 83145-60140 |
FZJ80,HZJ80..GX..GCC W(TACHOMETER) |
1 | ||
| 83145-60560 |
FZJ80..LUB..ARL;FZJ80,HZJ80..STD..GEN;FZJ80,HZJ80..(GX,STD)..GCC W(DIFFERENTIAL LOCK) OR W(*RWD) OR W(*PW) OR W(SUB FUEL TANK) OR (DUAL *AIC)---EXCL(*TAC) |
1 | ||
| 83145-6A080 |
HZJ80..GX..GCC W(SUB FUEL TANK) |
1 | ||
| 83145-6A100 |
HZJ80..GX..GCC;HZJ80..STD..GEN |
1 | ||
| 83832-60450 |
HZJ80..GX..GCC W(SUB FUEL TANK) |
1 | ||
| 83832-60470 |
HZJ80..GX..GCC |
1 | ||
| 83145A - LENS, METER, NO.2 | ||||
| 83145-60660 |
HZJ80..GX..GCC |
1 | ||
| 83145-60440 |
HZJ80..GX..GCC W(TACHOMETER) |
1 | ||
| 83146-60480 |
HZJ80..GX..GCC W(TACHOMETER) |
1 | ||
| 83146-60640 |
HZJ80..GX..GCC |
1 | ||
| 83145-6A460 |
HZJ80..GX..GCC;HZJ80..STD..GEN |
1 | ||
| 83145-6A400 |
HZJ80..GX..GCC W(SUB TANK) |
1 | ||
| 83831-60530 |
HZJ80..GX..GCC W(SUB TANK) |
1 | ||
| 83145B - LENS, METER, NO.3 | ||||
| 83145-2B460 |
HZJ80..STD..ARL;FJ80..STD..(ARL,GEN);FJ80,HDJ80,HZJ80..GX,VX |
2 | ||
| 83145-2B460 |
FZJ80..LUB;HZJ80..RHD..5F;FZJ80..SOB..GEN;FJ80,HDJ80..GX,VX;HZJ80..LHD..(GX,VX);FJ80..STD..(ARL,GEN);FZJ80..SOB..(GX,VX)..GCC |
2 | ||
| 83145-2B460 |
FJ80,HZJ80..STD..ARL;FJ80,HDJ80,HZJ80..GX,VX |
2 | ||
| 83145-2B460 |
HDJ80;FZJ80..LUB;HZJ80..RHD;FZJ80..STD..ARL;FZJ80..SOB..(GX,VX);HZJ80..LHD..(GX,VX) |
2 | ||
| 83145B - LENS, METER, NO.3 | ||||
| 83145-2B460 |
HZJ80..STD..ARL;FJ80..STD..(ARL,GEN);FJ80,HDJ80,HZJ80..GX,VX |
2 | ||
| 83145-2B460 |
FZJ80..LUB;HZJ80..RHD..5F;FZJ80..SOB..GEN;FJ80,HDJ80..GX,VX;HZJ80..LHD..(GX,VX);FJ80..STD..(ARL,GEN);FZJ80..SOB..(GX,VX)..GCC |
2 | ||
| 83145-2B460 |
FJ80,HZJ80..STD..ARL;FJ80,HDJ80,HZJ80..GX,VX |
2 | ||
| 83145-2B460 |
HDJ80;FZJ80..LUB;HZJ80..RHD;FZJ80..STD..ARL;FZJ80..SOB..(GX,VX);HZJ80..LHD..(GX,VX) |
2 | ||
| 83146 - GROMMET, METER GLASS | ||||
| 83145-89318 |
HDJ80,HZJ80 |
1 | ||
| 83242 - TACHOMETER ASSY, ENGINE | ||||
| 83242-60280 |
HZJ80..RHD..5F;HZJ80..LHD..(GX,VX) |
1 | ||
| 83242-60280 |
HZJ80..GX,VX;HZJ80..STD..ARL |
1 | ||
| 83242-60820 |
HZJ80..RHD;HZJ80..LHD..(GX,VX) |
1 | ||
| 83243A - GAUGE SUB-ASSY, FUEL RECEIVER | ||||
| 83243-60040 |
FJ80..STD..ARL;HZJ80..SOB..(ARL,GCC) W(TACHOMETER) |
1 | ||
| 83243-60100 |
FJ80,FZJ80,HZJ80..5F..(GX,STD)..GCC |
1 | ||
| 83243-60120 |
FJ80,HZJ80..5F..(GX,STD)..GCC W(SUB FUEL TANK) |
1 | ||
| 83243-60040 |
FJ80..STD..ARL;HZJ80..GX..GCC;FZJ80..LUB..STD;HZJ80..RHD..5F..STD W(TACHOMETER) |
1 | ||
| 83243-60240 |
FZJ80,HZJ80..GX..GCC;HZJ80..RHD..STD..GEN W(TACHOMETER) |
1 | ||
| 83243-60300 |
FZJ80,HZJ80..5F..(GX,STD)..GCC |
1 | ||
| 83243-60240 |
HZJ80..GX..GCC W(SUB FUEL TANK) |
1 | ||
| 83244 - GAUGE SUB-ASSY, WATER TEMPERATURE RECEIVER | ||||
| 83244-60040 |
HZJ80..RHD..5F..GEN;HZJ80..LHD..(GX,VX);FJ80,HDJ80..(GX,VX)..GEN WIDE TYPE |
1 | ||
| 83244-60040 |
HZJ80..GCC |
1 | ||
| 83244-60040 |
FJ80,HZJ80..(GX,VX)..GCC |
1 | ||
| 83244-60320 |
HZJ80..GCC;HZJ80..RHD..STD..GEN |
1 | ||
| 83247 - PLATE, METER CIRCUIT | ||||
| 83247-60500 |
HZJ80..GCC W(SUB FUEL TANK) |
1 | ||
| 83247-60240 |
HZJ80..GX..GCC W(TACHOMETER) |
1 | ||
| 83247-60460 |
HZJ80..GX..GCC |
1 | ||
| 83247-6A060 |
HZJ80..GX..GCC;HZJ80..STD..GEN |
1 | ||
| 83149-60800 |
HZJ80..GX..GCC W(TACHOMETER) |
1 | ||
| 83247-6A320 |
HZJ80..GX..GCC W(SUB FUEL TANK) |
1 | ||
| 83247-6A400 |
HZJ80..GX..GCC;HZJ80..STD..GEN |
1 | ||
| 83861-60570 |
HZJ80..GX..GCC W(SUB FUEL TANK) |
1 | ||
| 83248 - CHIME, SPEED WARNING | ||||
| 86640-60010 |
FJ80,FZJ80,HZJ80..GCC |
1 | ||
| 86650-30110 |
FZJ80,HZJ80..GCC |
1 | ||
| 83248 - CHIME, SPEED WARNING | ||||
| 86640-60010 |
FJ80,FZJ80,HZJ80..GCC |
1 | ||
| 86650-30110 |
FZJ80,HZJ80..GCC |
1 | ||
| 83910 - CLOCK ASSY | ||||
| 83910-60030 |
FJ80..(GX,STD)..GCC;FJ80,HDJ80..LHD..GEN;FZJ80,HZJ80..LHD..VX..GEN;FZJ80,HZJ80..LHD..(GX,STD) |
1 | ||
| 83910-60030 |
FZJ80,HZJ80..LHD..(GX,STD);FZJ80,HDJ80,HZJ80..LHD..VX..GEN |
1 | ||
| Common parts | ||||
| 83161-1E020 | ||||
| 83161-20100 | ||||
| 83161-20280 | ||||
| 83161-20440 | ||||
| 83161-20820 | ||||
| 83161-20880 | ||||
| 93568-55014 | ||||

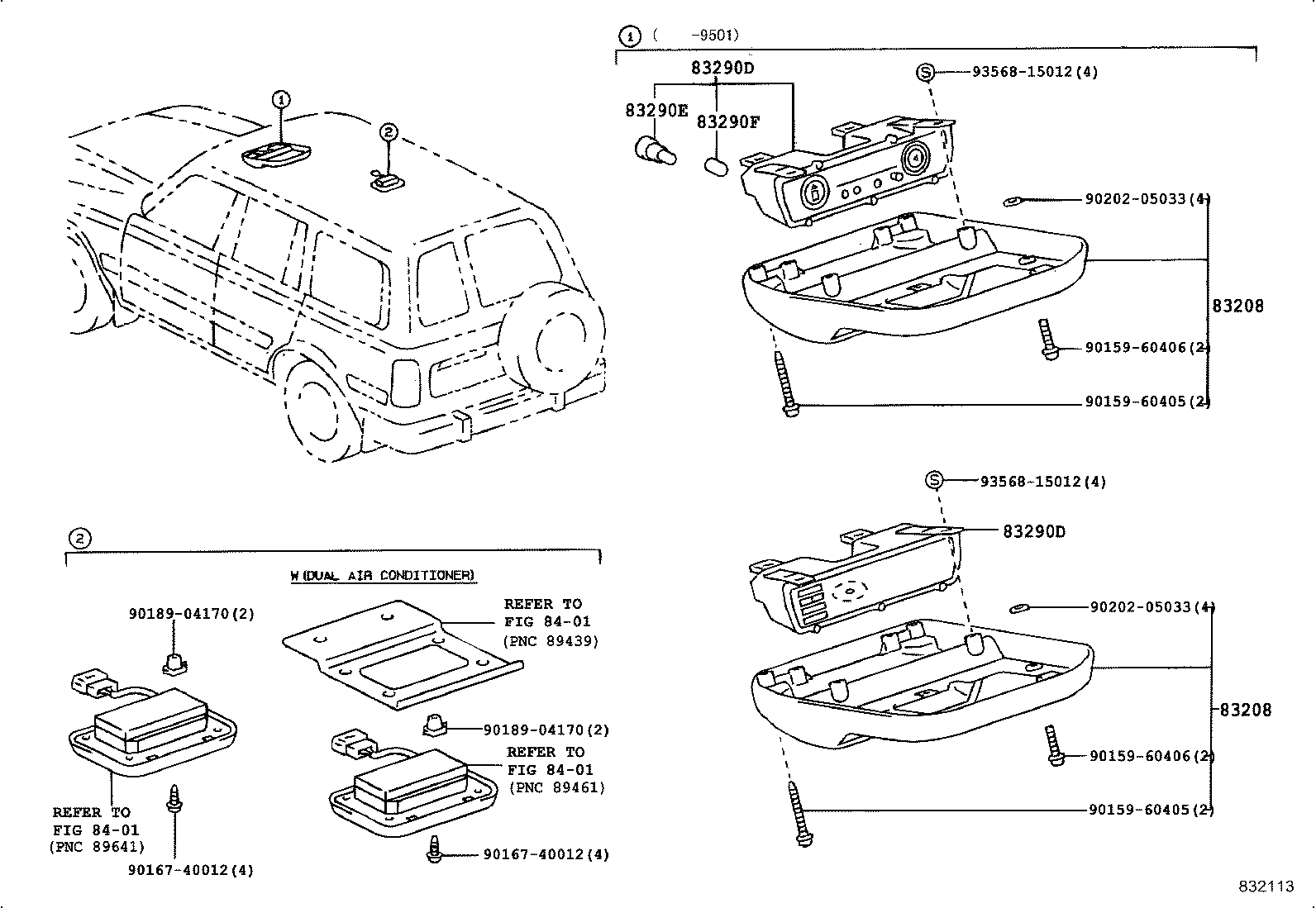

ILLUST NO. 3 OF 4(9001-9501)
ACCESSORY METER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83208 - PANEL SUB-ASSY, ROOF CONSOLE METER | ||||
| 83208-6001006 |
FJ80,HDJ80,HZJ80..(GX,VX)..(CBR,DSL,TD2) LIGHT SABLE,TRIM4# |
1 | ||
| 83208-6001006 |
FZJ80..LHD..(GX,VX);FJ80,HZJ80..STD..ARL;FJ80,HDJ80,HZJ80..(GX,VX)..(CBR,DSL,TD2) LIGHT SABLE,TRIM4# |
1 | ||
| 83208-60010B6 |
FZJ80..ARL;HZJ80..STD..ARL;HDJ80,HZJ80..GX,VX;FZJ80..LHD..(GX,VX) LIGHT GRAY,TRIM1# |
1 | ||
| 83208-6001042 |
FZJ80..ARL;HZJ80..STD..ARL;HDJ80,HZJ80..GX,VX;FZJ80..LHD..(GX,VX) SABLE,TRIM4# |
1 | ||
| 83208-6001003 |
FZJ80..LHD..(GX,VX);FJ80,HZJ80..STD..ARL;FJ80,HDJ80,HZJ80..(GX,VX)..(CBR,DSL,TD2) LIGHT GRAY,TRIM1# |
1 | ||
| 83208-6001003 |
FJ80,HDJ80,HZJ80..(GX,VX)..(CBR,DSL,TD2) LIGHT GRAY,TRIM1# |
1 | ||
| 83208 - PANEL SUB-ASSY, ROOF CONSOLE METER | ||||
| 83208-6001006 |
FJ80,HDJ80,HZJ80..(GX,VX)..(CBR,DSL,TD2) LIGHT SABLE,TRIM4# |
1 | ||
| 83208-6001006 |
FZJ80..LHD..(GX,VX);FJ80,HZJ80..STD..ARL;FJ80,HDJ80,HZJ80..(GX,VX)..(CBR,DSL,TD2) LIGHT SABLE,TRIM4# |
1 | ||
| 83208-60010B6 |
FZJ80..ARL;HZJ80..STD..ARL;HDJ80,HZJ80..GX,VX;FZJ80..LHD..(GX,VX) LIGHT GRAY,TRIM1# |
1 | ||
| 83208-6001042 |
FZJ80..ARL;HZJ80..STD..ARL;HDJ80,HZJ80..GX,VX;FZJ80..LHD..(GX,VX) SABLE,TRIM4# |
1 | ||
| 83208-6001003 |
FZJ80..LHD..(GX,VX);FJ80,HZJ80..STD..ARL;FJ80,HDJ80,HZJ80..(GX,VX)..(CBR,DSL,TD2) LIGHT GRAY,TRIM1# |
1 | ||
| 83208-6001003 |
FJ80,HDJ80,HZJ80..(GX,VX)..(CBR,DSL,TD2) LIGHT GRAY,TRIM1# |
1 | ||
| 83290D - METER ASSY, ACCESSORY | ||||
| 83290-60010 |
FJ80..GX..GCC;HDJ80,HZJ80..GX,VX;FJ80..(GX,VX)..(ARL,GEN)..CBR |
1 | ||
| 83290-60090 |
FZJ80..LHD..GX;HZJ80..STD..ARL;HZJ80..GX..(GCC,GEN);HDJ80,HZJ80..VX..GEN |
1 | ||
| 83290-60010 |
HZJ80..GX;FJ80..GX..GCC;FZJ80..LHD..GX;FJ80,HZJ80..STD..ARL;FZJ80,HZJ80..LHD..VX..GEN;FJ80,HDJ80..(GX,VX)..(ARL,GEN)..(CBR,TD2) |
1 | ||
| 83290-60090 |
FZJ80..LHD..GX;HZJ80..STD..ARL;HZJ80..GX..(GCC,GEN);HDJ80,HZJ80..LHD..VX..GEN |
1 | ||
| 83290-60020 |
FZJ80,HZJ80..(GX,VX)..GCC W(COMPASS & SUB FUEL) |
1 | ||
| 83290-60010 |
FZJ80..LHD..GX;FZJ80..LHD..VX..GEN;HDJ80,HZJ80..VX..GEN;HZJ80..GX..(GCC,GEN);FZJ80,HZJ80..STD..ARL |
1 | ||
| 83290D - METER ASSY, ACCESSORY | ||||
| 83290-60010 |
FJ80..GX..GCC;HDJ80,HZJ80..GX,VX;FJ80..(GX,VX)..(ARL,GEN)..CBR |
1 | ||
| 83290-60090 |
FZJ80..LHD..GX;HZJ80..STD..ARL;HZJ80..GX..(GCC,GEN);HDJ80,HZJ80..VX..GEN |
1 | ||
| 83290-60010 |
HZJ80..GX;FJ80..GX..GCC;FZJ80..LHD..GX;FJ80,HZJ80..STD..ARL;FZJ80,HZJ80..LHD..VX..GEN;FJ80,HDJ80..(GX,VX)..(ARL,GEN)..(CBR,TD2) |
1 | ||
| 83290-60090 |
FZJ80..LHD..GX;HZJ80..STD..ARL;HZJ80..GX..(GCC,GEN);HDJ80,HZJ80..LHD..VX..GEN |
1 | ||
| 83290-60020 |
FZJ80,HZJ80..(GX,VX)..GCC W(COMPASS & SUB FUEL) |
1 | ||
| 83290-60010 |
FZJ80..LHD..GX;FZJ80..LHD..VX..GEN;HDJ80,HZJ80..VX..GEN;HZJ80..GX..(GCC,GEN);FZJ80,HZJ80..STD..ARL |
1 | ||
| 83290E - BULB, ACCESSORY METER | ||||
| 84999-50280 |
FZJ80,HZJ80..(GX,VX)..GCC 14V 0.84W |
4 | ||
| Common parts | ||||
| 90159-60405 | ||||
| 90159-60406 | ||||
| 90167-40012 | ||||
| 90189-04170 | ||||
| 90202-05033 | ||||
| 93568-15012 | ||||
| Linked diagrams | ||||
| 8401 | ||||

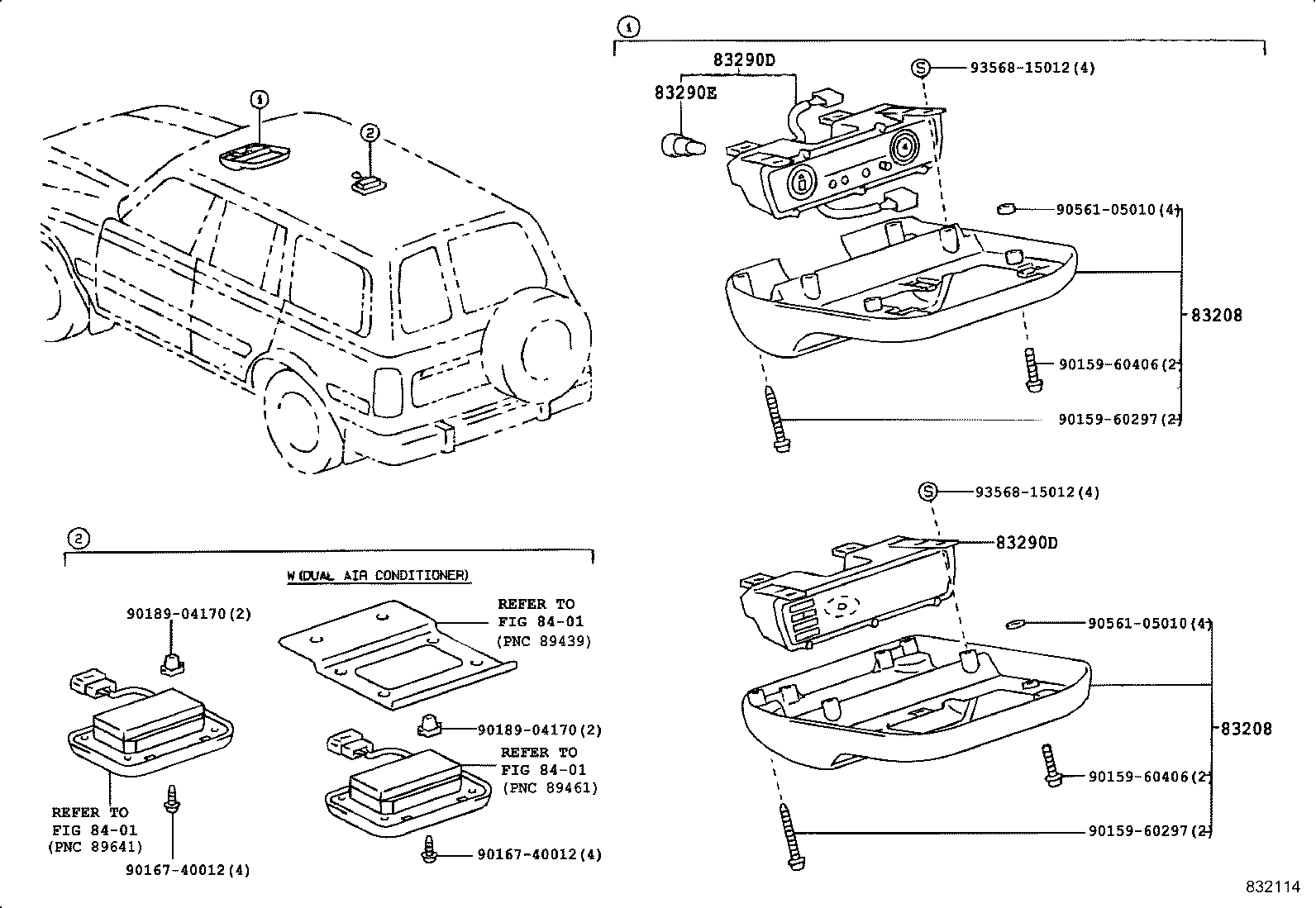

ILLUST NO. 3 OF 4(9501- )
ACCESSORY METER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83208 - PANEL SUB-ASSY, ROOF CONSOLE METER | ||||
| 83208-6001006 |
FJ80,HDJ80,HZJ80..(GX,VX)..(CBR,DSL,TD2) LIGHT SABLE,TRIM4# |
1 | ||
| 83208-6001006 |
FZJ80..LHD..(GX,VX);FJ80,HZJ80..STD..ARL;FJ80,HDJ80,HZJ80..(GX,VX)..(CBR,DSL,TD2) LIGHT SABLE,TRIM4# |
1 | ||
| 83208-60010B6 |
FZJ80..ARL;HZJ80..STD..ARL;HDJ80,HZJ80..GX,VX;FZJ80..LHD..(GX,VX) LIGHT GRAY,TRIM1# |
1 | ||
| 83208-6001042 |
FZJ80..ARL;HZJ80..STD..ARL;HDJ80,HZJ80..GX,VX;FZJ80..LHD..(GX,VX) SABLE,TRIM4# |
1 | ||
| 83208-6001003 |
FZJ80..LHD..(GX,VX);FJ80,HZJ80..STD..ARL;FJ80,HDJ80,HZJ80..(GX,VX)..(CBR,DSL,TD2) LIGHT GRAY,TRIM1# |
1 | ||
| 83208-6001003 |
FJ80,HDJ80,HZJ80..(GX,VX)..(CBR,DSL,TD2) LIGHT GRAY,TRIM1# |
1 | ||
| 83208 - PANEL SUB-ASSY, ROOF CONSOLE METER | ||||
| 83208-6001006 |
FJ80,HDJ80,HZJ80..(GX,VX)..(CBR,DSL,TD2) LIGHT SABLE,TRIM4# |
1 | ||
| 83208-6001006 |
FZJ80..LHD..(GX,VX);FJ80,HZJ80..STD..ARL;FJ80,HDJ80,HZJ80..(GX,VX)..(CBR,DSL,TD2) LIGHT SABLE,TRIM4# |
1 | ||
| 83208-60010B6 |
FZJ80..ARL;HZJ80..STD..ARL;HDJ80,HZJ80..GX,VX;FZJ80..LHD..(GX,VX) LIGHT GRAY,TRIM1# |
1 | ||
| 83208-6001042 |
FZJ80..ARL;HZJ80..STD..ARL;HDJ80,HZJ80..GX,VX;FZJ80..LHD..(GX,VX) SABLE,TRIM4# |
1 | ||
| 83208-6001003 |
FZJ80..LHD..(GX,VX);FJ80,HZJ80..STD..ARL;FJ80,HDJ80,HZJ80..(GX,VX)..(CBR,DSL,TD2) LIGHT GRAY,TRIM1# |
1 | ||
| 83208-6001003 |
FJ80,HDJ80,HZJ80..(GX,VX)..(CBR,DSL,TD2) LIGHT GRAY,TRIM1# |
1 | ||
| 83290D - METER ASSY, ACCESSORY | ||||
| 83290-60010 |
FJ80..GX..GCC;HDJ80,HZJ80..GX,VX;FJ80..(GX,VX)..(ARL,GEN)..CBR |
1 | ||
| 83290-60090 |
FZJ80..LHD..GX;HZJ80..STD..ARL;HZJ80..GX..(GCC,GEN);HDJ80,HZJ80..VX..GEN |
1 | ||
| 83290-60010 |
HZJ80..GX;FJ80..GX..GCC;FZJ80..LHD..GX;FJ80,HZJ80..STD..ARL;FZJ80,HZJ80..LHD..VX..GEN;FJ80,HDJ80..(GX,VX)..(ARL,GEN)..(CBR,TD2) |
1 | ||
| 83290-60090 |
FZJ80..LHD..GX;HZJ80..STD..ARL;HZJ80..GX..(GCC,GEN);HDJ80,HZJ80..LHD..VX..GEN |
1 | ||
| 83290-60020 |
FZJ80,HZJ80..(GX,VX)..GCC W(COMPASS & SUB FUEL) |
1 | ||
| 83290-60010 |
FZJ80..LHD..GX;FZJ80..LHD..VX..GEN;HDJ80,HZJ80..VX..GEN;HZJ80..GX..(GCC,GEN);FZJ80,HZJ80..STD..ARL |
1 | ||
| 83290D - METER ASSY, ACCESSORY | ||||
| 83290-60010 |
FJ80..GX..GCC;HDJ80,HZJ80..GX,VX;FJ80..(GX,VX)..(ARL,GEN)..CBR |
1 | ||
| 83290-60090 |
FZJ80..LHD..GX;HZJ80..STD..ARL;HZJ80..GX..(GCC,GEN);HDJ80,HZJ80..VX..GEN |
1 | ||
| 83290-60010 |
HZJ80..GX;FJ80..GX..GCC;FZJ80..LHD..GX;FJ80,HZJ80..STD..ARL;FZJ80,HZJ80..LHD..VX..GEN;FJ80,HDJ80..(GX,VX)..(ARL,GEN)..(CBR,TD2) |
1 | ||
| 83290-60090 |
FZJ80..LHD..GX;HZJ80..STD..ARL;HZJ80..GX..(GCC,GEN);HDJ80,HZJ80..LHD..VX..GEN |
1 | ||
| 83290-60020 |
FZJ80,HZJ80..(GX,VX)..GCC W(COMPASS & SUB FUEL) |
1 | ||
| 83290-60010 |
FZJ80..LHD..GX;FZJ80..LHD..VX..GEN;HDJ80,HZJ80..VX..GEN;HZJ80..GX..(GCC,GEN);FZJ80,HZJ80..STD..ARL |
1 | ||
| 83290E - BULB, ACCESSORY METER | ||||
| 84999-50280 |
FZJ80,HZJ80..(GX,VX)..GCC 14V 0.84W |
4 | ||
| Common parts | ||||
| 90159-60297 | ||||
| 90159-60406 | ||||
| 90167-40012 | ||||
| 90189-04170 | ||||
| 90561-05010 | ||||
| 93568-15012 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 1 OF 4(9001-9208)STD..ARL,GEN ; (9001-9208)5F..GX,STD..GCC
SPEEDMETER & CLOCK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11035 |
FJ80,FZJ80,HDJ80,HZJ80 14V 3.4W |
4 | ||
| 90981-11018 |
HZJ80..GCC 12V 1.2W W/O SOCKET |
10 | ||
| 99132-12034 |
FJ80,FZJ80,HDJ80,HZJ80 12V 3.4W |
3 | ||
| 83119-36080 |
FZJ80,HZJ80..GCC 12V 2.0W |
1 | ||
| 90981-11018 |
HDJ80..ARL;HZJ80..GX..GCC 12V 1.2W W/O SOCKET |
10 | ||
| 99132-12034 |
FJ80,HZJ80..5F..GX..GCC 12V 3.4W,W(SPEED METER + CONBIMETER) |
3 | ||
| 99132-12034 |
HZJ80..RHD..5F..STD..GEN;FJ80,FZJ80,HZJ80..5F..GX..GCC 12V 3.4W,W(SPEED METER + CONBIMETER) |
3 | ||
| 90981-11018 |
FZJ80..SOB..EFI;HDJ80..4FC..GEN;HZJ80..RHD..GEN;HZJ80..LHD..LUB;FZJ80..LUB..GCC..EFI;HZJ80..SOB..(GX,STD)..(ARL,GCC) 12V 1.2W W/O SOCKET |
10 | ||
| 83119-36080 |
HZJ80..GCC;FZJ80..(GX,STD)..GCC 12V 2.0W |
1 | ||
| 83119-36060 |
FZJ80,HDJ80,HZJ80 12V 3.0W GREEN CAP |
1 | ||
| 83119-36060 |
FZJ80,HDJ80,HZJ80..GCC,GEN 12V 3.0W GREEN CAP |
4 | ||
| 99132-12034 |
FZJ80,HDJ80,HZJ80 12V 3.4W |
1 | ||
| 90981-11018 |
HZJ80..GCC;FZJ80..STD..GEN;FZJ80..(GX,STD)..GCC 12V 1.2W W/O SOCKET |
6 | ||
| 99132-12034 |
FZJ80,HDJ80,HZJ80..GCC,GEN 12V 3.4W |
3 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11035 |
FJ80,FZJ80,HDJ80,HZJ80 14V 3.4W |
4 | ||
| 90981-11018 |
HZJ80..GCC 12V 1.2W W/O SOCKET |
10 | ||
| 99132-12034 |
FJ80,FZJ80,HDJ80,HZJ80 12V 3.4W |
3 | ||
| 83119-36080 |
FZJ80,HZJ80..GCC 12V 2.0W |
1 | ||
| 90981-11018 |
HDJ80..ARL;HZJ80..GX..GCC 12V 1.2W W/O SOCKET |
10 | ||
| 99132-12034 |
FJ80,HZJ80..5F..GX..GCC 12V 3.4W,W(SPEED METER + CONBIMETER) |
3 | ||
| 99132-12034 |
HZJ80..RHD..5F..STD..GEN;FJ80,FZJ80,HZJ80..5F..GX..GCC 12V 3.4W,W(SPEED METER + CONBIMETER) |
3 | ||
| 90981-11018 |
FZJ80..SOB..EFI;HDJ80..4FC..GEN;HZJ80..RHD..GEN;HZJ80..LHD..LUB;FZJ80..LUB..GCC..EFI;HZJ80..SOB..(GX,STD)..(ARL,GCC) 12V 1.2W W/O SOCKET |
10 | ||
| 83119-36080 |
HZJ80..GCC;FZJ80..(GX,STD)..GCC 12V 2.0W |
1 | ||
| 83119-36060 |
FZJ80,HDJ80,HZJ80 12V 3.0W GREEN CAP |
1 | ||
| 83119-36060 |
FZJ80,HDJ80,HZJ80..GCC,GEN 12V 3.0W GREEN CAP |
4 | ||
| 99132-12034 |
FZJ80,HDJ80,HZJ80 12V 3.4W |
1 | ||
| 90981-11018 |
HZJ80..GCC;FZJ80..STD..GEN;FZJ80..(GX,STD)..GCC 12V 1.2W W/O SOCKET |
6 | ||
| 99132-12034 |
FZJ80,HDJ80,HZJ80..GCC,GEN 12V 3.4W |
3 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11035 |
FJ80,FZJ80,HDJ80,HZJ80 14V 3.4W |
4 | ||
| 90981-11018 |
HZJ80..GCC 12V 1.2W W/O SOCKET |
10 | ||
| 99132-12034 |
FJ80,FZJ80,HDJ80,HZJ80 12V 3.4W |
3 | ||
| 83119-36080 |
FZJ80,HZJ80..GCC 12V 2.0W |
1 | ||
| 90981-11018 |
HDJ80..ARL;HZJ80..GX..GCC 12V 1.2W W/O SOCKET |
10 | ||
| 99132-12034 |
FJ80,HZJ80..5F..GX..GCC 12V 3.4W,W(SPEED METER + CONBIMETER) |
3 | ||
| 99132-12034 |
HZJ80..RHD..5F..STD..GEN;FJ80,FZJ80,HZJ80..5F..GX..GCC 12V 3.4W,W(SPEED METER + CONBIMETER) |
3 | ||
| 90981-11018 |
FZJ80..SOB..EFI;HDJ80..4FC..GEN;HZJ80..RHD..GEN;HZJ80..LHD..LUB;FZJ80..LUB..GCC..EFI;HZJ80..SOB..(GX,STD)..(ARL,GCC) 12V 1.2W W/O SOCKET |
10 | ||
| 83119-36080 |
HZJ80..GCC;FZJ80..(GX,STD)..GCC 12V 2.0W |
1 | ||
| 83119-36060 |
FZJ80,HDJ80,HZJ80 12V 3.0W GREEN CAP |
1 | ||
| 83119-36060 |
FZJ80,HDJ80,HZJ80..GCC,GEN 12V 3.0W GREEN CAP |
4 | ||
| 99132-12034 |
FZJ80,HDJ80,HZJ80 12V 3.4W |
1 | ||
| 90981-11018 |
HZJ80..GCC;FZJ80..STD..GEN;FZJ80..(GX,STD)..GCC 12V 1.2W W/O SOCKET |
6 | ||
| 99132-12034 |
FZJ80,HDJ80,HZJ80..GCC,GEN 12V 3.4W |
3 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-20040 |
FJ80,FZJ80,HDJ80,HZJ80 3.4W BULB |
7 | ||
| 83101-20040 |
FJ80,HZJ80..5F..GX..GCC W(SPEED METER + CONBIMETER),3.4W BULB |
7 | ||
| 83101-14040 |
HDJ80..ARL;HZJ80..GX..GCC 1.2W OR 1.4W BULB |
10 | ||
| 83101-14040 |
HZJ80..GCC 1.2W OR 1.4W BULB |
10 | ||
| 83101-20040 |
HZJ80..RHD..5F..STD..GEN;FJ80,FZJ80..SOB..STD..GEN;FJ80,FZJ80,HZJ80..5F..GX..GCC W(SPEED METER + CONBIMETER),3.4W BULB |
7 | ||
| 83101-20040 |
FJ80..STD..GEN;FJ80,HZJ80..5F..GX..GCC W(SPEED METER + CONBIMETER),3.4W BULB |
7 | ||
| 83101-14040 |
HZJ80..VX..GEN;HDJ80..4FC..GEN;FZJ80..SOB..EFI;HZJ80..GX..(GCC,GEN);FZJ80..LUB..GCC..EFI 1.2W OR 1.4W BULB |
10 | ||
| 83101-20040 |
HDJ80,HZJ80;FZJ80..GCC,GEN;FZJ80..STD..EFI 3.4W BULB |
7 | ||
| 83101-14040 |
FZJ80..GCC..CBR;HZJ80..RHD..GEN;HZJ80..LHD..(GX,VX) 1.2W OR 1.4W BULB |
7 | ||
| 83101-20040 |
HZJ80;FZJ80..GCC,GEN;FZJ80..STD..EFI 3.4W BULB |
7 | ||
| 83101-20040 |
FZJ80,HDJ80,HZJ80 3.4W BULB |
7 | ||
| 83101-20040 |
FZJ80,HDJ80,HZJ80..GCC,GEN 3.4W BULB |
7 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-20040 |
FJ80,FZJ80,HDJ80,HZJ80 3.4W BULB |
7 | ||
| 83101-20040 |
FJ80,HZJ80..5F..GX..GCC W(SPEED METER + CONBIMETER),3.4W BULB |
7 | ||
| 83101-14040 |
HDJ80..ARL;HZJ80..GX..GCC 1.2W OR 1.4W BULB |
10 | ||
| 83101-14040 |
HZJ80..GCC 1.2W OR 1.4W BULB |
10 | ||
| 83101-20040 |
HZJ80..RHD..5F..STD..GEN;FJ80,FZJ80..SOB..STD..GEN;FJ80,FZJ80,HZJ80..5F..GX..GCC W(SPEED METER + CONBIMETER),3.4W BULB |
7 | ||
| 83101-20040 |
FJ80..STD..GEN;FJ80,HZJ80..5F..GX..GCC W(SPEED METER + CONBIMETER),3.4W BULB |
7 | ||
| 83101-14040 |
HZJ80..VX..GEN;HDJ80..4FC..GEN;FZJ80..SOB..EFI;HZJ80..GX..(GCC,GEN);FZJ80..LUB..GCC..EFI 1.2W OR 1.4W BULB |
10 | ||
| 83101-20040 |
HDJ80,HZJ80;FZJ80..GCC,GEN;FZJ80..STD..EFI 3.4W BULB |
7 | ||
| 83101-14040 |
FZJ80..GCC..CBR;HZJ80..RHD..GEN;HZJ80..LHD..(GX,VX) 1.2W OR 1.4W BULB |
7 | ||
| 83101-20040 |
HZJ80;FZJ80..GCC,GEN;FZJ80..STD..EFI 3.4W BULB |
7 | ||
| 83101-20040 |
FZJ80,HDJ80,HZJ80 3.4W BULB |
7 | ||
| 83101-20040 |
FZJ80,HDJ80,HZJ80..GCC,GEN 3.4W BULB |
7 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-20040 |
FJ80,FZJ80,HDJ80,HZJ80 3.4W BULB |
7 | ||
| 83101-20040 |
FJ80,HZJ80..5F..GX..GCC W(SPEED METER + CONBIMETER),3.4W BULB |
7 | ||
| 83101-14040 |
HDJ80..ARL;HZJ80..GX..GCC 1.2W OR 1.4W BULB |
10 | ||
| 83101-14040 |
HZJ80..GCC 1.2W OR 1.4W BULB |
10 | ||
| 83101-20040 |
HZJ80..RHD..5F..STD..GEN;FJ80,FZJ80..SOB..STD..GEN;FJ80,FZJ80,HZJ80..5F..GX..GCC W(SPEED METER + CONBIMETER),3.4W BULB |
7 | ||
| 83101-20040 |
FJ80..STD..GEN;FJ80,HZJ80..5F..GX..GCC W(SPEED METER + CONBIMETER),3.4W BULB |
7 | ||
| 83101-14040 |
HZJ80..VX..GEN;HDJ80..4FC..GEN;FZJ80..SOB..EFI;HZJ80..GX..(GCC,GEN);FZJ80..LUB..GCC..EFI 1.2W OR 1.4W BULB |
10 | ||
| 83101-20040 |
HDJ80,HZJ80;FZJ80..GCC,GEN;FZJ80..STD..EFI 3.4W BULB |
7 | ||
| 83101-14040 |
FZJ80..GCC..CBR;HZJ80..RHD..GEN;HZJ80..LHD..(GX,VX) 1.2W OR 1.4W BULB |
7 | ||
| 83101-20040 |
HZJ80;FZJ80..GCC,GEN;FZJ80..STD..EFI 3.4W BULB |
7 | ||
| 83101-20040 |
FZJ80,HDJ80,HZJ80 3.4W BULB |
7 | ||
| 83101-20040 |
FZJ80,HDJ80,HZJ80..GCC,GEN 3.4W BULB |
7 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83110-60202 |
HDJ80,HZJ80..GCC,GEN KM |
1 | ||
| 83110-60240 |
HZJ80..GCC |
1 | ||
| 83110-60202 |
HZJ80..GCC |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-60100 |
FJ80..STD..ARL;FJ80..5F..GX..GCC;HZJ80..SOB..(ARL,GCC) W(SUB FUEL TANK) |
1 | ||
| 83132-60720 |
FZJ80,HZJ80..GX..GCC;HZJ80..RHD..STD..GEN W(TACHOMETER) |
1 | ||
| 83132-60100 |
HZJ80..RHD..5F..STD;FJ80,FZJ80..STD..(ARL,GEN);FJ80,FZJ80,HZJ80..5F..GX..GCC W(TACHOMETER) |
1 | ||
| 83132-60120 |
FJ80,FZJ80,HZJ80..STD..(ARL,GEN);FJ80,FZJ80,HZJ80..5F..(GX,STD)..GCC |
1 | ||
| 83132-60770 |
HZJ80..GX..GCC W(SUB FUEL TANK) |
1 | ||
| 83132-60100 |
FJ80,HZJ80..5F..GX..GCC W(SUB FUEL TANK) |
1 | ||
| 83134 - COVER, COMBINATION METER, NO.1 | ||||
| 83134-60120 |
HZJ80..SOB..(ARL,GCC) W(TACHOMETER) |
1 | ||
| 83134-60140 |
HZJ80..STD;HZJ80..GX..GCC |
1 | ||
| 83134-60120 |
HZJ80..GX..GCC;HZJ80..RHD..5F..STD W(TACHOMETER) |
1 | ||
| 83134-60120 |
HZJ80..GX..GCC;HZJ80..RHD..STD..GEN W(TACHOMETER) |
1 | ||
| 83134-60120 |
HZJ80..GX..GCC W(TACHOMETER) |
1 | ||
| 83145 - LENS, METER, NO.1 | ||||
| 83145-60560 |
FJ80..RHD..GEN;HZJ80..GX..GCC;FJ80..LHD..STD..GEN;FZJ80,HZJ80..STD..GEN |
1 | ||
| 83145-60140 |
HZJ80..GX..GCC W(TACHOMETER) |
1 | ||
| 83145-60140 |
FZJ80,HZJ80..GX..GCC W(TACHOMETER) |
1 | ||
| 83145-60560 |
FZJ80..LUB..ARL;FZJ80,HZJ80..STD..GEN;FZJ80,HZJ80..(GX,STD)..GCC W(DIFFERENTIAL LOCK) OR W(*RWD) OR W(*PW) OR W(SUB FUEL TANK) OR (DUAL *AIC)---EXCL(*TAC) |
1 | ||
| 83145-6A080 |
HZJ80..GX..GCC W(SUB FUEL TANK) |
1 | ||
| 83145-6A100 |
HZJ80..GX..GCC;HZJ80..STD..GEN |
1 | ||
| 83832-60450 |
HZJ80..GX..GCC W(SUB FUEL TANK) |
1 | ||
| 83832-60470 |
HZJ80..GX..GCC |
1 | ||
| 83145A - LENS, METER, NO.2 | ||||
| 83145-60660 |
HZJ80..GX..GCC |
1 | ||
| 83145-60440 |
HZJ80..GX..GCC W(TACHOMETER) |
1 | ||
| 83146-60480 |
HZJ80..GX..GCC W(TACHOMETER) |
1 | ||
| 83146-60640 |
HZJ80..GX..GCC |
1 | ||
| 83145-6A460 |
HZJ80..GX..GCC;HZJ80..STD..GEN |
1 | ||
| 83145-6A400 |
HZJ80..GX..GCC W(SUB TANK) |
1 | ||
| 83831-60530 |
HZJ80..GX..GCC W(SUB TANK) |
1 | ||
| 83146 - GROMMET, METER GLASS | ||||
| 83145-89318 |
HDJ80,HZJ80 |
1 | ||
| 83243A - GAUGE SUB-ASSY, FUEL RECEIVER | ||||
| 83243-60040 |
FJ80..STD..ARL;HZJ80..SOB..(ARL,GCC) W(TACHOMETER) |
1 | ||
| 83243-60100 |
FJ80,FZJ80,HZJ80..5F..(GX,STD)..GCC |
1 | ||
| 83243-60120 |
FJ80,HZJ80..5F..(GX,STD)..GCC W(SUB FUEL TANK) |
1 | ||
| 83243-60040 |
FJ80..STD..ARL;HZJ80..GX..GCC;FZJ80..LUB..STD;HZJ80..RHD..5F..STD W(TACHOMETER) |
1 | ||
| 83243-60240 |
FZJ80,HZJ80..GX..GCC;HZJ80..RHD..STD..GEN W(TACHOMETER) |
1 | ||
| 83243-60300 |
FZJ80,HZJ80..5F..(GX,STD)..GCC |
1 | ||
| 83243-60240 |
HZJ80..GX..GCC W(SUB FUEL TANK) |
1 | ||
| 83243A - GAUGE SUB-ASSY, FUEL RECEIVER | ||||
| 83243-60040 |
FJ80..STD..ARL;HZJ80..SOB..(ARL,GCC) W(TACHOMETER) |
1 | ||
| 83243-60100 |
FJ80,FZJ80,HZJ80..5F..(GX,STD)..GCC |
1 | ||
| 83243-60120 |
FJ80,HZJ80..5F..(GX,STD)..GCC W(SUB FUEL TANK) |
1 | ||
| 83243-60040 |
FJ80..STD..ARL;HZJ80..GX..GCC;FZJ80..LUB..STD;HZJ80..RHD..5F..STD W(TACHOMETER) |
1 | ||
| 83243-60240 |
FZJ80,HZJ80..GX..GCC;HZJ80..RHD..STD..GEN W(TACHOMETER) |
1 | ||
| 83243-60300 |
FZJ80,HZJ80..5F..(GX,STD)..GCC |
1 | ||
| 83243-60240 |
HZJ80..GX..GCC W(SUB FUEL TANK) |
1 | ||
| 83247 - PLATE, METER CIRCUIT | ||||
| 83247-60500 |
HZJ80..GCC W(SUB FUEL TANK) |
1 | ||
| 83247-60240 |
HZJ80..GX..GCC W(TACHOMETER) |
1 | ||
| 83247-60460 |
HZJ80..GX..GCC |
1 | ||
| 83247-6A060 |
HZJ80..GX..GCC;HZJ80..STD..GEN |
1 | ||
| 83149-60800 |
HZJ80..GX..GCC W(TACHOMETER) |
1 | ||
| 83247-6A320 |
HZJ80..GX..GCC W(SUB FUEL TANK) |
1 | ||
| 83247-6A400 |
HZJ80..GX..GCC;HZJ80..STD..GEN |
1 | ||
| 83861-60570 |
HZJ80..GX..GCC W(SUB FUEL TANK) |
1 | ||
| 83248 - CHIME, SPEED WARNING | ||||
| 86640-60010 |
FJ80,FZJ80,HZJ80..GCC |
1 | ||
| 86650-30110 |
FZJ80,HZJ80..GCC |
1 | ||
| 83910 - CLOCK ASSY | ||||
| 83910-60030 |
FJ80..(GX,STD)..GCC;FJ80,HDJ80..LHD..GEN;FZJ80,HZJ80..LHD..VX..GEN;FZJ80,HZJ80..LHD..(GX,STD) |
1 | ||
| 83910-60030 |
FZJ80,HZJ80..LHD..(GX,STD);FZJ80,HDJ80,HZJ80..LHD..VX..GEN |
1 | ||
| Common parts | ||||
| 83161-20300 | ||||
| 83161-20460 | ||||
| 83161-20720 | ||||
| 93568-55014 | ||||
| Linked diagrams | ||||
| 8302 | ||||
ILLUST NO. 2 OF 4(9001- )LHD
SPEEDMETER CABLE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83180 - DETECTOR ASSY, REVOLUTION | ||||
| 83180-32020 |
HDJ80;HZJ80..RHD;HZJ80..LHD..(GX,VX) |
1 | ||
| 83180-32020 |
HZJ80..STD..ARL;HDJ80,HZJ80..GX,VX |
1 | ||
| 83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1 | ||||
| 83710-60190 |
HDJ80,HZJ80..LHD..MTM |
1 | ||
| 83710-60290 |
FZJ80,HDJ80,HZJ80..LHD..MTM W(POWER TAKE OFF) |
1 | ||
| 83710-60191 |
FZJ80,HDJ80,HZJ80..LHD..MTM |
1 | ||
| Common parts | ||||
| 82711-12200 | ||||
| 83791-60010 | ||||
| 83791-60050 | ||||
| 83791-60051 | ||||
| 83791-60060 | ||||
| 83791-60070 | ||||
| 90179-06161 | ||||
| 90463-10337 | ||||
| 93568-55014 | ||||
ILLUST NO. 4 OF 4(9208- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83181A - SENSOR, SPEEDOMETER | ||||
| 83181-20040 |
FZJ80,HDJ80,HZJ80 |
1 | ||
| 83783 - KEY, SPEEDMETER SENSOR | ||||
| 83783-22010 |
FZJ80,HDJ80,HZJ80 |
1 | ||
Part Price Details
Loading price information...
Part Number:
Price:
