HZJ80L-GCMNSV (1990)
Toyota Land Cruiser
(9001- )
4-SEALED BEAM UNIT TYPE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81110 - HEADLAMP ASSY, RH | ||||
| 81110-60470 |
FJ80,HZJ80..GX..GCC |
1 | ||
| 81110-60471 |
FJ80,FZJ80,HZJ80..GX..GCC |
1 | ||
| 81110-60471 |
FZJ80,HZJ80..GX..GCC |
1 | ||
| 81110-60472 |
FZJ80,HZJ80..GX..GCC |
1 | ||
| 81110-60473 |
FZJ80,HZJ80..GX..GCC |
1 | ||
| 81110-60474 |
FZJ80,HZJ80..GX..GCC |
1 | ||
| 81110-60694 |
FZJ80,HZJ80..GX..GCC EXTERIOR PACKAGE(P SET) |
1 | ||
| 81110-60695 |
FZJ80,HZJ80..5F..GX..GCC GOLD PAINTED |
1 | ||
| 81110-60475 |
FZJ80..5F..VX..GEN..EFI;FZJ80,HZJ80..(GX,VX)..GCC CHROME PLATED |
1 | ||
| 81110 - HEADLAMP ASSY, RH | ||||
| 81110-60470 |
FJ80,HZJ80..GX..GCC |
1 | ||
| 81110-60471 |
FJ80,FZJ80,HZJ80..GX..GCC |
1 | ||
| 81110-60471 |
FZJ80,HZJ80..GX..GCC |
1 | ||
| 81110-60472 |
FZJ80,HZJ80..GX..GCC |
1 | ||
| 81110-60473 |
FZJ80,HZJ80..GX..GCC |
1 | ||
| 81110-60474 |
FZJ80,HZJ80..GX..GCC |
1 | ||
| 81110-60694 |
FZJ80,HZJ80..GX..GCC EXTERIOR PACKAGE(P SET) |
1 | ||
| 81110-60695 |
FZJ80,HZJ80..5F..GX..GCC GOLD PAINTED |
1 | ||
| 81110-60475 |
FZJ80..5F..VX..GEN..EFI;FZJ80,HZJ80..(GX,VX)..GCC CHROME PLATED |
1 | ||
| 81110B - BULB(FOR HEADLAMP, NO.1) | ||||
| 90981-13017 |
FJ80..GX..GCC;FJ80..4F..LUB;FJ80..SOB..GX..GEN;FJ80..RHD..GX..GEN;FZJ80,HZJ80..GCC,GEN;FJ80,HDJ80..VX..(EFI,TD2);FJ80..(STD,VX)..(GCC,GEN) 12V 55W,*HAL *WH |
2 | ||
| 90981-13017 |
FJ80..GX..GCC;FJ80..4F..LUB;HZJ80..4F..STD;FJ80..RHD..GX..GEN;FJ80..SOB..GX..GEN;FJ80..(STD,VX)..(GCC,GEN);FJ80,HDJ80..VX..(EFI,TD2);HZJ80..(4FC,5F)..(GCC,GEN) 12V 55W,*HAL *WH |
2 | ||
| 81110B - BULB(FOR HEADLAMP, NO.1) | ||||
| 90981-13017 |
FJ80..GX..GCC;FJ80..4F..LUB;FJ80..SOB..GX..GEN;FJ80..RHD..GX..GEN;FZJ80,HZJ80..GCC,GEN;FJ80,HDJ80..VX..(EFI,TD2);FJ80..(STD,VX)..(GCC,GEN) 12V 55W,*HAL *WH |
2 | ||
| 90981-13017 |
FJ80..GX..GCC;FJ80..4F..LUB;HZJ80..4F..STD;FJ80..RHD..GX..GEN;FJ80..SOB..GX..GEN;FJ80..(STD,VX)..(GCC,GEN);FJ80,HDJ80..VX..(EFI,TD2);HZJ80..(4FC,5F)..(GCC,GEN) 12V 55W,*HAL *WH |
2 | ||
| 81110D - BULB(FOR HEADLAMP, NO.2) | ||||
| 90981-13015 |
FJ80..GX..GCC;FJ80..4F..LUB;HZJ80..4F..STD;FJ80..RHD..GX..GEN;FJ80..SOB..GX..GEN;FJ80..(STD,VX)..(GCC,GEN);FJ80,HDJ80..VX..(EFI,TD2);HZJ80..(4FC,5F)..(GCC,GEN) 12V 60/55W,*HAL *WH |
2 | ||
| 90981-13015 |
FJ80..GX..GCC;FJ80..4F..LUB;FJ80..SOB..GX..GEN;FJ80..RHD..GX..GEN;FZJ80,HZJ80..GCC,GEN;FJ80,HDJ80..VX..(EFI,TD2);FJ80..(STD,VX)..(GCC,GEN) 12V 60/55W,*HAL *WH |
2 | ||
| 90981-13015 |
FZJ80,HDJ80,HZJ80 12V 60/55W,*HAL *WH |
2 | ||
| 90981-22004 |
FZJ80,HZJ80..GCC;FZJ80,HDJ80..VX..ARL 12V 60/55W,*HAL *WH |
2 | ||
| 81110D - BULB(FOR HEADLAMP, NO.2) | ||||
| 90981-13015 |
FJ80..GX..GCC;FJ80..4F..LUB;HZJ80..4F..STD;FJ80..RHD..GX..GEN;FJ80..SOB..GX..GEN;FJ80..(STD,VX)..(GCC,GEN);FJ80,HDJ80..VX..(EFI,TD2);HZJ80..(4FC,5F)..(GCC,GEN) 12V 60/55W,*HAL *WH |
2 | ||
| 90981-13015 |
FJ80..GX..GCC;FJ80..4F..LUB;FJ80..SOB..GX..GEN;FJ80..RHD..GX..GEN;FZJ80,HZJ80..GCC,GEN;FJ80,HDJ80..VX..(EFI,TD2);FJ80..(STD,VX)..(GCC,GEN) 12V 60/55W,*HAL *WH |
2 | ||
| 90981-13015 |
FZJ80,HDJ80,HZJ80 12V 60/55W,*HAL *WH |
2 | ||
| 90981-22004 |
FZJ80,HZJ80..GCC;FZJ80,HDJ80..VX..ARL 12V 60/55W,*HAL *WH |
2 | ||
| 81150 - HEADLAMP ASSY, LH | ||||
| 81150-60290 |
FJ80,HZJ80..GX..GCC |
1 | ||
| 81150-60291 |
FJ80,FZJ80,HZJ80..GX..GCC |
1 | ||
| 81150-60292 |
FZJ80,HZJ80..GX..GCC |
1 | ||
| 81150-60291 |
FZJ80,HZJ80..GX..GCC |
1 | ||
| 81150-60294 |
FZJ80,HZJ80..GX..GCC |
1 | ||
| 81150-60293 |
FZJ80,HZJ80..GX..GCC |
1 | ||
| 81150-60514 |
FZJ80,HZJ80..GX..GCC EXTERIOR PACKAGE(P SET) |
1 | ||
| 81150-60515 |
FZJ80,HZJ80..5F..GX..GCC GOLD PAINTED |
1 | ||
| 81150-60295 |
FZJ80..5F..VX..GEN..EFI;FZJ80,HZJ80..(GX,VX)..GCC CHROME PLATED |
1 | ||
| 81150 - HEADLAMP ASSY, LH | ||||
| 81150-60290 |
FJ80,HZJ80..GX..GCC |
1 | ||
| 81150-60291 |
FJ80,FZJ80,HZJ80..GX..GCC |
1 | ||
| 81150-60292 |
FZJ80,HZJ80..GX..GCC |
1 | ||
| 81150-60291 |
FZJ80,HZJ80..GX..GCC |
1 | ||
| 81150-60294 |
FZJ80,HZJ80..GX..GCC |
1 | ||
| 81150-60293 |
FZJ80,HZJ80..GX..GCC |
1 | ||
| 81150-60514 |
FZJ80,HZJ80..GX..GCC EXTERIOR PACKAGE(P SET) |
1 | ||
| 81150-60515 |
FZJ80,HZJ80..5F..GX..GCC GOLD PAINTED |
1 | ||
| 81150-60295 |
FZJ80..5F..VX..GEN..EFI;FZJ80,HZJ80..(GX,VX)..GCC CHROME PLATED |
1 | ||
| Common parts | ||||
| 81136-12571 | ||||
| 90075-10004 | ||||
| 90075-10818 | ||||
| 90075-99026 | ||||
| 90119-06126 | ||||
| 90189-04014 | ||||
| 90189-04163 | ||||
| 90189-06111 | ||||
(9001- )

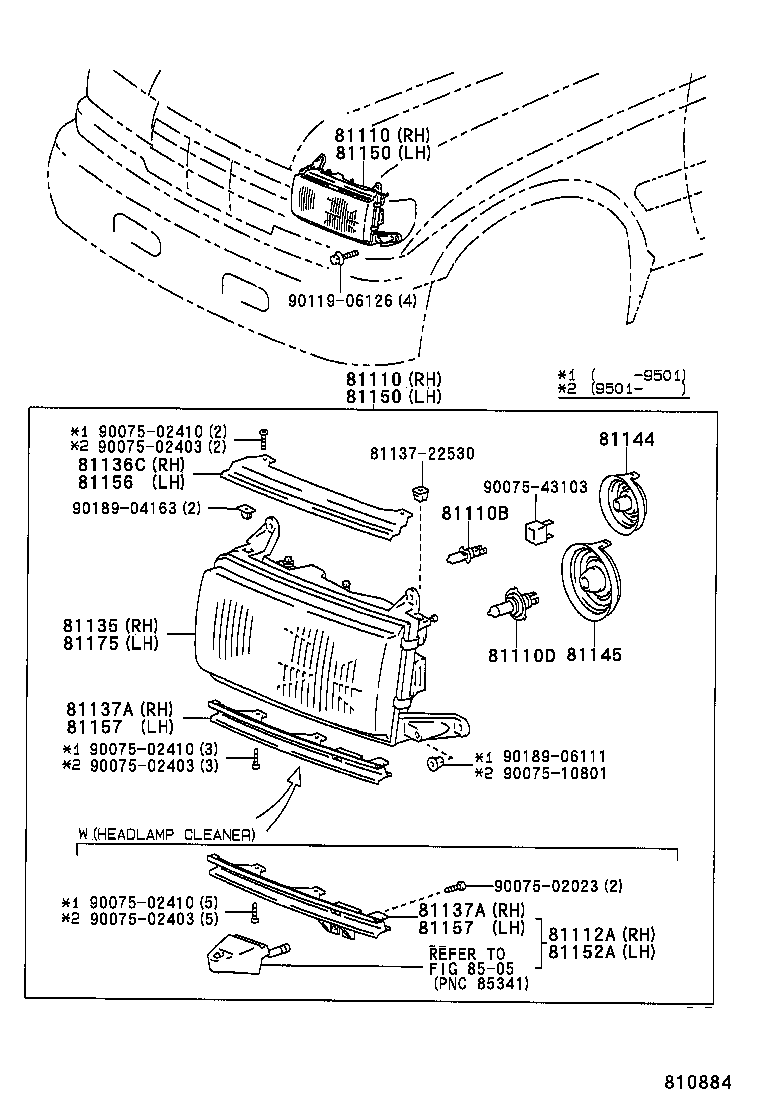

2-RECTANGULAR TYPE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81110 - HEADLAMP ASSY, RH | ||||
| 81110-60470 |
FJ80,HZJ80..GX..GCC |
1 | ||
| 81110-60471 |
FJ80,FZJ80,HZJ80..GX..GCC |
1 | ||
| 81110-60471 |
FZJ80,HZJ80..GX..GCC |
1 | ||
| 81110-60472 |
FZJ80,HZJ80..GX..GCC |
1 | ||
| 81110-60473 |
FZJ80,HZJ80..GX..GCC |
1 | ||
| 81110-60474 |
FZJ80,HZJ80..GX..GCC |
1 | ||
| 81110-60694 |
FZJ80,HZJ80..GX..GCC EXTERIOR PACKAGE(P SET) |
1 | ||
| 81110-60695 |
FZJ80,HZJ80..5F..GX..GCC GOLD PAINTED |
1 | ||
| 81110-60475 |
FZJ80..5F..VX..GEN..EFI;FZJ80,HZJ80..(GX,VX)..GCC CHROME PLATED |
1 | ||
| 81110 - HEADLAMP ASSY, RH | ||||
| 81110-60470 |
FJ80,HZJ80..GX..GCC |
1 | ||
| 81110-60471 |
FJ80,FZJ80,HZJ80..GX..GCC |
1 | ||
| 81110-60471 |
FZJ80,HZJ80..GX..GCC |
1 | ||
| 81110-60472 |
FZJ80,HZJ80..GX..GCC |
1 | ||
| 81110-60473 |
FZJ80,HZJ80..GX..GCC |
1 | ||
| 81110-60474 |
FZJ80,HZJ80..GX..GCC |
1 | ||
| 81110-60694 |
FZJ80,HZJ80..GX..GCC EXTERIOR PACKAGE(P SET) |
1 | ||
| 81110-60695 |
FZJ80,HZJ80..5F..GX..GCC GOLD PAINTED |
1 | ||
| 81110-60475 |
FZJ80..5F..VX..GEN..EFI;FZJ80,HZJ80..(GX,VX)..GCC CHROME PLATED |
1 | ||
| 81110B - BULB(FOR HEADLAMP, NO.1) | ||||
| 90981-13017 |
FJ80..GX..GCC;FJ80..4F..LUB;FJ80..SOB..GX..GEN;FJ80..RHD..GX..GEN;FZJ80,HZJ80..GCC,GEN;FJ80,HDJ80..VX..(EFI,TD2);FJ80..(STD,VX)..(GCC,GEN) 12V 55W,*HAL *WH |
2 | ||
| 90981-13017 |
FJ80..GX..GCC;FJ80..4F..LUB;HZJ80..4F..STD;FJ80..RHD..GX..GEN;FJ80..SOB..GX..GEN;FJ80..(STD,VX)..(GCC,GEN);FJ80,HDJ80..VX..(EFI,TD2);HZJ80..(4FC,5F)..(GCC,GEN) 12V 55W,*HAL *WH |
2 | ||
| 81110D - BULB(FOR HEADLAMP, NO.2) | ||||
| 90981-13015 |
FJ80..GX..GCC;FJ80..4F..LUB;HZJ80..4F..STD;FJ80..RHD..GX..GEN;FJ80..SOB..GX..GEN;FJ80..(STD,VX)..(GCC,GEN);FJ80,HDJ80..VX..(EFI,TD2);HZJ80..(4FC,5F)..(GCC,GEN) 12V 60/55W,*HAL *WH |
2 | ||
| 90981-13015 |
FJ80..GX..GCC;FJ80..4F..LUB;FJ80..SOB..GX..GEN;FJ80..RHD..GX..GEN;FZJ80,HZJ80..GCC,GEN;FJ80,HDJ80..VX..(EFI,TD2);FJ80..(STD,VX)..(GCC,GEN) 12V 60/55W,*HAL *WH |
2 | ||
| 90981-13015 |
FZJ80,HDJ80,HZJ80 12V 60/55W,*HAL *WH |
2 | ||
| 90981-22004 |
FZJ80,HZJ80..GCC;FZJ80,HDJ80..VX..ARL 12V 60/55W,*HAL *WH |
2 | ||
| 81112A - RIM, HEADLAMP, RH | ||||
| 81116-60480 |
FZJ80,HZJ80..GX..GCC |
1 | ||
| 81116-60482 |
FZJ80,HZJ80..GX..GCC |
1 | ||
| 81135 - UNIT ASSY, HEADLAMP, RH | ||||
| 81130-60470 |
FZJ80,HZJ80..GCC EXTERIOR PACKAGE(J SET OR K SET OR M SET) |
1 | ||
| 81130-60473 |
FZJ80,HZJ80..GCC |
1 | ||
| 81130-60364 |
FZJ80,HZJ80..GCC |
1 | ||
| 81130-60470 |
FJ80,FZJ80,HZJ80..GCC EXTERIOR PACKAGE(J SET OR K SET OR M SET) |
1 | ||
| 81130-60365 |
FZJ80,HZJ80..GCC |
1 | ||
| 81130-60365 |
FZJ80,HZJ80..GCC;FZJ80..5F..VX..GEN..EFI;HDJ80,HZJ80..LHD..VX..GEN |
1 | ||
| 81136C - RIM, HEADLAMP, RH | ||||
| 81116-60480 |
FJ80,HDJ80..VX..ARL;FJ80,FZJ80,HZJ80..GX..GCC |
1 | ||
| 81116-60480 |
FZJ80,HZJ80..GX..GCC;FZJ80,HDJ80..VX..ARL |
1 | ||
| 81116-60482 |
FZJ80,HZJ80..GX..GCC;FZJ80,HDJ80..VX..ARL |
1 | ||
| 81116-60692 |
FZJ80,HZJ80..5F..GX..GCC EXTERIOR PACKAGE(P SET) |
1 | ||
| 81116-60482 |
FZJ80,HZJ80..5F..GX..GCC |
1 | ||
| 81137A - RIM, HEADLAMP, RH | ||||
| 81117-60480 |
FZJ80,HZJ80..GX..GCC |
1 | ||
| 81117-60395 |
FZJ80,HZJ80..GX..GCC |
1 | ||
| 81117-60480 |
FJ80,FZJ80,HZJ80..GX..GCC |
1 | ||
| 81117-60694 |
FZJ80,HZJ80..5F..GX..GCC EXTERIOR PACKAGE(P SET) |
1 | ||
| 81137A - RIM, HEADLAMP, RH | ||||
| 81117-60480 |
FZJ80,HZJ80..GX..GCC |
1 | ||
| 81117-60395 |
FZJ80,HZJ80..GX..GCC |
1 | ||
| 81117-60480 |
FJ80,FZJ80,HZJ80..GX..GCC |
1 | ||
| 81117-60694 |
FZJ80,HZJ80..5F..GX..GCC EXTERIOR PACKAGE(P SET) |
1 | ||
| 81144 - COVER, HEADLAMP, NO.1 | ||||
| 90075-99031 |
FJ80,HDJ80..VX..ARL;FZJ80..LHD..VX..GEN;FJ80,FZJ80,HZJ80..GCC;FJ80..LHD..(4FC,5F)..LUB..GX..GEN |
2 | ||
| 90075-99031 |
FZJ80,HZJ80..GCC;FZJ80..LHD..VX..GEN;FZJ80,HDJ80..VX..ARL |
2 | ||
| 90075-99031 |
HZJ80..GCC;FZJ80..SOB..GX..GCC;HZJ80..LHD..GX..GEN;FZJ80..LHD..SOB..(STD,VX);FZJ80..LHD..5F..LUB..(GX,VX);FZJ80,HDJ80..4FC..LUB..VX..(EFI,TD4) |
2 | ||
| 81145 - COVER, HEADLAMP, NO.2 | ||||
| 90075-99029 |
FJ80,HDJ80..VX..ARL;FZJ80..LHD..VX..GEN;FJ80,FZJ80,HZJ80..GCC;FJ80..LHD..(4FC,5F)..LUB..GX..GEN |
2 | ||
| 90075-99029 |
HZJ80..GCC;FZJ80..SOB..GX..GCC;HZJ80..LHD..GX..GEN;FZJ80..LHD..SOB..(STD,VX);FZJ80..LHD..5F..LUB..(GX,VX);FZJ80,HDJ80..4FC..LUB..VX..(EFI,TD4) |
2 | ||
| 90075-99029 |
FZJ80,HZJ80..GCC;FZJ80..LHD..VX..GEN;FZJ80,HDJ80..VX..ARL |
2 | ||
| 81150 - HEADLAMP ASSY, LH | ||||
| 81150-60290 |
FJ80,HZJ80..GX..GCC |
1 | ||
| 81150-60291 |
FJ80,FZJ80,HZJ80..GX..GCC |
1 | ||
| 81150-60292 |
FZJ80,HZJ80..GX..GCC |
1 | ||
| 81150-60291 |
FZJ80,HZJ80..GX..GCC |
1 | ||
| 81150-60294 |
FZJ80,HZJ80..GX..GCC |
1 | ||
| 81150-60293 |
FZJ80,HZJ80..GX..GCC |
1 | ||
| 81150-60514 |
FZJ80,HZJ80..GX..GCC EXTERIOR PACKAGE(P SET) |
1 | ||
| 81150-60515 |
FZJ80,HZJ80..5F..GX..GCC GOLD PAINTED |
1 | ||
| 81150-60295 |
FZJ80..5F..VX..GEN..EFI;FZJ80,HZJ80..(GX,VX)..GCC CHROME PLATED |
1 | ||
| 81150 - HEADLAMP ASSY, LH | ||||
| 81150-60290 |
FJ80,HZJ80..GX..GCC |
1 | ||
| 81150-60291 |
FJ80,FZJ80,HZJ80..GX..GCC |
1 | ||
| 81150-60292 |
FZJ80,HZJ80..GX..GCC |
1 | ||
| 81150-60291 |
FZJ80,HZJ80..GX..GCC |
1 | ||
| 81150-60294 |
FZJ80,HZJ80..GX..GCC |
1 | ||
| 81150-60293 |
FZJ80,HZJ80..GX..GCC |
1 | ||
| 81150-60514 |
FZJ80,HZJ80..GX..GCC EXTERIOR PACKAGE(P SET) |
1 | ||
| 81150-60515 |
FZJ80,HZJ80..5F..GX..GCC GOLD PAINTED |
1 | ||
| 81150-60295 |
FZJ80..5F..VX..GEN..EFI;FZJ80,HZJ80..(GX,VX)..GCC CHROME PLATED |
1 | ||
| 81156 - RIM, HEADLAMP, LH | ||||
| 81156-60300 |
FJ80,HDJ80..VX..ARL;FJ80,FZJ80,HZJ80..GX..GCC |
1 | ||
| 81156-60300 |
FZJ80,HZJ80..GX..GCC;FZJ80,HDJ80..VX..ARL |
1 | ||
| 81156-60302 |
HZJ80..LHD..GX;FZJ80..SOB..GX..GCC;FZJ80,HDJ80..VX..ARL;FZJ80..LHD..LUB..GX..CBR |
1 | ||
| 81156-60512 |
FZJ80,HZJ80..5F..GX..GCC EXTERIOR PACKAGE(P SET) |
1 | ||
| 81156-60302 |
FZJ80,HZJ80..GX..GCC;FZJ80,HDJ80..VX..ARL |
1 | ||
| 81157 - RIM, HEADLAMP, LH | ||||
| 81157-60300 |
FJ80,FZJ80,HZJ80..GX..GCC |
1 | ||
| 81157-60300 |
FZJ80,HZJ80..GX..GCC |
1 | ||
| 81157-60514 |
FZJ80,HZJ80..5F..GX..GCC EXTERIOR PACKAGE(P SET) |
1 | ||
| 81157-60215 |
FZJ80,HZJ80..GX..GCC |
1 | ||
| 81157 - RIM, HEADLAMP, LH | ||||
| 81157-60300 |
FJ80,FZJ80,HZJ80..GX..GCC |
1 | ||
| 81157-60300 |
FZJ80,HZJ80..GX..GCC |
1 | ||
| 81157-60514 |
FZJ80,HZJ80..5F..GX..GCC EXTERIOR PACKAGE(P SET) |
1 | ||
| 81157-60215 |
FZJ80,HZJ80..GX..GCC |
1 | ||
| 81175 - UNIT ASSY, HEADLAMP, LH | ||||
| 81170-60290 |
FZJ80,HZJ80..GCC EXTERIOR PACKAGE(J SET OR K SET OR M SET) |
1 | ||
| 81170-60184 |
FZJ80,HZJ80..GCC |
1 | ||
| 81170-60293 |
FZJ80,HZJ80..GCC |
1 | ||
| 81170-60185 |
HZJ80..GCC;FZJ80..SOB..GX..GCC;FZJ80..(STD,VX)..GCC;FZJ80..LHD..SOB..STD..GEN;FZJ80,HZJ80..LHD..5F..LUB..GX |
1 | ||
| 81170-60290 |
FJ80,FZJ80,HZJ80..GCC EXTERIOR PACKAGE(J SET OR K SET OR M SET) |
1 | ||
| 81170-60185 |
HDJ80..LHD;HZJ80..GCC;FZJ80..SOB..GX..GCC;FZJ80..(STD,VX)..GCC;FZJ80..LUB..GX..GCC..EFI;FZJ80..LHD..LUB..GX..CBR;FZJ80..LHD..SOB..STD..GEN;FZJ80,HZJ80..LHD..5F..LUB..(GX,VX)..GEN..(DSL,EFI) |
1 | ||
| 81170-60184 |
HZJ80..GCC;FZJ80..SOB..GX..GCC;FZJ80..(STD,VX)..GCC;FZJ80..LHD..SOB..STD..GEN;FZJ80,HZJ80..LHD..5F..LUB..GX |
1 | ||
| Common parts | ||||
| 81137-22530 | ||||
| 90075-02023 | ||||
| 90075-02403 | ||||
| 90075-02410 | ||||
| 90075-10801 | ||||
| 90075-43103 | ||||
| 90119-06126 | ||||
| 90189-04163 | ||||
| 90189-06111 | ||||
| Linked diagrams | ||||
| 8505 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
