HZJ80L-GCMNSV (1990)

Toyota Land Cruiser

Production Jan 1990 - Jan 1998
Engine 1HZ
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 3(9001- )

Click highlighted areas on diagram

diagram 62335D 62335D 62336A 62336A 62571F 62583D 62638D 64780C 64780C 64790C 64790C 64805 64805 67751A 67751A 6777112050 6777112050 6777295J01 6777295J01 69717 9018904014 9018904042 9018904088 9046706020A1 9046706020A1 9046706020A1 9046706020B4 9046706020B4 9046706020B4 9046805043 9356024014 9356054012 9356054012
Part # Description Qty Price
Common parts
67771-12050
67772-95J01
90189-04014
90189-04042
90189-04088
90467-06020A1
90467-06020B4
90468-05043
93560-24014
93560-54012

ILLUST NO. 2 OF 3(9001- )

Click highlighted areas on diagram

diagram 67005D 67006A 67847 67848 6786712150 6786712150 6786712150 6786712150 6786822020 6786930020 6786930020 67881A 67881B 67882B 67882C 67883C 67884C 67891A 67891B 68131C 68131D 68285 68286 68291D 68291E 68299 68299 6855560010 68607F 68608F 68611 68612 68617B 68617C 6861890K00 68645 68646 68647 68648 68650C 68660 68695 68695 68695 68695 68695 68695 68695 68695 68699 68699 9011908521 9011908521 9015960268 9017906128 9017906128 9018904042 9033330002 9033340001 9033340001 9033340001 9095001437 9095001437 9095001639 9095006030 91673A0614 91673A0614 9356054014
Part # Description Qty Price
Common parts
67867-12150
67868-22020
67869-30020
68555-60010
68618-90K00
90119-08521
90159-60268
90179-06128
90189-04042
90333-30002
90333-40001
90950-01437
90950-01639
90950-06030
91673-A0614
93560-54014

ILLUST NO. 3 OF 3(9001- )

Click highlighted areas on diagram

diagram 9095001011 9095001056 9095001056 9095001352 9095001398 9095001435 9095001438 9095001639 9095001866
Part # Description Qty Price
Common parts
90950-01011
90950-01056
90950-01352
90950-01398
90950-01435
90950-01438
90950-01639
90950-01866

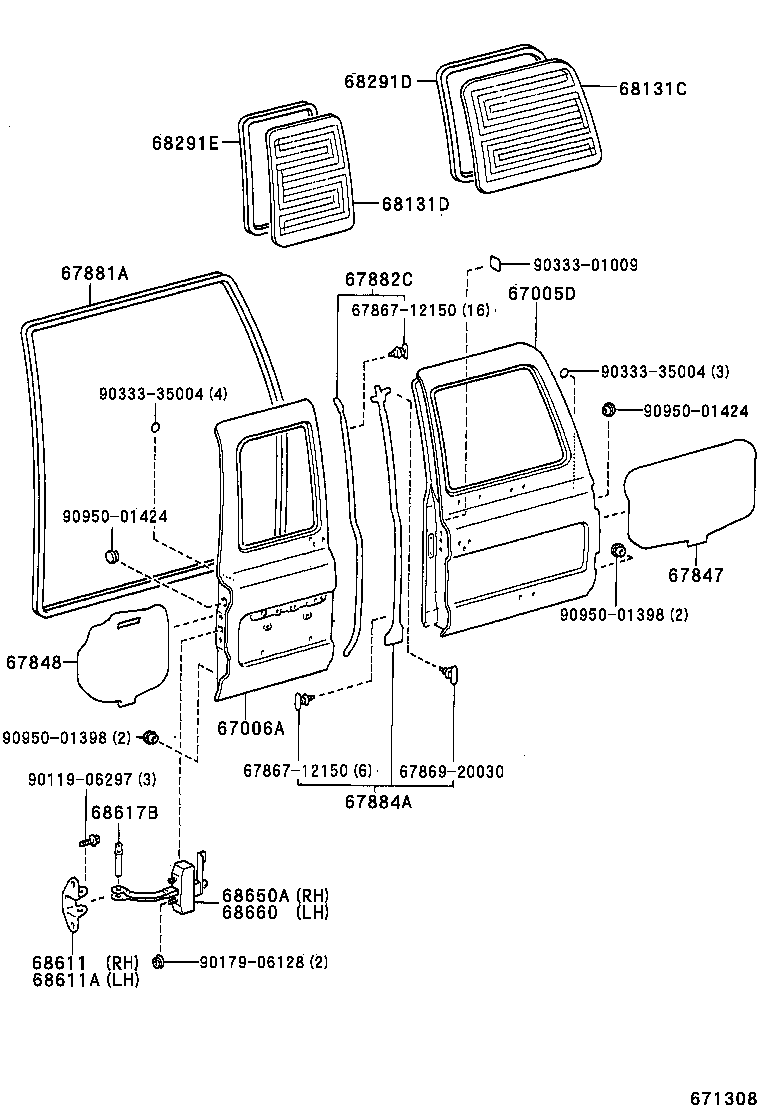

ILLUST NO. 2 OF 2(9001- )SOB ; (9510-9607)HDJ80..LHD..5F

Click highlighted areas on diagram

diagram 67005D 67006A 67847 67848 6786712150 6786712150 6786920030 67881A 67882C 67884A 68131C 68131D 68291D 68291E 68611 68611A 68617B 68650A 68660 9011906297 9017906128 9033301009 9033335004 9033335004 9095001398 9095001398 9095001424 9095001424
Part # Description Qty Price
67005D - PANEL SUB-ASSY, BACK DOOR, RH
67005-60030

FJ80,HZJ80..SOB..(GX,STD)..GCC

W(*RWD)

 1
67005-60130

FJ80,HZJ80..SOB..(GX,STD)..GCC

 1
67005-60040

FJ80,HZJ80..SOB..(GX,STD)..GCC

W(SPARE WHEEL CARRIER(BACK DOOR))

 1
67005-60030

FJ80,FZJ80,HZJ80..SOB..(GX,STD)..(ARL,GCC)

W(*RWD)

 1
67005-60060

FJ80,FZJ80,HZJ80..SOB..(GX,STD)..GCC

W(SPARE WHEEL CARRIER(BACK DOOR) & *RWD)

 1
67005-60130

FJ80,FZJ80,HZJ80..SOB..(GX,STD)..(ARL,GCC)

 1
67005-60031

FJ80,FZJ80,HZJ80..SOB..(GX,STD)..(ARL,GCC)

W(*RWD)

 1
67005-60061

FZJ80,HZJ80..SOB..(GX,STD)..GCC

W(SPARE WHEEL CARRIER(BACK DOOR) & *RWD)

 1
67005-60131

FJ80,FZJ80,HZJ80..SOB..(GX,STD)..(ARL,GCC)

 1
67005-60040

FJ80,FZJ80,HZJ80..SOB..GX..GCC

W(SPARE WHEEL CARRIER(BACK DOOR)

 1
67005-60041

FZJ80,HZJ80..SOB..GX..GCC

W(SPARE WHEEL CARRIER(BACK DOOR)

 1
67005-60440

FZJ80,HZJ80..SOB..GX..GCC

W(SPARE WHEEL CARRIER(BACK DOOR) & *RWD)

 1
67005-60420

FZJ80..SOB..GX..GCC;FZJ80,HZJ80..SOB..(GX,STD)..(ARL,GCC)..(DSL,EFI)

W(*RWD)

 1
67005-60470

FZJ80,HZJ80..SOB..GX..GCC

W(SPARE WHEEL CARRIER(BACK DOOR)

 1
67005-60471

FZJ80,HZJ80..SOB..GX..GCC

W(SPARE WHEEL CARRIER(BACK DOOR)

 1
67005-60170

FZJ80..SOB..GX..GCC;FZJ80,HZJ80..SOB..(GX,STD)..(ARL,GCC)..(DSL,EFI)

 1
67005-60171

FZJ80..SOB..GX..GCC;FZJ80,HZJ80..SOB..(GX,STD)..(ARL,GCC)..(DSL,EFI)

 1
67005-60441

FZJ80,HZJ80..SOB..GX..GCC

W(SPARE WHEEL CARRIER(BACK DOOR) & *RWD)

 1
67005-60421

FZJ80..SOB..GX..GCC;FZJ80,HZJ80..SOB..(GX,STD)..(ARL,GCC)..(DSL,EFI)

W(*RWD)

 1
67005-60471

FZJ80,HZJ80..SOB..GX..GCC

W(SPARE WHEEL CARRIER(BACK DOOR))

 1
67005-60171

FZJ80,HZJ80..SOB..GX..GCC

 1
67005-60421

FZJ80,HZJ80..SOB..GX..GCC

W(*RWD)

 1
67005-60171

FZJ80,HZJ80..SOB..GX..GCC

 2
67005-60441

FZJ80,HZJ80..SOB..GX..GCC

W(SPARE WHEEL CARRIER(BACK DOOR) & *RWD)

 2
67005-60471

FZJ80,HZJ80..SOB..GX..GCC

W(SPARE WHEEL CARRIER(BACK DOOR))

 2
67006A - PANEL SUB-ASSY, BACK DOOR, LH
67006-60071

FZJ80,HZJ80..SOB..(GX,STD)

W(*RWD)

 1
67006-60020

FJ80,FZJ80,HZJ80..SOB..(GX,STD)

 1
67006-60070

FJ80,FZJ80,HZJ80..SOB..(GX,STD)

W(*RWD)

 1
67006-60022

FZJ80,HZJ80..SOB..(GX,STD)

 1
67006-60021

FZJ80,HZJ80..SOB..(GX,STD)

 1
67006-60072

FZJ80,HZJ80..SOB..(GX,STD)

W(*RWD)

 1
67006-60022

FZJ80..SOB..(GX,STD);HZJ80..5F..SOB..(GX,STD)..(GCC,GEN)

 2
67006-60022

FZJ80,HZJ80..SOB..(GX,STD)..(GCC,GEN)

 1
67006-60072

FZJ80,HZJ80..SOB..(GX,STD)..(GCC,GEN)

W(*RWD)

 1
67006-60072

FZJ80..SOB..(GX,STD);HZJ80..5F..SOB..(GX,STD)..(GCC,GEN)

W(*RWD)

 2
67847 - COVER, BACK DOOR SERVICE HOLE, RH
67847-60010

FJ80,FZJ80,HZJ80..SOB

 1
67848 - COVER, BACK DOOR SERVICE HOLE, LH
67848-60010

FJ80,FZJ80,HZJ80..SOB

 1
67881A - WEATHERSTRIP, BACK DOOR
67881-60021

FJ80,FZJ80,HZJ80..SOB

 1
67881-60020

FJ80,HZJ80..SOB

 1
67882C - WEATHERSTRIP, BACK DOOR, NO.2
67882-60021

FJ80,FZJ80,HZJ80..SOB

 1
67882-60020

FJ80,HZJ80..SOB

 1
67884A - WEATHERSTRIP, BACK DOOR, CENTER
67884-60010

FJ80,HZJ80..SOB

 1
67884-60011

FJ80,FZJ80,HZJ80..SOB

 1
68131C - GLASS, BACK DOOR, RH
68131-60050

FJ80,FZJ80,HZJ80..SOB..(GCC,GEN)

*EHTT,T=3.5

 1
68131-60040

FJ80,FZJ80,HZJ80..SOB..(GX,STD)..(GCC,GEN)

*TT,T=3.5

 1
68131-60050

FZJ80,HZJ80..SOB

*EHTT,T=3.5

 1
68131-60040

FZJ80,HZJ80..SOB..(GX,STD)..(GCC,GEN)

*TT,T=3.5

 1
68131-60300

FZJ80..SOB..(GX,STD);HZJ80..5F..SOB..(GX,STD)..(GCC,GEN)

*TEM,T=3.5,GREEN

 1
68131-60040

FZJ80,HZJ80..SOB..(GX,STD)

*TT,T=3.5

 1
68131D - GLASS, BACK DOOR, LH
68132-60020

FJ80,FZJ80,HZJ80..SOB..(GX,STD)..(GCC,GEN)

*TT,T=3.5

 1
68132-60030

FJ80,FZJ80,HZJ80..SOB..(GCC,GEN)

*EHTT,T=3.5

 1
68132-60020

FZJ80,HZJ80..SOB..(GX,STD)

*TT,T=3.5

 1
68132-60030

FZJ80,HZJ80..SOB

*EHTT,T=3.5

 1
68132-60130

FZJ80..SOB..(GX,STD);HZJ80..5F..SOB..(GX,STD)..(GCC,GEN)

*TEM,T=3.5,GREEN

 1
68132-60020

FZJ80,HZJ80..SOB..(GX,STD)..(GCC,GEN)

*TT,T=3.5

 1
68291D - WEATHERSTRIP, BACK DOOR GLASS, RH
68291-60060

FJ80,FZJ80,HZJ80..SOB

 1
68291E - WEATHERSTRIP, BACK DOOR GLASS, LH
68292-60030

FJ80,FZJ80,HZJ80..SOB

 1
68611 - BASE, BACK DOOR CHECK, RH
68611-60010

FJ80,FZJ80,HZJ80..SOB

 1
68611A - BASE, BACK DOOR CHECK
68611-60010

FJ80,FZJ80,HZJ80..SOB

 1
68617B - PIN, BACK DOOR CHECK
68617-50010

FJ80,FZJ80,HZJ80..SOB

 2
68650A - PIN(FOR BACK DOOR CHECK)
68650-60030

FJ80,HZJ80..SOB..(GX,STD)..GCC

 1
68650-60010

FJ80,FZJ80,HZJ80..SOB..(GX,STD)..GCC

W(SPARE WHEEL CARRIER(BACK DOOR))

 1
68650-60030

FJ80,FZJ80,HZJ80..SOB..(GX,STD)..(ARL,GCC)

 1
68650-60020

FJ80,HZJ80..SOB..(GX,STD)..GCC

W(*RWD & BACK DOOR TYPE SPARE WHEEL CARRIER)

 1
68650-60040

FJ80,HZJ80..SOB..(GX,STD)..GCC

W(*RWD)

 1
68650-60020

FJ80,FZJ80,HZJ80..SOB..GX..GCC

W(SPARE WHEEL CARRIER(BACK DOOR) & *RWD)

 1
68650-60040

FJ80,FZJ80,HZJ80..SOB..(GX,STD)..(ARL,GCC)

W(*RWD)

 1
68650-60020

HDJ80..SOB;FZJ80,HZJ80..SOB..(GX,VX)..GCC

W(SPARE WHEEL CARRIER(BACK DOOR))

 1
68660 - CHECK ASSY, BACK DOOR, LH
68660-60010

FJ80,FZJ80,HZJ80..SOB

 1
Common parts
67867-12150
67869-20030
90119-06297
90179-06128
90333-01009
90333-35004
90950-01398
90950-01424

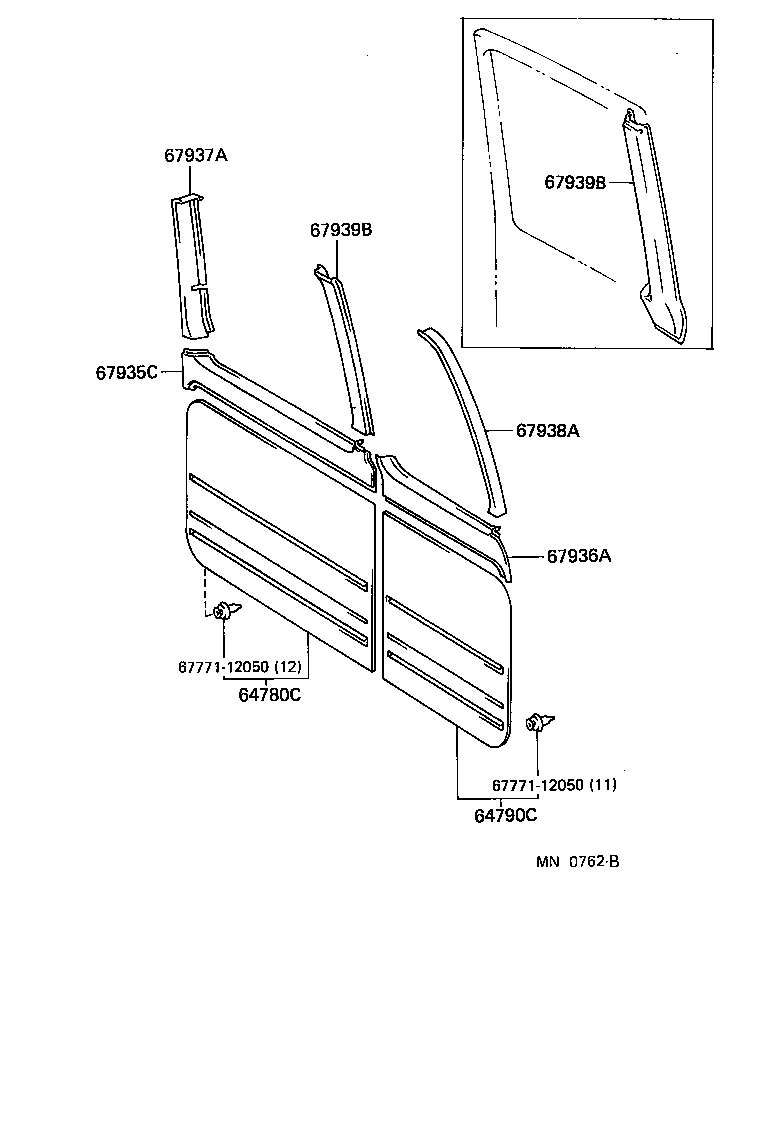

ILLUST NO. 1 OF 2(9001- )SOB ; (9510-9607)HDJ80..LHD..5F

Click highlighted areas on diagram

diagram 64780C 64790C 6777112050 6777112050 67935C 67936A 67937A 67938A 67939B 67939B
Part # Description Qty Price
64780C - PANEL ASSY, BACK DOOR TRIM, RH
64780-6004006

FJ80,FZJ80,HZJ80..SOB

SABLE,TRIM4#

 1
64780-6004003

FJ80,FZJ80,HZJ80..SOB

BLUISH GRAY,TRIM1#

 1
64780-6004006

FZJ80,HZJ80..SOB

SABLE,TRIM4#

 1
64790C - PANEL ASSY, BACK DOOR TRIM, LH
64790-6001006

FZJ80,HZJ80..SOB

SABLE,TRIM4#

 1
64790-60010E0

FZJ80,HDJ80,HZJ80..SOB

OAK,TRIM4#

 1
64790-6001003

FJ80,FZJ80,HZJ80..SOB

BLUISH GRAY,TRIM1#

 1
64790-6001006

FJ80,FZJ80,HZJ80..SOB

SABLE,TRIM4#

 1
67939B - GARNISH, BACK DOOR, CENTER
67939-60030E0

FZJ80,HZJ80..SOB..(GX,STD)

LIGHT SABLE,TRIM4#

 1
67939-60030B0

FZJ80..SOB..(GX,STD);HZJ80..5F..SOB..(GX,STD)

LIGHT GRAY,TRIM1#,4#

 1
67939-60030B0

FZJ80,HZJ80..SOB..(GX,STD)

LIGHT GRAY,TRIM1#

 1
67939B - GARNISH, BACK DOOR, CENTER
67939-60030E0

FZJ80,HZJ80..SOB..(GX,STD)

LIGHT SABLE,TRIM4#

 1
67939-60030B0

FZJ80..SOB..(GX,STD);HZJ80..5F..SOB..(GX,STD)

LIGHT GRAY,TRIM1#,4#

 1
67939-60030B0

FZJ80,HZJ80..SOB..(GX,STD)

LIGHT GRAY,TRIM1#

 1
Common parts
67771-12050
