HZJ80L-GCKRS (1990)

Toyota Land Cruiser

Production Jan 1990 - Jan 1992
Engine 1HZ
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9001- )1HZ

Click highlighted areas on diagram

diagram 22100 22100A 22100S 22811 22811 23701 23702 23703 23704 23705 23706 23741 23741 23741 23741 23741 23741 23742 23742 23811 23811 23849 9011910630 9011910630 9012606008 9012606008 9017906080 9017906080 9017906080 9017906080 9017908022 9030149003 9046400265 9046400299 9046400569 9046400774 9151261230 9151281230 9151281230 9164281230 9164281230 91651B0814 9613231000 9613231000 9613241500 9613241500 9613251300 9613251300 9613541400 9613541400
Part # Description Qty Price
Common parts
90119-10630
90126-06008
90179-06080
90179-08022
90301-49003
90464-00265
90464-00299
90464-00569
90464-00774
91512-61230
91512-81230
91642-81230
91651-B0814
96132-31000
96132-41500
96132-51300
96135-41400

(9001-9208)1HZ

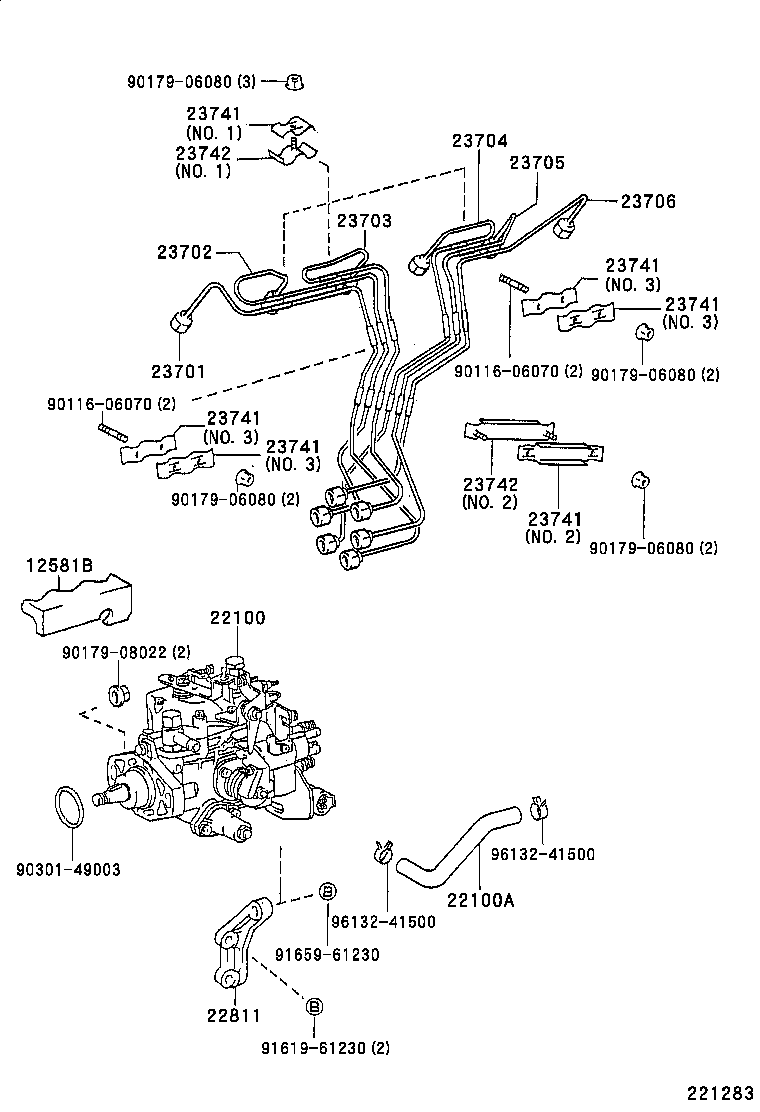

Click highlighted areas on diagram

diagram 12581B 22100 22100A 22811 23701 23702 23703 23704 23705 23706 23741 23741 23741 23741 23741 23741 23742 23742 9011606070 9011606070 9017906080 9017906080 9017906080 9017906080 9017908022 9030149003 9161961230 9165961230 9613241500 9613241500
Part # Description Qty Price
22100 - PUMP ASSY, INJECTION OR SUPPLY
22100-17050

1HZ..HZJ80..STD..GEN

W(HIGH ALTITUDE COMPENSATOR)

 1
22100-17310

1HZ..HZJ80..STD;1HZ..HZJ80..GX..GCC

 1
22100A - HOSE OR PIPE, FUEL(FOR INJECTION PUMP TO FUEL FILTER)
23271-17010

1HZ..HZJ80

 1
22811 - STAY, INJECTION PUMP, NO.1
22811-17010

1H#..HDJ80,HZJ80

 1
23701 - PIPE SUB-ASSY, INJECTION, NO.1
23701-17010

1HZ..HZJ80

 1
23702 - PIPE SUB-ASSY, INJECTION, NO.2
23702-17010

1HZ..HZJ80

 1
23703 - PIPE SUB-ASSY, INJECTION, NO.3
23703-17010

1HZ..HZJ80

 1
23704 - PIPE SUB-ASSY, INJECTION, NO.4
23704-17010

1HZ..HZJ80

 1
23705 - PIPE SUB-ASSY, INJECTION, NO.5
23705-17010

1HZ..HZJ80

 1
23706 - PIPE SUB-ASSY, INJECTION, NO.6
23706-17010

1HZ..HZJ80

 1
23741 - CLAMP, INJECTION PIPE, NO.1
23741-17020

1H#..HDJ80,HZJ80

NO.2

 1
23741-17010

1H#..HDJ80,HZJ80

NO.1

 3
23741-17030

1H#..HDJ80,HZJ80

NO.3

 4
23741 - CLAMP, INJECTION PIPE, NO.1
23741-17020

1H#..HDJ80,HZJ80

NO.2

 1
23741-17010

1H#..HDJ80,HZJ80

NO.1

 3
23741-17030

1H#..HDJ80,HZJ80

NO.3

 4
23741 - CLAMP, INJECTION PIPE, NO.1
23741-17020

1H#..HDJ80,HZJ80

NO.2

 1
23741-17010

1H#..HDJ80,HZJ80

NO.1

 3
23741-17030

1H#..HDJ80,HZJ80

NO.3

 4
23741 - CLAMP, INJECTION PIPE, NO.1
23741-17020

1H#..HDJ80,HZJ80

NO.2

 1
23741-17010

1H#..HDJ80,HZJ80

NO.1

 3
23741-17030

1H#..HDJ80,HZJ80

NO.3

 4
23741 - CLAMP, INJECTION PIPE, NO.1
23741-17020

1H#..HDJ80,HZJ80

NO.2

 1
23741-17010

1H#..HDJ80,HZJ80

NO.1

 3
23741-17030

1H#..HDJ80,HZJ80

NO.3

 4
23741 - CLAMP, INJECTION PIPE, NO.1
23741-17020

1H#..HDJ80,HZJ80

NO.2

 1
23741-17010

1H#..HDJ80,HZJ80

NO.1

 3
23741-17030

1H#..HDJ80,HZJ80

NO.3

 4
23742 - CLAMP, INJECTION PIPE, NO.2
23742-17020

1H#..HDJ80,HZJ80

NO.2

 1
23742-17010

1H#..HDJ80,HZJ80

NO.1

 3
23742 - CLAMP, INJECTION PIPE, NO.2
23742-17020

1H#..HDJ80,HZJ80

NO.2

 1
23742-17010

1H#..HDJ80,HZJ80

NO.1

 3
Common parts
90116-06070
90179-06080
90179-08022
90301-49003
91619-61230
91659-61230
96132-41500
