HZJ79R-TJMRS (2016)
Toyota Land Cruiser
(1702-1704)1HZ..HZJ71,79..RHD..PIC,SOT ; (1802-1803)1HZ..HZJ71,79..RHD..PIC,SOT
12V 110A, SPECIAL EDITION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

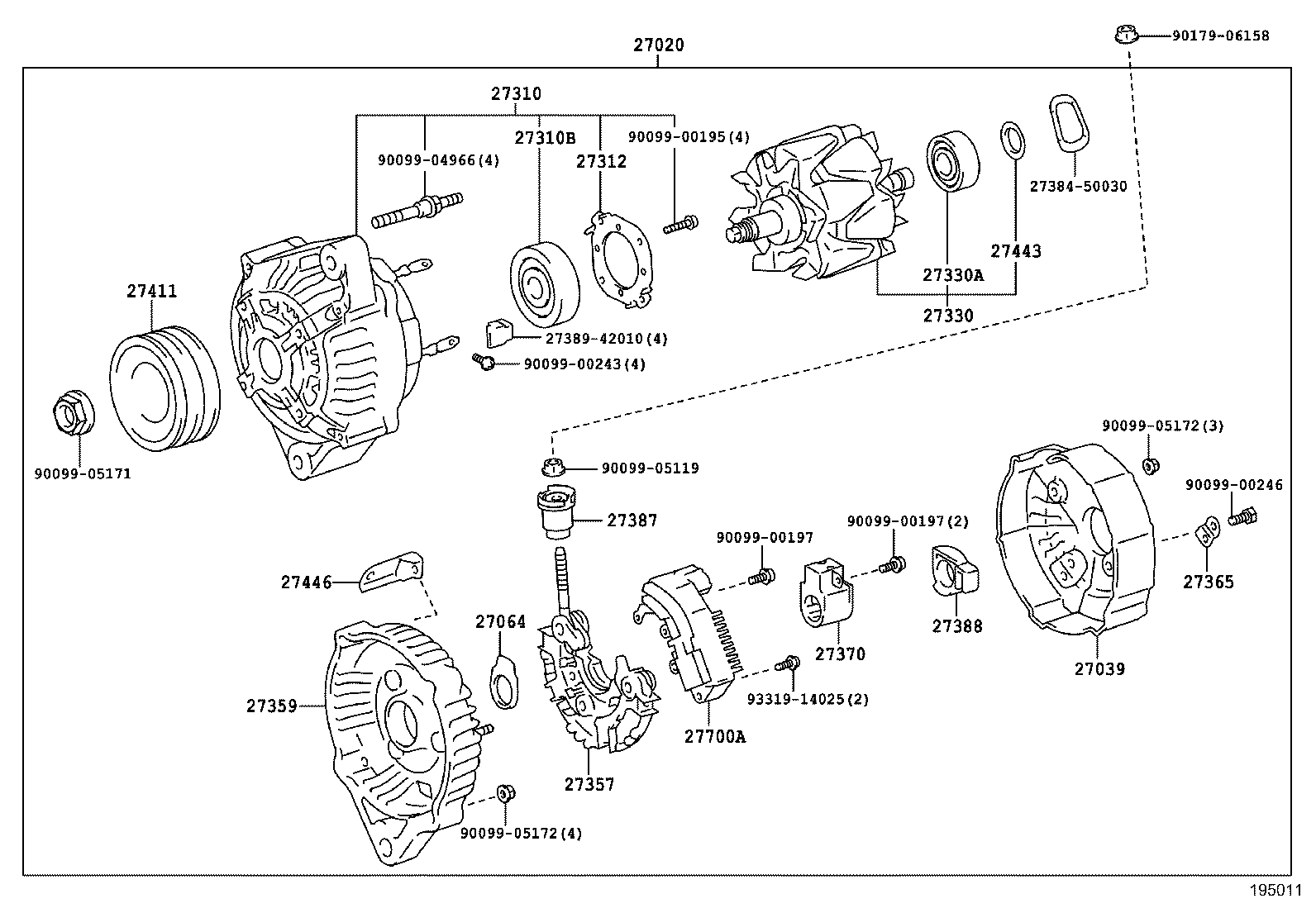

| 27020 - ALTERNATOR ASSY | ||||
| 27060-17220 |
1HZ..HZJ7# 12V 80A |
1 | ||
| 27060-17250 |
1HZ..HZJ71,79..RHD..(PIC,SOT) 12V 110A,SPECIAL EDITION |
1 | ||
| 27060-17260 |
1HZ..HZJ71,79..RHD..(PIC,SOT) 24W 30A,CKD PACKAGE(BANGLADESH) |
1 | ||
| 27060-17250 |
1HZ..HZJ79..RHD..PIC 12V 110A,SPECIAL EDITION |
1 | ||
| 27060-17260 |
1HZ..HZJ79..RHD..PIC 24W 30A,BANGLADESH SPEC&BATTERY-80D26R X 2 SERIES |
1 | ||
| 27060-17250 |
1HZ..HZJ71,79..RHD..(PIC,SOT) 12V 110A,SPECIAL EDITION |
1 | ||
| 27039 - COVER, ALTERNATOR REAR END | ||||
| 27039-17230 |
1HZ..HZJ71,79..RHD..(PIC,SOT) SPECIAL EDITION |
1 | ||
| 27064 - SEAL, ALTERNATOR PLATE | ||||
| 27064-42010 |
1HZ..HZJ71,79..RHD..(PIC,SOT) SPECIAL EDITION |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-17040 |
1HZ..HZJ71,79..RHD..(PIC,SOT) SPECIAL EDITION |
1 | ||
| 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-10226 |
1HZ..HZJ71,79..RHD..(PIC,SOT) SPECIAL EDITION |
1 | ||
| 27312 - PLATE, RETAINER | ||||
| 27312-42010 |
1HZ..HZJ71,79..RHD..(PIC,SOT) SPECIAL EDITION |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-28050 |
1HZ..HZJ71,79..RHD..(PIC,SOT) SPECIAL EDITION |
1 | ||
| 27330-74550 |
1HZ..HZJ7# |
1 | ||
| 27330-58480 |
1HZ..HZJ79..RHD..PIC BANGLADESH SPEC&BATTERY-80D26R X 2 SERIES |
1 | ||
| 27330-58480 |
1HZ..HZJ71,79..RHD..(PIC,SOT) CKD PACKAGE(BANGLADESH) |
1 | ||
| 27330A - BEARING(FOR ALTERNATOR ROTOR) | ||||
| 90099-10140 |
1HZ..HZJ71,79..RHD..(PIC,SOT) SPECIAL EDITION |
1 | ||
| 27357 - HOLDER, ALTERNATOR, W/RECTIFIER | ||||
| 27357-55080 |
1HZ..HZJ7# |
1 | ||
| 27357-17080 |
1HZ..HZJ71,79..RHD..(PIC,SOT) SPECIAL EDITION |
1 | ||
| 27359 - FRAME, ALTERNATOR RECTIFIER END | ||||
| 27359-58050 |
1HZ..HZJ71,79..RHD..(PIC,SOT) SPECIAL EDITION |
1 | ||
| 27365 - PLATE, TERMINAL | ||||
| 27365-55080 |
1HZ..HZJ71,79..RHD..(PIC,SOT) SPECIAL EDITION |
1 | ||
| 27370 - HOLDER ASSY, ALTERNATOR BRUSH | ||||
| 27370-75060 |
1HZ..HZJ7# |
1 | ||
| 27370-75060 |
1HZ..HZJ71,79..RHD..(PIC,SOT) SPECIAL EDITION |
1 | ||
| 27387 - INSULATOR, TERMINAL | ||||
| 27387-42021 |
1HZ..HZJ71,79..RHD..(PIC,SOT) SPECIAL EDITION |
1 | ||
| 27388 - COVER, ALTERNATOR BRUSH | ||||
| 27388-42010 |
1HZ..HZJ71,79..RHD..(PIC,SOT) SPECIAL EDITION |
1 | ||
| 27411 - PULLEY, ALTERNATOR | ||||
| 27411-17030 |
1HZ..HZJ71,79..RHD..(PIC,SOT) SPECIAL EDITION |
1 | ||
| 27411-17030 |
1HZ..HZJ7# |
1 | ||
| 27443 - COVER, ALTERNATOR BEARING | ||||
| 27443-63020 |
1HZ..HZJ71,79..RHD..(PIC,SOT) SPECIAL EDITION |
1 | ||
| 27446 - CLIP, ALTERNATOR CORD | ||||
| 27446-62012 |
1HZ..HZJ71,79..RHD..(PIC,SOT) SPECIAL EDITION |
1 | ||
| 27700A - REGULATOR ASSY, GENERATOR | ||||
| 27700-62030 |
1HZ..HZJ7# |
1 | ||
| 27700-58060 |
1HZ..HZJ71,79..RHD..(PIC,SOT) CKD PACKAGE(BANGLADESH) |
1 | ||
| 27700-58060 |
1HZ..HZJ79..RHD..PIC BANGLADESH SPEC&BATTERY-80D26R X 2 SERIES |
1 | ||
| 27700-50030 |
1HZ..HZJ71,79..RHD..(PIC,SOT) SPECIAL EDITION |
1 | ||
| Common parts | ||||
| 27384-50030 | ||||
| 27389-42010 | ||||
| 90099-00195 | ||||
| 90099-00197 | ||||
| 90099-00243 | ||||
| 90099-00246 | ||||
| 90099-04966 | ||||
| 90099-05119 | ||||
| 90099-05171 | ||||
| 90099-05172 | ||||
| 90179-06158 | ||||
| 93319-14025 | ||||
