HZJ79R-DKMRS (2012)

Toyota Land Cruiser

Production Aug 2012 - Aug 2016
Engine 1HZ
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0701- )1HZ

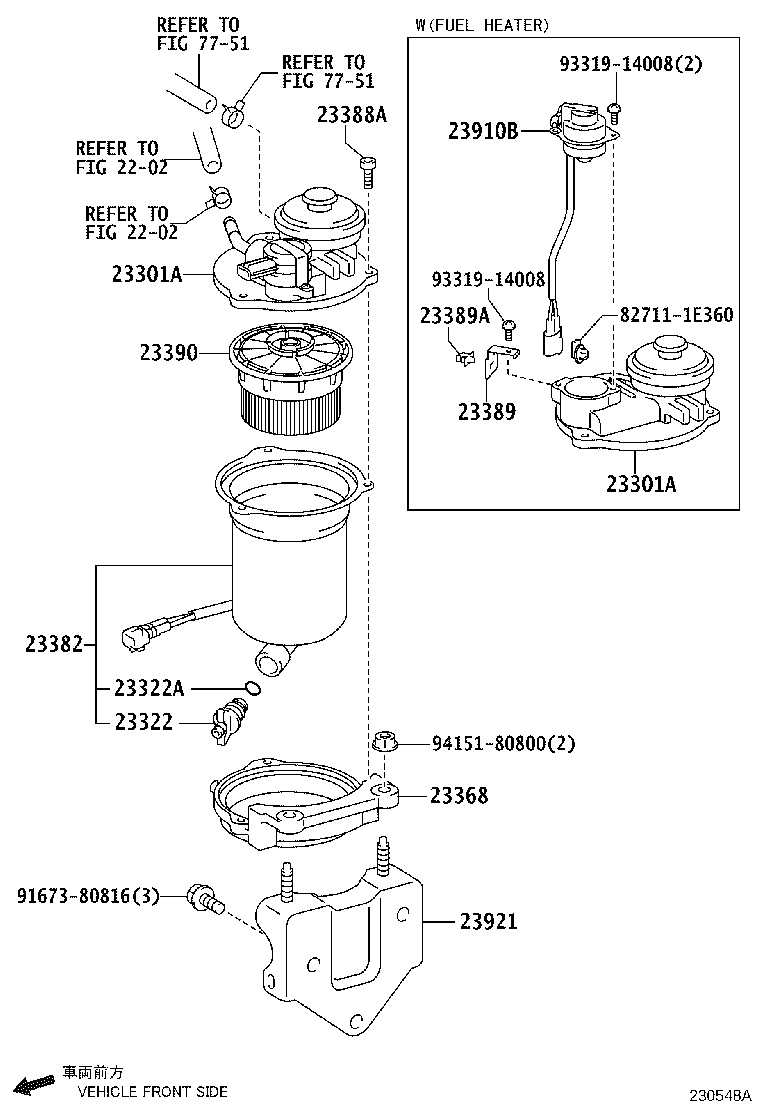

Click highlighted areas on diagram

diagram 2202 2202 23301A 23301A 23322 23322A 23368 23382 23388A 23389 23389A 23390 23910B 23921 7751 7751 827111E360 9167380816 9331914008 9331914008 9415180800
Part # Description Qty Price
23322 - PLUG, DRAIN(FOR FUEL FILTER)
23388-64470

1HZ..HZJ7#

 1
23322A - RING, O(FOR DRAIN PLUG)
23344-54010

1HZ..HZJ7#

 1
23368 - PLATE, GUIDE
23368-51020

1HZ..HZJ7#

 1
23388A - PLUG, FUEL FILTER DRAIN
23388-51020

1HZ..HZJ7#

 3
23389 - CLAMP, FUEL FILTER
23389-17540

1HZ..HZJ7#..GEN

FUEL HEATER-WITH

 1
23389A - CLAMP, FUEL FILTER
23389-17530

1HZ..HZJ7#..GEN

FUEL HEATER-WITH

 1
23921 - SUPPORT, FUEL FILTER
23921-51010

1HZ..HZJ7#

 1
Common parts
82711-1E360
91673-80816
93319-14008
94151-80800
Linked diagrams
2202
7751
