HZJ79R-DKMRS (2012)
Toyota Land Cruiser

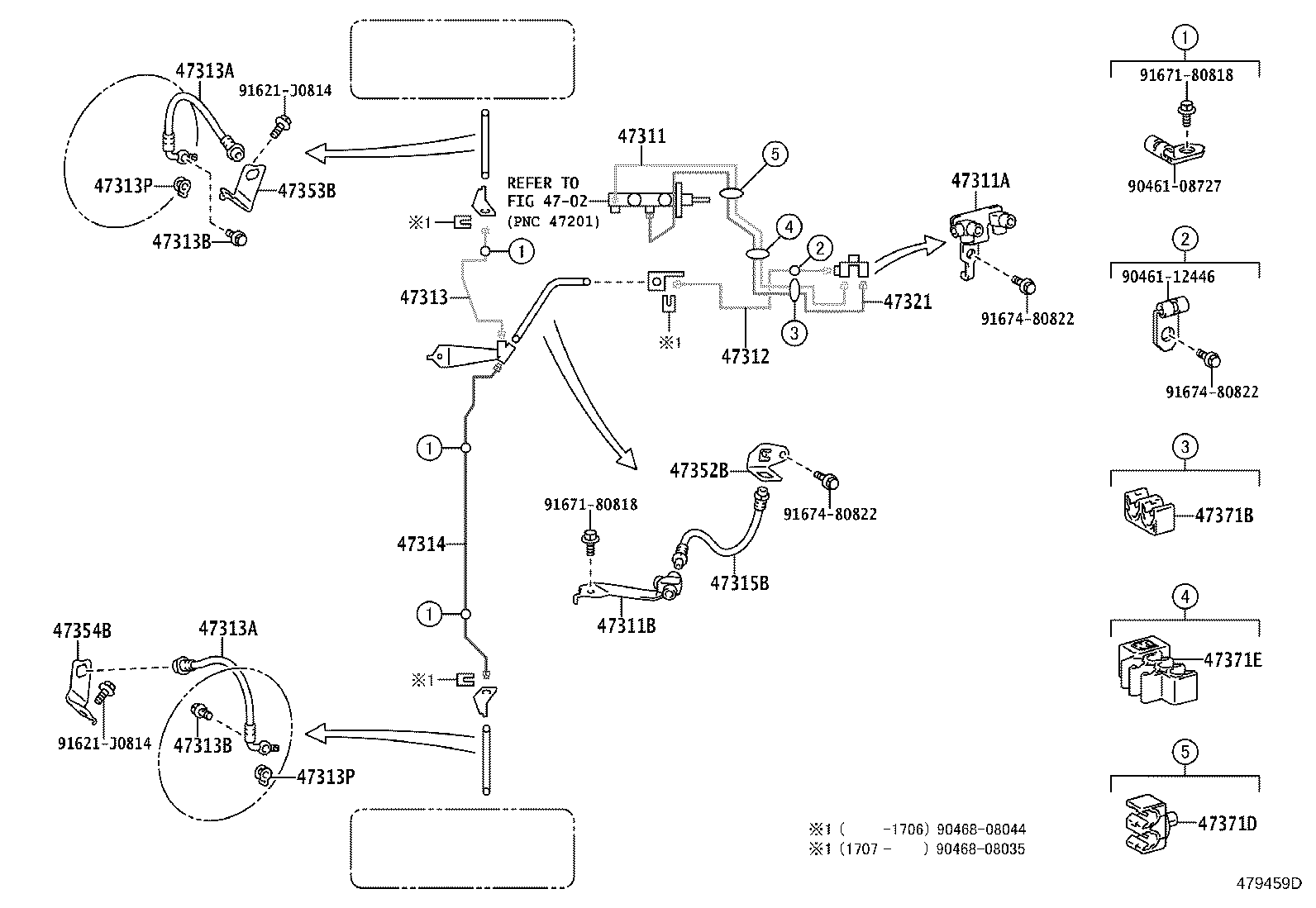

ILLUST NO. 3 OF 6(1208- )HZJ7#..RHD
W/O(ABS)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47312-60B40 |
HZJ7#..RHD REAR WHEEL BRAKE-DISC FS14 18V |
1 | ||
| 47312-60B00 |
HZJ7#..RHD |
1 | ||
| 47311A - WAY(FOR FRONT BRAKE TUBE) | ||||
| 90413-10330 |
HZJ7# |
1 | ||
| 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 90413-10326 |
HZJ7# |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47313-60500 |
HZJ7# |
1 | ||
| 47313-60520 |
HZJ7# REAR WHEEL BRAKE-DISC FS14 18V |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47314-60330 |
HZJ7# |
1 | ||
| 47314-60350 |
HZJ7# REAR WHEEL BRAKE-DISC FS14 18V |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02G91 |
GRJ7#,HZJ7#,VDJ7# |
2 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02G91 |
GRJ7#,HZJ7#,VDJ7# |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10058 |
GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7# |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10058 |
GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7# |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-50020 |
GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7# |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-50020 |
GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7# |
2 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47315-60590 |
HZJ7# |
1 | ||
| 47315-60610 |
HZJ7# REAR WHEEL BRAKE-DISC FS14 18V |
1 | ||
| 47315B - HOSE, FLEXIBLE(FOR BRAKE TUBE) | ||||
| 90947-02G94 |
HZJ7# REAR WHEEL BRAKE-DISC FS14 18V,NO.1 |
1 | ||
| 90947-02G92 |
HZJ7#;GRJ7#..LHD |
1 | ||
| 90947-02G96 |
HZJ7# REAR WHEEL BRAKE-DISC FS14 18V,NO.2 |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47322-60B40 |
HZJ7#..RHD |
1 | ||
| 47322-60B80 |
HZJ7# REAR WHEEL BRAKE-DISC FS14 18V |
1 | ||
| 47352B - BRACKET, FLEXIBLE HOSE, NO.2 | ||||
| 47354-60130 |
HZJ7# |
1 | ||
| 47354-60160 |
HZJ7# REAR WHEEL BRAKE-DISC FS14 18V |
1 | ||
| 47353B - BRACKET, FLEXIBLE HOSE, NO.3 | ||||
| 47351-60310 |
HZJ7# REAR WHEEL BRAKE-DISC FS14 18V,NO.2 |
1 | ||
| 47351-60280 |
HZJ7#;GRJ7#..LHD |
1 | ||
| 47351-60300 |
HZJ7#;GRJ7#..LHD REAR WHEEL BRAKE-DISC FS14 18V,NO.1 |
1 | ||
| 47351-60311 |
HZJ7# REAR WHEEL BRAKE-DISC FS14 18V,NO.2 |
1 | ||
| 47354B - BRACKET, FLEXIBLE HOSE, NO.4 | ||||
| 47352-60170 |
HZJ7#;GRJ7#..LHD |
1 | ||
| 47352-60190 |
HZJ7#;GRJ7#..LHD REAR WHEEL BRAKE-DISC FS14 18V |
1 | ||
| 47371B - CLAMP, BRAKE TUBE, NO.6 | ||||
| 90464-00903 |
HZJ7# |
1 | ||
| 47371D - CLAMP, BRAKE TUBE, NO.8 | ||||
| 90469-07020 |
HZJ7#..RHD |
1 | ||
| 47371E - CLAMP, BRAKE TUBE, NO.9 | ||||
| 90949-01D45 |
HZJ7# |
1 | ||
| Common parts | ||||
| 90461-08727 | ||||
| 90461-12446 | ||||
| 91621-J0814 | ||||
| 91671-80818 | ||||
| 91674-80822 | ||||
| Linked diagrams | ||||
| 4702 | ||||

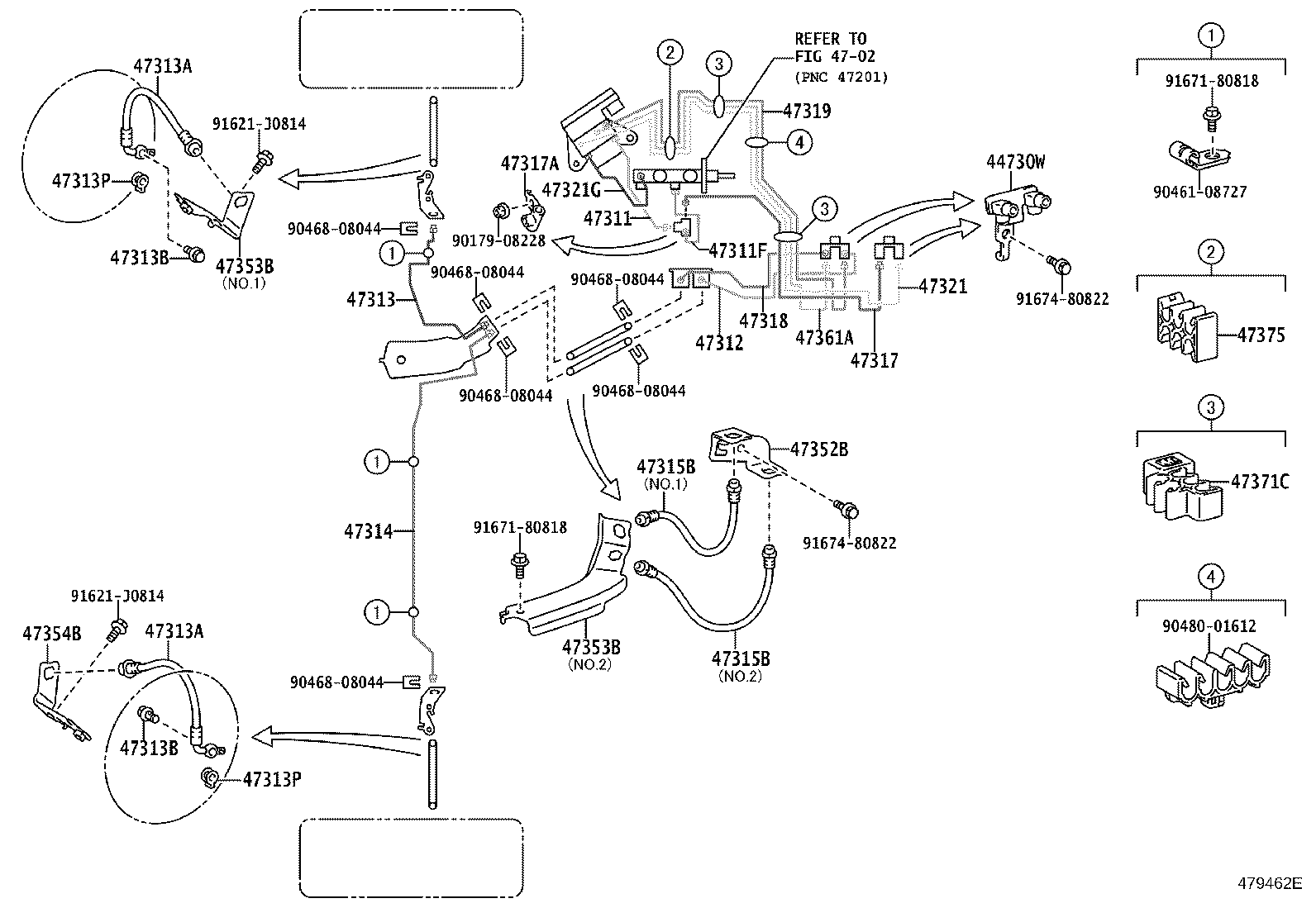

ILLUST NO. 3 OF 6(1208-1403)HZJ7#,VDJ7#..RHD
W(ABS)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44730W - WAY, 2(FOR FRONT BRAKE TUBE) | ||||
| 90412-10294 |
HZJ7# REAR WHEEL BRAKE-DISC FS14 18V |
2 | ||
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47312-60B40 |
HZJ7#..RHD REAR WHEEL BRAKE-DISC FS14 18V |
1 | ||
| 47312-60B00 |
HZJ7#..RHD |
1 | ||
| 47311F - TUBE, FRONT BRAKE, FRAME NO.1 | ||||
| 47311-60630 |
HZJ7#..RHD REAR WHEEL BRAKE-DISC FS14 18V |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47313-60500 |
HZJ7# |
1 | ||
| 47313-60520 |
HZJ7# REAR WHEEL BRAKE-DISC FS14 18V |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47314-60330 |
HZJ7# |
1 | ||
| 47314-60350 |
HZJ7# REAR WHEEL BRAKE-DISC FS14 18V |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02G91 |
GRJ7#,HZJ7#,VDJ7# |
2 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02G91 |
GRJ7#,HZJ7#,VDJ7# |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10058 |
GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7# |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10058 |
GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7# |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-50020 |
GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7# |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-50020 |
GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7# |
2 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47315-60590 |
HZJ7# |
1 | ||
| 47315-60610 |
HZJ7# REAR WHEEL BRAKE-DISC FS14 18V |
1 | ||
| 47315B - HOSE, FLEXIBLE(FOR BRAKE TUBE) | ||||
| 90947-02G94 |
HZJ7# REAR WHEEL BRAKE-DISC FS14 18V,NO.1 |
1 | ||
| 90947-02G92 |
HZJ7#;GRJ7#..LHD |
1 | ||
| 90947-02G96 |
HZJ7# REAR WHEEL BRAKE-DISC FS14 18V,NO.2 |
1 | ||
| 47315B - HOSE, FLEXIBLE(FOR BRAKE TUBE) | ||||
| 90947-02G94 |
HZJ7# REAR WHEEL BRAKE-DISC FS14 18V,NO.1 |
1 | ||
| 90947-02G92 |
HZJ7#;GRJ7#..LHD |
1 | ||
| 90947-02G96 |
HZJ7# REAR WHEEL BRAKE-DISC FS14 18V,NO.2 |
1 | ||
| 47317 - TUBE, FRONT BRAKE, NO.7 | ||||
| 47317-60140 |
HZJ7#..RHD REAR WHEEL BRAKE-DISC FS14 18V |
1 | ||
| 47317A - WAY(FOR BRAKE TUBE) | ||||
| 90413-10329 |
HZJ7#..RHD REAR WHEEL BRAKE-DISC FS14 18V |
1 | ||
| 47318 - TUBE, FRONT BRAKE, NO.8 | ||||
| 47318-60160 |
HZJ7# REAR WHEEL BRAKE-DISC FS14 18V |
1 | ||
| 47319 - TUBE, FRONT BRAKE, NO.9 | ||||
| 47319-60130 |
HZJ7# REAR WHEEL BRAKE-DISC FS14 18V |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47322-60B40 |
HZJ7#..RHD |
1 | ||
| 47322-60B80 |
HZJ7# REAR WHEEL BRAKE-DISC FS14 18V |
1 | ||
| 47321G - TUBE, REAR BRAKE, FRAME NO.1 | ||||
| 47321-60390 |
HZJ7#..RHD REAR WHEEL BRAKE-DISC FS14 18V |
1 | ||
| 47352B - BRACKET, FLEXIBLE HOSE, NO.2 | ||||
| 47354-60130 |
HZJ7# |
1 | ||
| 47354-60160 |
HZJ7# REAR WHEEL BRAKE-DISC FS14 18V |
1 | ||
| 47353B - BRACKET, FLEXIBLE HOSE, NO.3 | ||||
| 47351-60310 |
HZJ7# REAR WHEEL BRAKE-DISC FS14 18V,NO.2 |
1 | ||
| 47351-60280 |
HZJ7#;GRJ7#..LHD |
1 | ||
| 47351-60300 |
HZJ7#;GRJ7#..LHD REAR WHEEL BRAKE-DISC FS14 18V,NO.1 |
1 | ||
| 47351-60311 |
HZJ7# REAR WHEEL BRAKE-DISC FS14 18V,NO.2 |
1 | ||
| 47353B - BRACKET, FLEXIBLE HOSE, NO.3 | ||||
| 47351-60310 |
HZJ7# REAR WHEEL BRAKE-DISC FS14 18V,NO.2 |
1 | ||
| 47351-60280 |
HZJ7#;GRJ7#..LHD |
1 | ||
| 47351-60300 |
HZJ7#;GRJ7#..LHD REAR WHEEL BRAKE-DISC FS14 18V,NO.1 |
1 | ||
| 47351-60311 |
HZJ7# REAR WHEEL BRAKE-DISC FS14 18V,NO.2 |
1 | ||
| 47354B - BRACKET, FLEXIBLE HOSE, NO.4 | ||||
| 47352-60170 |
HZJ7#;GRJ7#..LHD |
1 | ||
| 47352-60190 |
HZJ7#;GRJ7#..LHD REAR WHEEL BRAKE-DISC FS14 18V |
1 | ||
| 47361A - TUBE, FRONT BRAKE, NO.10 | ||||
| 47361-60120 |
HZJ7# REAR WHEEL BRAKE-DISC FS14 18V |
1 | ||
| 47371C - CLAMP, BRAKE TUBE, NO.7 | ||||
| 90949-01D45 |
HZJ7# REAR WHEEL BRAKE-DISC FS14 18V |
2 | ||
| 47375 - CLAMP, BRAKE TUBE, NO.5 | ||||
| 90464-00880 |
HZJ7#;GRJ7#..LHD REAR WHEEL BRAKE-DISC FS14 18V |
1 | ||
| Common parts | ||||
| 90179-08228 | ||||
| 90461-08727 | ||||
| 90468-08044 | ||||
| 90480-01612 | ||||
| 91621-J0814 | ||||
| 91671-80818 | ||||
| 91674-80822 | ||||
| Linked diagrams | ||||
| 4702 | ||||

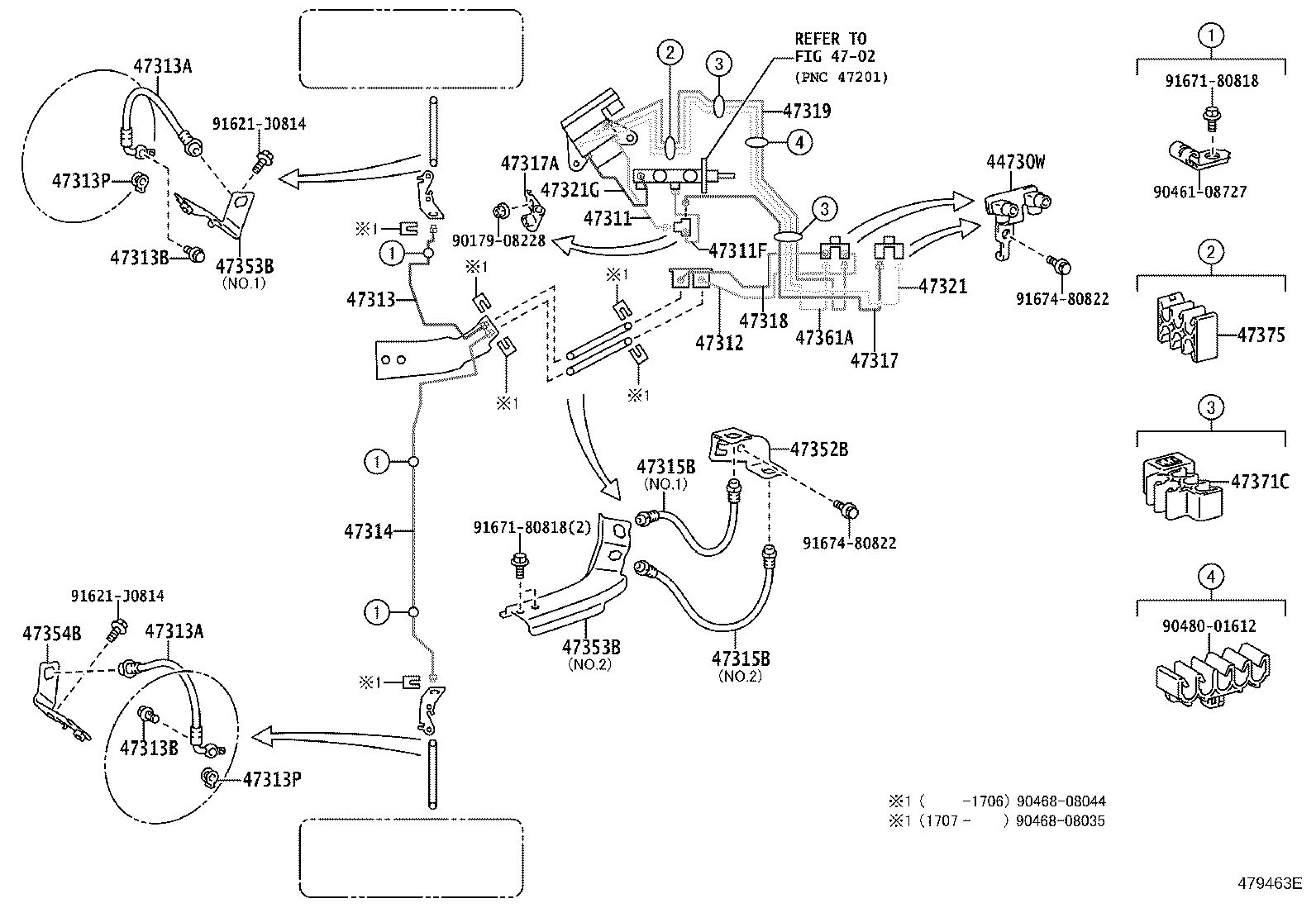

ILLUST NO. 3 OF 6(1403- )HZJ7#,VDJ7#..RHD
W(ABS)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44730W - WAY, 2(FOR FRONT BRAKE TUBE) | ||||
| 90412-10294 |
HZJ7# REAR WHEEL BRAKE-DISC FS14 18V |
2 | ||
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47312-60B40 |
HZJ7#..RHD REAR WHEEL BRAKE-DISC FS14 18V |
1 | ||
| 47312-60B00 |
HZJ7#..RHD |
1 | ||
| 47311F - TUBE, FRONT BRAKE, FRAME NO.1 | ||||
| 47311-60630 |
HZJ7#..RHD REAR WHEEL BRAKE-DISC FS14 18V |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47313-60500 |
HZJ7# |
1 | ||
| 47313-60520 |
HZJ7# REAR WHEEL BRAKE-DISC FS14 18V |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47314-60330 |
HZJ7# |
1 | ||
| 47314-60350 |
HZJ7# REAR WHEEL BRAKE-DISC FS14 18V |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02G91 |
GRJ7#,HZJ7#,VDJ7# |
2 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02G91 |
GRJ7#,HZJ7#,VDJ7# |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10058 |
GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7# |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10058 |
GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7# |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-50020 |
GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7# |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-50020 |
GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7# |
2 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47315-60590 |
HZJ7# |
1 | ||
| 47315-60610 |
HZJ7# REAR WHEEL BRAKE-DISC FS14 18V |
1 | ||
| 47315B - HOSE, FLEXIBLE(FOR BRAKE TUBE) | ||||
| 90947-02G94 |
HZJ7# REAR WHEEL BRAKE-DISC FS14 18V,NO.1 |
1 | ||
| 90947-02G92 |
HZJ7#;GRJ7#..LHD |
1 | ||
| 90947-02G96 |
HZJ7# REAR WHEEL BRAKE-DISC FS14 18V,NO.2 |
1 | ||
| 47315B - HOSE, FLEXIBLE(FOR BRAKE TUBE) | ||||
| 90947-02G94 |
HZJ7# REAR WHEEL BRAKE-DISC FS14 18V,NO.1 |
1 | ||
| 90947-02G92 |
HZJ7#;GRJ7#..LHD |
1 | ||
| 90947-02G96 |
HZJ7# REAR WHEEL BRAKE-DISC FS14 18V,NO.2 |
1 | ||
| 47317 - TUBE, FRONT BRAKE, NO.7 | ||||
| 47317-60140 |
HZJ7#..RHD REAR WHEEL BRAKE-DISC FS14 18V |
1 | ||
| 47317A - WAY(FOR BRAKE TUBE) | ||||
| 90413-10329 |
HZJ7#..RHD REAR WHEEL BRAKE-DISC FS14 18V |
1 | ||
| 47318 - TUBE, FRONT BRAKE, NO.8 | ||||
| 47318-60160 |
HZJ7# REAR WHEEL BRAKE-DISC FS14 18V |
1 | ||
| 47319 - TUBE, FRONT BRAKE, NO.9 | ||||
| 47319-60130 |
HZJ7# REAR WHEEL BRAKE-DISC FS14 18V |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47322-60B40 |
HZJ7#..RHD |
1 | ||
| 47322-60B80 |
HZJ7# REAR WHEEL BRAKE-DISC FS14 18V |
1 | ||
| 47321G - TUBE, REAR BRAKE, FRAME NO.1 | ||||
| 47321-60390 |
HZJ7#..RHD REAR WHEEL BRAKE-DISC FS14 18V |
1 | ||
| 47352B - BRACKET, FLEXIBLE HOSE, NO.2 | ||||
| 47354-60130 |
HZJ7# |
1 | ||
| 47354-60160 |
HZJ7# REAR WHEEL BRAKE-DISC FS14 18V |
1 | ||
| 47353B - BRACKET, FLEXIBLE HOSE, NO.3 | ||||
| 47351-60310 |
HZJ7# REAR WHEEL BRAKE-DISC FS14 18V,NO.2 |
1 | ||
| 47351-60280 |
HZJ7#;GRJ7#..LHD |
1 | ||
| 47351-60300 |
HZJ7#;GRJ7#..LHD REAR WHEEL BRAKE-DISC FS14 18V,NO.1 |
1 | ||
| 47351-60311 |
HZJ7# REAR WHEEL BRAKE-DISC FS14 18V,NO.2 |
1 | ||
| 47353B - BRACKET, FLEXIBLE HOSE, NO.3 | ||||
| 47351-60310 |
HZJ7# REAR WHEEL BRAKE-DISC FS14 18V,NO.2 |
1 | ||
| 47351-60280 |
HZJ7#;GRJ7#..LHD |
1 | ||
| 47351-60300 |
HZJ7#;GRJ7#..LHD REAR WHEEL BRAKE-DISC FS14 18V,NO.1 |
1 | ||
| 47351-60311 |
HZJ7# REAR WHEEL BRAKE-DISC FS14 18V,NO.2 |
1 | ||
| 47354B - BRACKET, FLEXIBLE HOSE, NO.4 | ||||
| 47352-60170 |
HZJ7#;GRJ7#..LHD |
1 | ||
| 47352-60190 |
HZJ7#;GRJ7#..LHD REAR WHEEL BRAKE-DISC FS14 18V |
1 | ||
| 47361A - TUBE, FRONT BRAKE, NO.10 | ||||
| 47361-60120 |
HZJ7# REAR WHEEL BRAKE-DISC FS14 18V |
1 | ||
| 47371C - CLAMP, BRAKE TUBE, NO.7 | ||||
| 90949-01D45 |
HZJ7# REAR WHEEL BRAKE-DISC FS14 18V |
2 | ||
| 47375 - CLAMP, BRAKE TUBE, NO.5 | ||||
| 90464-00880 |
HZJ7#;GRJ7#..LHD REAR WHEEL BRAKE-DISC FS14 18V |
1 | ||
| Common parts | ||||
| 90179-08228 | ||||
| 90461-08727 | ||||
| 90480-01612 | ||||
| 91621-J0814 | ||||
| 91671-80818 | ||||
| 91674-80822 | ||||
| Linked diagrams | ||||
| 4702 | ||||
ILLUST NO. 4 OF 6(1208- )HZJ7# ; (1208- )VDJ7#..RHD
W(ABS)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311H - GROMMET(FOR BRAKE TUBE) | ||||
| 90480-01107 |
GRJ71..LHD;HZJ78,79,VDJ78,79 |
6 | ||
| 47315 - TUBE, FRONT BRAKE, NO.5 | ||||
| 47316-60710 |
HZJ79,VDJ79 |
1 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 90947-02H57 |
GRJ76,78,79,HZJ76,78,79,VDJ7# |
1 | ||
| 90947-02G93 |
GRJ76,78,79,HZJ76,78,79,VDJ7# |
1 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 90947-02H57 |
GRJ76,78,79,HZJ76,78,79,VDJ7# |
1 | ||
| 90947-02G93 |
GRJ76,78,79,HZJ76,78,79,VDJ7# |
1 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 90947-02H57 |
GRJ76,78,79,HZJ76,78,79,VDJ7# |
1 | ||
| 90947-02G93 |
GRJ76,78,79,HZJ76,78,79,VDJ7# |
1 | ||
| 47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE) | ||||
| 90401-10058 |
HZJ78..GEN;HZJ76,79..CBU;GRJ79..LHD..DCB..GEN;FZJ76,79,GRJ76,79..GCC REAR WHEEL BRAKE-DISC FS14 18V |
2 | ||
| 47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE) | ||||
| 90401-10058 |
HZJ78..GEN;HZJ76,79..CBU;GRJ79..LHD..DCB..GEN;FZJ76,79,GRJ76,79..GCC REAR WHEEL BRAKE-DISC FS14 18V |
2 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 47389-50020 |
HZJ78..GEN;HZJ76,79..CBU;GRJ79..LHD..DCB..GEN;FZJ76,79,GRJ76,79..GCC REAR WHEEL BRAKE-DISC FS14 18V |
2 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 47389-50020 |
HZJ78..GEN;HZJ76,79..CBU;GRJ79..LHD..DCB..GEN;FZJ76,79,GRJ76,79..GCC REAR WHEEL BRAKE-DISC FS14 18V |
2 | ||
| 47318F - HOSE, FLEXIBLE(FOR REAR RH) | ||||
| 90947-02G98 |
HZJ7#;GRJ7#..LHD REAR WHEEL BRAKE-DISC FS14 18V |
1 | ||
| 47319F - HOSE, FLEXIBLE(FOR REAR LH) | ||||
| 90947-02G99 |
HZJ7#;GRJ7#..LHD REAR WHEEL BRAKE-DISC FS14 18V |
1 | ||
| 47321A - WAY(FOR REAR BRAKE TUBE) | ||||
| 90413-10327 |
GRJ7#,HZJ7#,VDJ7# |
1 | ||
| 47321A - WAY(FOR REAR BRAKE TUBE) | ||||
| 90413-10327 |
GRJ7#,HZJ7#,VDJ7# |
1 | ||
| 47321A - WAY(FOR REAR BRAKE TUBE) | ||||
| 90413-10327 |
GRJ7#,HZJ7#,VDJ7# |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47323-60A40 |
HZJ79,VDJ79 |
1 | ||
| 47323 - TUBE, REAR BRAKE, NO.3 | ||||
| 47324-60410 |
HZJ7#;GRJ7#..LHD |
1 | ||
| 47324-60400 |
HZJ7#;GRJ7#..LHD REAR WHEEL BRAKE-DISC FS14 18V |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47325-60360 |
HZJ7#;GRJ7#..LHD REAR WHEEL BRAKE-DISC FS14 18V |
1 | ||
| 47325-60370 |
HZJ7#;GRJ7#..LHD |
1 | ||
| 47325 - TUBE, REAR BRAKE, NO.5 | ||||
| 47326-60390 |
GRJ7#,HZJ76,78,79,VDJ7# |
1 | ||
| 47326-60410 |
GRJ7#,HZJ76,78,79,VDJ7# |
1 | ||
| 47355A - BRACKET, FLEXIBLE HOSE, NO.5 | ||||
| 47355-60250 |
GRJ76,78,79,HZJ76,78,79,VDJ7# |
1 | ||
| 47355-60150 |
GRJ76,78..LHD;GRJ79,HZJ76,78,79,VDJ7# |
1 | ||
| 47355A - BRACKET, FLEXIBLE HOSE, NO.5 | ||||
| 47355-60250 |
GRJ76,78,79,HZJ76,78,79,VDJ7# |
1 | ||
| 47355-60150 |
GRJ76,78..LHD;GRJ79,HZJ76,78,79,VDJ7# |
1 | ||
| Common parts | ||||
| 90119-10121 | ||||
| 90461-08727 | ||||
| 90461-10793 | ||||
| 90468-08035 | ||||
| 90949-01854 | ||||
| 91671-80818 | ||||
| 91674-80822 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
