HZJ79R-DKMRS (2012)

Toyota Land Cruiser

Production Aug 2012 - Aug 2016
Engine 1HZ
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1208- )RHD

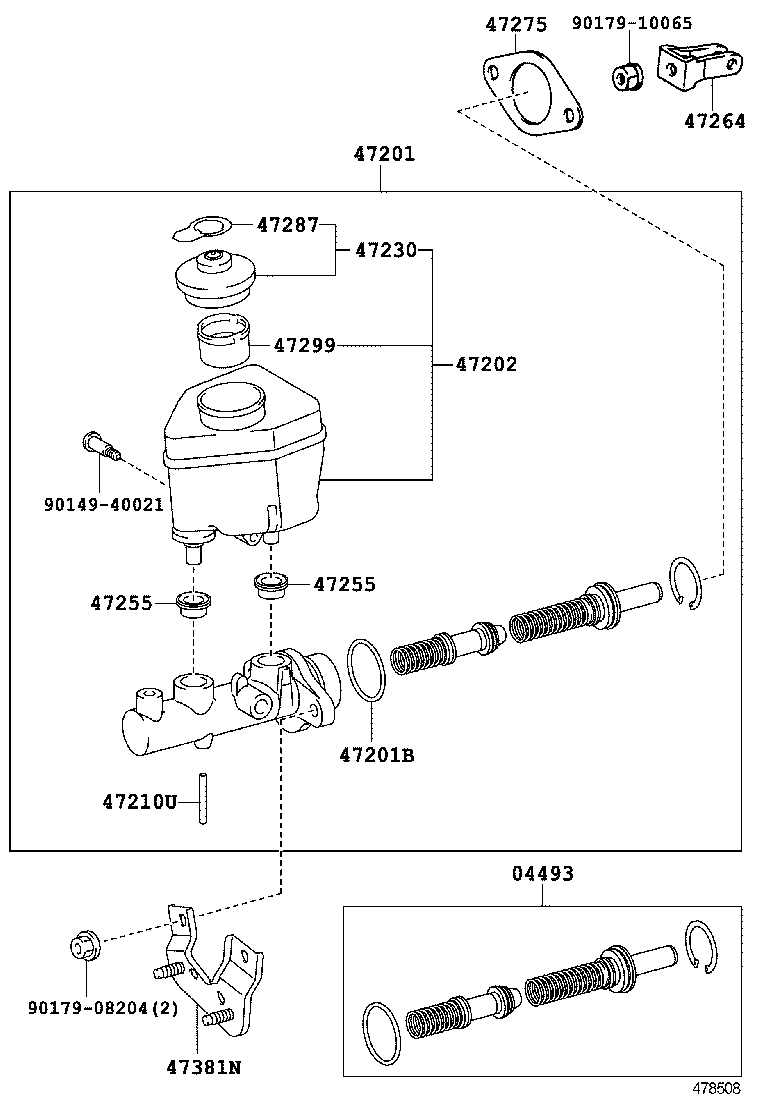

Click highlighted areas on diagram

W(ABS)

diagram 04493 47201 47201B 47202 47210U 47230 47255 47255 47264 47275 47287 47299 47381N 9014940021 9017908204 9017910065
Part # Description Qty Price
04493 - CYLINDER KIT, BRAKE MASTER
04493-60300

HZJ7#;GRJ7#..LHD

 1
04493-60380

HZJ7#;GRJ7#..LHD

REAR WHEEL BRAKE-DISC FS14 18V

 1
47201 - CYLINDER SUB-ASSY, BRAKE MASTER
47201-60832

HZJ7#..RHD

 1
47201-60A50

HZJ7#..RHD

REAR WHEEL BRAKE-DISC FS14 18V

 1
47201B - RING, O(FOR BRAKE MASTER CYLINDER)
90029-20059

HZJ7#;GRJ7#..LHD

REAR WHEEL BRAKE-DISC FS14 18V

 1
47202 - RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER
47220-60260

HZJ7#..RHD

REAR WHEEL BRAKE-DISC FS14 18V

 1
47220-60080

HZJ7#..RHD

 1
47210U - PIN, STRAIGHT(FOR BRAKE MASTER CYLINDER)
90029-14204

HZJ7#;GRJ7#..LHD

REAR WHEEL BRAKE-DISC FS14 18V

 1
47230 - CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER
47230-20140

VDJ79..CBU;VDJ79..DCB..IV;GRJ7#,HZJ7#..LHD;GRJ79,HZJ79..RHD..DCB

 1
47255 - GROMMET, MASTER CYLINDER RESERVOIR
47255-16010

GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7#

 2
47255 - GROMMET, MASTER CYLINDER RESERVOIR
47255-16010

GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7#

 2
47264 - CLEVIS, MASTER CYLINDER PUSH ROD
47264-26030

GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7#

 1
47275 - GASKET, BRAKE MASTER CYLINDER
47275-12020

GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7#

 1
47287 - LABEL, BRAKE FLUID INFORMATION
47287-20010

VDJ79..CBU;VDJ79..DCB..IV;GRJ7#,HZJ7#..LHD;GRJ79,HZJ79..RHD..DCB

 1
47299 - STRAINER, BRAKE MASTER CYLINDER RESERVOIR
47299-20060

HZJ7#..RHD

REAR WHEEL BRAKE-DISC FS14 18V

 1
47299-24010

HZJ7#..RHD

 1
47381N - BRACKET, TUBE CLAMP
47381-60050

HZJ7#..RHD

REAR WHEEL BRAKE-DISC FS14 18V

 1
Common parts
90149-40021
90179-08204
90179-10065
