HZJ79R-DKMRS (2012)
Toyota Land Cruiser
Production
Aug 2012
-
Aug 2016
Engine
1HZ
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(0701- )FZJ71,78,79..RHD

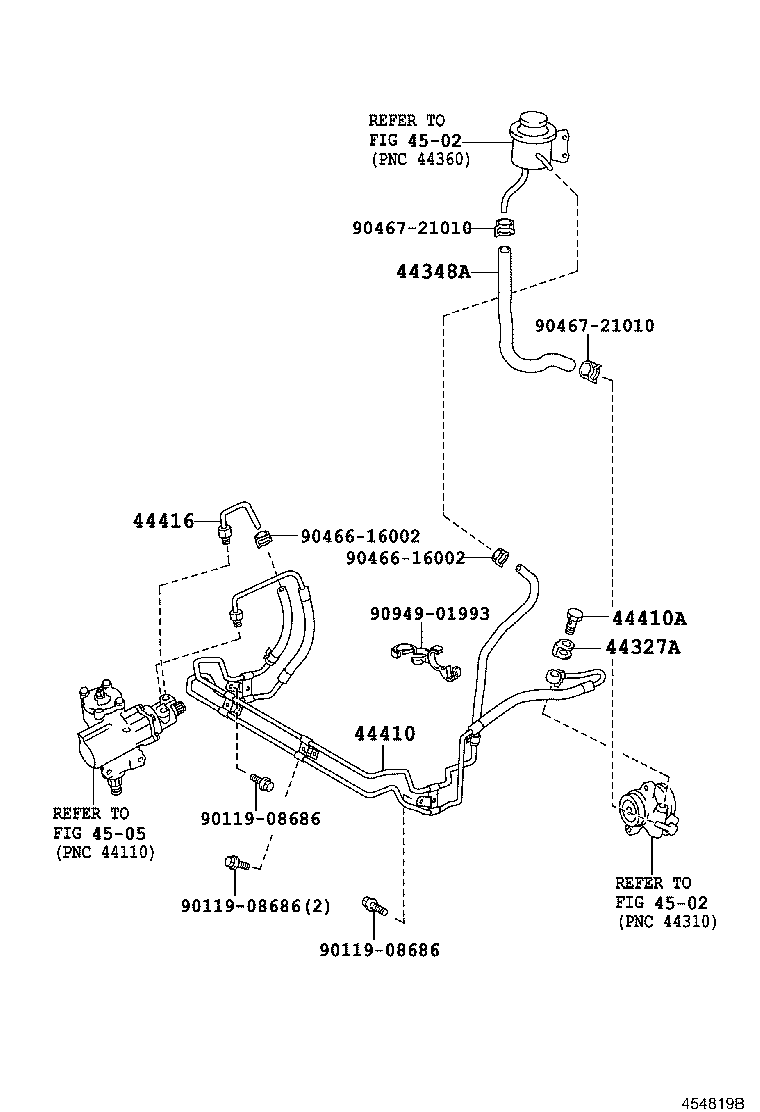

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44327A - GASKET, PRESSURE PORT, NO.1 | ||||
| 44327-30030 |
HZJ7# |
1 | ||
| 44348A - HOSE, OIL RESERVOIR TO PUMP, NO.1 | ||||
| 44348-60370 |
HZJ7# |
1 | ||
| 44410A - BOLT, UNION(FOR PRESSURE FEED TUBE) | ||||
| 96341-41603 |
HZJ7# |
1 | ||
| 44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET) | ||||
| 44416-60400 |
HZJ7#..RHD |
1 | ||
| Common parts | ||||
| 90119-08686 | ||||
| 90466-16002 | ||||
| 90467-21010 | ||||
| 90949-01993 | ||||
| Linked diagrams | ||||
| 4502 | ||||
| 4505 | ||||
(0701- )HZJ7#..RHD
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44327A - GASKET, PRESSURE PORT, NO.1 | ||||
| 44327-30030 |
HZJ7# |
1 | ||
| 44348A - HOSE, OIL RESERVOIR TO PUMP, NO.1 | ||||
| 44348-60370 |
HZJ7# |
1 | ||
| 44410A - BOLT, UNION(FOR PRESSURE FEED TUBE) | ||||
| 96341-41603 |
HZJ7# |
1 | ||
| 44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET) | ||||
| 44416-60400 |
HZJ7#..RHD |
1 | ||
| Common parts | ||||
| 90119-08686 | ||||
| 90466-16002 | ||||
| 90467-21010 | ||||
| 90949-01993 | ||||
| Linked diagrams | ||||
| 4502 | ||||
| 4505 | ||||
