HZJ79L-TJMRSV (2007)
Toyota Land Cruiser
(9001-0907)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 93568-55012 | ||||

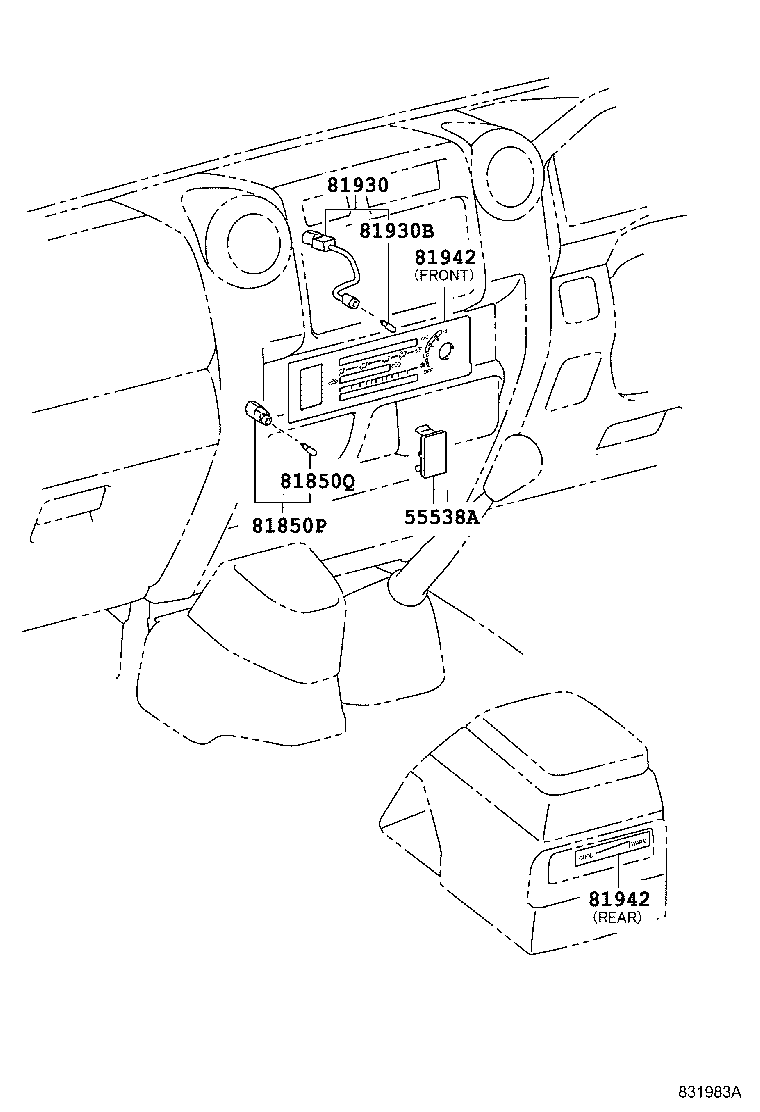

| Linked diagrams | ||||
| 3312 | ||||
| 5551 | ||||
| 8202 | ||||
| 8712 | ||||
(0701-0907)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55538A - COVER, COOLER SWITCH HOLE | ||||
| 55539-32010C0 |
FZJ79,GRJ79,HZJ79..STD..GCC HEATER-W(FRONT),BLACK,TRIM1#,4# |
1 | ||
| 55539-32010C0 |
GRJ79,HZJ79..PIC..STD..GCC BLACK,TRIM1#,4# |
1 | ||
| 55539-32010C0 |
FZJ79,GRJ79,HZJ79..STD..GCC HEATER-BOOST VENTILATOR,BLACK,TRIM1#,4# |
1 | ||
| 81850 - LAMP ASSY, INDICATOR | ||||
| 81850-60470 |
HZJ78,79 FUEL TANK-W(SUB TANK) |
1 | ||
| 81850-60470 |
FZJ78,79 FUEL TANK-W(SUB TANK) |
1 | ||
| 81850-60470 |
HZJ78,79 FUEL TANK-W(SUB TANK)&FRONT FOG LAMP-WITH |
1 | ||
| 81850-60470 |
FZJ78,79 FUEL TANK-W(SUB TANK)&FRONT FOG LAMP-WITH |
1 | ||
| 81850-60470 |
HZJ79 FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK) |
1 | ||
| 81850-60470 |
HZJ79 FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK)&FRONT FOG LAMP-WITH |
1 | ||
| 81850-60470 |
FZJ7#,HZJ7# FRONT FOG LAMP-WITH |
1 | ||
| 81850B - BULB, INDICATOR LAMP | ||||
| 99132-12034 |
HZJ78,79 12V 3.4W,FUEL TANK-W(SUB TANK) |
1 | ||
| 99132-12034 |
FZJ78,79 12V 3.4W,FUEL TANK-W(SUB TANK) |
1 | ||
| 99132-12034 |
FZJ78,79 12V 3.4W,FUEL TANK-W(SUB TANK)&FRONT FOG LAMP-WITH |
1 | ||
| 99132-12034 |
HZJ78,79 12V 3.4W,FUEL TANK-W(SUB TANK)&FRONT FOG LAMP-WITH |
1 | ||
| 99132-12034 |
HZJ79 12V 3.4W,FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK) |
1 | ||
| 99132-12034 |
HZJ79 12V 3.4W,FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK)&FRONT FOG LAMP-WITH |
1 | ||
| 99132-12034 |
FZJ7#,HZJ7# 12V 3.4W,FRONT FOG LAMP-WITH |
1 | ||
| 81850B - BULB, INDICATOR LAMP | ||||
| 99132-12034 |
HZJ78,79 12V 3.4W,FUEL TANK-W(SUB TANK) |
1 | ||
| 99132-12034 |
FZJ78,79 12V 3.4W,FUEL TANK-W(SUB TANK) |
1 | ||
| 99132-12034 |
FZJ78,79 12V 3.4W,FUEL TANK-W(SUB TANK)&FRONT FOG LAMP-WITH |
1 | ||
| 99132-12034 |
HZJ78,79 12V 3.4W,FUEL TANK-W(SUB TANK)&FRONT FOG LAMP-WITH |
1 | ||
| 99132-12034 |
HZJ79 12V 3.4W,FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK) |
1 | ||
| 99132-12034 |
HZJ79 12V 3.4W,FUEL TANK-W(FUEL TANK CAP, W/KEY) & W(SUB TANK)&FRONT FOG LAMP-WITH |
1 | ||
| 99132-12034 |
FZJ7#,HZJ7# 12V 3.4W,FRONT FOG LAMP-WITH |
1 | ||
| 81850P - ASHTRAY RECEPTACLE LAMP | ||||
| 81850-60590 |
GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7# |
1 | ||
| 81850Q - ASHTRAY RECEPTACLE LAMP BULB | ||||
| 90981-11018 |
GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7# |
1 | ||
| 81930 - LAMP ASSY, HEATER CONTROL INDICATOR, NO.1 | ||||
| 81930-60030 |
GRJ79,HZJ79..PIC..STD..GCC |
1 | ||
| 81930-90K00 |
FZJ79,HZJ79..STD..GCC HEATER-W(FRONT) |
1 | ||
| 81930-60030 |
GRJ79,HZJ79..STD..GCC HEATER-W(FRONT)&AIR CONDITIONER-WITH |
1 | ||
| 81930-60030 |
GRJ79,HZJ79..STD..GCC HEATER-BOOST VENTILATOR |
1 | ||
| 81930-60030 |
GRJ79,HZJ79..STD..GCC HEATER-W(FRONT) |
1 | ||
| 81930-90K00 |
FZJ79,HZJ79..STD..GCC HEATER-BOOST VENTILATOR |
1 | ||
| 81930-90K00 |
FZJ79,HZJ79..STD..GCC HEATER-W(FRONT)&AIR CONDITIONER-WITH |
1 | ||
| 81930B - BULB, HEATER CONTROL INDICATOR LAMP | ||||
| 84999-70010 |
FZJ79,HZJ79..STD..GCC 14V 1.4W,W(CAP),HEATER-W(FRONT)&AIR CONDITIONER-WITH |
1 | ||
| 90010-05154 |
GRJ79,HZJ79..PIC..STD..GCC 14V 1.26W |
1 | ||
| 84999-70010 |
FZJ79,HZJ79..STD..GCC 14V 1.4W,W(CAP),HEATER-BOOST VENTILATOR |
1 | ||
| 90010-05154 |
GRJ79,HZJ79..STD..GCC 14V 1.26W,HEATER-W(FRONT) |
1 | ||
| 84999-70010 |
FZJ79,HZJ79..STD..GCC 14V 1.4W,W(CAP),HEATER-W(FRONT) |
1 | ||
| 90010-05154 |
GRJ79,HZJ79..STD..GCC 14V 1.26W,HEATER-BOOST VENTILATOR |
1 | ||
| 90010-05154 |
GRJ79,HZJ79..STD..GCC 14V 1.26W,HEATER-W(FRONT)&AIR CONDITIONER-WITH |
1 | ||
| 81942 - SHEET, HEATER CONTROL NAME | ||||
| 55519-60160 |
FZJ7#,HZJ7#..LHD HEATER-W(FRONT),FRONT |
1 | ||
| 55519-60180 |
FZJ7#,HZJ7#..LHD HEATER-W(FRONT)&AIR CONDITIONER-WITH,FRONT |
1 | ||
| 55519-60310 |
GRJ79,HZJ79..STD..GCC HEATER-BOOST VENTILATOR,FRONT |
1 | ||
| 55519-60200 |
FZJ79,HZJ79..STD..GCC HEATER-BOOST VENTILATOR,FRONT |
1 | ||
| 55519-60320 |
GRJ71..LX;GRJ71..HT..GCC;GRJ76,78,79,HZJ7#..LHD HEATER-W(FRONT),FRONT |
1 | ||
| 55519-60310 |
GRJ79,HZJ79..PIC..STD..GCC FRONT |
1 | ||
| 55519-60330 |
GRJ71..LX;GRJ71..HT..GCC;GRJ76,78,79,HZJ7#..LHD HEATER-W(FRONT)&AIR CONDITIONER-WITH,FRONT |
1 | ||
| 81942 - SHEET, HEATER CONTROL NAME | ||||
| 55519-60160 |
FZJ7#,HZJ7#..LHD HEATER-W(FRONT),FRONT |
1 | ||
| 55519-60180 |
FZJ7#,HZJ7#..LHD HEATER-W(FRONT)&AIR CONDITIONER-WITH,FRONT |
1 | ||
| 55519-60310 |
GRJ79,HZJ79..STD..GCC HEATER-BOOST VENTILATOR,FRONT |
1 | ||
| 55519-60200 |
FZJ79,HZJ79..STD..GCC HEATER-BOOST VENTILATOR,FRONT |
1 | ||
| 55519-60320 |
GRJ71..LX;GRJ71..HT..GCC;GRJ76,78,79,HZJ7#..LHD HEATER-W(FRONT),FRONT |
1 | ||
| 55519-60310 |
GRJ79,HZJ79..PIC..STD..GCC FRONT |
1 | ||
| 55519-60330 |
GRJ71..LX;GRJ71..HT..GCC;GRJ76,78,79,HZJ7#..LHD HEATER-W(FRONT)&AIR CONDITIONER-WITH,FRONT |
1 | ||
| Common parts | ||||
| 93568-55012 | ||||
| Linked diagrams | ||||
| 5551 | ||||
| 8712 | ||||
(0907- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55538A - COVER, COOLER SWITCH HOLE | ||||
| 55539-32010C0 |
FZJ79,GRJ79,HZJ79..STD..GCC HEATER-W(FRONT),BLACK,TRIM1#,4# |
1 | ||
| 55539-32010C0 |
GRJ79,HZJ79..PIC..STD..GCC BLACK,TRIM1#,4# |
1 | ||
| 55539-32010C0 |
FZJ79,GRJ79,HZJ79..STD..GCC HEATER-BOOST VENTILATOR,BLACK,TRIM1#,4# |
1 | ||
| 81850P - ASHTRAY RECEPTACLE LAMP | ||||
| 81850-60590 |
GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7# |
1 | ||
| 81850Q - ASHTRAY RECEPTACLE LAMP BULB | ||||
| 90981-11018 |
GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7# |
1 | ||
| 81930 - LAMP ASSY, HEATER CONTROL INDICATOR, NO.1 | ||||
| 81930-60030 |
GRJ79,HZJ79..PIC..STD..GCC |
1 | ||
| 81930-90K00 |
FZJ79,HZJ79..STD..GCC HEATER-W(FRONT) |
1 | ||
| 81930-60030 |
GRJ79,HZJ79..STD..GCC HEATER-W(FRONT)&AIR CONDITIONER-WITH |
1 | ||
| 81930-60030 |
GRJ79,HZJ79..STD..GCC HEATER-BOOST VENTILATOR |
1 | ||
| 81930-60030 |
GRJ79,HZJ79..STD..GCC HEATER-W(FRONT) |
1 | ||
| 81930-90K00 |
FZJ79,HZJ79..STD..GCC HEATER-BOOST VENTILATOR |
1 | ||
| 81930-90K00 |
FZJ79,HZJ79..STD..GCC HEATER-W(FRONT)&AIR CONDITIONER-WITH |
1 | ||
| 81930B - BULB, HEATER CONTROL INDICATOR LAMP | ||||
| 84999-70010 |
FZJ79,HZJ79..STD..GCC 14V 1.4W,W(CAP),HEATER-W(FRONT)&AIR CONDITIONER-WITH |
1 | ||
| 90010-05154 |
GRJ79,HZJ79..PIC..STD..GCC 14V 1.26W |
1 | ||
| 84999-70010 |
FZJ79,HZJ79..STD..GCC 14V 1.4W,W(CAP),HEATER-BOOST VENTILATOR |
1 | ||
| 90010-05154 |
GRJ79,HZJ79..STD..GCC 14V 1.26W,HEATER-W(FRONT) |
1 | ||
| 84999-70010 |
FZJ79,HZJ79..STD..GCC 14V 1.4W,W(CAP),HEATER-W(FRONT) |
1 | ||
| 90010-05154 |
GRJ79,HZJ79..STD..GCC 14V 1.26W,HEATER-BOOST VENTILATOR |
1 | ||
| 90010-05154 |
GRJ79,HZJ79..STD..GCC 14V 1.26W,HEATER-W(FRONT)&AIR CONDITIONER-WITH |
1 | ||
| 81942 - SHEET, HEATER CONTROL NAME | ||||
| 55519-60160 |
FZJ7#,HZJ7#..LHD HEATER-W(FRONT),FRONT |
1 | ||
| 55519-60180 |
FZJ7#,HZJ7#..LHD HEATER-W(FRONT)&AIR CONDITIONER-WITH,FRONT |
1 | ||
| 55519-60310 |
GRJ79,HZJ79..STD..GCC HEATER-BOOST VENTILATOR,FRONT |
1 | ||
| 55519-60200 |
FZJ79,HZJ79..STD..GCC HEATER-BOOST VENTILATOR,FRONT |
1 | ||
| 55519-60320 |
GRJ71..LX;GRJ71..HT..GCC;GRJ76,78,79,HZJ7#..LHD HEATER-W(FRONT),FRONT |
1 | ||
| 55519-60310 |
GRJ79,HZJ79..PIC..STD..GCC FRONT |
1 | ||
| 55519-60330 |
GRJ71..LX;GRJ71..HT..GCC;GRJ76,78,79,HZJ7#..LHD HEATER-W(FRONT)&AIR CONDITIONER-WITH,FRONT |
1 | ||
| 81942 - SHEET, HEATER CONTROL NAME | ||||
| 55519-60160 |
FZJ7#,HZJ7#..LHD HEATER-W(FRONT),FRONT |
1 | ||
| 55519-60180 |
FZJ7#,HZJ7#..LHD HEATER-W(FRONT)&AIR CONDITIONER-WITH,FRONT |
1 | ||
| 55519-60310 |
GRJ79,HZJ79..STD..GCC HEATER-BOOST VENTILATOR,FRONT |
1 | ||
| 55519-60200 |
FZJ79,HZJ79..STD..GCC HEATER-BOOST VENTILATOR,FRONT |
1 | ||
| 55519-60320 |
GRJ71..LX;GRJ71..HT..GCC;GRJ76,78,79,HZJ7#..LHD HEATER-W(FRONT),FRONT |
1 | ||
| 55519-60310 |
GRJ79,HZJ79..PIC..STD..GCC FRONT |
1 | ||
| 55519-60330 |
GRJ71..LX;GRJ71..HT..GCC;GRJ76,78,79,HZJ7#..LHD HEATER-W(FRONT)&AIR CONDITIONER-WITH,FRONT |
1 | ||
