HZJ79L-TJMRSV (2007)

Toyota Land Cruiser

Production Jan 2007 - Aug 2016
Engine 1HZ
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0701-0907)FZJ79,HZJ79,VDJ79

Click highlighted areas on diagram

diagram 63310 63310D 63310H
Part # Description Qty Price
63310 - HEADLINING ASSY, ROOF
63310-60630B1

FZJ79,HZJ79,VDJ79

LT.GRAY,TRIM1#,4#

 1
63310-60630B0

FZJ79,HZJ79,VDJ79

LT.GRAY,TRIM1#,4#

 1
63310-60Q40B0

GRJ79,HZJ79,VDJ79..PIC

LT.GRAY,TRIM1#,4#

 1
63310D - CLIP, ROOF HEADLINING
90467-05164B0

FZJ79,HZJ79,VDJ79

LT.GRAY,TRIM1#,4#

 4
63310H - CLIP(FOR ROOF HEADLINING)
63317-60050

FZJ79,HZJ79,VDJ79

 4

(0907- )PIC

Click highlighted areas on diagram

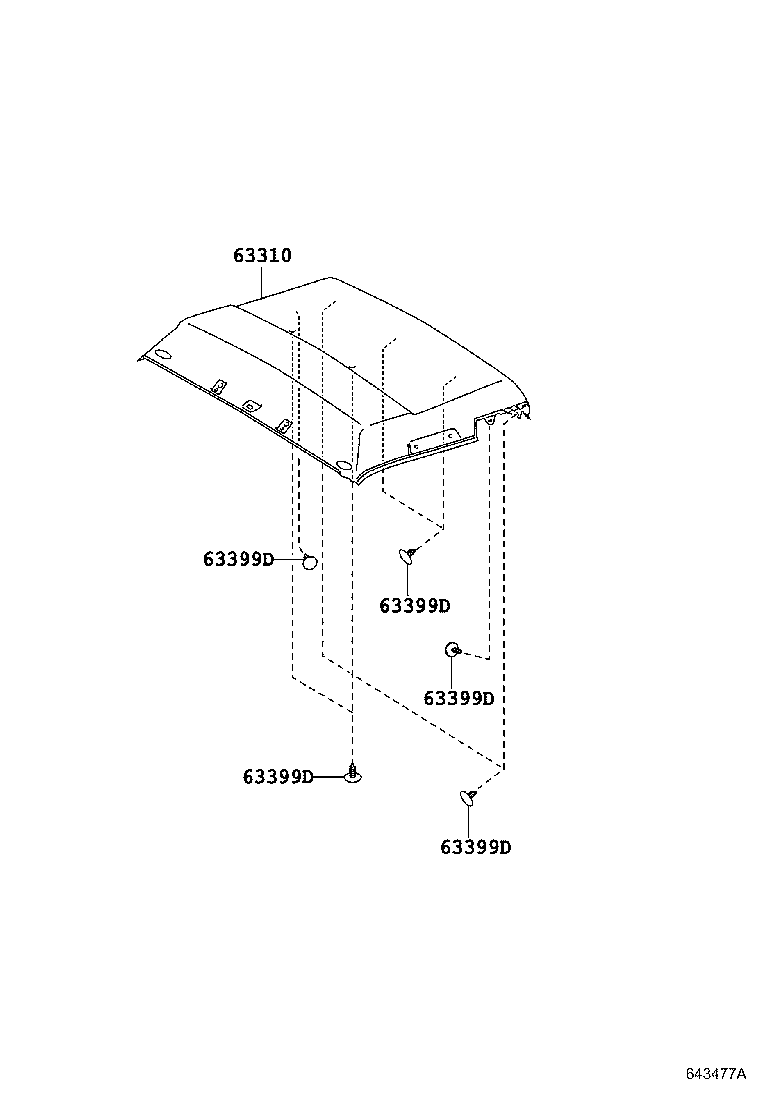

diagram 63310 63399D 63399D 63399D 63399D 63399D
Part # Description Qty Price
63310 - HEADLINING ASSY, ROOF
63310-60630B1

FZJ79,HZJ79,VDJ79

LT.GRAY,TRIM1#,4#

 1
63310-60630B0

FZJ79,HZJ79,VDJ79

LT.GRAY,TRIM1#,4#

 1
63310-60Q40B0

GRJ79,HZJ79,VDJ79..PIC

LT.GRAY,TRIM1#,4#

 1
63399D - CLIP, ROOF HEADLINING
63399-60060B0

GRJ79,HZJ79,VDJ79..PIC

LT.GRAY,TRIM1#,4#

 8
63399D - CLIP, ROOF HEADLINING
63399-60060B0

GRJ79,HZJ79,VDJ79..PIC

LT.GRAY,TRIM1#,4#

 8
63399D - CLIP, ROOF HEADLINING
63399-60060B0

GRJ79,HZJ79,VDJ79..PIC

LT.GRAY,TRIM1#,4#

 8
63399D - CLIP, ROOF HEADLINING
63399-60060B0

GRJ79,HZJ79,VDJ79..PIC

LT.GRAY,TRIM1#,4#

 8
63399D - CLIP, ROOF HEADLINING
63399-60060B0

GRJ79,HZJ79,VDJ79..PIC

LT.GRAY,TRIM1#,4#

 8
