HZJ79L-TJMRSV (2007)

Toyota Land Cruiser

Production Jan 2007 - Aug 2016
Engine 1HZ
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 3 OF 3(9001- )GCC,GEN

Click highlighted areas on diagram

ELECTRICAL WINCH

diagram 38101 38103 38104 38105 38106A 38107 38108 38109 38119A 38121 38137 38151 38152 38172 38177 38178A 38185A 38186 38187A 38187A 38188A 38202A 38203 38203 38203 38203 38203 38204A 38205A 38207A 38211C 38213B 38216 38217 38217 38217 38217 38217 38222B 38223B 38224 38225 38228A 38231 38231 38233B 38236A 38236B 38237A 38311 38312 38313A 38315A 38317B 38341 38342 38343 9411050800 9615001500
Part # Description Qty Price
Common parts
94110-50800
96150-01500

ILLUST NO. 1 OF 3(9001- )FJ7#,FZJ7#,HZJ70,71,75,78,79,PZJ7#..GCC,GEN

Click highlighted areas on diagram

ELECTRICAL WINCH

diagram 38110 38182B 38182B 38182B 38182B 38183A 38191 38192 38193 38286 38331 38332 38333 38360 38380 38600A 38600B 38630 38640 38659 8401 8401 9011912200 9017908146 9017908204 9017908204 9165161020 9461110800 9461110800
Part # Description Qty Price
Common parts
90119-12200
90179-08146
90179-08204
91651-61020
94611-10800
Linked diagrams
8401

ILLUST NO. 2 OF 3(9001- )FJ7#,FZJ7#,HZJ70,71,75,78,79,PZJ7#..GCC,GEN

Click highlighted areas on diagram

ELECTRICAL WINCH

diagram 28123A 28123A 28123A 28123A 28199B 38600A 38601A 38603A 38603B 38603C 38604A 38610A 38611B 38611B 38612A 38613A 38613B 38614A 38618 38621B 38623 38623 38625 38626 38627 38628 38629 38639 9009300811 9009300811 9009300811 9009400606 9009900221 9009900222 9009904584 9009908016 9321914008 9331116014 9331513010 9331513010 9338115010 9338516016 9338516016 9412040800 9412040800 9412040800 9451100400 9451100800 9451100800 9451100800 9461240601
Part # Description Qty Price
Common parts
90093-00811
90094-00606
90099-00221
90099-00222
90099-04584
90099-08016
93219-14008
93311-16014
93315-13010
93381-15010
93385-16016
94120-40800
94511-00400
94511-00800
94612-40601

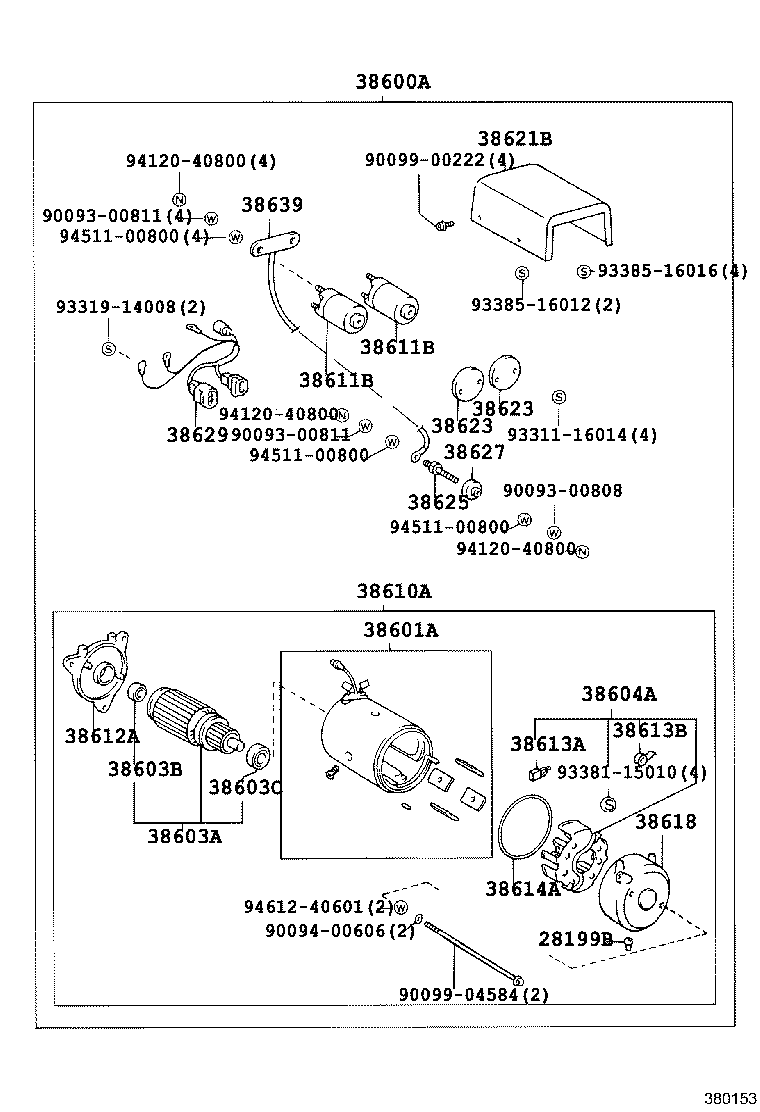

ILLUST NO. 2 OF 2(0701- )VDJ76,79..GCC ; (0701- )FZJ7#,GRJ7#,HZJ7#,VDJ78..GCC,GEN

Click highlighted areas on diagram

diagram 28199B 38600A 38601A 38603A 38603B 38603C 38604A 38610A 38611B 38611B 38612A 38613A 38613B 38614A 38618 38621B 38623 38623 38625 38627 38629 38639 9009300808 9009300811 9009300811 9009400606 9009900222 9009904584 9331116014 9331914008 9338115010 9338516012 9338516016 9412040800 9412040800 9412040800 9451100800 9451100800 9451100800 9461240601
Part # Description Qty Price
28199B - PROTECTOR, DUST WINCH MOTOR
28199-15090

1GRFE,1HZ..GRJ79,HZJ7#;1GRFE..GRJ71,76,78..LHD

WINCH-W(ELECTRIC 12V)

 1
38600A - MOTOR ASSY, W/MAGNET SWITCH, WINCH
38600-60090

FZJ7#,GRJ7#,HZJ7#

WINCH-W(ELECTRIC 12V)

 1
38600-60091

GRJ7#,HZJ7#

WINCH-W(ELECTRIC 12V)

 1
38601A - YOKE SUB-ASSY, WINCH MOTOR
38601-60050

GRJ79,HZJ7#;GRJ71,76,78..LHD

WINCH-W(ELECTRIC 12V)

 1
38603A - ARMATURE SUB-ASSY, WINCH MOTOR
38603-60050

GRJ79,HZJ7#;GRJ71,76,78..LHD

WINCH-W(ELECTRIC 12V)

 1
38603B - BEARING, NO.1 (FOR WINCH MOTOR ARMATURE)
90099-10130

GRJ79,HZJ7#;GRJ71,76,78..LHD

WINCH-W(ELECTRIC 12V)

 1
38603C - BEARING, NO.2 (FOR WINCH MOTOR ARMATURE)
90099-10201

GRJ79,HZJ7#;GRJ71,76,78..LHD

WINCH-W(ELECTRIC 12V)

 1
38604A - HOLDER ASSY, WINCH MOTOR BRUSH
38604-60051

GRJ79,HZJ7#;GRJ71,76,78..LHD

WINCH-W(ELECTRIC 12V)

 1
38604-60050

GRJ7#,HZJ7#

WINCH-W(ELECTRIC 12V)

 1
38610A - MOTOR ASSY, WINCH
38610-60081

GRJ79,HZJ7#;GRJ71,76,78..LHD

WINCH-W(ELECTRIC 12V)

 1
38610-60080

GRJ7#,HZJ7#

WINCH-W(ELECTRIC 12V)

 1
38611B - SWITCH, MAGNET, NO.2 (FOR WINCH MOTOR)
38611-60010

GRJ7#,HZJ7#

WINCH-W(ELECTRIC 12V)

 2
38611-60011

GRJ79,HZJ7#;GRJ71,76,78..LHD

WINCH-W(ELECTRIC 12V)

 2
38611B - SWITCH, MAGNET, NO.2 (FOR WINCH MOTOR)
38611-60010

GRJ7#,HZJ7#

WINCH-W(ELECTRIC 12V)

 2
38611-60011

GRJ79,HZJ7#;GRJ71,76,78..LHD

WINCH-W(ELECTRIC 12V)

 2
38612A - FRAME, WINCH MOTOR END
38612-60060

GRJ79,HZJ7#;GRJ71,76,78..LHD

WINCH-W(ELECTRIC 12V)

 1
38613A - BRUSH, WINCH MOTOR
38613-60010

GRJ7#,HZJ7#

WINCH-W(ELECTRIC 12V)

 4
38613-60011

GRJ79,HZJ7#;GRJ71,76,78..LHD

WINCH-W(ELECTRIC 12V)

 4
38613B - SPRING, WINCH MOTOR BRUSH
28143-46012

GRJ79,HZJ7#;GRJ71,76,78..LHD

WINCH-W(ELECTRIC 12V)

 4
38614A - RING, O(FOR WINCH MOTOR)
90099-14023

GRJ79,HZJ7#;GRJ71,76,78..LHD

WINCH-W(ELECTRIC 12V)

 1
38618 - FRAME, WINCH MOTOR COMMUTATOR END
38618-60080

GRJ79,HZJ7#;GRJ71,76,78..LHD

WINCH-W(ELECTRIC 12V)

 1
38621B - COVER, MAGNET SWITCH WINCH
38621-60090

GRJ79,HZJ7#;GRJ71,76,78..LHD

WINCH-W(ELECTRIC 12V)

 1
38623 - STOPPER, WINCH MOTOR
38623-60010

GRJ79,HZJ7#;GRJ71,76,78..LHD

WINCH-W(ELECTRIC 12V)

 2
38623 - STOPPER, WINCH MOTOR
38623-60010

GRJ79,HZJ7#;GRJ71,76,78..LHD

WINCH-W(ELECTRIC 12V)

 2
38625 - BOLT, STUD WINCH MOTOR
38625-60010

GRJ79,HZJ7#;GRJ71,76,78..LHD

WINCH-W(ELECTRIC 12V)

 1
38627 - BUSHING, STEPPED MALE WINCH MOTOR
38627-60011

GRJ79,HZJ7#;GRJ71,76,78..LHD

WINCH-W(ELECTRIC 12V)

 1
38629 - WIRE, WINCH MOTOR
38629-60050

GRJ79,HZJ7#;GRJ71,76,78..LHD

WINCH-W(ELECTRIC 12V)

 1
38639 - WIRE (FOR WINCH MOTOR)
38639-60050

GRJ79,HZJ7#;GRJ71,76,78..LHD

WINCH-W(ELECTRIC 12V)

 1
Common parts
90093-00808
90093-00811
90094-00606
90099-00222
90099-04584
93311-16014
93319-14008
93381-15010
93385-16012
93385-16016
94120-40800
94511-00800
94612-40601

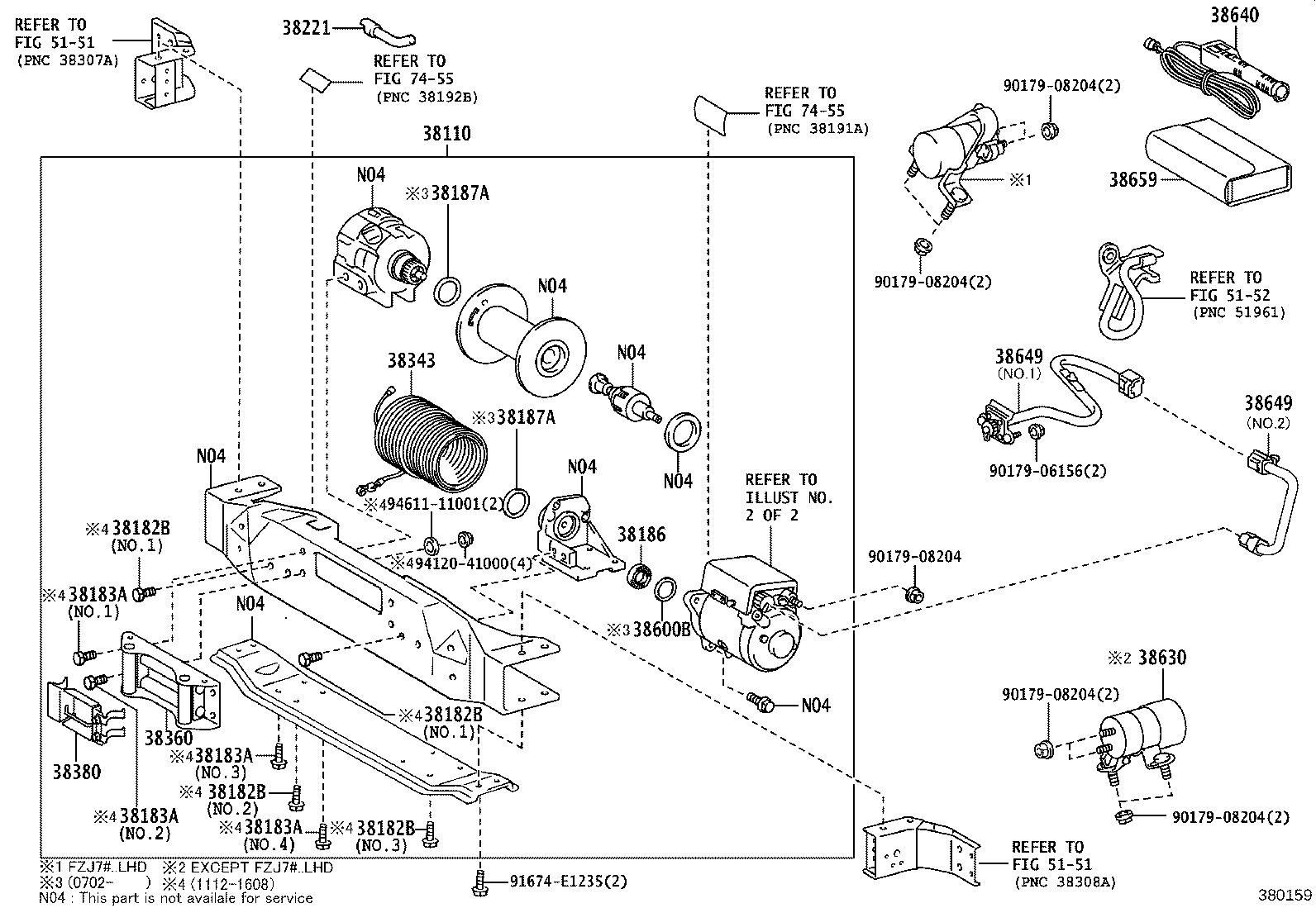

ILLUST NO. 1 OF 2(0701- )VDJ76,79..GCC ; (0701- )FZJ7#,GRJ7#,HZJ7#,VDJ78..GCC,GEN

Click highlighted areas on diagram

diagram 38110 38182B 38182B 38182B 38182B 38183A 38183A 38183A 38183A 38186 38187A 38187A 38221 38343 38360 38380 38600B 38630 38640 38649 38649 38659 5151 5151 5152 7455 7455 9017906156 9017908204 9017908204 9017908204 9017908204 9017908204 91674E1235 9412041000 9461111001
Part # Description Qty Price
38110 - WINCH ASSY
38110-60224

FZJ7#,HZJ7#

WINCH-W(ELECTRIC 12V)

 1
38110-60280

GRJ7#,HZJ7#

WINCH-W(ELECTRIC 12V)

 1
38110-60281

GRJ79,HZJ7#;GRJ71,76,78..LHD

WINCH-W(ELECTRIC 12V)

 1
38182B - BOLT, WINCH, NO.1
38182-81235

GRJ7#,HZJ7#

WINCH-W(ELECTRIC 12V),NO.3

 1
38182-41022

GRJ7#,HZJ7#

*10-1.25PX22-22,WINCH-W(ELECTRIC 12V),NO.1

 4
38182-61022

GRJ7#,HZJ7#

WINCH-W(ELECTRIC 12V),NO.2

 1
38182B - BOLT, WINCH, NO.1
38182-81235

GRJ7#,HZJ7#

WINCH-W(ELECTRIC 12V),NO.3

 1
38182-41022

GRJ7#,HZJ7#

*10-1.25PX22-22,WINCH-W(ELECTRIC 12V),NO.1

 4
38182-61022

GRJ7#,HZJ7#

WINCH-W(ELECTRIC 12V),NO.2

 1
38182B - BOLT, WINCH, NO.1
38182-81235

GRJ7#,HZJ7#

WINCH-W(ELECTRIC 12V),NO.3

 1
38182-41022

GRJ7#,HZJ7#

*10-1.25PX22-22,WINCH-W(ELECTRIC 12V),NO.1

 4
38182-61022

GRJ7#,HZJ7#

WINCH-W(ELECTRIC 12V),NO.2

 1
38182B - BOLT, WINCH, NO.1
38182-81235

GRJ7#,HZJ7#

WINCH-W(ELECTRIC 12V),NO.3

 1
38182-41022

GRJ7#,HZJ7#

*10-1.25PX22-22,WINCH-W(ELECTRIC 12V),NO.1

 4
38182-61022

GRJ7#,HZJ7#

WINCH-W(ELECTRIC 12V),NO.2

 1
38183A - BOLT, WINCH, NO.2
38183-41025

GRJ7#,HZJ7#

WINCH-W(ELECTRIC 12V),NO.2

 2
38183-61025

GRJ7#,HZJ7#

WINCH-W(ELECTRIC 12V),NO.3

 1
38183-41022

GRJ7#,HZJ7#

WINCH-W(ELECTRIC 12V),NO.1

 2
38183-61235

GRJ7#,HZJ7#

WINCH-W(ELECTRIC 12V),NO.4

 5
38183A - BOLT, WINCH, NO.2
38183-41025

GRJ7#,HZJ7#

WINCH-W(ELECTRIC 12V),NO.2

 2
38183-61025

GRJ7#,HZJ7#

WINCH-W(ELECTRIC 12V),NO.3

 1
38183-41022

GRJ7#,HZJ7#

WINCH-W(ELECTRIC 12V),NO.1

 2
38183-61235

GRJ7#,HZJ7#

WINCH-W(ELECTRIC 12V),NO.4

 5
38183A - BOLT, WINCH, NO.2
38183-41025

GRJ7#,HZJ7#

WINCH-W(ELECTRIC 12V),NO.2

 2
38183-61025

GRJ7#,HZJ7#

WINCH-W(ELECTRIC 12V),NO.3

 1
38183-41022

GRJ7#,HZJ7#

WINCH-W(ELECTRIC 12V),NO.1

 2
38183-61235

GRJ7#,HZJ7#

WINCH-W(ELECTRIC 12V),NO.4

 5
38183A - BOLT, WINCH, NO.2
38183-41025

GRJ7#,HZJ7#

WINCH-W(ELECTRIC 12V),NO.2

 2
38183-61025

GRJ7#,HZJ7#

WINCH-W(ELECTRIC 12V),NO.3

 1
38183-41022

GRJ7#,HZJ7#

WINCH-W(ELECTRIC 12V),NO.1

 2
38183-61235

GRJ7#,HZJ7#

WINCH-W(ELECTRIC 12V),NO.4

 5
38186 - SEAL, GEAR CASE COVER OIL
38186-60170

GRJ79,HZJ7#;GRJ71,76,78..LHD

WINCH-W(ELECTRIC 12V)

 1
38187A - RING, WINCH
38187-60170

FZJ7#,GRJ7#,HZJ7#

WINCH-W(ELECTRIC 12V)

 2
38187A - RING, WINCH
38187-60170

FZJ7#,GRJ7#,HZJ7#

WINCH-W(ELECTRIC 12V)

 2
38221 - LEVER, CLUTCH HUB SHIFT
38221-60250

GRJ79,HZJ7#;GRJ71,76,78..LHD

WINCH-W(ELECTRIC 12V)

 1
38343 - WINCH WIRE
38343-60171

GRJ79,HZJ7#;GRJ71,76,78..LHD

WINCH-W(ELECTRIC 12V)

 1
38360 - BRACKET ASSY, WINCH ROLLER
38360-60083

FZJ7#,GRJ7#,HZJ7#

WINCH-W(ELECTRIC 12V)

 1
38380 - HOLDER ASSY, WINCH HOOK
38380-60022

FZJ7#,GRJ7#,HZJ7#

WINCH-W(ELECTRIC 12V)

 1
38600B - RING, O (FOR WINCH MOTOR)
90301-59044

FZJ7#,GRJ7#,HZJ7#

WINCH-W(ELECTRIC 12V)

 1
38630 - SWITCH ASSY, MAGNET, NO.1
38630-60170

GRJ7#,HZJ7#

WINCH-W(ELECTRIC 12V)

 1
38630-60171

GRJ79,HZJ7#;GRJ71,76,78..LHD

WINCH-W(ELECTRIC 12V)

 1
38640 - SWITCH ASSY, WINCH CONTROL
38640-35010

FZJ7#,HZJ7#

WINCH-W(ELECTRIC 12V)

 1
38640-60030

GRJ79,HZJ7#;GRJ71,76,78..LHD

WINCH-W(ELECTRIC 12V)

 1
38649 - WIRE, WINCH CONTROL
38649-60050

GRJ7#,HZJ7#

WINCH-W(ELECTRIC 12V),NO.1

 1
38649-60051

GRJ79,HZJ7#;GRJ71,76,78..LHD

WINCH-W(ELECTRIC 12V),NO.1

 1
38649-60060

GRJ79,HZJ7#;GRJ71,76,78..LHD

WINCH-W(ELECTRIC 12V),NO.2

 1
38649 - WIRE, WINCH CONTROL
38649-60050

GRJ7#,HZJ7#

WINCH-W(ELECTRIC 12V),NO.1

 1
38649-60051

GRJ79,HZJ7#;GRJ71,76,78..LHD

WINCH-W(ELECTRIC 12V),NO.1

 1
38649-60060

GRJ79,HZJ7#;GRJ71,76,78..LHD

WINCH-W(ELECTRIC 12V),NO.2

 1
38659 - COVER, WINCH CONTROL SWITCH
38659-60010

GRJ79,HZJ7#;GRJ71,76,78..LHD

WINCH-W(ELECTRIC 12V)

 1
Common parts
90179-06156
90179-08204
91674-E1235
94120-41000
94611-11001
Linked diagrams
5151
5152
7455
