HZJ79L-TJMRS3 (2016)

Toyota Land Cruiser

Production Aug 2016 - Sep 9999
Engine 1HZ
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1608- )VDJ76 ; (1608- )VDJ78..GCC ; (1608- )VDJ79..ARL,GCC ; (1608- )V

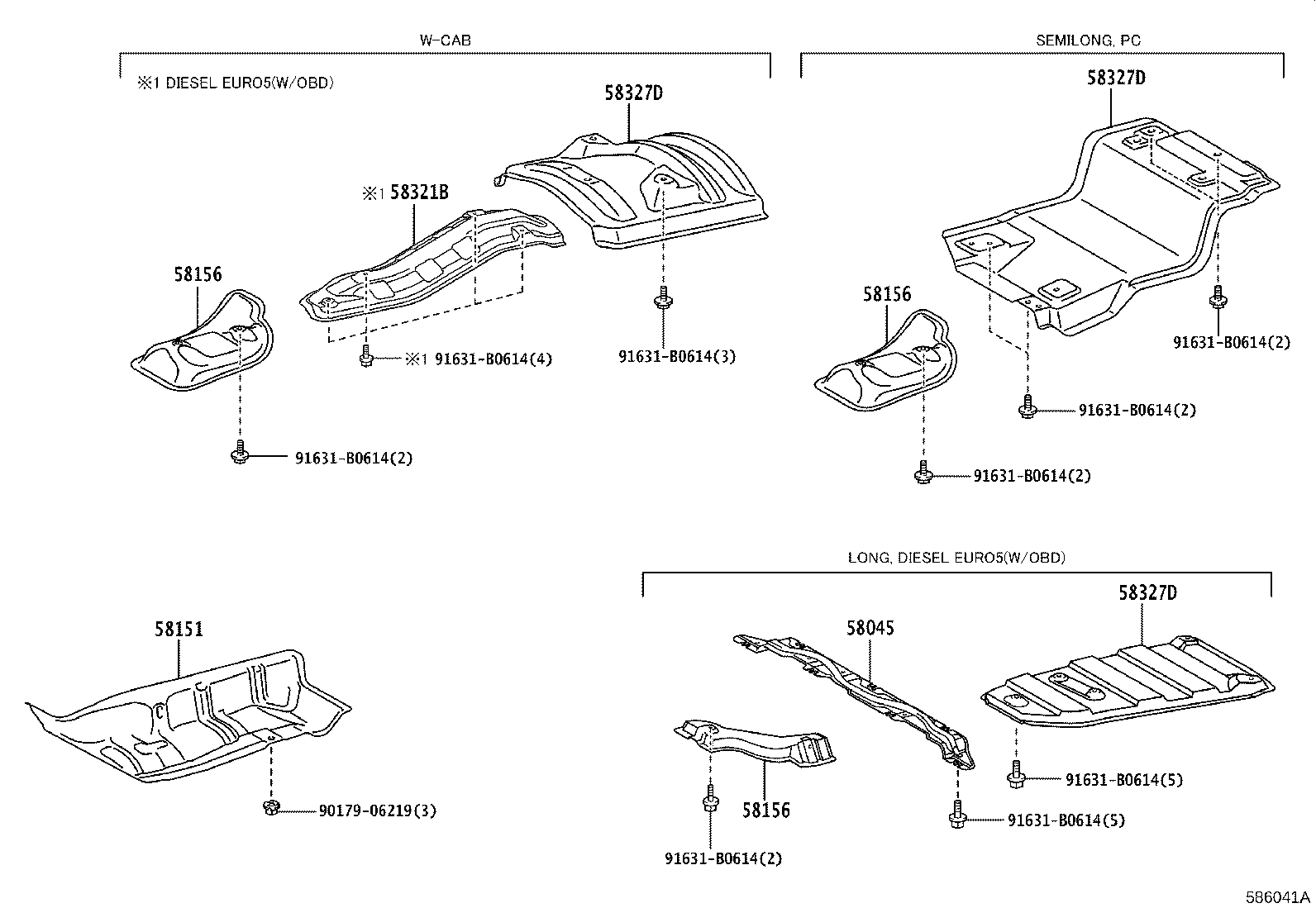

Click highlighted areas on diagram

diagram 58045 58151 58156 58156 58156 58321B 58327D 58327D 58327D 9017906219 91631B0614 91631B0614 91631B0614 91631B0614 91631B0614 91631B0614 91631B0614 91631B0614 91631B0614
Part # Description Qty Price
58151 - INSULATOR, FRONT FLOOR HEAT, NO.1
58151-60040

HZJ7#

 1
58151-60140

VDJ76,79..GEN

 1
58156 - INSULATOR, FRONT FLOOR HEAT, NO.4
58156-60040

GRJ78,79..HT,PIC

 1
58156 - INSULATOR, FRONT FLOOR HEAT, NO.4
58156-60040

GRJ78,79..HT,PIC

 1
58156 - INSULATOR, FRONT FLOOR HEAT, NO.4
58156-60040

GRJ78,79..HT,PIC

 1
Common parts
90179-06219
91631-B0614
