HZJ79L-TJMRS3 (2007)
Toyota Land Cruiser
ILLUST NO. 2 OF 2(9001-0907)
TILT STEERING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90109-08112 | ||||
| 90114-08002 | ||||
| 90119-06029 | ||||
| 90119-08165 | ||||
| 90164-50048 | ||||
| 90179-10178 | ||||
| 90201-06204 | ||||
| 90201-08065 | ||||
| 90980-07195 | ||||
| 91611-60840 | ||||
| 91651-60616 | ||||
| 93315-14010 | ||||
| 94130-00802 | ||||
| 94182-10800 | ||||
| 94183-60601 | ||||
| 94531-00800 | ||||
| 94612-11001 | ||||
ILLUST NO. 1 OF 2(9001-0907)
TILT STEERING(COLLAPSIBLE)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-08042 | ||||
| 90119-08560 | ||||
| 91611-60618 | ||||
| 91611-B0816 | ||||
| 91651-60616 | ||||
| 91651-60818 | ||||
| 91651-60825 | ||||
| 91651-B0820 | ||||
| 91651-B0822 | ||||
| 93319-14012 | ||||
ILLUST NO. 2 OF 2(0701-0907)
TILT STEERING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45081 - SUPPORT SUB-ASSY, TILT STEERING | ||||
| 45081-22020 |
FZJ7#,HZJ7#,VDJ7# |
1 | ||
| 45081A - SPRING, TENSION(FOR TILT STEERING) | ||||
| 90506-23009 |
FZJ7#,HZJ7#,VDJ7# |
2 | ||
| 45081B - CORD(FOR TILT STEERING) | ||||
| 90945-02034 |
FZJ7#,HZJ7#,VDJ7# L=107.5 |
2 | ||
| 90945-02038 |
FZJ7#,HZJ7#,VDJ7# L=105.5 |
2 | ||
| 45286 - COVER, STEERING COLUMN | ||||
| 45286-60992E0 |
FZJ7#,HZJ7#..LHD OAK,TRIM4# |
1 | ||
| 45286-60992B0 |
FZJ7#,HZJ7#..LHD BLUISH GRAY,TRIM1# |
1 | ||
| 45289A - SUPPORT, STEERING COLUMN COVER | ||||
| 45289-22020 |
FZJ7#,HZJ7#,VDJ7# |
1 | ||
| 45804 - LEVER SUB-ASSY, STEERING TILT | ||||
| 45804-22010 |
FZJ7#,HZJ7#,VDJ7# |
1 | ||
| 45807 - BRACKET SUB-ASSY, STEERING COLUMN UPPER SUPPORT | ||||
| 45082-60020 |
FZJ7#,HZJ7#,VDJ7# |
1 | ||
| 45813 - COLLAR, TILT STEERING SUPPORT, NO.1 | ||||
| 45813-22020 |
FZJ7#,HZJ7#,VDJ7# OD=18.003-18.010 |
1 | ||
| 45813-12020 |
GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7# OD=24-16 |
2 | ||
| 45813-22010 |
FZJ7#,HZJ7#,VDJ7# OD=17.996-18.003 |
1 | ||
| 45813-22040 |
FZJ7#,HZJ7#,VDJ7# OD=18.017-18.024 |
1 | ||
| 45813-22030 |
FZJ7#,HZJ7#,VDJ7# OD=18.010-18.017 |
1 | ||
| 45813-22050 |
FZJ7#,HZJ7#,VDJ7# OD=17.989-17.996 |
1 | ||
| 45814 - COLLAR, TILT STEERING SUPPORT, NO.2 | ||||
| 45814-22020 |
FZJ7#,HZJ7#,VDJ7# OD=18.000-18.018 |
1 | ||
| 45814-22010 |
FZJ7#,HZJ7#,VDJ7# OD=17.982-18.000 |
1 | ||
| 45815 - SHIM, TILT STEERING SUPPORT | ||||
| 45815-22070 |
FZJ7#,HZJ7#,VDJ7# T=0.5 |
1 | ||
| 45815-22090 |
FZJ7#,HZJ7#,VDJ7# T=1.4 |
1 | ||
| 45815-22080 |
FZJ7#,HZJ7#,VDJ7# T=0.8 |
1 | ||
| 45815-22100 |
FZJ7#,HZJ7#,VDJ7# T=1.8 |
1 | ||
| 45815-22060 |
FZJ7#,HZJ7#,VDJ7# T=0.2 |
1 | ||
| 45819 - RETAINER, TILT LEVER | ||||
| 45819-22011 |
FZJ7#,HZJ7#,VDJ7# |
1 | ||
| 45819A - COLLAR(FOR TILT LEVER RETAINER) | ||||
| 90387-08002 |
FZJ7#,HZJ7#,VDJ7# |
1 | ||
| 45821B - REINFORCE, TILT STEERING SUPPORT, NO.1 | ||||
| 45821-22010 |
FZJ7#,HZJ7#,VDJ7# |
1 | ||
| 45821-35020 |
GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7# |
1 | ||
| 45826A - SPRING, TENSION(FOR STEERING TILT LEVER) | ||||
| 90507-14001 |
FZJ7#,HZJ7#,VDJ7# |
1 | ||
| 45826B - PIN(FOR STEERING TILT LEVER) | ||||
| 90241-06039 |
FZJ7#,HZJ7#,VDJ7# |
1 | ||
| 45890A - PAWL ASSY, TILT STEERING | ||||
| 45890-22050 |
FZJ7#,HZJ7#,VDJ7# |
1 | ||
| 45823-35020 |
GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7# |
1 | ||
| 45898B - BOLT, TILT STEERING SUPPORT STOPPER | ||||
| 45898-22010 |
FZJ7#,HZJ7#,VDJ7# |
1 | ||
| 45899A - COVER, TILT STEERING SUPPORT STOPPER | ||||
| 45899-22020 |
FZJ7#,HZJ7#,VDJ7# |
1 | ||
| Common parts | ||||
| 90109-08112 | ||||
| 90114-08002 | ||||
| 90119-06029 | ||||
| 90119-08165 | ||||
| 90164-50048 | ||||
| 90179-10178 | ||||
| 90201-06204 | ||||
| 90201-08065 | ||||
| 90980-07195 | ||||
| 91611-60840 | ||||
| 91651-60616 | ||||
| 93315-14010 | ||||
| 94130-00802 | ||||
| 94182-10800 | ||||
| 94183-60601 | ||||
| 94531-00800 | ||||
| 94612-11001 | ||||

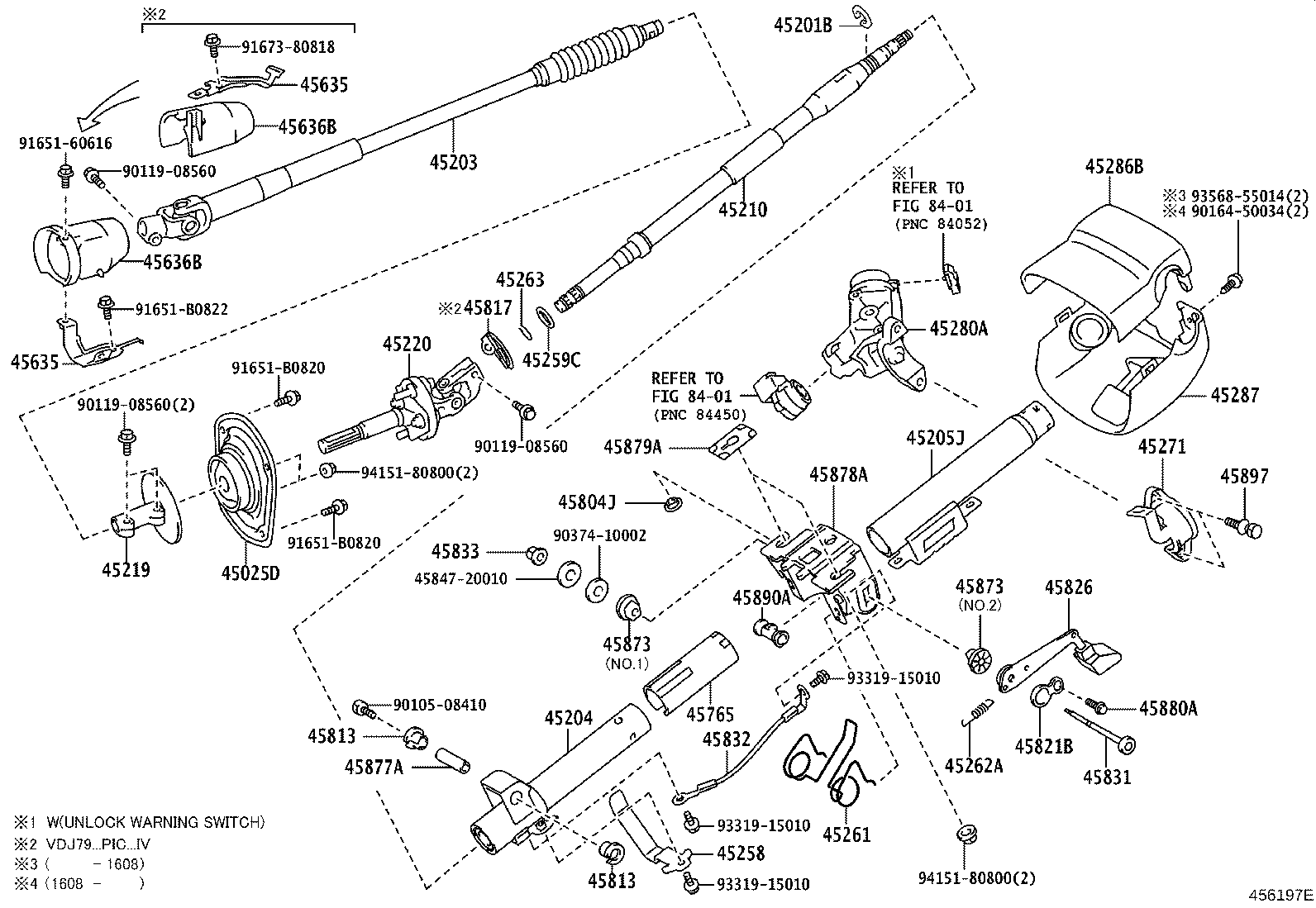

(0907-1208)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45025D - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.1 | ||||
| 45025-60220 |
GRJ7#,HZJ7#..LHD |
1 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17042 |
FZJ7#,HZJ7#,VDJ7# T=1.20 |
1 | ||
| 90520-21023 |
GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7# T=1.20 |
1 | ||
| 45203 - SHAFT SUB-ASSY, STEERING INTERMEDIATE, NO.2 | ||||
| 45203-60200 |
GRJ7#,HZJ7#..LHD |
1 | ||
| 45204 - TUBE ASSY, STEERING COLUMN, LOWER | ||||
| 45204-60040 |
GRJ7#,HZJ7#,VDJ7# |
1 | ||
| 45204-22090 |
GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7# |
1 | ||
| 45205J - TUBE SUB-ASSY, STEERING COLUMN, UPPER | ||||
| 45870-60050 |
FZJ7#,HZJ7#,VDJ7# |
1 | ||
| 45205-22260 |
GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7# |
1 | ||
| 45210 - SHAFT ASSY, STEERING MAIN | ||||
| 45210-60061 |
FZJ7#,HZJ7#,VDJ7# |
1 | ||
| 45210-60170 |
GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7# |
1 | ||
| 45219 - YOKE, STEERING SLIDING | ||||
| 45219-60110 |
GRJ7#,HZJ7#..LHD |
1 | ||
| 45220 - SHAFT ASSY, STEERING INTERMEDIATE | ||||
| 45220-60101 |
FZJ7#,HZJ7#,VDJ7# |
1 | ||
| 45220-60300 |
GRJ7#,HZJ7#..LHD |
1 | ||
| 45259C - SHEET, STEERING MAIN SHAFT BEARING | ||||
| 45259-35010 |
GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7# |
1 | ||
| 45261 - SPRING, TILT STEERING JUMP UP | ||||
| 45261-35020 |
GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7# |
1 | ||
| 45262A - SPRING, TILT LEVER RETURN | ||||
| 45262-35010 |
GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7# |
1 | ||
| 45263 - RING, STEERING COLUMN, NO.1 | ||||
| 45263-35010 |
GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7# |
1 | ||
| 45271 - CLAMP, STEERING COLUMN, UPPER | ||||
| 45271-22020 |
GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7# |
1 | ||
| 45280A - BRACKET ASSY, STEERING COLUMN, UPPER | ||||
| 45280-60640 |
GRJ71,78,79..LHD..GEN VENEZUELA SPEC |
1 | ||
| 45280-60281 |
FZJ7#,HZJ7#..GEN |
1 | ||
| 45280-60630 |
GRJ79,HZJ7#..GEN;GRJ71,76,78..LHD..GEN |
1 | ||
| 45286B - COVER, STEERING COLUMN, UPR | ||||
| 45286-22510B0 |
GRJ7#,HZJ7#,VDJ7# BLUISH GRAY,TRIM1# |
1 | ||
| 45286-22510E0 |
GRJ7#,HZJ7#,VDJ7# OAK,TRIM4# |
1 | ||
| 45287 - COVER, STEERING COLUMN, LWR | ||||
| 45287-60570E0 |
GRJ7#,HZJ7#,VDJ7# OAK,TRIM4# |
1 | ||
| 45287-60570B0 |
GRJ7#,HZJ7#,VDJ7# BLUISH GRAY,TRIM1# |
1 | ||
| 45635 - SUPPORT, INTERMEDIATE LINK JOINT PROTECTOR | ||||
| 45635-60060 |
GRJ7#,HZJ7#..LHD |
1 | ||
| 45636B - PROTECTOR, INTERMEDIATE LINK JOINT | ||||
| 45636-60061 |
GRJ7#,HZJ7#..LHD |
1 | ||
| 45765 - GUIDE, TELESCOPIC STEERING | ||||
| 45765-35010 |
GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7# |
1 | ||
| 45804J - COLLAR SUB-ASSY, BREAK AWAY | ||||
| 45804-22030 |
GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7# |
2 | ||
| 45813 - COLLAR, TILT STEERING SUPPORT, NO.1 | ||||
| 45813-22020 |
FZJ7#,HZJ7#,VDJ7# OD=18.003-18.010 |
1 | ||
| 45813-12020 |
GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7# OD=24-16 |
2 | ||
| 45813-22010 |
FZJ7#,HZJ7#,VDJ7# OD=17.996-18.003 |
1 | ||
| 45813-22040 |
FZJ7#,HZJ7#,VDJ7# OD=18.017-18.024 |
1 | ||
| 45813-22030 |
FZJ7#,HZJ7#,VDJ7# OD=18.010-18.017 |
1 | ||
| 45813-22050 |
FZJ7#,HZJ7#,VDJ7# OD=17.989-17.996 |
1 | ||
| 45813 - COLLAR, TILT STEERING SUPPORT, NO.1 | ||||
| 45813-22020 |
FZJ7#,HZJ7#,VDJ7# OD=18.003-18.010 |
1 | ||
| 45813-12020 |
GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7# OD=24-16 |
2 | ||
| 45813-22010 |
FZJ7#,HZJ7#,VDJ7# OD=17.996-18.003 |
1 | ||
| 45813-22040 |
FZJ7#,HZJ7#,VDJ7# OD=18.017-18.024 |
1 | ||
| 45813-22030 |
FZJ7#,HZJ7#,VDJ7# OD=18.010-18.017 |
1 | ||
| 45813-22050 |
FZJ7#,HZJ7#,VDJ7# OD=17.989-17.996 |
1 | ||
| 45821B - REINFORCE, TILT STEERING SUPPORT, NO.1 | ||||
| 45821-22010 |
FZJ7#,HZJ7#,VDJ7# |
1 | ||
| 45821-35020 |
GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7# |
1 | ||
| 45826 - LEVER, STEERING TILT | ||||
| 45826-22130 |
GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7# |
1 | ||
| 45831 - BOLT, TILT LEVER LOCK, NO.1 | ||||
| 45831-35010 |
GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7# |
1 | ||
| 45833 - NUT, TILT STEERING ADJUSTING, NO.1 | ||||
| 45833-20030 |
GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7# |
1 | ||
| 45873 - STOPPER, STEERING COLUMN TUBE | ||||
| 45873-20050 |
GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7# NO.1 |
1 | ||
| 45873-35010 |
GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7# NO.2 |
1 | ||
| 45873 - STOPPER, STEERING COLUMN TUBE | ||||
| 45873-20050 |
GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7# NO.1 |
1 | ||
| 45873-35010 |
GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7# NO.2 |
1 | ||
| 45877A - SPACER, STEERING COLUMN BRACKET | ||||
| 45877-35030 |
GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7# |
1 | ||
| 45878A - BRACKET, BREAK AWAY | ||||
| 45878-35161 |
GRJ7#,HZJ7#,VDJ7# |
1 | ||
| 45878-35160 |
GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7# |
1 | ||
| 45879A - CAPSULE, BREAK AWAY | ||||
| 45879-22070 |
GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7# |
2 | ||
| 45880A - BOLT(FOR STEERING TILT LEVER) | ||||
| 45832-12010 |
GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7# |
1 | ||
| 45890A - PAWL ASSY, TILT STEERING | ||||
| 45890-22050 |
FZJ7#,HZJ7#,VDJ7# |
1 | ||
| 45823-35020 |
GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7# |
1 | ||
| 45897 - BOLT, STEERING LOCK SET | ||||
| 45897-12030 |
FZJ7#,HZJ7#,VDJ7# |
1 | ||
| 45897-12020 |
GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7# |
2 | ||
| Common parts | ||||
| 45847-20010 | ||||
| 90105-08410 | ||||
| 90119-08560 | ||||
| 90374-10002 | ||||
| 91651-60616 | ||||
| 91651-B0820 | ||||
| 91651-B0822 | ||||
| 93568-55014 | ||||
| 94151-80800 | ||||
| Linked diagrams | ||||
| 8401 | ||||
(1208- )VDJ7#..RHD ; (1208- )GRJ7#,HZJ7#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45025D - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.1 | ||||
| 45025-60220 |
GRJ7#,HZJ7#..LHD |
1 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17042 |
FZJ7#,HZJ7#,VDJ7# T=1.20 |
1 | ||
| 90520-21023 |
GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7# T=1.20 |
1 | ||
| 45203 - SHAFT SUB-ASSY, STEERING INTERMEDIATE, NO.2 | ||||
| 45203-60200 |
GRJ7#,HZJ7#..LHD |
1 | ||
| 45204 - TUBE ASSY, STEERING COLUMN, LOWER | ||||
| 45204-60040 |
GRJ7#,HZJ7#,VDJ7# |
1 | ||
| 45204-22090 |
GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7# |
1 | ||
| 45205J - TUBE SUB-ASSY, STEERING COLUMN, UPPER | ||||
| 45870-60050 |
FZJ7#,HZJ7#,VDJ7# |
1 | ||
| 45205-22260 |
GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7# |
1 | ||
| 45210 - SHAFT ASSY, STEERING MAIN | ||||
| 45210-60061 |
FZJ7#,HZJ7#,VDJ7# |
1 | ||
| 45210-60170 |
GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7# |
1 | ||
| 45219 - YOKE, STEERING SLIDING | ||||
| 45219-60110 |
GRJ7#,HZJ7#..LHD |
1 | ||
| 45220 - SHAFT ASSY, STEERING INTERMEDIATE | ||||
| 45220-60101 |
FZJ7#,HZJ7#,VDJ7# |
1 | ||
| 45220-60300 |
GRJ7#,HZJ7#..LHD |
1 | ||
| 45258 - BRACKET, STEERING COLUMN TUBE | ||||
| 45258-60010 |
GRJ7#,HZJ7#,VDJ7# |
1 | ||
| 45259C - SHEET, STEERING MAIN SHAFT BEARING | ||||
| 45259-35010 |
GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7# |
1 | ||
| 45261 - SPRING, TILT STEERING JUMP UP | ||||
| 45261-35020 |
GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7# |
1 | ||
| 45262A - SPRING, TILT LEVER RETURN | ||||
| 45262-35010 |
GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7# |
1 | ||
| 45263 - RING, STEERING COLUMN, NO.1 | ||||
| 45263-35010 |
GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7# |
1 | ||
| 45271 - CLAMP, STEERING COLUMN, UPPER | ||||
| 45271-22020 |
GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7# |
1 | ||
| 45280A - BRACKET ASSY, STEERING COLUMN, UPPER | ||||
| 45280-60640 |
GRJ71,78,79..LHD..GEN VENEZUELA SPEC |
1 | ||
| 45280-60281 |
FZJ7#,HZJ7#..GEN |
1 | ||
| 45280-60630 |
GRJ79,HZJ7#..GEN;GRJ71,76,78..LHD..GEN |
1 | ||
| 45286B - COVER, STEERING COLUMN, UPR | ||||
| 45286-22510B0 |
GRJ7#,HZJ7#,VDJ7# BLUISH GRAY,TRIM1# |
1 | ||
| 45286-22510E0 |
GRJ7#,HZJ7#,VDJ7# OAK,TRIM4# |
1 | ||
| 45287 - COVER, STEERING COLUMN, LWR | ||||
| 45287-60570E0 |
GRJ7#,HZJ7#,VDJ7# OAK,TRIM4# |
1 | ||
| 45287-60570B0 |
GRJ7#,HZJ7#,VDJ7# BLUISH GRAY,TRIM1# |
1 | ||
| 45635 - SUPPORT, INTERMEDIATE LINK JOINT PROTECTOR | ||||
| 45635-60060 |
GRJ7#,HZJ7#..LHD |
1 | ||
| 45635 - SUPPORT, INTERMEDIATE LINK JOINT PROTECTOR | ||||
| 45635-60060 |
GRJ7#,HZJ7#..LHD |
1 | ||
| 45636B - PROTECTOR, INTERMEDIATE LINK JOINT | ||||
| 45636-60061 |
GRJ7#,HZJ7#..LHD |
1 | ||
| 45636B - PROTECTOR, INTERMEDIATE LINK JOINT | ||||
| 45636-60061 |
GRJ7#,HZJ7#..LHD |
1 | ||
| 45765 - GUIDE, TELESCOPIC STEERING | ||||
| 45765-35010 |
GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7# |
1 | ||
| 45804J - COLLAR SUB-ASSY, BREAK AWAY | ||||
| 45804-22030 |
GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7# |
2 | ||
| 45813 - COLLAR, TILT STEERING SUPPORT, NO.1 | ||||
| 45813-22020 |
FZJ7#,HZJ7#,VDJ7# OD=18.003-18.010 |
1 | ||
| 45813-12020 |
GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7# OD=24-16 |
2 | ||
| 45813-22010 |
FZJ7#,HZJ7#,VDJ7# OD=17.996-18.003 |
1 | ||
| 45813-22040 |
FZJ7#,HZJ7#,VDJ7# OD=18.017-18.024 |
1 | ||
| 45813-22030 |
FZJ7#,HZJ7#,VDJ7# OD=18.010-18.017 |
1 | ||
| 45813-22050 |
FZJ7#,HZJ7#,VDJ7# OD=17.989-17.996 |
1 | ||
| 45813 - COLLAR, TILT STEERING SUPPORT, NO.1 | ||||
| 45813-22020 |
FZJ7#,HZJ7#,VDJ7# OD=18.003-18.010 |
1 | ||
| 45813-12020 |
GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7# OD=24-16 |
2 | ||
| 45813-22010 |
FZJ7#,HZJ7#,VDJ7# OD=17.996-18.003 |
1 | ||
| 45813-22040 |
FZJ7#,HZJ7#,VDJ7# OD=18.017-18.024 |
1 | ||
| 45813-22030 |
FZJ7#,HZJ7#,VDJ7# OD=18.010-18.017 |
1 | ||
| 45813-22050 |
FZJ7#,HZJ7#,VDJ7# OD=17.989-17.996 |
1 | ||
| 45821B - REINFORCE, TILT STEERING SUPPORT, NO.1 | ||||
| 45821-22010 |
FZJ7#,HZJ7#,VDJ7# |
1 | ||
| 45821-35020 |
GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7# |
1 | ||
| 45826 - LEVER, STEERING TILT | ||||
| 45826-22130 |
GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7# |
1 | ||
| 45831 - BOLT, TILT LEVER LOCK, NO.1 | ||||
| 45831-35010 |
GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7# |
1 | ||
| 45832 - CABLE, TILT STEERING SUPPORT BOND | ||||
| 45832-60020 |
GRJ7#,HZJ7#,VDJ7# |
1 | ||
| 45833 - NUT, TILT STEERING ADJUSTING, NO.1 | ||||
| 45833-20030 |
GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7# |
1 | ||
| 45873 - STOPPER, STEERING COLUMN TUBE | ||||
| 45873-20050 |
GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7# NO.1 |
1 | ||
| 45873-35010 |
GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7# NO.2 |
1 | ||
| 45873 - STOPPER, STEERING COLUMN TUBE | ||||
| 45873-20050 |
GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7# NO.1 |
1 | ||
| 45873-35010 |
GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7# NO.2 |
1 | ||
| 45877A - SPACER, STEERING COLUMN BRACKET | ||||
| 45877-35030 |
GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7# |
1 | ||
| 45878A - BRACKET, BREAK AWAY | ||||
| 45878-35161 |
GRJ7#,HZJ7#,VDJ7# |
1 | ||
| 45878-35160 |
GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7# |
1 | ||
| 45879A - CAPSULE, BREAK AWAY | ||||
| 45879-22070 |
GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7# |
2 | ||
| 45880A - BOLT(FOR STEERING TILT LEVER) | ||||
| 45832-12010 |
GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7# |
1 | ||
| 45890A - PAWL ASSY, TILT STEERING | ||||
| 45890-22050 |
FZJ7#,HZJ7#,VDJ7# |
1 | ||
| 45823-35020 |
GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7# |
1 | ||
| 45897 - BOLT, STEERING LOCK SET | ||||
| 45897-12030 |
FZJ7#,HZJ7#,VDJ7# |
1 | ||
| 45897-12020 |
GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7# |
2 | ||
| Common parts | ||||
| 45847-20010 | ||||
| 90105-08410 | ||||
| 90119-08560 | ||||
| 90164-50034 | ||||
| 90374-10002 | ||||
| 91651-60616 | ||||
| 91651-B0820 | ||||
| 91651-B0822 | ||||
| 91673-80818 | ||||
| 93319-15010 | ||||
| 93568-55014 | ||||
| 94151-80800 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 1 OF 2(0701-0907)
TILT STEERING(COLLAPSIBLE)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45025 - COVER, STEERING INTERMEDIATE SHAFT | ||||
| 45025-60060 |
FZJ7#,HZJ7#,VDJ7# |
1 | ||
| 45201A - BEARING(FOR STEERING MAIN SHAFT) | ||||
| 90363-28001 |
FZJ7#,HZJ7#,VDJ7# |
1 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17042 |
FZJ7#,HZJ7#,VDJ7# T=1.20 |
1 | ||
| 90520-21023 |
GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7# T=1.20 |
1 | ||
| 45201D - RING(FOR STEERING MAIN SHAFT) | ||||
| 96152-00300 |
FZJ7#,HZJ7#,VDJ7# |
1 | ||
| 45201G - SPRING, COMPRESSION(FOR STEERING MAIN SHAFT) | ||||
| 90501-45011 |
FZJ7#,HZJ7#,VDJ7# |
1 | ||
| 45205E - RING, SNAP(FOR STEERING COLUMN TUBE) | ||||
| 90521-01002 |
FZJ7#,HZJ7#,VDJ7# |
1 | ||
| 45205J - TUBE SUB-ASSY, STEERING COLUMN, UPPER | ||||
| 45870-60050 |
FZJ7#,HZJ7#,VDJ7# |
1 | ||
| 45205-22260 |
GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7# |
1 | ||
| 45210 - SHAFT ASSY, STEERING MAIN | ||||
| 45210-60061 |
FZJ7#,HZJ7#,VDJ7# |
1 | ||
| 45210-60170 |
GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7# |
1 | ||
| 45215 - COLLAR, MAIN SHAFT BEARING THRUST | ||||
| 45215-22011 |
FZJ7#,HZJ7#,VDJ7# |
1 | ||
| 45220 - SHAFT ASSY, STEERING INTERMEDIATE | ||||
| 45220-60101 |
FZJ7#,HZJ7#,VDJ7# |
1 | ||
| 45220-60300 |
GRJ7#,HZJ7#..LHD |
1 | ||
| 45222F - COVER, DUST | ||||
| 45222-60031 |
FZJ7#,HZJ7#,VDJ7# |
1 | ||
| 45225 - BLOCK, BEARING | ||||
| 45225-60010 |
FZJ7#,HZJ7#,VDJ7# |
1 | ||
| 45225A - RING, O(FOR BEARING BLOCK) | ||||
| 96711-24053 |
FZJ7#,HZJ7#,VDJ7# |
1 | ||
| 45254 - SHIELD, STEERING COLUMN HOLE | ||||
| 45254-60050 |
FZJ7#,HZJ7#,VDJ7# |
1 | ||
| 45255 - PLATE, STEERING COLUMN HOLE COVER | ||||
| 45255-60010 |
FZJ7#,HZJ7#,VDJ7# |
1 | ||
| 45260 - SHAFT ASSY, STEERING INTERMEDIATE, NO.2 | ||||
| 45260-60100 |
FZJ7#,HZJ7#,VDJ7# |
1 | ||
| 45280A - BRACKET ASSY, STEERING COLUMN, UPPER | ||||
| 45280-60640 |
GRJ71,78,79..LHD..GEN VENEZUELA SPEC |
1 | ||
| 45280-60281 |
FZJ7#,HZJ7#..GEN |
1 | ||
| 45280-60630 |
GRJ79,HZJ7#..GEN;GRJ71,76,78..LHD..GEN |
1 | ||
| 45291 - SEAL, MAIN SHAFT UPPER DUST | ||||
| 45282-22010 |
FZJ7#,HZJ7#,VDJ7# |
1 | ||
| 45291B - RING, O(FOR STEERING COLUMN TUBE SUPPORT) | ||||
| 90301-60122 |
FZJ7#,HZJ7#,VDJ7# |
1 | ||
| 45635 - SUPPORT, INTERMEDIATE LINK JOINT PROTECTOR | ||||
| 45635-60060 |
GRJ7#,HZJ7#..LHD |
1 | ||
| 45636B - PROTECTOR, INTERMEDIATE LINK JOINT | ||||
| 45636-60061 |
GRJ7#,HZJ7#..LHD |
1 | ||
| 45897 - BOLT, STEERING LOCK SET | ||||
| 45897-12030 |
FZJ7#,HZJ7#,VDJ7# |
1 | ||
| 45897-12020 |
GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7# |
2 | ||
| Common parts | ||||
| 90119-08042 | ||||
| 90119-08560 | ||||
| 91611-60618 | ||||
| 91611-B0816 | ||||
| 91651-60616 | ||||
| 91651-B0820 | ||||
| 91651-B0822 | ||||
| 93319-14012 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
