HZJ79L-TJMRS3 (1999)

Toyota Land Cruiser

Production Aug 1999 - Jan 2007
Engine 1HZ
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 3 OF 4(9001-0907)

Click highlighted areas on diagram

diagram 5551 83180 83290D 83290E 83710 8379160080 8379190K00 83910 83910 86995 9015960081 9017906009 9017906070 9018906006 9046400165 9098901038 9098901039 9098901050 9356855012
Part # Description Qty Price
83180 - DETECTOR ASSY, REVOLUTION
83180-32020

PZJ70..LX;PZJ70..ARL;HZJ7#,PZJ73,75..(HT,PIC)..(ARL,GEN)

 1
83180-60070

HZJ78..STD;HZJ79..GEN;HZJ79..ARL..IV

 1
83290D - METER ASSY, ACCESSORY
83290-90K00

FJ73..STD..GEN;FJ73,PZJ73,RJ70..HT;FJ70,75,HZJ7#,LJ70,PZJ70,75..ARL,GCC,GEN

CLINOMETER,CLINOMETER

 1
83290E - BULB, ACCESSORY METER
84999-50010

FJ7#,HZJ7#,LJ70,PZJ7#,RJ70..ARL,GCC,GEN

12V 3.4W

 1
83910 - CLOCK ASSY
83910-60070

FZJ79,HDJ7#,HZJ79;FJ70,RJ77..LX..GCC;FZJ70,75..HT..STD..CBR;HZJ75,78..HT..(ARL,GEN);FZJ70,75,HZJ70..ARL..CBU;FJ70,75,FZJ71,78,HZJ71,LJ72,79,PZJ70,75,RJ7#..HT..STD

 1
83910-60070

HZJ78..STD;FZJ79,HDJ78..CBU;HDJ79,HZJ79..ARL..IV;FZJ71,78,HZJ71,79..(HT,PIC)..STD..(GCC,GEN)

 1
83910 - CLOCK ASSY
83910-60070

FZJ79,HDJ7#,HZJ79;FJ70,RJ77..LX..GCC;FZJ70,75..HT..STD..CBR;HZJ75,78..HT..(ARL,GEN);FZJ70,75,HZJ70..ARL..CBU;FJ70,75,FZJ71,78,HZJ71,LJ72,79,PZJ70,75,RJ7#..HT..STD

 1
83910-60070

HZJ78..STD;FZJ79,HDJ78..CBU;HDJ79,HZJ79..ARL..IV;FZJ71,78,HZJ71,79..(HT,PIC)..STD..(GCC,GEN)

 1
86995 - PLATE, CAUTION (FOR CLINOMETER)
86995-90A01

FJ7#,HZJ7#,LJ70,PZJ7#,RJ70..ARL,GCC,GEN

 1
Common parts
83791-60080
83791-90K00
90159-60081
90179-06009
90179-06070
90189-06006
90464-00165
90989-01038
90989-01039
90989-01050
93568-55012
Linked diagrams
5551

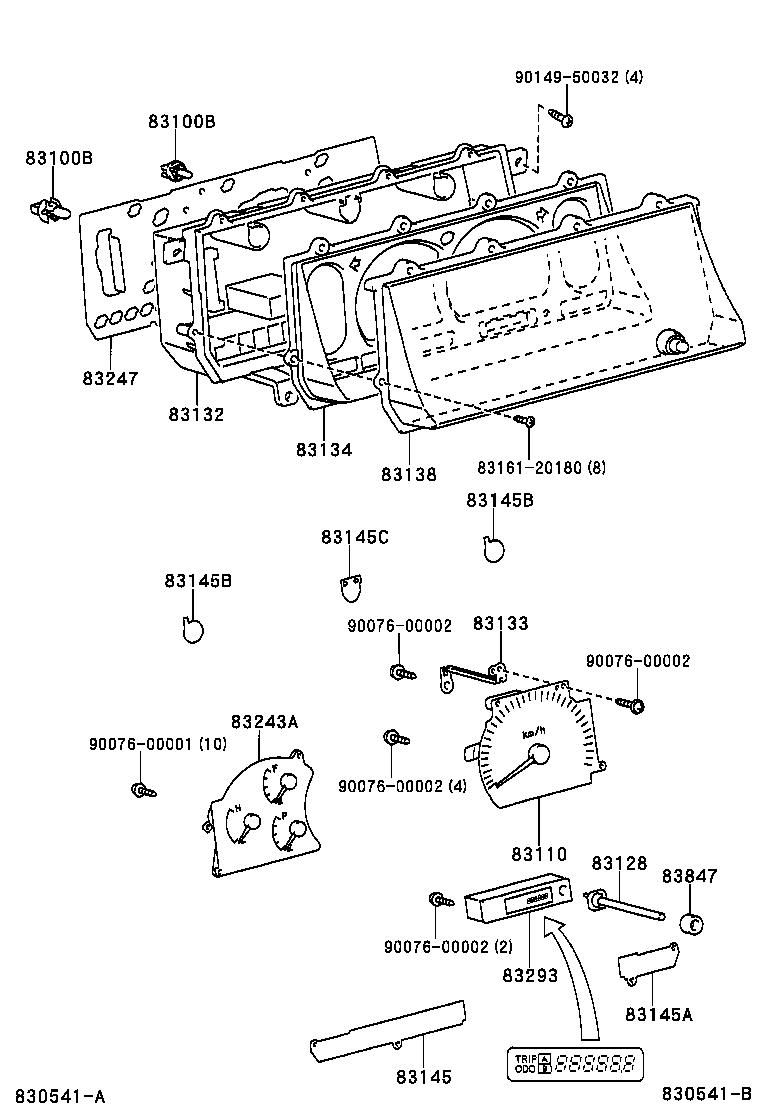

ILLUST NO. 1 OF 4(0701-0907)FZJ76,HZJ76 ; (0701-0907)FZJ71,78,79,HZJ71,78,79..STD

Click highlighted areas on diagram

W/O(TACHOMETER)

diagram 83100B 83100B 83110 83128 83132 83133 83134 83138 83145 83145A 83145B 83145B 83145C 8316120180 83243A 83247 83293 83847 9007600001 9007600002 9007600002 9007600002 9007600002 9014950032
Part # Description Qty Price
Common parts
83161-20180
90076-00001
90076-00002
90149-50032

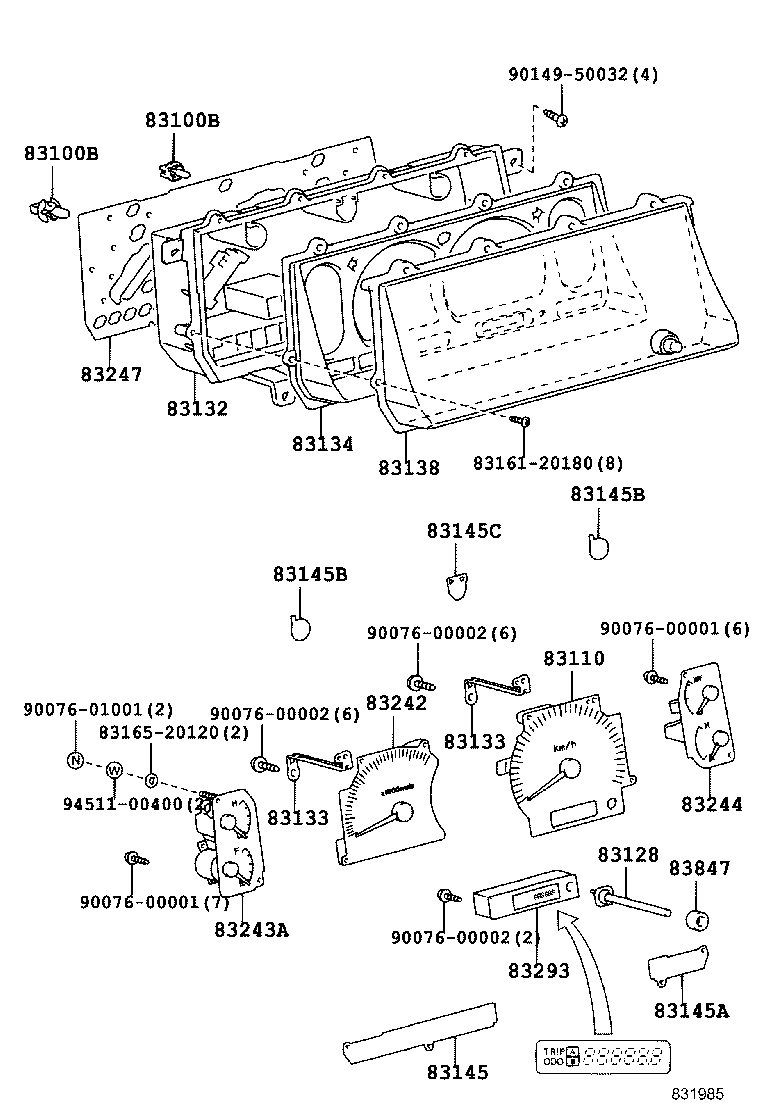

ILLUST NO. 1 OF 4(0701-0907)FZJ79..LX ; (0701-0907)FZJ76,HZJ76 ;(0701-0907)HZJ79..GEN..CBU ; (0701-

Click highlighted areas on diagram

W(TACHOMETER)

diagram 83100B 83100B 83110 83128 83132 83133 83133 83134 83138 83145 83145A 83145B 83145B 83145C 8316120180 8316520120 83242 83243A 83244 83247 83293 83847 9007600001 9007600001 9007600002 9007600002 9007600002 9007601001 9014950032 9451100400
Part # Description Qty Price
Common parts
83161-20180
83165-20120
90076-00001
90076-00002
90076-01001
90149-50032
94511-00400

ILLUST NO. 2 OF 5(0701-0907)

Click highlighted areas on diagram

BULB

diagram 83100B 83100B 83100B
Part # Description Qty Price

ILLUST NO. 3 OF 5(0701-0907)

Click highlighted areas on diagram

diagram 83710 83910 83910 9356855012
Part # Description Qty Price
Common parts
93568-55012

ILLUST NO. 4 OF 5(0701-0907)

Click highlighted areas on diagram

SPEED SENSOR

diagram 83181A 83181A 83181B 83783 91611B0825
Part # Description Qty Price
Common parts
91611-B0825
