HZJ79L-TJMRS3 (1999)
Toyota Land Cruiser

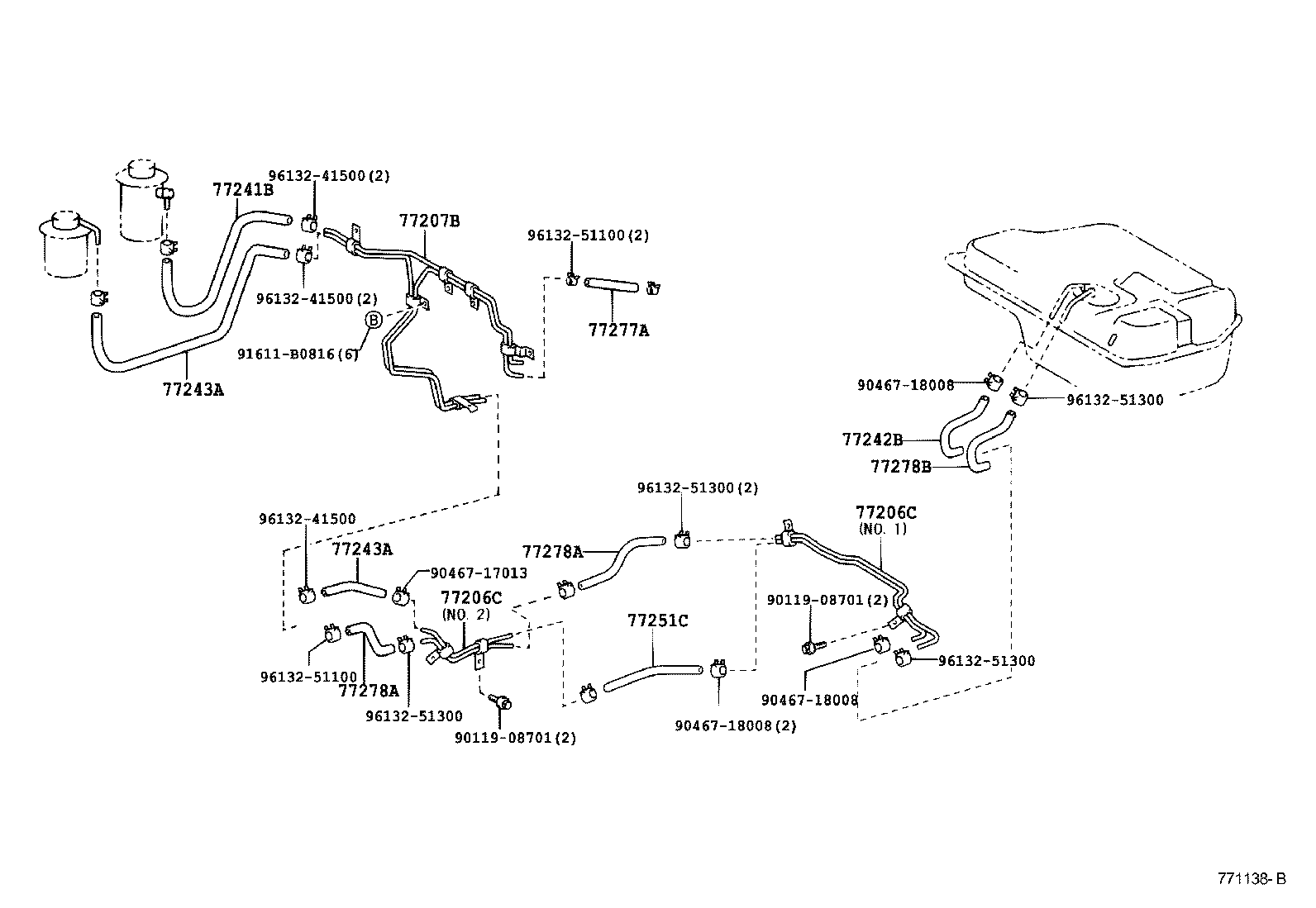

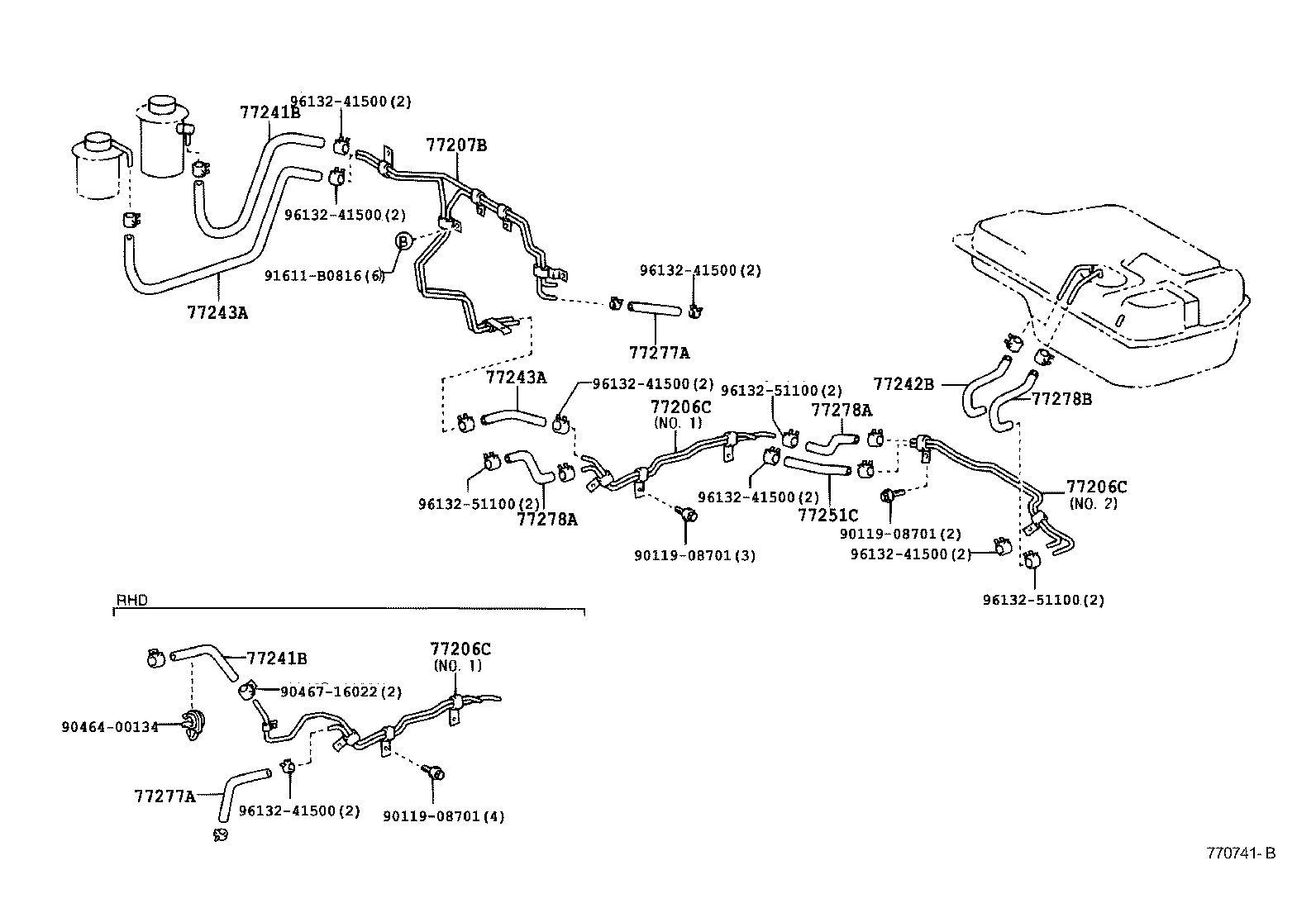

ILLUST NO. 2 OF 3(9908-0207)HZJ78,79..LHD
FUEL TUBE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77206C - TUBE SUB-ASSY, FUEL MAIN, NO.2 | ||||
| 77206-60200 |
HZJ78,79..LHD W(FUEL SUB TANK),NO.1 |
1 | ||
| 77206-60230 |
FZJ78,79..GEN |
1 | ||
| 77206-60210 |
HZJ78,79 NO.2 |
1 | ||
| 77206-60190 |
HZJ78,79..LHD NO.1 |
1 | ||
| 77206-60220 |
FZJ78,79..GEN W(FUEL SUB TANK) |
1 | ||
| 77206-60211 |
HZJ79;HZJ78..ARL,GEN NO.2 |
1 | ||
| 77206-60191 |
HZJ79..LHD;HZJ78..LHD..GEN NO.1 |
1 | ||
| 77206-60231 |
FZJ78,79..GEN |
1 | ||
| 77206-60171 |
FZJ78,79..ARL,GCC;FZJ78,79..LHD..GEN W(CHARCOAL CANISTER) |
1 | ||
| 77206-60311 |
HZJ79..LHD;HZJ78..LHD..GEN W(FUEL SUB TANK),NO.2 |
1 | ||
| 77206-60201 |
HZJ79..LHD;HZJ78..LHD..GEN W(FUEL SUB TANK),NO.1 |
1 | ||
| 77206-60300 |
HZJ79..LHD;HZJ78..LHD..GEN NO.2 |
1 | ||
| 77206-60221 |
FZJ71,74,78,79..GEN W(FUEL SUB TANK) |
1 | ||
| 77206-60280 |
HZJ79..LHD;HZJ78..LHD..GEN NO.1 |
1 | ||
| 77206-60190 |
HZJ78,79..LHD NO.1 |
1 | ||
| 77206-60210 |
HZJ78,79 NO.2 |
1 | ||
| 77206-60230 |
FZJ78,79..GEN |
1 | ||
| 77206-60220 |
FZJ78,79..GEN W(FUEL SUB TANK) |
1 | ||
| 77206-60191 |
HZJ78,79..LHD NO.1 |
1 | ||
| 77206-60200 |
HZJ78,79..LHD W(FUEL SUB TANK),NO.1 |
1 | ||
| 77206-60211 |
HZJ78,79 NO.2 |
1 | ||
| 77206-60201 |
HZJ78,79..LHD W(FUEL SUB TANK),NO.1 |
1 | ||
| 77206-60300 |
HZJ78,79..LHD NO.2 |
1 | ||
| 77206-60311 |
HZJ78,79..LHD W(FUEL SUB TANK),NO.2 |
1 | ||
| 77206-60280 |
HZJ78,79..LHD NO.1 |
1 | ||
| 77206C - TUBE SUB-ASSY, FUEL MAIN, NO.2 | ||||
| 77206-60200 |
HZJ78,79..LHD W(FUEL SUB TANK),NO.1 |
1 | ||
| 77206-60230 |
FZJ78,79..GEN |
1 | ||
| 77206-60210 |
HZJ78,79 NO.2 |
1 | ||
| 77206-60190 |
HZJ78,79..LHD NO.1 |
1 | ||
| 77206-60220 |
FZJ78,79..GEN W(FUEL SUB TANK) |
1 | ||
| 77206-60211 |
HZJ79;HZJ78..ARL,GEN NO.2 |
1 | ||
| 77206-60191 |
HZJ79..LHD;HZJ78..LHD..GEN NO.1 |
1 | ||
| 77206-60231 |
FZJ78,79..GEN |
1 | ||
| 77206-60171 |
FZJ78,79..ARL,GCC;FZJ78,79..LHD..GEN W(CHARCOAL CANISTER) |
1 | ||
| 77206-60311 |
HZJ79..LHD;HZJ78..LHD..GEN W(FUEL SUB TANK),NO.2 |
1 | ||
| 77206-60201 |
HZJ79..LHD;HZJ78..LHD..GEN W(FUEL SUB TANK),NO.1 |
1 | ||
| 77206-60300 |
HZJ79..LHD;HZJ78..LHD..GEN NO.2 |
1 | ||
| 77206-60221 |
FZJ71,74,78,79..GEN W(FUEL SUB TANK) |
1 | ||
| 77206-60280 |
HZJ79..LHD;HZJ78..LHD..GEN NO.1 |
1 | ||
| 77206-60190 |
HZJ78,79..LHD NO.1 |
1 | ||
| 77206-60210 |
HZJ78,79 NO.2 |
1 | ||
| 77206-60230 |
FZJ78,79..GEN |
1 | ||
| 77206-60220 |
FZJ78,79..GEN W(FUEL SUB TANK) |
1 | ||
| 77206-60191 |
HZJ78,79..LHD NO.1 |
1 | ||
| 77206-60200 |
HZJ78,79..LHD W(FUEL SUB TANK),NO.1 |
1 | ||
| 77206-60211 |
HZJ78,79 NO.2 |
1 | ||
| 77206-60201 |
HZJ78,79..LHD W(FUEL SUB TANK),NO.1 |
1 | ||
| 77206-60300 |
HZJ78,79..LHD NO.2 |
1 | ||
| 77206-60311 |
HZJ78,79..LHD W(FUEL SUB TANK),NO.2 |
1 | ||
| 77206-60280 |
HZJ78,79..LHD NO.1 |
1 | ||
| 77206C - TUBE SUB-ASSY, FUEL MAIN, NO.2 | ||||
| 77206-60200 |
HZJ78,79..LHD W(FUEL SUB TANK),NO.1 |
1 | ||
| 77206-60230 |
FZJ78,79..GEN |
1 | ||
| 77206-60210 |
HZJ78,79 NO.2 |
1 | ||
| 77206-60190 |
HZJ78,79..LHD NO.1 |
1 | ||
| 77206-60220 |
FZJ78,79..GEN W(FUEL SUB TANK) |
1 | ||
| 77206-60211 |
HZJ79;HZJ78..ARL,GEN NO.2 |
1 | ||
| 77206-60191 |
HZJ79..LHD;HZJ78..LHD..GEN NO.1 |
1 | ||
| 77206-60231 |
FZJ78,79..GEN |
1 | ||
| 77206-60171 |
FZJ78,79..ARL,GCC;FZJ78,79..LHD..GEN W(CHARCOAL CANISTER) |
1 | ||
| 77206-60311 |
HZJ79..LHD;HZJ78..LHD..GEN W(FUEL SUB TANK),NO.2 |
1 | ||
| 77206-60201 |
HZJ79..LHD;HZJ78..LHD..GEN W(FUEL SUB TANK),NO.1 |
1 | ||
| 77206-60300 |
HZJ79..LHD;HZJ78..LHD..GEN NO.2 |
1 | ||
| 77206-60221 |
FZJ71,74,78,79..GEN W(FUEL SUB TANK) |
1 | ||
| 77206-60280 |
HZJ79..LHD;HZJ78..LHD..GEN NO.1 |
1 | ||
| 77206-60190 |
HZJ78,79..LHD NO.1 |
1 | ||
| 77206-60210 |
HZJ78,79 NO.2 |
1 | ||
| 77206-60230 |
FZJ78,79..GEN |
1 | ||
| 77206-60220 |
FZJ78,79..GEN W(FUEL SUB TANK) |
1 | ||
| 77206-60191 |
HZJ78,79..LHD NO.1 |
1 | ||
| 77206-60200 |
HZJ78,79..LHD W(FUEL SUB TANK),NO.1 |
1 | ||
| 77206-60211 |
HZJ78,79 NO.2 |
1 | ||
| 77206-60201 |
HZJ78,79..LHD W(FUEL SUB TANK),NO.1 |
1 | ||
| 77206-60300 |
HZJ78,79..LHD NO.2 |
1 | ||
| 77206-60311 |
HZJ78,79..LHD W(FUEL SUB TANK),NO.2 |
1 | ||
| 77206-60280 |
HZJ78,79..LHD NO.1 |
1 | ||
| 77207B - TUBE SUB-ASSY, FUEL MAIN, NO.3 | ||||
| 77207-60060 |
HZJ71,78,79..LHD..GEN W(FUEL FILTER X2) |
1 | ||
| 77207-60061 |
HZJ7#..LHD..GEN W(FUEL FILTER X2) |
1 | ||
| 77207-60050 |
HZJ71,78,79..LHD |
1 | ||
| 77207-60051 |
HZJ7#..LHD |
1 | ||
| 77241B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1) | ||||
| 95332-10030 |
HZJ71,78,79..LHD..GEN *H,L=300,W(FUEL FILTER X2) |
1 | ||
| 95332-10040 |
HZJ78,79..LHD..GEN *H,L=400,W(FUEL FILTER X2) |
1 | ||
| 95332-10030 |
HZJ71;HZJ78..LX;HZJ78,79..LHD..GEN;HZJ79..(ARL,GCC)..CBU *H,L=240 |
1 | ||
| 95332-10030 |
HZJ7#..LHD..GEN *H,L=300,W(FUEL FILTER X2) |
1 | ||
| 77241B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1) | ||||
| 95332-10030 |
HZJ71,78,79..LHD..GEN *H,L=300,W(FUEL FILTER X2) |
1 | ||
| 95332-10040 |
HZJ78,79..LHD..GEN *H,L=400,W(FUEL FILTER X2) |
1 | ||
| 95332-10030 |
HZJ71;HZJ78..LX;HZJ78,79..LHD..GEN;HZJ79..(ARL,GCC)..CBU *H,L=240 |
1 | ||
| 95332-10030 |
HZJ7#..LHD..GEN *H,L=300,W(FUEL FILTER X2) |
1 | ||
| 77242B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.2) | ||||
| 77259-60400 |
HZJ79..LHD;HZJ78..LHD..GEN MAIN TANK |
1 | ||
| 95332-10016 |
HZJ78..STD;HZJ79..GCC,GEN;HZJ79..ARL..IV *H,L=160 |
1 | ||
| 77259-60400 |
HZJ78,79..LHD MAIN TANK |
1 | ||
| 95332-10030 |
HZJ78..STD;HZJ79..GCC,GEN;HZJ79..ARL..IV *H,L=280 |
1 | ||
| 77259-60410 |
HZJ78,79 |
1 | ||
| 77243A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.3) | ||||
| 95332-10040 |
HZJ71,78,79..LHD..GEN *H,L=400,W(FUEL FILTER X2) |
1 | ||
| 95332-10030 |
HZJ71,78,79..LHD *H,L=240 |
1 | ||
| 95332-10040 |
HZJ71,78,79..LHD..GEN *H,L=400,W(FUEL FILTER X2) |
1 | ||
| 95332-10024 |
HZJ71,79..LHD;HZJ78..LHD..GEN *H,L=240 |
1 | ||
| 77259-60500 |
HZJ79..LHD;HZJ78..LHD..GEN |
1 | ||
| 95332-10020 |
HZJ71,79..LHD;HZJ78..LHD..GEN *H,L=200 |
1 | ||
| 95332-10020 |
HZJ78,79..LHD *H,L=200 |
1 | ||
| 95332-10040 |
HZJ78,79..LHD..GEN *H,L=400,W(FUEL FILTER X2) |
1 | ||
| 77259-60500 |
HZJ78,79..LHD |
1 | ||
| 77243A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.3) | ||||
| 95332-10040 |
HZJ71,78,79..LHD..GEN *H,L=400,W(FUEL FILTER X2) |
1 | ||
| 95332-10030 |
HZJ71,78,79..LHD *H,L=240 |
1 | ||
| 95332-10040 |
HZJ71,78,79..LHD..GEN *H,L=400,W(FUEL FILTER X2) |
1 | ||
| 95332-10024 |
HZJ71,79..LHD;HZJ78..LHD..GEN *H,L=240 |
1 | ||
| 77259-60500 |
HZJ79..LHD;HZJ78..LHD..GEN |
1 | ||
| 95332-10020 |
HZJ71,79..LHD;HZJ78..LHD..GEN *H,L=200 |
1 | ||
| 95332-10020 |
HZJ78,79..LHD *H,L=200 |
1 | ||
| 95332-10040 |
HZJ78,79..LHD..GEN *H,L=400,W(FUEL FILTER X2) |
1 | ||
| 77259-60500 |
HZJ78,79..LHD |
1 | ||
| 77251C - HOSE, FUEL, NO.1(FOR FUEL MAIN TUBE) | ||||
| 95332-12016 |
HZJ78,79..LHD *H,L=160,ID=12 |
1 | ||
| 77259-60421 |
HZJ78,79..LHD |
1 | ||
| 95332-10016 |
HZJ78,79 *H,L=160 |
1 | ||
| 77259-60421 |
HZJ79..LHD;HZJ78..LHD..GEN |
1 | ||
| 95332-12016 |
HZJ79..LHD;HZJ78..LHD..GEN *H,L=160,ID=12 |
1 | ||
| 77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1) | ||||
| 95333-06030 |
FZJ78,79 *H,L=300 |
1 | ||
| 95333-06040 |
HZJ7# *H,L=360 |
1 | ||
| 23273-17060 |
HZJ79;HZJ71,78..ARL,GEN L=360 |
1 | ||
| 23273-66040 |
FZJ71,74,78,79 |
1 | ||
| 23273-17060 |
HZJ71,78,79 L=360 |
1 | ||
| 77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1) | ||||
| 95333-06030 |
FZJ78,79 *H,L=300 |
1 | ||
| 95333-06040 |
HZJ7# *H,L=360 |
1 | ||
| 23273-17060 |
HZJ79;HZJ71,78..ARL,GEN L=360 |
1 | ||
| 23273-66040 |
FZJ71,74,78,79 |
1 | ||
| 23273-17060 |
HZJ71,78,79 L=360 |
1 | ||
| 77278A - HOSE, FUEL, NO.1 (FOR RETURN TUBE, NO.2) | ||||
| 95333-08020 |
HDJ7#,HZJ78,79 *H,L=180,ID=7.6 |
1 | ||
| 95333-06020 |
HZJ78,79 *H,L=150 |
1 | ||
| 95333-06020 |
HZJ70,75,LJ70,PZJ70;FJ70,73,LJ72,77,79,PZJ75,RJ70..GEN *H,L=200 |
1 | ||
| 77259-60480 |
HZJ79;HZJ78..ARL,GEN L=200 |
1 | ||
| 95333-06030 |
FZJ78,79 *H,L=300 |
1 | ||
| 95333-06030 |
HZJ78,79 *H,L=220 |
1 | ||
| 77259-60171 |
HZJ78,79 L=300 |
1 | ||
| 95333-06020 |
HZJ78,79 *H,L=180 |
1 | ||
| 77259-60480 |
HZJ78,79 L=200 |
1 | ||
| 95333-08020 |
HZJ78,79 *H,L=180,ID=7.6 |
1 | ||
| 95333-08030 |
HZJ78,79..LHD *H,L=220,ID=7.6 |
1 | ||
| 77278A - HOSE, FUEL, NO.1 (FOR RETURN TUBE, NO.2) | ||||
| 95333-08020 |
HDJ7#,HZJ78,79 *H,L=180,ID=7.6 |
1 | ||
| 95333-06020 |
HZJ78,79 *H,L=150 |
1 | ||
| 95333-06020 |
HZJ70,75,LJ70,PZJ70;FJ70,73,LJ72,77,79,PZJ75,RJ70..GEN *H,L=200 |
1 | ||
| 77259-60480 |
HZJ79;HZJ78..ARL,GEN L=200 |
1 | ||
| 95333-06030 |
FZJ78,79 *H,L=300 |
1 | ||
| 95333-06030 |
HZJ78,79 *H,L=220 |
1 | ||
| 77259-60171 |
HZJ78,79 L=300 |
1 | ||
| 95333-06020 |
HZJ78,79 *H,L=180 |
1 | ||
| 77259-60480 |
HZJ78,79 L=200 |
1 | ||
| 95333-08020 |
HZJ78,79 *H,L=180,ID=7.6 |
1 | ||
| 95333-08030 |
HZJ78,79..LHD *H,L=220,ID=7.6 |
1 | ||
| 77278B - HOSE, FUEL, NO.2 (FOR RETURN TUBE, NO.2) | ||||
| 95333-06020 |
HZJ78..STD;HZJ79..GCC,GEN;HZJ79..ARL..IV *H,L=180 |
1 | ||
| 95333-08030 |
HZJ78,79..LHD *H,L=260,ID=7.6 |
1 | ||
| 95333-06030 |
HZJ78..STD;HZJ79..GCC,GEN;HZJ79..ARL..IV *H,L=260 |
1 | ||
| 95333-08020 |
HZJ78,79 *H,L=200,ID=7.6 |
1 | ||
| 95334-08030 |
HZJ79 L=300 |
1 | ||
| Common parts | ||||
| 90119-08701 | ||||
| 90464-00134 | ||||
| 90467-16022 | ||||
| 91611-B0816 | ||||
| 96132-41500 | ||||
| 96132-51100 | ||||

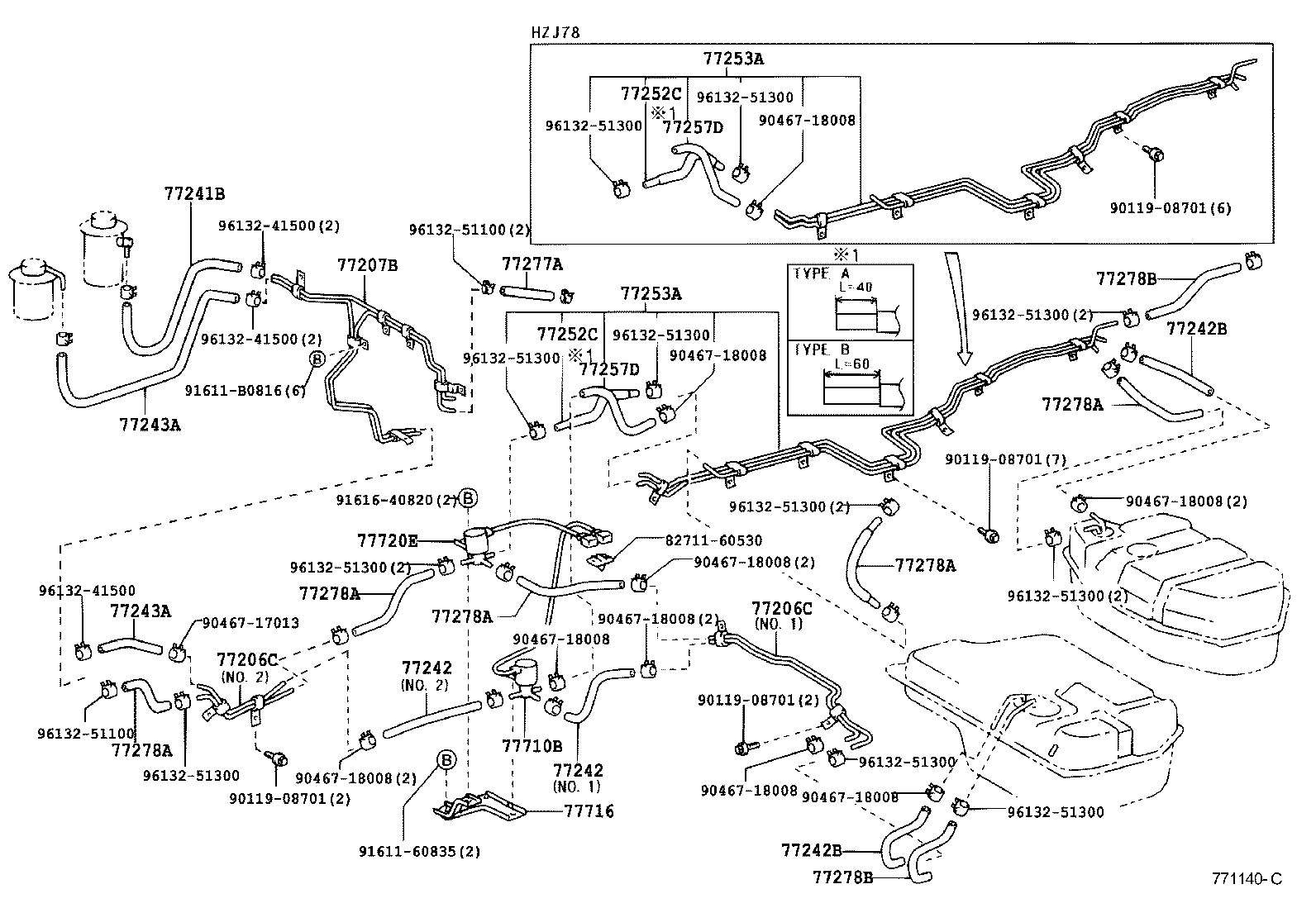

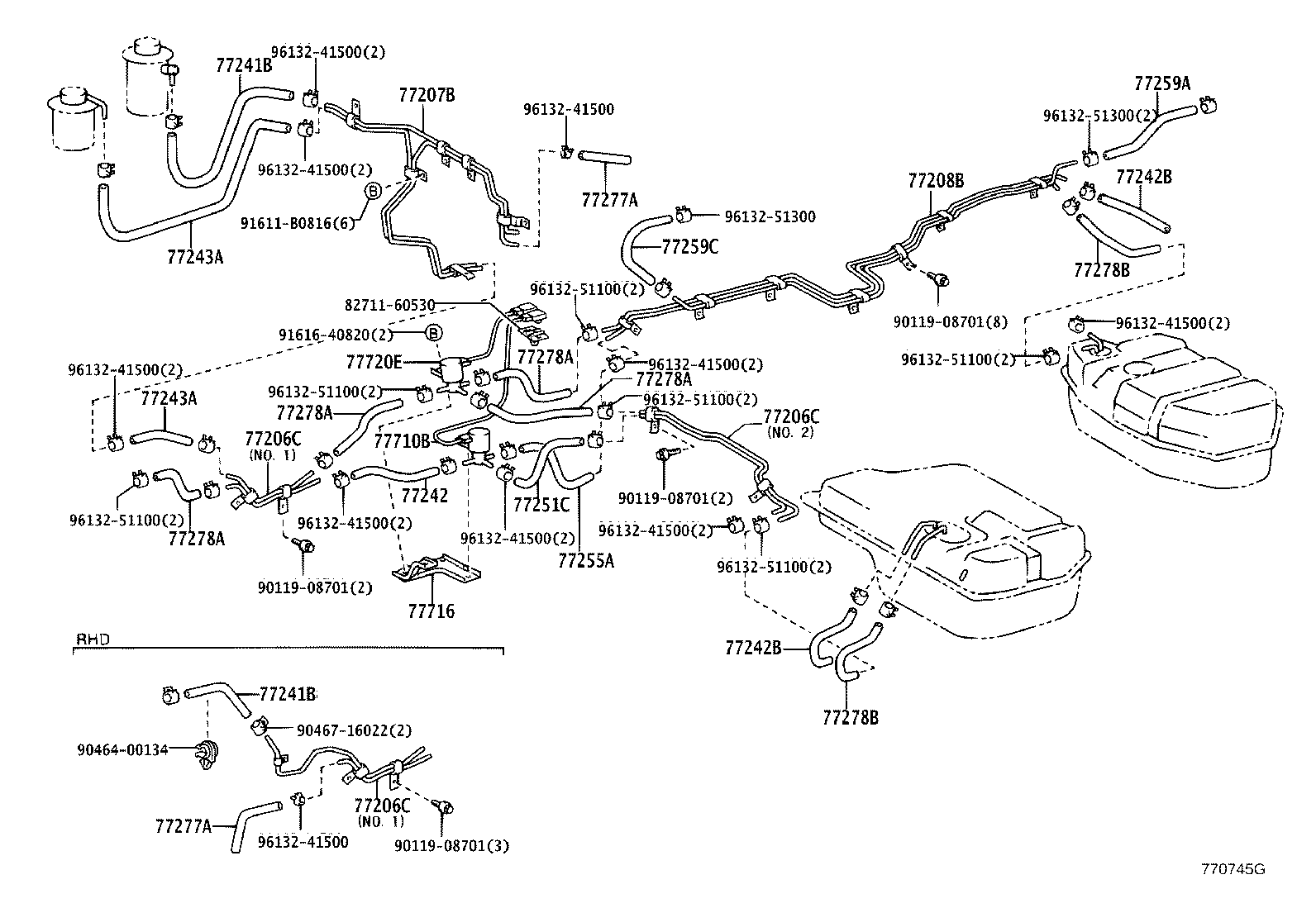

ILLUST NO. 2 OF 3(9908-0207)HZJ78,79
FUEL TUBE W(FUEL SUB TANK)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77206C - TUBE SUB-ASSY, FUEL MAIN, NO.2 | ||||
| 77206-60200 |
HZJ78,79..LHD W(FUEL SUB TANK),NO.1 |
1 | ||
| 77206-60230 |
FZJ78,79..GEN |
1 | ||
| 77206-60210 |
HZJ78,79 NO.2 |
1 | ||
| 77206-60190 |
HZJ78,79..LHD NO.1 |
1 | ||
| 77206-60220 |
FZJ78,79..GEN W(FUEL SUB TANK) |
1 | ||
| 77206-60211 |
HZJ79;HZJ78..ARL,GEN NO.2 |
1 | ||
| 77206-60191 |
HZJ79..LHD;HZJ78..LHD..GEN NO.1 |
1 | ||
| 77206-60231 |
FZJ78,79..GEN |
1 | ||
| 77206-60171 |
FZJ78,79..ARL,GCC;FZJ78,79..LHD..GEN W(CHARCOAL CANISTER) |
1 | ||
| 77206-60311 |
HZJ79..LHD;HZJ78..LHD..GEN W(FUEL SUB TANK),NO.2 |
1 | ||
| 77206-60201 |
HZJ79..LHD;HZJ78..LHD..GEN W(FUEL SUB TANK),NO.1 |
1 | ||
| 77206-60300 |
HZJ79..LHD;HZJ78..LHD..GEN NO.2 |
1 | ||
| 77206-60221 |
FZJ71,74,78,79..GEN W(FUEL SUB TANK) |
1 | ||
| 77206-60280 |
HZJ79..LHD;HZJ78..LHD..GEN NO.1 |
1 | ||
| 77206-60190 |
HZJ78,79..LHD NO.1 |
1 | ||
| 77206-60210 |
HZJ78,79 NO.2 |
1 | ||
| 77206-60230 |
FZJ78,79..GEN |
1 | ||
| 77206-60220 |
FZJ78,79..GEN W(FUEL SUB TANK) |
1 | ||
| 77206-60191 |
HZJ78,79..LHD NO.1 |
1 | ||
| 77206-60200 |
HZJ78,79..LHD W(FUEL SUB TANK),NO.1 |
1 | ||
| 77206-60211 |
HZJ78,79 NO.2 |
1 | ||
| 77206-60201 |
HZJ78,79..LHD W(FUEL SUB TANK),NO.1 |
1 | ||
| 77206-60300 |
HZJ78,79..LHD NO.2 |
1 | ||
| 77206-60311 |
HZJ78,79..LHD W(FUEL SUB TANK),NO.2 |
1 | ||
| 77206-60280 |
HZJ78,79..LHD NO.1 |
1 | ||
| 77206C - TUBE SUB-ASSY, FUEL MAIN, NO.2 | ||||
| 77206-60200 |
HZJ78,79..LHD W(FUEL SUB TANK),NO.1 |
1 | ||
| 77206-60230 |
FZJ78,79..GEN |
1 | ||
| 77206-60210 |
HZJ78,79 NO.2 |
1 | ||
| 77206-60190 |
HZJ78,79..LHD NO.1 |
1 | ||
| 77206-60220 |
FZJ78,79..GEN W(FUEL SUB TANK) |
1 | ||
| 77206-60211 |
HZJ79;HZJ78..ARL,GEN NO.2 |
1 | ||
| 77206-60191 |
HZJ79..LHD;HZJ78..LHD..GEN NO.1 |
1 | ||
| 77206-60231 |
FZJ78,79..GEN |
1 | ||
| 77206-60171 |
FZJ78,79..ARL,GCC;FZJ78,79..LHD..GEN W(CHARCOAL CANISTER) |
1 | ||
| 77206-60311 |
HZJ79..LHD;HZJ78..LHD..GEN W(FUEL SUB TANK),NO.2 |
1 | ||
| 77206-60201 |
HZJ79..LHD;HZJ78..LHD..GEN W(FUEL SUB TANK),NO.1 |
1 | ||
| 77206-60300 |
HZJ79..LHD;HZJ78..LHD..GEN NO.2 |
1 | ||
| 77206-60221 |
FZJ71,74,78,79..GEN W(FUEL SUB TANK) |
1 | ||
| 77206-60280 |
HZJ79..LHD;HZJ78..LHD..GEN NO.1 |
1 | ||
| 77206-60190 |
HZJ78,79..LHD NO.1 |
1 | ||
| 77206-60210 |
HZJ78,79 NO.2 |
1 | ||
| 77206-60230 |
FZJ78,79..GEN |
1 | ||
| 77206-60220 |
FZJ78,79..GEN W(FUEL SUB TANK) |
1 | ||
| 77206-60191 |
HZJ78,79..LHD NO.1 |
1 | ||
| 77206-60200 |
HZJ78,79..LHD W(FUEL SUB TANK),NO.1 |
1 | ||
| 77206-60211 |
HZJ78,79 NO.2 |
1 | ||
| 77206-60201 |
HZJ78,79..LHD W(FUEL SUB TANK),NO.1 |
1 | ||
| 77206-60300 |
HZJ78,79..LHD NO.2 |
1 | ||
| 77206-60311 |
HZJ78,79..LHD W(FUEL SUB TANK),NO.2 |
1 | ||
| 77206-60280 |
HZJ78,79..LHD NO.1 |
1 | ||
| 77206C - TUBE SUB-ASSY, FUEL MAIN, NO.2 | ||||
| 77206-60200 |
HZJ78,79..LHD W(FUEL SUB TANK),NO.1 |
1 | ||
| 77206-60230 |
FZJ78,79..GEN |
1 | ||
| 77206-60210 |
HZJ78,79 NO.2 |
1 | ||
| 77206-60190 |
HZJ78,79..LHD NO.1 |
1 | ||
| 77206-60220 |
FZJ78,79..GEN W(FUEL SUB TANK) |
1 | ||
| 77206-60211 |
HZJ79;HZJ78..ARL,GEN NO.2 |
1 | ||
| 77206-60191 |
HZJ79..LHD;HZJ78..LHD..GEN NO.1 |
1 | ||
| 77206-60231 |
FZJ78,79..GEN |
1 | ||
| 77206-60171 |
FZJ78,79..ARL,GCC;FZJ78,79..LHD..GEN W(CHARCOAL CANISTER) |
1 | ||
| 77206-60311 |
HZJ79..LHD;HZJ78..LHD..GEN W(FUEL SUB TANK),NO.2 |
1 | ||
| 77206-60201 |
HZJ79..LHD;HZJ78..LHD..GEN W(FUEL SUB TANK),NO.1 |
1 | ||
| 77206-60300 |
HZJ79..LHD;HZJ78..LHD..GEN NO.2 |
1 | ||
| 77206-60221 |
FZJ71,74,78,79..GEN W(FUEL SUB TANK) |
1 | ||
| 77206-60280 |
HZJ79..LHD;HZJ78..LHD..GEN NO.1 |
1 | ||
| 77206-60190 |
HZJ78,79..LHD NO.1 |
1 | ||
| 77206-60210 |
HZJ78,79 NO.2 |
1 | ||
| 77206-60230 |
FZJ78,79..GEN |
1 | ||
| 77206-60220 |
FZJ78,79..GEN W(FUEL SUB TANK) |
1 | ||
| 77206-60191 |
HZJ78,79..LHD NO.1 |
1 | ||
| 77206-60200 |
HZJ78,79..LHD W(FUEL SUB TANK),NO.1 |
1 | ||
| 77206-60211 |
HZJ78,79 NO.2 |
1 | ||
| 77206-60201 |
HZJ78,79..LHD W(FUEL SUB TANK),NO.1 |
1 | ||
| 77206-60300 |
HZJ78,79..LHD NO.2 |
1 | ||
| 77206-60311 |
HZJ78,79..LHD W(FUEL SUB TANK),NO.2 |
1 | ||
| 77206-60280 |
HZJ78,79..LHD NO.1 |
1 | ||
| 77207B - TUBE SUB-ASSY, FUEL MAIN, NO.3 | ||||
| 77207-60060 |
HZJ71,78,79..LHD..GEN W(FUEL FILTER X2) |
1 | ||
| 77207-60061 |
HZJ7#..LHD..GEN W(FUEL FILTER X2) |
1 | ||
| 77207-60050 |
HZJ71,78,79..LHD |
1 | ||
| 77207-60051 |
HZJ7#..LHD |
1 | ||
| 77208B - TUBE SUB-ASSY, FUEL MAIN, NO.4 | ||||
| 77208-60070 |
HZJ79 |
1 | ||
| 77208-60071 |
HZJ79 |
1 | ||
| 77208-60070 |
HZJ79 |
1 | ||
| 77208-60071 |
HZJ79 |
1 | ||
| 77241B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1) | ||||
| 95332-10030 |
HZJ71,78,79..LHD..GEN *H,L=300,W(FUEL FILTER X2) |
1 | ||
| 95332-10040 |
HZJ78,79..LHD..GEN *H,L=400,W(FUEL FILTER X2) |
1 | ||
| 95332-10030 |
HZJ71;HZJ78..LX;HZJ78,79..LHD..GEN;HZJ79..(ARL,GCC)..CBU *H,L=240 |
1 | ||
| 95332-10030 |
HZJ7#..LHD..GEN *H,L=300,W(FUEL FILTER X2) |
1 | ||
| 77241B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1) | ||||
| 95332-10030 |
HZJ71,78,79..LHD..GEN *H,L=300,W(FUEL FILTER X2) |
1 | ||
| 95332-10040 |
HZJ78,79..LHD..GEN *H,L=400,W(FUEL FILTER X2) |
1 | ||
| 95332-10030 |
HZJ71;HZJ78..LX;HZJ78,79..LHD..GEN;HZJ79..(ARL,GCC)..CBU *H,L=240 |
1 | ||
| 95332-10030 |
HZJ7#..LHD..GEN *H,L=300,W(FUEL FILTER X2) |
1 | ||
| 77242 - TUBE, FUEL MAIN, NO.2 | ||||
| 95332-10016 |
HZJ78,79 |
1 | ||
| 95332-12024 |
HZJ79..LHD;HZJ78..LHD..GEN NO.2 |
1 | ||
| 95332-10030 |
HZJ78,79..LHD NO.2 |
1 | ||
| 77259-60421 |
HZJ79..LHD;HZJ78..LHD..GEN NO.1 |
1 | ||
| 95332-10016 |
HZJ78,79..LHD NO.1 |
1 | ||
| 77259-60421 |
HZJ78,79..LHD NO.1 |
1 | ||
| 95332-12024 |
HZJ78,79..LHD NO.2 |
1 | ||
| 77242B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.2) | ||||
| 77259-60400 |
HZJ79..LHD;HZJ78..LHD..GEN MAIN TANK |
1 | ||
| 95332-10016 |
HZJ78..STD;HZJ79..GCC,GEN;HZJ79..ARL..IV *H,L=160 |
1 | ||
| 77259-60400 |
HZJ78,79..LHD MAIN TANK |
1 | ||
| 95332-10030 |
HZJ78..STD;HZJ79..GCC,GEN;HZJ79..ARL..IV *H,L=280 |
1 | ||
| 77259-60410 |
HZJ78,79 |
1 | ||
| 77242B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.2) | ||||
| 77259-60400 |
HZJ79..LHD;HZJ78..LHD..GEN MAIN TANK |
1 | ||
| 95332-10016 |
HZJ78..STD;HZJ79..GCC,GEN;HZJ79..ARL..IV *H,L=160 |
1 | ||
| 77259-60400 |
HZJ78,79..LHD MAIN TANK |
1 | ||
| 95332-10030 |
HZJ78..STD;HZJ79..GCC,GEN;HZJ79..ARL..IV *H,L=280 |
1 | ||
| 77259-60410 |
HZJ78,79 |
1 | ||
| 77243A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.3) | ||||
| 95332-10040 |
HZJ71,78,79..LHD..GEN *H,L=400,W(FUEL FILTER X2) |
1 | ||
| 95332-10030 |
HZJ71,78,79..LHD *H,L=240 |
1 | ||
| 95332-10040 |
HZJ71,78,79..LHD..GEN *H,L=400,W(FUEL FILTER X2) |
1 | ||
| 95332-10024 |
HZJ71,79..LHD;HZJ78..LHD..GEN *H,L=240 |
1 | ||
| 77259-60500 |
HZJ79..LHD;HZJ78..LHD..GEN |
1 | ||
| 95332-10020 |
HZJ71,79..LHD;HZJ78..LHD..GEN *H,L=200 |
1 | ||
| 95332-10020 |
HZJ78,79..LHD *H,L=200 |
1 | ||
| 95332-10040 |
HZJ78,79..LHD..GEN *H,L=400,W(FUEL FILTER X2) |
1 | ||
| 77259-60500 |
HZJ78,79..LHD |
1 | ||
| 77243A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.3) | ||||
| 95332-10040 |
HZJ71,78,79..LHD..GEN *H,L=400,W(FUEL FILTER X2) |
1 | ||
| 95332-10030 |
HZJ71,78,79..LHD *H,L=240 |
1 | ||
| 95332-10040 |
HZJ71,78,79..LHD..GEN *H,L=400,W(FUEL FILTER X2) |
1 | ||
| 95332-10024 |
HZJ71,79..LHD;HZJ78..LHD..GEN *H,L=240 |
1 | ||
| 77259-60500 |
HZJ79..LHD;HZJ78..LHD..GEN |
1 | ||
| 95332-10020 |
HZJ71,79..LHD;HZJ78..LHD..GEN *H,L=200 |
1 | ||
| 95332-10020 |
HZJ78,79..LHD *H,L=200 |
1 | ||
| 95332-10040 |
HZJ78,79..LHD..GEN *H,L=400,W(FUEL FILTER X2) |
1 | ||
| 77259-60500 |
HZJ78,79..LHD |
1 | ||
| 77251C - HOSE, FUEL, NO.1(FOR FUEL MAIN TUBE) | ||||
| 95332-12016 |
HZJ78,79..LHD *H,L=160,ID=12 |
1 | ||
| 77259-60421 |
HZJ78,79..LHD |
1 | ||
| 95332-10016 |
HZJ78,79 *H,L=160 |
1 | ||
| 77259-60421 |
HZJ79..LHD;HZJ78..LHD..GEN |
1 | ||
| 95332-12016 |
HZJ79..LHD;HZJ78..LHD..GEN *H,L=160,ID=12 |
1 | ||
| 77255A - HOSE, FUEL, NO.1 (FOR EMISSION TUBE, NO.2) | ||||
| 77259-60350 |
HZJ78,79 L=200 |
1 | ||
| 77259-60350 |
HZJ78..STD;HZJ79..GCC,GEN;HZJ79..ARL..IV L=200 |
1 | ||
| 77259A - HOSE, FUEL(FOR BREATHER TUBE) | ||||
| 95334-08030 |
HZJ79 L=300 |
1 | ||
| 95334-08030 |
HZJ79..GCC,GEN;HZJ79..ARL..IV L=300 |
1 | ||
| 77259C - HOSE, FUEL | ||||
| 77259-60171 |
FZJ78,79 |
1 | ||
| 77259-60171 |
HZJ78..STD;HZJ79..GCC,GEN;HZJ79..ARL..IV |
1 | ||
| 77259-60171 |
FZJ78,79,HZJ79;HZJ78..ARL,GEN |
1 | ||
| 77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1) | ||||
| 95333-06030 |
FZJ78,79 *H,L=300 |
1 | ||
| 95333-06040 |
HZJ7# *H,L=360 |
1 | ||
| 23273-17060 |
HZJ79;HZJ71,78..ARL,GEN L=360 |
1 | ||
| 23273-66040 |
FZJ71,74,78,79 |
1 | ||
| 23273-17060 |
HZJ71,78,79 L=360 |
1 | ||
| 77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1) | ||||
| 95333-06030 |
FZJ78,79 *H,L=300 |
1 | ||
| 95333-06040 |
HZJ7# *H,L=360 |
1 | ||
| 23273-17060 |
HZJ79;HZJ71,78..ARL,GEN L=360 |
1 | ||
| 23273-66040 |
FZJ71,74,78,79 |
1 | ||
| 23273-17060 |
HZJ71,78,79 L=360 |
1 | ||
| 77278A - HOSE, FUEL, NO.1 (FOR RETURN TUBE, NO.2) | ||||
| 95333-08020 |
HDJ7#,HZJ78,79 *H,L=180,ID=7.6 |
1 | ||
| 95333-06020 |
HZJ78,79 *H,L=150 |
1 | ||
| 95333-06020 |
HZJ70,75,LJ70,PZJ70;FJ70,73,LJ72,77,79,PZJ75,RJ70..GEN *H,L=200 |
1 | ||
| 77259-60480 |
HZJ79;HZJ78..ARL,GEN L=200 |
1 | ||
| 95333-06030 |
FZJ78,79 *H,L=300 |
1 | ||
| 95333-06030 |
HZJ78,79 *H,L=220 |
1 | ||
| 77259-60171 |
HZJ78,79 L=300 |
1 | ||
| 95333-06020 |
HZJ78,79 *H,L=180 |
1 | ||
| 77259-60480 |
HZJ78,79 L=200 |
1 | ||
| 95333-08020 |
HZJ78,79 *H,L=180,ID=7.6 |
1 | ||
| 95333-08030 |
HZJ78,79..LHD *H,L=220,ID=7.6 |
1 | ||
| 77278A - HOSE, FUEL, NO.1 (FOR RETURN TUBE, NO.2) | ||||
| 95333-08020 |
HDJ7#,HZJ78,79 *H,L=180,ID=7.6 |
1 | ||
| 95333-06020 |
HZJ78,79 *H,L=150 |
1 | ||
| 95333-06020 |
HZJ70,75,LJ70,PZJ70;FJ70,73,LJ72,77,79,PZJ75,RJ70..GEN *H,L=200 |
1 | ||
| 77259-60480 |
HZJ79;HZJ78..ARL,GEN L=200 |
1 | ||
| 95333-06030 |
FZJ78,79 *H,L=300 |
1 | ||
| 95333-06030 |
HZJ78,79 *H,L=220 |
1 | ||
| 77259-60171 |
HZJ78,79 L=300 |
1 | ||
| 95333-06020 |
HZJ78,79 *H,L=180 |
1 | ||
| 77259-60480 |
HZJ78,79 L=200 |
1 | ||
| 95333-08020 |
HZJ78,79 *H,L=180,ID=7.6 |
1 | ||
| 95333-08030 |
HZJ78,79..LHD *H,L=220,ID=7.6 |
1 | ||
| 77278A - HOSE, FUEL, NO.1 (FOR RETURN TUBE, NO.2) | ||||
| 95333-08020 |
HDJ7#,HZJ78,79 *H,L=180,ID=7.6 |
1 | ||
| 95333-06020 |
HZJ78,79 *H,L=150 |
1 | ||
| 95333-06020 |
HZJ70,75,LJ70,PZJ70;FJ70,73,LJ72,77,79,PZJ75,RJ70..GEN *H,L=200 |
1 | ||
| 77259-60480 |
HZJ79;HZJ78..ARL,GEN L=200 |
1 | ||
| 95333-06030 |
FZJ78,79 *H,L=300 |
1 | ||
| 95333-06030 |
HZJ78,79 *H,L=220 |
1 | ||
| 77259-60171 |
HZJ78,79 L=300 |
1 | ||
| 95333-06020 |
HZJ78,79 *H,L=180 |
1 | ||
| 77259-60480 |
HZJ78,79 L=200 |
1 | ||
| 95333-08020 |
HZJ78,79 *H,L=180,ID=7.6 |
1 | ||
| 95333-08030 |
HZJ78,79..LHD *H,L=220,ID=7.6 |
1 | ||
| 77278A - HOSE, FUEL, NO.1 (FOR RETURN TUBE, NO.2) | ||||
| 95333-08020 |
HDJ7#,HZJ78,79 *H,L=180,ID=7.6 |
1 | ||
| 95333-06020 |
HZJ78,79 *H,L=150 |
1 | ||
| 95333-06020 |
HZJ70,75,LJ70,PZJ70;FJ70,73,LJ72,77,79,PZJ75,RJ70..GEN *H,L=200 |
1 | ||
| 77259-60480 |
HZJ79;HZJ78..ARL,GEN L=200 |
1 | ||
| 95333-06030 |
FZJ78,79 *H,L=300 |
1 | ||
| 95333-06030 |
HZJ78,79 *H,L=220 |
1 | ||
| 77259-60171 |
HZJ78,79 L=300 |
1 | ||
| 95333-06020 |
HZJ78,79 *H,L=180 |
1 | ||
| 77259-60480 |
HZJ78,79 L=200 |
1 | ||
| 95333-08020 |
HZJ78,79 *H,L=180,ID=7.6 |
1 | ||
| 95333-08030 |
HZJ78,79..LHD *H,L=220,ID=7.6 |
1 | ||
| 77278B - HOSE, FUEL, NO.2 (FOR RETURN TUBE, NO.2) | ||||
| 95333-06020 |
HZJ78..STD;HZJ79..GCC,GEN;HZJ79..ARL..IV *H,L=180 |
1 | ||
| 95333-08030 |
HZJ78,79..LHD *H,L=260,ID=7.6 |
1 | ||
| 95333-06030 |
HZJ78..STD;HZJ79..GCC,GEN;HZJ79..ARL..IV *H,L=260 |
1 | ||
| 95333-08020 |
HZJ78,79 *H,L=200,ID=7.6 |
1 | ||
| 95334-08030 |
HZJ79 L=300 |
1 | ||
| 77278B - HOSE, FUEL, NO.2 (FOR RETURN TUBE, NO.2) | ||||
| 95333-06020 |
HZJ78..STD;HZJ79..GCC,GEN;HZJ79..ARL..IV *H,L=180 |
1 | ||
| 95333-08030 |
HZJ78,79..LHD *H,L=260,ID=7.6 |
1 | ||
| 95333-06030 |
HZJ78..STD;HZJ79..GCC,GEN;HZJ79..ARL..IV *H,L=260 |
1 | ||
| 95333-08020 |
HZJ78,79 *H,L=200,ID=7.6 |
1 | ||
| 95334-08030 |
HZJ79 L=300 |
1 | ||
| 77710B - VALVE ASSY, FUEL TANK SOLENOID MAIN | ||||
| 77710-60140 |
HZJ78,79 |
1 | ||
| 77710-60160 |
HDJ7#,HZJ78,79 |
1 | ||
| 77710-60140 |
HZJ78..STD;HZJ79..GCC,GEN;HZJ79..ARL..IV |
1 | ||
| 77710-60160 |
HZJ78,79 |
1 | ||
| 77716 - BRACKET, FUEL SOLENOID VALVE MAIN | ||||
| 77716-60140 |
HDJ7#,HZJ78,79 |
1 | ||
| 77716-60140 |
HDJ7#;HZJ78..STD;HZJ79..GCC,GEN;HZJ79..ARL..IV |
1 | ||
| 77720E - VALVE ASSY, FUEL TANK SOLENOID RETURN | ||||
| 77720-60110 |
HZJ78..STD;HZJ79..GCC,GEN;HZJ79..ARL..IV |
1 | ||
| 77720-60110 |
HZJ78,79 |
1 | ||
| 77720-60130 |
HZJ78,79 |
1 | ||
| Common parts | ||||
| 82711-60530 | ||||
| 90119-08701 | ||||
| 90464-00134 | ||||
| 90467-16022 | ||||
| 91611-B0816 | ||||
| 91616-40820 | ||||
| 96132-41500 | ||||
| 96132-51100 | ||||
| 96132-51300 | ||||

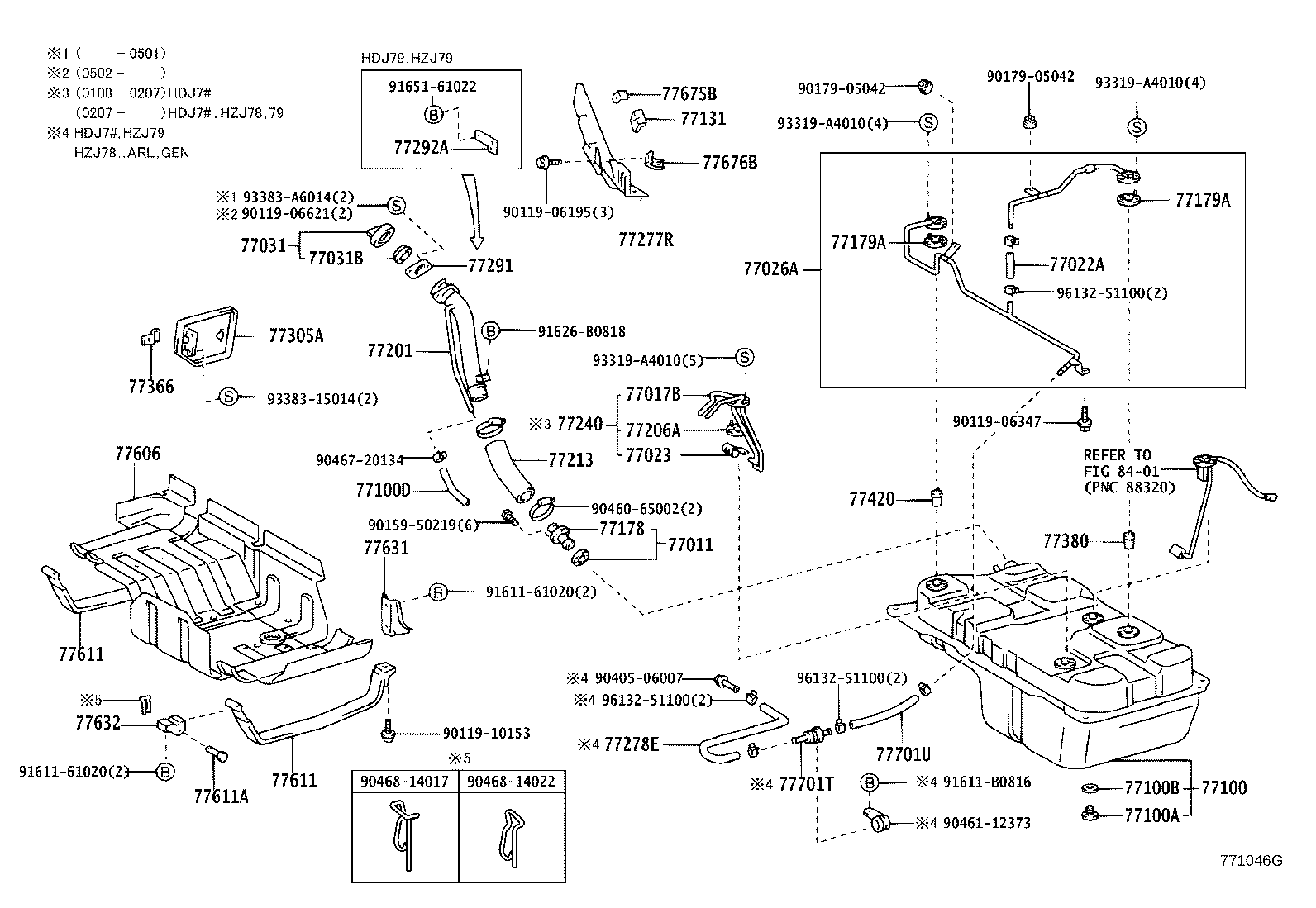

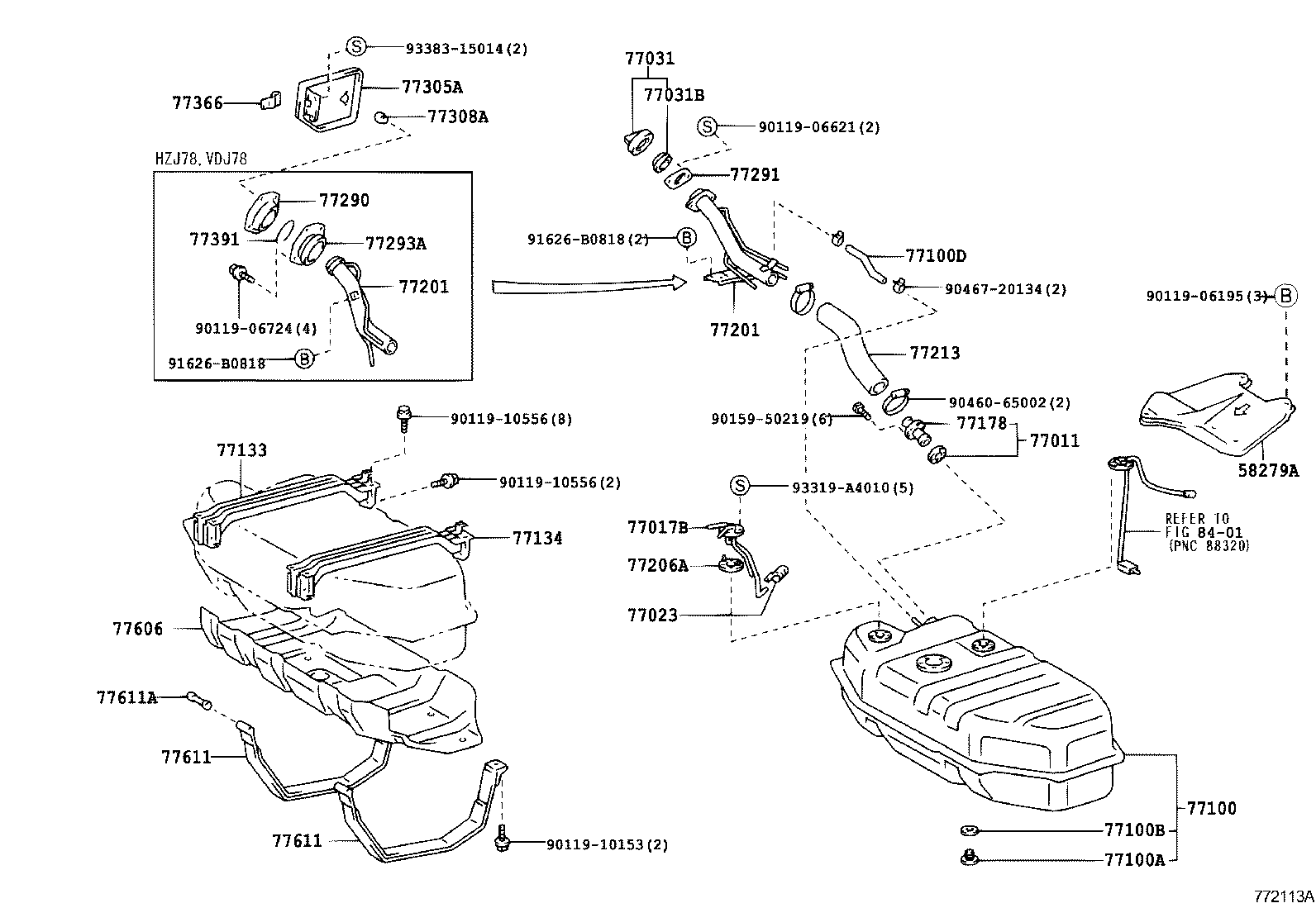

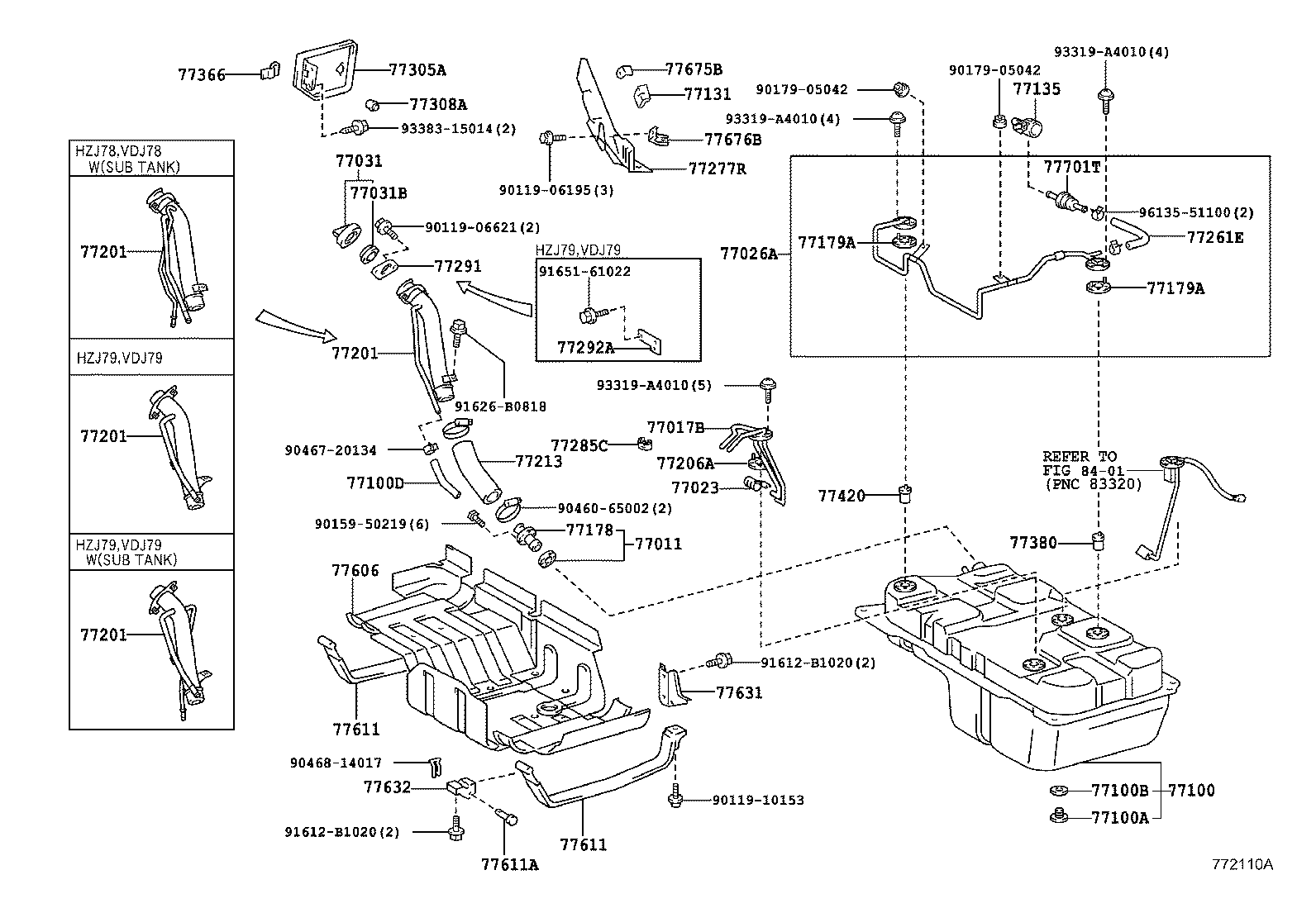

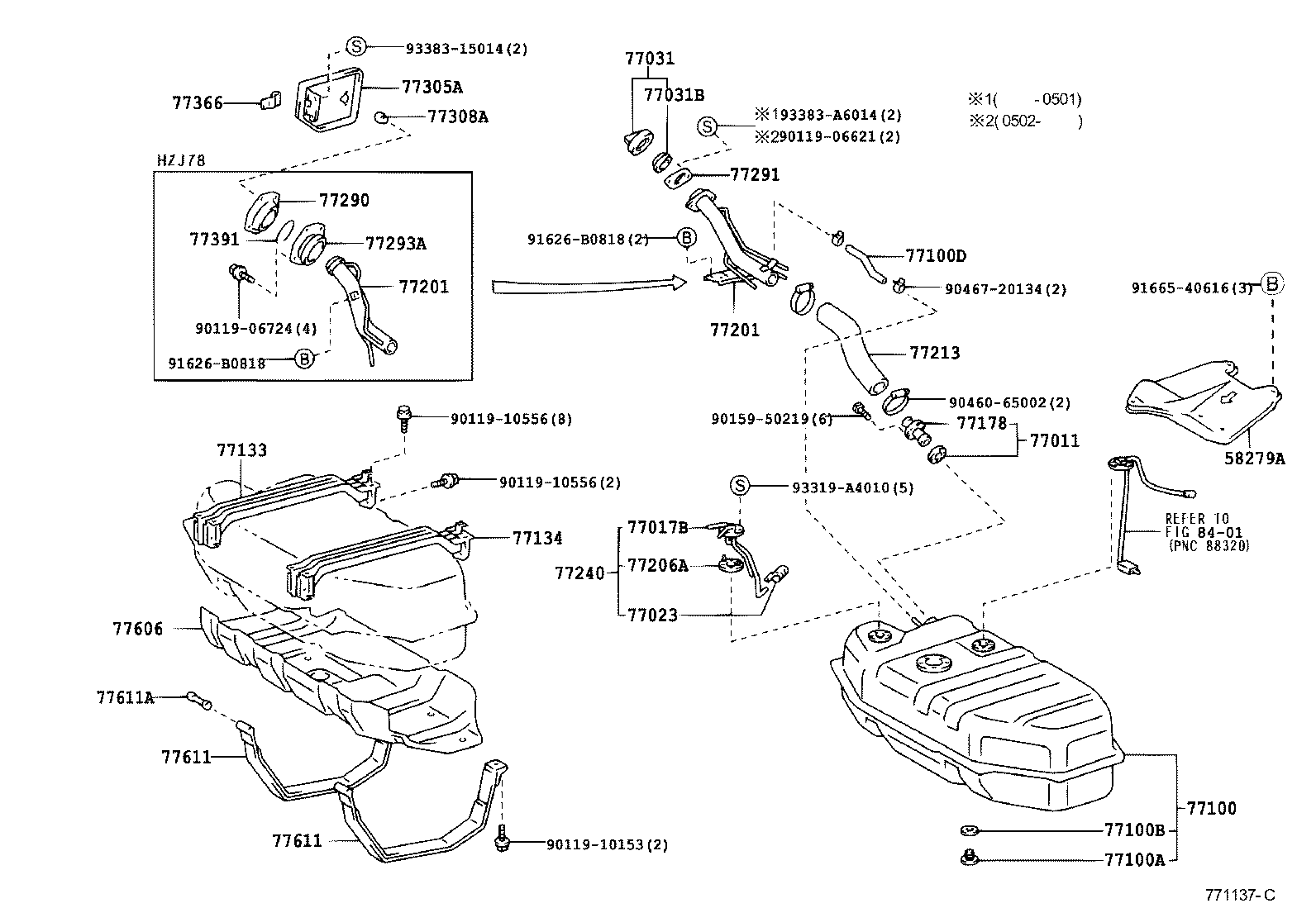

ILLUST NO. 1 OF 3(9908-0701)HDJ7#,HZJ78,79
FUEL TANK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77011 - PIPE SUB-ASSY, FUEL TANK FILLER, LOWER | ||||
| 77011-60120 |
FZJ71,74,78,79,HZJ71,78,79 |
1 | ||
| 77011-60120 |
HZJ78..STD;FZJ78..GCC;HZJ79..GCC,GEN;FZJ78..RHD..GEN;FZJ79,HDJ78..CBU;HDJ79,HZJ79..ARL..IV W(FUEL SUB TANK) |
2 | ||
| 77011-60120 |
HZJ78..STD;FZJ78..GCC;HZJ79..GCC,GEN;HZJ79..ARL..IV;FZJ71,78..RHD..GEN;FZJ71,HDJ79..ARL,GCC;FZJ74,79,HDJ78,HZJ71..CBU |
1 | ||
| 77017B - TUBE SUB-ASSY, FUEL TANK VENT | ||||
| 77017-60440 |
HZJ78,79 MAIN TANK |
1 | ||
| 77017-60410 |
HZJ78,79 |
1 | ||
| 77017-60450 |
HZJ78,79 SUB TANK |
1 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95333-06030 |
HZJ70,73,LJ70,PZJ70,73;FJ70,73,LJ72,77,79,RJ7#..GEN *H,L=280 |
1 | ||
| 95333-06010 |
HZJ70,73,LJ70,PZJ70,73;FJ70,73,LJ72,77,79,RJ7#..GEN *H,L=80 |
1 | ||
| 95333-06020 |
HZJ70,73,LJ70,PZJ70,73;FJ70,73,LJ72,77,79,RJ7#..GEN *H,L=150 |
1 | ||
| 77249-60090 |
HZJ78..ARL,GEN;FZJ78,79,HDJ7#,HZJ79 L=60 |
1 | ||
| 95333-06020 |
HZJ79;FZJ78,79..GEN;HDJ7#,HZJ78..ARL,GEN *H,L=200 |
1 | ||
| 95333-06030 |
HZJ79;FZJ78,79..GEN;HDJ7#,HZJ78..ARL,GEN *H,L=280 |
1 | ||
| 77023 - FILTER SUB-ASSY, FUEL SUCTION TUBE | ||||
| 77023-36010 |
HZJ7#,PZJ7# |
1 | ||
| 77023-36010 |
HZJ78,79 W(FUEL SUB TANK) |
2 | ||
| 77023-36010 |
HZJ78,79 W(FUEL SUB TANK) |
2 | ||
| 77023-36010 |
HZJ78,79 W(FUEL SUB TANK) |
2 | ||
| 77023-60010 |
HZJ78,79 |
1 | ||
| 77023-36010 |
HZJ78..STD;HZJ79..GCC,GEN;HZJ79..ARL..IV |
1 | ||
| 77023-60010 |
HZJ78,79 W(FUEL SUB TANK) |
2 | ||
| 77026A - TUBE SUB-ASSY, FUEL EVAPORATION, NO.1 | ||||
| 77026-60070 |
FZJ78,79,HZJ78,79 |
1 | ||
| 77026-60070 |
HZJ78..ARL,GEN;FZJ78,79,HDJ7#,HZJ79 |
1 | ||
| 77026-60070 |
HZJ78..STD;FZJ78..GCC;HZJ79..GCC,GEN;FZJ78..RHD..GEN;FZJ79,HDJ78..CBU;HDJ79,HZJ79..ARL..IV |
1 | ||
| 77031 - CAP ASSY, FUEL TANK | ||||
| 77310-60100 |
HZJ79..GCC,GEN W(FUEL SUB TANK) |
2 | ||
| 77310-60100 |
HZJ79..GCC,GEN |
1 | ||
| 77310-55080 |
HZJ79..GCC,GEN |
1 | ||
| 77310-55080 |
HZJ79..GCC,GEN W(FUEL SUB TANK) |
2 | ||
| 77310-60100 |
HZJ79..GCC,GEN |
1 | ||
| 77310-60100 |
HZJ79..GCC,GEN W(FUEL SUB TANK) |
2 | ||
| 77031B - GASKET (FOR FUEL TANK CAP) | ||||
| 77316-27010 |
FZJ79,HZJ79..GCC,GEN W(SUB FUEL TANK) |
2 | ||
| 77316-12050 |
FZJ79,HZJ79..GCC,GEN |
1 | ||
| 77316-12050 |
FZJ79,HZJ79..GCC,GEN W(FUEL SUB TANK) |
2 | ||
| 77316-27010 |
FZJ79,HZJ79..GCC,GEN W(SUB FUEL TANK) |
2 | ||
| 77316-12050 |
FZJ79..CBU;HZJ79..GCC,GEN W(FUEL SUB TANK) |
2 | ||
| 77316-27010 |
FZJ79,HZJ79..GCC,GEN MATERIAL OF PNC77031=METAL |
1 | ||
| 77316-12050 |
FZJ79..CBU;HZJ79..GCC,GEN |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-60560 |
FZJ78,79 MAIN TANK |
1 | ||
| 77001-60570 |
HDJ7#,HZJ78,79 MAIN TANK |
1 | ||
| 77001-60570 |
HDJ7#,HZJ78,79 |
1 | ||
| 77001-60570 |
HZJ78,79 |
1 | ||
| 77001-60550 |
HDJ7#,HZJ78,79 SUB TANK |
1 | ||
| 77001-60540 |
FZJ78,79 SUB TANK |
1 | ||
| 77001-60560 |
FZJ78,79 |
1 | ||
| 77001-60540 |
FZJ78,79 SUB TANK |
1 | ||
| 77001-60550 |
HDJ7#;HZJ78..STD;HZJ79..GCC,GEN;HZJ79..ARL..IV SUB TANK |
1 | ||
| 77001-60570 |
HDJ7#;HZJ78..STD;HZJ79..GCC,GEN;HZJ79..ARL..IV |
1 | ||
| 77001-60570 |
HZJ78,79 MAIN TANK |
1 | ||
| 77001-60740 |
HDJ7#,HZJ78,79 MAIN TANK |
1 | ||
| 77001-60551 |
HDJ7#,HZJ78,79 SUB TANK |
1 | ||
| 77100A - PLUG(FOR FUEL TANK) | ||||
| 90341-20004 |
FJ7#,HJ75,HZJ7#,LJ7#,PZJ7#,RJ7# |
1 | ||
| 90105-12116 |
HZJ78..STD;FZJ78..GCC;HZJ79..GCC,GEN;HZJ79..ARL..IV;FZJ71,78..RHD..GEN;FZJ71,HDJ79..ARL,GCC;FZJ74,79,HDJ78,HZJ71..CBU W(FUEL SUB TANK) |
1 | ||
| 77100B - GASKET(FOR FUEL TANK) | ||||
| 90430-20007 |
FJ7#,HJ75,HZJ7#,LJ7#,PZJ7#,RJ7# |
1 | ||
| 90430-12245 |
HZJ78..STD;FZJ78..GCC;HZJ79..GCC,GEN;HZJ79..ARL..IV;FZJ71,78..RHD..GEN;FZJ71,HDJ79..ARL,GCC;FZJ74,79,HDJ78,HZJ71..CBU W(FUEL SUB TANK) |
1 | ||
| 90430-12245 |
HZJ78,79..GCC,GEN |
2 | ||
| 77100D - HOSE, FUEL, NO.1(FOR FUEL TANK) | ||||
| 90445-22024 |
FZJ79..CBU;HZJ79..GCC,GEN;HDJ79,HZJ79..ARL..IV L=385,W(FUEL SUB TANK) |
1 | ||
| 95311-13015 |
HZJ78..STD;FZJ78..GCC;HZJ79..GCC,GEN;FZJ78..RHD..GEN;FZJ79,HDJ78..CBU;HDJ79,HZJ79..ARL..IV L=150 |
1 | ||
| 77178 - GASKET, FUEL TANK FILLER PIPE, LOWER | ||||
| 77178-20010 |
HZJ78..ARL,GEN;FZJ78,79,HDJ7#,HZJ79 W(FUEL SUB TANK) |
2 | ||
| 77178-20010 |
HZJ78..ARL,GEN;FZJ71,74,78,79,HDJ7#,HZJ71,79 |
1 | ||
| 77178-20010 |
FZJ71,74,78,79,HZJ71,78,79 |
1 | ||
| 77178-20010 |
HZJ78..STD;FZJ78..GCC;HZJ79..GCC,GEN;HZJ79..ARL..IV;FZJ71,78..RHD..GEN;FZJ71,HDJ79..ARL,GCC;FZJ74,79,HDJ78,HZJ71..CBU |
1 | ||
| 77178-20010 |
HZJ78..STD;FZJ78..GCC;HZJ79..GCC,GEN;FZJ78..RHD..GEN;FZJ79,HDJ78..CBU;HDJ79,HZJ79..ARL..IV W(FUEL SUB TANK) |
2 | ||
| 77179A - GASKET, FUEL TANK BREATHER TUBE | ||||
| 77179-26010 |
HZJ78..ARL,GEN;FZJ78,79,HDJ7#,HZJ79 |
1 | ||
| 77179-26010 |
HZJ78..STD;FZJ78..GCC;HZJ79..GCC,GEN;FZJ78..RHD..GEN;FZJ79,HDJ78..CBU;HDJ79,HZJ79..ARL..IV |
1 | ||
| 77179A - GASKET, FUEL TANK BREATHER TUBE | ||||
| 77179-26010 |
HZJ78..ARL,GEN;FZJ78,79,HDJ7#,HZJ79 |
1 | ||
| 77179-26010 |
HZJ78..STD;FZJ78..GCC;HZJ79..GCC,GEN;FZJ78..RHD..GEN;FZJ79,HDJ78..CBU;HDJ79,HZJ79..ARL..IV |
1 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-60660 |
HDJ79,HZJ79;FZJ79..GCC,GEN W(FUEL SUB TANK),MAIN-TANK |
1 | ||
| 77201-60680 |
HZJ79;FZJ79..GCC,GEN W(FUEL SUB TANK),SUB-TANK |
1 | ||
| 77201-60710 |
HDJ79,HZJ79;FZJ79..GCC,GEN |
1 | ||
| 77206A - GASKET (FOR FUEL TANK SUCTION TUBE) | ||||
| 77169-14020 |
FJ7#,HJ75,HZJ7#,LJ7#,PZJ7#,RJ7# |
1 | ||
| 77169-14020 |
HDJ7#,HZJ78,79 W(FUEL SUB TANK) |
2 | ||
| 77169-14020 |
HZJ78,79 W(FUEL SUB TANK) |
2 | ||
| 77169-14020 |
HZJ78,79 W(FUEL SUB TANK) |
2 | ||
| 77169-14020 |
HDJ7#,HZJ71,78,79 |
1 | ||
| 77169-14010 |
FZJ78,79 SUB TANK |
1 | ||
| 77169-20040 |
FZJ78,79 |
1 | ||
| 77169-14020 |
HZJ78..STD;HDJ7#,HZJ71;HZJ79..GCC,GEN;HZJ79..ARL..IV |
1 | ||
| 77169-14020 |
HZJ78,79..GCC,GEN W(FUEL SUB TANK) |
2 | ||
| 77213 - HOSE, FUEL TANK SUB INLET | ||||
| 77213-60200 |
FZJ79..CBU;HZJ79..GCC,GEN;HDJ79,HZJ79..ARL..IV |
1 | ||
| 77213-60210 |
FZJ79..CBU;HZJ79..GCC,GEN;HZJ79..ARL..IV SUB FUEL TANK |
1 | ||
| 77240 - TUBE ASSY, FUEL SUCTION | ||||
| 77240-60490 |
HDJ7#,HZJ78,79 MAIN TANK |
1 | ||
| 77240-60490 |
HDJ7#,HZJ78,79 MAIN TANK |
1 | ||
| 77240-60500 |
HDJ7#,HZJ78,79 SUB TANK |
1 | ||
| 77240-60500 |
HDJ7#,HZJ78,79 SUB TANK |
1 | ||
| 77291 - PACKING, FUEL TANK SUPPORT, UPPER | ||||
| 77293-60030 |
HZJ75..LHD..PIC..CBU;FZJ75..PIC..(GCC,GEN)..CBR;FZJ75,HZJ75..RHD..PIC..(ARL,GEN)..(DSL,EFI);FJ75,FZJ79,HDJ79,HZJ79,PZJ75..PIC..(ARL,GCC,GEN) W(FUEL SUB TANK) |
2 | ||
| 77292A - STAY, FUEL TANK FILLAR UPPER PIPE | ||||
| 77292-60010 |
HDJ79,HZJ79..IV |
1 | ||
| 77380 - VALVE ASSY, FUEL CUT OFF | ||||
| 77380-26010 |
HZJ78..ARL,GEN;FZJ78,79,HDJ7#,HZJ79 |
1 | ||
| 77380-26010 |
HZJ78..STD;FZJ78..GCC;HZJ79..GCC,GEN;FZJ78..RHD..GEN;FZJ79,HDJ78..CBU;HDJ79,HZJ79..ARL..IV |
1 | ||
| 77420 - VALVE ASSY, FUEL CUT OFF, NO.2 | ||||
| 77420-26010 |
HZJ78..STD;FZJ78..GCC;HZJ79..GCC,GEN;FZJ78..RHD..GEN;FZJ79,HDJ78..CBU;HDJ79,HZJ79..ARL..IV |
1 | ||
| 77420-26010 |
HZJ78..ARL,GEN;FZJ78,79,HDJ7#,HZJ79 |
1 | ||
| 77606 - PROTECTOR SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77606-60030 |
HZJ78..ARL,GEN;HZJ75..LHD..CBU;FZJ75..(GCC,GEN)..CBR;FZJ75,HZJ75..RHD..(ARL,GEN)..(DSL,EFI);FJ75,FZJ78,79,HZJ79,PZJ75..ARL,GCC,GEN SUB TANK |
1 | ||
| 77606-60030 |
HZJ78..STD;FZJ78..GCC;HZJ79..GCC,GEN;FZJ78..RHD..GEN;FZJ79,HDJ78..CBU;HDJ79,HZJ79..ARL..IV SUB TANK |
1 | ||
| 77606-60130 |
HZJ78..STD;FZJ78..GCC;HZJ79..GCC,GEN;FZJ78..RHD..GEN;FZJ79,HDJ78..CBU;HDJ79,HZJ79..ARL..IV |
1 | ||
| 77606-60130 |
HZJ78..STD;FZJ78..GCC;HZJ79..GCC,GEN;FZJ78..RHD..GEN;FZJ79,HDJ78..CBU;HDJ79,HZJ79..ARL..IV W(FUEL SUB TANK),MAIN TANK |
1 | ||
| 77611 - BAND, FUEL TANK | ||||
| 77601-60230 |
HZJ78..STD;FZJ78..GCC;HZJ79..GCC,GEN;FZJ78..RHD..GEN;FZJ79,HDJ78..CBU;HDJ79,HZJ79..ARL..IV MAIN TANK, RH,RH |
1 | ||
| 77601-60260 |
HZJ78..STD;FZJ78,79,HDJ7#;HZJ79..GCC,GEN;HZJ79..ARL..IV W(FUEL SUB TANK),SUB TANK |
2 | ||
| 77602-60100 |
HZJ78..STD;FZJ78..GCC;HZJ79..GCC,GEN;FZJ78..RHD..GEN;FZJ79,HDJ78..CBU;HDJ79,HZJ79..ARL..IV MAIN TANK, LH,LH |
1 | ||
| 77601-60261 |
FZJ78..GCC;HDJ79,HZJ79;FZJ78..RHD..GEN;FZJ79,HDJ78,HZJ78..CBU SUB TANK |
2 | ||
| 77611 - BAND, FUEL TANK | ||||
| 77601-60230 |
HZJ78..STD;FZJ78..GCC;HZJ79..GCC,GEN;FZJ78..RHD..GEN;FZJ79,HDJ78..CBU;HDJ79,HZJ79..ARL..IV MAIN TANK, RH,RH |
1 | ||
| 77601-60260 |
HZJ78..STD;FZJ78,79,HDJ7#;HZJ79..GCC,GEN;HZJ79..ARL..IV W(FUEL SUB TANK),SUB TANK |
2 | ||
| 77602-60100 |
HZJ78..STD;FZJ78..GCC;HZJ79..GCC,GEN;FZJ78..RHD..GEN;FZJ79,HDJ78..CBU;HDJ79,HZJ79..ARL..IV MAIN TANK, LH,LH |
1 | ||
| 77601-60261 |
FZJ78..GCC;HDJ79,HZJ79;FZJ78..RHD..GEN;FZJ79,HDJ78,HZJ78..CBU SUB TANK |
2 | ||
| 77611A - PIN (FOR FUEL TANK BAND) | ||||
| 90249-14002 |
FZJ75..CBR;HZJ78..ARL,GEN;HZJ75..LHD..CBU;FZJ75,HZJ75..RHD..(DSL,EFI);FJ75,FZJ78,79,HDJ7#,HJ75,HZJ79,PZJ75 W(FUEL SUB TANK) |
2 | ||
| 90240-10011 |
FZJ75..CBR;HZJ78..ARL,GEN;HZJ75..LHD..CBU;FZJ75,HZJ75..RHD..(DSL,EFI);FJ75,FZJ78,79,HDJ7#,HJ75,HZJ79,PZJ75 |
2 | ||
| 90249-14002 |
HZJ78..STD;FZJ78..GCC;HZJ79..GCC,GEN;FZJ78..RHD..GEN;FZJ79,HDJ78..CBU;HDJ79,HZJ79..ARL..IV SUB TANK |
2 | ||
| 90240-10011 |
HZJ78..STD;FZJ78..GCC;HZJ79..GCC,GEN;FZJ78..RHD..GEN;FZJ79,HDJ78..CBU;HDJ79,HZJ79..ARL..IV |
2 | ||
| 77631 - BRACKET, FUEL TANK, NO.1 | ||||
| 77616-60080 |
HZJ78..STD;FZJ78..GCC;HZJ79..GCC,GEN;FZJ78..RHD..GEN;FZJ79,HDJ78..CBU;HDJ79,HZJ79..ARL..IV |
2 | ||
| 77632 - BRACKET, FUEL TANK, NO.2 | ||||
| 77615-60050 |
HZJ78..STD;FZJ78..GCC;HZJ79..GCC,GEN;FZJ78..RHD..GEN;FZJ79,HDJ78..CBU;HDJ79,HZJ79..ARL..IV |
2 | ||
| 77701T - VALVE, CHECK (FOR MAIN FUEL TANK) | ||||
| 90917-10020 |
HZJ70..ARL;HZJ75..RHD;HZJ75..LHD..STD..CBU;FJ75,HDJ7#,HZJ73,79,LJ70,PZJ70,73;FZJ70,73,75,HZJ78..(ARL,GEN,SA)..(CBR,DSL);FJ70,73,FZJ71,74,78,79,HJ75,HZJ71,LJ72,77,79,PZJ75,RJ7#..GEN,SA |
1 | ||
| 90917-10020 |
HZJ78..STD;HZJ79..GCC,GEN;HZJ79..ARL..IV;FZJ78..RHD..GEN;FZJ71,HDJ7#..RHD;FZJ74,79,HZJ71..GEN..CBU |
1 | ||
| Common parts | ||||
| 90119-06195 | ||||
| 90119-06347 | ||||
| 90119-06621 | ||||
| 90119-10153 | ||||
| 90159-50219 | ||||
| 90179-05042 | ||||
| 90405-06007 | ||||
| 90460-65002 | ||||
| 90461-12373 | ||||
| 90467-20134 | ||||
| 90468-14017 | ||||
| 90468-14022 | ||||
| 91611-61020 | ||||
| 91611-B0816 | ||||
| 91626-B0818 | ||||
| 91651-61022 | ||||
| 93319-A4010 | ||||
| 93383-15014 | ||||
| 93383-A6014 | ||||
| 96132-51100 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 1 OF 3(0207-0701)HZJ78,79
FUEL SUB TANK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77011 - PIPE SUB-ASSY, FUEL TANK FILLER, LOWER | ||||
| 77011-60120 |
FZJ71,74,78,79,HZJ71,78,79 |
1 | ||
| 77011-60120 |
HZJ78..STD;FZJ78..GCC;HZJ79..GCC,GEN;FZJ78..RHD..GEN;FZJ79,HDJ78..CBU;HDJ79,HZJ79..ARL..IV W(FUEL SUB TANK) |
2 | ||
| 77011-60120 |
HZJ78..STD;FZJ78..GCC;HZJ79..GCC,GEN;HZJ79..ARL..IV;FZJ71,78..RHD..GEN;FZJ71,HDJ79..ARL,GCC;FZJ74,79,HDJ78,HZJ71..CBU |
1 | ||
| 77017B - TUBE SUB-ASSY, FUEL TANK VENT | ||||
| 77017-60440 |
HZJ78,79 MAIN TANK |
1 | ||
| 77017-60410 |
HZJ78,79 |
1 | ||
| 77017-60450 |
HZJ78,79 SUB TANK |
1 | ||
| 77023 - FILTER SUB-ASSY, FUEL SUCTION TUBE | ||||
| 77023-36010 |
HZJ7#,PZJ7# |
1 | ||
| 77023-36010 |
HZJ78,79 W(FUEL SUB TANK) |
2 | ||
| 77023-36010 |
HZJ78,79 W(FUEL SUB TANK) |
2 | ||
| 77023-36010 |
HZJ78,79 W(FUEL SUB TANK) |
2 | ||
| 77023-60010 |
HZJ78,79 |
1 | ||
| 77023-36010 |
HZJ78..STD;HZJ79..GCC,GEN;HZJ79..ARL..IV |
1 | ||
| 77023-60010 |
HZJ78,79 W(FUEL SUB TANK) |
2 | ||
| 77031 - CAP ASSY, FUEL TANK | ||||
| 77310-60100 |
HZJ79..GCC,GEN W(FUEL SUB TANK) |
2 | ||
| 77310-60100 |
HZJ79..GCC,GEN |
1 | ||
| 77310-55080 |
HZJ79..GCC,GEN |
1 | ||
| 77310-55080 |
HZJ79..GCC,GEN W(FUEL SUB TANK) |
2 | ||
| 77310-60100 |
HZJ79..GCC,GEN |
1 | ||
| 77310-60100 |
HZJ79..GCC,GEN W(FUEL SUB TANK) |
2 | ||
| 77031B - GASKET (FOR FUEL TANK CAP) | ||||
| 77316-27010 |
FZJ79,HZJ79..GCC,GEN W(SUB FUEL TANK) |
2 | ||
| 77316-12050 |
FZJ79,HZJ79..GCC,GEN |
1 | ||
| 77316-12050 |
FZJ79,HZJ79..GCC,GEN W(FUEL SUB TANK) |
2 | ||
| 77316-27010 |
FZJ79,HZJ79..GCC,GEN W(SUB FUEL TANK) |
2 | ||
| 77316-12050 |
FZJ79..CBU;HZJ79..GCC,GEN W(FUEL SUB TANK) |
2 | ||
| 77316-27010 |
FZJ79,HZJ79..GCC,GEN MATERIAL OF PNC77031=METAL |
1 | ||
| 77316-12050 |
FZJ79..CBU;HZJ79..GCC,GEN |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-60560 |
FZJ78,79 MAIN TANK |
1 | ||
| 77001-60570 |
HDJ7#,HZJ78,79 MAIN TANK |
1 | ||
| 77001-60570 |
HDJ7#,HZJ78,79 |
1 | ||
| 77001-60570 |
HZJ78,79 |
1 | ||
| 77001-60550 |
HDJ7#,HZJ78,79 SUB TANK |
1 | ||
| 77001-60540 |
FZJ78,79 SUB TANK |
1 | ||
| 77001-60560 |
FZJ78,79 |
1 | ||
| 77001-60540 |
FZJ78,79 SUB TANK |
1 | ||
| 77001-60550 |
HDJ7#;HZJ78..STD;HZJ79..GCC,GEN;HZJ79..ARL..IV SUB TANK |
1 | ||
| 77001-60570 |
HDJ7#;HZJ78..STD;HZJ79..GCC,GEN;HZJ79..ARL..IV |
1 | ||
| 77001-60570 |
HZJ78,79 MAIN TANK |
1 | ||
| 77001-60740 |
HDJ7#,HZJ78,79 MAIN TANK |
1 | ||
| 77001-60551 |
HDJ7#,HZJ78,79 SUB TANK |
1 | ||
| 77100A - PLUG(FOR FUEL TANK) | ||||
| 90341-20004 |
FJ7#,HJ75,HZJ7#,LJ7#,PZJ7#,RJ7# |
1 | ||
| 90105-12116 |
HZJ78..STD;FZJ78..GCC;HZJ79..GCC,GEN;HZJ79..ARL..IV;FZJ71,78..RHD..GEN;FZJ71,HDJ79..ARL,GCC;FZJ74,79,HDJ78,HZJ71..CBU W(FUEL SUB TANK) |
1 | ||
| 77100B - GASKET(FOR FUEL TANK) | ||||
| 90430-20007 |
FJ7#,HJ75,HZJ7#,LJ7#,PZJ7#,RJ7# |
1 | ||
| 90430-12245 |
HZJ78..STD;FZJ78..GCC;HZJ79..GCC,GEN;HZJ79..ARL..IV;FZJ71,78..RHD..GEN;FZJ71,HDJ79..ARL,GCC;FZJ74,79,HDJ78,HZJ71..CBU W(FUEL SUB TANK) |
1 | ||
| 90430-12245 |
HZJ78,79..GCC,GEN |
2 | ||
| 77100D - HOSE, FUEL, NO.1(FOR FUEL TANK) | ||||
| 90445-22024 |
FZJ79..CBU;HZJ79..GCC,GEN;HDJ79,HZJ79..ARL..IV L=385,W(FUEL SUB TANK) |
1 | ||
| 95311-13015 |
HZJ78..STD;FZJ78..GCC;HZJ79..GCC,GEN;FZJ78..RHD..GEN;FZJ79,HDJ78..CBU;HDJ79,HZJ79..ARL..IV L=150 |
1 | ||
| 77133 - SUPPORT, FUEL SUB-TANK, RH | ||||
| 77133-60030 |
HZJ75..LHD..CBU;FZJ75..(GCC,GEN)..CBR;FZJ75,HZJ75..RHD..(ARL,GEN)..(DSL,EFI);FJ75,FZJ78,79,HZJ78,79,PZJ75..ARL,GCC,GEN |
1 | ||
| 77133-60100 |
HZJ78..ARL,GEN;FZJ78,79,HDJ7#,HZJ79 |
1 | ||
| 77133-60030 |
FZJ78,79,HZJ78,79 |
1 | ||
| 77133-60100 |
HZJ78..STD;FZJ78..GCC;HZJ79..GCC,GEN;FZJ78..RHD..GEN;FZJ79,HDJ78..CBU;HDJ79,HZJ79..ARL..IV |
1 | ||
| 77134 - SUPPORT, FUEL SUB-TANK, LH | ||||
| 77134-60020 |
HZJ75..LHD..CBU;FZJ75..(GCC,GEN)..CBR;FZJ75,HZJ75..RHD..(ARL,GEN)..(DSL,EFI);FJ75,FZJ78,79,HZJ78,79,PZJ75..ARL,GCC,GEN |
1 | ||
| 77133-60100 |
HZJ78..ARL,GEN;FZJ78,79,HDJ7#,HZJ79 |
1 | ||
| 77134-60040 |
FZJ78,79,HZJ78,79 |
1 | ||
| 77134-60020 |
FZJ78,79,HZJ78,79 |
1 | ||
| 77134-60040 |
FZJ78,79,HZJ78,79 |
1 | ||
| 77133-60100 |
HZJ78..STD;FZJ78..GCC;HZJ79..GCC,GEN;FZJ78..RHD..GEN;FZJ79,HDJ78..CBU;HDJ79,HZJ79..ARL..IV |
1 | ||
| 77178 - GASKET, FUEL TANK FILLER PIPE, LOWER | ||||
| 77178-20010 |
HZJ78..ARL,GEN;FZJ78,79,HDJ7#,HZJ79 W(FUEL SUB TANK) |
2 | ||
| 77178-20010 |
HZJ78..ARL,GEN;FZJ71,74,78,79,HDJ7#,HZJ71,79 |
1 | ||
| 77178-20010 |
FZJ71,74,78,79,HZJ71,78,79 |
1 | ||
| 77178-20010 |
HZJ78..STD;FZJ78..GCC;HZJ79..GCC,GEN;HZJ79..ARL..IV;FZJ71,78..RHD..GEN;FZJ71,HDJ79..ARL,GCC;FZJ74,79,HDJ78,HZJ71..CBU |
1 | ||
| 77178-20010 |
HZJ78..STD;FZJ78..GCC;HZJ79..GCC,GEN;FZJ78..RHD..GEN;FZJ79,HDJ78..CBU;HDJ79,HZJ79..ARL..IV W(FUEL SUB TANK) |
2 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-60660 |
HDJ79,HZJ79;FZJ79..GCC,GEN W(FUEL SUB TANK),MAIN-TANK |
1 | ||
| 77201-60680 |
HZJ79;FZJ79..GCC,GEN W(FUEL SUB TANK),SUB-TANK |
1 | ||
| 77201-60710 |
HDJ79,HZJ79;FZJ79..GCC,GEN |
1 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-60660 |
HDJ79,HZJ79;FZJ79..GCC,GEN W(FUEL SUB TANK),MAIN-TANK |
1 | ||
| 77201-60680 |
HZJ79;FZJ79..GCC,GEN W(FUEL SUB TANK),SUB-TANK |
1 | ||
| 77201-60710 |
HDJ79,HZJ79;FZJ79..GCC,GEN |
1 | ||
| 77206A - GASKET (FOR FUEL TANK SUCTION TUBE) | ||||
| 77169-14020 |
FJ7#,HJ75,HZJ7#,LJ7#,PZJ7#,RJ7# |
1 | ||
| 77169-14020 |
HDJ7#,HZJ78,79 W(FUEL SUB TANK) |
2 | ||
| 77169-14020 |
HZJ78,79 W(FUEL SUB TANK) |
2 | ||
| 77169-14020 |
HZJ78,79 W(FUEL SUB TANK) |
2 | ||
| 77169-14020 |
HDJ7#,HZJ71,78,79 |
1 | ||
| 77169-14010 |
FZJ78,79 SUB TANK |
1 | ||
| 77169-20040 |
FZJ78,79 |
1 | ||
| 77169-14020 |
HZJ78..STD;HDJ7#,HZJ71;HZJ79..GCC,GEN;HZJ79..ARL..IV |
1 | ||
| 77169-14020 |
HZJ78,79..GCC,GEN W(FUEL SUB TANK) |
2 | ||
| 77213 - HOSE, FUEL TANK SUB INLET | ||||
| 77213-60200 |
FZJ79..CBU;HZJ79..GCC,GEN;HDJ79,HZJ79..ARL..IV |
1 | ||
| 77213-60210 |
FZJ79..CBU;HZJ79..GCC,GEN;HZJ79..ARL..IV SUB FUEL TANK |
1 | ||
| 77240 - TUBE ASSY, FUEL SUCTION | ||||
| 77240-60490 |
HDJ7#,HZJ78,79 MAIN TANK |
1 | ||
| 77240-60490 |
HDJ7#,HZJ78,79 MAIN TANK |
1 | ||
| 77240-60500 |
HDJ7#,HZJ78,79 SUB TANK |
1 | ||
| 77240-60500 |
HDJ7#,HZJ78,79 SUB TANK |
1 | ||
| 77291 - PACKING, FUEL TANK SUPPORT, UPPER | ||||
| 77293-60030 |
HZJ75..LHD..PIC..CBU;FZJ75..PIC..(GCC,GEN)..CBR;FZJ75,HZJ75..RHD..PIC..(ARL,GEN)..(DSL,EFI);FJ75,FZJ79,HDJ79,HZJ79,PZJ75..PIC..(ARL,GCC,GEN) W(FUEL SUB TANK) |
2 | ||
| 77606 - PROTECTOR SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77606-60030 |
HZJ78..ARL,GEN;HZJ75..LHD..CBU;FZJ75..(GCC,GEN)..CBR;FZJ75,HZJ75..RHD..(ARL,GEN)..(DSL,EFI);FJ75,FZJ78,79,HZJ79,PZJ75..ARL,GCC,GEN SUB TANK |
1 | ||
| 77606-60030 |
HZJ78..STD;FZJ78..GCC;HZJ79..GCC,GEN;FZJ78..RHD..GEN;FZJ79,HDJ78..CBU;HDJ79,HZJ79..ARL..IV SUB TANK |
1 | ||
| 77606-60130 |
HZJ78..STD;FZJ78..GCC;HZJ79..GCC,GEN;FZJ78..RHD..GEN;FZJ79,HDJ78..CBU;HDJ79,HZJ79..ARL..IV |
1 | ||
| 77606-60130 |
HZJ78..STD;FZJ78..GCC;HZJ79..GCC,GEN;FZJ78..RHD..GEN;FZJ79,HDJ78..CBU;HDJ79,HZJ79..ARL..IV W(FUEL SUB TANK),MAIN TANK |
1 | ||
| 77611 - BAND, FUEL TANK | ||||
| 77601-60230 |
HZJ78..STD;FZJ78..GCC;HZJ79..GCC,GEN;FZJ78..RHD..GEN;FZJ79,HDJ78..CBU;HDJ79,HZJ79..ARL..IV MAIN TANK, RH,RH |
1 | ||
| 77601-60260 |
HZJ78..STD;FZJ78,79,HDJ7#;HZJ79..GCC,GEN;HZJ79..ARL..IV W(FUEL SUB TANK),SUB TANK |
2 | ||
| 77602-60100 |
HZJ78..STD;FZJ78..GCC;HZJ79..GCC,GEN;FZJ78..RHD..GEN;FZJ79,HDJ78..CBU;HDJ79,HZJ79..ARL..IV MAIN TANK, LH,LH |
1 | ||
| 77601-60261 |
FZJ78..GCC;HDJ79,HZJ79;FZJ78..RHD..GEN;FZJ79,HDJ78,HZJ78..CBU SUB TANK |
2 | ||
| 77611 - BAND, FUEL TANK | ||||
| 77601-60230 |
HZJ78..STD;FZJ78..GCC;HZJ79..GCC,GEN;FZJ78..RHD..GEN;FZJ79,HDJ78..CBU;HDJ79,HZJ79..ARL..IV MAIN TANK, RH,RH |
1 | ||
| 77601-60260 |
HZJ78..STD;FZJ78,79,HDJ7#;HZJ79..GCC,GEN;HZJ79..ARL..IV W(FUEL SUB TANK),SUB TANK |
2 | ||
| 77602-60100 |
HZJ78..STD;FZJ78..GCC;HZJ79..GCC,GEN;FZJ78..RHD..GEN;FZJ79,HDJ78..CBU;HDJ79,HZJ79..ARL..IV MAIN TANK, LH,LH |
1 | ||
| 77601-60261 |
FZJ78..GCC;HDJ79,HZJ79;FZJ78..RHD..GEN;FZJ79,HDJ78,HZJ78..CBU SUB TANK |
2 | ||
| 77611A - PIN (FOR FUEL TANK BAND) | ||||
| 90249-14002 |
FZJ75..CBR;HZJ78..ARL,GEN;HZJ75..LHD..CBU;FZJ75,HZJ75..RHD..(DSL,EFI);FJ75,FZJ78,79,HDJ7#,HJ75,HZJ79,PZJ75 W(FUEL SUB TANK) |
2 | ||
| 90240-10011 |
FZJ75..CBR;HZJ78..ARL,GEN;HZJ75..LHD..CBU;FZJ75,HZJ75..RHD..(DSL,EFI);FJ75,FZJ78,79,HDJ7#,HJ75,HZJ79,PZJ75 |
2 | ||
| 90249-14002 |
HZJ78..STD;FZJ78..GCC;HZJ79..GCC,GEN;FZJ78..RHD..GEN;FZJ79,HDJ78..CBU;HDJ79,HZJ79..ARL..IV SUB TANK |
2 | ||
| 90240-10011 |
HZJ78..STD;FZJ78..GCC;HZJ79..GCC,GEN;FZJ78..RHD..GEN;FZJ79,HDJ78..CBU;HDJ79,HZJ79..ARL..IV |
2 | ||
| Common parts | ||||
| 90119-06621 | ||||
| 90119-06724 | ||||
| 90119-10153 | ||||
| 90119-10556 | ||||
| 90159-50219 | ||||
| 90460-65002 | ||||
| 90467-20134 | ||||
| 91626-B0818 | ||||
| 91665-40616 | ||||
| 93319-A4010 | ||||
| 93383-15014 | ||||
| 93383-A6014 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 2 OF 3(0207- )HZJ78,79..LHD
FUEL TUBE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77206C - TUBE SUB-ASSY, FUEL MAIN, NO.2 | ||||
| 77206-60200 |
HZJ78,79..LHD W(FUEL SUB TANK),NO.1 |
1 | ||
| 77206-60230 |
FZJ78,79..GEN |
1 | ||
| 77206-60210 |
HZJ78,79 NO.2 |
1 | ||
| 77206-60190 |
HZJ78,79..LHD NO.1 |
1 | ||
| 77206-60220 |
FZJ78,79..GEN W(FUEL SUB TANK) |
1 | ||
| 77206-60211 |
HZJ79;HZJ78..ARL,GEN NO.2 |
1 | ||
| 77206-60191 |
HZJ79..LHD;HZJ78..LHD..GEN NO.1 |
1 | ||
| 77206-60231 |
FZJ78,79..GEN |
1 | ||
| 77206-60171 |
FZJ78,79..ARL,GCC;FZJ78,79..LHD..GEN W(CHARCOAL CANISTER) |
1 | ||
| 77206-60311 |
HZJ79..LHD;HZJ78..LHD..GEN W(FUEL SUB TANK),NO.2 |
1 | ||
| 77206-60201 |
HZJ79..LHD;HZJ78..LHD..GEN W(FUEL SUB TANK),NO.1 |
1 | ||
| 77206-60300 |
HZJ79..LHD;HZJ78..LHD..GEN NO.2 |
1 | ||
| 77206-60221 |
FZJ71,74,78,79..GEN W(FUEL SUB TANK) |
1 | ||
| 77206-60280 |
HZJ79..LHD;HZJ78..LHD..GEN NO.1 |
1 | ||
| 77206-60190 |
HZJ78,79..LHD NO.1 |
1 | ||
| 77206-60210 |
HZJ78,79 NO.2 |
1 | ||
| 77206-60230 |
FZJ78,79..GEN |
1 | ||
| 77206-60220 |
FZJ78,79..GEN W(FUEL SUB TANK) |
1 | ||
| 77206-60191 |
HZJ78,79..LHD NO.1 |
1 | ||
| 77206-60200 |
HZJ78,79..LHD W(FUEL SUB TANK),NO.1 |
1 | ||
| 77206-60211 |
HZJ78,79 NO.2 |
1 | ||
| 77206-60201 |
HZJ78,79..LHD W(FUEL SUB TANK),NO.1 |
1 | ||
| 77206-60300 |
HZJ78,79..LHD NO.2 |
1 | ||
| 77206-60311 |
HZJ78,79..LHD W(FUEL SUB TANK),NO.2 |
1 | ||
| 77206-60280 |
HZJ78,79..LHD NO.1 |
1 | ||
| 77206C - TUBE SUB-ASSY, FUEL MAIN, NO.2 | ||||
| 77206-60200 |
HZJ78,79..LHD W(FUEL SUB TANK),NO.1 |
1 | ||
| 77206-60230 |
FZJ78,79..GEN |
1 | ||
| 77206-60210 |
HZJ78,79 NO.2 |
1 | ||
| 77206-60190 |
HZJ78,79..LHD NO.1 |
1 | ||
| 77206-60220 |
FZJ78,79..GEN W(FUEL SUB TANK) |
1 | ||
| 77206-60211 |
HZJ79;HZJ78..ARL,GEN NO.2 |
1 | ||
| 77206-60191 |
HZJ79..LHD;HZJ78..LHD..GEN NO.1 |
1 | ||
| 77206-60231 |
FZJ78,79..GEN |
1 | ||
| 77206-60171 |
FZJ78,79..ARL,GCC;FZJ78,79..LHD..GEN W(CHARCOAL CANISTER) |
1 | ||
| 77206-60311 |
HZJ79..LHD;HZJ78..LHD..GEN W(FUEL SUB TANK),NO.2 |
1 | ||
| 77206-60201 |
HZJ79..LHD;HZJ78..LHD..GEN W(FUEL SUB TANK),NO.1 |
1 | ||
| 77206-60300 |
HZJ79..LHD;HZJ78..LHD..GEN NO.2 |
1 | ||
| 77206-60221 |
FZJ71,74,78,79..GEN W(FUEL SUB TANK) |
1 | ||
| 77206-60280 |
HZJ79..LHD;HZJ78..LHD..GEN NO.1 |
1 | ||
| 77206-60190 |
HZJ78,79..LHD NO.1 |
1 | ||
| 77206-60210 |
HZJ78,79 NO.2 |
1 | ||
| 77206-60230 |
FZJ78,79..GEN |
1 | ||
| 77206-60220 |
FZJ78,79..GEN W(FUEL SUB TANK) |
1 | ||
| 77206-60191 |
HZJ78,79..LHD NO.1 |
1 | ||
| 77206-60200 |
HZJ78,79..LHD W(FUEL SUB TANK),NO.1 |
1 | ||
| 77206-60211 |
HZJ78,79 NO.2 |
1 | ||
| 77206-60201 |
HZJ78,79..LHD W(FUEL SUB TANK),NO.1 |
1 | ||
| 77206-60300 |
HZJ78,79..LHD NO.2 |
1 | ||
| 77206-60311 |
HZJ78,79..LHD W(FUEL SUB TANK),NO.2 |
1 | ||
| 77206-60280 |
HZJ78,79..LHD NO.1 |
1 | ||
| 77207B - TUBE SUB-ASSY, FUEL MAIN, NO.3 | ||||
| 77207-60060 |
HZJ71,78,79..LHD..GEN W(FUEL FILTER X2) |
1 | ||
| 77207-60061 |
HZJ7#..LHD..GEN W(FUEL FILTER X2) |
1 | ||
| 77207-60050 |
HZJ71,78,79..LHD |
1 | ||
| 77207-60051 |
HZJ7#..LHD |
1 | ||
| 77241B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1) | ||||
| 95332-10030 |
HZJ71,78,79..LHD..GEN *H,L=300,W(FUEL FILTER X2) |
1 | ||
| 95332-10040 |
HZJ78,79..LHD..GEN *H,L=400,W(FUEL FILTER X2) |
1 | ||
| 95332-10030 |
HZJ71;HZJ78..LX;HZJ78,79..LHD..GEN;HZJ79..(ARL,GCC)..CBU *H,L=240 |
1 | ||
| 95332-10030 |
HZJ7#..LHD..GEN *H,L=300,W(FUEL FILTER X2) |
1 | ||
| 77242B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.2) | ||||
| 77259-60400 |
HZJ79..LHD;HZJ78..LHD..GEN MAIN TANK |
1 | ||
| 95332-10016 |
HZJ78..STD;HZJ79..GCC,GEN;HZJ79..ARL..IV *H,L=160 |
1 | ||
| 77259-60400 |
HZJ78,79..LHD MAIN TANK |
1 | ||
| 95332-10030 |
HZJ78..STD;HZJ79..GCC,GEN;HZJ79..ARL..IV *H,L=280 |
1 | ||
| 77259-60410 |
HZJ78,79 |
1 | ||
| 77243A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.3) | ||||
| 95332-10040 |
HZJ71,78,79..LHD..GEN *H,L=400,W(FUEL FILTER X2) |
1 | ||
| 95332-10030 |
HZJ71,78,79..LHD *H,L=240 |
1 | ||
| 95332-10040 |
HZJ71,78,79..LHD..GEN *H,L=400,W(FUEL FILTER X2) |
1 | ||
| 95332-10024 |
HZJ71,79..LHD;HZJ78..LHD..GEN *H,L=240 |
1 | ||
| 77259-60500 |
HZJ79..LHD;HZJ78..LHD..GEN |
1 | ||
| 95332-10020 |
HZJ71,79..LHD;HZJ78..LHD..GEN *H,L=200 |
1 | ||
| 95332-10020 |
HZJ78,79..LHD *H,L=200 |
1 | ||
| 95332-10040 |
HZJ78,79..LHD..GEN *H,L=400,W(FUEL FILTER X2) |
1 | ||
| 77259-60500 |
HZJ78,79..LHD |
1 | ||
| 77243A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.3) | ||||
| 95332-10040 |
HZJ71,78,79..LHD..GEN *H,L=400,W(FUEL FILTER X2) |
1 | ||
| 95332-10030 |
HZJ71,78,79..LHD *H,L=240 |
1 | ||
| 95332-10040 |
HZJ71,78,79..LHD..GEN *H,L=400,W(FUEL FILTER X2) |
1 | ||
| 95332-10024 |
HZJ71,79..LHD;HZJ78..LHD..GEN *H,L=240 |
1 | ||
| 77259-60500 |
HZJ79..LHD;HZJ78..LHD..GEN |
1 | ||
| 95332-10020 |
HZJ71,79..LHD;HZJ78..LHD..GEN *H,L=200 |
1 | ||
| 95332-10020 |
HZJ78,79..LHD *H,L=200 |
1 | ||
| 95332-10040 |
HZJ78,79..LHD..GEN *H,L=400,W(FUEL FILTER X2) |
1 | ||
| 77259-60500 |
HZJ78,79..LHD |
1 | ||
| 77251C - HOSE, FUEL, NO.1(FOR FUEL MAIN TUBE) | ||||
| 95332-12016 |
HZJ78,79..LHD *H,L=160,ID=12 |
1 | ||
| 77259-60421 |
HZJ78,79..LHD |
1 | ||
| 95332-10016 |
HZJ78,79 *H,L=160 |
1 | ||
| 77259-60421 |
HZJ79..LHD;HZJ78..LHD..GEN |
1 | ||
| 95332-12016 |
HZJ79..LHD;HZJ78..LHD..GEN *H,L=160,ID=12 |
1 | ||
| 77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1) | ||||
| 95333-06030 |
FZJ78,79 *H,L=300 |
1 | ||
| 95333-06040 |
HZJ7# *H,L=360 |
1 | ||
| 23273-17060 |
HZJ79;HZJ71,78..ARL,GEN L=360 |
1 | ||
| 23273-66040 |
FZJ71,74,78,79 |
1 | ||
| 23273-17060 |
HZJ71,78,79 L=360 |
1 | ||
| 77278A - HOSE, FUEL, NO.1 (FOR RETURN TUBE, NO.2) | ||||
| 95333-06020 |
HZJ78,79 *H,L=150 |
1 | ||
| 95333-06020 |
HZJ70,75,LJ70,PZJ70;FJ70,73,LJ72,77,79,PZJ75,RJ70..GEN *H,L=200 |
1 | ||
| 95333-08020 |
HDJ7#,HZJ78,79 *H,L=180,ID=7.6 |
1 | ||
| 77259-60480 |
HZJ79;HZJ78..ARL,GEN L=200 |
1 | ||
| 95333-06030 |
FZJ78,79 *H,L=300 |
1 | ||
| 95333-06030 |
HZJ78,79 *H,L=220 |
1 | ||
| 77259-60171 |
HZJ78,79 L=300 |
1 | ||
| 95333-06020 |
HZJ78,79 *H,L=180 |
1 | ||
| 77259-60480 |
HZJ78,79 L=200 |
1 | ||
| 95333-08020 |
HZJ78,79 *H,L=180,ID=7.6 |
1 | ||
| 95333-08030 |
HZJ78,79..LHD *H,L=220,ID=7.6 |
1 | ||
| 77278A - HOSE, FUEL, NO.1 (FOR RETURN TUBE, NO.2) | ||||
| 95333-06020 |
HZJ78,79 *H,L=150 |
1 | ||
| 95333-06020 |
HZJ70,75,LJ70,PZJ70;FJ70,73,LJ72,77,79,PZJ75,RJ70..GEN *H,L=200 |
1 | ||
| 95333-08020 |
HDJ7#,HZJ78,79 *H,L=180,ID=7.6 |
1 | ||
| 77259-60480 |
HZJ79;HZJ78..ARL,GEN L=200 |
1 | ||
| 95333-06030 |
FZJ78,79 *H,L=300 |
1 | ||
| 95333-06030 |
HZJ78,79 *H,L=220 |
1 | ||
| 77259-60171 |
HZJ78,79 L=300 |
1 | ||
| 95333-06020 |
HZJ78,79 *H,L=180 |
1 | ||
| 77259-60480 |
HZJ78,79 L=200 |
1 | ||
| 95333-08020 |
HZJ78,79 *H,L=180,ID=7.6 |
1 | ||
| 95333-08030 |
HZJ78,79..LHD *H,L=220,ID=7.6 |
1 | ||
| 77278B - HOSE, FUEL, NO.2 (FOR RETURN TUBE, NO.2) | ||||
| 95333-06020 |
HZJ78..STD;HZJ79..GCC,GEN;HZJ79..ARL..IV *H,L=180 |
1 | ||
| 95333-08030 |
HZJ78,79..LHD *H,L=260,ID=7.6 |
1 | ||
| 95333-06030 |
HZJ78..STD;HZJ79..GCC,GEN;HZJ79..ARL..IV *H,L=260 |
1 | ||
| 95333-08020 |
HZJ78,79 *H,L=200,ID=7.6 |
1 | ||
| 95334-08030 |
HZJ79 L=300 |
1 | ||
| Common parts | ||||
| 90119-08701 | ||||
| 90467-17013 | ||||
| 90467-18008 | ||||
| 91611-B0816 | ||||
| 96132-41500 | ||||
| 96132-51100 | ||||
| 96132-51300 | ||||
ILLUST NO. 2 OF 3(0207- )HZJ78,79..LHD
FUEL TUBE W(FUEL SUB TANK)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77206C - TUBE SUB-ASSY, FUEL MAIN, NO.2 | ||||
| 77206-60200 |
HZJ78,79..LHD W(FUEL SUB TANK),NO.1 |
1 | ||
| 77206-60230 |
FZJ78,79..GEN |
1 | ||
| 77206-60210 |
HZJ78,79 NO.2 |
1 | ||
| 77206-60190 |
HZJ78,79..LHD NO.1 |
1 | ||
| 77206-60220 |
FZJ78,79..GEN W(FUEL SUB TANK) |
1 | ||
| 77206-60211 |
HZJ79;HZJ78..ARL,GEN NO.2 |
1 | ||
| 77206-60191 |
HZJ79..LHD;HZJ78..LHD..GEN NO.1 |
1 | ||
| 77206-60231 |
FZJ78,79..GEN |
1 | ||
| 77206-60171 |
FZJ78,79..ARL,GCC;FZJ78,79..LHD..GEN W(CHARCOAL CANISTER) |
1 | ||
| 77206-60311 |
HZJ79..LHD;HZJ78..LHD..GEN W(FUEL SUB TANK),NO.2 |
1 | ||
| 77206-60201 |
HZJ79..LHD;HZJ78..LHD..GEN W(FUEL SUB TANK),NO.1 |
1 | ||
| 77206-60300 |
HZJ79..LHD;HZJ78..LHD..GEN NO.2 |
1 | ||
| 77206-60221 |
FZJ71,74,78,79..GEN W(FUEL SUB TANK) |
1 | ||
| 77206-60280 |
HZJ79..LHD;HZJ78..LHD..GEN NO.1 |
1 | ||
| 77206-60190 |
HZJ78,79..LHD NO.1 |
1 | ||
| 77206-60210 |
HZJ78,79 NO.2 |
1 | ||
| 77206-60230 |
FZJ78,79..GEN |
1 | ||
| 77206-60220 |
FZJ78,79..GEN W(FUEL SUB TANK) |
1 | ||
| 77206-60191 |
HZJ78,79..LHD NO.1 |
1 | ||
| 77206-60200 |
HZJ78,79..LHD W(FUEL SUB TANK),NO.1 |
1 | ||
| 77206-60211 |
HZJ78,79 NO.2 |
1 | ||
| 77206-60201 |
HZJ78,79..LHD W(FUEL SUB TANK),NO.1 |
1 | ||
| 77206-60300 |
HZJ78,79..LHD NO.2 |
1 | ||
| 77206-60311 |
HZJ78,79..LHD W(FUEL SUB TANK),NO.2 |
1 | ||
| 77206-60280 |
HZJ78,79..LHD NO.1 |
1 | ||
| 77206C - TUBE SUB-ASSY, FUEL MAIN, NO.2 | ||||
| 77206-60200 |
HZJ78,79..LHD W(FUEL SUB TANK),NO.1 |
1 | ||
| 77206-60230 |
FZJ78,79..GEN |
1 | ||
| 77206-60210 |
HZJ78,79 NO.2 |
1 | ||
| 77206-60190 |
HZJ78,79..LHD NO.1 |
1 | ||
| 77206-60220 |
FZJ78,79..GEN W(FUEL SUB TANK) |
1 | ||
| 77206-60211 |
HZJ79;HZJ78..ARL,GEN NO.2 |
1 | ||
| 77206-60191 |
HZJ79..LHD;HZJ78..LHD..GEN NO.1 |
1 | ||
| 77206-60231 |
FZJ78,79..GEN |
1 | ||
| 77206-60171 |
FZJ78,79..ARL,GCC;FZJ78,79..LHD..GEN W(CHARCOAL CANISTER) |
1 | ||
| 77206-60311 |
HZJ79..LHD;HZJ78..LHD..GEN W(FUEL SUB TANK),NO.2 |
1 | ||
| 77206-60201 |
HZJ79..LHD;HZJ78..LHD..GEN W(FUEL SUB TANK),NO.1 |
1 | ||
| 77206-60300 |
HZJ79..LHD;HZJ78..LHD..GEN NO.2 |
1 | ||
| 77206-60221 |
FZJ71,74,78,79..GEN W(FUEL SUB TANK) |
1 | ||
| 77206-60280 |
HZJ79..LHD;HZJ78..LHD..GEN NO.1 |
1 | ||
| 77206-60190 |
HZJ78,79..LHD NO.1 |
1 | ||
| 77206-60210 |
HZJ78,79 NO.2 |
1 | ||
| 77206-60230 |
FZJ78,79..GEN |
1 | ||
| 77206-60220 |
FZJ78,79..GEN W(FUEL SUB TANK) |
1 | ||
| 77206-60191 |
HZJ78,79..LHD NO.1 |
1 | ||
| 77206-60200 |
HZJ78,79..LHD W(FUEL SUB TANK),NO.1 |
1 | ||
| 77206-60211 |
HZJ78,79 NO.2 |
1 | ||
| 77206-60201 |
HZJ78,79..LHD W(FUEL SUB TANK),NO.1 |
1 | ||
| 77206-60300 |
HZJ78,79..LHD NO.2 |
1 | ||
| 77206-60311 |
HZJ78,79..LHD W(FUEL SUB TANK),NO.2 |
1 | ||
| 77206-60280 |
HZJ78,79..LHD NO.1 |
1 | ||
| 77207B - TUBE SUB-ASSY, FUEL MAIN, NO.3 | ||||
| 77207-60060 |
HZJ71,78,79..LHD..GEN W(FUEL FILTER X2) |
1 | ||
| 77207-60061 |
HZJ7#..LHD..GEN W(FUEL FILTER X2) |
1 | ||
| 77207-60050 |
HZJ71,78,79..LHD |
1 | ||
| 77207-60051 |
HZJ7#..LHD |
1 | ||
| 77241B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1) | ||||
| 95332-10030 |
HZJ71,78,79..LHD..GEN *H,L=300,W(FUEL FILTER X2) |
1 | ||
| 95332-10040 |
HZJ78,79..LHD..GEN *H,L=400,W(FUEL FILTER X2) |
1 | ||
| 95332-10030 |
HZJ71;HZJ78..LX;HZJ78,79..LHD..GEN;HZJ79..(ARL,GCC)..CBU *H,L=240 |
1 | ||
| 95332-10030 |
HZJ7#..LHD..GEN *H,L=300,W(FUEL FILTER X2) |
1 | ||
| 77242 - TUBE, FUEL MAIN, NO.2 | ||||
| 95332-10016 |
HZJ78,79 |
1 | ||
| 95332-12024 |
HZJ79..LHD;HZJ78..LHD..GEN NO.2 |
1 | ||
| 95332-10030 |
HZJ78,79..LHD NO.2 |
1 | ||
| 77259-60421 |
HZJ79..LHD;HZJ78..LHD..GEN NO.1 |
1 | ||
| 95332-10016 |
HZJ78,79..LHD NO.1 |
1 | ||
| 77259-60421 |
HZJ78,79..LHD NO.1 |
1 | ||
| 95332-12024 |
HZJ78,79..LHD NO.2 |
1 | ||
| 77242 - TUBE, FUEL MAIN, NO.2 | ||||
| 95332-10016 |
HZJ78,79 |
1 | ||
| 95332-12024 |
HZJ79..LHD;HZJ78..LHD..GEN NO.2 |
1 | ||
| 95332-10030 |
HZJ78,79..LHD NO.2 |
1 | ||
| 77259-60421 |
HZJ79..LHD;HZJ78..LHD..GEN NO.1 |
1 | ||
| 95332-10016 |
HZJ78,79..LHD NO.1 |
1 | ||
| 77259-60421 |
HZJ78,79..LHD NO.1 |
1 | ||
| 95332-12024 |
HZJ78,79..LHD NO.2 |
1 | ||
| 77242B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.2) | ||||
| 77259-60400 |
HZJ79..LHD;HZJ78..LHD..GEN MAIN TANK |
1 | ||
| 95332-10016 |
HZJ78..STD;HZJ79..GCC,GEN;HZJ79..ARL..IV *H,L=160 |
1 | ||
| 77259-60400 |
HZJ78,79..LHD MAIN TANK |
1 | ||
| 95332-10030 |
HZJ78..STD;HZJ79..GCC,GEN;HZJ79..ARL..IV *H,L=280 |
1 | ||
| 77259-60410 |
HZJ78,79 |
1 | ||
| 77242B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.2) | ||||
| 77259-60400 |
HZJ79..LHD;HZJ78..LHD..GEN MAIN TANK |
1 | ||
| 95332-10016 |
HZJ78..STD;HZJ79..GCC,GEN;HZJ79..ARL..IV *H,L=160 |
1 | ||
| 77259-60400 |
HZJ78,79..LHD MAIN TANK |
1 | ||
| 95332-10030 |
HZJ78..STD;HZJ79..GCC,GEN;HZJ79..ARL..IV *H,L=280 |
1 | ||
| 77259-60410 |
HZJ78,79 |
1 | ||
| 77243A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.3) | ||||
| 95332-10040 |
HZJ71,78,79..LHD..GEN *H,L=400,W(FUEL FILTER X2) |
1 | ||
| 95332-10030 |
HZJ71,78,79..LHD *H,L=240 |
1 | ||
| 95332-10040 |
HZJ71,78,79..LHD..GEN *H,L=400,W(FUEL FILTER X2) |
1 | ||
| 95332-10024 |
HZJ71,79..LHD;HZJ78..LHD..GEN *H,L=240 |
1 | ||
| 77259-60500 |
HZJ79..LHD;HZJ78..LHD..GEN |
1 | ||
| 95332-10020 |
HZJ71,79..LHD;HZJ78..LHD..GEN *H,L=200 |
1 | ||
| 95332-10020 |
HZJ78,79..LHD *H,L=200 |
1 | ||
| 95332-10040 |
HZJ78,79..LHD..GEN *H,L=400,W(FUEL FILTER X2) |
1 | ||
| 77259-60500 |
HZJ78,79..LHD |
1 | ||
| 77243A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.3) | ||||
| 95332-10040 |
HZJ71,78,79..LHD..GEN *H,L=400,W(FUEL FILTER X2) |
1 | ||
| 95332-10030 |
HZJ71,78,79..LHD *H,L=240 |
1 | ||
| 95332-10040 |
HZJ71,78,79..LHD..GEN *H,L=400,W(FUEL FILTER X2) |
1 | ||
| 95332-10024 |
HZJ71,79..LHD;HZJ78..LHD..GEN *H,L=240 |
1 | ||
| 77259-60500 |
HZJ79..LHD;HZJ78..LHD..GEN |
1 | ||
| 95332-10020 |
HZJ71,79..LHD;HZJ78..LHD..GEN *H,L=200 |
1 | ||
| 95332-10020 |
HZJ78,79..LHD *H,L=200 |
1 | ||
| 95332-10040 |
HZJ78,79..LHD..GEN *H,L=400,W(FUEL FILTER X2) |
1 | ||
| 77259-60500 |
HZJ78,79..LHD |
1 | ||
| 77252C - HOSE, FUEL, NO.2(FOR FUEL MAIN NO.2 TUBE) | ||||
| 77259-60380 |
HDJ7#,HZJ78,79 |
1 | ||
| 77259-60380 |
HZJ78,79 |
1 | ||
| 77252C - HOSE, FUEL, NO.2(FOR FUEL MAIN NO.2 TUBE) | ||||
| 77259-60380 |
HDJ7#,HZJ78,79 |
1 | ||
| 77259-60380 |
HZJ78,79 |
1 | ||
| 77253A - TUBE, FUEL MAIN, NO.3 | ||||
| 77208-60130 |
HDJ79,HZJ79 |
1 | ||
| 77208-60130 |
HZJ79 |
1 | ||
| 77253A - TUBE, FUEL MAIN, NO.3 | ||||
| 77208-60130 |
HDJ79,HZJ79 |
1 | ||
| 77208-60130 |
HZJ79 |
1 | ||
| 77257D - HOSE, FUEL, NO.1(FOR FUEL RETURN NO.3 TUBE) | ||||
| 77259-60431 |
HDJ7#,HZJ78,79 TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 77259-60432 |
HDJ7#,HZJ78,79 TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 77259-60432 |
HDJ7#,HZJ78,79 TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 77257D - HOSE, FUEL, NO.1(FOR FUEL RETURN NO.3 TUBE) | ||||
| 77259-60431 |
HDJ7#,HZJ78,79 TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 77259-60432 |
HDJ7#,HZJ78,79 TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 77259-60432 |
HDJ7#,HZJ78,79 TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1) | ||||
| 95333-06030 |
FZJ78,79 *H,L=300 |
1 | ||
| 95333-06040 |
HZJ7# *H,L=360 |
1 | ||
| 23273-17060 |
HZJ79;HZJ71,78..ARL,GEN L=360 |
1 | ||
| 23273-66040 |
FZJ71,74,78,79 |
1 | ||
| 23273-17060 |
HZJ71,78,79 L=360 |
1 | ||
| 77278A - HOSE, FUEL, NO.1 (FOR RETURN TUBE, NO.2) | ||||
| 95333-06020 |
HZJ78,79 *H,L=150 |
1 | ||
| 95333-06020 |
HZJ70,75,LJ70,PZJ70;FJ70,73,LJ72,77,79,PZJ75,RJ70..GEN *H,L=200 |
1 | ||
| 95333-08020 |
HDJ7#,HZJ78,79 *H,L=180,ID=7.6 |
1 | ||
| 77259-60480 |
HZJ79;HZJ78..ARL,GEN L=200 |
1 | ||
| 95333-06030 |
FZJ78,79 *H,L=300 |
1 | ||
| 95333-06030 |
HZJ78,79 *H,L=220 |
1 | ||
| 77259-60171 |
HZJ78,79 L=300 |
1 | ||
| 95333-06020 |
HZJ78,79 *H,L=180 |
1 | ||
| 77259-60480 |
HZJ78,79 L=200 |
1 | ||
| 95333-08020 |
HZJ78,79 *H,L=180,ID=7.6 |
1 | ||
| 95333-08030 |
HZJ78,79..LHD *H,L=220,ID=7.6 |
1 | ||
| 77278A - HOSE, FUEL, NO.1 (FOR RETURN TUBE, NO.2) | ||||
| 95333-06020 |
HZJ78,79 *H,L=150 |
1 | ||
| 95333-06020 |
HZJ70,75,LJ70,PZJ70;FJ70,73,LJ72,77,79,PZJ75,RJ70..GEN *H,L=200 |
1 | ||
| 95333-08020 |
HDJ7#,HZJ78,79 *H,L=180,ID=7.6 |
1 | ||
| 77259-60480 |
HZJ79;HZJ78..ARL,GEN L=200 |
1 | ||
| 95333-06030 |
FZJ78,79 *H,L=300 |
1 | ||
| 95333-06030 |
HZJ78,79 *H,L=220 |
1 | ||
| 77259-60171 |
HZJ78,79 L=300 |
1 | ||
| 95333-06020 |
HZJ78,79 *H,L=180 |
1 | ||
| 77259-60480 |
HZJ78,79 L=200 |
1 | ||
| 95333-08020 |
HZJ78,79 *H,L=180,ID=7.6 |
1 | ||
| 95333-08030 |
HZJ78,79..LHD *H,L=220,ID=7.6 |
1 | ||
| 77278A - HOSE, FUEL, NO.1 (FOR RETURN TUBE, NO.2) | ||||
| 95333-06020 |
HZJ78,79 *H,L=150 |
1 | ||
| 95333-06020 |
HZJ70,75,LJ70,PZJ70;FJ70,73,LJ72,77,79,PZJ75,RJ70..GEN *H,L=200 |
1 | ||
| 95333-08020 |
HDJ7#,HZJ78,79 *H,L=180,ID=7.6 |
1 | ||
| 77259-60480 |
HZJ79;HZJ78..ARL,GEN L=200 |
1 | ||
| 95333-06030 |
FZJ78,79 *H,L=300 |
1 | ||
| 95333-06030 |
HZJ78,79 *H,L=220 |
1 | ||
| 77259-60171 |
HZJ78,79 L=300 |
1 | ||
| 95333-06020 |
HZJ78,79 *H,L=180 |
1 | ||
| 77259-60480 |
HZJ78,79 L=200 |
1 | ||
| 95333-08020 |
HZJ78,79 *H,L=180,ID=7.6 |
1 | ||
| 95333-08030 |
HZJ78,79..LHD *H,L=220,ID=7.6 |
1 | ||
| 77278A - HOSE, FUEL, NO.1 (FOR RETURN TUBE, NO.2) | ||||
| 95333-06020 |
HZJ78,79 *H,L=150 |
1 | ||
| 95333-06020 |
HZJ70,75,LJ70,PZJ70;FJ70,73,LJ72,77,79,PZJ75,RJ70..GEN *H,L=200 |
1 | ||
| 95333-08020 |
HDJ7#,HZJ78,79 *H,L=180,ID=7.6 |
1 | ||
| 77259-60480 |
HZJ79;HZJ78..ARL,GEN L=200 |
1 | ||
| 95333-06030 |
FZJ78,79 *H,L=300 |
1 | ||
| 95333-06030 |
HZJ78,79 *H,L=220 |
1 | ||
| 77259-60171 |
HZJ78,79 L=300 |
1 | ||
| 95333-06020 |
HZJ78,79 *H,L=180 |
1 | ||
| 77259-60480 |
HZJ78,79 L=200 |
1 | ||
| 95333-08020 |
HZJ78,79 *H,L=180,ID=7.6 |
1 | ||
| 95333-08030 |
HZJ78,79..LHD *H,L=220,ID=7.6 |
1 | ||
| 77278A - HOSE, FUEL, NO.1 (FOR RETURN TUBE, NO.2) | ||||
| 95333-06020 |
HZJ78,79 *H,L=150 |
1 | ||
| 95333-06020 |
HZJ70,75,LJ70,PZJ70;FJ70,73,LJ72,77,79,PZJ75,RJ70..GEN *H,L=200 |
1 | ||
| 95333-08020 |
HDJ7#,HZJ78,79 *H,L=180,ID=7.6 |
1 | ||
| 77259-60480 |
HZJ79;HZJ78..ARL,GEN L=200 |
1 | ||
| 95333-06030 |
FZJ78,79 *H,L=300 |
1 | ||
| 95333-06030 |
HZJ78,79 *H,L=220 |
1 | ||
| 77259-60171 |
HZJ78,79 L=300 |
1 | ||
| 95333-06020 |
HZJ78,79 *H,L=180 |
1 | ||
| 77259-60480 |
HZJ78,79 L=200 |
1 | ||
| 95333-08020 |
HZJ78,79 *H,L=180,ID=7.6 |
1 | ||
| 95333-08030 |
HZJ78,79..LHD *H,L=220,ID=7.6 |
1 | ||
| 77278B - HOSE, FUEL, NO.2 (FOR RETURN TUBE, NO.2) | ||||
| 95333-06020 |
HZJ78..STD;HZJ79..GCC,GEN;HZJ79..ARL..IV *H,L=180 |
1 | ||
| 95333-08030 |
HZJ78,79..LHD *H,L=260,ID=7.6 |
1 | ||
| 95333-06030 |
HZJ78..STD;HZJ79..GCC,GEN;HZJ79..ARL..IV *H,L=260 |
1 | ||
| 95333-08020 |
HZJ78,79 *H,L=200,ID=7.6 |
1 | ||
| 95334-08030 |
HZJ79 L=300 |
1 | ||
| 77278B - HOSE, FUEL, NO.2 (FOR RETURN TUBE, NO.2) | ||||
| 95333-06020 |
HZJ78..STD;HZJ79..GCC,GEN;HZJ79..ARL..IV *H,L=180 |
1 | ||
| 95333-08030 |
HZJ78,79..LHD *H,L=260,ID=7.6 |
1 | ||
| 95333-06030 |
HZJ78..STD;HZJ79..GCC,GEN;HZJ79..ARL..IV *H,L=260 |
1 | ||
| 95333-08020 |
HZJ78,79 *H,L=200,ID=7.6 |
1 | ||
| 95334-08030 |
HZJ79 L=300 |
1 | ||
| 77710B - VALVE ASSY, FUEL TANK SOLENOID MAIN | ||||
| 77710-60140 |
HZJ78,79 |
1 | ||
| 77710-60160 |
HDJ7#,HZJ78,79 |
1 | ||
| 77710-60140 |
HZJ78..STD;HZJ79..GCC,GEN;HZJ79..ARL..IV |
1 | ||
| 77710-60160 |
HZJ78,79 |
1 | ||
| 77716 - BRACKET, FUEL SOLENOID VALVE MAIN | ||||
| 77716-60140 |
HDJ7#,HZJ78,79 |
1 | ||
| 77716-60140 |
HDJ7#;HZJ78..STD;HZJ79..GCC,GEN;HZJ79..ARL..IV |
1 | ||
| 77720E - VALVE ASSY, FUEL TANK SOLENOID RETURN | ||||
| 77720-60110 |
HZJ78,79 |
1 | ||
| 77720-60110 |
HZJ78..STD;HZJ79..GCC,GEN;HZJ79..ARL..IV |
1 | ||
| 77720-60130 |
HZJ78,79 |
1 | ||
| Common parts | ||||
| 82711-60530 | ||||
| 90119-08701 | ||||
| 90467-17013 | ||||
| 90467-18008 | ||||
| 91611-60835 | ||||
| 91611-B0816 | ||||
| 91616-40820 | ||||
| 96132-41500 | ||||
| 96132-51100 | ||||
| 96132-51300 | ||||
ILLUST NO. 1 OF 3(9908- )FZJ78,79
FUEL TANK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77011 - PIPE SUB-ASSY, FUEL TANK FILLER, LOWER | ||||
| 77011-60120 |
FZJ71,74,78,79,HZJ71,78,79 |
1 | ||
| 77011-60120 |
HZJ78..STD;FZJ78..GCC;HZJ79..GCC,GEN;FZJ78..RHD..GEN;FZJ79,HDJ78..CBU;HDJ79,HZJ79..ARL..IV W(FUEL SUB TANK) |
2 | ||
| 77011-60120 |
HZJ78..STD;FZJ78..GCC;HZJ79..GCC,GEN;HZJ79..ARL..IV;FZJ71,78..RHD..GEN;FZJ71,HDJ79..ARL,GCC;FZJ74,79,HDJ78,HZJ71..CBU |
1 | ||
| 77017 - TUBE SUB-ASSY, FUEL AND EVAPORATION VENT | ||||
| 77017-60420 |
HZJ78,79 |
1 | ||
| 77203-60170 |
FZJ78,79 SUB TANK |
1 | ||
| 77017-60420 |
HZJ78,79 |
1 | ||
| 77203-60150 |
FZJ78,79 MAIN TANK |
1 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95333-06030 |
HZJ70,73,LJ70,PZJ70,73;FJ70,73,LJ72,77,79,RJ7#..GEN *H,L=280 |
1 | ||
| 95333-06010 |
HZJ70,73,LJ70,PZJ70,73;FJ70,73,LJ72,77,79,RJ7#..GEN *H,L=80 |
1 | ||
| 95333-06020 |
HZJ70,73,LJ70,PZJ70,73;FJ70,73,LJ72,77,79,RJ7#..GEN *H,L=150 |
1 | ||
| 77249-60090 |
HZJ78..ARL,GEN;FZJ78,79,HDJ7#,HZJ79 L=60 |
1 | ||
| 95333-06020 |
HZJ79;FZJ78,79..GEN;HDJ7#,HZJ78..ARL,GEN *H,L=200 |
1 | ||
| 95333-06030 |
HZJ79;FZJ78,79..GEN;HDJ7#,HZJ78..ARL,GEN *H,L=280 |
1 | ||
| 77026A - TUBE SUB-ASSY, FUEL EVAPORATION, NO.1 | ||||
| 77026-60070 |
FZJ78,79,HZJ78,79 |
1 | ||
| 77026-60070 |
HZJ78..ARL,GEN;FZJ78,79,HDJ7#,HZJ79 |
1 | ||
| 77026-60070 |
HZJ78..STD;FZJ78..GCC;HZJ79..GCC,GEN;FZJ78..RHD..GEN;FZJ79,HDJ78..CBU;HDJ79,HZJ79..ARL..IV |
1 | ||
| 77031 - CAP ASSY, FUEL TANK | ||||
| 77310-60100 |
HZJ79..GCC,GEN W(FUEL SUB TANK) |
2 | ||
| 77310-60100 |
HZJ79..GCC,GEN |
1 | ||
| 77310-55080 |
HZJ79..GCC,GEN |
1 | ||
| 77310-55080 |
HZJ79..GCC,GEN W(FUEL SUB TANK) |
2 | ||
| 77310-60100 |
HZJ79..GCC,GEN |
1 | ||
| 77310-60100 |
HZJ79..GCC,GEN W(FUEL SUB TANK) |
2 | ||
| 77031B - GASKET (FOR FUEL TANK CAP) | ||||
| 77316-27010 |
FZJ79,HZJ79..GCC,GEN W(SUB FUEL TANK) |
2 | ||
| 77316-12050 |
FZJ79,HZJ79..GCC,GEN |
1 | ||
| 77316-12050 |
FZJ79,HZJ79..GCC,GEN W(FUEL SUB TANK) |
2 | ||
| 77316-27010 |
FZJ79,HZJ79..GCC,GEN W(SUB FUEL TANK) |
2 | ||
| 77316-12050 |
FZJ79..CBU;HZJ79..GCC,GEN W(FUEL SUB TANK) |
2 | ||
| 77316-27010 |
FZJ79,HZJ79..GCC,GEN MATERIAL OF PNC77031=METAL |
1 | ||
| 77316-12050 |
FZJ79..CBU;HZJ79..GCC,GEN |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-60560 |
FZJ78,79 MAIN TANK |
1 | ||
| 77001-60570 |
HDJ7#,HZJ78,79 MAIN TANK |
1 | ||
| 77001-60570 |
HDJ7#,HZJ78,79 |
1 | ||
| 77001-60570 |
HZJ78,79 |
1 | ||
| 77001-60550 |
HDJ7#,HZJ78,79 SUB TANK |
1 | ||
| 77001-60540 |
FZJ78,79 SUB TANK |
1 | ||
| 77001-60560 |
FZJ78,79 |
1 | ||
| 77001-60540 |
FZJ78,79 SUB TANK |
1 | ||
| 77001-60550 |
HDJ7#;HZJ78..STD;HZJ79..GCC,GEN;HZJ79..ARL..IV SUB TANK |
1 | ||
| 77001-60570 |
HDJ7#;HZJ78..STD;HZJ79..GCC,GEN;HZJ79..ARL..IV |
1 | ||
| 77001-60570 |
HZJ78,79 MAIN TANK |
1 | ||
| 77001-60740 |
HDJ7#,HZJ78,79 MAIN TANK |
1 | ||
| 77001-60551 |
HDJ7#,HZJ78,79 SUB TANK |
1 | ||
| 77100A - PLUG(FOR FUEL TANK) | ||||
| 90341-20004 |
FJ7#,HJ75,HZJ7#,LJ7#,PZJ7#,RJ7# |
1 | ||
| 90105-12116 |
HZJ78..STD;FZJ78..GCC;HZJ79..GCC,GEN;HZJ79..ARL..IV;FZJ71,78..RHD..GEN;FZJ71,HDJ79..ARL,GCC;FZJ74,79,HDJ78,HZJ71..CBU W(FUEL SUB TANK) |
1 | ||
| 77100B - GASKET(FOR FUEL TANK) | ||||
| 90430-20007 |
FJ7#,HJ75,HZJ7#,LJ7#,PZJ7#,RJ7# |
1 | ||
| 90430-12245 |
HZJ78..STD;FZJ78..GCC;HZJ79..GCC,GEN;HZJ79..ARL..IV;FZJ71,78..RHD..GEN;FZJ71,HDJ79..ARL,GCC;FZJ74,79,HDJ78,HZJ71..CBU W(FUEL SUB TANK) |
1 | ||
| 90430-12245 |
HZJ78,79..GCC,GEN |
2 | ||
| 77100D - HOSE, FUEL, NO.1(FOR FUEL TANK) | ||||
| 90445-22024 |
FZJ79..CBU;HZJ79..GCC,GEN;HDJ79,HZJ79..ARL..IV L=385,W(FUEL SUB TANK) |
1 | ||
| 95311-13015 |
HZJ78..STD;FZJ78..GCC;HZJ79..GCC,GEN;FZJ78..RHD..GEN;FZJ79,HDJ78..CBU;HDJ79,HZJ79..ARL..IV L=150 |
1 | ||
| 77178 - GASKET, FUEL TANK FILLER PIPE, LOWER | ||||
| 77178-20010 |
HZJ78..ARL,GEN;FZJ78,79,HDJ7#,HZJ79 W(FUEL SUB TANK) |
2 | ||
| 77178-20010 |
HZJ78..ARL,GEN;FZJ71,74,78,79,HDJ7#,HZJ71,79 |
1 | ||
| 77178-20010 |
FZJ71,74,78,79,HZJ71,78,79 |
1 | ||
| 77178-20010 |
HZJ78..STD;FZJ78..GCC;HZJ79..GCC,GEN;HZJ79..ARL..IV;FZJ71,78..RHD..GEN;FZJ71,HDJ79..ARL,GCC;FZJ74,79,HDJ78,HZJ71..CBU |
1 | ||
| 77178-20010 |
HZJ78..STD;FZJ78..GCC;HZJ79..GCC,GEN;FZJ78..RHD..GEN;FZJ79,HDJ78..CBU;HDJ79,HZJ79..ARL..IV W(FUEL SUB TANK) |
2 | ||
| 77179A - GASKET, FUEL TANK BREATHER TUBE | ||||
| 77179-26010 |
HZJ78..ARL,GEN;FZJ78,79,HDJ7#,HZJ79 |
1 | ||
| 77179-26010 |
HZJ78..STD;FZJ78..GCC;HZJ79..GCC,GEN;FZJ78..RHD..GEN;FZJ79,HDJ78..CBU;HDJ79,HZJ79..ARL..IV |
1 | ||
| 77179A - GASKET, FUEL TANK BREATHER TUBE | ||||
| 77179-26010 |
HZJ78..ARL,GEN;FZJ78,79,HDJ7#,HZJ79 |
1 | ||
| 77179-26010 |
HZJ78..STD;FZJ78..GCC;HZJ79..GCC,GEN;FZJ78..RHD..GEN;FZJ79,HDJ78..CBU;HDJ79,HZJ79..ARL..IV |
1 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-60660 |
HDJ79,HZJ79;FZJ79..GCC,GEN W(FUEL SUB TANK),MAIN-TANK |
1 | ||
| 77201-60680 |
HZJ79;FZJ79..GCC,GEN W(FUEL SUB TANK),SUB-TANK |
1 | ||
| 77201-60710 |
HDJ79,HZJ79;FZJ79..GCC,GEN |
1 | ||
| 77206A - GASKET (FOR FUEL TANK SUCTION TUBE) | ||||
| 77169-14020 |
FJ7#,HJ75,HZJ7#,LJ7#,PZJ7#,RJ7# |
1 | ||
| 77169-14020 |
HDJ7#,HZJ78,79 W(FUEL SUB TANK) |
2 | ||
| 77169-14020 |
HZJ78,79 W(FUEL SUB TANK) |
2 | ||
| 77169-14020 |
HZJ78,79 W(FUEL SUB TANK) |
2 | ||
| 77169-14020 |
HDJ7#,HZJ71,78,79 |
1 | ||
| 77169-14010 |
FZJ78,79 SUB TANK |
1 | ||
| 77169-20040 |
FZJ78,79 |
1 | ||
| 77169-14020 |
HZJ78..STD;HDJ7#,HZJ71;HZJ79..GCC,GEN;HZJ79..ARL..IV |
1 | ||
| 77169-14020 |
HZJ78,79..GCC,GEN W(FUEL SUB TANK) |
2 | ||
| 77213 - HOSE, FUEL TANK SUB INLET | ||||
| 77213-60200 |
FZJ79..CBU;HZJ79..GCC,GEN;HDJ79,HZJ79..ARL..IV |
1 | ||
| 77213-60210 |
FZJ79..CBU;HZJ79..GCC,GEN;HZJ79..ARL..IV SUB FUEL TANK |
1 | ||
| 77291 - PACKING, FUEL TANK SUPPORT, UPPER | ||||
| 77293-60030 |
HZJ75..LHD..PIC..CBU;FZJ75..PIC..(GCC,GEN)..CBR;FZJ75,HZJ75..RHD..PIC..(ARL,GEN)..(DSL,EFI);FJ75,FZJ79,HDJ79,HZJ79,PZJ75..PIC..(ARL,GCC,GEN) W(FUEL SUB TANK) |
2 | ||
| 77380 - VALVE ASSY, FUEL CUT OFF | ||||
| 77380-26010 |
HZJ78..ARL,GEN;FZJ78,79,HDJ7#,HZJ79 |
1 | ||
| 77380-26010 |
HZJ78..STD;FZJ78..GCC;HZJ79..GCC,GEN;FZJ78..RHD..GEN;FZJ79,HDJ78..CBU;HDJ79,HZJ79..ARL..IV |
1 | ||
| 77420 - VALVE ASSY, FUEL CUT OFF, NO.2 | ||||
| 77420-26010 |
HZJ78..STD;FZJ78..GCC;HZJ79..GCC,GEN;FZJ78..RHD..GEN;FZJ79,HDJ78..CBU;HDJ79,HZJ79..ARL..IV |
1 | ||
| 77420-26010 |
HZJ78..ARL,GEN;FZJ78,79,HDJ7#,HZJ79 |
1 | ||
| 77606 - PROTECTOR SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77606-60030 |
HZJ78..ARL,GEN;HZJ75..LHD..CBU;FZJ75..(GCC,GEN)..CBR;FZJ75,HZJ75..RHD..(ARL,GEN)..(DSL,EFI);FJ75,FZJ78,79,HZJ79,PZJ75..ARL,GCC,GEN SUB TANK |
1 | ||
| 77606-60030 |
HZJ78..STD;FZJ78..GCC;HZJ79..GCC,GEN;FZJ78..RHD..GEN;FZJ79,HDJ78..CBU;HDJ79,HZJ79..ARL..IV SUB TANK |
1 | ||
| 77606-60130 |
HZJ78..STD;FZJ78..GCC;HZJ79..GCC,GEN;FZJ78..RHD..GEN;FZJ79,HDJ78..CBU;HDJ79,HZJ79..ARL..IV |
1 | ||
| 77606-60130 |
HZJ78..STD;FZJ78..GCC;HZJ79..GCC,GEN;FZJ78..RHD..GEN;FZJ79,HDJ78..CBU;HDJ79,HZJ79..ARL..IV W(FUEL SUB TANK),MAIN TANK |
1 | ||
| 77611 - BAND, FUEL TANK | ||||
| 77601-60230 |
HZJ78..STD;FZJ78..GCC;HZJ79..GCC,GEN;FZJ78..RHD..GEN;FZJ79,HDJ78..CBU;HDJ79,HZJ79..ARL..IV MAIN TANK, RH,RH |
1 | ||
| 77601-60260 |
HZJ78..STD;FZJ78,79,HDJ7#;HZJ79..GCC,GEN;HZJ79..ARL..IV W(FUEL SUB TANK),SUB TANK |
2 | ||
| 77602-60100 |
HZJ78..STD;FZJ78..GCC;HZJ79..GCC,GEN;FZJ78..RHD..GEN;FZJ79,HDJ78..CBU;HDJ79,HZJ79..ARL..IV MAIN TANK, LH,LH |
1 | ||
| 77601-60261 |
FZJ78..GCC;HDJ79,HZJ79;FZJ78..RHD..GEN;FZJ79,HDJ78,HZJ78..CBU SUB TANK |
2 | ||
| 77611 - BAND, FUEL TANK | ||||
| 77601-60230 |
HZJ78..STD;FZJ78..GCC;HZJ79..GCC,GEN;FZJ78..RHD..GEN;FZJ79,HDJ78..CBU;HDJ79,HZJ79..ARL..IV MAIN TANK, RH,RH |
1 | ||
| 77601-60260 |
HZJ78..STD;FZJ78,79,HDJ7#;HZJ79..GCC,GEN;HZJ79..ARL..IV W(FUEL SUB TANK),SUB TANK |
2 | ||
| 77602-60100 |
HZJ78..STD;FZJ78..GCC;HZJ79..GCC,GEN;FZJ78..RHD..GEN;FZJ79,HDJ78..CBU;HDJ79,HZJ79..ARL..IV MAIN TANK, LH,LH |
1 | ||
| 77601-60261 |
FZJ78..GCC;HDJ79,HZJ79;FZJ78..RHD..GEN;FZJ79,HDJ78,HZJ78..CBU SUB TANK |
2 | ||
| 77611A - PIN (FOR FUEL TANK BAND) | ||||
| 90249-14002 |
FZJ75..CBR;HZJ78..ARL,GEN;HZJ75..LHD..CBU;FZJ75,HZJ75..RHD..(DSL,EFI);FJ75,FZJ78,79,HDJ7#,HJ75,HZJ79,PZJ75 W(FUEL SUB TANK) |
2 | ||
| 90240-10011 |
FZJ75..CBR;HZJ78..ARL,GEN;HZJ75..LHD..CBU;FZJ75,HZJ75..RHD..(DSL,EFI);FJ75,FZJ78,79,HDJ7#,HJ75,HZJ79,PZJ75 |
2 | ||
| 90249-14002 |
HZJ78..STD;FZJ78..GCC;HZJ79..GCC,GEN;FZJ78..RHD..GEN;FZJ79,HDJ78..CBU;HDJ79,HZJ79..ARL..IV SUB TANK |
2 | ||
| 90240-10011 |
HZJ78..STD;FZJ78..GCC;HZJ79..GCC,GEN;FZJ78..RHD..GEN;FZJ79,HDJ78..CBU;HDJ79,HZJ79..ARL..IV |
2 | ||
| 77631 - BRACKET, FUEL TANK, NO.1 | ||||
| 77616-60080 |
HZJ78..STD;FZJ78..GCC;HZJ79..GCC,GEN;FZJ78..RHD..GEN;FZJ79,HDJ78..CBU;HDJ79,HZJ79..ARL..IV |
2 | ||
| 77632 - BRACKET, FUEL TANK, NO.2 | ||||
| 77615-60050 |
HZJ78..STD;FZJ78..GCC;HZJ79..GCC,GEN;FZJ78..RHD..GEN;FZJ79,HDJ78..CBU;HDJ79,HZJ79..ARL..IV |
2 | ||
| 77701T - VALVE, CHECK (FOR MAIN FUEL TANK) | ||||
| 90917-10020 |
HZJ70..ARL;HZJ75..RHD;HZJ75..LHD..STD..CBU;FJ75,HDJ7#,HZJ73,79,LJ70,PZJ70,73;FZJ70,73,75,HZJ78..(ARL,GEN,SA)..(CBR,DSL);FJ70,73,FZJ71,74,78,79,HJ75,HZJ71,LJ72,77,79,PZJ75,RJ7#..GEN,SA |
1 | ||
| 90917-10020 |
HZJ78..STD;HZJ79..GCC,GEN;HZJ79..ARL..IV;FZJ78..RHD..GEN;FZJ71,HDJ7#..RHD;FZJ74,79,HZJ71..GEN..CBU |
1 | ||
| Common parts | ||||
| 90119-06347 | ||||
| 90119-10153 | ||||
| 90159-40155 | ||||
| 90159-50219 | ||||
| 90179-05042 | ||||
| 90405-06008 | ||||
| 90445-12229 | ||||
| 90460-65002 | ||||
| 90461-12373 | ||||
| 90467-20134 | ||||
| 90468-14017 | ||||
| 90468-14022 | ||||
| 90480-01303 | ||||
| 90949-01182 | ||||
| 91611-61020 | ||||
| 91611-B0816 | ||||
| 91626-B0818 | ||||
| 93383-15014 | ||||
| 93383-16014 | ||||
| 94130-60800 | ||||
| 94612-10800 | ||||
| 96132-30600 | ||||
| 96132-51100 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 3 OF 5(0701-1208)VDJ78,79
FUEL TUBE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90467-18008 | ||||
| 91611-B0816 | ||||
| 91641-K0816 | ||||
| 91674-80820 | ||||
| 96132-41500 | ||||
| Linked diagrams | ||||
| 2202 | ||||
| 2302 | ||||
ILLUST NO. 3 OF 5(0701-0907)FZJ78,79
FUEL TUBE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90401-12097 | ||||
| 90461-10651 | ||||
| 90464-00698 | ||||
| 90464-00725 | ||||
| 90464-00744 | ||||
| 90904-30012 | ||||
| 91611-60835 | ||||
| 91641-K0816 | ||||
| 91673-80816 | ||||
| 91674-80820 | ||||
| 96132-51100 | ||||
| Linked diagrams | ||||
| 2202 | ||||
ILLUST NO. 3 OF 5(0701-0907)FZJ78,79
FUEL TUBE, W(FUEL SUB TANK)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-08862 | ||||
| 90401-12097 | ||||
| 90461-10651 | ||||
| 90461-10750 | ||||
| 90461-12407 | ||||
| 90464-00554 | ||||
| 90464-00698 | ||||
| 90464-00725 | ||||
| 90464-00744 | ||||
| 90904-30012 | ||||
| 91611-60835 | ||||
| 91641-K0816 | ||||
| 91673-80816 | ||||
| 91674-80820 | ||||
| 96132-51100 | ||||
| 96132-51300 | ||||
| Linked diagrams | ||||
| 2202 | ||||
ILLUST NO. 1 OF 5(0701-0907)FZJ78,79
FUEL TANK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-06195 | ||||
| 90119-06347 | ||||
| 90119-06621 | ||||
| 90119-10153 | ||||
| 90159-50219 | ||||
| 90179-05042 | ||||
| 90460-65002 | ||||
| 90467-20134 | ||||
| 90468-14017 | ||||
| 91612-B1020 | ||||
| 91626-B0818 | ||||
| 91651-61022 | ||||
| 93319-A4010 | ||||
| 93383-15014 | ||||
| 96132-51100 | ||||
| 96135-51100 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 1 OF 5(0701-1608)VDJ78,79..HT,PIC..ARL ; (0701- )DCB..IV ; (0701- )HZJ78,79,VDJ78,7
FUEL TANK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-06195 | ||||
| 90119-06621 | ||||
| 90119-10153 | ||||
| 90159-50219 | ||||
| 90179-05042 | ||||
| 90460-65002 | ||||
| 90467-20134 | ||||
| 90468-14017 | ||||
| 91612-B1020 | ||||
| 91626-B0818 | ||||
| 91651-61022 | ||||
| 93319-A4010 | ||||
| 93383-15014 | ||||
| 96135-51100 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 2 OF 5(0701-0907)FZJ78,79
FUEL SUB TANK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-06621 | ||||
| 90119-06724 | ||||
| 90119-10153 | ||||
| 90119-10556 | ||||
| 90159-50219 | ||||
| 90460-65002 | ||||
| 90467-20134 | ||||
| 91626-B0818 | ||||
| 93319-A4010 | ||||
| 93383-15014 | ||||
| 94130-60800 | ||||
| 94612-10800 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 2 OF 5(0701-1608)VDJ78 ; (0701- )VDJ79 ; (0701-)HZJ78,79,VDJ78..HT,PIC..GCC,GEN ;
FUEL SUB TANK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-06195 | ||||
| 90119-06621 | ||||
| 90119-06724 | ||||
| 90119-10153 | ||||
| 90119-10556 | ||||
| 90159-50219 | ||||
| 90460-65002 | ||||
| 90467-20134 | ||||
| 91626-B0818 | ||||
| 93319-A4010 | ||||
| 93383-15014 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 3 OF 5(0701-1208)VDJ78,79
FUEL TUBE, W(FUEL SUB TANK)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82666-43040 | ||||
| 90119-10240 | ||||
| 90467-18008 | ||||
| 91611-B0816 | ||||
| 91616-40820 | ||||
| 91641-K0816 | ||||
| 91674-80820 | ||||
| 96132-41500 | ||||
| 96132-51300 | ||||
| Linked diagrams | ||||
| 2202 | ||||
| 2302 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
