HZJ79L-TJMRS3 (1999)
Toyota Land Cruiser

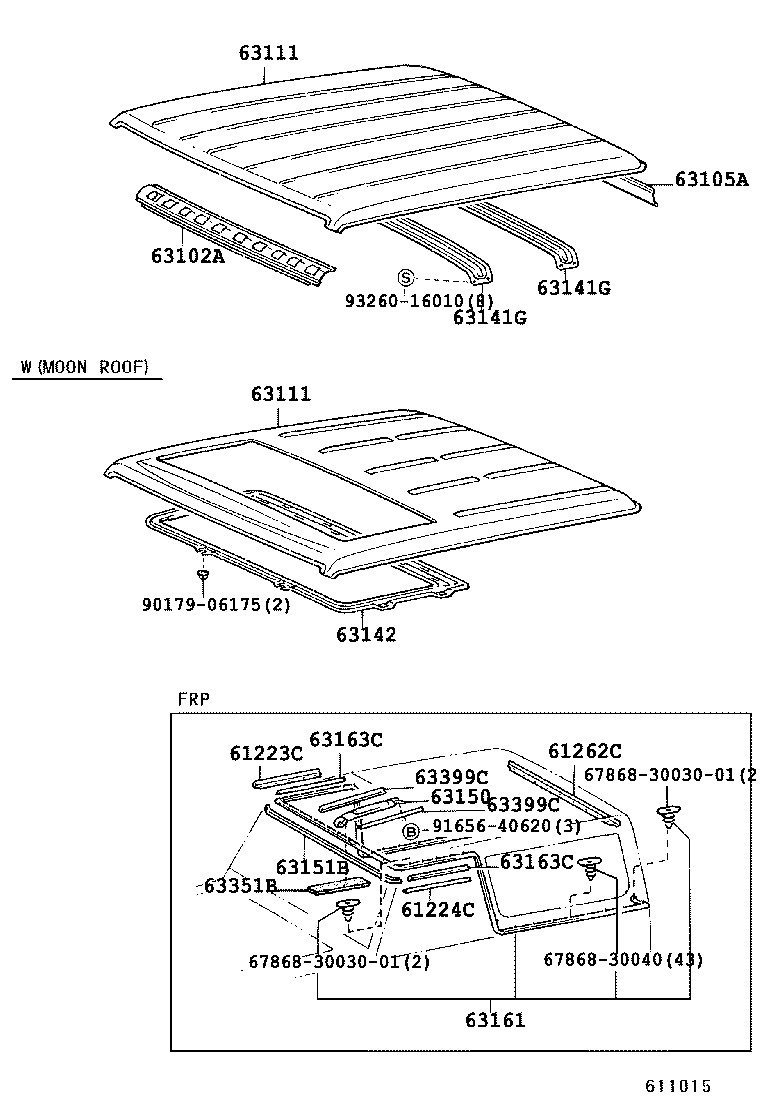

ILLUST NO. 1 OF 3(9001-0106)FZJ71..LHD..STD..GEN ; (9001-0106)FJ70,73,FZJ70,73,HZJ70,73,KZJ70,LJ70,7
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 61223C - CHANNEL, ROOF DRIP SIDE, RH | ||||
| 61223-60010 |
FZJ79..CBU;HZJ79..GCC,GEN;HDJ79,HZJ79..ARL..IV |
1 | ||
| 61224C - CHANNEL, ROOF DRIP SIDE, LH | ||||
| 61224-60010 |
FZJ79..CBU;HZJ79..GCC,GEN;HDJ79,HZJ79..ARL..IV |
1 | ||
| 61262C - CHANNEL, ROOF DRIP, REAR | ||||
| 61262-60050 |
FZJ79..CBU;HZJ79..GCC,GEN;HDJ79,HZJ79..ARL..IV |
1 | ||
| 63102A - PANEL SUB-ASSY, WINDSHIELD HEADER | ||||
| 63102-90K02 |
FZJ79,HZJ79;FZJ70,75..HT..CBR;FZJ70,75,HZJ70..ARL..CBU;FJ70,75,FZJ71,78,HZJ71,75,78,LJ7#,PZJ70,75,RJ7#..HT |
1 | ||
| 63102-90K02 |
HZJ78..STD;FZJ78..GCC;HZJ79..GCC,GEN;HZJ79..ARL..IV;FZJ71,78..RHD..GEN;FZJ71,HDJ79..ARL,GCC;FZJ79,HDJ78,HZJ71..(HT,PIC)..CBU |
1 | ||
| 63111 - PANEL, ROOF | ||||
| 63111-60470 |
FZJ79..CBU;HZJ79..GCC,GEN;HDJ79,HZJ79..ARL..IV |
1 | ||
| 63111 - PANEL, ROOF | ||||
| 63111-60470 |
FZJ79..CBU;HZJ79..GCC,GEN;HDJ79,HZJ79..ARL..IV |
1 | ||
| 63141G - REINFORCEMENT, ROOF PANEL, NO.1 | ||||
| 63141-60070 |
FZJ79..CBU;HZJ79..GCC,GEN;HDJ79,HZJ79..ARL..IV |
1 | ||
| 63141G - REINFORCEMENT, ROOF PANEL, NO.1 | ||||
| 63141-60070 |
FZJ79..CBU;HZJ79..GCC,GEN;HDJ79,HZJ79..ARL..IV |
1 | ||
| Common parts | ||||
| 67868-3003001 | ||||
| 67868-30040 | ||||
| 90179-06175 | ||||
| 91656-40620 | ||||
| 93260-16010 | ||||

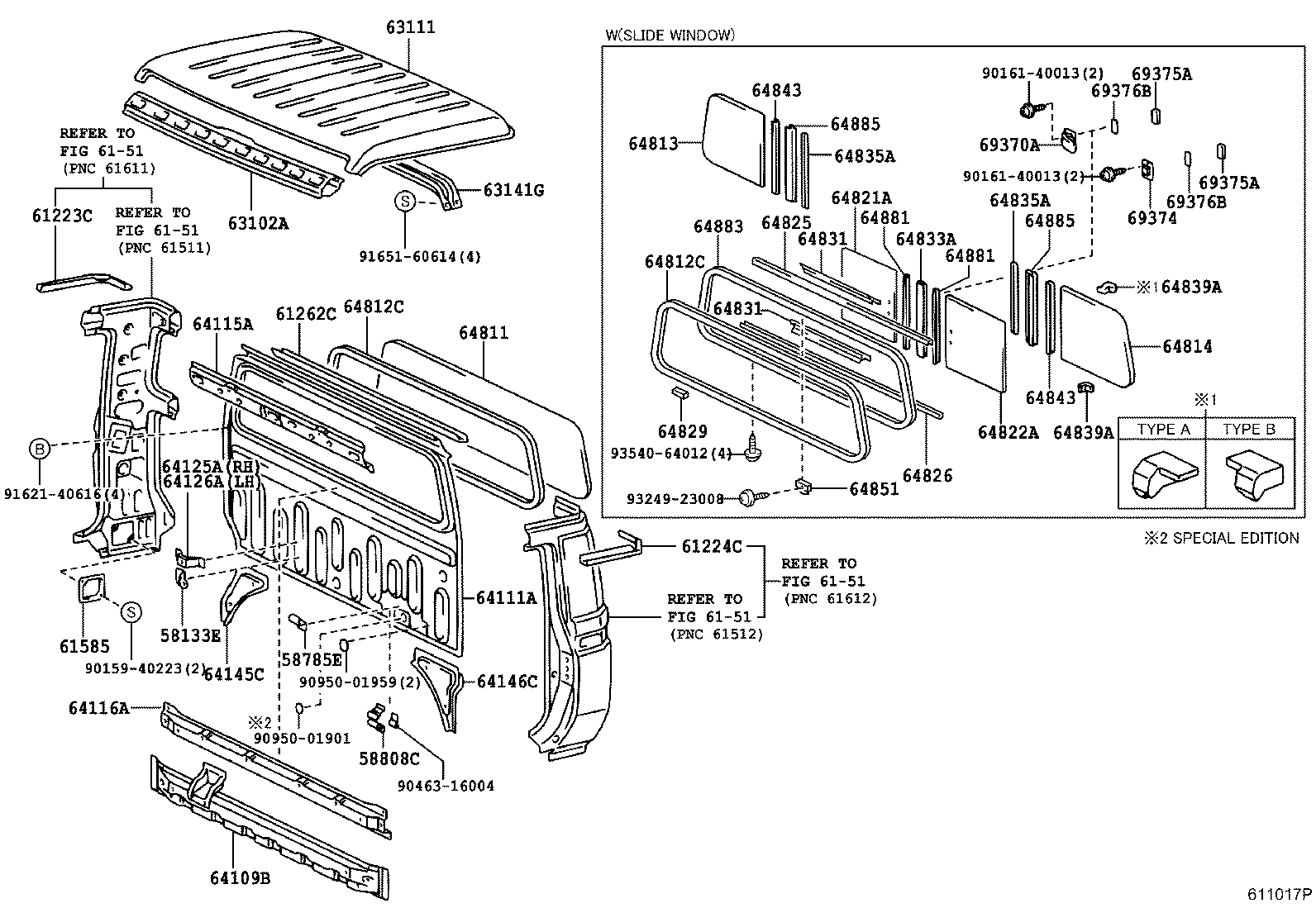

(9908- )FZJ79,HDJ79,HZJ79
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58133E - BRACKET, FRONT FLOOR HEAT INSULATOR, NO.3 | ||||
| 58133-90A01 |
FZJ79..CBU;HZJ79..GCC,GEN;HDJ79,HZJ79..ARL..IV |
2 | ||
| 58785E - BRACKET, TOOL BAG BAND | ||||
| 58785-90A00 |
FZJ79..CBU;HZJ79..GCC,GEN;HDJ79,HZJ79..ARL..IV |
1 | ||
| 58808C - SPRING SUB-ASSY, JUCK HANDLE | ||||
| 58808-90301 |
FZJ79..CBU;HZJ79..GCC,GEN;HDJ79,HZJ79..ARL..IV |
2 | ||
| 61223C - CHANNEL, ROOF DRIP SIDE, RH | ||||
| 61223-60010 |
FZJ79..CBU;HZJ79..GCC,GEN;HDJ79,HZJ79..ARL..IV |
1 | ||
| 61224C - CHANNEL, ROOF DRIP SIDE, LH | ||||
| 61224-60010 |
FZJ79..CBU;HZJ79..GCC,GEN;HDJ79,HZJ79..ARL..IV |
1 | ||
| 61262C - CHANNEL, ROOF DRIP, REAR | ||||
| 61262-60050 |
FZJ79..CBU;HZJ79..GCC,GEN;HDJ79,HZJ79..ARL..IV |
1 | ||
| 61585 - LID, QUARTER HOLE, NO.1 | ||||
| 61585-90K00 |
FZJ79..CBU;HZJ79..GCC,GEN;HDJ79,HZJ79..ARL..IV |
1 | ||
| 63102A - PANEL SUB-ASSY, WINDSHIELD HEADER | ||||
| 63102-90K02 |
FZJ79,HZJ79;FZJ70,75..HT..CBR;FZJ70,75,HZJ70..ARL..CBU;FJ70,75,FZJ71,78,HZJ71,75,78,LJ7#,PZJ70,75,RJ7#..HT |
1 | ||
| 63102-90K02 |
HZJ78..STD;FZJ78..GCC;HZJ79..GCC,GEN;HZJ79..ARL..IV;FZJ71,78..RHD..GEN;FZJ71,HDJ79..ARL,GCC;FZJ79,HDJ78,HZJ71..(HT,PIC)..CBU |
1 | ||
| 63111 - PANEL, ROOF | ||||
| 63111-60470 |
FZJ79..CBU;HZJ79..GCC,GEN;HDJ79,HZJ79..ARL..IV |
1 | ||
| 63141G - REINFORCEMENT, ROOF PANEL, NO.1 | ||||
| 63141-60070 |
FZJ79..CBU;HZJ79..GCC,GEN;HDJ79,HZJ79..ARL..IV |
1 | ||
| 64109B - REINFORCEMENT SUB-ASSY, CAB BACK, LOWER | ||||
| 64109-60020 |
FZJ79..CBU;HZJ79..GCC,GEN;HDJ79,HZJ79..ARL..IV |
1 | ||
| 64111A - PANEL, BACK | ||||
| 64111-60020 |
FZJ79..CBU;HZJ79..GCC,GEN;HDJ79,HZJ79..ARL..IV |
1 | ||
| 64115A - REINFORCEMENT, BACK, UPPER | ||||
| 64115-60020 |
FZJ79..CBU;HZJ79..GCC,GEN;HDJ79,HZJ79..ARL..IV |
1 | ||
| 64116A - REINFORCEMENT, BACK, LOWER | ||||
| 64116-60030 |
FZJ79..CBU;HZJ79..GCC,GEN;HDJ79,HZJ79..ARL..IV |
1 | ||
| 64125A - BRACKET, UPPER BACK PANEL, RH | ||||
| 64125-60010 |
FZJ79..CBU;HZJ79..GCC,GEN;HDJ79,HZJ79..ARL..IV |
1 | ||
| 64126A - BRACKET, UPPER BACK PANEL, LH | ||||
| 64125-60010 |
FZJ79..CBU;HZJ79..GCC,GEN;HDJ79,HZJ79..ARL..IV |
1 | ||
| 64145C - GUSSET, BACK PANEL, RH | ||||
| 64145-60010 |
FZJ79..CBU;HZJ79..GCC,GEN;HDJ79,HZJ79..ARL..IV |
1 | ||
| 64146C - GUSSET, BACK PANEL, LH | ||||
| 64146-60010 |
FZJ79..CBU;HZJ79..GCC,GEN;HDJ79,HZJ79..ARL..IV |
1 | ||
| 64811 - GLASS, BACK WINDOW | ||||
| 64811-60010 |
HZJ79..GCC,GEN;FZJ79..STD..CBU;HDJ79,HZJ79..ARL..IV *TEM,T=3.5,GREEN |
1 | ||
| 64812C - WEATHERSTRIP, BACK WINDOW GLASS | ||||
| 64812-60010 |
FZJ79..CBU;HZJ79..GCC,GEN;HDJ79,HZJ79..ARL..IV |
1 | ||
| 64812C - WEATHERSTRIP, BACK WINDOW GLASS | ||||
| 64812-60010 |
FZJ79..CBU;HZJ79..GCC,GEN;HDJ79,HZJ79..ARL..IV |
1 | ||
| 64813 - GLASS, BACK WINDOW CORNER, RH | ||||
| 64813-60010 |
FZJ79,HZJ79..GCC,GEN;HDJ79,HZJ79..ARL..IV *TEM=3.5,GREEN |
1 | ||
| 64814 - GLASS, BACK WINDOW CORNER, LH | ||||
| 64814-60010 |
FZJ79,HZJ79..GCC,GEN;HDJ79,HZJ79..ARL..IV *TEM,T=3.5,GREEN |
1 | ||
| 64821A - GLASS, BACK WINDOW SLIDE, RH | ||||
| 64821-60010 |
FZJ79,HZJ79..GCC,GEN;HDJ79,HZJ79..ARL..IV *TEM,T=3.5,GREEN |
1 | ||
| 64822A - GLASS, BACK WINDOW SLIDE, LH | ||||
| 64822-60010 |
FZJ79,HZJ79..GCC,GEN;HDJ79,HZJ79..ARL..IV *TEM,T=3.5,GREEN |
1 | ||
| 64825 - RUN, BACK WINDOW CHANNEL, UPPER | ||||
| 64825-60010 |
FZJ79,HZJ79..GCC,GEN;HDJ79,HZJ79..ARL..IV |
1 | ||
| 64826 - RUN, BACK WINDOW CHANNEL, LOWER | ||||
| 64826-60010 |
FZJ79,HZJ79..GCC,GEN;HDJ79,HZJ79..ARL..IV |
1 | ||
| 64829 - FILM, BACK WINDOW FRAME | ||||
| 64829-90K00 |
FZJ79,HZJ79..GCC,GEN;HDJ79,HZJ79..ARL..IV |
6 | ||
| 64831 - WEATHERSTRIP, BACK WINDOW GLASS | ||||
| 64831-60010 |
FZJ79,HZJ79..GCC,GEN;HDJ79,HZJ79..ARL..IV |
2 | ||
| 64831 - WEATHERSTRIP, BACK WINDOW GLASS | ||||
| 64831-60010 |
FZJ79,HZJ79..GCC,GEN;HDJ79,HZJ79..ARL..IV |
2 | ||
| 64833A - WEATHERSTRIP, BACK WINDOW CENTER CHANNEL | ||||
| 64833-90K00 |
FZJ79,HZJ79..GCC,GEN;HDJ79,HZJ79..ARL..IV |
1 | ||
| 64835A - WEATHERSTRIP, BACK WINDOW GLASS, CENTER | ||||
| 64835-90K00 |
FZJ79,HZJ79..GCC,GEN;HDJ79,HZJ79..ARL..IV |
2 | ||
| 64835A - WEATHERSTRIP, BACK WINDOW GLASS, CENTER | ||||
| 64835-90K00 |
FZJ79,HZJ79..GCC,GEN;HDJ79,HZJ79..ARL..IV |
2 | ||
| 64839A - PACKING, BACK WINDOW | ||||
| 64839-89104 |
FZJ79,HZJ79..GCC,GEN;HDJ79,HZJ79..ARL..IV TYPE B:REFER TO ILLUSTRATION,UPPER |
1 | ||
| 64839-89103 |
FZJ79,HZJ79..GCC,GEN;HDJ79,HZJ79..ARL..IV TYPE A:REFER TO ILLUSTRATION,UPPER |
1 | ||
| 64839-89102 |
FZJ79,HZJ79..GCC,GEN;HDJ79,HZJ79..ARL..IV LOWER |
2 | ||
| 64839A - PACKING, BACK WINDOW | ||||
| 64839-89104 |
FZJ79,HZJ79..GCC,GEN;HDJ79,HZJ79..ARL..IV TYPE B:REFER TO ILLUSTRATION,UPPER |
1 | ||
| 64839-89103 |
FZJ79,HZJ79..GCC,GEN;HDJ79,HZJ79..ARL..IV TYPE A:REFER TO ILLUSTRATION,UPPER |
1 | ||
| 64839-89102 |
FZJ79,HZJ79..GCC,GEN;HDJ79,HZJ79..ARL..IV LOWER |
2 | ||
| 64843 - WEATHERSTRIP, BACK WINDOW CHANNEL | ||||
| 64843-90K00 |
FZJ79,HZJ79..GCC,GEN;HDJ79,HZJ79..ARL..IV |
2 | ||
| 64843 - WEATHERSTRIP, BACK WINDOW CHANNEL | ||||
| 64843-90K00 |
FZJ79,HZJ79..GCC,GEN;HDJ79,HZJ79..ARL..IV |
2 | ||
| 64851 - STOP, BACK WINDOW SLIDE GLASS | ||||
| 64851-95400 |
FZJ79,HZJ79..GCC,GEN;HDJ79,HZJ79..ARL..IV |
1 | ||
| 64881 - CHANNEL, BACK WINDOW GLASS | ||||
| 64881-90K00 |
FZJ79,HZJ79..GCC,GEN;HDJ79,HZJ79..ARL..IV LH |
1 | ||
| 64881-90K01 |
FZJ79,HZJ79..GCC,GEN;HDJ79,HZJ79..ARL..IV RH |
1 | ||
| 64881 - CHANNEL, BACK WINDOW GLASS | ||||
| 64881-90K00 |
FZJ79,HZJ79..GCC,GEN;HDJ79,HZJ79..ARL..IV LH |
1 | ||
| 64881-90K01 |
FZJ79,HZJ79..GCC,GEN;HDJ79,HZJ79..ARL..IV RH |
1 | ||
| 64883 - FRAME, BACK WINDOW | ||||
| 64883-90K00 |
FZJ79,HZJ79..GCC,GEN;HDJ79,HZJ79..ARL..IV |
1 | ||
| 64885 - FRAME, BACK WINDOW VERTICAL | ||||
| 64885-90K00 |
FZJ79,HZJ79..GCC,GEN;HDJ79,HZJ79..ARL..IV |
2 | ||
| 64885 - FRAME, BACK WINDOW VERTICAL | ||||
| 64885-90K00 |
FZJ79,HZJ79..GCC,GEN;HDJ79,HZJ79..ARL..IV |
2 | ||
| 69370A - LOCK ASSY, BACK WINDOW | ||||
| 69370-89102 |
FZJ79,HZJ79..GCC,GEN;HDJ79,HZJ79..ARL..IV |
1 | ||
| 69374 - CATCH, BACK WINDOW LOCK | ||||
| 69374-89102 |
FZJ79,HZJ79..GCC,GEN;HDJ79,HZJ79..ARL..IV |
1 | ||
| 69375A - RETAINER, BACK WINDOW LOCK | ||||
| 69375-89102 |
FZJ79,HZJ79..GCC,GEN;HDJ79,HZJ79..ARL..IV |
2 | ||
| 69375A - RETAINER, BACK WINDOW LOCK | ||||
| 69375-89102 |
FZJ79,HZJ79..GCC,GEN;HDJ79,HZJ79..ARL..IV |
2 | ||
| 69376B - PACKING, BACK WINDOW LOCK | ||||
| 69376-89102 |
FZJ79,HZJ79..GCC,GEN;HDJ79,HZJ79..ARL..IV |
2 | ||
| 69376B - PACKING, BACK WINDOW LOCK | ||||
| 69376-89102 |
FZJ79,HZJ79..GCC,GEN;HDJ79,HZJ79..ARL..IV |
2 | ||
| Common parts | ||||
| 90159-40223 | ||||
| 90161-40013 | ||||
| 90333-20001 | ||||
| 90463-16004 | ||||
| 90950-01959 | ||||
| 91651-40616 | ||||
| 91651-60614 | ||||
| 93249-23008 | ||||
| 93540-64012 | ||||
| Linked diagrams | ||||
| 6151 | ||||
(0701-1608)VDJ79..PIC..IV ; (0701- )PIC..GCC,GEN
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90159-40223 | ||||
| 90161-40013 | ||||
| 90463-16004 | ||||
| 90950-01901 | ||||
| 90950-01959 | ||||
| 91621-40616 | ||||
| 91651-60614 | ||||
| 93249-23008 | ||||
| 93540-64012 | ||||
| Linked diagrams | ||||
| 6151 | ||||
