HZJ79L-TJMRS3 (1999)
Toyota Land Cruiser

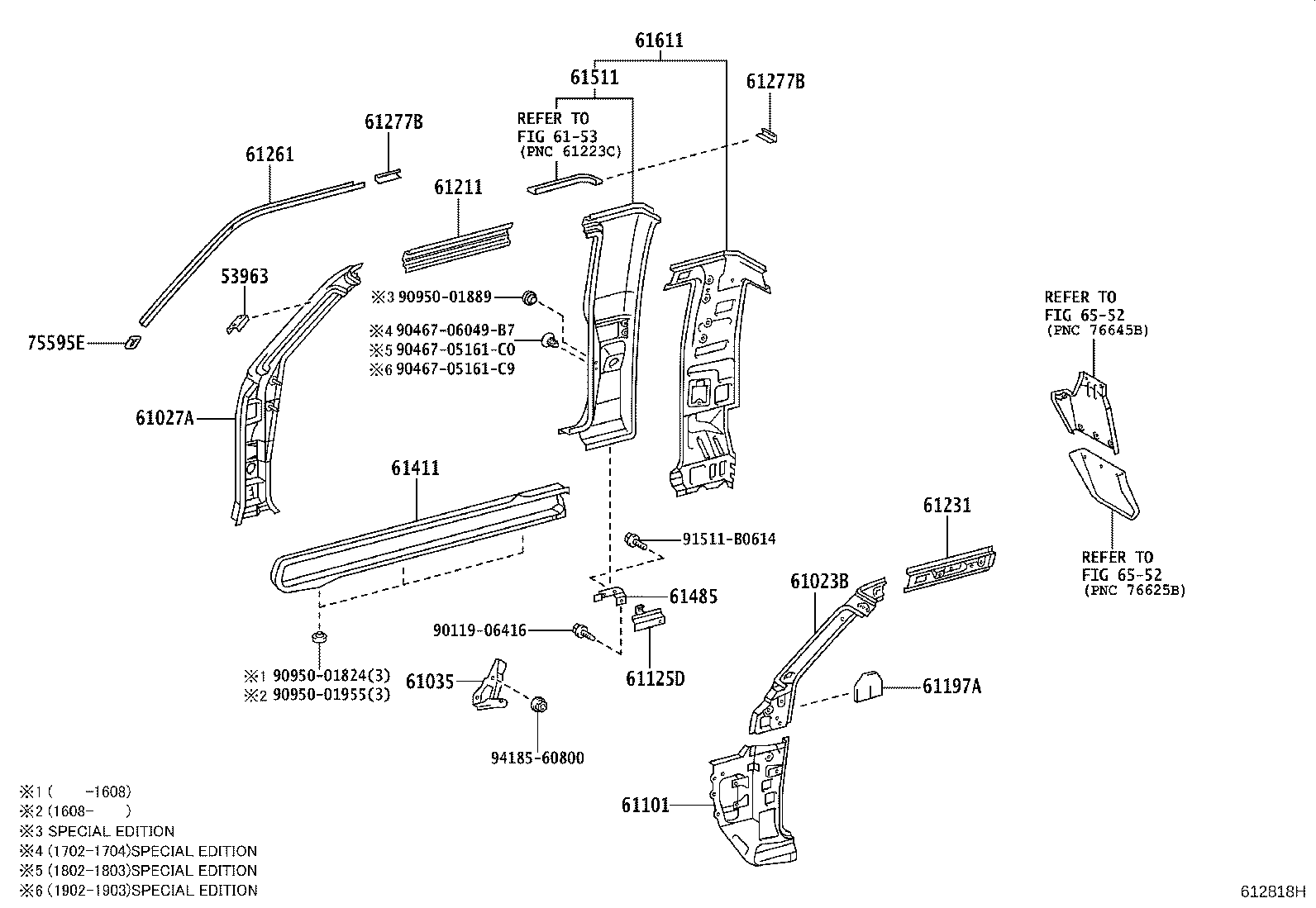

ILLUST NO. 1 OF 2(9908- )FZJ79,HDJ79,HZJ79
RH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 61023B - PILLAR SUB-ASSY, FRONT BODY, INNER RH | ||||
| 61023-60070 |
FZJ79..CBU;HZJ79..GCC,GEN;HDJ79,HZJ79..ARL..IV |
1 | ||
| 61027A - PILLAR SUB-ASSY, FRONT BODY, OUTER RH | ||||
| 61027-60011 |
FZJ71..RHD;HZJ79..GCC,GEN;HZJ79..ARL..IV;FZJ71,HDJ79..ARL,GCC;FZJ79,HZJ71..(HT,PIC)..CBU |
1 | ||
| 61027-60071 |
FZJ71..RHD;HZJ79..GCC,GEN;HZJ79..ARL..IV;FZJ71,HDJ79..ARL,GCC;FZJ79,HZJ71..(HT,PIC)..CBU W(SCHNORKEL AIR CLEANER) |
1 | ||
| 61035 - BRACKET SUB-ASSY, INSTRUMENT PANEL TO COWL SIDE, RH | ||||
| 61165-90K01 |
FJ7#,FZJ7#,HJ75,HZJ7#,LJ7#,PZJ7#,RJ7# |
1 | ||
| 61165-90K01 |
HZJ78..STD;FZJ78..GCC;HZJ79..GCC,GEN;HZJ79..ARL..IV;FZJ71,78..RHD..GEN;FZJ71,HDJ79..ARL,GCC;FZJ74,79,HDJ78,HZJ71..CBU |
1 | ||
| 61101 - PANEL SUB-ASSY, COWL SIDE, RH | ||||
| 61101-90K14 |
HZJ75..LHD..CBU;HZJ78..LHD..GEN;FZJ70,73,75..LHD..CBR;FJ7#,FZJ71,74,78,79,HZJ71,79,LJ7#,PZJ70,75,RJ7#..LHD |
1 | ||
| 61101-90K14 |
FZJ71,78..GCC;FZJ79..LHD..CBU;FZJ74,HZJ71,78,79..LHD |
1 | ||
| 61125D - GUSSET, SIDE PANEL | ||||
| 61125-60010 |
HZJ78..STD;FZJ78..GCC;HZJ79..GCC,GEN;FZJ78..RHD..GEN;FZJ79,HDJ78..CBU;HDJ79,HZJ79..ARL..IV |
1 | ||
| 61197A - COVER, FRONT PILLAR, RH | ||||
| 61197-90K00 |
HZJ78..STD;FZJ78..GCC;HZJ79..GCC,GEN;HZJ79..ARL..IV;FZJ71,78..RHD..GEN;FZJ71,HDJ79..ARL,GCC;FZJ74,79,HDJ78,HZJ71..CBU |
1 | ||
| 61211 - RAIL, ROOF SIDE, OUTER RH | ||||
| 61211-90K00 |
FZJ71..RHD;HZJ79..GCC,GEN;HZJ79..ARL..IV;FZJ71,HDJ79..ARL,GCC;FZJ79,HZJ71..(HT,PIC)..CBU |
1 | ||
| 61231 - RAIL, ROOF SIDE, INNER RH | ||||
| 61231-90K00 |
FZJ71..RHD;HZJ79..GCC,GEN;HZJ79..ARL..IV;FZJ71,HDJ79..ARL,GCC;FZJ79,HZJ71..(HT,PIC)..CBU |
1 | ||
| 61261 - CHANNEL, ROOF DRIP, RH | ||||
| 61263-60020 |
FZJ71..RHD;HZJ79..GCC,GEN;HZJ79..ARL..IV;FZJ71,HDJ79..ARL,GCC;FZJ79,HZJ71..(HT,PIC)..CBU |
1 | ||
| 61277B - JOINT, ROOF DRIP CHANNEL | ||||
| 61277-90K00 |
FZJ71,78..GCC;HZJ79..GCC,GEN;HZJ79..ARL..IV;FZJ79..STD..CBU;FZJ71,78..RHD..GEN;HDJ7#,HZJ71,78..(HT,PIC)..STD |
4 | ||
| 61411 - PANEL, ROCKER, OUTER RH | ||||
| 61401-90K02 |
FZJ74,79..CBU;HZJ79..GCC,GEN;HDJ79,HZJ79..ARL..IV |
1 | ||
| 61485 - PLATE, LOWER RAIL | ||||
| 61485-60020 |
FZJ79..CBU;HZJ79..GCC,GEN;HDJ79,HZJ79..ARL..IV |
1 | ||
| 61511 - PILLAR, QUARTER LOCK, RH | ||||
| 61501-60030 |
FZJ79..CBU;HZJ79..GCC,GEN;HDJ79,HZJ79..ARL..IV |
1 | ||
| 61611 - PANEL, QUARTER, RH | ||||
| 61601-6B630 |
FZJ79..CBU;HZJ79..GCC,GEN;HDJ79,HZJ79..ARL..IV |
1 | ||
| 75595E - COVER, ROOF DRIP SIDE MOULDING END, FRONT RH | ||||
| 75595-95J00 |
FZJ71,78..GCC;HZJ79..GCC,GEN;HZJ79..ARL..IV;FZJ79..STD..CBU;FZJ71,78..RHD..GEN;HDJ7#,HZJ71,78..(HT,PIC)..STD |
1 | ||
| Common parts | ||||
| 90119-06416 | ||||
| 90467-06049B7 | ||||
| 90950-01368 | ||||
| 90950-01824 | ||||
| 91511-B0614 | ||||
| 94185-60800 | ||||
| Linked diagrams | ||||
| 6153 | ||||
| 6552 | ||||

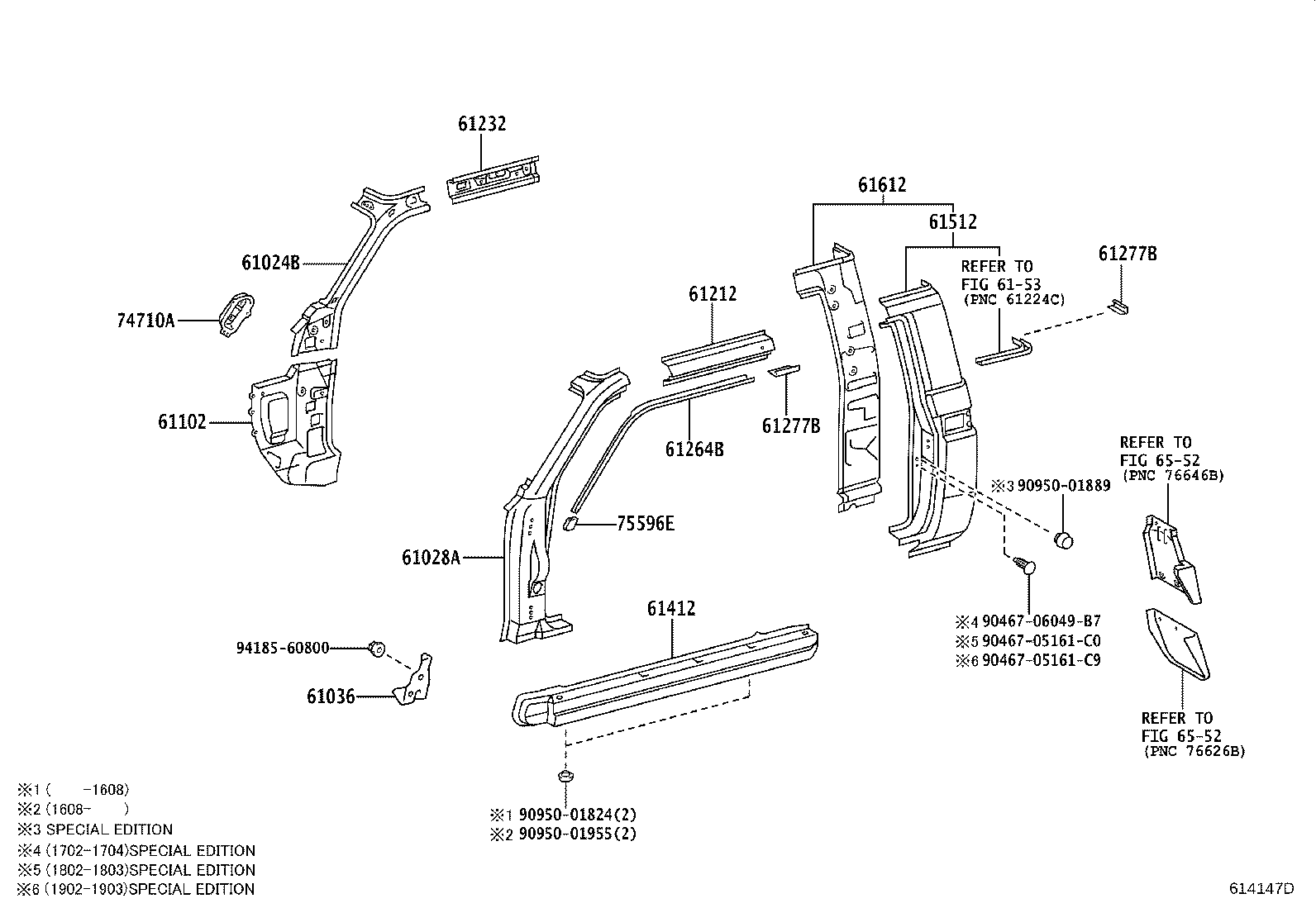

ILLUST NO. 1 OF 2(9908- )FZJ79,HDJ79,HZJ79
LH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 61024B - PILLAR SUB-ASSY, FRONT BODY, INNER LH | ||||
| 61024-60070 |
FZJ79..CBU;HZJ79..GCC,GEN;HDJ79,HZJ79..ARL..IV |
1 | ||
| 61028A - PILLAR SUB-ASSY, FRONT BODY, OUTER LH | ||||
| 61028-60011 |
FZJ71..RHD;HZJ79..GCC,GEN;HZJ79..ARL..IV;FZJ71,HDJ79..ARL,GCC;FZJ79,HZJ71..(HT,PIC)..CBU |
1 | ||
| 61036 - BRACKET SUB-ASSY, INSTRUMENT PANEL TO COWL SIDE, LH | ||||
| 61166-90K01 |
FJ7#,FZJ7#,HJ75,HZJ7#,LJ7#,PZJ7#,RJ7# |
1 | ||
| 61166-90K01 |
HZJ78..STD;FZJ78..GCC;HZJ79..GCC,GEN;HZJ79..ARL..IV;FZJ71,78..RHD..GEN;FZJ71,HDJ79..ARL,GCC;FZJ74,79,HDJ78,HZJ71..CBU |
1 | ||
| 61102 - PANEL SUB-ASSY, COWL SIDE, LH | ||||
| 61102-90K23 |
FJ7#,HZJ75,LJ72,79,PZJ70,75,RJ7#..LHD..STD W(RADIO) |
1 | ||
| 61102-90K14 |
FJ7#,FZJ7#,HZJ75,LJ72,79,PZJ70,75,RJ7#..LHD..STD |
1 | ||
| 61102-60160 |
FZJ71,78..GCC;FZJ79..LHD..STD..CBU;FZJ74,HZJ71,78,79..LHD..STD |
1 | ||
| 61102-60170 |
FZJ71,78..GCC;FZJ79..LHD..CBU;FZJ74,HZJ71,78,79..LHD W(RADIO) |
1 | ||
| 61212 - RAIL, ROOF SIDE, OUTER LH | ||||
| 61212-90K00 |
FZJ71..RHD;HZJ79..GCC,GEN;HZJ79..ARL..IV;FZJ71,HDJ79..ARL,GCC;FZJ79,HZJ71..(HT,PIC)..CBU |
1 | ||
| 61232 - RAIL, ROOF SIDE, INNER LH | ||||
| 61232-90K00 |
FZJ71..RHD;HZJ79..GCC,GEN;HZJ79..ARL..IV;FZJ71,HDJ79..ARL,GCC;FZJ79,HZJ71..(HT,PIC)..CBU |
1 | ||
| 61264B - CHANNEL, ROOF DRIP SIDE, FRONT LH | ||||
| 61264-60020 |
FZJ71..RHD;HZJ79..GCC,GEN;HZJ79..ARL..IV;FZJ71,HDJ79..ARL,GCC;FZJ79,HZJ71..(HT,PIC)..CBU |
1 | ||
| 61277B - JOINT, ROOF DRIP CHANNEL | ||||
| 61277-90K00 |
FZJ71,78..GCC;HZJ79..GCC,GEN;HZJ79..ARL..IV;FZJ79..STD..CBU;FZJ71,78..RHD..GEN;HDJ7#,HZJ71,78..(HT,PIC)..STD |
4 | ||
| 61412 - PANEL, ROCKER, OUTER LH | ||||
| 61402-90K02 |
FZJ74,79..CBU;HZJ79..GCC,GEN;HDJ79,HZJ79..ARL..IV |
1 | ||
| 61512 - PILLAR, QUARTER LOCK, LH | ||||
| 61502-60030 |
HZJ79..GEN;FZJ79..GEN..CBU;HDJ79,HZJ79..ARL..IV |
1 | ||
| 61612 - PANEL, QUARTER, LH | ||||
| 61602-6A740 |
HZJ79..GEN;FZJ79..GEN..CBU;HDJ79,HZJ79..ARL..IV |
1 | ||
| 74710A - BRACKET, EXTINGUISHER | ||||
| 74712-90K00 |
FZJ71,74,78,79,HZJ71,78,79..LHD |
1 | ||
| 75596E - COVER, ROOF DRIP SIDE MOULDING END, FRONT LH | ||||
| 75596-95J00 |
FZJ71,78..GCC;HZJ79..GCC,GEN;HZJ79..ARL..IV;FZJ79..STD..CBU;FZJ71,78..RHD..GEN;HDJ7#,HZJ71,78..(HT,PIC)..STD |
1 | ||
| Common parts | ||||
| 90950-01398 | ||||
| 90950-01826 | ||||
| 94185-60800 | ||||
| Linked diagrams | ||||
| 6153 | ||||
| 6552 | ||||
(0701-1608)VDJ79..PIC..IV ; (0701- )PIC..GCC,GEN
RH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-06416 | ||||
| 90467-05161C0 | ||||
| 90467-05161C9 | ||||
| 90467-06049B7 | ||||
| 90950-01824 | ||||
| 90950-01889 | ||||
| 90950-01955 | ||||
| 91511-B0614 | ||||
| 94185-60800 | ||||
| Linked diagrams | ||||
| 6153 | ||||
| 6552 | ||||
(0701-1608)VDJ79..PIC..IV ; (0701- )PIC..GCC,GEN
LH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90467-05161C0 | ||||
| 90467-05161C9 | ||||
| 90467-06049B7 | ||||
| 90950-01824 | ||||
| 90950-01889 | ||||
| 90950-01955 | ||||
| 94185-60800 | ||||
| Linked diagrams | ||||
| 6153 | ||||
| 6552 | ||||
