HZJ79L-TJMRS3 (1999)

Toyota Land Cruiser

Production Aug 1999 - Jan 2007
Engine 1HZ
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

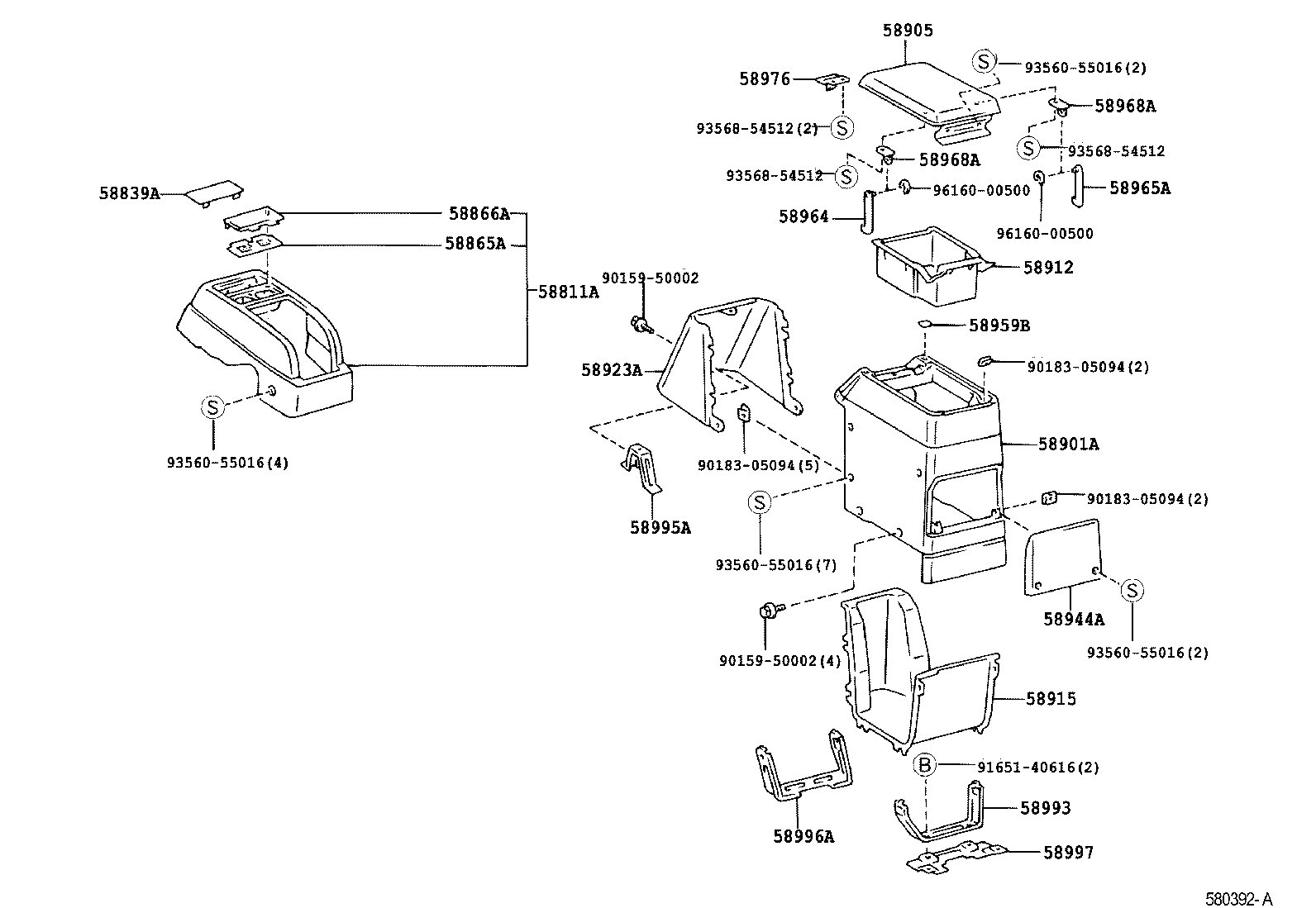

ILLUST NO. 1 OF 2(9001-0907)HZJ78 ; (9001-0907)FJ7#,FZJ70,71,73,74,75,78,HJ75,HZJ70,71,73,75,KZJ7#,L

Click highlighted areas on diagram

diagram 58811A 58839A 58865A 58866A 58901A 58905 58912 58915 58923A 58944A 58959B 58964 58965A 58968A 58968A 58976 58993 58995A 58996A 58997 9015950002 9015950002 9018305094 9018305094 9018305094 9165140616 9356055016 9356055016 9356055016 9356055016 9356854512 9356854512 9356854512 9616000500 9616000500
Part # Description Qty Price
58901A - BOX SUB-ASSY, CONSOLE, REAR
58911-60110B1

FZJ79..CBU;HZJ79..GCC,GEN;HDJ79,HZJ79..ARL..IV

LT.GRAY,TRIM1#,4#

 1
Common parts
90159-50002
90183-05094
91651-40616
93560-55016
93568-54512
96160-00500

ILLUST NO. 3 OF 3(9908- )FZJ79,HDJ79,HZJ79

Click highlighted areas on diagram

diagram 58901A 58921A 9167380616
Part # Description Qty Price
58901A - BOX SUB-ASSY, CONSOLE, REAR
58911-60110B1

FZJ79..CBU;HZJ79..GCC,GEN;HDJ79,HZJ79..ARL..IV

LT.GRAY,TRIM1#,4#

 1
58921A - PANEL, REAR CONSOLE, UPPER
58921-60020B1

FZJ79..CBU;HZJ79..GCC,GEN;HDJ79,HZJ79..ARL..IV

LT.GRAY,TRIM1#,4#

 2
Common parts
91673-80616
