HZJ79L-TJMRS3 (1999)
Toyota Land Cruiser

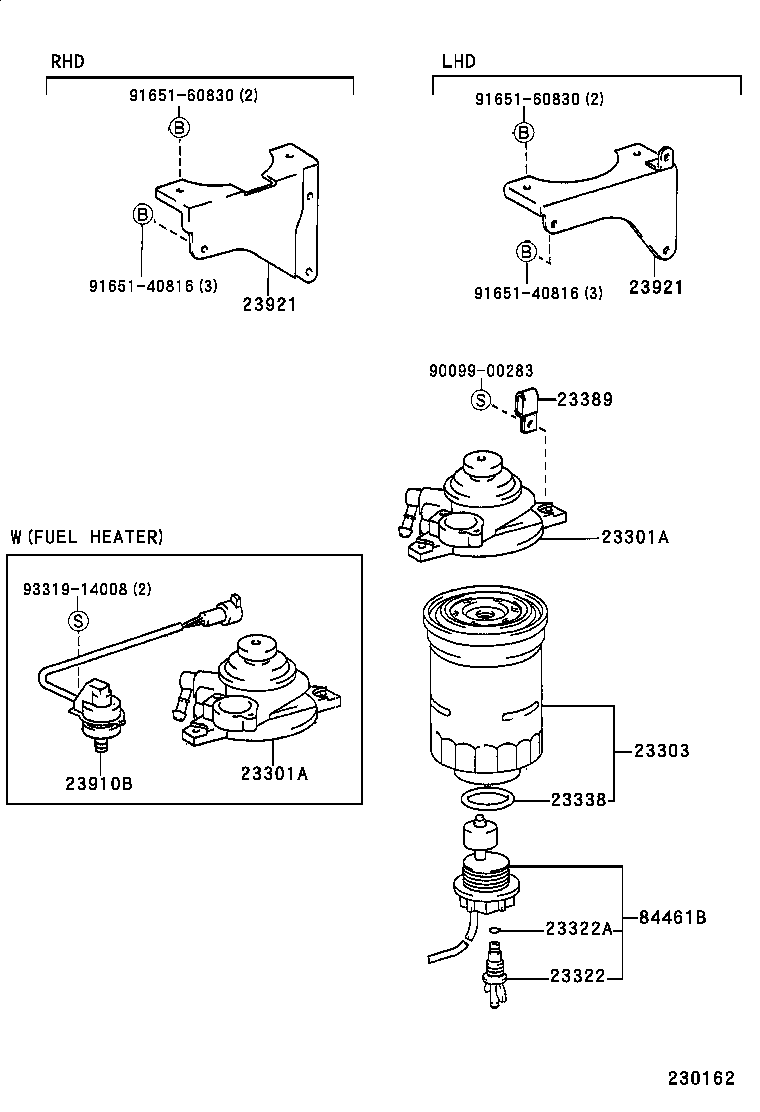

(9908-0701)1HZ..HZJ71,78,79
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23301A - CAP ASSY, FUEL FILTER | ||||
| 23380-17450 |
1HZ..HZJ71;1HZ..HZJ78,79..LHD..GEN W(PRE FILTER) |
1 | ||
| 23380-17470 |
1HZ..HZJ71,78,79..LHD |
1 | ||
| 23380-17480 |
1HZ..HZJ71,78,79..LHD..GEN W(FUEL HEATER) |
1 | ||
| 23301A - CAP ASSY, FUEL FILTER | ||||
| 23380-17450 |
1HZ..HZJ71;1HZ..HZJ78,79..LHD..GEN W(PRE FILTER) |
1 | ||
| 23380-17470 |
1HZ..HZJ71,78,79..LHD |
1 | ||
| 23380-17480 |
1HZ..HZJ71,78,79..LHD..GEN W(FUEL HEATER) |
1 | ||
| 23303 - ELEMENT SUB-ASSY, FUEL FILTER | ||||
| 23303-64010 |
1HZ..HZJ7# |
1 | ||
| 23390-64480 |
1HZ..HZJ78..STD;1H#..HDJ7#,HZJ71;1HZ..HZJ79..GCC,GEN;1HZ..HZJ79..ARL..IV |
1 | ||
| 23322 - PLUG, DRAIN(FOR FUEL FILTER) | ||||
| 23322-64010 |
1HZ..HZJ7# |
1 | ||
| 23388-64470 |
1H#..HDJ7#,HZJ71,78,79 |
1 | ||
| 23322A - RING, O(FOR DRAIN PLUG) | ||||
| 23344-54010 |
1H#..HDJ7#,HZJ71,78,79 |
1 | ||
| 23344-54010 |
1HZ..HZJ7# |
1 | ||
| 23338 - GASKET(FOR WARNING SWITCH) | ||||
| 23344-64010 |
1HZ..HZJ78..STD;1H#..HDJ7#,HZJ71;1HZ..HZJ79..GCC,GEN;1HZ..HZJ79..ARL..IV |
1 | ||
| 23344-64010 |
1HZ..HZJ7# |
1 | ||
| 23389 - CLAMP, FUEL FILTER | ||||
| 23389-17450 |
1HZ..HZJ78..STD;1H#..HDJ7#,HZJ71;1HZ..HZJ79..GCC,GEN;1HZ..HZJ79..ARL..IV |
1 | ||
| 23389-17460 |
1HZ..HZJ71,78,79..GEN W(FUEL HEATER) |
1 | ||
| 23910B - HEATER ASSY, FUEL | ||||
| 23910-17080 |
1HZ..HZJ71,78,79..GEN |
1 | ||
| 23921 - SUPPORT, FUEL FILTER | ||||
| 23904-17050 |
1HZ..HZJ78..STD;1HZ..HZJ79..GEN;1H#..HDJ7#,HZJ71;1HZ..HZJ79..ARL..IV W(PRE FILTER) |
1 | ||
| 23921-17030 |
1HZ..HZJ71,78,79..LHD |
1 | ||
| 23921 - SUPPORT, FUEL FILTER | ||||
| 23904-17050 |
1HZ..HZJ78..STD;1HZ..HZJ79..GEN;1H#..HDJ7#,HZJ71;1HZ..HZJ79..ARL..IV W(PRE FILTER) |
1 | ||
| 23921-17030 |
1HZ..HZJ71,78,79..LHD |
1 | ||
| 84461B - SWITCH, LEVEL WARNING | ||||
| 84461-35060 |
HZJ7# |
1 | ||
| 84461-60080 |
HZJ78..STD;HDJ7#,HZJ71;HZJ79..GCC,GEN;HZJ79..ARL..IV |
1 | ||
| Common parts | ||||
| 90099-00283 | ||||
| 91651-40816 | ||||
| 91651-60830 | ||||
| 93319-14008 | ||||

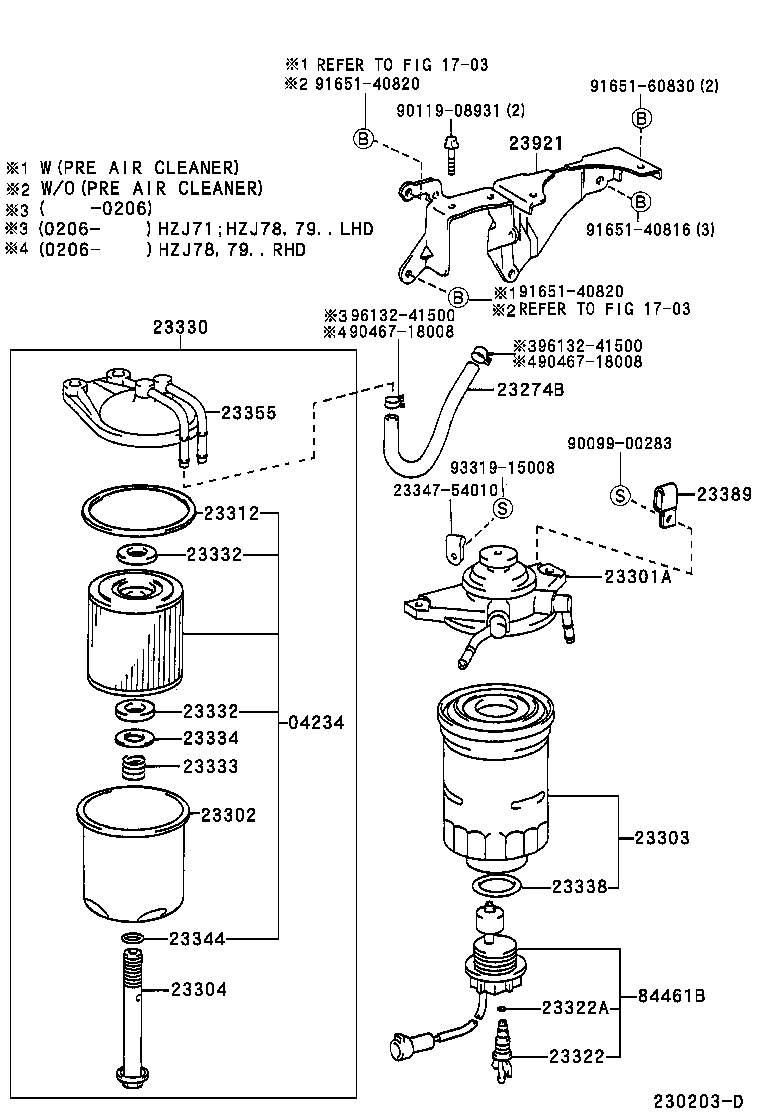

(9908-0701)1HZ..HZJ71,78,79
W(PRE FILTER)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04234 - ELEMENT KIT, FUEL FILTER | ||||
| 04234-68010 |
1HZ..HZJ78..STD;1HZ..HZJ79..GEN;1H#..HDJ7#,HZJ71;1HZ..HZJ79..ARL..IV |
1 | ||
| 23274B - HOSE, FUEL, NO.3 | ||||
| 23274-17050 |
1HZ..HZJ71;1HZ..HZJ78,79..LHD..GEN |
1 | ||
| 23301A - CAP ASSY, FUEL FILTER | ||||
| 23380-17450 |
1HZ..HZJ71;1HZ..HZJ78,79..LHD..GEN W(PRE FILTER) |
1 | ||
| 23380-17470 |
1HZ..HZJ71,78,79..LHD |
1 | ||
| 23380-17480 |
1HZ..HZJ71,78,79..LHD..GEN W(FUEL HEATER) |
1 | ||
| 23302 - BODY SUB-ASSY, FUEL FILTER, LOWER | ||||
| 23302-17010 |
1HZ..HZJ78..STD;1HZ..HZJ79..GEN;1H#..HDJ7#,HZJ71;1HZ..HZJ79..ARL..IV |
1 | ||
| 23303 - ELEMENT SUB-ASSY, FUEL FILTER | ||||
| 23303-64010 |
1HZ..HZJ7# |
1 | ||
| 23390-64480 |
1HZ..HZJ78..STD;1H#..HDJ7#,HZJ71;1HZ..HZJ79..GCC,GEN;1HZ..HZJ79..ARL..IV |
1 | ||
| 23304 - BAIL SUB-ASSY, FILTER BOWL | ||||
| 23304-56010 |
1HZ..HZJ78..STD;1HZ..HZJ79..GEN;1H#..HDJ7#,HZJ71;1HZ..HZJ79..ARL..IV |
1 | ||
| 23312 - GASKET, FILTER BOWL | ||||
| 23312-68010 |
1HZ..HZJ78..STD;1HZ..HZJ79..GEN;1H#..HDJ7#,HZJ71;1HZ..HZJ79..ARL..IV |
1 | ||
| 23322 - PLUG, DRAIN(FOR FUEL FILTER) | ||||
| 23322-64010 |
1HZ..HZJ7# |
1 | ||
| 23388-64470 |
1H#..HDJ7#,HZJ71,78,79 |
1 | ||
| 23322A - RING, O(FOR DRAIN PLUG) | ||||
| 23344-54010 |
1H#..HDJ7#,HZJ71,78,79 |
1 | ||
| 23344-54010 |
1HZ..HZJ7# |
1 | ||
| 23330 - PREFILTER ASSY, FUEL | ||||
| 23330-17050 |
1HZ..HZJ71;1HZ..HZJ78,79..LHD..GEN |
1 | ||
| 23332 - GASKET, ELEMENT(FOR FUEL FILTER) | ||||
| 23332-68010 |
1HZ..HZJ78..STD;1HZ..HZJ79..GEN;1H#..HDJ7#,HZJ71;1HZ..HZJ79..ARL..IV |
2 | ||
| 23332 - GASKET, ELEMENT(FOR FUEL FILTER) | ||||
| 23332-68010 |
1HZ..HZJ78..STD;1HZ..HZJ79..GEN;1H#..HDJ7#,HZJ71;1HZ..HZJ79..ARL..IV |
2 | ||
| 23333 - SPRING, FILTER ELEMENT SET | ||||
| 23333-48012 |
1HZ..HZJ78..STD;1HZ..HZJ79..GEN;1H#..HDJ7#,HZJ71;1HZ..HZJ79..ARL..IV |
1 | ||
| 23334 - PLATE, SPRING(FOR FILTER ELEMENT) | ||||
| 23334-46010 |
1HZ..HZJ78..STD;1HZ..HZJ79..GEN;1H#..HDJ7#,HZJ71;1HZ..HZJ79..ARL..IV |
1 | ||
| 23338 - GASKET(FOR WARNING SWITCH) | ||||
| 23344-64010 |
1HZ..HZJ78..STD;1H#..HDJ7#,HZJ71;1HZ..HZJ79..GCC,GEN;1HZ..HZJ79..ARL..IV |
1 | ||
| 23344-64010 |
1HZ..HZJ7# |
1 | ||
| 23344 - GASKET, CLAMPING NUT(FOR FUEL FILTER) | ||||
| 23344-68010 |
1HZ..HZJ78..STD;1HZ..HZJ79..GEN;1H#..HDJ7#,HZJ71;1HZ..HZJ79..ARL..IV |
1 | ||
| 23355 - ELEMENT, PREFILTER | ||||
| 23355-17050 |
1HZ..HZJ71;1HZ..HZJ78,79..LHD..GEN |
1 | ||
| 23389 - CLAMP, FUEL FILTER | ||||
| 23389-17450 |
1HZ..HZJ78..STD;1H#..HDJ7#,HZJ71;1HZ..HZJ79..GCC,GEN;1HZ..HZJ79..ARL..IV |
1 | ||
| 23389-17460 |
1HZ..HZJ71,78,79..GEN W(FUEL HEATER) |
1 | ||
| 23921 - SUPPORT, FUEL FILTER | ||||
| 23904-17050 |
1HZ..HZJ78..STD;1HZ..HZJ79..GEN;1H#..HDJ7#,HZJ71;1HZ..HZJ79..ARL..IV W(PRE FILTER) |
1 | ||
| 23921-17030 |
1HZ..HZJ71,78,79..LHD |
1 | ||
| 84461B - SWITCH, LEVEL WARNING | ||||
| 84461-35060 |
HZJ7# |
1 | ||
| 84461-60080 |
HZJ78..STD;HDJ7#,HZJ71;HZJ79..GCC,GEN;HZJ79..ARL..IV |
1 | ||
| Common parts | ||||
| 23347-54010 | ||||
| 90099-00283 | ||||
| 90119-08931 | ||||
| 90467-18008 | ||||
| 91651-40816 | ||||
| 91651-40820 | ||||
| 91651-60830 | ||||
| 93319-15008 | ||||
| 96132-41500 | ||||
| Linked diagrams | ||||
| 1703 | ||||
