HZJ79L-TJMRS3 (1999)
Toyota Land Cruiser

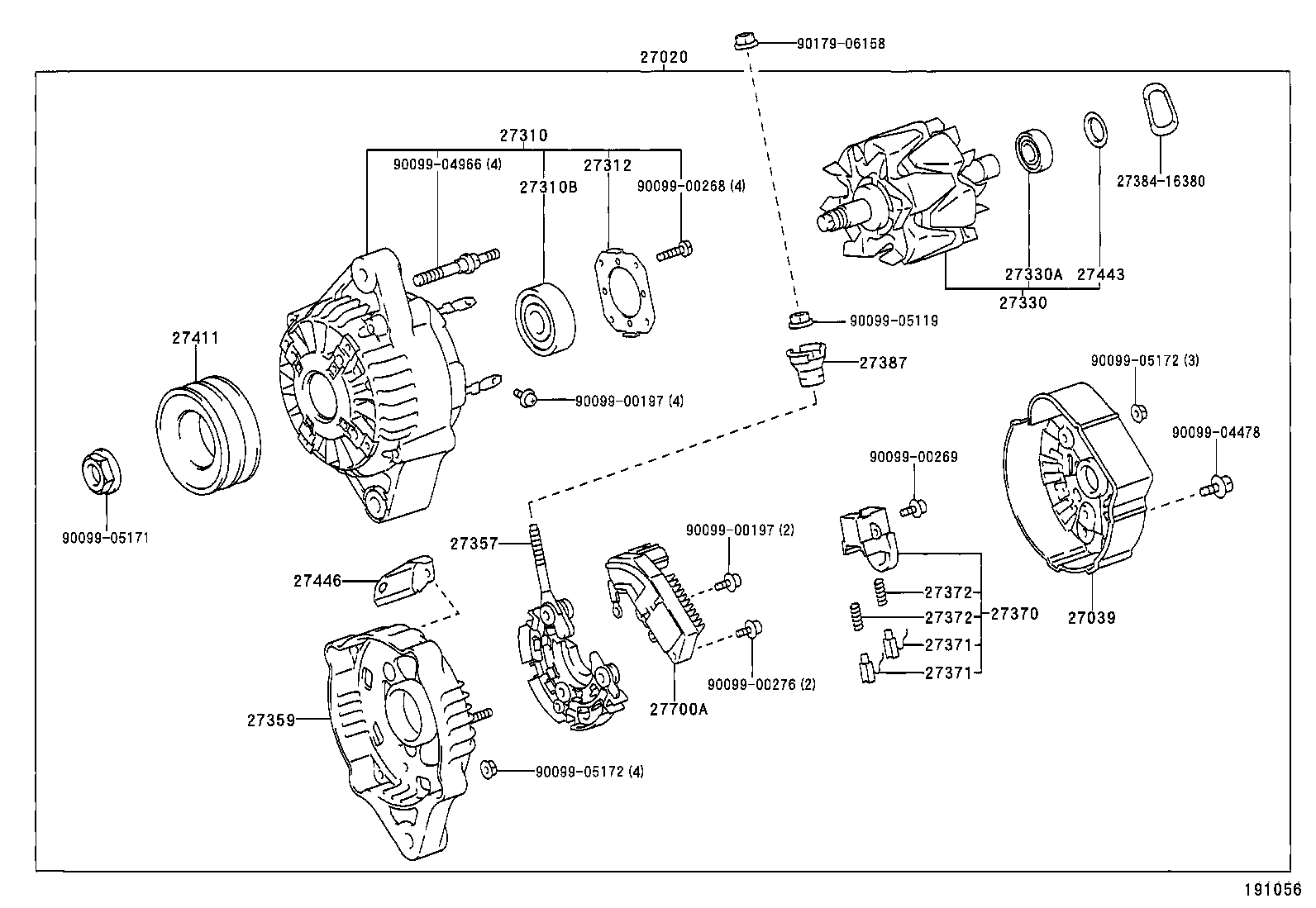

(9908-0701)1HZ
12V 70A
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27060-17030 |
1HZ,1PZ..HZJ7#,PZJ7#..ARL,GEN 12V 80A |
1 | ||
| 27060-17220 |
1HZ..HZJ71,78,79..ARL,GEN 12V 80A |
1 | ||
| 27060-17210 |
1HZ..HZJ71,78,79..GCC,GEN 12V 70A |
1 | ||
| 27060-17220 |
1HZ..HZJ79..ARL..IV;1HZ..HZJ71,78,79..GEN 12V 80A |
1 | ||
| 27039 - COVER, ALTERNATOR REAR END | ||||
| 27039-67100 |
1FZFE,1HZ..FZJ71,74,78,79,HZJ71,78,79..GCC,GEN 12V 70A |
1 | ||
| 27039-72010 |
2LT..LJ70;1PZ..PZJ70..STD..GEN;1HZ,2LT,3L,1PZ..HZJ75,LJ72,77,79,PZJ73,75..GCC,GEN,SA |
1 | ||
| 27039-55080 |
1HZ..HZJ78,79..GEN;1HZ..HZJ79..ARL..IV;1FZFE,1HZ..FZJ71,74,78,79,HZJ71 12V 80A |
1 | ||
| 27039-55080 |
1HZ..HZJ79..ARL,GEN;1FZFE,1HZ..FZJ71,74,78,79,HZJ71,78 12V 80A |
1 | ||
| 27039-55080 |
1HZ..HZJ78,79..GEN;1HZ..HZJ79..ARL..IV;1FZFE,1HZ..FZJ71,74,78,79,HZJ71 12V 80A |
1 | ||
| 27039-67100 |
1HZ..HZJ71,78,79..GCC,GEN 12V 70A |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-55090 |
1HZ..HZJ71,78,79..GCC,GEN 12V 70A |
1 | ||
| 27310-17220 |
1HZ..HZJ71,78,79..ARL,GEN 12V 80A |
1 | ||
| 27310-55090 |
1HZ..HZJ71,78,79..GCC,GEN 12V 70A |
1 | ||
| 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-10199 |
1FZFE,1HZ..FZJ71,74,78,79,HZJ71,78,79..GCC,GEN 12V 110A |
1 | ||
| 90099-10199 |
1HZ..HZJ71,78,79..GCC,GEN |
1 | ||
| 27312 - PLATE, RETAINER | ||||
| 27312-72100 |
1FZFE,1HZ..FZJ71,74,78,79,HZJ71,78,79..GCC,GEN 12V 70A |
1 | ||
| 27312-72100 |
1HZ..HZJ71,78,79..GCC,GEN |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-67100 |
1FZFE,1HZ..FZJ71,74,78,79,HZJ71,78,79..GCC,GEN 12V 70A |
1 | ||
| 27330-72280 |
1HZ..HZJ71,78,79..ARL,GEN 12V 80A |
1 | ||
| 27330-67100 |
1HZ..HZJ71,78,79..GCC,GEN 12V 70A |
1 | ||
| 27330-74550 |
1HZ..HZJ7#..GCC,GEN;1HZ..HZJ79..ARL..IV |
1 | ||
| 27330-72280 |
1HZ..HZJ71,78,79..ARL,GEN |
1 | ||
| 27330A - BEARING(FOR ALTERNATOR ROTOR) | ||||
| 90099-10216 |
1FZFE,1HZ..FZJ71,74,78,79,HZJ71,78,79..GCC,GEN 12V 70A |
1 | ||
| 90099-10216 |
1HZ..HZJ71,78,79..GCC,GEN |
1 | ||
| 27357 - HOLDER, ALTERNATOR, W/RECTIFIER | ||||
| 27357-55080 |
1HZ..HZJ79..ARL,GEN;1FZFE,1HZ..FZJ71,74,78,79,HZJ71,78 12V 80A |
1 | ||
| 27357-67100 |
1FZFE,1HZ..FZJ71,74,78,79,HZJ71,78,79..GCC,GEN 12V 70A |
1 | ||
| 27357-67100 |
1HZ..HZJ71,78,79..GCC,GEN 12V 70A |
1 | ||
| 27359 - FRAME, ALTERNATOR RECTIFIER END | ||||
| 27359-16180 |
2LT..LJ70;1PZ..PZJ70..STD..GEN;1HZ,2LT,3L,1PZ..HZJ75,LJ72,77,79,PZJ73,75..GCC,GEN,SA |
1 | ||
| 27359-72280 |
1HZ..HZJ71,78,79..ARL,GEN 12V 80A |
1 | ||
| 27359-75160 |
1HZ..HZJ71,78,79..GCC,GEN 12V 70A |
1 | ||
| 27359-75160 |
1HZ..HZJ71,78,79..GCC,GEN 12V 70A |
1 | ||
| 27370 - HOLDER ASSY, ALTERNATOR BRUSH | ||||
| 27370-58320 |
1HZ..HZJ71,78,79..GCC,GEN |
1 | ||
| 27371 - BRUSH, ALTERNATOR | ||||
| 27371-70300 |
1HZ..HZJ71,78,79..GCC,GEN |
2 | ||
| 27371 - BRUSH, ALTERNATOR | ||||
| 27371-70300 |
1HZ..HZJ71,78,79..GCC,GEN |
2 | ||
| 27372 - SPRING, ALTERNATOR BRUSH | ||||
| 27372-63020 |
2LT..LJ70;1HZ..HZJ75..LHD..CBU;1PZ..PZJ70..STD..GEN;1HZ..HZJ75..RHD..(GEN,SA);1FZFE..FZJ71,74,78,79..GCC,GEN;1FZF,1HZ,2LT,3L,1PZ..FZJ70,73,75,HZJ71,78,79,LJ72,77,79,PZJ73,75..GCC,GEN,SA |
2 | ||
| 27372-87501 |
1HZ..HZJ79..LHD;1HZ..HZJ71,78..HT..GEN |
2 | ||
| 27372 - SPRING, ALTERNATOR BRUSH | ||||
| 27372-63020 |
2LT..LJ70;1HZ..HZJ75..LHD..CBU;1PZ..PZJ70..STD..GEN;1HZ..HZJ75..RHD..(GEN,SA);1FZFE..FZJ71,74,78,79..GCC,GEN;1FZF,1HZ,2LT,3L,1PZ..FZJ70,73,75,HZJ71,78,79,LJ72,77,79,PZJ73,75..GCC,GEN,SA |
2 | ||
| 27372-87501 |
1HZ..HZJ79..LHD;1HZ..HZJ71,78..HT..GEN |
2 | ||
| 27387 - INSULATOR, TERMINAL | ||||
| 27387-70171 |
1HZ..HZJ71,78,79..GCC,GEN 24V 30A |
1 | ||
| 27387-70171 |
1HZ..HZJ71,78,79..GCC,GEN 24V 30A |
1 | ||
| 27411 - PULLEY, ALTERNATOR | ||||
| 27411-17010 |
1HZ..HZJ75..LHD..CBU;1HZ..HZJ75..RHD..(GEN,SA);1HZ,1PZ..HZJ71,78,79,PZJ7#..STD..(GCC,GEN) 24V 30A |
1 | ||
| 27411-17010 |
1HZ..HZJ79..LHD;1HZ..HZJ71,78..HT..GEN 24V 30A |
1 | ||
| 27411-17030 |
1HZ..HZJ7#..GEN 12V 80A |
1 | ||
| 27443 - COVER, ALTERNATOR BEARING | ||||
| 27443-63020 |
1HZ..HZJ75..RHD;1HZ..HZJ75..LHD..CBU;1FZFE,1HZ..FZJ70,75,HZJ70..ARL;1FZFE..FZJ71,74,78,79..GCC,GEN;1FZF,1HZ,2LT,3L,1PZ..FZJ70,73,75,HZJ71,73,78,79,LJ7#,PZJ7# |
1 | ||
| 27443-63020 |
1HZ..HZJ71,78,79..GCC,GEN |
1 | ||
| 27446 - CLIP, ALTERNATOR CORD | ||||
| 27446-62012 |
1HZ..HZJ71,78,79..GCC,GEN |
1 | ||
| 27446-62012 |
1HZ..HZJ71,78,79 |
1 | ||
| 27700A - REGULATOR ASSY, GENERATOR | ||||
| 27700-16010 |
1HZ,1PZ..HZJ7#,PZJ7# |
1 | ||
| 27700-50030 |
1HZ..HZJ71,78,79 12V 80A |
1 | ||
| 27700-50030 |
1H#..HDJ7#,HZJ71,78,79 12V 80A |
1 | ||
| Common parts | ||||
| 27384-16380 | ||||
| 90099-00197 | ||||
| 90099-00268 | ||||
| 90099-00269 | ||||
| 90099-00276 | ||||
| 90099-04478 | ||||
| 90099-04966 | ||||
| 90099-05119 | ||||
| 90099-05171 | ||||
| 90099-05172 | ||||
| 90179-06158 | ||||

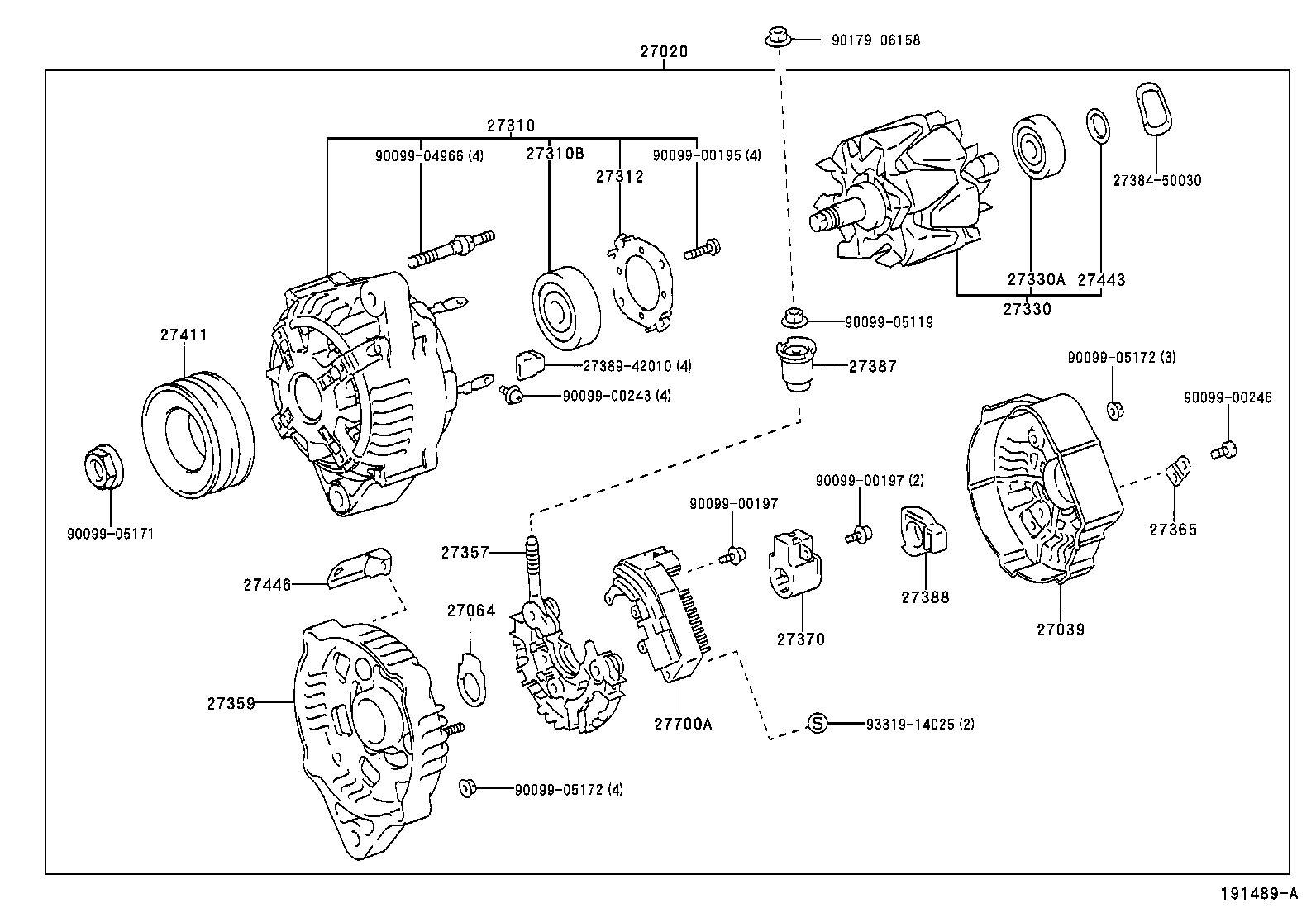

(9908-0701)1H#
12V 80A,110A
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27060-17030 |
1HZ,1PZ..HZJ7#,PZJ7#..ARL,GEN 12V 80A |
1 | ||
| 27060-17220 |
1HZ..HZJ71,78,79..ARL,GEN 12V 80A |
1 | ||
| 27060-17210 |
1HZ..HZJ71,78,79..GCC,GEN 12V 70A |
1 | ||
| 27060-17220 |
1HZ..HZJ79..ARL..IV;1HZ..HZJ71,78,79..GEN 12V 80A |
1 | ||
| 27039 - COVER, ALTERNATOR REAR END | ||||
| 27039-67100 |
1FZFE,1HZ..FZJ71,74,78,79,HZJ71,78,79..GCC,GEN 12V 70A |
1 | ||
| 27039-72010 |
2LT..LJ70;1PZ..PZJ70..STD..GEN;1HZ,2LT,3L,1PZ..HZJ75,LJ72,77,79,PZJ73,75..GCC,GEN,SA |
1 | ||
| 27039-55080 |
1HZ..HZJ78,79..GEN;1HZ..HZJ79..ARL..IV;1FZFE,1HZ..FZJ71,74,78,79,HZJ71 12V 80A |
1 | ||
| 27039-55080 |
1HZ..HZJ79..ARL,GEN;1FZFE,1HZ..FZJ71,74,78,79,HZJ71,78 12V 80A |
1 | ||
| 27039-55080 |
1HZ..HZJ78,79..GEN;1HZ..HZJ79..ARL..IV;1FZFE,1HZ..FZJ71,74,78,79,HZJ71 12V 80A |
1 | ||
| 27039-67100 |
1HZ..HZJ71,78,79..GCC,GEN 12V 70A |
1 | ||
| 27064 - SEAL, ALTERNATOR PLATE | ||||
| 27064-42010 |
1HZ..HZJ79..ARL,GEN;1HZ..HZJ75..LHD..GEN..CBU;1HZ..HZJ75..RHD..(ARL,GEN);1FZFE,1HZ..FZJ70,75,HZJ70..ARL;1FZF,1HZ,1PZ..FZJ70,73,75,HZJ71,73,78,PZJ7#..ARL,GCC,GEN |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-55090 |
1HZ..HZJ71,78,79..GCC,GEN 12V 70A |
1 | ||
| 27310-17220 |
1HZ..HZJ71,78,79..ARL,GEN 12V 80A |
1 | ||
| 27310-55090 |
1HZ..HZJ71,78,79..GCC,GEN 12V 70A |
1 | ||
| 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-10199 |
1FZFE,1HZ..FZJ71,74,78,79,HZJ71,78,79..GCC,GEN 12V 110A |
1 | ||
| 90099-10199 |
1HZ..HZJ71,78,79..GCC,GEN |
1 | ||
| 27312 - PLATE, RETAINER | ||||
| 27312-72100 |
1FZFE,1HZ..FZJ71,74,78,79,HZJ71,78,79..GCC,GEN 12V 70A |
1 | ||
| 27312-72100 |
1HZ..HZJ71,78,79..GCC,GEN |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-67100 |
1FZFE,1HZ..FZJ71,74,78,79,HZJ71,78,79..GCC,GEN 12V 70A |
1 | ||
| 27330-72280 |
1HZ..HZJ71,78,79..ARL,GEN 12V 80A |
1 | ||
| 27330-67100 |
1HZ..HZJ71,78,79..GCC,GEN 12V 70A |
1 | ||
| 27330-74550 |
1HZ..HZJ7#..GCC,GEN;1HZ..HZJ79..ARL..IV |
1 | ||
| 27330-72280 |
1HZ..HZJ71,78,79..ARL,GEN |
1 | ||
| 27330A - BEARING(FOR ALTERNATOR ROTOR) | ||||
| 90099-10216 |
1FZFE,1HZ..FZJ71,74,78,79,HZJ71,78,79..GCC,GEN 12V 70A |
1 | ||
| 90099-10216 |
1HZ..HZJ71,78,79..GCC,GEN |
1 | ||
| 27357 - HOLDER, ALTERNATOR, W/RECTIFIER | ||||
| 27357-55080 |
1HZ..HZJ79..ARL,GEN;1FZFE,1HZ..FZJ71,74,78,79,HZJ71,78 12V 80A |
1 | ||
| 27357-67100 |
1FZFE,1HZ..FZJ71,74,78,79,HZJ71,78,79..GCC,GEN 12V 70A |
1 | ||
| 27357-67100 |
1HZ..HZJ71,78,79..GCC,GEN 12V 70A |
1 | ||
| 27359 - FRAME, ALTERNATOR RECTIFIER END | ||||
| 27359-16180 |
2LT..LJ70;1PZ..PZJ70..STD..GEN;1HZ,2LT,3L,1PZ..HZJ75,LJ72,77,79,PZJ73,75..GCC,GEN,SA |
1 | ||
| 27359-72280 |
1HZ..HZJ71,78,79..ARL,GEN 12V 80A |
1 | ||
| 27359-75160 |
1HZ..HZJ71,78,79..GCC,GEN 12V 70A |
1 | ||
| 27359-75160 |
1HZ..HZJ71,78,79..GCC,GEN 12V 70A |
1 | ||
| 27365 - PLATE, TERMINAL | ||||
| 27365-55080 |
1HZ..HZJ71,78,79..ARL,GEN |
1 | ||
| 27370 - HOLDER ASSY, ALTERNATOR BRUSH | ||||
| 27370-58320 |
1HZ..HZJ71,78,79..GCC,GEN |
1 | ||
| 27387 - INSULATOR, TERMINAL | ||||
| 27387-70171 |
1HZ..HZJ71,78,79..GCC,GEN 24V 30A |
1 | ||
| 27387-70171 |
1HZ..HZJ71,78,79..GCC,GEN 24V 30A |
1 | ||
| 27388 - COVER, ALTERNATOR BRUSH | ||||
| 27388-42010 |
1HZ..HZJ79..ARL,GEN;1HZ..HZJ75..LHD..GEN..CBU;1HZ..HZJ75..RHD..(ARL,GEN);1FZFE,1HZ..FZJ70,75,HZJ70..ARL;1FZF,1HZ,1PZ..FZJ70,73,75,HZJ71,73,78,PZJ7#..ARL,GCC,GEN |
1 | ||
| 27411 - PULLEY, ALTERNATOR | ||||
| 27411-17010 |
1HZ..HZJ75..LHD..CBU;1HZ..HZJ75..RHD..(GEN,SA);1HZ,1PZ..HZJ71,78,79,PZJ7#..STD..(GCC,GEN) 24V 30A |
1 | ||
| 27411-17010 |
1HZ..HZJ79..LHD;1HZ..HZJ71,78..HT..GEN 24V 30A |
1 | ||
| 27411-17030 |
1HZ..HZJ7#..GEN 12V 80A |
1 | ||
| 27443 - COVER, ALTERNATOR BEARING | ||||
| 27443-63020 |
1HZ..HZJ75..RHD;1HZ..HZJ75..LHD..CBU;1FZFE,1HZ..FZJ70,75,HZJ70..ARL;1FZFE..FZJ71,74,78,79..GCC,GEN;1FZF,1HZ,2LT,3L,1PZ..FZJ70,73,75,HZJ71,73,78,79,LJ7#,PZJ7# |
1 | ||
| 27443-63020 |
1HZ..HZJ71,78,79..GCC,GEN |
1 | ||
| 27446 - CLIP, ALTERNATOR CORD | ||||
| 27446-62012 |
1HZ..HZJ71,78,79..GCC,GEN |
1 | ||
| 27446-62012 |
1HZ..HZJ71,78,79 |
1 | ||
| 27700A - REGULATOR ASSY, GENERATOR | ||||
| 27700-16010 |
1HZ,1PZ..HZJ7#,PZJ7# |
1 | ||
| 27700-50030 |
1HZ..HZJ71,78,79 12V 80A |
1 | ||
| 27700-50030 |
1H#..HDJ7#,HZJ71,78,79 12V 80A |
1 | ||
| Common parts | ||||
| 27384-50030 | ||||
| 27389-42010 | ||||
| 90099-00195 | ||||
| 90099-00197 | ||||
| 90099-00243 | ||||
| 90099-00246 | ||||
| 90099-04966 | ||||
| 90099-05119 | ||||
| 90099-05171 | ||||
| 90099-05172 | ||||
| 90179-06158 | ||||
| 93319-14025 | ||||
