HZJ79L-TJMRS3 (1999)

Toyota Land Cruiser

Production Aug 1999 - Jan 2007
Engine 1HZ
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9001-0701)1HZ..HZJ71,78 ; (9001-0701)1HZ..HZJ70,79..PIC,SOT ; (9001-0701)1HZ..HZJ7

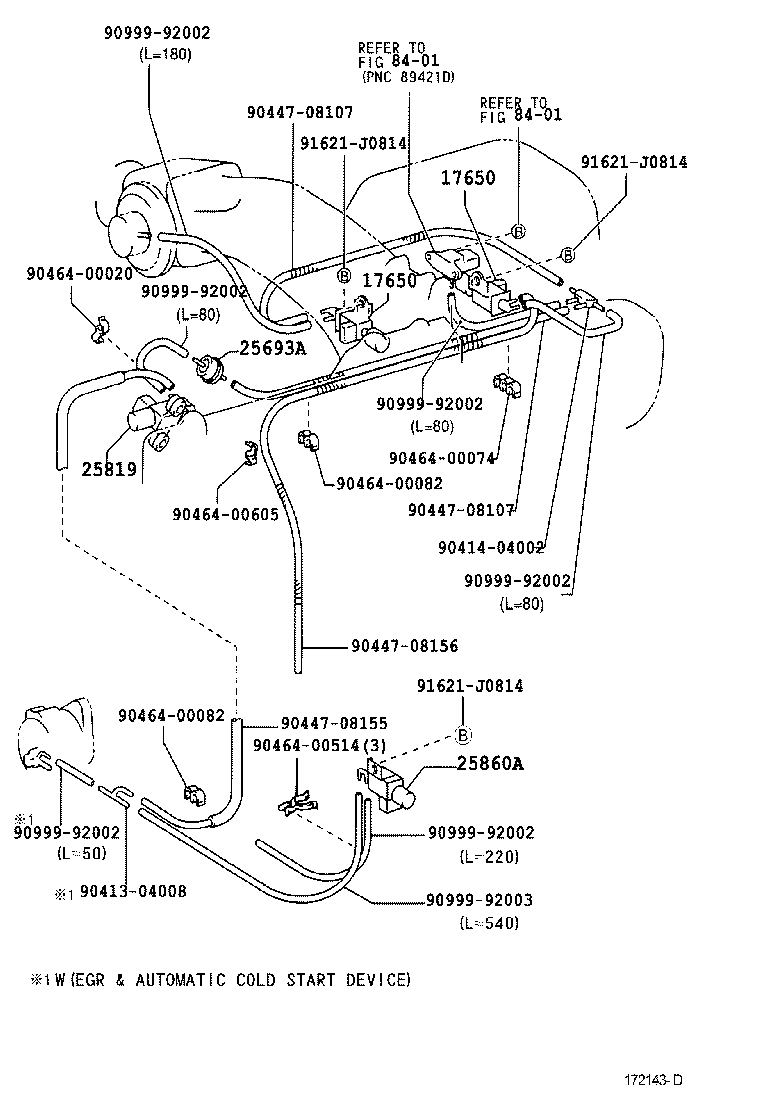

Click highlighted areas on diagram

diagram 17650 17650 25693A 25819 25860A 8401 8401 9041304008 9041404002 9044708107 9044708107 9044708155 9044708156 9046400020 9046400074 9046400082 9046400082 9046400514 9046400605 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992003 91621J0814 91621J0814 91621J0814
Part # Description Qty Price
25860A - VALVE, VACUUM SWITCHING, NO.1
90910-12155

1HZ..HZJ71,78..STD;1HZ..HZJ79..GCC,GEN;1HZ..HZJ79..ARL..IV

 1
Common parts
90413-04008
90414-04002
90447-08107
90447-08155
90447-08156
90464-00020
90464-00074
90464-00082
90464-00514
90464-00605
90999-92002
90999-92003
91621-J0814
Linked diagrams
8401
