HZJ79L-TJMRS3 (1999)

Toyota Land Cruiser

Production Aug 1999 - Jan 2007
Engine 1HZ
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9908- )1HZ..HZJ78,79

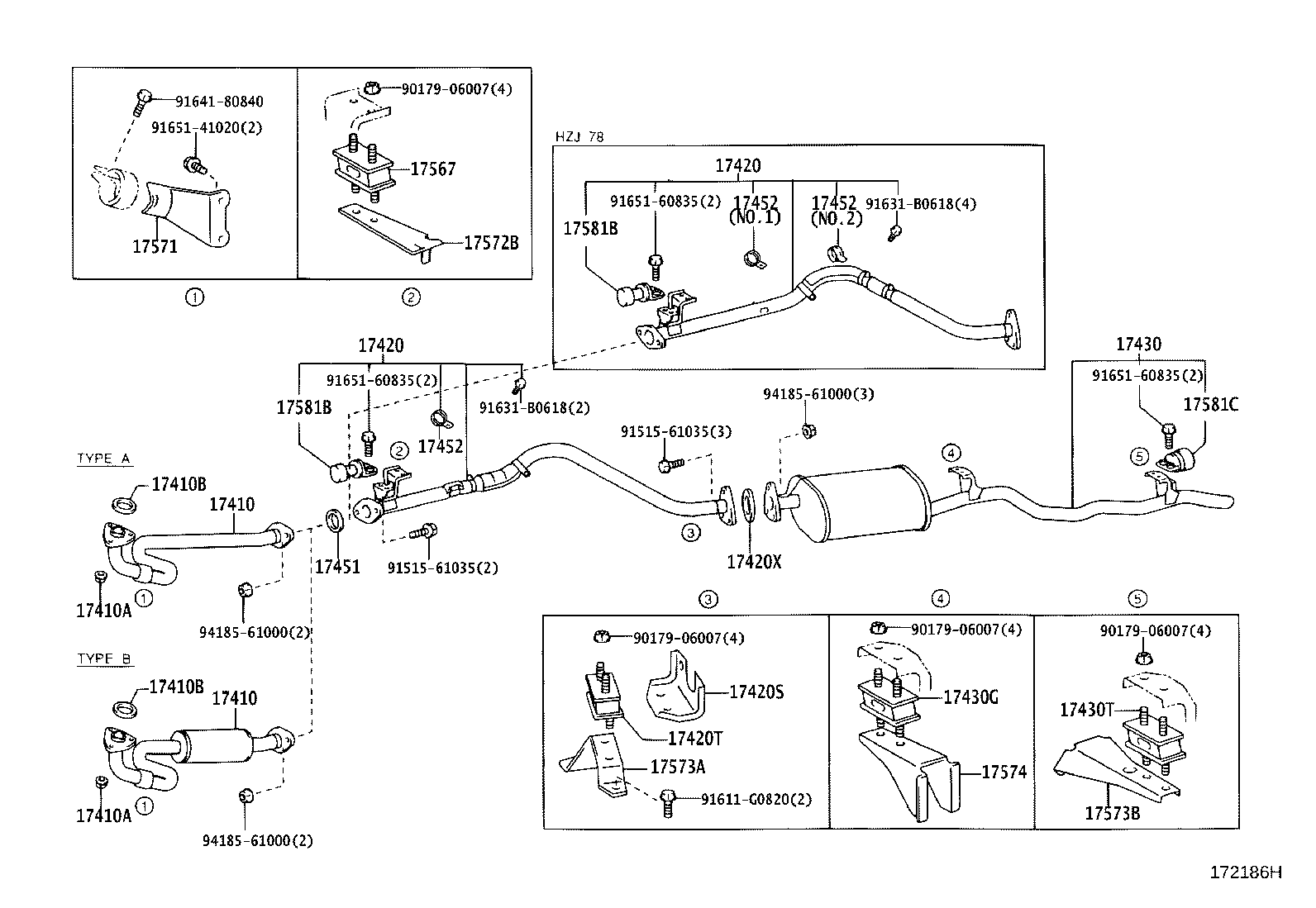

Click highlighted areas on diagram

diagram 17410 17410 17410A 17410A 17410B 17410B 17420 17420 17420S 17420T 17420X 17430 17430G 17430T 17451 17452 17452 17452 17567 17571 17572B 17573A 17573B 17574 17581B 17581B 17581C 9017906007 9017906007 9017906007 9017906007 9151561035 9151561035 91611G0820 91631B0618 91631B0618 9164180840 9165141020 9165160835 9165160835 9165160835 9418561000 9418561000 9418561000
Part # Description Qty Price
17410 - PIPE ASSY, EXHAUST, FRONT
17401-17060

1HZ..HZJ75..LHD..CBU;1HZ..HZJ75..RHD..(GEN,SA);1HZ..HZJ71,78,79..GCC,GEN

TYPE A:REFER TO ILLUSTRATION

 1
17401-17060

1HZ..HZJ71,78,79..GCC,GEN

TYPE A:REFER TO ILLUSTRATION

 1
17410 - PIPE ASSY, EXHAUST, FRONT
17401-17060

1HZ..HZJ75..LHD..CBU;1HZ..HZJ75..RHD..(GEN,SA);1HZ..HZJ71,78,79..GCC,GEN

TYPE A:REFER TO ILLUSTRATION

 1
17401-17060

1HZ..HZJ71,78,79..GCC,GEN

TYPE A:REFER TO ILLUSTRATION

 1
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90179-10070

22R,3F,1HZ,2H,3L,1PZ..FJ7#,HJ75,HZJ7#,LJ72,79,PZJ7#,RJ7#

 3
90179-10070

1HZ..HZJ71,78,79

 3
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90179-10070

22R,3F,1HZ,2H,3L,1PZ..FJ7#,HJ75,HZJ7#,LJ72,79,PZJ7#,RJ7#

 3
90179-10070

1HZ..HZJ71,78,79

 3
17410B - GASKET, EXHAUST PIPE
90917-06059

1HZ,1PZ..HZJ7#,PZJ7#

 1
90917-06059

1HZ..HZJ71,78,79

 1
17410B - GASKET, EXHAUST PIPE
90917-06059

1HZ,1PZ..HZJ7#,PZJ7#

 1
90917-06059

1HZ..HZJ71,78,79

 1
17420 - PIPE ASSY, EXHAUST, CENTER
17403-17190

1HZ..HZJ79

 1
17420 - PIPE ASSY, EXHAUST, CENTER
17403-17190

1HZ..HZJ79

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17405-17072

1HZ..HZJ78,79

 1
17405-17073

1HZ..HZJ78,79

 1
17405-17072

1HZ..HZJ78,79

 1
17451 - GASKET, EXHAUST PIPE
90917-06054

1HZ,1PZ..HZJ7#,PZJ7#

 1
17452 - CLAMP, EXHAUST PIPE
90461-12297

1HZ..HZJ79

 2
17452 - CLAMP, EXHAUST PIPE
90461-12297

1HZ..HZJ79

 2
17452 - CLAMP, EXHAUST PIPE
90461-12297

1HZ..HZJ79

 2
17567 - CUSHION, EXHAUST PIPE SUPPORT
17567-17020

1HZ..HZJ71,78,79

 1
17571 - BRACKET, EXHAUST PIPE SUPPORT, NO.1
17571-17030

1HZ..HZJ7#

 1
17571-17030

1HZ..HZJ71,78,79

 1
17573B - BRACKET, EXHAUST PIPE SUPPORT, NO.5
17575-60021

1FZFE..FZJ78,79;1HZ..HZJ75..LHD..CBU;1FZFE,1HZ..FZJ75,HZJ75..RHD;22R,1FZF,3F,1HZ,2H,2LT,3L,1PZ..FJ75,FZJ75,HJ75,HZJ78,79,LJ77,79,PZJ75,RJ77

 1
17581B - DAMPER, EXHAUST PIPE, NO.2
17581-17010

1HZ,1PZ..HZJ7#,PZJ7#

 1
17581-17010

1HZ..HZJ71,78,79

 1
17581B - DAMPER, EXHAUST PIPE, NO.2
17581-17010

1HZ,1PZ..HZJ7#,PZJ7#

 1
17581-17010

1HZ..HZJ71,78,79

 1
17581C - DAMPER, EXHAUST PIPE, NO.3
17581-17020

1HZ..HZJ78,79

 1
Common parts
90179-06007
91515-61035
91611-G0820
91631-B0618
91641-80840
91651-41020
91651-60835
94185-61000
