HZJ79L-TJMRS3 (1999)
Toyota Land Cruiser
(9908- )1HZ
W(EGR)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17111 - MANIFOLD, INTAKE | ||||
| 17111-17010 |
1HZ..HZJ7# |
1 | ||
| 17111-17014 |
1HZ..HZJ71,78,79 |
1 | ||
| 17111-17015 |
1HZ..HZJ71,78..STD;1HZ..HZJ79..GCC,GEN;1HZ..HZJ79..ARL..IV |
1 | ||
| 17113 - PIPE, INTAKE | ||||
| 17113-17010 |
1HZ..HZJ7# |
1 | ||
| 17113-17011 |
1HZ..HZJ79..ARL..IV;1HZ..HZJ71,78,79..GCC,GEN |
1 | ||
| 17115 - GASKET, INTAKE MANIFOLD HOLE COVER | ||||
| 17115-17010 |
1HZ..HZJ7# |
1 | ||
| 17115-17010 |
1HZ..HZJ71,78..STD;1HZ..HZJ79..GCC,GEN;1HZ..HZJ79..ARL..IV |
1 | ||
| 17138A - STAY, INTAKE PIPE | ||||
| 17138-17010 |
1HZ..HZJ7# |
1 | ||
| 17138-17011 |
1HZ..HZJ71,78..STD;1HZ..HZJ79..GCC,GEN;1HZ..HZJ79..ARL..IV |
1 | ||
| 17141 - MANIFOLD, EXHAUST | ||||
| 17141-17010 |
1HZ..HZJ7# |
1 | ||
| 17141-17011 |
1HZ..HZJ71,78..STD;1HZ..HZJ79..GCC,GEN;1HZ..HZJ79..ARL..IV |
1 | ||
| 17142 - CASE, EXHAUST MANIFOLD, NO.2 | ||||
| 17142-17010 |
1HZ..HZJ7# |
1 | ||
| 17142-17011 |
1HZ..HZJ79..ARL..IV;1HZ..HZJ71,78,79..GCC,GEN |
1 | ||
| 17146 - RING, EXHAUST MANIFOLD | ||||
| 17151-17010 |
1HZ..HZJ7# |
2 | ||
| 17151-17010 |
1HZ..HZJ78..STD;1H#..HDJ7#,HZJ71;1HZ..HZJ79..GCC,GEN;1HZ..HZJ79..ARL..IV |
2 | ||
| 17146 - RING, EXHAUST MANIFOLD | ||||
| 17151-17010 |
1HZ..HZJ7# |
2 | ||
| 17151-17010 |
1HZ..HZJ78..STD;1H#..HDJ7#,HZJ71;1HZ..HZJ79..GCC,GEN;1HZ..HZJ79..ARL..IV |
2 | ||
| 17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE) | ||||
| 90116-10087 |
1HZ..HZJ7# |
3 | ||
| 90126-10006 |
1HZ..HZJ71,78..STD;1HZ..HZJ79..GCC,GEN;1HZ..HZJ79..ARL..IV |
3 | ||
| 17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD) | ||||
| 90116-10025 |
1HZ..HZJ7# |
12 | ||
| 90116-10171 |
1HZ..HZJ78..STD;1H#..HDJ7#,HZJ71;1HZ..HZJ79..GCC,GEN;1HZ..HZJ79..ARL..IV |
12 | ||
| 17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1 | ||||
| 17167-17010 |
1HZ..HZJ7# |
1 | ||
| 17167-17011 |
1HZ..HZJ79..ARL..IV;1HZ..HZJ71,78,79..GCC,GEN |
1 | ||
| 17171 - GASKET, INTAKE TO EXHAUST MANIFOLD | ||||
| 17171-17010 |
1HZ..HZJ7# |
1 | ||
| 17171-17010 |
1HZ..HZJ71,78..STD;1HZ..HZJ79..GCC,GEN;1HZ..HZJ79..ARL..IV |
1 | ||
| 17173 - GASKET, EXHAUST MANIFOLD TO HEAD | ||||
| 17173-17010 |
1HZ..HZJ7# |
2 | ||
| 17173-17010 |
1HZ..HZJ71,78..STD;1HZ..HZJ79..GCC,GEN;1HZ..HZJ79..ARL..IV |
2 | ||
| 17173 - GASKET, EXHAUST MANIFOLD TO HEAD | ||||
| 17173-17010 |
1HZ..HZJ7# |
2 | ||
| 17173-17010 |
1HZ..HZJ71,78..STD;1HZ..HZJ79..GCC,GEN;1HZ..HZJ79..ARL..IV |
2 | ||
| 17179A - GASKET, INTAKE MANIFOLD, NO.2 | ||||
| 17179-17010 |
1HZ..HZJ7# |
5 | ||
| 17179-17010 |
1HZ..HZJ71,78..STD;1HZ..HZJ79..GCC,GEN;1HZ..HZJ79..ARL..IV |
5 | ||
| 17183A - COLLAR, MANIFOLD | ||||
| 17183-17010 |
1HZ..HZJ7# |
1 | ||
| 17183-17010 |
1HZ..HZJ78..STD;1H#..HDJ7#,HZJ71;1HZ..HZJ79..GCC,GEN;1HZ..HZJ79..ARL..IV |
1 | ||
| Common parts | ||||
| 90105-08227 | ||||
| 90109-08188 | ||||
| 90179-08040 | ||||
| 90179-08183 | ||||
| 90179-10037 | ||||
| 90210-08041 | ||||
| 90253-11006 | ||||
| 91511-B0812 | ||||
| 91651-B0814 | ||||
| 96732-24042 | ||||

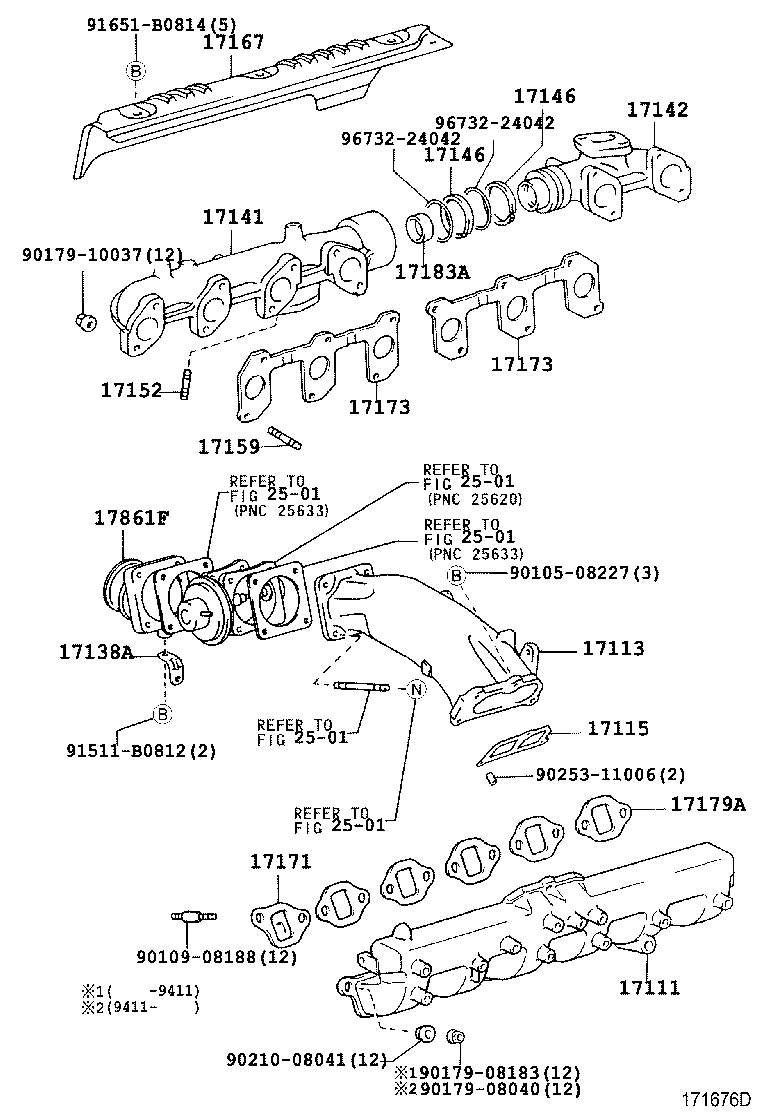

| Linked diagrams | ||||
| 2501 | ||||
