HZJ79L-TJMRS3 (1999)
Toyota Land Cruiser

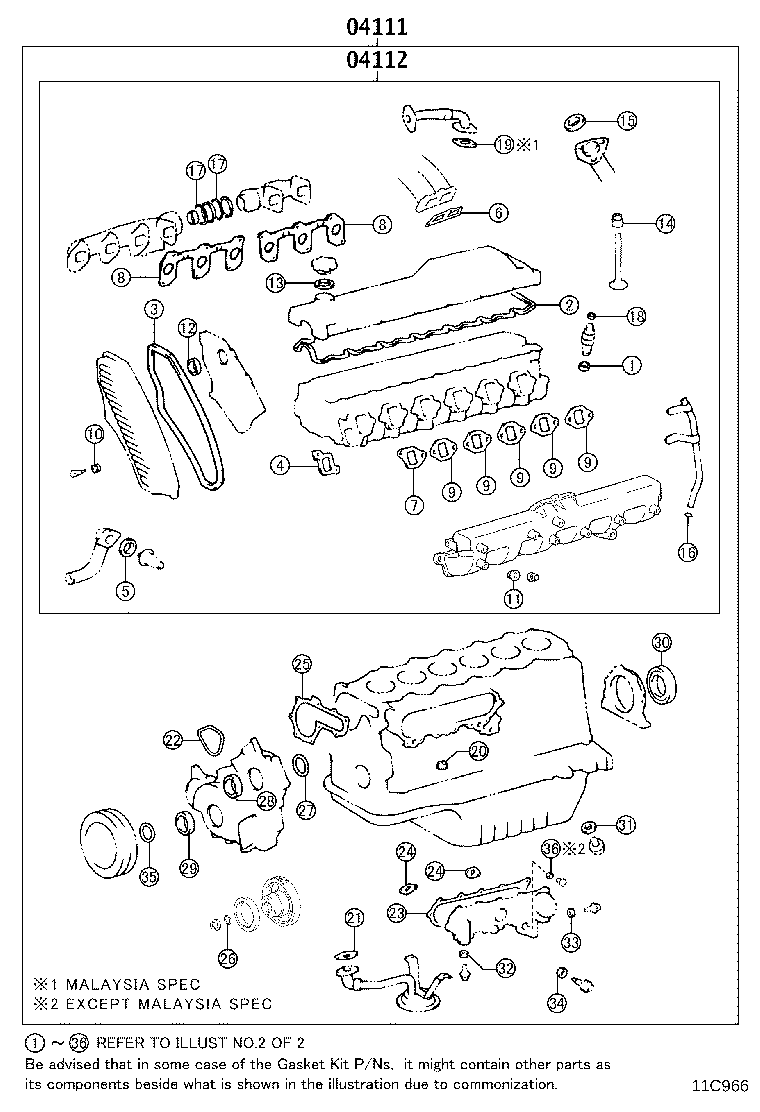

ILLUST NO. 1 OF 2(9908-0404)1HZ..HZJ71,78,79
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04111 - GASKET KIT, ENGINE OVERHAUL | ||||
| 04111-17010 |
1HZ..HZJ7# |
1 | ||
| 04111-17110 |
1HZ..HZJ71,78..STD;1HZ..HZJ79..GCC,GEN;1HZ..HZJ79..ARL..IV |
1 | ||
| 04111-17180 |
1HZ..HZJ7#..GCC,GEN |
1 | ||
| 04112 - GASKET KIT, ENGINE VALVE GRIND | ||||
| 04112-17010 |
1HZ..HZJ7# |
1 | ||
| 04112-17110 |
1HZ..HZJ71,78,79 |
1 | ||
| 04112-17160 |
1HZ..HZJ7#..GCC,GEN |
1 | ||

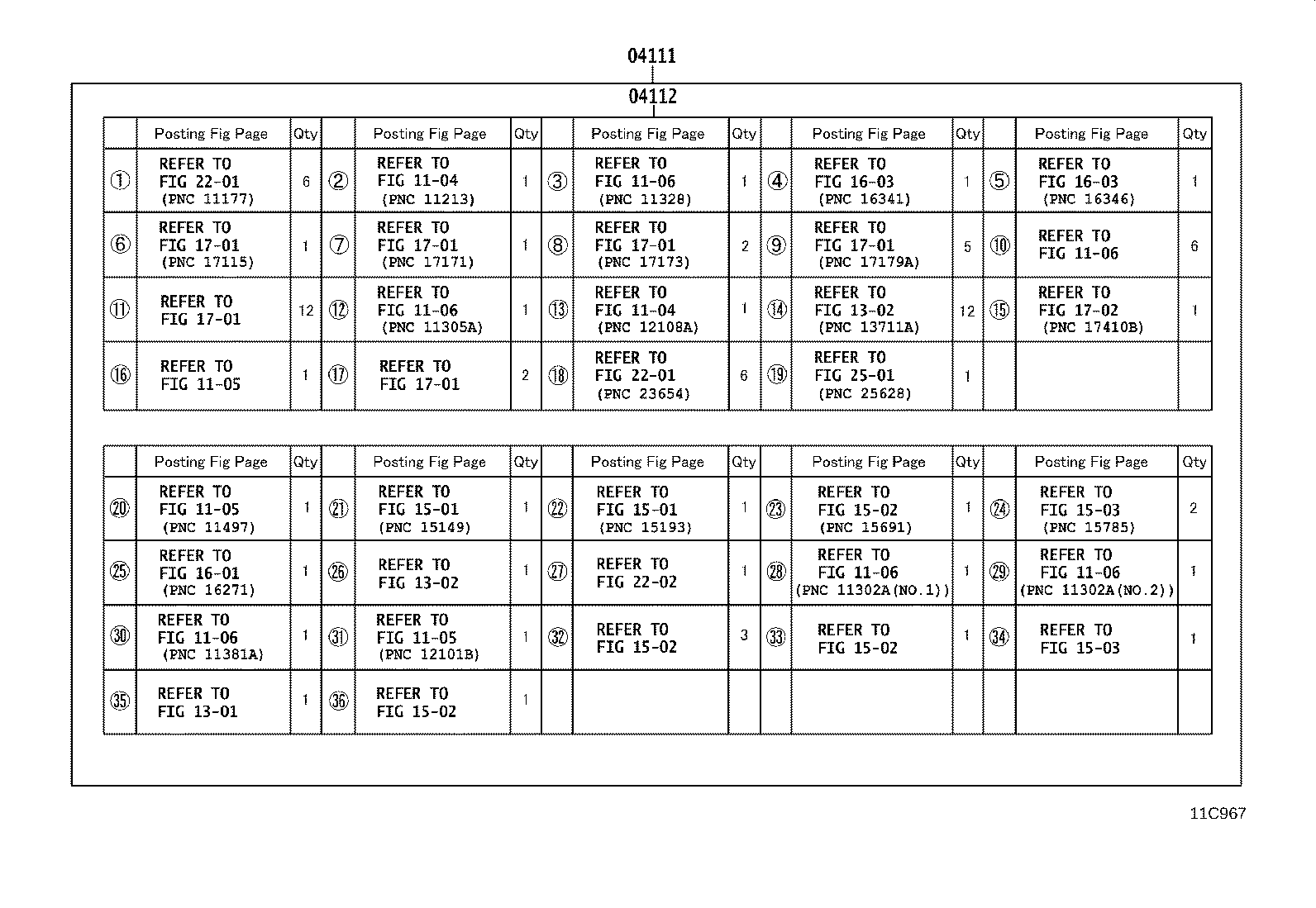

ILLUST NO. 2 OF 2(9908-0404)1HZ..HZJ71,78,79
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04111 - GASKET KIT, ENGINE OVERHAUL | ||||
| 04111-17010 |
1HZ..HZJ7# |
1 | ||
| 04111-17110 |
1HZ..HZJ71,78..STD;1HZ..HZJ79..GCC,GEN;1HZ..HZJ79..ARL..IV |
1 | ||
| 04111-17180 |
1HZ..HZJ7#..GCC,GEN |
1 | ||
| 04112 - GASKET KIT, ENGINE VALVE GRIND | ||||
| 04112-17010 |
1HZ..HZJ7# |
1 | ||
| 04112-17110 |
1HZ..HZJ71,78,79 |
1 | ||
| 04112-17160 |
1HZ..HZJ7#..GCC,GEN |
1 | ||
| Linked diagrams | ||||
| 1104 | ||||
| 1105 | ||||
| 1106 | ||||
| 1301 | ||||
| 1302 | ||||
| 1501 | ||||
| 1502 | ||||
| 1503 | ||||
| 1601 | ||||
| 1603 | ||||
| 1701 | ||||
| 1702 | ||||
| 2201 | ||||
| 2202 | ||||
| 2501 | ||||

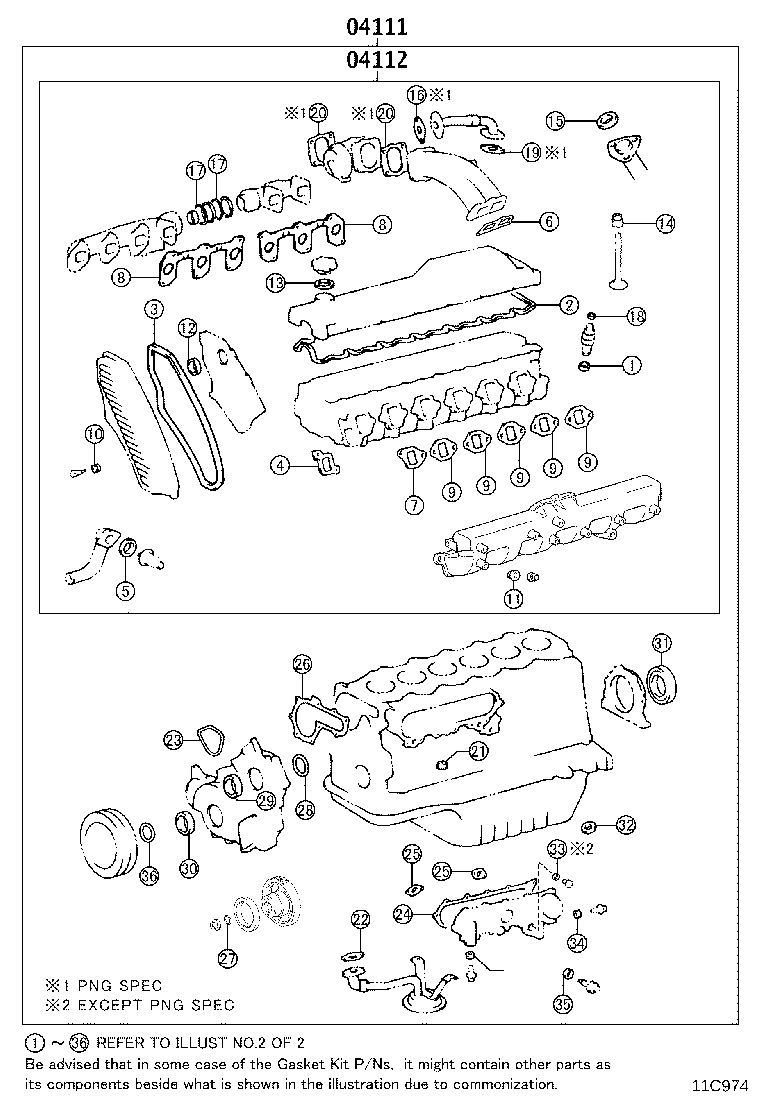

ILLUST NO. 1 OF 2(0404-0701)1HZ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04111 - GASKET KIT, ENGINE OVERHAUL | ||||
| 04111-17010 |
1HZ..HZJ7# |
1 | ||
| 04111-17110 |
1HZ..HZJ71,78..STD;1HZ..HZJ79..GCC,GEN;1HZ..HZJ79..ARL..IV |
1 | ||
| 04111-17180 |
1HZ..HZJ7#..GCC,GEN |
1 | ||
| 04112 - GASKET KIT, ENGINE VALVE GRIND | ||||
| 04112-17010 |
1HZ..HZJ7# |
1 | ||
| 04112-17110 |
1HZ..HZJ71,78,79 |
1 | ||
| 04112-17160 |
1HZ..HZJ7#..GCC,GEN |
1 | ||

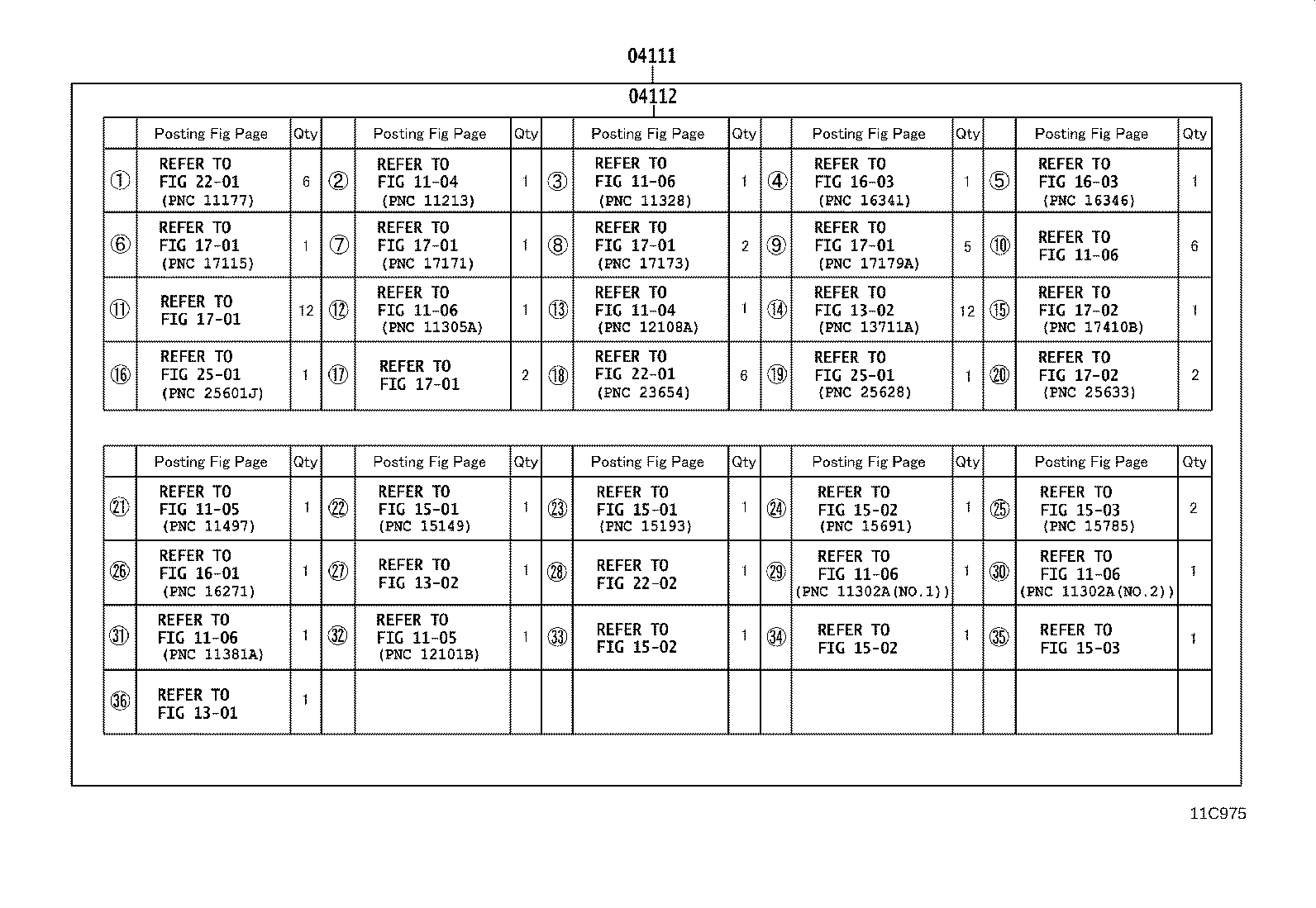

ILLUST NO. 2 OF 2(0404-0701)1HZ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04111 - GASKET KIT, ENGINE OVERHAUL | ||||
| 04111-17010 |
1HZ..HZJ7# |
1 | ||
| 04111-17110 |
1HZ..HZJ71,78..STD;1HZ..HZJ79..GCC,GEN;1HZ..HZJ79..ARL..IV |
1 | ||
| 04111-17180 |
1HZ..HZJ7#..GCC,GEN |
1 | ||
| 04112 - GASKET KIT, ENGINE VALVE GRIND | ||||
| 04112-17010 |
1HZ..HZJ7# |
1 | ||
| 04112-17110 |
1HZ..HZJ71,78,79 |
1 | ||
| 04112-17160 |
1HZ..HZJ7#..GCC,GEN |
1 | ||
| Linked diagrams | ||||
| 1104 | ||||
| 1105 | ||||
| 1106 | ||||
| 1301 | ||||
| 1302 | ||||
| 1501 | ||||
| 1502 | ||||
| 1503 | ||||
| 1601 | ||||
| 1603 | ||||
| 1701 | ||||
| 1702 | ||||
| 2201 | ||||
| 2202 | ||||
| 2501 | ||||
