HZJ79L-DKMRSV (2016)
Toyota Land Cruiser

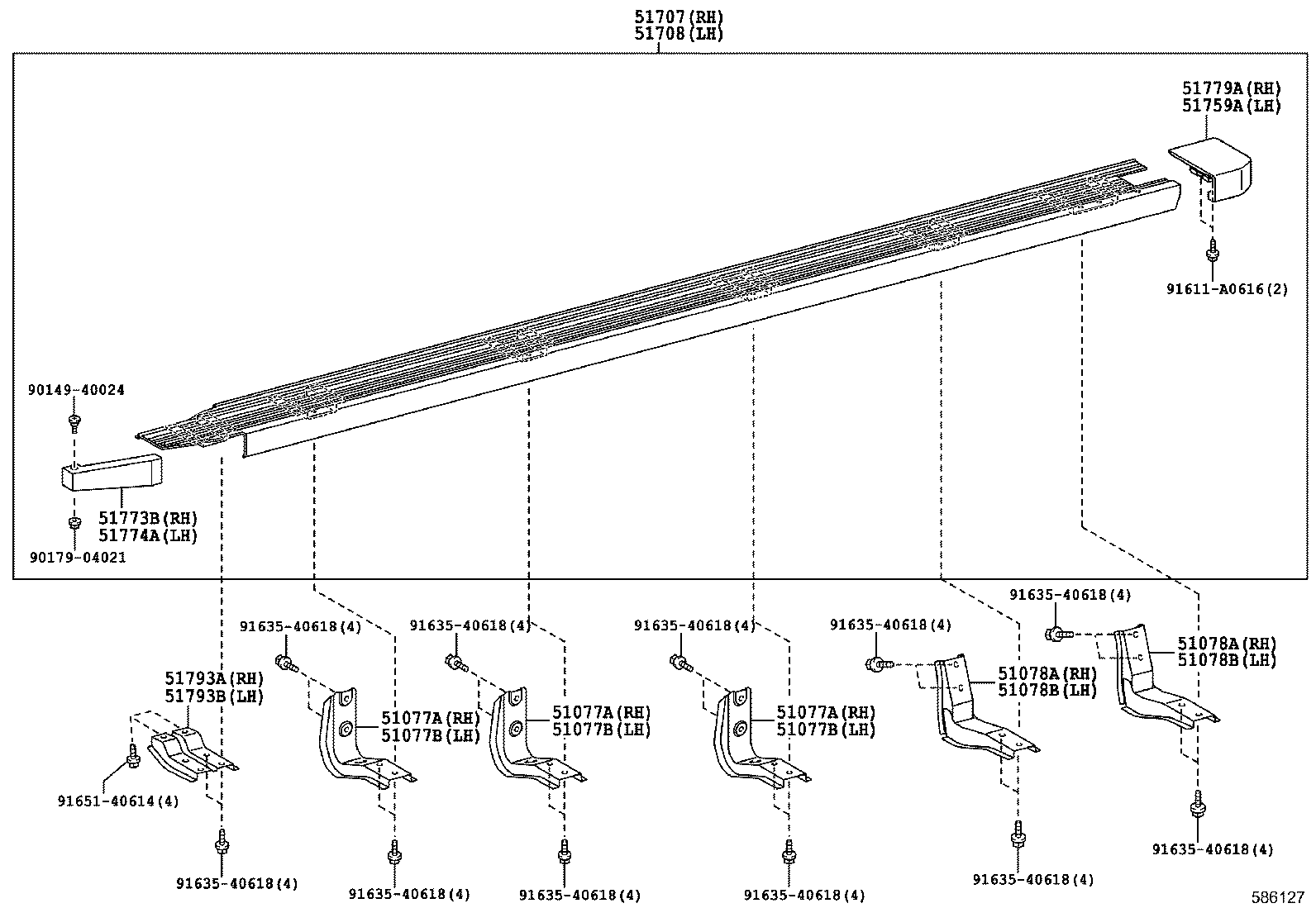

ILLUST NO. 2 OF 2(1608- )GRJ79..LX ; (1608- )GRJ79..PIC..GEN..CBU ; (1608- )GRJ71,HZJ71,79,
SIDE STEP(ALUMINUM)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51077A - BRACKET SUB-ASSY, SIDE STEP, NO.2, RH | ||||
| 51783-60010 |
GRJ79,HZJ79,VDJ79..DCB |
3 | ||
| 51077A - BRACKET SUB-ASSY, SIDE STEP, NO.2, RH | ||||
| 51783-60010 |
GRJ79,HZJ79,VDJ79..DCB |
3 | ||
| 51077B - BRACKET SUB-ASSY, SIDE STEP, NO.2, LH | ||||
| 51783-60010 |
GRJ79,HZJ79,VDJ79..DCB |
3 | ||
| 51077B - BRACKET SUB-ASSY, SIDE STEP, NO.2, LH | ||||
| 51783-60010 |
GRJ79,HZJ79,VDJ79..DCB |
3 | ||
| 51078A - BRACKET SUB-ASSY, SIDE STEP, NO.3, RH | ||||
| 51078-90K00 |
GRJ76,79,HZJ76,79,VDJ76,79..DCB,HT |
2 | ||
| 51078B - BRACKET SUB-ASSY, SIDE STEP, NO.3, LH | ||||
| 51078-90K00 |
GRJ76,79,HZJ76,79,VDJ76,79..DCB,HT |
2 | ||
| 51707 - STEP SUB-ASSY, RH | ||||
| 51770-60390 |
GRJ79,HZJ79,VDJ79..DCB |
1 | ||
| 51708 - STEP SUB-ASSY, LH | ||||
| 51780-60410 |
GRJ79,HZJ79,VDJ79..DCB |
1 | ||
| 51759A - COVER, SIDE DOOR STEP PLATE, REAR LH | ||||
| 51759-60140 |
GRJ79,HZJ79,VDJ79..DCB |
1 | ||
| 51773B - COVER, SIDE DOOR STEP PLATE, FRONT RH | ||||
| 51773-60030 |
GRJ71,79,VDJ7#..LX;GRJ76,79,HZJ76,79,VDJ79..DCB,HT |
1 | ||
| 51774A - COVER, SIDE DOOR STEP PLATE, FRONT LH | ||||
| 51774-60030 |
GRJ71,79,VDJ7#..LX;GRJ76,79,HZJ76,79,VDJ79..DCB,HT |
1 | ||
| 51779A - COVER, SIDE DOOR STEP PLATE, REAR RH | ||||
| 51779-60160 |
GRJ79,HZJ79,VDJ79..DCB |
1 | ||
| 51793A - BRACKET, SIDE STEP, NO.1 RH | ||||
| 51793-60030 |
GRJ71,79,VDJ7#..LX;GRJ76,79,HZJ76,79,VDJ79..DCB,HT |
1 | ||
| 51793B - BRACKET, SIDE STEP, NO.1, LH | ||||
| 51793-60030 |
GRJ71,79,VDJ7#..LX;GRJ76,79,HZJ76,79,VDJ79..DCB,HT |
1 | ||
| Common parts | ||||
| 90149-40024 | ||||
| 90179-04021 | ||||
| 91611-A0616 | ||||
| 91635-40618 | ||||
| 91651-40614 | ||||
ILLUST NO. 2 OF 2(1608- )RHD..DCB ; (1608- )GRJ79,HZJ79..DCB..GCC
SIDE STEP(ALUMINUM)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51077A - BRACKET SUB-ASSY, SIDE STEP, NO.2, RH | ||||
| 51783-60010 |
GRJ79,HZJ79,VDJ79..DCB |
3 | ||
| 51077A - BRACKET SUB-ASSY, SIDE STEP, NO.2, RH | ||||
| 51783-60010 |
GRJ79,HZJ79,VDJ79..DCB |
3 | ||
| 51077A - BRACKET SUB-ASSY, SIDE STEP, NO.2, RH | ||||
| 51783-60010 |
GRJ79,HZJ79,VDJ79..DCB |
3 | ||
| 51077B - BRACKET SUB-ASSY, SIDE STEP, NO.2, LH | ||||
| 51783-60010 |
GRJ79,HZJ79,VDJ79..DCB |
3 | ||
| 51077B - BRACKET SUB-ASSY, SIDE STEP, NO.2, LH | ||||
| 51783-60010 |
GRJ79,HZJ79,VDJ79..DCB |
3 | ||
| 51077B - BRACKET SUB-ASSY, SIDE STEP, NO.2, LH | ||||
| 51783-60010 |
GRJ79,HZJ79,VDJ79..DCB |
3 | ||
| 51078A - BRACKET SUB-ASSY, SIDE STEP, NO.3, RH | ||||
| 51078-90K00 |
GRJ76,79,HZJ76,79,VDJ76,79..DCB,HT |
2 | ||
| 51078A - BRACKET SUB-ASSY, SIDE STEP, NO.3, RH | ||||
| 51078-90K00 |
GRJ76,79,HZJ76,79,VDJ76,79..DCB,HT |
2 | ||
| 51078B - BRACKET SUB-ASSY, SIDE STEP, NO.3, LH | ||||
| 51078-90K00 |
GRJ76,79,HZJ76,79,VDJ76,79..DCB,HT |
2 | ||
| 51078B - BRACKET SUB-ASSY, SIDE STEP, NO.3, LH | ||||
| 51078-90K00 |
GRJ76,79,HZJ76,79,VDJ76,79..DCB,HT |
2 | ||
| 51707 - STEP SUB-ASSY, RH | ||||
| 51770-60390 |
GRJ79,HZJ79,VDJ79..DCB |
1 | ||
| 51708 - STEP SUB-ASSY, LH | ||||
| 51780-60410 |
GRJ79,HZJ79,VDJ79..DCB |
1 | ||
| 51759A - COVER, SIDE DOOR STEP PLATE, REAR LH | ||||
| 51759-60140 |
GRJ79,HZJ79,VDJ79..DCB |
1 | ||
| 51773B - COVER, SIDE DOOR STEP PLATE, FRONT RH | ||||
| 51773-60030 |
GRJ71,79,VDJ7#..LX;GRJ76,79,HZJ76,79,VDJ79..DCB,HT |
1 | ||
| 51774A - COVER, SIDE DOOR STEP PLATE, FRONT LH | ||||
| 51774-60030 |
GRJ71,79,VDJ7#..LX;GRJ76,79,HZJ76,79,VDJ79..DCB,HT |
1 | ||
| 51779A - COVER, SIDE DOOR STEP PLATE, REAR RH | ||||
| 51779-60160 |
GRJ79,HZJ79,VDJ79..DCB |
1 | ||
| 51793A - BRACKET, SIDE STEP, NO.1 RH | ||||
| 51793-60030 |
GRJ71,79,VDJ7#..LX;GRJ76,79,HZJ76,79,VDJ79..DCB,HT |
1 | ||
| 51793B - BRACKET, SIDE STEP, NO.1, LH | ||||
| 51793-60030 |
GRJ71,79,VDJ7#..LX;GRJ76,79,HZJ76,79,VDJ79..DCB,HT |
1 | ||
| Common parts | ||||
| 90149-40024 | ||||
| 90179-04021 | ||||
| 91611-A0616 | ||||
| 91635-40618 | ||||
| 91651-40614 | ||||

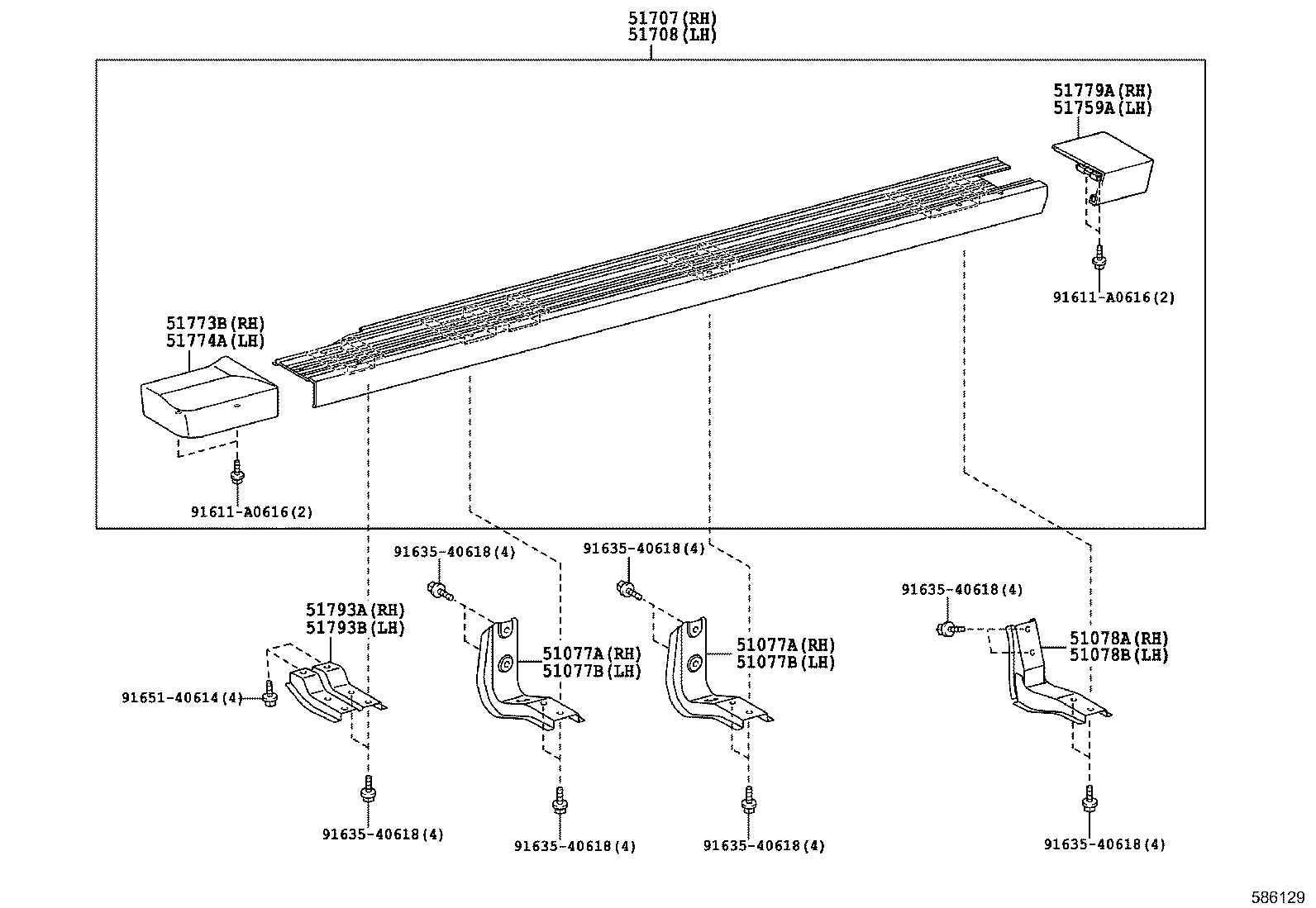

ILLUST NO. 2 OF 2(1608- )VDJ78..LX ; (1608- )HZJ79,VDJ79..PIC..GEN ; (1608- )GRJ78,79,HZJ78
SIDE STEP(PLATING)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51077A - BRACKET SUB-ASSY, SIDE STEP, NO.2, RH | ||||
| 51783-60010 |
GRJ79,HZJ79,VDJ79..DCB |
3 | ||
| 51077A - BRACKET SUB-ASSY, SIDE STEP, NO.2, RH | ||||
| 51783-60010 |
GRJ79,HZJ79,VDJ79..DCB |
3 | ||
| 51077B - BRACKET SUB-ASSY, SIDE STEP, NO.2, LH | ||||
| 51783-60010 |
GRJ79,HZJ79,VDJ79..DCB |
3 | ||
| 51077B - BRACKET SUB-ASSY, SIDE STEP, NO.2, LH | ||||
| 51783-60010 |
GRJ79,HZJ79,VDJ79..DCB |
3 | ||
| 51078A - BRACKET SUB-ASSY, SIDE STEP, NO.3, RH | ||||
| 51078-90K00 |
GRJ76,79,HZJ76,79,VDJ76,79..DCB,HT |
2 | ||
| 51078B - BRACKET SUB-ASSY, SIDE STEP, NO.3, LH | ||||
| 51078-90K00 |
GRJ76,79,HZJ76,79,VDJ76,79..DCB,HT |
2 | ||
| 51707 - STEP SUB-ASSY, RH | ||||
| 51770-60390 |
GRJ79,HZJ79,VDJ79..DCB |
1 | ||
| 51708 - STEP SUB-ASSY, LH | ||||
| 51780-60410 |
GRJ79,HZJ79,VDJ79..DCB |
1 | ||
| 51759A - COVER, SIDE DOOR STEP PLATE, REAR LH | ||||
| 51759-60140 |
GRJ79,HZJ79,VDJ79..DCB |
1 | ||
| 51773B - COVER, SIDE DOOR STEP PLATE, FRONT RH | ||||
| 51773-60030 |
GRJ71,79,VDJ7#..LX;GRJ76,79,HZJ76,79,VDJ79..DCB,HT |
1 | ||
| 51774A - COVER, SIDE DOOR STEP PLATE, FRONT LH | ||||
| 51774-60030 |
GRJ71,79,VDJ7#..LX;GRJ76,79,HZJ76,79,VDJ79..DCB,HT |
1 | ||
| 51779A - COVER, SIDE DOOR STEP PLATE, REAR RH | ||||
| 51779-60160 |
GRJ79,HZJ79,VDJ79..DCB |
1 | ||
| 51793A - BRACKET, SIDE STEP, NO.1 RH | ||||
| 51793-60030 |
GRJ71,79,VDJ7#..LX;GRJ76,79,HZJ76,79,VDJ79..DCB,HT |
1 | ||
| 51793B - BRACKET, SIDE STEP, NO.1, LH | ||||
| 51793-60030 |
GRJ71,79,VDJ7#..LX;GRJ76,79,HZJ76,79,VDJ79..DCB,HT |
1 | ||
| Common parts | ||||
| 91611-A0616 | ||||
| 91635-40618 | ||||
| 91651-40614 | ||||

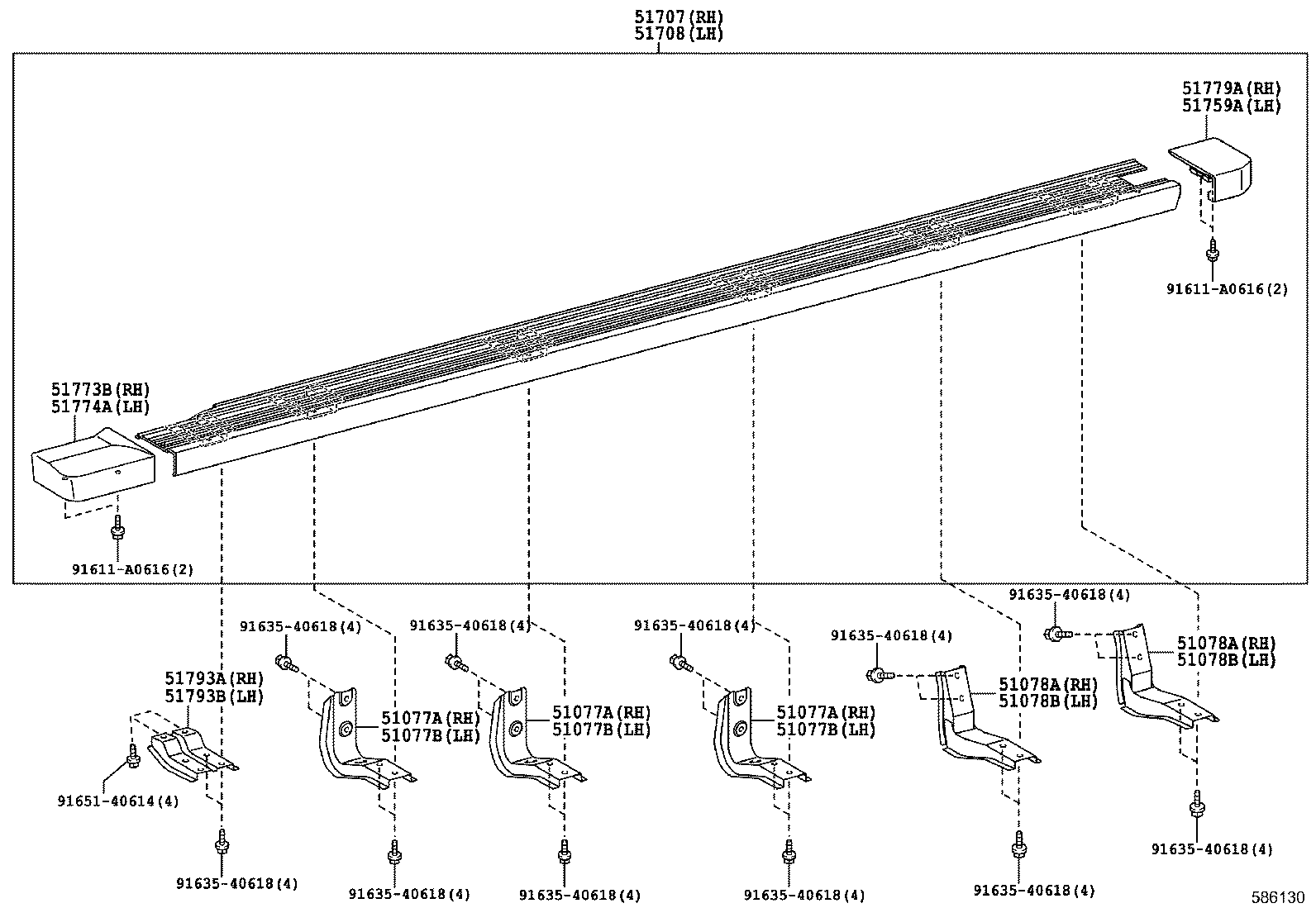

ILLUST NO. 2 OF 2(1608- )VDJ79..RHD..DCB ; (1608- )GRJ79,HZJ79..DCB
SIDE STEP(PLATING)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51077A - BRACKET SUB-ASSY, SIDE STEP, NO.2, RH | ||||
| 51783-60010 |
GRJ79,HZJ79,VDJ79..DCB |
3 | ||
| 51077A - BRACKET SUB-ASSY, SIDE STEP, NO.2, RH | ||||
| 51783-60010 |
GRJ79,HZJ79,VDJ79..DCB |
3 | ||
| 51077A - BRACKET SUB-ASSY, SIDE STEP, NO.2, RH | ||||
| 51783-60010 |
GRJ79,HZJ79,VDJ79..DCB |
3 | ||
| 51077B - BRACKET SUB-ASSY, SIDE STEP, NO.2, LH | ||||
| 51783-60010 |
GRJ79,HZJ79,VDJ79..DCB |
3 | ||
| 51077B - BRACKET SUB-ASSY, SIDE STEP, NO.2, LH | ||||
| 51783-60010 |
GRJ79,HZJ79,VDJ79..DCB |
3 | ||
| 51077B - BRACKET SUB-ASSY, SIDE STEP, NO.2, LH | ||||
| 51783-60010 |
GRJ79,HZJ79,VDJ79..DCB |
3 | ||
| 51078A - BRACKET SUB-ASSY, SIDE STEP, NO.3, RH | ||||
| 51078-90K00 |
GRJ76,79,HZJ76,79,VDJ76,79..DCB,HT |
2 | ||
| 51078A - BRACKET SUB-ASSY, SIDE STEP, NO.3, RH | ||||
| 51078-90K00 |
GRJ76,79,HZJ76,79,VDJ76,79..DCB,HT |
2 | ||
| 51078B - BRACKET SUB-ASSY, SIDE STEP, NO.3, LH | ||||
| 51078-90K00 |
GRJ76,79,HZJ76,79,VDJ76,79..DCB,HT |
2 | ||
| 51078B - BRACKET SUB-ASSY, SIDE STEP, NO.3, LH | ||||
| 51078-90K00 |
GRJ76,79,HZJ76,79,VDJ76,79..DCB,HT |
2 | ||
| 51707 - STEP SUB-ASSY, RH | ||||
| 51770-60390 |
GRJ79,HZJ79,VDJ79..DCB |
1 | ||
| 51708 - STEP SUB-ASSY, LH | ||||
| 51780-60410 |
GRJ79,HZJ79,VDJ79..DCB |
1 | ||
| 51759A - COVER, SIDE DOOR STEP PLATE, REAR LH | ||||
| 51759-60140 |
GRJ79,HZJ79,VDJ79..DCB |
1 | ||
| 51773B - COVER, SIDE DOOR STEP PLATE, FRONT RH | ||||
| 51773-60030 |
GRJ71,79,VDJ7#..LX;GRJ76,79,HZJ76,79,VDJ79..DCB,HT |
1 | ||
| 51774A - COVER, SIDE DOOR STEP PLATE, FRONT LH | ||||
| 51774-60030 |
GRJ71,79,VDJ7#..LX;GRJ76,79,HZJ76,79,VDJ79..DCB,HT |
1 | ||
| 51779A - COVER, SIDE DOOR STEP PLATE, REAR RH | ||||
| 51779-60160 |
GRJ79,HZJ79,VDJ79..DCB |
1 | ||
| 51793A - BRACKET, SIDE STEP, NO.1 RH | ||||
| 51793-60030 |
GRJ71,79,VDJ7#..LX;GRJ76,79,HZJ76,79,VDJ79..DCB,HT |
1 | ||
| 51793B - BRACKET, SIDE STEP, NO.1, LH | ||||
| 51793-60030 |
GRJ71,79,VDJ7#..LX;GRJ76,79,HZJ76,79,VDJ79..DCB,HT |
1 | ||
| Common parts | ||||
| 91611-A0616 | ||||
| 91635-40618 | ||||
| 91651-40614 | ||||

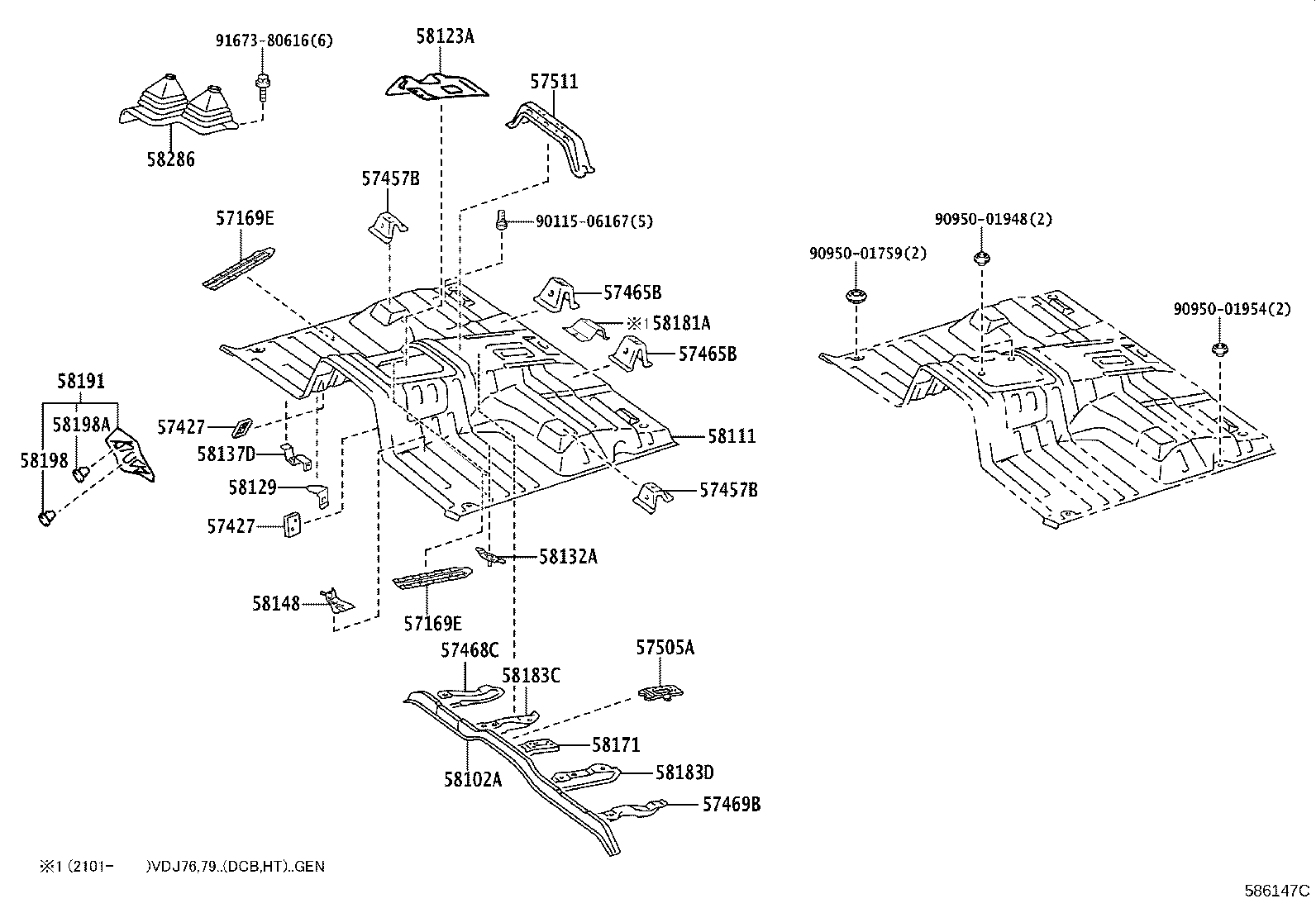

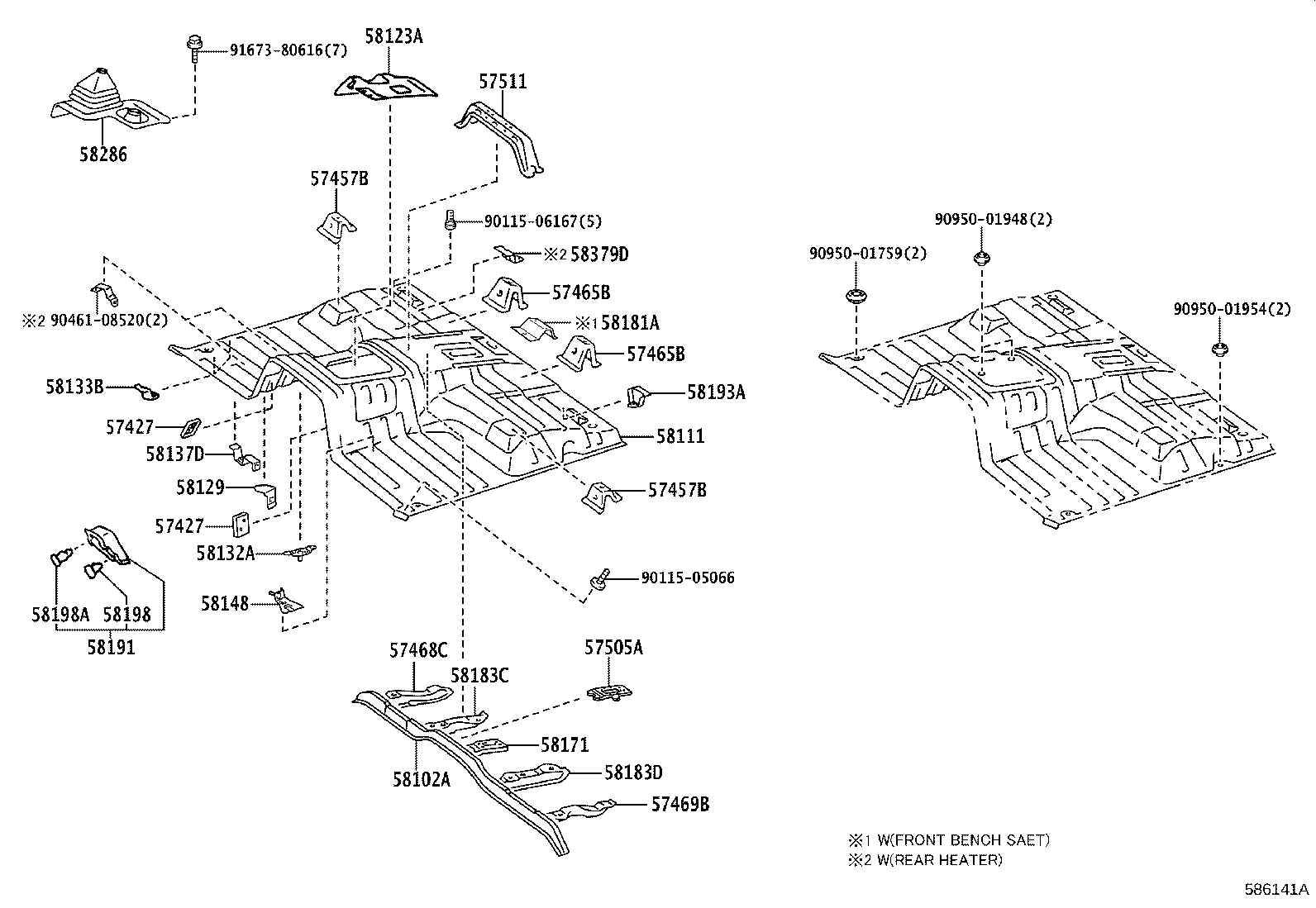

ILLUST NO. 1 OF 2(1608- )GRJ71,76,79..LHD..DCB,HT,SOT
FRONT FLOOR PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 57427 - REINFORCEMENT, FRONT FLOOR TO BRACE | ||||
| 57427-90K00 |
GRJ7#,HZJ7#,VDJ7# |
2 | ||
| 57427 - REINFORCEMENT, FRONT FLOOR TO BRACE | ||||
| 57427-90K00 |
GRJ7#,HZJ7#,VDJ7# |
2 | ||
| 57457B - BRACKET, FRONT SEAT, FRONT | ||||
| 57457-90K00 |
GRJ71,76,79,HZJ71,76,79,VDJ76,79..DCB,HT,SOT |
2 | ||
| 57457B - BRACKET, FRONT SEAT, FRONT | ||||
| 57457-90K00 |
GRJ71,76,79,HZJ71,76,79,VDJ76,79..DCB,HT,SOT |
2 | ||
| 57465B - BRACKET, FRONT SEAT, INNER | ||||
| 57465-90K00 |
GRJ71,76,79,HZJ71,76,79,VDJ76,79..DCB,HT,SOT |
2 | ||
| 57465B - BRACKET, FRONT SEAT, INNER | ||||
| 57465-90K00 |
GRJ71,76,79,HZJ71,76,79,VDJ76,79..DCB,HT,SOT |
2 | ||
| 57468C - BRACKET, FRONT SEAT, OUTSIDE, RH | ||||
| 57468-60020 |
GRJ71,76,79,HZJ71,76,79,VDJ76,79..DCB,HT,SOT |
1 | ||
| 57469B - BRACKET, FRONT SEAT, OUTSIDE LH | ||||
| 57469-60010 |
GRJ71,76,79,HZJ71,76,79,VDJ76,79..DCB,HT,SOT |
1 | ||
| 57505A - REINFORCEMENT SUB-ASSY, FRONT FLOOR UNDER | ||||
| 57506-60040 |
GRJ71,76,79,HZJ71,76,79,VDJ76,79..LHD..(DCB,HT,SOT) |
1 | ||
| 57511 - REINFORCEMENT, FRONT FLOOR, CENTER | ||||
| 57511-90K00 |
VDJ79..DCB;GRJ7#,HZJ7#,VDJ76;VDJ78,79..(HT,PIC)..GCC |
1 | ||
| 58102A - REINFORCEMENT SUB-ASSY, FRONT FLOOR | ||||
| 58102-60100 |
GRJ71,76,79,HZJ71,76,79,VDJ76,79..DCB,HT,SOT |
1 | ||
| 58111 - PAN, FRONT FLOOR | ||||
| 58111-60E11 |
GRJ71,76,79,HZJ71,76,79,VDJ76,79..LHD..(DCB,HT,SOT) |
1 | ||
| 58123A - SUPPORT, SHIFT & SELECT LEVER | ||||
| 58013-60081 |
HZJ7# |
1 | ||
| 58132A - BRACKET, FRONT FLOOR HEAT INSULATOR, NO.2 | ||||
| 58132-60030 |
HZJ7#,VDJ7# |
1 | ||
| 58148 - BRACKET, FRONT FLOOR HOUSING, REAR LH | ||||
| 58148-60020 |
VDJ79..CBU;VDJ79..DCB..IV;GRJ7#,HZJ7#,VDJ76,78 |
1 | ||
| 58181A - RETAINER, SEAT RAIL, FRONT | ||||
| 58181-60020 |
VDJ79..STD..GCC;GRJ71,76,79,HZJ71,76,79..DCB,HT,SOT |
1 | ||
| 58183C - BRACKET, FRONT SEAT MOUNTING, INSIDE RH | ||||
| 58183-60010 |
GRJ71,76,79,HZJ71,76,79,VDJ76,79..DCB,HT,SOT |
1 | ||
| 58183D - BRACKET, FRONT SEAT MOUNTING, INSIDE LH | ||||
| 58184-60010 |
GRJ71,76,79,HZJ71,76,79,VDJ76,79..DCB,HT,SOT |
1 | ||
| 58191 - FOOTREST, FRONT FLOOR | ||||
| 58190-60070 |
HZJ76,78,79..GCC |
1 | ||
| 58193A - BRACKET, FUEL PIPE | ||||
| 58193-60040 |
GRJ71,76,79,HZJ71,76,79..DCB,HT,SOT |
1 | ||
| 58198 - CLIP, FOOTREST | ||||
| 58198-60060 |
GRJ7#,HZJ7#..LHD |
1 | ||
| 58198A - CLIP, FOOTREST, NO.1 | ||||
| 58198-60050 |
HZJ76,78,79..GCC |
1 | ||
| 58286 - BOOT, SHIFT & SELECT LEVER, NO.1 | ||||
| 58280-60170 |
HZJ76,78,79..GCC |
1 | ||
| 58367B - BRACKET, FUEL TUBE | ||||
| 58367-60020 |
GRJ71,76,79..DCB,HT,SOT |
1 | ||
| Common parts | ||||
| 90115-05066 | ||||
| 90115-06167 | ||||
| 90950-01759 | ||||
| 90950-01948 | ||||
| 90950-01954 | ||||
| 91673-80616 | ||||
ILLUST NO. 1 OF 2(1608- )HZJ71,76,79..LHD..DCB,HT
FRONT FLOOR PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 57427 - REINFORCEMENT, FRONT FLOOR TO BRACE | ||||
| 57427-90K00 |
GRJ7#,HZJ7#,VDJ7# |
2 | ||
| 57427 - REINFORCEMENT, FRONT FLOOR TO BRACE | ||||
| 57427-90K00 |
GRJ7#,HZJ7#,VDJ7# |
2 | ||
| 57457B - BRACKET, FRONT SEAT, FRONT | ||||
| 57457-90K00 |
GRJ71,76,79,HZJ71,76,79,VDJ76,79..DCB,HT,SOT |
2 | ||
| 57457B - BRACKET, FRONT SEAT, FRONT | ||||
| 57457-90K00 |
GRJ71,76,79,HZJ71,76,79,VDJ76,79..DCB,HT,SOT |
2 | ||
| 57465B - BRACKET, FRONT SEAT, INNER | ||||
| 57465-90K00 |
GRJ71,76,79,HZJ71,76,79,VDJ76,79..DCB,HT,SOT |
2 | ||
| 57465B - BRACKET, FRONT SEAT, INNER | ||||
| 57465-90K00 |
GRJ71,76,79,HZJ71,76,79,VDJ76,79..DCB,HT,SOT |
2 | ||
| 57468C - BRACKET, FRONT SEAT, OUTSIDE, RH | ||||
| 57468-60020 |
GRJ71,76,79,HZJ71,76,79,VDJ76,79..DCB,HT,SOT |
1 | ||
| 57469B - BRACKET, FRONT SEAT, OUTSIDE LH | ||||
| 57469-60010 |
GRJ71,76,79,HZJ71,76,79,VDJ76,79..DCB,HT,SOT |
1 | ||
| 57505A - REINFORCEMENT SUB-ASSY, FRONT FLOOR UNDER | ||||
| 57506-60040 |
GRJ71,76,79,HZJ71,76,79,VDJ76,79..LHD..(DCB,HT,SOT) |
1 | ||
| 57511 - REINFORCEMENT, FRONT FLOOR, CENTER | ||||
| 57511-90K00 |
VDJ79..DCB;GRJ7#,HZJ7#,VDJ76;VDJ78,79..(HT,PIC)..GCC |
1 | ||
| 58102A - REINFORCEMENT SUB-ASSY, FRONT FLOOR | ||||
| 58102-60100 |
GRJ71,76,79,HZJ71,76,79,VDJ76,79..DCB,HT,SOT |
1 | ||
| 58111 - PAN, FRONT FLOOR | ||||
| 58111-60E11 |
GRJ71,76,79,HZJ71,76,79,VDJ76,79..LHD..(DCB,HT,SOT) |
1 | ||
| 58123A - SUPPORT, SHIFT & SELECT LEVER | ||||
| 58013-60081 |
HZJ7# |
1 | ||
| 58129 - PLATE, FRONT FLOOR, NO.2 | ||||
| 58129-60010 |
HZJ7# |
1 | ||
| 58132A - BRACKET, FRONT FLOOR HEAT INSULATOR, NO.2 | ||||
| 58132-60030 |
HZJ7#,VDJ7# |
1 | ||
| 58133B - BRACKET, FRONT FLOOR HEAT INSULATOR, NO.3 | ||||
| 58133-90A01 |
HZJ79;GRJ78,79,HZJ71,76,78..HT,PIC,SOT |
2 | ||
| 58137D - BRACKET, FRONT FLOOR HOUSING, FRONT RH | ||||
| 58137-60030 |
VDJ79..CBU;HZJ7#,VDJ76,78;VDJ79..DCB..IV |
1 | ||
| 58148 - BRACKET, FRONT FLOOR HOUSING, REAR LH | ||||
| 58148-60020 |
VDJ79..CBU;VDJ79..DCB..IV;GRJ7#,HZJ7#,VDJ76,78 |
1 | ||
| 58181A - RETAINER, SEAT RAIL, FRONT | ||||
| 58181-60020 |
VDJ79..STD..GCC;GRJ71,76,79,HZJ71,76,79..DCB,HT,SOT |
1 | ||
| 58183C - BRACKET, FRONT SEAT MOUNTING, INSIDE RH | ||||
| 58183-60010 |
GRJ71,76,79,HZJ71,76,79,VDJ76,79..DCB,HT,SOT |
1 | ||
| 58183D - BRACKET, FRONT SEAT MOUNTING, INSIDE LH | ||||
| 58184-60010 |
GRJ71,76,79,HZJ71,76,79,VDJ76,79..DCB,HT,SOT |
1 | ||
| 58191 - FOOTREST, FRONT FLOOR | ||||
| 58190-60070 |
HZJ76,78,79..GCC |
1 | ||
| 58193A - BRACKET, FUEL PIPE | ||||
| 58193-60040 |
GRJ71,76,79,HZJ71,76,79..DCB,HT,SOT |
1 | ||
| 58198 - CLIP, FOOTREST | ||||
| 58198-60060 |
GRJ7#,HZJ7#..LHD |
1 | ||
| 58198A - CLIP, FOOTREST, NO.1 | ||||
| 58198-60050 |
HZJ76,78,79..GCC |
1 | ||
| 58286 - BOOT, SHIFT & SELECT LEVER, NO.1 | ||||
| 58280-60170 |
HZJ76,78,79..GCC |
1 | ||
| Common parts | ||||
| 90115-05066 | ||||
| 90115-06167 | ||||
| 90461-08520 | ||||
| 90950-01759 | ||||
| 90950-01948 | ||||
| 90950-01954 | ||||
| 91673-80616 | ||||
ILLUST NO. 1 OF 2(1608- )VDJ79..LX..GCC ; (1608- )VDJ76,79..DCB,HT
FRONT FLOOR PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 57427 - REINFORCEMENT, FRONT FLOOR TO BRACE | ||||
| 57427-90K00 |
GRJ7#,HZJ7#,VDJ7# |
2 | ||
| 57427 - REINFORCEMENT, FRONT FLOOR TO BRACE | ||||
| 57427-90K00 |
GRJ7#,HZJ7#,VDJ7# |
2 | ||
| 57457B - BRACKET, FRONT SEAT, FRONT | ||||
| 57457-90K00 |
GRJ71,76,79,HZJ71,76,79,VDJ76,79..DCB,HT,SOT |
2 | ||
| 57457B - BRACKET, FRONT SEAT, FRONT | ||||
| 57457-90K00 |
GRJ71,76,79,HZJ71,76,79,VDJ76,79..DCB,HT,SOT |
2 | ||
| 57465B - BRACKET, FRONT SEAT, INNER | ||||
| 57465-90K00 |
GRJ71,76,79,HZJ71,76,79,VDJ76,79..DCB,HT,SOT |
2 | ||
| 57465B - BRACKET, FRONT SEAT, INNER | ||||
| 57465-90K00 |
GRJ71,76,79,HZJ71,76,79,VDJ76,79..DCB,HT,SOT |
2 | ||
| 57468C - BRACKET, FRONT SEAT, OUTSIDE, RH | ||||
| 57468-60020 |
GRJ71,76,79,HZJ71,76,79,VDJ76,79..DCB,HT,SOT |
1 | ||
| 57469B - BRACKET, FRONT SEAT, OUTSIDE LH | ||||
| 57469-60010 |
GRJ71,76,79,HZJ71,76,79,VDJ76,79..DCB,HT,SOT |
1 | ||
| 57505A - REINFORCEMENT SUB-ASSY, FRONT FLOOR UNDER | ||||
| 57506-60040 |
GRJ71,76,79,HZJ71,76,79,VDJ76,79..LHD..(DCB,HT,SOT) |
1 | ||
| 57511 - REINFORCEMENT, FRONT FLOOR, CENTER | ||||
| 57511-90K00 |
VDJ79..DCB;GRJ7#,HZJ7#,VDJ76;VDJ78,79..(HT,PIC)..GCC |
1 | ||
| 58102A - REINFORCEMENT SUB-ASSY, FRONT FLOOR | ||||
| 58102-60100 |
GRJ71,76,79,HZJ71,76,79,VDJ76,79..DCB,HT,SOT |
1 | ||
| 58111 - PAN, FRONT FLOOR | ||||
| 58111-60E11 |
GRJ71,76,79,HZJ71,76,79,VDJ76,79..LHD..(DCB,HT,SOT) |
1 | ||
| 58123A - SUPPORT, SHIFT & SELECT LEVER | ||||
| 58013-60081 |
HZJ7# |
1 | ||
| 58129 - PLATE, FRONT FLOOR, NO.2 | ||||
| 58129-60010 |
HZJ7# |
1 | ||
| 58132A - BRACKET, FRONT FLOOR HEAT INSULATOR, NO.2 | ||||
| 58132-60030 |
HZJ7#,VDJ7# |
1 | ||
| 58137D - BRACKET, FRONT FLOOR HOUSING, FRONT RH | ||||
| 58137-60030 |
VDJ79..CBU;HZJ7#,VDJ76,78;VDJ79..DCB..IV |
1 | ||
| 58148 - BRACKET, FRONT FLOOR HOUSING, REAR LH | ||||
| 58148-60020 |
VDJ79..CBU;VDJ79..DCB..IV;GRJ7#,HZJ7#,VDJ76,78 |
1 | ||
| 58181A - RETAINER, SEAT RAIL, FRONT | ||||
| 58181-60020 |
VDJ79..STD..GCC;GRJ71,76,79,HZJ71,76,79..DCB,HT,SOT |
1 | ||
| 58183C - BRACKET, FRONT SEAT MOUNTING, INSIDE RH | ||||
| 58183-60010 |
GRJ71,76,79,HZJ71,76,79,VDJ76,79..DCB,HT,SOT |
1 | ||
| 58183D - BRACKET, FRONT SEAT MOUNTING, INSIDE LH | ||||
| 58184-60010 |
GRJ71,76,79,HZJ71,76,79,VDJ76,79..DCB,HT,SOT |
1 | ||
| 58191 - FOOTREST, FRONT FLOOR | ||||
| 58190-60070 |
HZJ76,78,79..GCC |
1 | ||
| 58198 - CLIP, FOOTREST | ||||
| 58198-60060 |
GRJ7#,HZJ7#..LHD |
1 | ||
| 58198A - CLIP, FOOTREST, NO.1 | ||||
| 58198-60050 |
HZJ76,78,79..GCC |
1 | ||
| 58286 - BOOT, SHIFT & SELECT LEVER, NO.1 | ||||
| 58280-60170 |
HZJ76,78,79..GCC |
1 | ||
| Common parts | ||||
| 90115-06167 | ||||
| 90950-01759 | ||||
| 90950-01948 | ||||
| 90950-01954 | ||||
| 91673-80616 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
