HZJ76R-RKMRS (2007)

Toyota Land Cruiser

Production Jan 2007 - Aug 2016
Engine 1HZ
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0701-0907)FZJ76 ; (0701- )HZJ76 ; (0701-)VDJ76..ARL ; (0907- )GRJ76,VDJ7

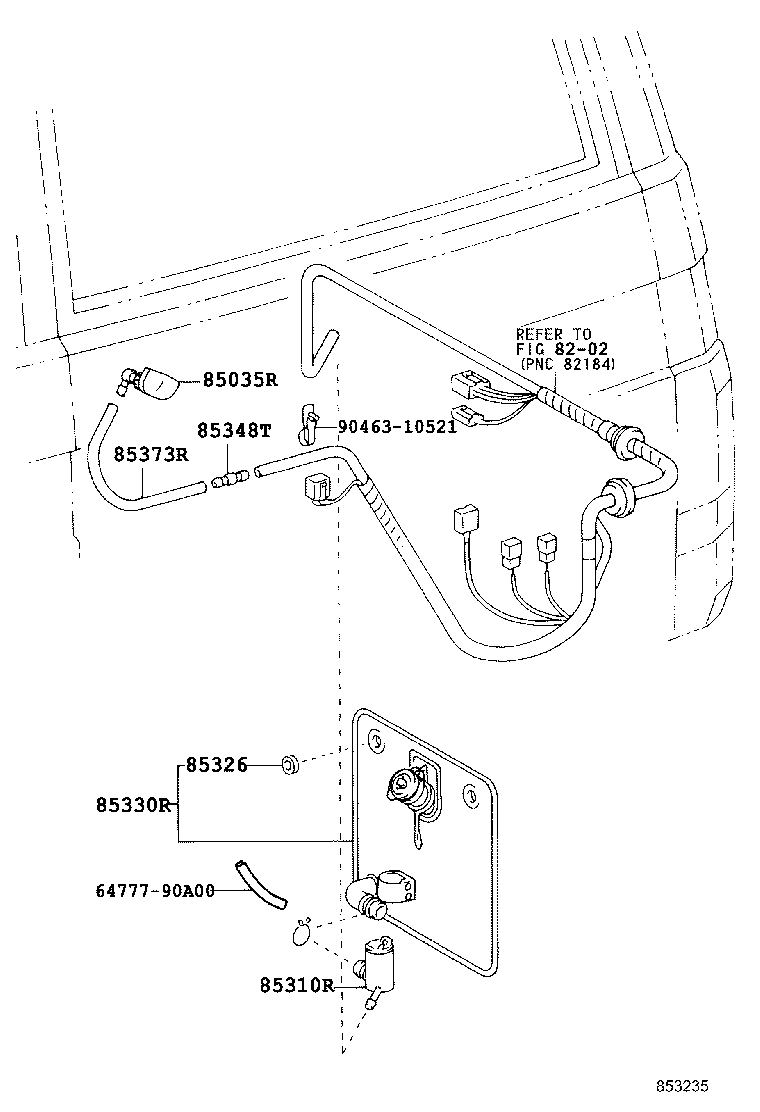

Click highlighted areas on diagram

diagram 6477790A00 8202 85035R 85310R 85326 85330R 85348T 85373R 9046310521
Part # Description Qty Price
85035R - NOZZLE SUB-ASSY, REAR WASHER
85391-60040

FZJ71,76

REAR WINDOW WIPER-WITH(INTERMITTENT)

 1
85391-60040

HZJ78..GEN;GRJ71..LHD..HT;GRJ76,HZJ71,76..HT

REAR WINDOW WIPER-WITH(INTERMITTENT)

 1
85310R - MOTOR ASSY, REAR WASHER
85310-22080

HZJ78..GEN;GRJ71..LHD..HT;GRJ76,HZJ71,76..HT

REAR WINDOW WIPER-WITH(INTERMITTENT)

 1
85310-22080

FZJ71,76

REAR WINDOW WIPER-WITH(INTERMITTENT)

 1
85326 - PACKING, WASHER
85326-60040

GRJ76,HZJ76

REAR WINDOW WIPER-WITH(INTERMITTENT)

 1
85330R - JAR ASSY, REAR WASHER
85325-60040

GRJ76,HZJ76

REAR WINDOW WIPER-WITH(INTERMITTENT)

 1
85348T - JOINT, REAR WASHER HOSE, NO.2
85349-89122

FZJ71,76

REAR WINDOW WIPER-WITH(INTERMITTENT)

 1
85349-89122

HZJ78..GEN;GRJ71..LHD..HT;GRJ76,HZJ71,76..HT

REAR WINDOW WIPER-WITH(INTERMITTENT)

 1
85373R - HOSE, REAR WASHER (FROM JOINT TO NOZZLE)
90099-33299

HZJ78..GEN;GRJ71..LHD..HT;GRJ76,HZJ71,76..HT

*H,L=230,REAR WINDOW WIPER-WITH(INTERMITTENT)

 1
90099-33299

FZJ71,76

*H,L=230,REAR WINDOW WIPER-WITH(INTERMITTENT)

 1
Common parts
64777-90A00
90463-10521
Linked diagrams
8202
