HZJ76L-RKMRS (2007)
Toyota Land Cruiser

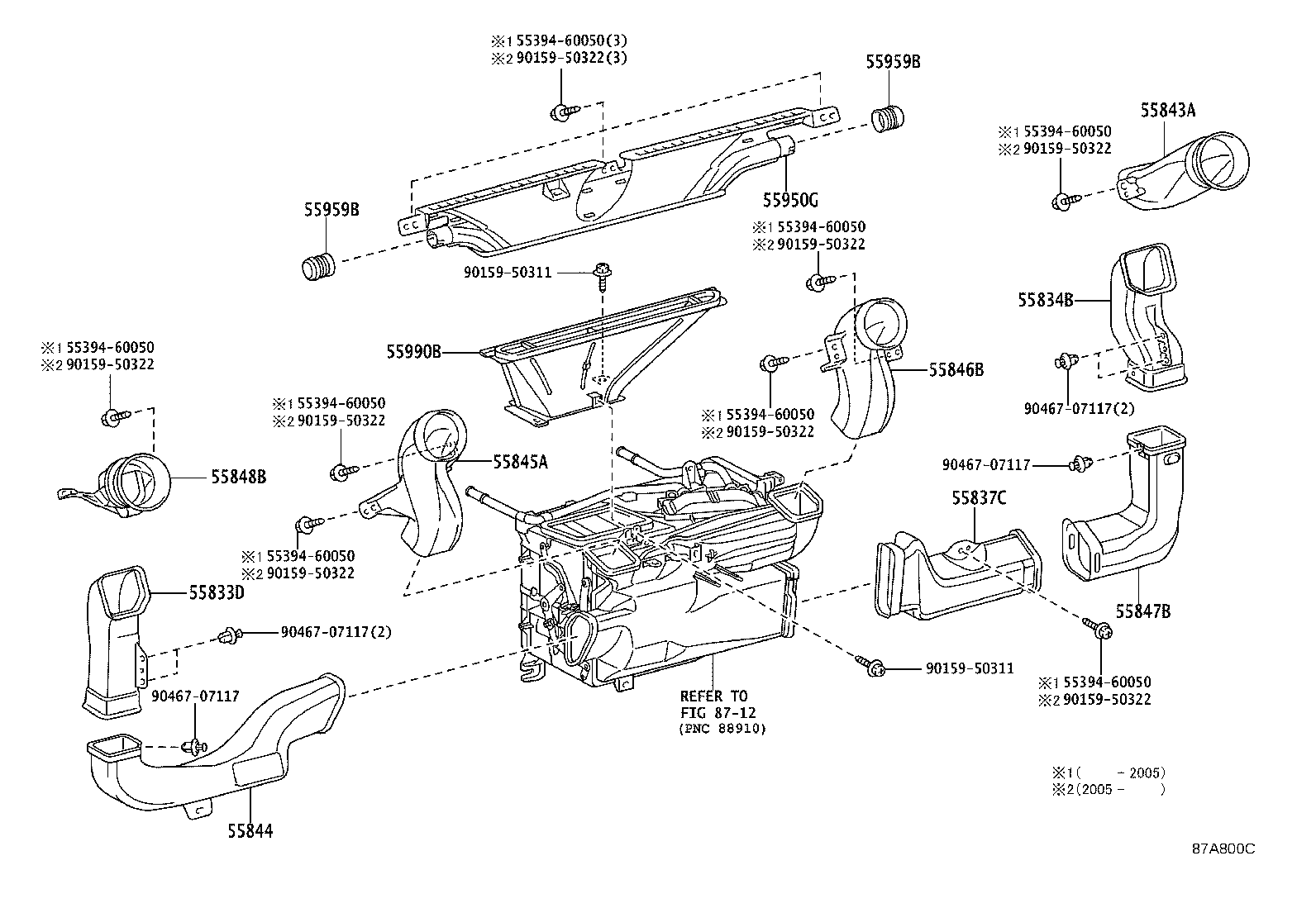

ILLUST NO. 2 OF 2(0907- )SOT..GCC ; (0907- )LHD..DCB,HT,PIC
AIR DUCT:BOOST VENTILATER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55833D - CONNECTOR, INSTRUMENT PANEL REGISTER, NO.1 | ||||
| 55833-60020 |
GRJ79..LX;GRJ79,HZJ79..DCB..GCC;GRJ79,HZJ79..LHD..GEN;GRJ71,76,78,HZJ71,76,78..LHD |
1 | ||
| 55834B - CONNECTOR, INSTRUMENT PANEL REGISTER, NO.2 | ||||
| 55834-60030 |
GRJ79..LX;GRJ79,HZJ79..DCB..GCC;GRJ79,HZJ79..LHD..GEN;GRJ71,76,78,HZJ71,76,78..LHD |
1 | ||
| 55837C - DUCT, HEATER TO REGISTER CENTER SUB | ||||
| 55837-60040 |
GRJ79..LX;GRJ79,HZJ79..DCB..GCC;GRJ79,HZJ79..LHD..GEN;GRJ71,76,78,HZJ71,76,78..LHD |
1 | ||
| 55843A - DUCT, HEATER TO REGISTER, NO.1 | ||||
| 55843-60220 |
GRJ79..LX;GRJ79,HZJ79..GEN;GRJ71,76,78..LHD;HZJ71,76,78,VDJ7#;GRJ79,HZJ79..DCB..GCC |
1 | ||
| 55844 - DUCT, HEATER TO REGISTER, NO.2 | ||||
| 55844-60260 |
GRJ71..LX;GRJ71..HT..GCC;GRJ76,78,79,HZJ7#..LHD HEATER-W(FRONT)&AIR CONDITIONER-WITH |
1 | ||
| 55844-60260 |
HZJ76,78,79..LHD..(DCB,HT)..GEN HEATER-W(FRONT & REAR)&AIR CONDITIONER-WITH |
1 | ||
| 55844-60280 |
GRJ79..LX;GRJ79,HZJ79..DCB..GCC;GRJ79,HZJ79..LHD..GEN;GRJ71,76,78,HZJ71,76,78..LHD |
1 | ||
| 55845A - DUCT, HEATER TO REGISTER, NO.3 | ||||
| 55845-60150 |
GRJ79..LX;GRJ79,HZJ79..DCB..GCC;GRJ79,HZJ79..LHD..GEN;GRJ71,76,78,HZJ71,76,78..LHD |
1 | ||
| 55846B - DUCT, HEATER TO REGISTER, NO.4 | ||||
| 55846-60130 |
GRJ79..LX;GRJ79,HZJ79..DCB..GCC;GRJ79,HZJ79..LHD..GEN;GRJ71,76,78,HZJ71,76,78..LHD |
1 | ||
| 55847B - DUCT, HEATER TO REGISTER, NO.5 | ||||
| 55847-60150 |
GRJ79..LX;GRJ79,HZJ79..DCB..GCC;GRJ79,HZJ79..LHD..GEN;GRJ71,76,78,HZJ71,76,78..LHD |
1 | ||
| 55848B - DUCT, HEATER TO REGISTER, NO.6 | ||||
| 55848-90K01 |
FZJ79..LX;FZJ79,HZJ79..LHD..GEN;FZJ71,76,78,HZJ71,76,78..LHD |
1 | ||
| 55848-60040 |
GRJ79..LX;GRJ79,HZJ79..GEN;GRJ71,76,78..LHD;HZJ71,76,78,VDJ7#;GRJ79,HZJ79..DCB..GCC |
1 | ||
| 55950G - NOZZLE ASSY, DEFROSTER | ||||
| 55950-60180 |
GRJ7#,HZJ7#..LHD |
1 | ||
| 55959B - COVER, DEFROSTER NOZZLE OPENING | ||||
| 55959-14010 |
GRJ79..LX;GRJ79,HZJ79..GEN;GRJ71,76,78..LHD;HZJ71,76,78,VDJ7#;GRJ79,HZJ79..DCB..GCC |
2 | ||
| 55959B - COVER, DEFROSTER NOZZLE OPENING | ||||
| 55959-14010 |
GRJ79..LX;GRJ79,HZJ79..GEN;GRJ71,76,78..LHD;HZJ71,76,78,VDJ7#;GRJ79,HZJ79..DCB..GCC |
2 | ||
| 55990B - NOZZLE ASSY, DEFROSTER, LOWER | ||||
| 55990-60060 |
GRJ79..LX;GRJ79,HZJ79..DCB..GCC;GRJ79,HZJ79..LHD..GEN;GRJ71,76,78,HZJ71,76,78..LHD |
1 | ||
| Common parts | ||||
| 55394-60050 | ||||
| 90159-50311 | ||||
| 90159-50322 | ||||
| 90467-07117 | ||||
| Linked diagrams | ||||
| 8712 | ||||
ILLUST NO. 2 OF 2(0907- )GRJ7#,HZJ7#..LHD
AIR DUCT:HEATER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55833D - CONNECTOR, INSTRUMENT PANEL REGISTER, NO.1 | ||||
| 55833-60020 |
GRJ79..LX;GRJ79,HZJ79..DCB..GCC;GRJ79,HZJ79..LHD..GEN;GRJ71,76,78,HZJ71,76,78..LHD |
1 | ||
| 55834B - CONNECTOR, INSTRUMENT PANEL REGISTER, NO.2 | ||||
| 55834-60030 |
GRJ79..LX;GRJ79,HZJ79..DCB..GCC;GRJ79,HZJ79..LHD..GEN;GRJ71,76,78,HZJ71,76,78..LHD |
1 | ||
| 55837C - DUCT, HEATER TO REGISTER CENTER SUB | ||||
| 55837-60040 |
GRJ79..LX;GRJ79,HZJ79..DCB..GCC;GRJ79,HZJ79..LHD..GEN;GRJ71,76,78,HZJ71,76,78..LHD |
1 | ||
| 55843A - DUCT, HEATER TO REGISTER, NO.1 | ||||
| 55843-60220 |
GRJ79..LX;GRJ79,HZJ79..GEN;GRJ71,76,78..LHD;HZJ71,76,78,VDJ7#;GRJ79,HZJ79..DCB..GCC |
1 | ||
| 55844 - DUCT, HEATER TO REGISTER, NO.2 | ||||
| 55844-60260 |
GRJ71..LX;GRJ71..HT..GCC;GRJ76,78,79,HZJ7#..LHD HEATER-W(FRONT)&AIR CONDITIONER-WITH |
1 | ||
| 55844-60260 |
HZJ76,78,79..LHD..(DCB,HT)..GEN HEATER-W(FRONT & REAR)&AIR CONDITIONER-WITH |
1 | ||
| 55844-60280 |
GRJ79..LX;GRJ79,HZJ79..DCB..GCC;GRJ79,HZJ79..LHD..GEN;GRJ71,76,78,HZJ71,76,78..LHD |
1 | ||
| 55845A - DUCT, HEATER TO REGISTER, NO.3 | ||||
| 55845-60150 |
GRJ79..LX;GRJ79,HZJ79..DCB..GCC;GRJ79,HZJ79..LHD..GEN;GRJ71,76,78,HZJ71,76,78..LHD |
1 | ||
| 55846B - DUCT, HEATER TO REGISTER, NO.4 | ||||
| 55846-60130 |
GRJ79..LX;GRJ79,HZJ79..DCB..GCC;GRJ79,HZJ79..LHD..GEN;GRJ71,76,78,HZJ71,76,78..LHD |
1 | ||
| 55847B - DUCT, HEATER TO REGISTER, NO.5 | ||||
| 55847-60150 |
GRJ79..LX;GRJ79,HZJ79..DCB..GCC;GRJ79,HZJ79..LHD..GEN;GRJ71,76,78,HZJ71,76,78..LHD |
1 | ||
| 55848B - DUCT, HEATER TO REGISTER, NO.6 | ||||
| 55848-90K01 |
FZJ79..LX;FZJ79,HZJ79..LHD..GEN;FZJ71,76,78,HZJ71,76,78..LHD |
1 | ||
| 55848-60040 |
GRJ79..LX;GRJ79,HZJ79..GEN;GRJ71,76,78..LHD;HZJ71,76,78,VDJ7#;GRJ79,HZJ79..DCB..GCC |
1 | ||
| 55950G - NOZZLE ASSY, DEFROSTER | ||||
| 55950-60180 |
GRJ7#,HZJ7#..LHD |
1 | ||
| 55959B - COVER, DEFROSTER NOZZLE OPENING | ||||
| 55959-14010 |
GRJ79..LX;GRJ79,HZJ79..GEN;GRJ71,76,78..LHD;HZJ71,76,78,VDJ7#;GRJ79,HZJ79..DCB..GCC |
2 | ||
| 55959B - COVER, DEFROSTER NOZZLE OPENING | ||||
| 55959-14010 |
GRJ79..LX;GRJ79,HZJ79..GEN;GRJ71,76,78..LHD;HZJ71,76,78,VDJ7#;GRJ79,HZJ79..DCB..GCC |
2 | ||
| 55990B - NOZZLE ASSY, DEFROSTER, LOWER | ||||
| 55990-60060 |
GRJ79..LX;GRJ79,HZJ79..DCB..GCC;GRJ79,HZJ79..LHD..GEN;GRJ71,76,78,HZJ71,76,78..LHD |
1 | ||
| 87201B - DUCT SUB-ASSY, AIR, NO.2 | ||||
| 87201-60050 |
HZJ76,78,79..LHD..(DCB,HT)..GEN HEATER-W(FRONT & REAR) |
1 | ||
| 87201-60050 |
GRJ71..LX;GRJ71..HT..GCC;GRJ76,78,79,HZJ7#..LHD HEATER-W(FRONT) |
1 | ||
| Common parts | ||||
| 55394-60050 | ||||
| 90159-50144 | ||||
| 90159-50311 | ||||
| 90159-50322 | ||||
| 90467-07117 | ||||
| Linked diagrams | ||||
| 8712 | ||||
ILLUST NO. 2 OF 2(0907- )LHD
AIR DUCT:HEATER & W(SIDE DEFROSTER)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55084E - DUCT SUB-ASSY, HEATER TO REGISTER, NO.1 | ||||
| 55084-60050 |
FZJ79..LX;FZJ79,HZJ79..LHD..GEN;FZJ71,76,78,HZJ71,76,78..LHD |
1 | ||
| 55084-60060 |
GRJ71..LX;GRJ71..HT..GCC;GRJ76,78,79,HZJ7#..LHD HEATER-W(FRONT)&SIDE DEFROSTER-WITH |
1 | ||
| 55084-60060 |
HZJ76,78,79..LHD..(DCB,HT)..GEN HEATER-W(FRONT & REAR)&SIDE DEFROSTER-WITH |
1 | ||
| 55089 - DUCT SUB-ASSY, HEATER TO REGISTER, NO.6 | ||||
| 55089-60010 |
GRJ71..LX;GRJ71..HT..GCC;GRJ76,78,79,HZJ7#..LHD HEATER-W(FRONT)&SIDE DEFROSTER-WITH |
1 | ||
| 55089-60010 |
HZJ76,78,79..LHD..(DCB,HT)..GEN HEATER-W(FRONT & REAR)&SIDE DEFROSTER-WITH |
1 | ||
| 55833D - CONNECTOR, INSTRUMENT PANEL REGISTER, NO.1 | ||||
| 55833-60020 |
GRJ79..LX;GRJ79,HZJ79..DCB..GCC;GRJ79,HZJ79..LHD..GEN;GRJ71,76,78,HZJ71,76,78..LHD |
1 | ||
| 55834B - CONNECTOR, INSTRUMENT PANEL REGISTER, NO.2 | ||||
| 55834-60030 |
GRJ79..LX;GRJ79,HZJ79..DCB..GCC;GRJ79,HZJ79..LHD..GEN;GRJ71,76,78,HZJ71,76,78..LHD |
1 | ||
| 55837C - DUCT, HEATER TO REGISTER CENTER SUB | ||||
| 55837-60040 |
GRJ79..LX;GRJ79,HZJ79..DCB..GCC;GRJ79,HZJ79..LHD..GEN;GRJ71,76,78,HZJ71,76,78..LHD |
1 | ||
| 55844 - DUCT, HEATER TO REGISTER, NO.2 | ||||
| 55844-60260 |
GRJ71..LX;GRJ71..HT..GCC;GRJ76,78,79,HZJ7#..LHD HEATER-W(FRONT)&AIR CONDITIONER-WITH |
1 | ||
| 55844-60260 |
HZJ76,78,79..LHD..(DCB,HT)..GEN HEATER-W(FRONT & REAR)&AIR CONDITIONER-WITH |
1 | ||
| 55844-60280 |
GRJ79..LX;GRJ79,HZJ79..DCB..GCC;GRJ79,HZJ79..LHD..GEN;GRJ71,76,78,HZJ71,76,78..LHD |
1 | ||
| 55845A - DUCT, HEATER TO REGISTER, NO.3 | ||||
| 55845-60150 |
GRJ79..LX;GRJ79,HZJ79..DCB..GCC;GRJ79,HZJ79..LHD..GEN;GRJ71,76,78,HZJ71,76,78..LHD |
1 | ||
| 55846B - DUCT, HEATER TO REGISTER, NO.4 | ||||
| 55846-60130 |
GRJ79..LX;GRJ79,HZJ79..DCB..GCC;GRJ79,HZJ79..LHD..GEN;GRJ71,76,78,HZJ71,76,78..LHD |
1 | ||
| 55847B - DUCT, HEATER TO REGISTER, NO.5 | ||||
| 55847-60150 |
GRJ79..LX;GRJ79,HZJ79..DCB..GCC;GRJ79,HZJ79..LHD..GEN;GRJ71,76,78,HZJ71,76,78..LHD |
1 | ||
| 55950G - NOZZLE ASSY, DEFROSTER | ||||
| 55950-60180 |
GRJ7#,HZJ7#..LHD |
1 | ||
| 55990B - NOZZLE ASSY, DEFROSTER, LOWER | ||||
| 55990-60060 |
GRJ79..LX;GRJ79,HZJ79..DCB..GCC;GRJ79,HZJ79..LHD..GEN;GRJ71,76,78,HZJ71,76,78..LHD |
1 | ||
| 87201B - DUCT SUB-ASSY, AIR, NO.2 | ||||
| 87201-60050 |
HZJ76,78,79..LHD..(DCB,HT)..GEN HEATER-W(FRONT & REAR) |
1 | ||
| 87201-60050 |
GRJ71..LX;GRJ71..HT..GCC;GRJ76,78,79,HZJ7#..LHD HEATER-W(FRONT) |
1 | ||
| Common parts | ||||
| 55394-60050 | ||||
| 90159-50144 | ||||
| 90159-50311 | ||||
| 90159-50322 | ||||
| 90467-07117 | ||||
| Linked diagrams | ||||
| 8712 | ||||
ILLUST NO. 1 OF 2(0907- )LHD..DCB,HT,PIC
CONTROL PANEL:BOOST VENTILATER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55905J - KNOB SUB-ASSY, CONTROL | ||||
| 55905-89110 |
GRJ71,79..LX;GRJ79,HZJ79..LHD..GEN;GRJ76,78,HZJ71,76,78..LHD;GRJ71,79,HZJ79..(DCB,HT)..GCC |
2 | ||
| 55905-89110 |
HZJ76,78,79..LHD..(DCB,HT)..GEN HEATER-W(FRONT & REAR)&AIR CONDITIONER-WITH |
3 | ||
| 55905-89110 |
GRJ71..LX;GRJ71..HT..GCC;GRJ76,78,79,HZJ7#..LHD HEATER-W(FRONT)&AIR CONDITIONER-WITH |
3 | ||
| 55905-89110 |
GRJ71..LX;GRJ71..HT..GCC;GRJ76,78,79,HZJ7#..LHD HEATER-W(FRONT) |
3 | ||
| 55905-89110 |
HZJ76,78,79..LHD..(DCB,HT)..GEN HEATER-W(FRONT & REAR) |
3 | ||
| 55905J - KNOB SUB-ASSY, CONTROL | ||||
| 55905-89110 |
GRJ71,79..LX;GRJ79,HZJ79..LHD..GEN;GRJ76,78,HZJ71,76,78..LHD;GRJ71,79,HZJ79..(DCB,HT)..GCC |
2 | ||
| 55905-89110 |
HZJ76,78,79..LHD..(DCB,HT)..GEN HEATER-W(FRONT & REAR)&AIR CONDITIONER-WITH |
3 | ||
| 55905-89110 |
GRJ71..LX;GRJ71..HT..GCC;GRJ76,78,79,HZJ7#..LHD HEATER-W(FRONT)&AIR CONDITIONER-WITH |
3 | ||
| 55905-89110 |
GRJ71..LX;GRJ71..HT..GCC;GRJ76,78,79,HZJ7#..LHD HEATER-W(FRONT) |
3 | ||
| 55905-89110 |
HZJ76,78,79..LHD..(DCB,HT)..GEN HEATER-W(FRONT & REAR) |
3 | ||
| 55906A - CABLE SUB-ASSY, DEFROSTER DAMPER CONTROL | ||||
| 55906-90K01 |
FZJ79..LX;FZJ79,HZJ79..LHD..GEN;FZJ71,76,78,HZJ71,76,78..LHD |
1 | ||
| 55906-60110 |
GRJ79..LX;GRJ79,HZJ79..GEN;GRJ71,76,78..LHD;HZJ71,76,78,VDJ7#;GRJ79,HZJ79..DCB..GCC |
1 | ||
| 55908A - CABLE SUB-ASSY, AIR INLET DAMPER CONTROL | ||||
| 55908-90K01 |
FZJ79..LX;FZJ79,HZJ79..LHD..GEN;FZJ71,76,78,HZJ71,76,78..LHD |
1 | ||
| 55908-60090 |
GRJ79..LX;GRJ79,HZJ79..GEN;GRJ71,76,78..LHD;HZJ71,76,78,VDJ7#;GRJ79,HZJ79..DCB..GCC |
1 | ||
| 55910 - CONTROL ASSY, HEATER OR BOOST VENTILATOR | ||||
| 55910-60270 |
HZJ76,78,79..LHD..(DCB,HT)..GEN HEATER-W(FRONT & REAR) |
1 | ||
| 55910-60220 |
FZJ76,78,HZJ76,78..GEN HEATER-W(FRONT & REAR) |
1 | ||
| 55910-60220 |
FZJ7#,HZJ7# HEATER-W(FRONT)&AIR CONDITIONER-WITH |
1 | ||
| 55910-60230 |
FZJ79..LX;FZJ79,HZJ79..GEN;FZJ71,76,78,HZJ71,76,78 |
1 | ||
| 55910-60220 |
FZJ7#,HZJ7# HEATER-W(FRONT) |
1 | ||
| 55910-60220 |
FZJ76,78,HZJ76,78..GEN HEATER-W(FRONT & REAR)&AIR CONDITIONER-WITH |
1 | ||
| 55910-60260 |
GRJ71,79..LX;GRJ79,HZJ79..LHD..GEN;GRJ76,78,HZJ71,76,78..LHD;GRJ71,79,HZJ79..(DCB,HT)..GCC |
1 | ||
| 55910-60270 |
HZJ76,78,79..LHD..(DCB,HT)..GEN HEATER-W(FRONT & REAR)&AIR CONDITIONER-WITH |
1 | ||
| 55910-60270 |
GRJ71..LX;GRJ71..HT..GCC;GRJ76,78,79,HZJ7#..LHD HEATER-W(FRONT) |
1 | ||
| 55910-60270 |
GRJ71..LX;GRJ71..HT..GCC;GRJ76,78,79,HZJ7#..LHD HEATER-W(FRONT)&AIR CONDITIONER-WITH |
1 | ||
| Common parts | ||||
| 90170-11206 | ||||
| 90206-11012 | ||||
| 91553-80620 | ||||
| Linked diagrams | ||||
| 8302 | ||||
| 8401 | ||||
| 8712 | ||||
| 8714 | ||||
ILLUST NO. 1 OF 2(0907- )LHD
CONTROL PANEL:HEATER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55905J - KNOB SUB-ASSY, CONTROL | ||||
| 55905-89110 |
GRJ71,79..LX;GRJ79,HZJ79..LHD..GEN;GRJ76,78,HZJ71,76,78..LHD;GRJ71,79,HZJ79..(DCB,HT)..GCC |
2 | ||
| 55905-89110 |
HZJ76,78,79..LHD..(DCB,HT)..GEN HEATER-W(FRONT & REAR)&AIR CONDITIONER-WITH |
3 | ||
| 55905-89110 |
GRJ71..LX;GRJ71..HT..GCC;GRJ76,78,79,HZJ7#..LHD HEATER-W(FRONT)&AIR CONDITIONER-WITH |
3 | ||
| 55905-89110 |
GRJ71..LX;GRJ71..HT..GCC;GRJ76,78,79,HZJ7#..LHD HEATER-W(FRONT) |
3 | ||
| 55905-89110 |
HZJ76,78,79..LHD..(DCB,HT)..GEN HEATER-W(FRONT & REAR) |
3 | ||
| 55905J - KNOB SUB-ASSY, CONTROL | ||||
| 55905-89110 |
GRJ71,79..LX;GRJ79,HZJ79..LHD..GEN;GRJ76,78,HZJ71,76,78..LHD;GRJ71,79,HZJ79..(DCB,HT)..GCC |
2 | ||
| 55905-89110 |
HZJ76,78,79..LHD..(DCB,HT)..GEN HEATER-W(FRONT & REAR)&AIR CONDITIONER-WITH |
3 | ||
| 55905-89110 |
GRJ71..LX;GRJ71..HT..GCC;GRJ76,78,79,HZJ7#..LHD HEATER-W(FRONT)&AIR CONDITIONER-WITH |
3 | ||
| 55905-89110 |
GRJ71..LX;GRJ71..HT..GCC;GRJ76,78,79,HZJ7#..LHD HEATER-W(FRONT) |
3 | ||
| 55905-89110 |
HZJ76,78,79..LHD..(DCB,HT)..GEN HEATER-W(FRONT & REAR) |
3 | ||
| 55905J - KNOB SUB-ASSY, CONTROL | ||||
| 55905-89110 |
GRJ71,79..LX;GRJ79,HZJ79..LHD..GEN;GRJ76,78,HZJ71,76,78..LHD;GRJ71,79,HZJ79..(DCB,HT)..GCC |
2 | ||
| 55905-89110 |
HZJ76,78,79..LHD..(DCB,HT)..GEN HEATER-W(FRONT & REAR)&AIR CONDITIONER-WITH |
3 | ||
| 55905-89110 |
GRJ71..LX;GRJ71..HT..GCC;GRJ76,78,79,HZJ7#..LHD HEATER-W(FRONT)&AIR CONDITIONER-WITH |
3 | ||
| 55905-89110 |
GRJ71..LX;GRJ71..HT..GCC;GRJ76,78,79,HZJ7#..LHD HEATER-W(FRONT) |
3 | ||
| 55905-89110 |
HZJ76,78,79..LHD..(DCB,HT)..GEN HEATER-W(FRONT & REAR) |
3 | ||
| 55906A - CABLE SUB-ASSY, DEFROSTER DAMPER CONTROL | ||||
| 55906-90K01 |
FZJ79..LX;FZJ79,HZJ79..LHD..GEN;FZJ71,76,78,HZJ71,76,78..LHD |
1 | ||
| 55906-60110 |
GRJ79..LX;GRJ79,HZJ79..GEN;GRJ71,76,78..LHD;HZJ71,76,78,VDJ7#;GRJ79,HZJ79..DCB..GCC |
1 | ||
| 55907A - CABLE SUB-ASSY, WATER VALVE CONTROL | ||||
| 55907-90K01 |
FZJ76,78,HZJ76,78..LHD..GEN HEATER-W(FRONT & REAR)&AIR CONDITIONER-WITH |
1 | ||
| 55907-90K01 |
FZJ7#,HZJ7#..LHD HEATER-W(FRONT)&AIR CONDITIONER-WITH |
1 | ||
| 55907-90K01 |
FZJ76,78,HZJ76,78..LHD..GEN HEATER-W(FRONT & REAR) |
1 | ||
| 55907-90K01 |
FZJ7#,HZJ7#..LHD HEATER-W(FRONT) |
1 | ||
| 55907-60160 |
GRJ71..LX;GRJ71..HT..GCC;GRJ76,78,79,HZJ7#..LHD HEATER-W(FRONT)&AIR CONDITIONER-WITH |
1 | ||
| 55907-60160 |
HZJ76,78,79..LHD..(DCB,HT)..GEN HEATER-W(FRONT & REAR)&AIR CONDITIONER-WITH |
1 | ||
| 55907-60160 |
HZJ76,78,79..LHD..(DCB,HT)..GEN HEATER-W(FRONT & REAR) |
1 | ||
| 55907-60160 |
GRJ71..LX;GRJ71..HT..GCC;GRJ76,78,79,HZJ7#..LHD HEATER-W(FRONT) |
1 | ||
| 55908A - CABLE SUB-ASSY, AIR INLET DAMPER CONTROL | ||||
| 55908-90K01 |
FZJ79..LX;FZJ79,HZJ79..LHD..GEN;FZJ71,76,78,HZJ71,76,78..LHD |
1 | ||
| 55908-60090 |
GRJ79..LX;GRJ79,HZJ79..GEN;GRJ71,76,78..LHD;HZJ71,76,78,VDJ7#;GRJ79,HZJ79..DCB..GCC |
1 | ||
| 55909A - CABLE SUB-ASSY, AIRMIX DAMPER CONTROL | ||||
| 55909-90K03 |
FZJ7#,HZJ7#..LHD HEATER-W(FRONT)&AIR CONDITIONER-WITH |
1 | ||
| 55909-90K03 |
FZJ7#,HZJ7#..LHD HEATER-W(FRONT) |
1 | ||
| 55909-90K03 |
FZJ76,78,HZJ76,78..LHD..GEN HEATER-W(FRONT & REAR) |
1 | ||
| 55909-90K03 |
FZJ76,78,HZJ76,78..LHD..GEN HEATER-W(FRONT & REAR)&AIR CONDITIONER-WITH |
1 | ||
| 55909-60130 |
HZJ76,78,79..LHD..(DCB,HT)..GEN HEATER-W(FRONT & REAR) |
1 | ||
| 55909-60130 |
GRJ71..LX;GRJ71..HT..GCC;GRJ76,78,79,HZJ7#..LHD HEATER-W(FRONT)&AIR CONDITIONER-WITH |
1 | ||
| 55909-60130 |
HZJ76,78,79..LHD..(DCB,HT)..GEN HEATER-W(FRONT & REAR)&AIR CONDITIONER-WITH |
1 | ||
| 55909-60130 |
GRJ71..LX;GRJ71..HT..GCC;GRJ76,78,79,HZJ7#..LHD HEATER-W(FRONT) |
1 | ||
| 55910 - CONTROL ASSY, HEATER OR BOOST VENTILATOR | ||||
| 55910-60270 |
HZJ76,78,79..LHD..(DCB,HT)..GEN HEATER-W(FRONT & REAR) |
1 | ||
| 55910-60220 |
FZJ76,78,HZJ76,78..GEN HEATER-W(FRONT & REAR) |
1 | ||
| 55910-60220 |
FZJ7#,HZJ7# HEATER-W(FRONT)&AIR CONDITIONER-WITH |
1 | ||
| 55910-60230 |
FZJ79..LX;FZJ79,HZJ79..GEN;FZJ71,76,78,HZJ71,76,78 |
1 | ||
| 55910-60220 |
FZJ7#,HZJ7# HEATER-W(FRONT) |
1 | ||
| 55910-60220 |
FZJ76,78,HZJ76,78..GEN HEATER-W(FRONT & REAR)&AIR CONDITIONER-WITH |
1 | ||
| 55910-60260 |
GRJ71,79..LX;GRJ79,HZJ79..LHD..GEN;GRJ76,78,HZJ71,76,78..LHD;GRJ71,79,HZJ79..(DCB,HT)..GCC |
1 | ||
| 55910-60270 |
HZJ76,78,79..LHD..(DCB,HT)..GEN HEATER-W(FRONT & REAR)&AIR CONDITIONER-WITH |
1 | ||
| 55910-60270 |
GRJ71..LX;GRJ71..HT..GCC;GRJ76,78,79,HZJ7#..LHD HEATER-W(FRONT) |
1 | ||
| 55910-60270 |
GRJ71..LX;GRJ71..HT..GCC;GRJ76,78,79,HZJ7#..LHD HEATER-W(FRONT)&AIR CONDITIONER-WITH |
1 | ||
| Common parts | ||||
| 90170-11206 | ||||
| 90206-11012 | ||||
| 91553-80620 | ||||
| Linked diagrams | ||||
| 8302 | ||||
| 8401 | ||||
| 8712 | ||||
| 8714 | ||||
ILLUST NO. 1 OF 2(0701-0907)LHD
CONTROL PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-89110 |
FZJ79..LX;FZJ79,HZJ79..GEN;FZJ71,76,78,HZJ71,76,78 DEF-VENT,WARM-COOL |
1 | ||
| 55905-89110 |
FZJ7#,HZJ7# HEATER-W(FRONT),DEF-VENT,WARM-COOL |
2 | ||
| 55905-89110 |
FZJ76,78,HZJ76,78..GEN HEATER-W(FRONT & REAR)&AIR CONDITIONER-WITH,DEF-VENT,WARM-COOL |
2 | ||
| 55905-89110 |
FZJ7#,HZJ7# HEATER-W(FRONT)&AIR CONDITIONER-WITH,DEF-VENT,WARM-COOL |
2 | ||
| 55905-95J01 |
FZJ79..LX;FZJ79,HZJ79..GEN;FZJ71,76,78,HZJ71,76,78,VDJ7# FRESH-RECIRC |
1 | ||
| 55905-89110 |
FZJ76,78,HZJ76,78..GEN HEATER-W(FRONT & REAR),DEF-VENT,WARM-COOL |
2 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-89110 |
FZJ79..LX;FZJ79,HZJ79..GEN;FZJ71,76,78,HZJ71,76,78 DEF-VENT,WARM-COOL |
1 | ||
| 55905-89110 |
FZJ7#,HZJ7# HEATER-W(FRONT),DEF-VENT,WARM-COOL |
2 | ||
| 55905-89110 |
FZJ76,78,HZJ76,78..GEN HEATER-W(FRONT & REAR)&AIR CONDITIONER-WITH,DEF-VENT,WARM-COOL |
2 | ||
| 55905-89110 |
FZJ7#,HZJ7# HEATER-W(FRONT)&AIR CONDITIONER-WITH,DEF-VENT,WARM-COOL |
2 | ||
| 55905-95J01 |
FZJ79..LX;FZJ79,HZJ79..GEN;FZJ71,76,78,HZJ71,76,78,VDJ7# FRESH-RECIRC |
1 | ||
| 55905-89110 |
FZJ76,78,HZJ76,78..GEN HEATER-W(FRONT & REAR),DEF-VENT,WARM-COOL |
2 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-89110 |
FZJ79..LX;FZJ79,HZJ79..GEN;FZJ71,76,78,HZJ71,76,78 DEF-VENT,WARM-COOL |
1 | ||
| 55905-89110 |
FZJ7#,HZJ7# HEATER-W(FRONT),DEF-VENT,WARM-COOL |
2 | ||
| 55905-89110 |
FZJ76,78,HZJ76,78..GEN HEATER-W(FRONT & REAR)&AIR CONDITIONER-WITH,DEF-VENT,WARM-COOL |
2 | ||
| 55905-89110 |
FZJ7#,HZJ7# HEATER-W(FRONT)&AIR CONDITIONER-WITH,DEF-VENT,WARM-COOL |
2 | ||
| 55905-95J01 |
FZJ79..LX;FZJ79,HZJ79..GEN;FZJ71,76,78,HZJ71,76,78,VDJ7# FRESH-RECIRC |
1 | ||
| 55905-89110 |
FZJ76,78,HZJ76,78..GEN HEATER-W(FRONT & REAR),DEF-VENT,WARM-COOL |
2 | ||
| 55906A - CABLE SUB-ASSY, DEFROSTER DAMPER CONTROL | ||||
| 55906-90K01 |
FZJ79..LX;FZJ79,HZJ79..LHD..GEN;FZJ71,76,78,HZJ71,76,78..LHD |
1 | ||
| 55906-60110 |
GRJ79..LX;GRJ79,HZJ79..GEN;GRJ71,76,78..LHD;HZJ71,76,78,VDJ7#;GRJ79,HZJ79..DCB..GCC |
1 | ||
| 55907A - CABLE SUB-ASSY, WATER VALVE CONTROL | ||||
| 55907-90K01 |
FZJ76,78,HZJ76,78..LHD..GEN HEATER-W(FRONT & REAR)&AIR CONDITIONER-WITH |
1 | ||
| 55907-90K01 |
FZJ7#,HZJ7#..LHD HEATER-W(FRONT)&AIR CONDITIONER-WITH |
1 | ||
| 55907-90K01 |
FZJ76,78,HZJ76,78..LHD..GEN HEATER-W(FRONT & REAR) |
1 | ||
| 55907-90K01 |
FZJ7#,HZJ7#..LHD HEATER-W(FRONT) |
1 | ||
| 55907-60160 |
GRJ71..LX;GRJ71..HT..GCC;GRJ76,78,79,HZJ7#..LHD HEATER-W(FRONT)&AIR CONDITIONER-WITH |
1 | ||
| 55907-60160 |
HZJ76,78,79..LHD..(DCB,HT)..GEN HEATER-W(FRONT & REAR)&AIR CONDITIONER-WITH |
1 | ||
| 55907-60160 |
HZJ76,78,79..LHD..(DCB,HT)..GEN HEATER-W(FRONT & REAR) |
1 | ||
| 55907-60160 |
GRJ71..LX;GRJ71..HT..GCC;GRJ76,78,79,HZJ7#..LHD HEATER-W(FRONT) |
1 | ||
| 55908A - CABLE SUB-ASSY, AIR INLET DAMPER CONTROL | ||||
| 55908-90K01 |
FZJ79..LX;FZJ79,HZJ79..LHD..GEN;FZJ71,76,78,HZJ71,76,78..LHD |
1 | ||
| 55908-60090 |
GRJ79..LX;GRJ79,HZJ79..GEN;GRJ71,76,78..LHD;HZJ71,76,78,VDJ7#;GRJ79,HZJ79..DCB..GCC |
1 | ||
| 55909A - CABLE SUB-ASSY, AIRMIX DAMPER CONTROL | ||||
| 55909-90K03 |
FZJ7#,HZJ7#..LHD HEATER-W(FRONT)&AIR CONDITIONER-WITH |
1 | ||
| 55909-90K03 |
FZJ7#,HZJ7#..LHD HEATER-W(FRONT) |
1 | ||
| 55909-90K03 |
FZJ76,78,HZJ76,78..LHD..GEN HEATER-W(FRONT & REAR) |
1 | ||
| 55909-90K03 |
FZJ76,78,HZJ76,78..LHD..GEN HEATER-W(FRONT & REAR)&AIR CONDITIONER-WITH |
1 | ||
| 55909-60130 |
HZJ76,78,79..LHD..(DCB,HT)..GEN HEATER-W(FRONT & REAR) |
1 | ||
| 55909-60130 |
GRJ71..LX;GRJ71..HT..GCC;GRJ76,78,79,HZJ7#..LHD HEATER-W(FRONT)&AIR CONDITIONER-WITH |
1 | ||
| 55909-60130 |
HZJ76,78,79..LHD..(DCB,HT)..GEN HEATER-W(FRONT & REAR)&AIR CONDITIONER-WITH |
1 | ||
| 55909-60130 |
GRJ71..LX;GRJ71..HT..GCC;GRJ76,78,79,HZJ7#..LHD HEATER-W(FRONT) |
1 | ||
| 55910 - CONTROL ASSY, HEATER OR BOOST VENTILATOR | ||||
| 55910-60270 |
HZJ76,78,79..LHD..(DCB,HT)..GEN HEATER-W(FRONT & REAR) |
1 | ||
| 55910-60220 |
FZJ76,78,HZJ76,78..GEN HEATER-W(FRONT & REAR) |
1 | ||
| 55910-60220 |
FZJ7#,HZJ7# HEATER-W(FRONT)&AIR CONDITIONER-WITH |
1 | ||
| 55910-60230 |
FZJ79..LX;FZJ79,HZJ79..GEN;FZJ71,76,78,HZJ71,76,78 |
1 | ||
| 55910-60220 |
FZJ7#,HZJ7# HEATER-W(FRONT) |
1 | ||
| 55910-60220 |
FZJ76,78,HZJ76,78..GEN HEATER-W(FRONT & REAR)&AIR CONDITIONER-WITH |
1 | ||
| 55910-60260 |
GRJ71,79..LX;GRJ79,HZJ79..LHD..GEN;GRJ76,78,HZJ71,76,78..LHD;GRJ71,79,HZJ79..(DCB,HT)..GCC |
1 | ||
| 55910-60270 |
HZJ76,78,79..LHD..(DCB,HT)..GEN HEATER-W(FRONT & REAR)&AIR CONDITIONER-WITH |
1 | ||
| 55910-60270 |
GRJ71..LX;GRJ71..HT..GCC;GRJ76,78,79,HZJ7#..LHD HEATER-W(FRONT) |
1 | ||
| 55910-60270 |
GRJ71..LX;GRJ71..HT..GCC;GRJ76,78,79,HZJ7#..LHD HEATER-W(FRONT)&AIR CONDITIONER-WITH |
1 | ||
| Common parts | ||||
| 90170-11206 | ||||
| 90206-11012 | ||||
| 93568-55016 | ||||
| Linked diagrams | ||||
| 8302 | ||||
| 8401 | ||||
ILLUST NO. 1 OF 2(0907- )LHD
CONTROL PANEL:HEATER & COOLER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55905J - KNOB SUB-ASSY, CONTROL | ||||
| 55905-89110 |
GRJ71,79..LX;GRJ79,HZJ79..LHD..GEN;GRJ76,78,HZJ71,76,78..LHD;GRJ71,79,HZJ79..(DCB,HT)..GCC |
2 | ||
| 55905-89110 |
HZJ76,78,79..LHD..(DCB,HT)..GEN HEATER-W(FRONT & REAR)&AIR CONDITIONER-WITH |
3 | ||
| 55905-89110 |
GRJ71..LX;GRJ71..HT..GCC;GRJ76,78,79,HZJ7#..LHD HEATER-W(FRONT)&AIR CONDITIONER-WITH |
3 | ||
| 55905-89110 |
GRJ71..LX;GRJ71..HT..GCC;GRJ76,78,79,HZJ7#..LHD HEATER-W(FRONT) |
3 | ||
| 55905-89110 |
HZJ76,78,79..LHD..(DCB,HT)..GEN HEATER-W(FRONT & REAR) |
3 | ||
| 55905J - KNOB SUB-ASSY, CONTROL | ||||
| 55905-89110 |
GRJ71,79..LX;GRJ79,HZJ79..LHD..GEN;GRJ76,78,HZJ71,76,78..LHD;GRJ71,79,HZJ79..(DCB,HT)..GCC |
2 | ||
| 55905-89110 |
HZJ76,78,79..LHD..(DCB,HT)..GEN HEATER-W(FRONT & REAR)&AIR CONDITIONER-WITH |
3 | ||
| 55905-89110 |
GRJ71..LX;GRJ71..HT..GCC;GRJ76,78,79,HZJ7#..LHD HEATER-W(FRONT)&AIR CONDITIONER-WITH |
3 | ||
| 55905-89110 |
GRJ71..LX;GRJ71..HT..GCC;GRJ76,78,79,HZJ7#..LHD HEATER-W(FRONT) |
3 | ||
| 55905-89110 |
HZJ76,78,79..LHD..(DCB,HT)..GEN HEATER-W(FRONT & REAR) |
3 | ||
| 55905J - KNOB SUB-ASSY, CONTROL | ||||
| 55905-89110 |
GRJ71,79..LX;GRJ79,HZJ79..LHD..GEN;GRJ76,78,HZJ71,76,78..LHD;GRJ71,79,HZJ79..(DCB,HT)..GCC |
2 | ||
| 55905-89110 |
HZJ76,78,79..LHD..(DCB,HT)..GEN HEATER-W(FRONT & REAR)&AIR CONDITIONER-WITH |
3 | ||
| 55905-89110 |
GRJ71..LX;GRJ71..HT..GCC;GRJ76,78,79,HZJ7#..LHD HEATER-W(FRONT)&AIR CONDITIONER-WITH |
3 | ||
| 55905-89110 |
GRJ71..LX;GRJ71..HT..GCC;GRJ76,78,79,HZJ7#..LHD HEATER-W(FRONT) |
3 | ||
| 55905-89110 |
HZJ76,78,79..LHD..(DCB,HT)..GEN HEATER-W(FRONT & REAR) |
3 | ||
| 55906A - CABLE SUB-ASSY, DEFROSTER DAMPER CONTROL | ||||
| 55906-90K01 |
FZJ79..LX;FZJ79,HZJ79..LHD..GEN;FZJ71,76,78,HZJ71,76,78..LHD |
1 | ||
| 55906-60110 |
GRJ79..LX;GRJ79,HZJ79..GEN;GRJ71,76,78..LHD;HZJ71,76,78,VDJ7#;GRJ79,HZJ79..DCB..GCC |
1 | ||
| 55907A - CABLE SUB-ASSY, WATER VALVE CONTROL | ||||
| 55907-90K01 |
FZJ76,78,HZJ76,78..LHD..GEN HEATER-W(FRONT & REAR)&AIR CONDITIONER-WITH |
1 | ||
| 55907-90K01 |
FZJ7#,HZJ7#..LHD HEATER-W(FRONT)&AIR CONDITIONER-WITH |
1 | ||
| 55907-90K01 |
FZJ76,78,HZJ76,78..LHD..GEN HEATER-W(FRONT & REAR) |
1 | ||
| 55907-90K01 |
FZJ7#,HZJ7#..LHD HEATER-W(FRONT) |
1 | ||
| 55907-60160 |
GRJ71..LX;GRJ71..HT..GCC;GRJ76,78,79,HZJ7#..LHD HEATER-W(FRONT)&AIR CONDITIONER-WITH |
1 | ||
| 55907-60160 |
HZJ76,78,79..LHD..(DCB,HT)..GEN HEATER-W(FRONT & REAR)&AIR CONDITIONER-WITH |
1 | ||
| 55907-60160 |
HZJ76,78,79..LHD..(DCB,HT)..GEN HEATER-W(FRONT & REAR) |
1 | ||
| 55907-60160 |
GRJ71..LX;GRJ71..HT..GCC;GRJ76,78,79,HZJ7#..LHD HEATER-W(FRONT) |
1 | ||
| 55908A - CABLE SUB-ASSY, AIR INLET DAMPER CONTROL | ||||
| 55908-90K01 |
FZJ79..LX;FZJ79,HZJ79..LHD..GEN;FZJ71,76,78,HZJ71,76,78..LHD |
1 | ||
| 55908-60090 |
GRJ79..LX;GRJ79,HZJ79..GEN;GRJ71,76,78..LHD;HZJ71,76,78,VDJ7#;GRJ79,HZJ79..DCB..GCC |
1 | ||
| 55909A - CABLE SUB-ASSY, AIRMIX DAMPER CONTROL | ||||
| 55909-90K03 |
FZJ7#,HZJ7#..LHD HEATER-W(FRONT)&AIR CONDITIONER-WITH |
1 | ||
| 55909-90K03 |
FZJ7#,HZJ7#..LHD HEATER-W(FRONT) |
1 | ||
| 55909-90K03 |
FZJ76,78,HZJ76,78..LHD..GEN HEATER-W(FRONT & REAR) |
1 | ||
| 55909-90K03 |
FZJ76,78,HZJ76,78..LHD..GEN HEATER-W(FRONT & REAR)&AIR CONDITIONER-WITH |
1 | ||
| 55909-60130 |
HZJ76,78,79..LHD..(DCB,HT)..GEN HEATER-W(FRONT & REAR) |
1 | ||
| 55909-60130 |
GRJ71..LX;GRJ71..HT..GCC;GRJ76,78,79,HZJ7#..LHD HEATER-W(FRONT)&AIR CONDITIONER-WITH |
1 | ||
| 55909-60130 |
HZJ76,78,79..LHD..(DCB,HT)..GEN HEATER-W(FRONT & REAR)&AIR CONDITIONER-WITH |
1 | ||
| 55909-60130 |
GRJ71..LX;GRJ71..HT..GCC;GRJ76,78,79,HZJ7#..LHD HEATER-W(FRONT) |
1 | ||
| 55910 - CONTROL ASSY, HEATER OR BOOST VENTILATOR | ||||
| 55910-60270 |
HZJ76,78,79..LHD..(DCB,HT)..GEN HEATER-W(FRONT & REAR) |
1 | ||
| 55910-60220 |
FZJ76,78,HZJ76,78..GEN HEATER-W(FRONT & REAR) |
1 | ||
| 55910-60220 |
FZJ7#,HZJ7# HEATER-W(FRONT)&AIR CONDITIONER-WITH |
1 | ||
| 55910-60230 |
FZJ79..LX;FZJ79,HZJ79..GEN;FZJ71,76,78,HZJ71,76,78 |
1 | ||
| 55910-60220 |
FZJ7#,HZJ7# HEATER-W(FRONT) |
1 | ||
| 55910-60220 |
FZJ76,78,HZJ76,78..GEN HEATER-W(FRONT & REAR)&AIR CONDITIONER-WITH |
1 | ||
| 55910-60260 |
GRJ71,79..LX;GRJ79,HZJ79..LHD..GEN;GRJ76,78,HZJ71,76,78..LHD;GRJ71,79,HZJ79..(DCB,HT)..GCC |
1 | ||
| 55910-60270 |
HZJ76,78,79..LHD..(DCB,HT)..GEN HEATER-W(FRONT & REAR)&AIR CONDITIONER-WITH |
1 | ||
| 55910-60270 |
GRJ71..LX;GRJ71..HT..GCC;GRJ76,78,79,HZJ7#..LHD HEATER-W(FRONT) |
1 | ||
| 55910-60270 |
GRJ71..LX;GRJ71..HT..GCC;GRJ76,78,79,HZJ7#..LHD HEATER-W(FRONT)&AIR CONDITIONER-WITH |
1 | ||
| Common parts | ||||
| 90170-11206 | ||||
| 90206-11012 | ||||
| 91553-80620 | ||||
| Linked diagrams | ||||
| 8302 | ||||
| 8401 | ||||
| 8712 | ||||
| 8714 | ||||
ILLUST NO. 2 OF 2(0701-0907)LHD
AIR DUCT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55084E - DUCT SUB-ASSY, HEATER TO REGISTER, NO.1 | ||||
| 55084-60050 |
FZJ79..LX;FZJ79,HZJ79..LHD..GEN;FZJ71,76,78,HZJ71,76,78..LHD |
1 | ||
| 55084-60060 |
GRJ71..LX;GRJ71..HT..GCC;GRJ76,78,79,HZJ7#..LHD HEATER-W(FRONT)&SIDE DEFROSTER-WITH |
1 | ||
| 55084-60060 |
HZJ76,78,79..LHD..(DCB,HT)..GEN HEATER-W(FRONT & REAR)&SIDE DEFROSTER-WITH |
1 | ||
| 55085 - DUCT SUB-ASSY, HEATER TO REGISTER, NO.2 | ||||
| 55085-60140 |
FZJ76,78,HZJ76,78..LHD..GEN HEATER-W(FRONT & REAR)&AIR CONDITIONER-WITH |
1 | ||
| 55085-60140 |
FZJ7#,HZJ7#..LHD HEATER-W(FRONT)&AIR CONDITIONER-WITH |
1 | ||
| 55844-60210 |
FZJ79..LX;FZJ79,HZJ79..LHD..GEN;FZJ71,76,78,HZJ71,76,78..LHD |
1 | ||
| 55085 - DUCT SUB-ASSY, HEATER TO REGISTER, NO.2 | ||||
| 55085-60140 |
FZJ76,78,HZJ76,78..LHD..GEN HEATER-W(FRONT & REAR)&AIR CONDITIONER-WITH |
1 | ||
| 55085-60140 |
FZJ7#,HZJ7#..LHD HEATER-W(FRONT)&AIR CONDITIONER-WITH |
1 | ||
| 55844-60210 |
FZJ79..LX;FZJ79,HZJ79..LHD..GEN;FZJ71,76,78,HZJ71,76,78..LHD |
1 | ||
| 55085 - DUCT SUB-ASSY, HEATER TO REGISTER, NO.2 | ||||
| 55085-60140 |
FZJ76,78,HZJ76,78..LHD..GEN HEATER-W(FRONT & REAR)&AIR CONDITIONER-WITH |
1 | ||
| 55085-60140 |
FZJ7#,HZJ7#..LHD HEATER-W(FRONT)&AIR CONDITIONER-WITH |
1 | ||
| 55844-60210 |
FZJ79..LX;FZJ79,HZJ79..LHD..GEN;FZJ71,76,78,HZJ71,76,78..LHD |
1 | ||
| 55086 - DUCT SUB-ASSY, HEATER TO REGISTER, NO.3 | ||||
| 55086-90K01 |
FZJ79..LX;FZJ79,HZJ79..LHD..GEN;FZJ71,76,78,HZJ71,76,78..LHD |
1 | ||
| 55087 - DUCT SUB-ASSY, HEATER TO REGISTER, NO.4 | ||||
| 55087-60060 |
FZJ79..LX;FZJ79,HZJ79..LHD..GEN;FZJ71,76,78,HZJ71,76,78..LHD |
1 | ||
| 55088 - DUCT SUB-ASSY, HEATER TO REGISTER, NO.5 | ||||
| 55088-90K01 |
FZJ79..LX;FZJ79,HZJ79..LHD..GEN;FZJ71,76,78,HZJ71,76,78..LHD |
1 | ||
| 55088-60040 |
FZJ7#,HZJ7#..LHD HEATER-W(FRONT)&AIR CONDITIONER-WITH |
1 | ||
| 55088-60040 |
FZJ76,78,HZJ76,78..LHD..GEN HEATER-W(FRONT & REAR)&AIR CONDITIONER-WITH |
1 | ||
| 55088 - DUCT SUB-ASSY, HEATER TO REGISTER, NO.5 | ||||
| 55088-90K01 |
FZJ79..LX;FZJ79,HZJ79..LHD..GEN;FZJ71,76,78,HZJ71,76,78..LHD |
1 | ||
| 55088-60040 |
FZJ7#,HZJ7#..LHD HEATER-W(FRONT)&AIR CONDITIONER-WITH |
1 | ||
| 55088-60040 |
FZJ76,78,HZJ76,78..LHD..GEN HEATER-W(FRONT & REAR)&AIR CONDITIONER-WITH |
1 | ||
| 55088 - DUCT SUB-ASSY, HEATER TO REGISTER, NO.5 | ||||
| 55088-90K01 |
FZJ79..LX;FZJ79,HZJ79..LHD..GEN;FZJ71,76,78,HZJ71,76,78..LHD |
1 | ||
| 55088-60040 |
FZJ7#,HZJ7#..LHD HEATER-W(FRONT)&AIR CONDITIONER-WITH |
1 | ||
| 55088-60040 |
FZJ76,78,HZJ76,78..LHD..GEN HEATER-W(FRONT & REAR)&AIR CONDITIONER-WITH |
1 | ||
| 55848B - DUCT, HEATER TO REGISTER, NO.6 | ||||
| 55848-90K01 |
FZJ79..LX;FZJ79,HZJ79..LHD..GEN;FZJ71,76,78,HZJ71,76,78..LHD |
1 | ||
| 55848-60040 |
GRJ79..LX;GRJ79,HZJ79..GEN;GRJ71,76,78..LHD;HZJ71,76,78,VDJ7#;GRJ79,HZJ79..DCB..GCC |
1 | ||
| 87201B - DUCT SUB-ASSY, AIR, NO.2 | ||||
| 87201-60050 |
HZJ76,78,79..LHD..(DCB,HT)..GEN HEATER-W(FRONT & REAR) |
1 | ||
| 87201-60050 |
GRJ71..LX;GRJ71..HT..GCC;GRJ76,78,79,HZJ7#..LHD HEATER-W(FRONT) |
1 | ||
| Common parts | ||||
| 90119-08879 | ||||
| 90164-50008 | ||||
| 90168-50027 | ||||
| 93560-55016 | ||||
| 93568-55012 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
