HZJ75RP-KR (1990)

Toyota Land Cruiser

Production Jan 1990 - Jan 1992
Engine 1HZ
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9001-9305)FJ7# ; (9001-0207)HZJ7#,PZJ7#

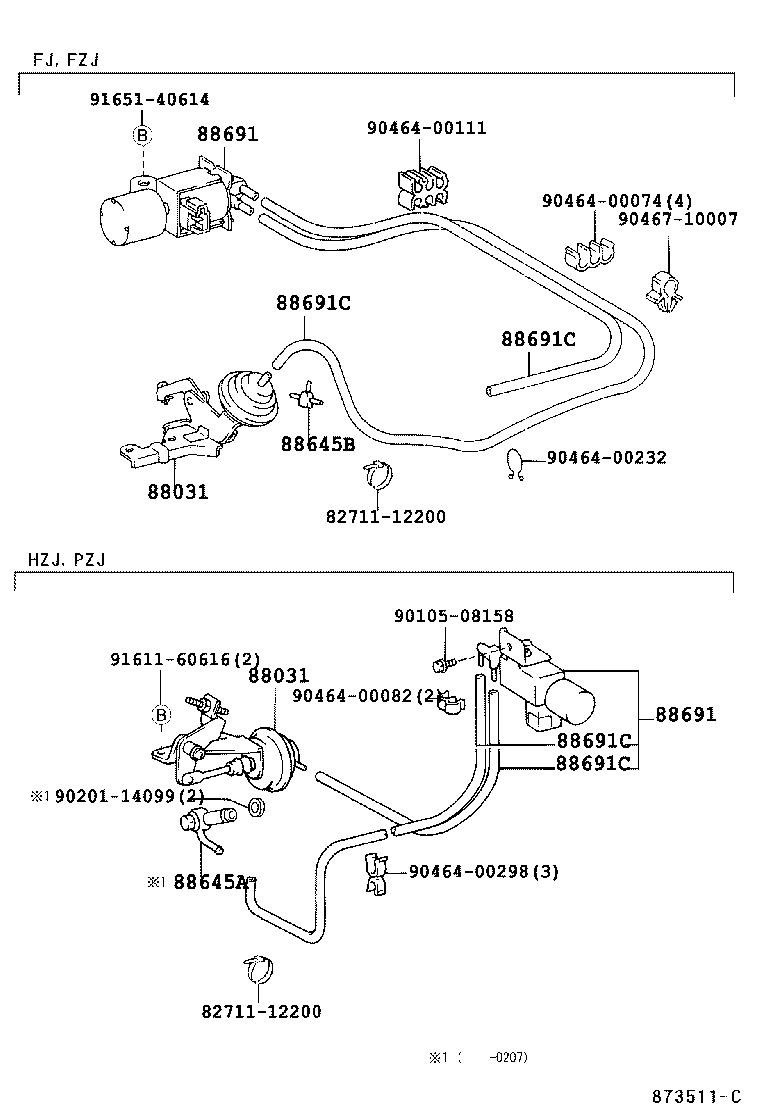

Click highlighted areas on diagram

diagram 8271112200 8271112200 88031 88031 88645A 88645B 88691 88691 88691C 88691C 88691C 88691C 9010508158 9020114099 9046400074 9046400082 9046400111 9046400232 9046400298 9046710007 9161160616 9165140614
Part # Description Qty Price
88031 - ACTUATOR SET, IDLE-UP
88031-30060

HZJ70,73..ARL;HZJ75..LHD..CBU;HZJ75..RHD..(ARL,GEN);HZJ71,78,79,LJ72,79,PZJ7#

 1
88031 - ACTUATOR SET, IDLE-UP
88031-30060

HZJ70,73..ARL;HZJ75..LHD..CBU;HZJ75..RHD..(ARL,GEN);HZJ71,78,79,LJ72,79,PZJ7#

 1
88691 - VALVE, MAGNET (FOR IDLE UP DEVICE)
88690-60070

HZJ75..PIC..4F..CBU

W(CUT SYSTEM)

 1
88690-60080

HZJ75..PIC..4F..CBU

24V

 1
88691 - VALVE, MAGNET (FOR IDLE UP DEVICE)
88690-60070

HZJ75..PIC..4F..CBU

W(CUT SYSTEM)

 1
88690-60080

HZJ75..PIC..4F..CBU

24V

 1
88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
90999-92003

HZJ75..HT..ARL;HZJ75,PZJ7#..GCC,GEN

*H,L=340,MARK=#*

 1
90999-92004

HZJ75..HT..ARL;HZJ75,PZJ7#..GCC,GEN

*H,L=800,MARK=#0

 1
88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
90999-92003

HZJ75..HT..ARL;HZJ75,PZJ7#..GCC,GEN

*H,L=340,MARK=#*

 1
90999-92004

HZJ75..HT..ARL;HZJ75,PZJ7#..GCC,GEN

*H,L=800,MARK=#0

 1
88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
90999-92003

HZJ75..HT..ARL;HZJ75,PZJ7#..GCC,GEN

*H,L=340,MARK=#*

 1
90999-92004

HZJ75..HT..ARL;HZJ75,PZJ7#..GCC,GEN

*H,L=800,MARK=#0

 1
88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
90999-92003

HZJ75..HT..ARL;HZJ75,PZJ7#..GCC,GEN

*H,L=340,MARK=#*

 1
90999-92004

HZJ75..HT..ARL;HZJ75,PZJ7#..GCC,GEN

*H,L=800,MARK=#0

 1
Common parts
82711-12200
90105-08158
90201-14099
90464-00074
90464-00082
90464-00111
90464-00232
90464-00298
90467-10007
91611-60616
91651-40614
