HZJ71R-RJMRS (2016)

Toyota Land Cruiser

Production Aug 2016 - Sep 9999
Engine 1HZ
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

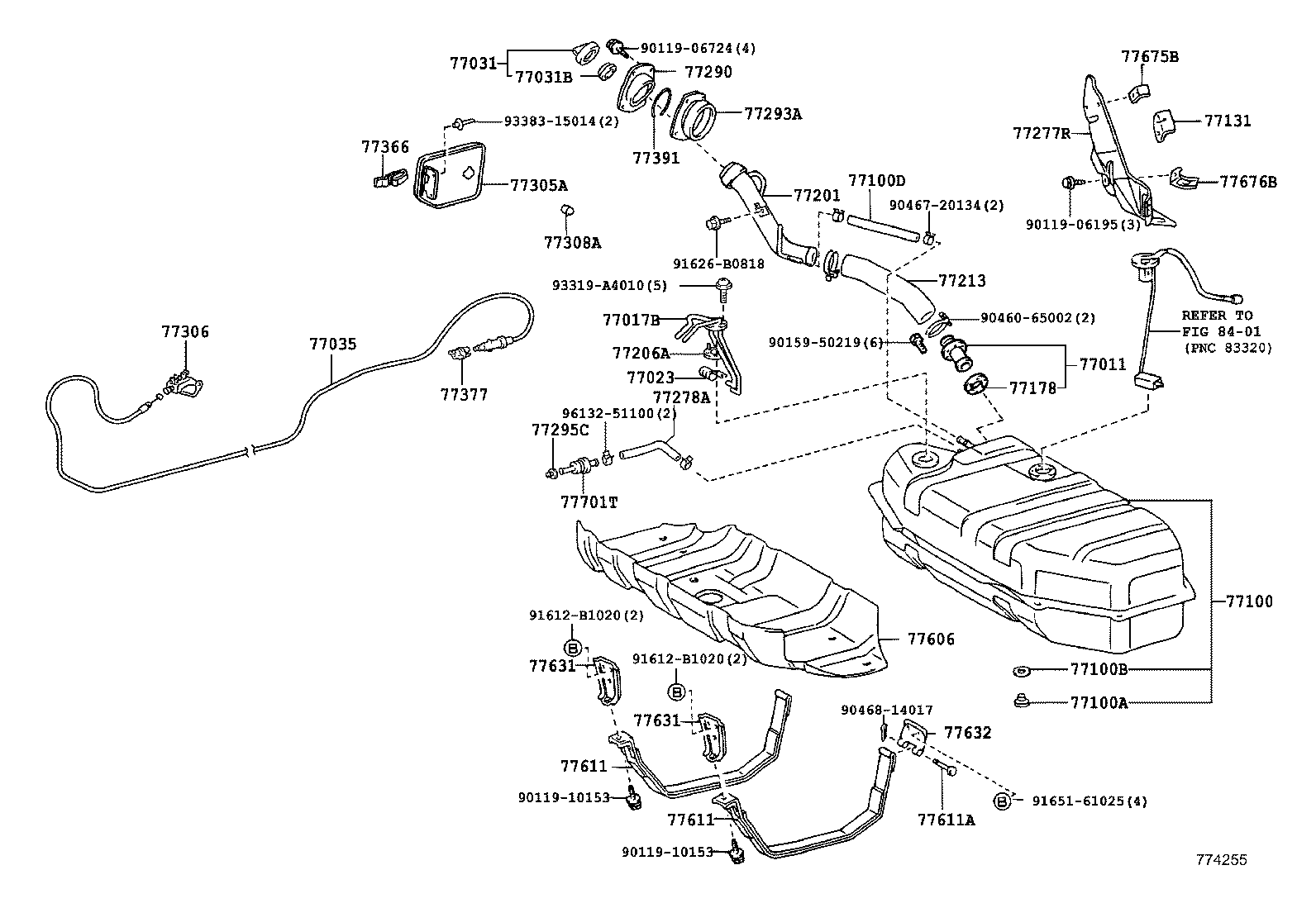

ILLUST NO. 1 OF 5(1608- )HZJ71

Click highlighted areas on diagram

FUEL TANK

diagram 77011 77017B 77023 77031 77031B 77035 77100 77100A 77100B 77100D 77131 77178 77201 77206A 77213 77277R 77278A 77290 77293A 77295C 77305A 77306 77308A 77366 77377 77391 77606 77611 77611 77611A 77631 77631 77632 77675B 77676B 77701T 8401 9011906195 9011906724 9011910153 9011910153 9015950219 9046065002 9046720134 9046814017 91612B1020 91612B1020 91626B0818 9165161025 93319A4010 9338315014 9613251100
Part # Description Qty Price
77011 - PIPE SUB-ASSY, FUEL TANK FILLER, LOWER
77011-60180

VDJ79..IV;GRJ7#,HZJ7#,VDJ76;VDJ78,79..STD..(GCC,GEN)

 1
77017B - TUBE SUB-ASSY, FUEL TANK VENT
77017-60400

HZJ71

 1
77023 - FILTER SUB-ASSY, FUEL SUCTION TUBE
77023-36010

HZJ71,78,79..HT,PIC,SOT

 1
77031 - CAP ASSY, FUEL TANK
77300-35010

VDJ76;VDJ78..GCC;HZJ71,76,78..GEN

 1
77031B - GASKET (FOR FUEL TANK CAP)
77316-16010

VDJ78..GCC;HZJ76,78..GEN;GRJ71,76,78,HZJ71,VDJ76

 1
77100 - TANK ASSY, FUEL
77001-60532

HZJ71

 1
77100A - PLUG(FOR FUEL TANK)
90105-12116

GRJ71,78,79,HZJ71,78,79,VDJ78..(HT,PIC,SOT)..(GCC,GEN)

 1
77100B - GASKET(FOR FUEL TANK)
90430-12245

GRJ71,78,79,HZJ71,78,79,VDJ78..(HT,PIC,SOT)..(GCC,GEN)

 1
77100D - HOSE, FUEL, NO.1(FOR FUEL TANK)
90445-22024

GRJ71,HZJ71

L=220

 1
77131 - BRACKET, FUEL TANK FILLER PIPE SUPPORT
77131-90K00

VDJ78..ARL;GRJ71,HZJ71

 1
77178 - GASKET, FUEL TANK FILLER PIPE, LOWER
77178-20010

VDJ79..IV;GRJ7#,HZJ7#,VDJ76;VDJ78,79..STD..(GCC,GEN)

 1
77201 - PIPE SUB-ASSY, FUEL TANK INLET
77201-60690

HZJ71

 1
77206A - GASKET (FOR FUEL TANK SUCTION TUBE)
77169-14020

HZJ71,78,79,VDJ78..(HT,PIC,SOT)..(GCC,GEN)

 1
77213 - HOSE, FUEL TANK SUB INLET
77213-60160

GRJ71,HZJ71

 1
77277R - PROTECTOR, FUEL TANK FILLER PIPE
77277-90K01

GRJ71,76,HZJ71,VDJ76;HZJ76,VDJ78..ARL,GEN

 1
77278A - HOSE, FUEL, NO.1 (FOR RETURN TUBE, NO.2)
95337-06022

HZJ71

L=220

 1
95333-06030

HZJ71

*H,L=280

 1
77290 - SHIELD ASSY, FUEL TANK FILLER PIPE
77290-60030

GRJ71,76,HZJ71,VDJ76;HZJ76,VDJ78..ARL,GEN

 1
77293A - SHIELD, FUEL TANK FILLER PIPE, NO.3
77293-90K00

GRJ71,76,HZJ71,VDJ76;HZJ76,VDJ78..ARL,GEN

 1
77305A - LID SUB-ASSY, FUEL FILLER OPENING
77305-90K00

HZJ76..GEN;GRJ71,76,HZJ71,VDJ76

 1
77308A - CUSHION(FOR FUEL INLET BOX COVER)
90541-05018

VDJ78..GCC;HZJ76,78..GEN;GRJ71,76,78,HZJ71,VDJ76

 2
77366 - SPRING, FUEL FILLER OPENING LID HINGE
77366-12010

VDJ78..GCC;HZJ76,78..GEN;GRJ71,76,78,HZJ71,VDJ76

 1
77391 - RING, FUEL INLET BOX
77391-32010

GRJ71,76,HZJ71,VDJ76;HZJ76,VDJ78..ARL,GEN

 1
77606 - PROTECTOR SUB-ASSY, FUEL TANK, NO.1
77606-60030

GRJ71,HZJ71

 1
77611 - BAND, FUEL TANK
77601-60240

GRJ71,HZJ71

 2
77611 - BAND, FUEL TANK
77601-60240

GRJ71,HZJ71

 2
77611A - PIN (FOR FUEL TANK BAND)
90240-10025

GRJ71,HZJ71

 2
77631 - BRACKET, FUEL TANK, NO.1
77614-60050

GRJ71,HZJ71

 2
77631 - BRACKET, FUEL TANK, NO.1
77614-60050

GRJ71,HZJ71

 2
77632 - BRACKET, FUEL TANK, NO.2
77625-60020

GRJ71,HZJ71

 2
77675B - BRACKET, FUEL TANK FILLER PIPE PROTECTOR, NO.1
77675-90K00

VDJ78..ARL;GRJ71,76,HZJ71,76,VDJ76

 1
77676B - BRACKET, FUEL TANK FILLER PIPE PROTECTOR, NO.2
77676-90K00

VDJ78..ARL;GRJ71,76,HZJ71,76,VDJ76

 1
77701T - VALVE, CHECK (FOR MAIN FUEL TANK)
90917-10020

HZJ71

 1
Common parts
90119-06195
90119-06724
90119-10153
90159-50219
90460-65002
90467-20134
90468-14017
91612-B1020
91626-B0818
91651-61025
93319-A4010
93383-15014
96132-51100
