HZJ71R-KJMRS (2016)
Toyota Land Cruiser
ILLUST NO. 4 OF 8(1608- )VDJ7#..RHD..DCB,HT ; (1608- )GRJ7#,HZJ7#..DCB,HT,SOT ; (1701- )VDJ
FLOOR & ROOF & FRAME
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82161 - WIRE, FLOOR | ||||
| 82161-6AK90 |
GRJ71,HZJ71 |
1 | ||
| 82161-60Z10 |
HZJ71..SOT SPECIAL EDITION |
1 | ||
| 82161-6AG00 |
HZJ71..SOT SPECIAL EDITION |
1 | ||
| 82161-6AG00 |
HZJ71..SOT SPECIAL EDITION |
1 | ||
| 82161-6AK91 |
GRJ71,HZJ71 |
1 | ||
| 82162 - WIRE, FLOOR, NO.2 | ||||
| 82162-60Q90 |
HZJ71..SOT SPECIAL EDITION |
1 | ||
| 82162-60Q90 |
HZJ71..SOT SPECIAL EDITION |
1 | ||
| 82162-60Q90 |
HZJ71..SOT SPECIAL EDITION |
1 | ||
| 82162-60Z20 |
GRJ71,HZJ71..GEN |
1 | ||
| 82163 - WIRE, FLOOR, NO.3 | ||||
| 82163-60451 |
GRJ71,HZJ71..GEN |
1 | ||
| 82163-60450 |
GRJ71,HZJ71 |
1 | ||
| 82163-60452 |
GRJ71,HZJ71..GEN |
1 | ||
| 82164 - WIRE, FRAME | ||||
| 82164-60G10 |
GRJ71,HZJ71..GEN REAR WHEEL BRAKE-DISC FS14 18V |
1 | ||
| 82164-60G00 |
HZJ71;GRJ71..HT..STD..GEN REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK&REAR WHEEL BRAKE-DISCFS14 18V |
1 | ||
| 82164-60G00 |
HZJ71;GRJ71..HT..STD..GEN REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
1 | ||
| 82164-60G10 |
GRJ71,HZJ71..GEN ABS (ANTI-LOCK BRK SYSTM)-WITH(ACT DRY) |
1 | ||
| 82164-60G00 |
HZJ71;GRJ71..HT..STD..GEN REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK&ABS (ANTI-LOCK BRK SYSTM)-WITH(ACT DRY) |
1 | ||
| 82164 - WIRE, FRAME | ||||
| 82164-60G10 |
GRJ71,HZJ71..GEN REAR WHEEL BRAKE-DISC FS14 18V |
1 | ||
| 82164-60G00 |
HZJ71;GRJ71..HT..STD..GEN REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK&REAR WHEEL BRAKE-DISCFS14 18V |
1 | ||
| 82164-60G00 |
HZJ71;GRJ71..HT..STD..GEN REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
1 | ||
| 82164-60G10 |
GRJ71,HZJ71..GEN ABS (ANTI-LOCK BRK SYSTM)-WITH(ACT DRY) |
1 | ||
| 82164-60G00 |
HZJ71;GRJ71..HT..STD..GEN REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK&ABS (ANTI-LOCK BRK SYSTM)-WITH(ACT DRY) |
1 | ||
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-60E80 |
GRJ71,HZJ71..SOT |
1 | ||
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-60E80 |
GRJ71,HZJ71..SOT |
1 | ||
| 82666Z - HOLDER, CONNECTOR NO.19 | ||||
| 82666-60G21 |
GRJ7#,HZJ7#,VDJ7# |
1 | ||
| 82666-60G20 |
GRJ7#,HZJ7#,VDJ7# |
1 | ||
| Common parts | ||||
| 90119-06390 | ||||
| 90119-08063 | ||||
| 90119-08701 | ||||
| 91673-80614 | ||||
| Linked diagrams | ||||
| 4101 | ||||

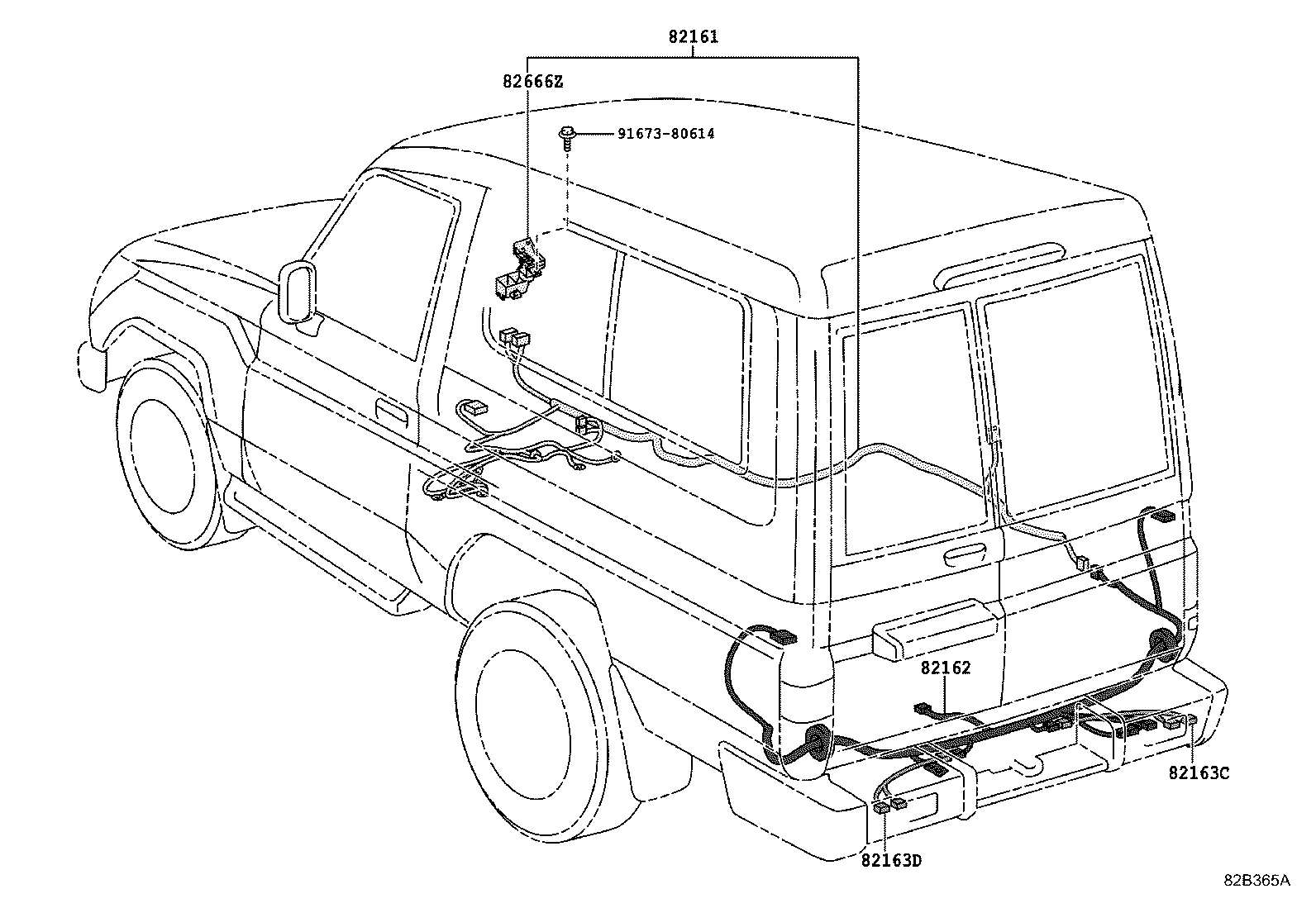

ILLUST NO. 5 OF 8(1702-1704)HZJ71,79..RHD..PIC,SOT ; (1802- )HZJ71,79..RHD..PIC,SOT
FLOOR (SPECIAL EDITION)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82161 - WIRE, FLOOR | ||||
| 82161-6AK90 |
GRJ71,HZJ71 |
1 | ||
| 82161-60Z10 |
HZJ71..SOT SPECIAL EDITION |
1 | ||
| 82161-6AG00 |
HZJ71..SOT SPECIAL EDITION |
1 | ||
| 82161-6AG00 |
HZJ71..SOT SPECIAL EDITION |
1 | ||
| 82161-6AK91 |
GRJ71,HZJ71 |
1 | ||
| 82162 - WIRE, FLOOR, NO.2 | ||||
| 82162-60Q90 |
HZJ71..SOT SPECIAL EDITION |
1 | ||
| 82162-60Q90 |
HZJ71..SOT SPECIAL EDITION |
1 | ||
| 82162-60Q90 |
HZJ71..SOT SPECIAL EDITION |
1 | ||
| 82162-60Z20 |
GRJ71,HZJ71..GEN |
1 | ||
| 82163C - WIRE, FLOOR NO.3 RH | ||||
| 82163-60440 |
HZJ71,79..RHD..(PIC,SOT) SPECIAL EDITION |
1 | ||
| 82163-60440 |
HZJ71,79..RHD..(PIC,SOT) SPECIAL EDITION |
1 | ||
| 82163-60440 |
HZJ71..SOT SPECIAL EDITION |
1 | ||
| 82163D - WIRE, FLOOR NO.3 LH | ||||
| 82163-60440 |
HZJ71..SOT SPECIAL EDITION |
1 | ||
| 82163-60440 |
HZJ71,79..RHD..(PIC,SOT) SPECIAL EDITION |
1 | ||
| 82163-60440 |
HZJ71,79..RHD..(PIC,SOT) SPECIAL EDITION |
1 | ||
| 82666Z - HOLDER, CONNECTOR NO.19 | ||||
| 82666-60G21 |
GRJ7#,HZJ7#,VDJ7# |
1 | ||
| 82666-60G20 |
GRJ7#,HZJ7#,VDJ7# |
1 | ||
| Common parts | ||||
| 91673-80614 | ||||
