HZJ71R-KJMRS (2007)
Toyota Land Cruiser
(1208- )VDJ79..RHD ; (1208- )GRJ7#,HZJ7# ;(1208- )VDJ76,78..ARL
W/O(ABS),W/O(VSC)

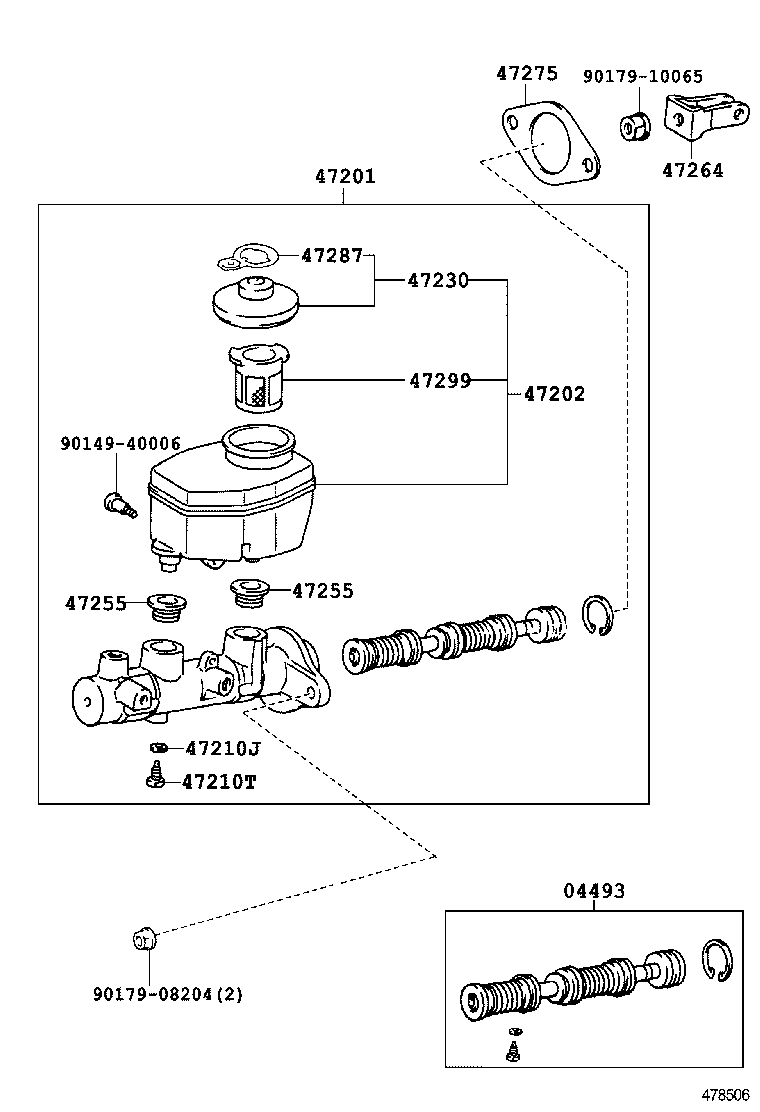

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04493 - CYLINDER KIT, BRAKE MASTER | ||||
| 04493-60300 |
HZJ7#;GRJ7#..LHD |
1 | ||
| 04493-60380 |
HZJ7#;GRJ7#..LHD REAR WHEEL BRAKE-DISC FS14 18V |
1 | ||
| 47201 - CYLINDER SUB-ASSY, BRAKE MASTER | ||||
| 47201-60832 |
HZJ7#..RHD |
1 | ||
| 47201-60A50 |
HZJ7#..RHD REAR WHEEL BRAKE-DISC FS14 18V |
1 | ||
| 47201-60831 |
GRJ71,78,79,HZJ7#,VDJ7#..RHD |
1 | ||
| 47202 - RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER | ||||
| 47220-35010 |
GRJ71,78,79,HZJ7#,VDJ7#..RHD |
1 | ||
| 47220-60260 |
HZJ7#..RHD REAR WHEEL BRAKE-DISC FS14 18V |
1 | ||
| 47220-60080 |
HZJ7#..RHD |
1 | ||
| 47210J - GASKET(FOR MASTER CYLINDER) | ||||
| 90430-06104 |
HZJ7#;GRJ7#..LHD |
1 | ||
| 47210T - BOLT(FOR BRAKE MASTER CYLINDER) | ||||
| 90109-06077 |
HZJ7#;GRJ7#..LHD |
1 | ||
| 47230 - CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER | ||||
| 47230-12040 |
GRJ71,78,79,HZJ7#,VDJ7#..RHD |
1 | ||
| 47230-20140 |
VDJ79..PIC..IV;GRJ79,HZJ7#,VDJ76,78..RHD..(HT,PIC,SOT) |
1 | ||
| 47255 - GROMMET, MASTER CYLINDER RESERVOIR | ||||
| 47255-16010 |
GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7# |
2 | ||
| 47255 - GROMMET, MASTER CYLINDER RESERVOIR | ||||
| 47255-16010 |
GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7# |
2 | ||
| 47264 - CLEVIS, MASTER CYLINDER PUSH ROD | ||||
| 47264-26030 |
GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7# |
1 | ||
| 47275 - GASKET, BRAKE MASTER CYLINDER | ||||
| 47275-12020 |
GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7# |
1 | ||
| 47287 - LABEL, BRAKE FLUID INFORMATION | ||||
| 47287-20010 |
VDJ79..PIC..IV;GRJ79,HZJ7#,VDJ76,78..RHD..(HT,PIC,SOT) |
1 | ||
| 47299 - STRAINER, BRAKE MASTER CYLINDER RESERVOIR | ||||
| 47299-20060 |
HZJ7#..RHD REAR WHEEL BRAKE-DISC FS14 18V |
1 | ||
| 47299-24010 |
HZJ7#..RHD |
1 | ||
| Common parts | ||||
| 90149-40006 | ||||
| 90179-08204 | ||||
| 90179-10065 | ||||
(1208- )RHD
W(ABS)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04493 - CYLINDER KIT, BRAKE MASTER | ||||
| 04493-60300 |
HZJ7#;GRJ7#..LHD |
1 | ||
| 04493-60380 |
HZJ7#;GRJ7#..LHD REAR WHEEL BRAKE-DISC FS14 18V |
1 | ||
| 47201 - CYLINDER SUB-ASSY, BRAKE MASTER | ||||
| 47201-60832 |
HZJ7#..RHD |
1 | ||
| 47201-60A50 |
HZJ7#..RHD REAR WHEEL BRAKE-DISC FS14 18V |
1 | ||
| 47201-60831 |
GRJ71,78,79,HZJ7#,VDJ7#..RHD |
1 | ||
| 47201B - RING, O(FOR BRAKE MASTER CYLINDER) | ||||
| 90029-20059 |
HZJ7#;GRJ7#..LHD REAR WHEEL BRAKE-DISC FS14 18V |
1 | ||
| 47202 - RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER | ||||
| 47220-35010 |
GRJ71,78,79,HZJ7#,VDJ7#..RHD |
1 | ||
| 47220-60260 |
HZJ7#..RHD REAR WHEEL BRAKE-DISC FS14 18V |
1 | ||
| 47220-60080 |
HZJ7#..RHD |
1 | ||
| 47210U - PIN, STRAIGHT(FOR BRAKE MASTER CYLINDER) | ||||
| 90029-14204 |
HZJ7#;GRJ7#..LHD REAR WHEEL BRAKE-DISC FS14 18V |
1 | ||
| 47230 - CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER | ||||
| 47230-12040 |
GRJ71,78,79,HZJ7#,VDJ7#..RHD |
1 | ||
| 47230-20140 |
VDJ79..PIC..IV;GRJ79,HZJ7#,VDJ76,78..RHD..(HT,PIC,SOT) |
1 | ||
| 47255 - GROMMET, MASTER CYLINDER RESERVOIR | ||||
| 47255-16010 |
GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7# |
2 | ||
| 47255 - GROMMET, MASTER CYLINDER RESERVOIR | ||||
| 47255-16010 |
GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7# |
2 | ||
| 47264 - CLEVIS, MASTER CYLINDER PUSH ROD | ||||
| 47264-26030 |
GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7# |
1 | ||
| 47275 - GASKET, BRAKE MASTER CYLINDER | ||||
| 47275-12020 |
GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7# |
1 | ||
| 47287 - LABEL, BRAKE FLUID INFORMATION | ||||
| 47287-20010 |
VDJ79..PIC..IV;GRJ79,HZJ7#,VDJ76,78..RHD..(HT,PIC,SOT) |
1 | ||
| 47299 - STRAINER, BRAKE MASTER CYLINDER RESERVOIR | ||||
| 47299-20060 |
HZJ7#..RHD REAR WHEEL BRAKE-DISC FS14 18V |
1 | ||
| 47299-24010 |
HZJ7#..RHD |
1 | ||
| 47381N - BRACKET, TUBE CLAMP | ||||
| 47381-60050 |
HZJ7#..RHD REAR WHEEL BRAKE-DISC FS14 18V |
1 | ||
| Common parts | ||||
| 90149-40021 | ||||
| 90179-08204 | ||||
| 90179-10065 | ||||
(0701-1208)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04493 - CYLINDER KIT, BRAKE MASTER | ||||
| 04493-60300 |
HZJ7#;GRJ7#..LHD |
1 | ||
| 04493-60380 |
HZJ7#;GRJ7#..LHD REAR WHEEL BRAKE-DISC FS14 18V |
1 | ||
| 47201 - CYLINDER SUB-ASSY, BRAKE MASTER | ||||
| 47201-60832 |
HZJ7#..RHD |
1 | ||
| 47201-60A50 |
HZJ7#..RHD REAR WHEEL BRAKE-DISC FS14 18V |
1 | ||
| 47201-60831 |
GRJ71,78,79,HZJ7#,VDJ7#..RHD |
1 | ||
| 47202 - RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER | ||||
| 47220-35010 |
GRJ71,78,79,HZJ7#,VDJ7#..RHD |
1 | ||
| 47220-60260 |
HZJ7#..RHD REAR WHEEL BRAKE-DISC FS14 18V |
1 | ||
| 47220-60080 |
HZJ7#..RHD |
1 | ||
| 47210J - GASKET(FOR MASTER CYLINDER) | ||||
| 90430-06104 |
HZJ7#;GRJ7#..LHD |
1 | ||
| 47210T - BOLT(FOR BRAKE MASTER CYLINDER) | ||||
| 90109-06077 |
HZJ7#;GRJ7#..LHD |
1 | ||
| 47230 - CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER | ||||
| 47230-12040 |
GRJ71,78,79,HZJ7#,VDJ7#..RHD |
1 | ||
| 47230-20140 |
VDJ79..PIC..IV;GRJ79,HZJ7#,VDJ76,78..RHD..(HT,PIC,SOT) |
1 | ||
| 47255 - GROMMET, MASTER CYLINDER RESERVOIR | ||||
| 47255-16010 |
GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7# |
2 | ||
| 47255 - GROMMET, MASTER CYLINDER RESERVOIR | ||||
| 47255-16010 |
GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7# |
2 | ||
| 47264 - CLEVIS, MASTER CYLINDER PUSH ROD | ||||
| 47264-26030 |
GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7# |
1 | ||
| 47275 - GASKET, BRAKE MASTER CYLINDER | ||||
| 47275-12020 |
GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7# |
1 | ||
| 47287 - LABEL, BRAKE FLUID INFORMATION | ||||
| 47287-20010 |
VDJ79..PIC..IV;GRJ79,HZJ7#,VDJ76,78..RHD..(HT,PIC,SOT) |
1 | ||
| 47299 - STRAINER, BRAKE MASTER CYLINDER RESERVOIR | ||||
| 47299-20060 |
HZJ7#..RHD REAR WHEEL BRAKE-DISC FS14 18V |
1 | ||
| 47299-24010 |
HZJ7#..RHD |
1 | ||
| Common parts | ||||
| 90149-40006 | ||||
| 90179-08204 | ||||
| 90179-10065 | ||||
| Linked diagrams | ||||
| 7851 | ||||
