HJ75RV-MRQ (1984)

Toyota Land Cruiser

Production Nov 1984 - Jan 1990
Engine 2H
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(8411- )

Click highlighted areas on diagram

diagram 87104 87105 87107 87126 87126 87126 87130 87138 87150 87211E 87248E 87249E 9011906373 9011906373 9017906115 9017906115
Part # Description Qty Price
87104 - MOTOR SUB-ASSY, HEATER BLOWER
87104-89110

BJ7#,FJ7#,HJ75,LJ70,RJ70

12V

 1
87105 - FAN SUB-ASSY, HEATER BLOWER
87105-14030

BJ7#,FJ7#,HJ75,LJ70,RJ70..RHD

 1
87107 - UNIT SUB-ASSY, HEATER RADIATOR
87107-90K00

BJ7#,FJ7#,HJ75,LJ70,RJ70..RHD

 1
87126 - CLAMP, HEATER CONTROL
87126-90K00

BJ7#,FJ7#,HJ75,LJ70,RJ70

BLOWER

 1
87126-12050

BJ7#,FJ7#,HJ75,LJ70,RJ70

HEATER RADIATOR

 2
87126 - CLAMP, HEATER CONTROL
87126-90K00

BJ7#,FJ7#,HJ75,LJ70,RJ70

BLOWER

 1
87126-12050

BJ7#,FJ7#,HJ75,LJ70,RJ70

HEATER RADIATOR

 2
87126 - CLAMP, HEATER CONTROL
87126-90K00

BJ7#,FJ7#,HJ75,LJ70,RJ70

BLOWER

 1
87126-12050

BJ7#,FJ7#,HJ75,LJ70,RJ70

HEATER RADIATOR

 2
87130 - BLOWER ASSY, HEATER, FRONT
87130-90K00

BJ7#,FJ7#,HJ75,LJ70,RJ70..RHD

12V

 1
87130-60270

BJ7#,FJ7#,HJ75,LJ70,RJ70..RHD

12V

 1
87138 - RESISTOR, HEATER BLOWER
87138-90K00

BJ7#,FJ7#,HJ75,LJ70,RJ70

12V

 1
87150 - RADIATOR ASSY, HEATER
87150-90K02

BJ7#,FJ7#..RHD;HJ75..RHD..(ARL,GEN)

 1
87150-60230

BJ7#,FJ7#..RHD;HJ75..RHD..(ARL,GEN)

 1
87211E - DUCT, AIR
87201-60020

BJ7#,FJ7#,HJ75,LJ70,RJ70..RHD

 1
87201-90K04

BJ7#,FJ7#,HJ75,LJ70,RJ70..RHD

 1
87248E - PIPE, HEATER WATER INLET, E
87248-90K00

BJ7#,FJ7#,HJ75,LJ70,RJ70..RHD

 1
87249E - PIPE, HEATER WATER OUTLET, E (FOR HEATER UNIT)
87248-90K04

BJ7#,FJ7#..RHD;HJ75..RHD..(ARL,GEN)

 1
Common parts
90119-06373
90179-06115

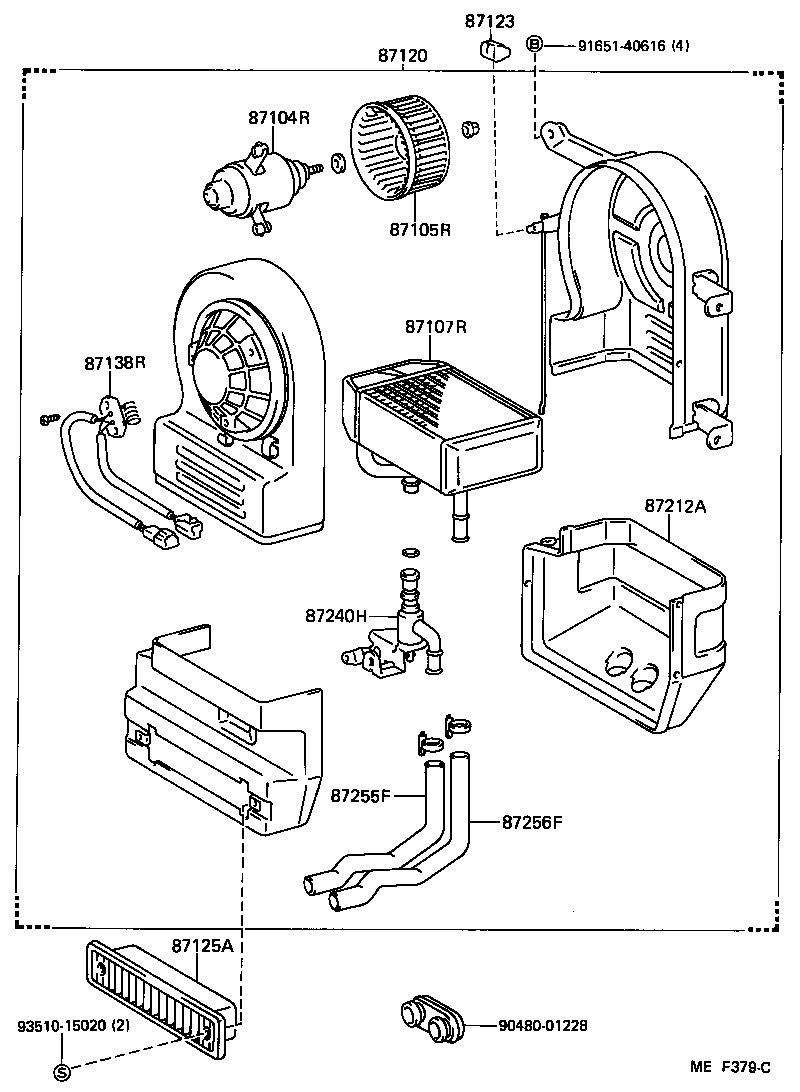

ILLUST NO. 2 OF 2(8411- )BJ75,FJ75,HJ75

Click highlighted areas on diagram

diagram 87104R 87105R 87107R 87120 87123 87125A 87138R 87212A 87240H 87255F 87256F 9048001228 9165140616 9351015020
Part # Description Qty Price
Common parts
90480-01228
91651-40616
93510-15020

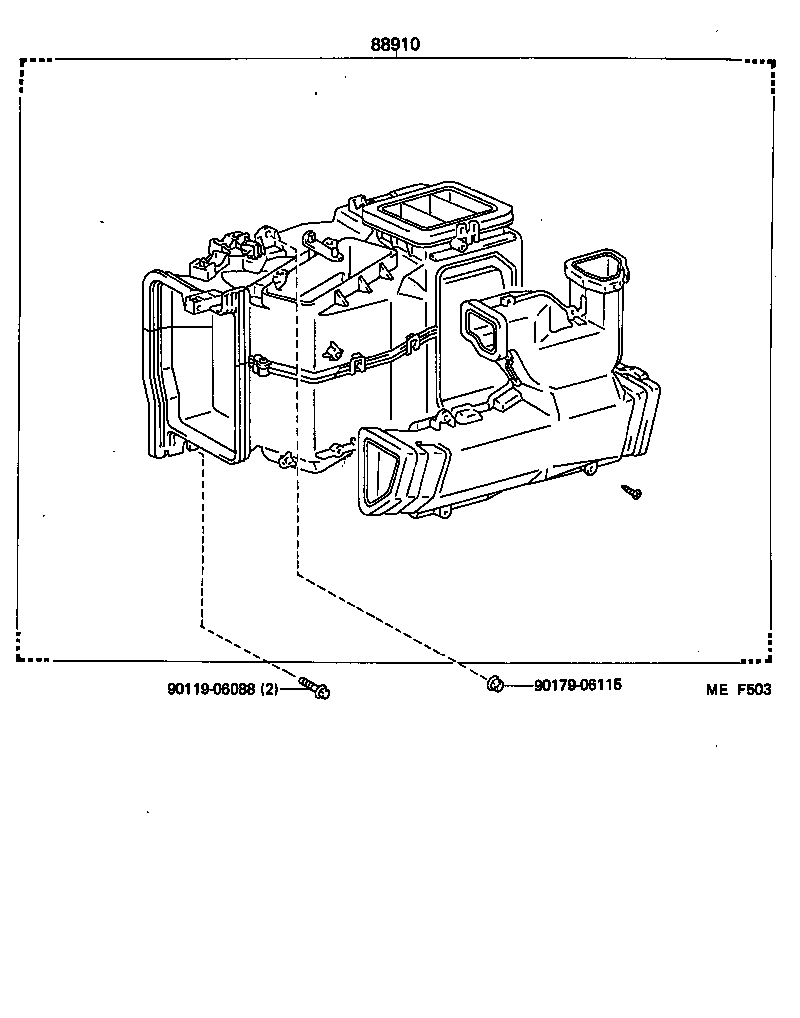

ILLUST NO. 1 OF 2(8411- )

Click highlighted areas on diagram

diagram 88910 9011906088 9017906115
Part # Description Qty Price
Common parts
90119-06088
90179-06115
