HJ75RP-MRQ3 (1984)
Toyota Land Cruiser
Production
Nov 1984
-
Jan 1990
Engine
2H
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)

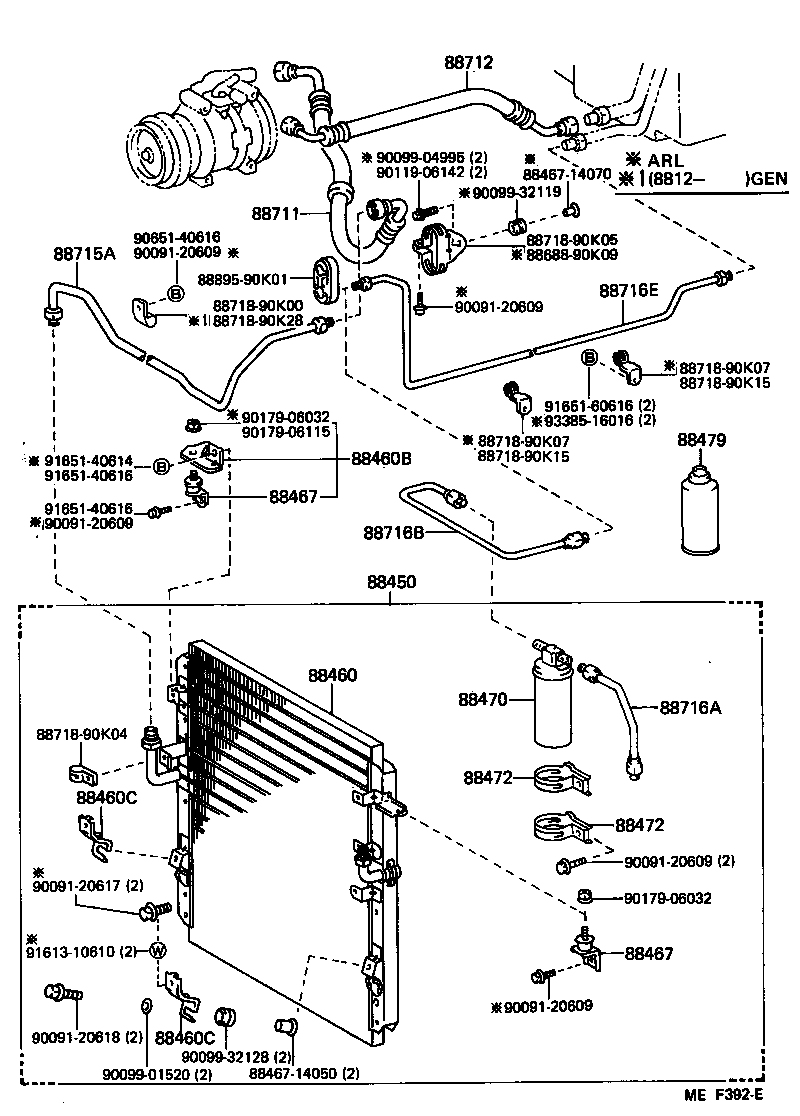

ILLUST NO. 1 OF 2(8411- )HJ75..RHD
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88340-90K02 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) |
1 | ||
| 88460B - BRACKET, COOLER CONDENSER, NO.1 | ||||
| 88409-90K01 |
BJ7#,FJ7#,HJ75..ARL,GEN,ME |
1 | ||
| 88460C - BRACKET, COOLER CONDENSER, NO.2 | ||||
| 88688-90K01 |
BJ7#,FJ7#,HJ75..ARL,GEN,ME |
2 | ||
| 88460C - BRACKET, COOLER CONDENSER, NO.2 | ||||
| 88688-90K01 |
BJ7#,FJ7#,HJ75..ARL,GEN,ME |
2 | ||
| 88467 - CUSHION, COOLER CONDENSER, NO.1 | ||||
| 88467-22060 |
BJ7#,FJ7#,HJ75,LJ70,RJ70..ARL,GEN,ME |
2 | ||
| 88467 - CUSHION, COOLER CONDENSER, NO.1 | ||||
| 88467-22060 |
BJ7#,FJ7#,HJ75,LJ70,RJ70..ARL,GEN,ME |
2 | ||
| 88470 - RECEIVER & DRYER ASSY, COOLER | ||||
| 88470-12050 |
BJ70,73,74,FJ7#,HJ75..ARL |
1 | ||
| 88470-14010 |
BJ70,73,74,FJ7#,HJ75..ARL |
1 | ||
| 88472 - BRACKET, RECEIVER TANK, NO.1 | ||||
| 88472-22090 |
BJ7#,FJ7#,HJ75,LJ70,RJ70..ARL,GEN,ME |
2 | ||
| 88472 - BRACKET, RECEIVER TANK, NO.1 | ||||
| 88472-22090 |
BJ7#,FJ7#,HJ75,LJ70,RJ70..ARL,GEN,ME |
2 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-90K02 |
HJ75..ARL,GEN |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-90K04 |
HJ75..RHD..(ARL,GEN) |
1 | ||
| 88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A | ||||
| 88715-90K01 |
HJ75..ARL,GEN |
1 | ||
| 88715-90K01 |
HJ75..ARL |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-90K02 |
BJ7#,FJ7#,HJ75..ARL,GEN,ME |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-90K12 |
BJ7#,FJ7#,HJ75..RHD..(ARL,GEN) |
1 | ||
| 88716E - PIPE, COOLER REFRIGERANT LIQUID, E | ||||
| 88716-90K14 |
HJ75..RHD..(ARL,GEN) |
1 | ||
| Common parts | ||||
| 88467-14050 | ||||
| 88467-14070 | ||||
| 88688-90K09 | ||||
| 88718-90K00 | ||||
| 88718-90K04 | ||||
| 88718-90K05 | ||||
| 88718-90K07 | ||||
| 88718-90K15 | ||||
| 88718-90K28 | ||||
| 88895-90K01 | ||||
| 90091-20609 | ||||
| 90091-20617 | ||||
| 90091-20618 | ||||
| 90099-01520 | ||||
| 90099-04995 | ||||
| 90099-32119 | ||||
| 90099-32128 | ||||
| 90119-06142 | ||||
| 90179-06032 | ||||
| 90179-06115 | ||||
| 90651-40616 | ||||
| 91613-10610 | ||||
| 91651-40614 | ||||
| 91651-40616 | ||||
| 91651-60616 | ||||
| 93385-16016 | ||||
ILLUST NO. 1 OF 3(9001-9201)FJ7#..RHD ; (9001-9401)PZJ7#..RHD..CBU ; (9001-9501)PZJ75..5F ; (9001-00
Click highlighted areas on diagram
MAKER OPTION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 88467-14050 | ||||
| 88467-22060 | ||||
| 88688-90K01 | ||||
| 88688-90K04 | ||||
| 88688-90K06 | ||||
| 88718-60510 | ||||
| 88718-60520 | ||||
| 88718-90K04 | ||||
| 88718-90K27 | ||||
| 88895-60010 | ||||
| 90091-20618 | ||||
| 90099-01520 | ||||
| 90099-32128 | ||||
| 90119-06100 | ||||
| 90119-06336 | ||||
| 90119-06429 | ||||
| 90179-06032 | ||||
| 90179-06274 | ||||
| 91611-B0835 | ||||
| 91651-40616 | ||||
| 91651-F0610 | ||||
| 91651-F0616 | ||||
ILLUST NO. 1 OF 3(9001-9501)PZJ7# ; (9001-0007)HZJ70,73,75
Click highlighted areas on diagram
DEALER OPTION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 88467-14050 | ||||
| 88467-22060 | ||||
| 88688-90K00 | ||||
| 88688-90K01 | ||||
| 88688-90K04 | ||||
| 88688-90K06 | ||||
| 88718-60510 | ||||
| 88718-60520 | ||||
| 88895-60010 | ||||
| 88899-60090 | ||||
| 90091-20609 | ||||
| 90091-20617 | ||||
| 90091-20618 | ||||
| 90099-01520 | ||||
| 90099-04995 | ||||
| 90099-32128 | ||||
| 90179-06032 | ||||
| 91613-10610 | ||||
| 91651-40614 | ||||
| 91651-60835 | ||||
