HJ75RP-MRQ3 (1984)

Toyota Land Cruiser

Production Nov 1984 - Jan 1990
Engine 2H
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8411- )

Click highlighted areas on diagram

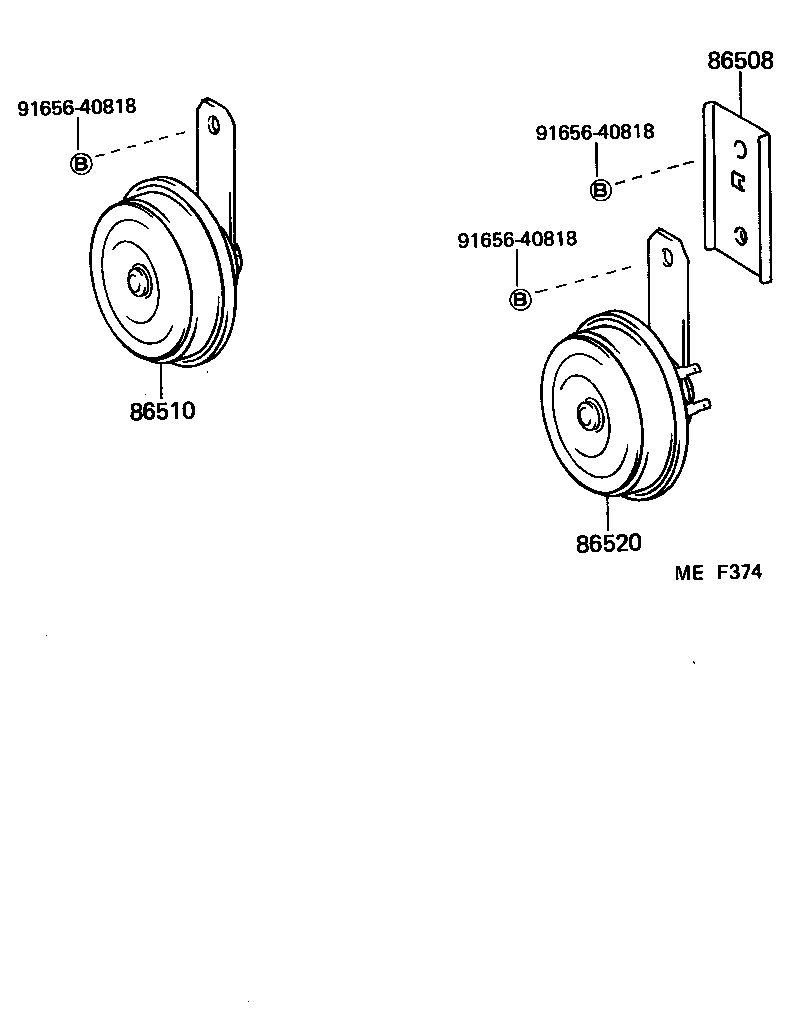

diagram 86508 86510 86520 9165640818 9165640818 9165640818
Part # Description Qty Price
86510 - HORN ASSY, HIGH PITCHED
86510-12420

BJ7#,FJ7#,HJ75,LJ70,RJ70..ARL,GEN

12V

 1
86510-90K01

BJ7#,FJ7#,HJ75,LJ70,RJ70

12V

 1
86510-90K01

BJ7#,FJ7#,HJ75,LJ70,RJ70..ARL,GEN

12V

 1
86520 - HORN ASSY, LOW PITCHED
86520-12610

BJ7#,FJ7#,HJ75,LJ70,RJ70..ARL,GEN

12V

 1
86520-90K01

BJ7#,FJ7#,HJ75,LJ70,RJ70

12V

 1
86520-90K01

BJ7#,FJ7#,HJ75,LJ70,RJ70..ARL,GEN

12V

 1
Common parts
91656-40818

(9001-0808)HZJ78 ; (9001-0808)FJ7#,FZJ7#,HDJ7#,HJ75,HZJ70,71,73,75,79,KZJ7#,LJ7#,PZ

Click highlighted areas on diagram

diagram 86510 86520 86591 9011908198 9011908198 9011908198
Part # Description Qty Price
Common parts
90119-08198
