HJ75RP-MRQ3 (1984)
Toyota Land Cruiser
Production
Nov 1984
-
Jan 1990
Engine
2H
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8411- )

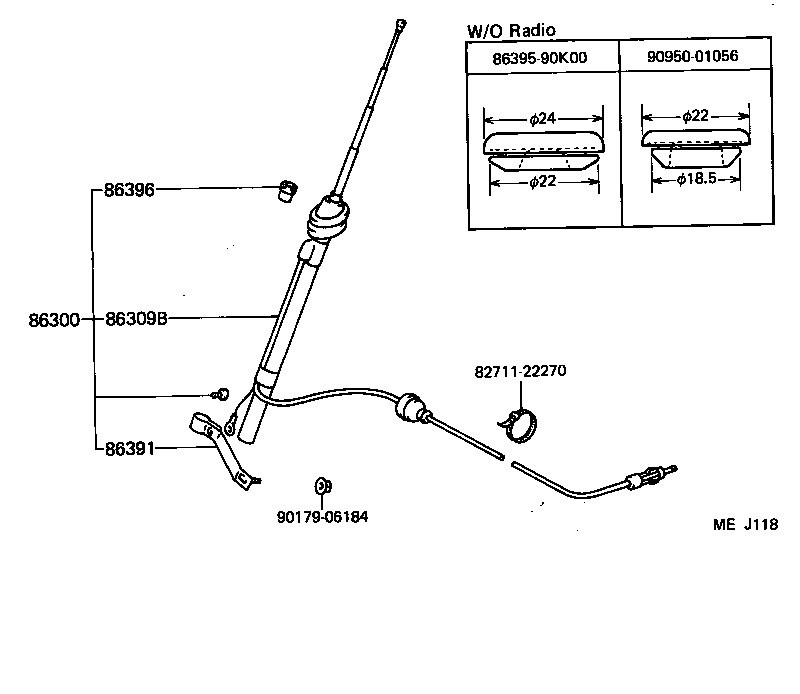

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86300 - ANTENNA ASSY, W/HOLDER | ||||
| 86300-90K02 |
BJ7#,FJ7#,HJ75..RHD..MTM..(ARL,GEN) W/SCHNOKEL TYPE AIR CLEANER |
1 | ||
| 86300-90K00 |
BJ7#,FJ7#,HJ75,LJ70,RJ70..RHD..(ARL,GEN) |
1 | ||
| 86309B - POLE SUB-ASSY, PULL TOP ANTENNA | ||||
| 86309-90K02 |
BJ7#,FJ7#,HJ75..RHD..MTM..(ARL,GEN) W/SCHNOKEL TYPE AIR CLEANER |
1 | ||
| 86309-90K00 |
BJ7#,FJ7#,HJ75,LJ70,RJ70..RHD..(ARL,GEN) |
1 | ||
| 86391 - HOLDER, ANTENNA | ||||
| 86392-90K00 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 |
1 | ||
| 86396 - NUT, ANTENNA | ||||
| 86396-16020 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 |
1 | ||
| Common parts | ||||
| 82711-22270 | ||||
| 86395-90K00 | ||||
| 90179-06184 | ||||
| 90950-01056 | ||||
(9001-0907)HZJ78 ; (9001-0907)FJ7#,FZJ7#,HJ75,HZJ70,71,73,75,79,KZJ7#,LJ7#,PZJ7#,RJ
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-22270 | ||||
| 82711-2D080 | ||||
| 85371-26020 | ||||
| 90179-06184 | ||||
