HJ75RP-MRQ3 (1984)
Toyota Land Cruiser

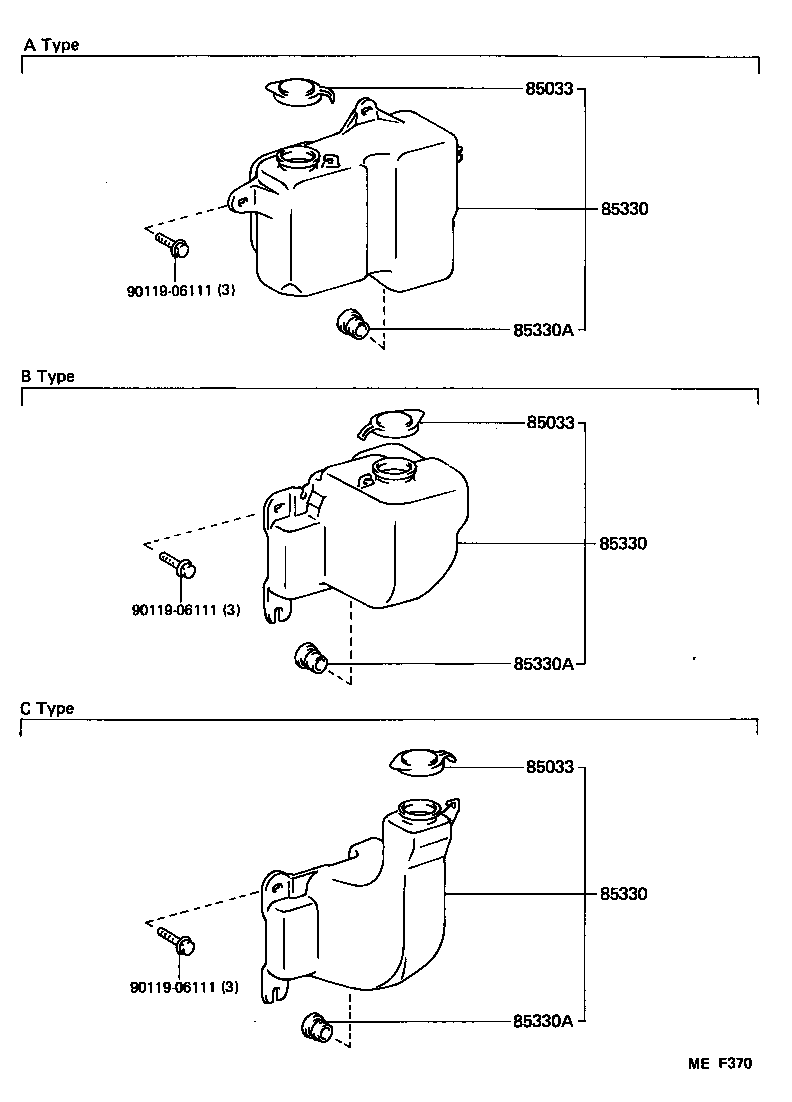

ILLUST NO. 1 OF 2(8411- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85033 - CAP ASSY, WINDSHIELD WASHER | ||||
| 85332-12320 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 |
1 | ||
| 85033 - CAP ASSY, WINDSHIELD WASHER | ||||
| 85332-12320 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 |
1 | ||
| 85033 - CAP ASSY, WINDSHIELD WASHER | ||||
| 85332-12320 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 |
1 | ||
| 85330 - JAR ASSY, WINDSHIELD WASHER | ||||
| 85330-90K06 |
FJ7#,HJ75 C TYPE |
1 | ||
| 85330-90K07 |
FJ70,73..MTM;BJ7#,FJ75,HJ75..ARL,GEN,ME B TYPE |
1 | ||
| 85330 - JAR ASSY, WINDSHIELD WASHER | ||||
| 85330-90K06 |
FJ7#,HJ75 C TYPE |
1 | ||
| 85330-90K07 |
FJ70,73..MTM;BJ7#,FJ75,HJ75..ARL,GEN,ME B TYPE |
1 | ||
| 85330 - JAR ASSY, WINDSHIELD WASHER | ||||
| 85330-90K06 |
FJ7#,HJ75 C TYPE |
1 | ||
| 85330-90K07 |
FJ70,73..MTM;BJ7#,FJ75,HJ75..ARL,GEN,ME B TYPE |
1 | ||
| 85330A - BUSH, WINDSHIELD WASHER JAR | ||||
| 90099-32089 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 |
1 | ||
| 85330A - BUSH, WINDSHIELD WASHER JAR | ||||
| 90099-32089 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 |
1 | ||
| 85330A - BUSH, WINDSHIELD WASHER JAR | ||||
| 90099-32089 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 |
1 | ||
| Common parts | ||||
| 90119-06111 | ||||

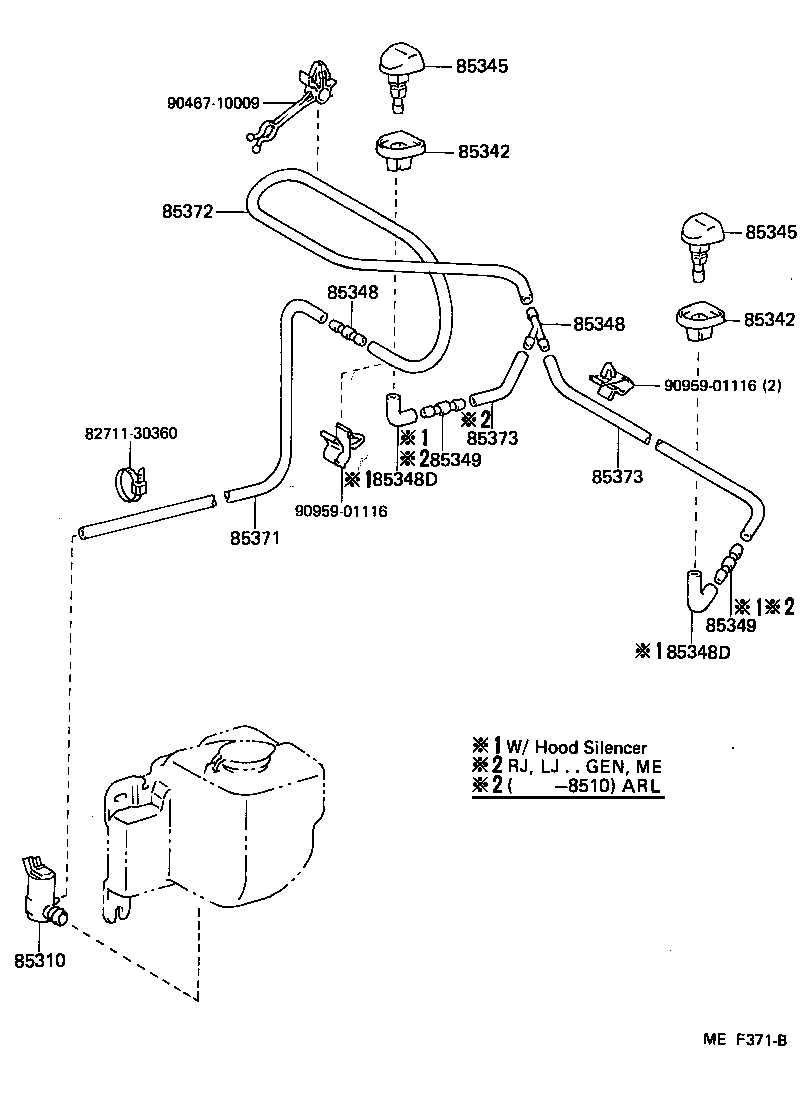

ILLUST NO. 2 OF 2(8411- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER | ||||
| 85310-22080 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 12V |
1 | ||
| 85342 - HOLDER, WASHER NOZZLE | ||||
| 85342-14010 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 |
2 | ||
| 85342 - HOLDER, WASHER NOZZLE | ||||
| 85342-14010 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 |
2 | ||
| 85345 - NOZZLE, WINDSHIELD WASHER | ||||
| 85035-90K00 |
BJ7#,FJ7#,HJ75,LJ70,RJ70..RHD |
2 | ||
| 85345 - NOZZLE, WINDSHIELD WASHER | ||||
| 85035-90K00 |
BJ7#,FJ7#,HJ75,LJ70,RJ70..RHD |
2 | ||
| 85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1 | ||||
| 85355-89122 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 2 WAY |
1 | ||
| 85349-89122 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 2 WAY |
1 | ||
| 85348-12250 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 3 WAY |
1 | ||
| 85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1 | ||||
| 85355-89122 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 2 WAY |
1 | ||
| 85349-89122 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 2 WAY |
1 | ||
| 85348-12250 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 3 WAY |
1 | ||
| 85348D - JOINT, WINDSHIELD WASHER ELBOW, NO.1 | ||||
| 85355-14481 |
HJ75..RHD..5F;BJ70,73,74,FJ7#..ARL |
2 | ||
| 85355-20070 |
HJ75..RHD..5F;BJ70,73,74,FJ7#..ARL |
2 | ||
| 85355-20070 |
HJ75..ARL,SA;BJ70,73,FJ7#,LJ70,RJ70..ARL |
2 | ||
| 85348D - JOINT, WINDSHIELD WASHER ELBOW, NO.1 | ||||
| 85355-14481 |
HJ75..RHD..5F;BJ70,73,74,FJ7#..ARL |
2 | ||
| 85355-20070 |
HJ75..RHD..5F;BJ70,73,74,FJ7#..ARL |
2 | ||
| 85355-20070 |
HJ75..ARL,SA;BJ70,73,FJ7#,LJ70,RJ70..ARL |
2 | ||
| 85349 - JOINT, WINDSHIELD WASHER HOSE, NO.1 | ||||
| 85355-89122 |
HJ75..RHD..5F;BJ70,73,74,FJ7#..ARL |
1 | ||
| 85349-89122 |
HJ75..RHD..5F;BJ70,73,74,FJ7#..ARL |
1 | ||
| 85355-89122 |
HJ75..RHD..5F;BJ70,73,74,FJ7#,LJ70,RJ70..ARL |
2 | ||
| 85355-87201 |
BJ70,73,FJ7#,HJ75,RJ70..ARL |
2 | ||
| 85349 - JOINT, WINDSHIELD WASHER HOSE, NO.1 | ||||
| 85355-89122 |
HJ75..RHD..5F;BJ70,73,74,FJ7#..ARL |
1 | ||
| 85349-89122 |
HJ75..RHD..5F;BJ70,73,74,FJ7#..ARL |
1 | ||
| 85355-89122 |
HJ75..RHD..5F;BJ70,73,74,FJ7#,LJ70,RJ70..ARL |
2 | ||
| 85355-87201 |
BJ70,73,FJ7#,HJ75,RJ70..ARL |
2 | ||
| 85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT) | ||||
| 90446-06006 |
BJ7#,FJ7#,HJ75..RHD *H,L=1260 |
1 | ||
| 85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1 | ||||
| 90099-33299 |
BJ7#,FJ7#,HJ75..RHD *H,L=530 |
1 | ||
| 90099-33299 |
HJ75..RHD..5F;BJ70,73,74,FJ7#..ARL *H,L=610 |
1 | ||
| 85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE) | ||||
| 90446-06013 |
BJ70,73,FJ7#,HJ75,RJ70..ARL *H,L=140 |
1 | ||
| 90446-06013 |
BJ70,73,FJ7#,HJ75..ARL *H,L=600 |
1 | ||
| 90446-06013 |
HJ75..RHD..5F;BJ70,73,74,FJ7#..ARL *H,L=650 |
1 | ||
| 85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE) | ||||
| 90446-06013 |
BJ70,73,FJ7#,HJ75,RJ70..ARL *H,L=140 |
1 | ||
| 90446-06013 |
BJ70,73,FJ7#,HJ75..ARL *H,L=600 |
1 | ||
| 90446-06013 |
HJ75..RHD..5F;BJ70,73,74,FJ7#..ARL *H,L=650 |
1 | ||
| Common parts | ||||
| 82711-30360 | ||||
| 90467-10009 | ||||
| 90959-01116 | ||||
(9001-0108)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-06098 | ||||
| 90467-10009 | ||||
| 90959-01116 | ||||
