HJ75RP-MRQ3 (1984)

Toyota Land Cruiser

Production Nov 1984 - Jan 1990
Engine 2H
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8411- )HJ75

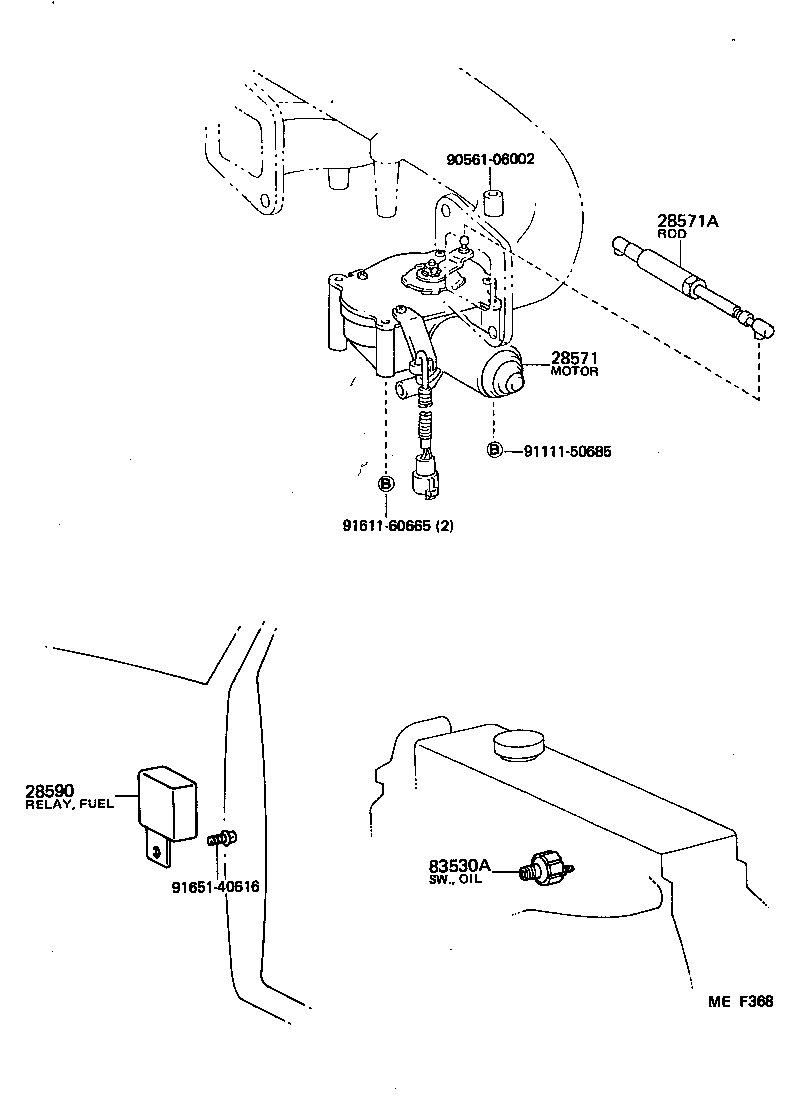

Click highlighted areas on diagram

diagram 28571 28571A 28590 83530A 9056106002 9111150685 9161160665 9165140616
Part # Description Qty Price
28571 - MOTOR, FUEL CONTROL
28571-56140

2H..HJ75..ARL,GEN

 1
28571A - ROD, FUEL CONTROL MOTOR
84580-36040

2H..HJ75..ARL,GEN

 1
28590 - RELAY ASSY, FUEL CONTROL
28590-56090

3B,2H..BJ70,73,75,HJ75..ARL,GEN

 1
28590-56090

2H..HJ75..ARL,GEN

 1
83530A - SWITCH ASSY, OIL PRESSURE
83530-14010

BJ70,73,75,HJ75..ARL,GEN

 1
83530-14030

BJ70,73,75,HJ75..ARL,GEN

 1
83530-14030

HJ75..ARL,GEN

 1
Common parts
90561-06002
91111-50685
91611-60665
91651-40616
