HJ75RP-MRQ3 (1984)
Toyota Land Cruiser

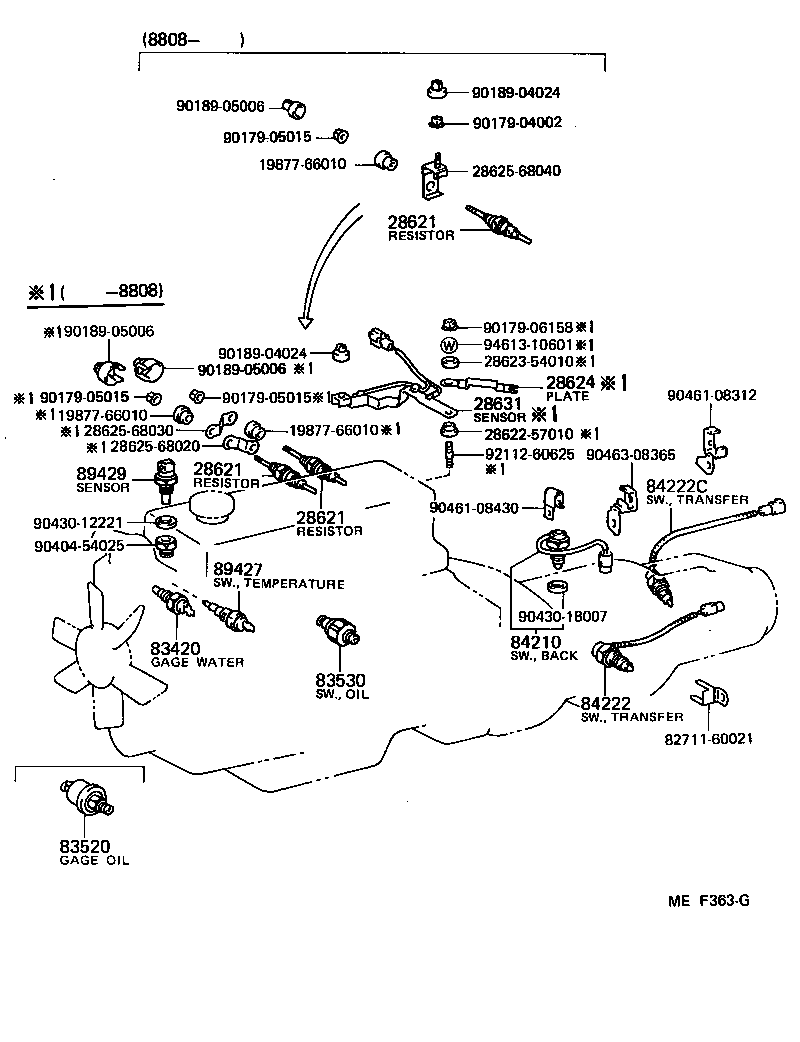

ILLUST NO. 1 OF 6(8411- )HJ75
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28621 - RESISTOR, GLOW PLUG | ||||
| 28621-64011 |
2H..HJ75..ARL |
2 | ||
| 28621-68010 |
2H..HJ75..ARL |
2 | ||
| 28621 - RESISTOR, GLOW PLUG | ||||
| 28621-64011 |
2H..HJ75..ARL |
2 | ||
| 28621-68010 |
2H..HJ75..ARL |
2 | ||
| 28621 - RESISTOR, GLOW PLUG | ||||
| 28621-64011 |
2H..HJ75..ARL |
2 | ||
| 28621-68010 |
2H..HJ75..ARL |
2 | ||
| 28624 - PLATE, CURRENT SENSOR | ||||
| 28624-68011 |
2H..HJ75..ARL |
1 | ||
| 28631 - SENSOR, GLOW PLUG CURRENT | ||||
| 28631-68020 |
2H..HJ75..ARL |
1 | ||
| 83420 - GAGE ASSY, WATER TEMPERATURE SENDER | ||||
| 83420-20020 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 |
1 | ||
| 83520 - GAGE ASSY,OIL PRESSURE SENDER | ||||
| 83520-60010 |
BJ70,73,74,FJ7#,HJ75,LJ70,RJ70..ARL |
1 | ||
| 83520-60010 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 |
1 | ||
| 83520-60010 |
FJ73..HT;FJ73..SOT..GEN;BJ7#,FJ70,75,HJ75,LJ70,RJ70..ARL,GEN,ME |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-60021 |
BJ7#,FJ7#,HJ75,LJ70,RJ70..MTM |
1 | ||
| 84222 - SWITCH, TRANSFER INDICATOR, NO.1 | ||||
| 84222-60021 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 |
1 | ||
| 84222C - SWITCH, TRANSFER INDICATOR, NO.3 | ||||
| 84222-60040 |
FJ73..LX,STD;FJ73..4FC..VX;FJ73..5F..VX..ME;BJ7#,FJ70,75,HJ75,LJ70,RJ70..ARL,GEN,ME |
1 | ||
| 89429 - SENSOR, OIL TEMPERATURE | ||||
| 89422-30020 |
LJ70..LHD..TD;BJ70..RHD..SOT;BJ73,74,HJ75..ARL;BJ70,LJ70..RHD..5F |
1 | ||
| 89422-30020 |
BJ70,73,74,HJ75..ARL |
1 | ||
| 89422-30020 |
HJ75..ARL |
1 | ||
| Common parts | ||||
| 19877-66010 | ||||
| 28622-57010 | ||||
| 28623-54010 | ||||
| 28625-68020 | ||||
| 28625-68030 | ||||
| 28625-68040 | ||||
| 82711-60021 | ||||
| 90179-04002 | ||||
| 90179-05015 | ||||
| 90179-06158 | ||||
| 90189-04024 | ||||
| 90189-05006 | ||||
| 90404-54025 | ||||
| 90430-12221 | ||||
| 90430-18007 | ||||
| 90461-08312 | ||||
| 90461-08430 | ||||
| 90463-08365 | ||||
| 92112-60625 | ||||
| 94613-10601 | ||||
ILLUST NO. 3 OF 6(8411- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84110 - SWITCH ASSY, LIGHT CONTROL, NO.1 | ||||
| 84112-69345 |
BJ7#,FJ7#,HJ75,LJ70,RJ70..RHD..(HT,PIC) |
1 | ||
| 84118 - KNOB, LIGHT CONTROL RHEOSTAT | ||||
| 84118-90K00 |
BJ70,73,74,FJ7#,HJ75,LJ70,RJ70..ARL |
1 | ||
| 84119 - RHEOSTAT, LIGHT CONTROL | ||||
| 84119-90K01 |
BJ70,73,74,FJ7#,HJ75,LJ70,RJ70..ARL |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-69095 |
BJ7#,FJ7#,HJ75,LJ70,RJ70..RHD |
1 | ||
| 84310 - SWITCH ASSY, TURN SIGNAL | ||||
| 84310-60550 |
BJ7#,FJ7#,HJ75,LJ70,RJ70..RHD..(HT,PIC) W/*IW |
1 | ||
| 84312 - PLATE, HORN CONTACT | ||||
| 84312-32010 |
BJ7#,FJ7#,HJ75,LJ70,RJ70..HT,PIC |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-69105 |
BJ7#,FJ7#,HJ75,LJ70,RJ70..RHD..(HT,PIC) |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-60140 |
BJ70,73,74,HJ75,LJ70..ARL |
1 | ||
| 84450-60120 |
BJ70,73,74,FJ7#,HJ75,LJ70,RJ70..ARL,ME W/TILT STEERING |
1 | ||
| 84450-60120 |
FJ7#,RJ70;BJ70,73,HJ75..ARL W/TILT STEERING |
1 | ||
| 84450-60140 |
BJ70,FJ70,75,HJ75,RJ70..STD..ARL |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-69425 |
BJ7#,FJ7#,HJ75,LJ70,RJ70..RHD..(HT,PIC) W/*IW |
1 | ||
| 84722F - SWITCH, TRANSMISSION CONTROL | ||||
| 84722-60050 |
FJ73..LX,STD;FJ73..4FC..VX;FJ73..5F..VX..ME;BJ7#,FJ70,75,HJ75,LJ70,RJ70..ARL,GEN,ME 12V |
1 | ||
| 84722H - BULB, TRANSMISSION CONTROL SWITCH | ||||
| 84999-10170 |
FJ73..LX,STD;FJ73..4FC..VX;FJ73..5F..VX..ME;BJ7#,FJ70,75,HJ75,LJ70,RJ70..ARL,GEN,ME 12V 1.12W,12V |
1 | ||
| 84730 - SWITCH ASSY, HEATER BLOWER | ||||
| 84660-90K00 |
BJ7#,FJ7#,HJ75,LJ70,RJ70..RHD W/COOLER |
1 | ||
| 84732-90K00 |
BJ7#,FJ7#,HJ75,LJ70,RJ70..RHD |
1 | ||
| 84660-90K00 |
BJ70,73,74,FJ7#,HJ75,LJ70,RJ70..ARL W/COOLER |
1 | ||
| 84732-90K02 |
BJ7#,FJ7#,HJ75,LJ70,RJ70..RHD |
1 | ||
| 84731 - KNOB, HEATER BLOWER SWITCH | ||||
| 84731-20030 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 W/COOLER,HEATER BLOWER |
1 | ||
| 84731-12032 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 W/COOLER,COOLER CONTROL |
1 | ||
| 84731-12010 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 |
1 | ||
| 84731-20030 |
BJ7#,FJ7#,HJ75,LJ70,RJ70..ARL,GEN,ME W/COOLER,HEATER BLOWER |
1 | ||
| 84731-12032 |
BJ7#,FJ7#,HJ75,LJ70,RJ70..ARL,GEN,ME W/COOLER,COOLER CONTROL |
1 | ||
| 84731 - KNOB, HEATER BLOWER SWITCH | ||||
| 84731-20030 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 W/COOLER,HEATER BLOWER |
1 | ||
| 84731-12032 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 W/COOLER,COOLER CONTROL |
1 | ||
| 84731-12010 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 |
1 | ||
| 84731-20030 |
BJ7#,FJ7#,HJ75,LJ70,RJ70..ARL,GEN,ME W/COOLER,HEATER BLOWER |
1 | ||
| 84731-12032 |
BJ7#,FJ7#,HJ75,LJ70,RJ70..ARL,GEN,ME W/COOLER,COOLER CONTROL |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84870-95J00 |
BJ7#,FJ7#,HJ75,LJ70,RJ70..ARL,GEN,ME |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-30360 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 12V |
1 | ||
| Common parts | ||||
| 82711-14550 | ||||
| 90164-50025 | ||||
| 90170-11206 | ||||
| 90201-09351 | ||||
| 90206-11012 | ||||
| 90461-08549 | ||||
| 90461-12206 | ||||
| 90462-08006 | ||||
| 90463-13003 | ||||
| 90463-15003 | ||||
| 93315-14012 | ||||
| 93319-13012 | ||||
| 93319-15012 | ||||
ILLUST NO. 4 OF 6(8411- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27790 - RELAY ASSY, CHARGE LAMP | ||||
| 27790-13010 |
3F,2H..FJ7#,HJ75..ARL,GEN,SA |
1 | ||
| 28371A - RELAY, BULB CHECK | ||||
| 90987-02004 |
22R,13BT,3B,3F,2H,2LT..BJ70,73,74,FJ7#,HJ75,LJ70,RJ70..ARL |
1 | ||
| 28521 - TIMER, PREHEATING | ||||
| 28521-68040 |
2H..HJ75..ARL |
1 | ||
| 28521-68080 |
2H..HJ75..ARL |
1 | ||
| 28521-68042 |
2H..HJ75..ARL |
1 | ||
| 28521-68090 |
2H..HJ75..ARL |
1 | ||
| 28521-68041 |
2H..HJ75..ARL |
1 | ||
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-22070 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 12V |
1 | ||
| 81980-16010 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 12V |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09003 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 15A,15A |
4 | ||
| 90982-09005 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 7.5A,7.5A |
2 | ||
| 90982-09004 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 20A,YELLOW,20A |
4 | ||
| 90982-09004 |
FJ75,HJ75..ARL,GEN,ME 20A,YELLOW,20A |
4 | ||
| 90982-09002 |
FJ75,HJ75..ARL,GEN,ME 10A,10A |
5 | ||
| 90982-09005 |
FJ75,HJ75..ARL,GEN,ME 7.5A,7.5A |
2 | ||
| 90982-09003 |
FJ75,HJ75..ARL,GEN,ME 15A,15A |
4 | ||
| 90982-09002 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 10A,10A |
5 | ||
| 82600G - PLATE, CAUTION(FOR FUSE) | ||||
| 82683-90K04 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 |
1 | ||
| 82683-90K00 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-12010 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 |
1 | ||
| 82650 - BREAKER ASSY, WIRING CIRCUIT, NO.1 | ||||
| 82650-20011 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 30A,30A |
1 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 85913-30020 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 12V FR HEATER |
1 | ||
| 90987-04002 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 12V FR HEATER |
1 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 85913-30020 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 12V FR HEATER |
1 | ||
| 90987-04002 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 12V FR HEATER |
1 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 90987-02006 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 12V,HEAD |
1 | ||
| 90987-01003 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 12V,TAIL |
1 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 90987-02006 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 12V,HEAD |
1 | ||
| 90987-01003 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 12V,TAIL |
1 | ||
| 85917 - RELAY, FRONT DRIVE | ||||
| 90987-03001 |
FJ73..LX,STD;FJ73..4FC..VX;FJ73..5F..VX..ME;BJ7#,FJ70,75,HJ75,LJ70,RJ70..ARL,GEN,ME |
1 | ||
| 85940 - RELAY ASSY, WINDSHIELD WIPER | ||||
| 85940-90K01 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 12V |
1 | ||
| 85999H - BRACKET, RELAY | ||||
| 85999-89101 |
FJ7#,HJ75..ARL,GEN,SA |
1 | ||
| 86650C - BUZZER ASSY, SEDIMENTER WARNING | ||||
| 86650-90K00 |
BJ70,73,75..ARL,GEN |
1 | ||
| 86650C - BUZZER ASSY, SEDIMENTER WARNING | ||||
| 86650-90K00 |
BJ70,73,75..ARL,GEN |
1 | ||
| Common parts | ||||
| 91511-40614 | ||||
| 91511-60614 | ||||
| 91651-40612 | ||||
| 91651-40616 | ||||
| 93568-55014 | ||||
ILLUST NO. 5 OF 6(8411- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-69035 |
BJ75,FJ75,HJ75 MAIN FUEL TANK |
1 | ||
| 83320-69025 |
BJ75,FJ75,HJ75..ARL,GEN,ME SUB FUEL TANK |
1 | ||
| 83361 - GASKET, FUEL SENDER GAGE | ||||
| 83361-20030 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 |
2 | ||
| 83482 - SENSOR, OUTER AMBIENT TEMPERATURE | ||||
| 83482-90K04 |
FJ75..PIC..(ARL,GEN);BJ70,75,FJ70,73,HJ75,LJ70,RJ70..(PIC,SOT)..(ARL,GEN,ME) |
1 | ||
| 83482-90K00 |
FJ70..HT;FJ75..HT..ME;FJ75..ARL,GEN;FJ70..LHD..SOT;BJ7#,FJ73,HJ75,LJ70,RJ70..ARL,GEN,ME |
1 | ||
| 83482-90K04 |
FJ75..HT..ME;FJ75..ARL,GEN;BJ70,75,FJ70,73,HJ75,LJ70,RJ70..ARL,GEN,ME |
1 | ||
| 83482-90K04 |
FJ75..HT..ME;FJ75..ARL,GEN;BJ7#,FJ70,73,HJ75,LJ70,RJ70..ARL,GEN,ME |
1 | ||
| 84222D - SWITCH, TRANSFER INDICATOR, NO.4 | ||||
| 84222-60071 |
BJ7#,FJ7#,HJ75..ARL,GEN,ME DEFF LOCK INDICATOR SW. |
2 | ||
| 84222-60070 |
BJ7#,FJ7#,HJ75..ARL,GEN,ME DEFF LOCK INDICATOR SW. |
2 | ||
| 84222D - SWITCH, TRANSFER INDICATOR, NO.4 | ||||
| 84222-60071 |
BJ7#,FJ7#,HJ75..ARL,GEN,ME DEFF LOCK INDICATOR SW. |
2 | ||
| 84222-60070 |
BJ7#,FJ7#,HJ75..ARL,GEN,ME DEFF LOCK INDICATOR SW. |
2 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84230-22051 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 |
2 | ||
| 84231-28010 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 |
2 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84230-22051 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 |
2 | ||
| 84231-28010 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 |
2 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-30030 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 MATSUSHITA |
1 | ||
| 84340-32010 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 |
1 | ||
| 84340-32010 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 TOKAIRIKA |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-24010 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 |
1 | ||
| Common parts | ||||
| 82711-90K05 | ||||
| 90159-40155 | ||||
| 90159-60081 | ||||
| 90189-06043 | ||||
| 90467-13030 | ||||
| 91651-40616 | ||||
| 93311-16014 | ||||
| 93315-14014 | ||||
| 94110-51000 | ||||
| 94120-41000 | ||||
| 94612-11001 | ||||
| Linked diagrams | ||||
| 8511 | ||||

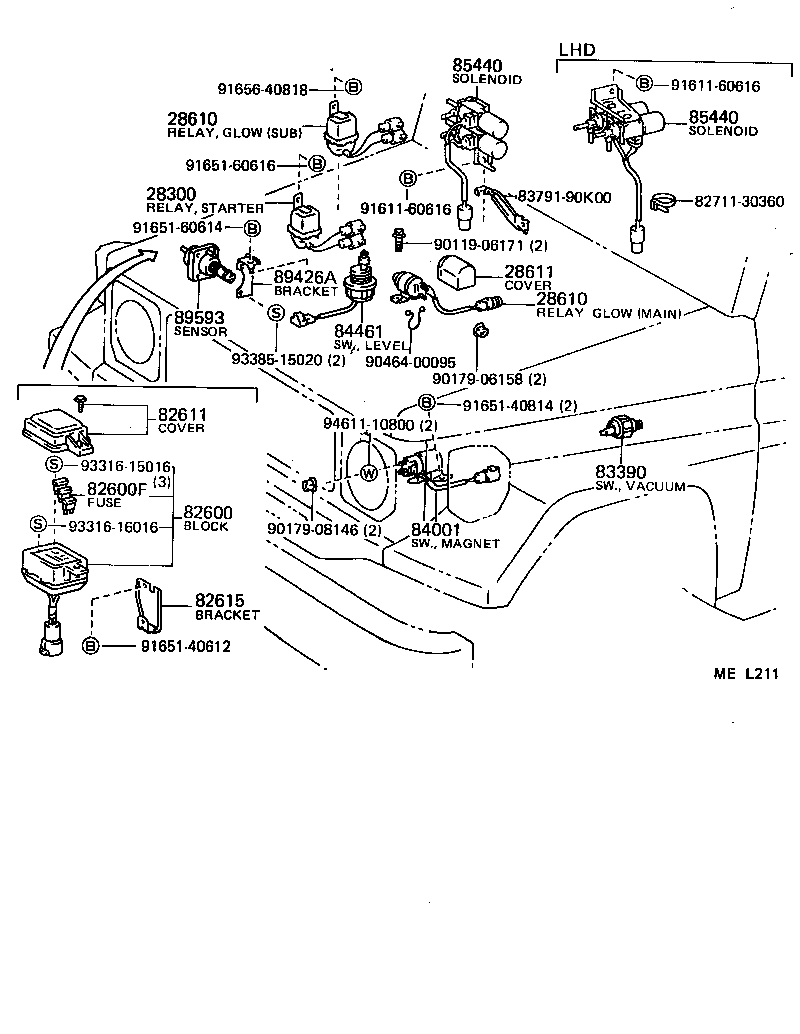

ILLUST NO. 2 OF 6(8411- )HJ75
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28300 - RELAY ASSY, STARTER | ||||
| 28300-54070 |
13BT,3B,2H,2L#..BJ7#,HJ75,LJ70 12V |
1 | ||
| 28610 - RELAY ASSY, INTAKE HEATER OR GLOW PLUG | ||||
| 28610-57100 |
2H..HJ75..ARL MAIN |
1 | ||
| 28610-68030 |
2H..HJ75..ARL MAIN |
1 | ||
| 28610-54090 |
2H,2L#..HJ75,LJ70 SUB |
1 | ||
| 28610-54090 |
3B,2H,2L#..BJ70,73,75,HJ75,LJ70 SUB |
1 | ||
| 28610 - RELAY ASSY, INTAKE HEATER OR GLOW PLUG | ||||
| 28610-57100 |
2H..HJ75..ARL MAIN |
1 | ||
| 28610-68030 |
2H..HJ75..ARL MAIN |
1 | ||
| 28610-54090 |
2H,2L#..HJ75,LJ70 SUB |
1 | ||
| 28610-54090 |
3B,2H,2L#..BJ70,73,75,HJ75,LJ70 SUB |
1 | ||
| 28611 - COVER, GLOW PLUG RELAY | ||||
| 28611-55010 |
3B,2H..BJ70,73,HJ75..ARL |
1 | ||
| 28611-68010 |
2H..HJ75..ARL |
1 | ||
| 82600 - BLOCK ASSY, FUSE | ||||
| 82610-90K02 |
BJ70,73,74,FJ7#,HJ75,LJ70,RJ70..ARL |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09003 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 15A,15A |
4 | ||
| 90982-09005 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 7.5A,7.5A |
2 | ||
| 90982-09004 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 20A,YELLOW,20A |
4 | ||
| 90982-09004 |
FJ75,HJ75..ARL,GEN,ME 20A,YELLOW,20A |
4 | ||
| 90982-09002 |
FJ75,HJ75..ARL,GEN,ME 10A,10A |
5 | ||
| 90982-09005 |
FJ75,HJ75..ARL,GEN,ME 7.5A,7.5A |
2 | ||
| 90982-09003 |
FJ75,HJ75..ARL,GEN,ME 15A,15A |
4 | ||
| 90982-09002 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 10A,10A |
5 | ||
| 82611 - COVER, FUSE BLOCK | ||||
| 82611-90K00 |
BJ70,73,74,FJ7#,HJ75,LJ70,RJ70..ARL |
1 | ||
| 82615 - BRACKET, FUSE | ||||
| 82615-90K00 |
BJ70,73,74,FJ7#,HJ75,LJ70,RJ70..ARL |
1 | ||
| 83390 - SWITCH ASSY, VACUUM WARNING | ||||
| 83390-30020 |
BJ7#,HJ75,LJ70 |
1 | ||
| 84461 - SWITCH, LEVEL WARNING | ||||
| 84461-30040 |
BJ7#,HJ75 |
1 | ||
| 84461-60020 |
HJ75 |
1 | ||
| 85440 - SOLENOID ASSY, FRONT DRIVE | ||||
| 85440-60140 |
BJ7#,HJ75,LJ70..RHD..(ARL,GEN) |
1 | ||
| 85440-60030 |
BJ7#,HJ75,LJ70..RHD..(ARL,GEN) |
1 | ||
| 85440 - SOLENOID ASSY, FRONT DRIVE | ||||
| 85440-60140 |
BJ7#,HJ75,LJ70..RHD..(ARL,GEN) |
1 | ||
| 85440-60030 |
BJ7#,HJ75,LJ70..RHD..(ARL,GEN) |
1 | ||
| 89426A - BRACKET, VACUUM SENSOR | ||||
| 89426-60010 |
BJ7#,FJ7#,HJ75 |
1 | ||
| 89426-60010 |
LJ70..DSL;LJ70..ARL;LJ70..LHD..TD;BJ7#,FJ7#,HJ75,RJ70 |
1 | ||
| 89426-60010 |
BJ7#,FJ7#,HJ75,LJ70,RJ70..ARL,GEN,ME |
1 | ||
| 89593 - SENSOR, AIR CLEANER WARNING | ||||
| 89593-26010 |
BJ7#,HJ75 |
1 | ||
| 89593-26010 |
LJ70..DSL;LJ70..ARL;LJ70..LHD..TD;BJ7#,HJ75,RJ70 |
1 | ||
| 89421-36020 |
BJ7#,HJ75 |
1 | ||
| 89593-26010 |
BJ7#,HJ75,LJ70,RJ70..ARL,GEN,ME |
1 | ||
| Common parts | ||||
| 82711-30360 | ||||
| 83791-90K00 | ||||
| 90119-06171 | ||||
| 90179-06158 | ||||
| 90179-08146 | ||||
| 90464-00095 | ||||
| 91611-60616 | ||||
| 91651-40612 | ||||
| 91651-40814 | ||||
| 91651-60614 | ||||
| 91651-60616 | ||||
| 91656-40818 | ||||
| 93316-15016 | ||||
| 93316-16016 | ||||
| 93385-15020 | ||||
| 94611-10800 | ||||
ILLUST NO. 6 OF 6(8411- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83481 - SENSOR, INNER AMBIENT TEMPERATURE | ||||
| 83481-90K00 |
FJ70..HT;FJ70..LHD..SOT;BJ7#,FJ73,75,HJ75,LJ70,RJ70..ARL,GEN,ME |
1 | ||
| 83481-90K00 |
BJ70,73,74,FJ7#,HJ75,LJ70,RJ70..ARL |
1 | ||
| 83481-90A01 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) NO.2 |
1 | ||
| 83481-90K01 |
BJ70,73,74,FJ7#,HJ75,LJ70,RJ70..ARL NO.1 |
1 | ||
| 83481-90K01 |
FJ75,HJ75..PIC..ARL NO.1 |
1 | ||
| 83481 - SENSOR, INNER AMBIENT TEMPERATURE | ||||
| 83481-90K00 |
FJ70..HT;FJ70..LHD..SOT;BJ7#,FJ73,75,HJ75,LJ70,RJ70..ARL,GEN,ME |
1 | ||
| 83481-90K00 |
BJ70,73,74,FJ7#,HJ75,LJ70,RJ70..ARL |
1 | ||
| 83481-90A01 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) NO.2 |
1 | ||
| 83481-90K01 |
BJ70,73,74,FJ7#,HJ75,LJ70,RJ70..ARL NO.1 |
1 | ||
| 83481-90K01 |
FJ75,HJ75..PIC..ARL NO.1 |
1 | ||
| 83481 - SENSOR, INNER AMBIENT TEMPERATURE | ||||
| 83481-90K00 |
FJ70..HT;FJ70..LHD..SOT;BJ7#,FJ73,75,HJ75,LJ70,RJ70..ARL,GEN,ME |
1 | ||
| 83481-90K00 |
BJ70,73,74,FJ7#,HJ75,LJ70,RJ70..ARL |
1 | ||
| 83481-90A01 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) NO.2 |
1 | ||
| 83481-90K01 |
BJ70,73,74,FJ7#,HJ75,LJ70,RJ70..ARL NO.1 |
1 | ||
| 83481-90K01 |
FJ75,HJ75..PIC..ARL NO.1 |
1 | ||
| 83481 - SENSOR, INNER AMBIENT TEMPERATURE | ||||
| 83481-90K00 |
FJ70..HT;FJ70..LHD..SOT;BJ7#,FJ73,75,HJ75,LJ70,RJ70..ARL,GEN,ME |
1 | ||
| 83481-90K00 |
BJ70,73,74,FJ7#,HJ75,LJ70,RJ70..ARL |
1 | ||
| 83481-90A01 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) NO.2 |
1 | ||
| 83481-90K01 |
BJ70,73,74,FJ7#,HJ75,LJ70,RJ70..ARL NO.1 |
1 | ||
| 83481-90K01 |
FJ75,HJ75..PIC..ARL NO.1 |
1 | ||
| 83481 - SENSOR, INNER AMBIENT TEMPERATURE | ||||
| 83481-90K00 |
FJ70..HT;FJ70..LHD..SOT;BJ7#,FJ73,75,HJ75,LJ70,RJ70..ARL,GEN,ME |
1 | ||
| 83481-90K00 |
BJ70,73,74,FJ7#,HJ75,LJ70,RJ70..ARL |
1 | ||
| 83481-90A01 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) NO.2 |
1 | ||
| 83481-90K01 |
BJ70,73,74,FJ7#,HJ75,LJ70,RJ70..ARL NO.1 |
1 | ||
| 83481-90K01 |
FJ75,HJ75..PIC..ARL NO.1 |
1 | ||
| 83481 - SENSOR, INNER AMBIENT TEMPERATURE | ||||
| 83481-90K00 |
FJ70..HT;FJ70..LHD..SOT;BJ7#,FJ73,75,HJ75,LJ70,RJ70..ARL,GEN,ME |
1 | ||
| 83481-90K00 |
BJ70,73,74,FJ7#,HJ75,LJ70,RJ70..ARL |
1 | ||
| 83481-90A01 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) NO.2 |
1 | ||
| 83481-90K01 |
BJ70,73,74,FJ7#,HJ75,LJ70,RJ70..ARL NO.1 |
1 | ||
| 83481-90K01 |
FJ75,HJ75..PIC..ARL NO.1 |
1 | ||
| 83481 - SENSOR, INNER AMBIENT TEMPERATURE | ||||
| 83481-90K00 |
FJ70..HT;FJ70..LHD..SOT;BJ7#,FJ73,75,HJ75,LJ70,RJ70..ARL,GEN,ME |
1 | ||
| 83481-90K00 |
BJ70,73,74,FJ7#,HJ75,LJ70,RJ70..ARL |
1 | ||
| 83481-90A01 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) NO.2 |
1 | ||
| 83481-90K01 |
BJ70,73,74,FJ7#,HJ75,LJ70,RJ70..ARL NO.1 |
1 | ||
| 83481-90K01 |
FJ75,HJ75..PIC..ARL NO.1 |
1 | ||
| Common parts | ||||
| 82711-12120 | ||||
| 90164-40074 | ||||
| 93540-24020 | ||||
ILLUST NO. 5 OF 7(9001-0808)
COMBINATION SWITCH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-14550 | ||||
| 82711-16110 | ||||
| 90461-08549 | ||||
| 90461-12206 | ||||
| 90463-12570 | ||||
| 90463-13003 | ||||
| 90463-15402 | ||||
| 90464-00537 | ||||
| 90464-00551 | ||||
| 93315-14010 | ||||
| 93319-13008 | ||||
| 93319-14012 | ||||
| 93319-15012 | ||||
| Linked diagrams | ||||
| 4501 | ||||
ILLUST NO. 2 OF 7(9001-0701)HDJ7#,HJ75,HZJ7#,PZJ7#
ENGINE ROOM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-06171 | ||||
| 90119-08063 | ||||
| 90179-05003 | ||||
| 90179-06158 | ||||
| 90179-08066 | ||||
| 90179-08204 | ||||
| 90464-00095 | ||||
| 91052-60616 | ||||
| 91611-B0616 | ||||
| 91651-40614 | ||||
| 91651-40616 | ||||
| 91651-60614 | ||||
| 91651-60616 | ||||
| 93313-16016 | ||||
| 93316-15016 | ||||
| 93383-A5025 | ||||
| 93385-15020 | ||||
| 94611-10800 | ||||
| Linked diagrams | ||||
| 2302 | ||||
| 3802 | ||||
ILLUST NO. 4 OF 7(9001-0808)
COWL RELAY
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 91511-B0614 | ||||
| 91512-60614 | ||||
| 91651-40616 | ||||
ILLUST NO. 4 OF 7(9001-0808)
COWL RELAY
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 91512-60614 | ||||
| 91651-40612 | ||||
| 91651-40616 | ||||
| 91651-60616 | ||||
| 91652-60616 | ||||
| 93319-15010 | ||||
| 93560-55016 | ||||
| 93568-55014 | ||||
| 94332-15000 | ||||
ILLUST NO. 3 OF 7(9001-0808)RHD
INSTRUMENT PANEL SW
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90164-50025 | ||||
| 90170-09002 | ||||
| 90170-11206 | ||||
| 90206-11012 | ||||
ILLUST NO. 6 OF 7(9001-0808)
DOOR,FLOOR SW
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-06390 | ||||
| 90159-40155 | ||||
| 90159-60081 | ||||
| 90189-06043 | ||||
| 90430-18008 | ||||
| 90467-13030 | ||||
| 91621-40612 | ||||
| 91626-40818 | ||||
| 91651-40614 | ||||
| 91651-60614 | ||||
| 93313-14012 | ||||
| 93315-14014 | ||||
| 93319-A4010 | ||||
| 93540-14012 | ||||
| 94120-41000 | ||||
ILLUST NO. 7 OF 7(9001-9908)
AMBIENT SENSOR & COVER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-12120 | ||||
| 90164-40074 | ||||
| 93540-24020 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
