HJ75RP-MRQ3 (1984)
Toyota Land Cruiser

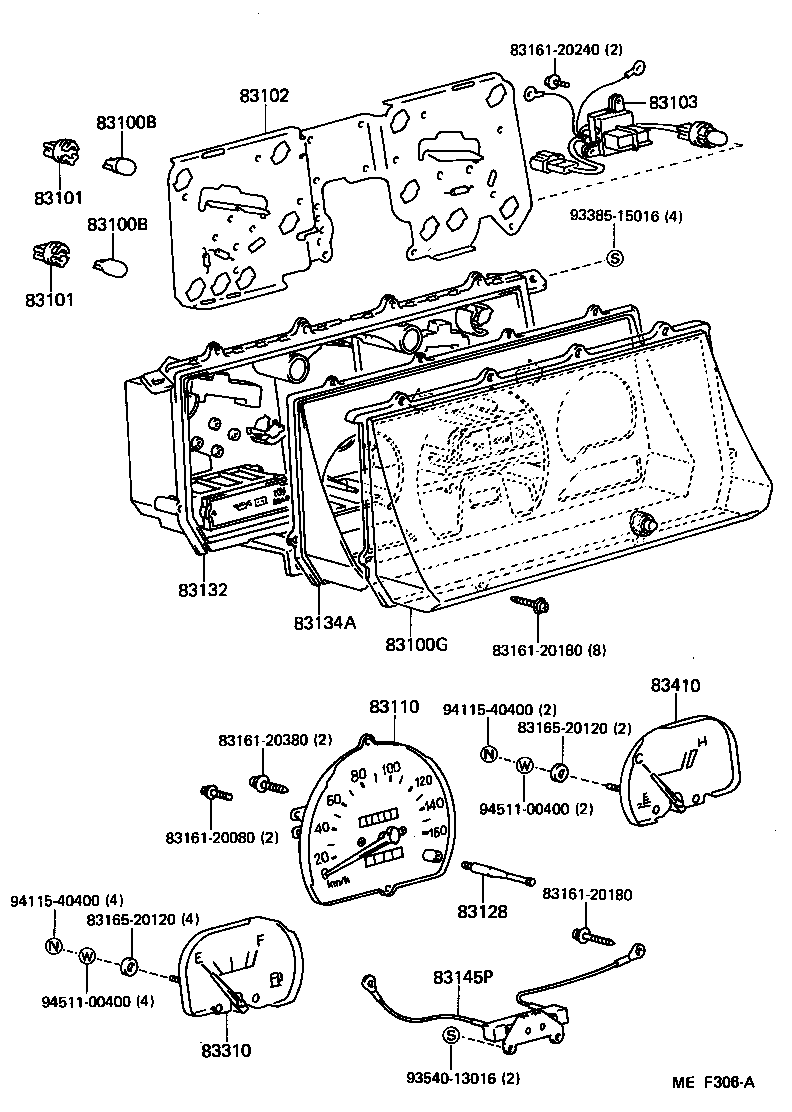

ILLUST NO. 1 OF 3(8411- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 99132-12034 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 12V 3.4W,12V 3.4W |
12 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 99132-12034 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 12V 3.4W,12V 3.4W |
12 | ||
| 83100G - GLASS, COMBINATION METER | ||||
| 83138-90K00 |
BJ7#,FJ7#,HJ75,RJ70 |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-20040 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 12V 3.4W |
12 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-20040 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 12V 3.4W |
12 | ||
| 83102 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1 | ||||
| 83247-90K01 |
BJ7#,FJ7#,HJ75,RJ70..ARL,GEN W/TACHOMETER |
1 | ||
| 83247-90K16 |
BJ70,73,74,FJ7#,HJ75,RJ70..ARL |
1 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83110-90K17 |
BJ70,73,HJ75..ARL KM |
1 | ||
| 83110-90K20 |
BJ70,73,74,FJ7#,HJ75..ARL KM |
1 | ||
| 83128 - KNOB, TRIP COUNTER | ||||
| 83128-90K00 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-90K09 |
BJ70,73,74,FJ7#,HJ75,RJ70..ARL |
1 | ||
| 83132-90K10 |
BJ70,73,74,FJ7#,HJ75..ARL W/DEFF LOCK |
1 | ||
| 83134A - COVER, COMBINATION GAGE | ||||
| 83134-90K00 |
BJ7#,FJ7#,HJ75,LJ70,RJ70..ARL,GEN,ME W/TACHOMETER |
1 | ||
| 83134-90K05 |
BJ70,73,74,FJ7#,HJ75,LJ70,RJ70..ARL W/TACHOMETER |
1 | ||
| 83134-90K00 |
BJ70,73,74,FJ7#,HJ75,LJ70,RJ70..ARL W/TACHOMETER |
1 | ||
| 83310 - GAGE ASSY, FUEL RECEIVER | ||||
| 83243-90K00 |
BJ7#,FJ7#,HJ75,LJ70,RJ70..ARL,GEN W/TACHOMETER |
1 | ||
| 83243-90K03 |
BJ70,73,74,FJ7#,HJ75,LJ70,RJ70..ARL |
1 | ||
| Common parts | ||||
| 83161-20080 | ||||
| 83161-20180 | ||||
| 83161-20240 | ||||
| 83161-20380 | ||||
| 83165-20120 | ||||
| 93385-15016 | ||||
| 93540-13016 | ||||
| 94115-40400 | ||||
| 94511-00400 | ||||

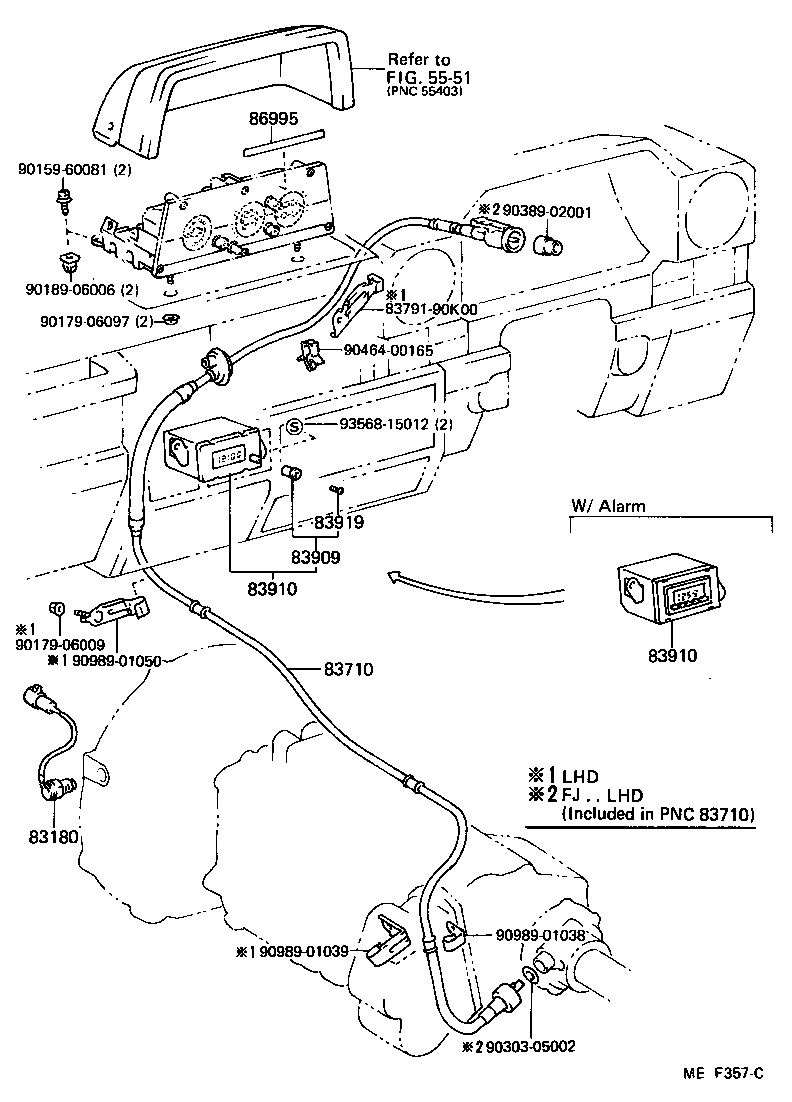

ILLUST NO. 2 OF 3(8411- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83180 - DETECTOR ASSY, REVOLUTION | ||||
| 83180-60040 |
BJ70,73,74,HJ75..ARL |
1 | ||
| 83180-60040 |
BJ7#,HJ75..ARL,GEN |
1 | ||
| 83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1 | ||||
| 83710-90K06 |
BJ7#,FJ7#,HJ75,LJ70..RHD..MTM |
1 | ||
| 83710-90K00 |
FJ7#,HJ75,LJ70,RJ70..RHD |
1 | ||
| 83909 - KNOB, CLOCK | ||||
| 83909-12230 |
BJ7#,FJ7#,HJ75,LJ70,RJ70..ARL,GEN,ME |
1 | ||
| 83909-12230 |
BJ70,73,75,FJ7#,HJ75,LJ70,RJ70..STD..(ARL,GEN) |
1 | ||
| 83910 - CLOCK ASSY | ||||
| 83910-90K04 |
BJ73,74,FJ73,75,HJ75,LJ70,RJ70..(HT,PIC)..ARL W/ALARM |
1 | ||
| 83910-90K01 |
BJ7#,FJ7#,HJ75,LJ70,RJ70..(HT,PIC)..(ARL,GEN,ME) 12V |
1 | ||
| 83910-90K01 |
BJ70,75,FJ70,75,HJ75,LJ70,RJ70..(HT,PIC)..STD..(ARL,GEN) 12V |
1 | ||
| 83910 - CLOCK ASSY | ||||
| 83910-90K04 |
BJ73,74,FJ73,75,HJ75,LJ70,RJ70..(HT,PIC)..ARL W/ALARM |
1 | ||
| 83910-90K01 |
BJ7#,FJ7#,HJ75,LJ70,RJ70..(HT,PIC)..(ARL,GEN,ME) 12V |
1 | ||
| 83910-90K01 |
BJ70,75,FJ70,75,HJ75,LJ70,RJ70..(HT,PIC)..STD..(ARL,GEN) 12V |
1 | ||
| 83919 - SCREW, CLOCK | ||||
| 83919-12230 |
BJ7#,FJ7#,HJ75,LJ70,RJ70..ARL,GEN,ME |
1 | ||
| 83919-12230 |
BJ70,73,75,FJ7#,HJ75,LJ70,RJ70..STD..(ARL,GEN) |
1 | ||
| 86995 - PLATE, CAUTION (FOR CLINOMETER) | ||||
| 86995-90A01 |
BJ7#,FJ7#,HJ75,LJ70,RJ70..ARL,GEN,ME |
1 | ||
| Common parts | ||||
| 83791-90K00 | ||||
| 90159-60081 | ||||
| 90179-06009 | ||||
| 90179-06097 | ||||
| 90189-06006 | ||||
| 90303-05002 | ||||
| 90389-02001 | ||||
| 90464-00165 | ||||
| 90989-01038 | ||||
| 90989-01039 | ||||
| 90989-01050 | ||||
| 93568-15012 | ||||
| Linked diagrams | ||||
| 5551 | ||||

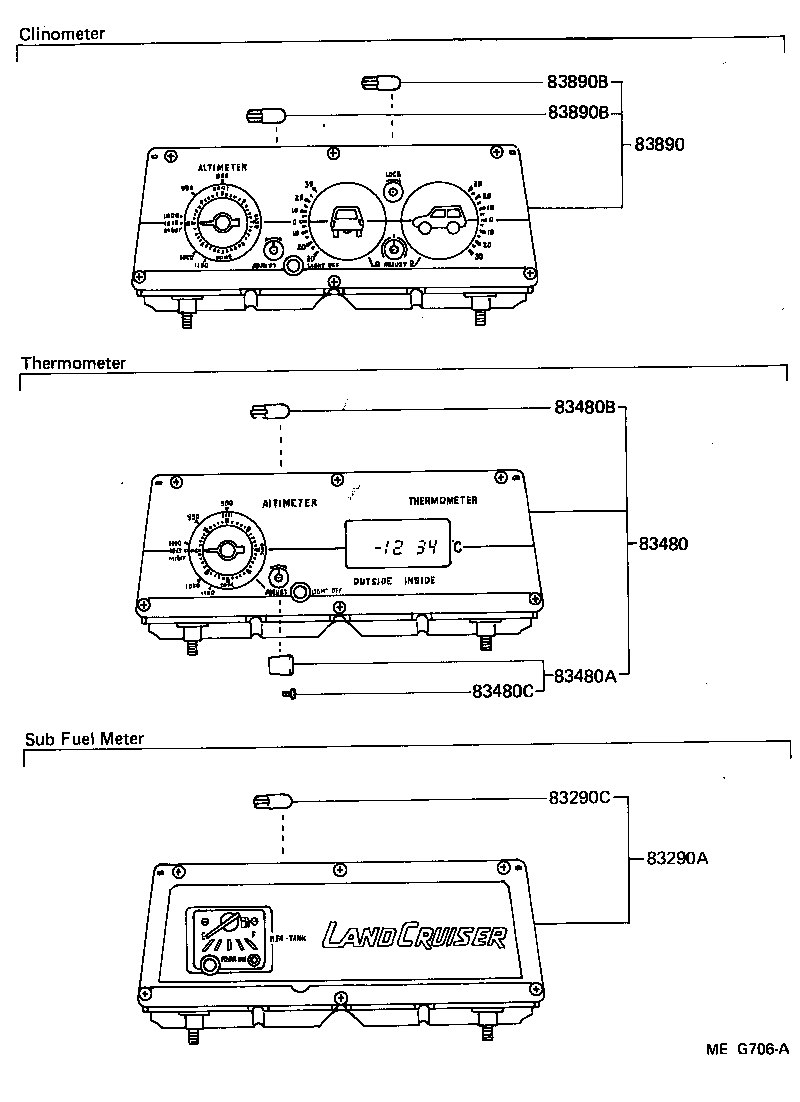

ILLUST NO. 3 OF 3(8411- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83290A - GAGE ASSY, SUB FUEL | ||||
| 83290-90K05 |
BJ75,FJ75,HJ75..ARL,GEN,ME |
1 | ||
| 83290C - BULB, SUB FUEL GAGE | ||||
| 99132-12034 |
BJ75,FJ75,HJ75..ARL,GEN,ME 12V 3.4W,12V 3.4W |
1 | ||
| 83480 - THERMOMETER ASSY | ||||
| 83290-90K06 |
FJ70..HT;FJ70..LHD..SOT;BJ7#,FJ73,75,HJ75,LJ70,RJ70..ARL,GEN,ME 12V |
1 | ||
| 83290-90K11 |
BJ70,73,74,FJ7#,HJ75,LJ70,RJ70..ARL |
1 | ||
| 83290-90K06 |
BJ70,73,74,FJ7#,HJ75,LJ70,RJ70..ARL |
1 | ||
| 83290-90K11 |
FJ75,HJ75..PIC..ARL |
1 | ||
| 83480A - KNOB, THERMOMETER | ||||
| 83891-90K00 |
FJ70..HT;FJ70..LHD..SOT;BJ7#,FJ73,75,HJ75,LJ70,RJ70..ARL,GEN,ME |
1 | ||
| 83891-90K00 |
BJ70,73,74,FJ7#,HJ75,LJ70,RJ70..ARL |
1 | ||
| 83891-90K00 |
FJ75,HJ75..PIC..ARL |
1 | ||
| 83480B - BULB(FOR THERMOMETER) | ||||
| 84999-50010 |
BJ70,73,74,FJ7#,HJ75,LJ70,RJ70..ARL 12V 3.4W,12V 3.4W |
1 | ||
| 84999-50010 |
FJ75,HJ75..PIC..ARL 12V 3.4W,12V 3.4W |
1 | ||
| 84999-50010 |
FJ70..HT;FJ70..LHD..SOT;BJ7#,FJ73,75,HJ75,LJ70,RJ70..ARL,GEN,ME 12V 3.4W,12V 3.4W |
1 | ||
| 83480C - SCREW, THERMOMETER | ||||
| 83919-14012 |
FJ70..HT;FJ70..LHD..SOT;BJ7#,FJ73,75,HJ75,LJ70,RJ70..ARL,GEN,ME |
1 | ||
| 83919-14012 |
FJ75,HJ75..PIC..ARL |
1 | ||
| 83919-14012 |
BJ70,73,74,FJ7#,HJ75,LJ70,RJ70..ARL |
1 | ||
| 83890 - CLINOMETER ASSY | ||||
| 83290-90K00 |
BJ7#,FJ7#,HJ75,LJ70,RJ70..ARL,GEN,ME 12V |
1 | ||
| 83890B - BULB, CLINOMETER | ||||
| 84999-50010 |
BJ7#,FJ7#,HJ75,LJ70,RJ70..ARL,GEN,ME 12V 3.4W,12V 3.4W |
2 | ||
| 83890B - BULB, CLINOMETER | ||||
| 84999-50010 |
BJ7#,FJ7#,HJ75,LJ70,RJ70..ARL,GEN,ME 12V 3.4W,12V 3.4W |
2 | ||

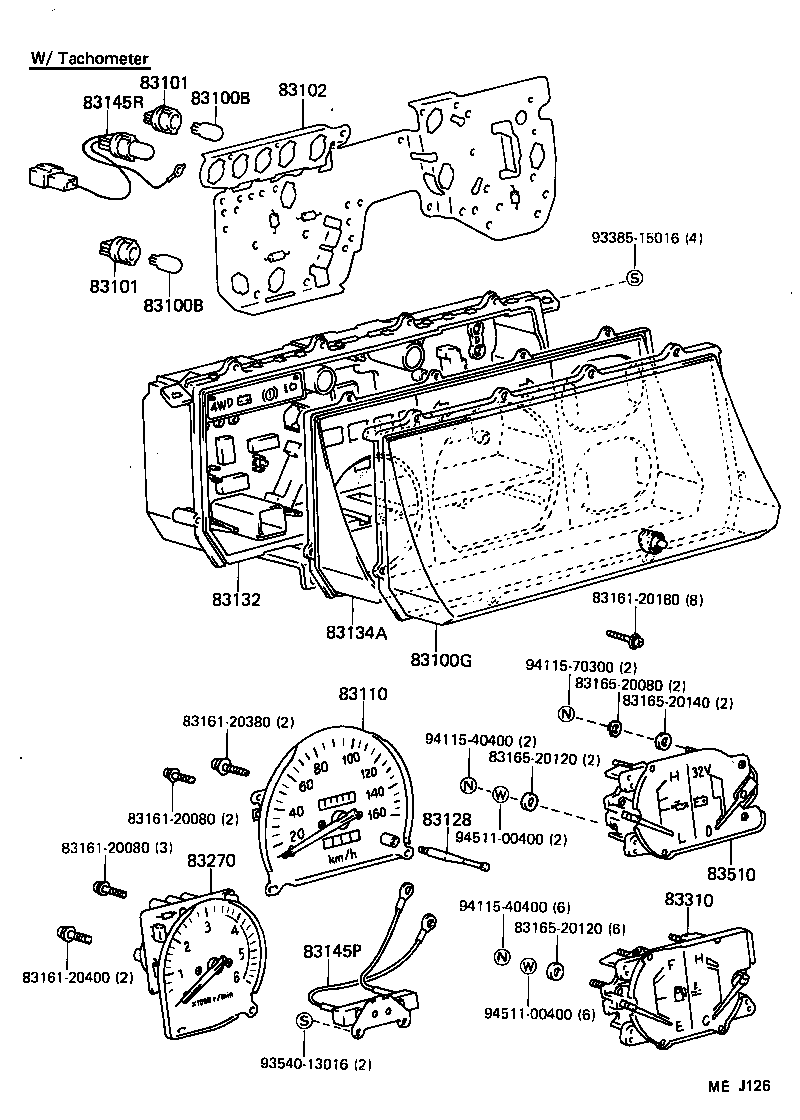

ILLUST NO. 1 OF 3(8411- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 99132-12034 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 12V 3.4W,12V 3.4W |
12 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 99132-12034 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 12V 3.4W,12V 3.4W |
12 | ||
| 83100G - GLASS, COMBINATION METER | ||||
| 83138-90K00 |
BJ7#,FJ7#,HJ75,RJ70 |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-20040 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 12V 3.4W |
12 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-20040 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 12V 3.4W |
12 | ||
| 83102 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1 | ||||
| 83247-90K01 |
BJ7#,FJ7#,HJ75,RJ70..ARL,GEN W/TACHOMETER |
1 | ||
| 83247-90K16 |
BJ70,73,74,FJ7#,HJ75,RJ70..ARL |
1 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83110-90K17 |
BJ70,73,HJ75..ARL KM |
1 | ||
| 83110-90K20 |
BJ70,73,74,FJ7#,HJ75..ARL KM |
1 | ||
| 83128 - KNOB, TRIP COUNTER | ||||
| 83128-90K00 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-90K09 |
BJ70,73,74,FJ7#,HJ75,RJ70..ARL |
1 | ||
| 83132-90K10 |
BJ70,73,74,FJ7#,HJ75..ARL W/DEFF LOCK |
1 | ||
| 83134A - COVER, COMBINATION GAGE | ||||
| 83134-90K00 |
BJ7#,FJ7#,HJ75,LJ70,RJ70..ARL,GEN,ME W/TACHOMETER |
1 | ||
| 83134-90K05 |
BJ70,73,74,FJ7#,HJ75,LJ70,RJ70..ARL W/TACHOMETER |
1 | ||
| 83134-90K00 |
BJ70,73,74,FJ7#,HJ75,LJ70,RJ70..ARL W/TACHOMETER |
1 | ||
| 83270 - TACHOMETER ASSY, ENGINE | ||||
| 83242-90K03 |
BJ70,73,75,HJ75..ARL,GEN |
1 | ||
| 83242-90K03 |
BJ75,HJ75..ARL,GEN |
1 | ||
| 83242-90K11 |
BJ70,73,HJ75..RHD..5F..(ARL,GEN) W/DEFF LOCK |
1 | ||
| 83310 - GAGE ASSY, FUEL RECEIVER | ||||
| 83243-90K00 |
BJ7#,FJ7#,HJ75,LJ70,RJ70..ARL,GEN W/TACHOMETER |
1 | ||
| 83243-90K03 |
BJ70,73,74,FJ7#,HJ75,LJ70,RJ70..ARL |
1 | ||
| 83510 - GAGE ASSY, OIL PRESSURE RECEIVER | ||||
| 83246-90K03 |
BJ70,73,74,FJ7#,HJ75,LJ70,RJ70..ARL |
1 | ||
| 83246-90K01 |
BJ7#,FJ7#,HJ75,LJ70,RJ70..ARL,GEN,ME |
1 | ||
| Common parts | ||||
| 83161-20080 | ||||
| 83161-20180 | ||||
| 83161-20380 | ||||
| 83161-20400 | ||||
| 83165-20080 | ||||
| 83165-20120 | ||||
| 83165-20140 | ||||
| 93385-15016 | ||||
| 93540-13016 | ||||
| 94115-40400 | ||||
| 94115-70300 | ||||
| 94511-00400 | ||||
ILLUST NO. 3 OF 4(9001-0907)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 83791-60080 | ||||
| 83791-90K00 | ||||
| 90159-60081 | ||||
| 90179-06009 | ||||
| 90179-06070 | ||||
| 90189-06006 | ||||
| 90464-00165 | ||||
| 90989-01038 | ||||
| 90989-01039 | ||||
| 90989-01050 | ||||
| 93568-55012 | ||||
| Linked diagrams | ||||
| 5551 | ||||
ILLUST NO. 1 OF 4(9001-0907)FJ7#,FZJ70,73,75,HJ75,HZJ70,73,75,KZJ7#,LJ7#,PZJ7#,RJ7#
W(TACHOMETER)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 83161-20180 | ||||
| 83161-20300 | ||||
| 83161-20380 | ||||
| 83161-20400 | ||||
| 83161-20420 | ||||
| 83161-20440 | ||||
| 83161-20720 | ||||
| 83161-20800 | ||||
| 83162-20100 | ||||
| 83165-20080 | ||||
| 83165-20120 | ||||
| 83165-20140 | ||||
| 90149-50032 | ||||
| 93385-15016 | ||||
| 93540-13012 | ||||
| 94115-40400 | ||||
| 94115-70300 | ||||
| 94511-00400 | ||||
ILLUST NO. 1 OF 4(9001-0907)FJ7#,FZJ70,73,75,HJ75,HZJ70,73,75,KZJ7#,LJ7#,PZJ7#,RJ7#
W/O(TACHOMETER)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 83161-20080 | ||||
| 83161-20180 | ||||
| 83161-20380 | ||||
| 83161-20720 | ||||
| 83165-20120 | ||||
| 93540-13012 | ||||
| 94115-40400 | ||||
| 94511-00400 | ||||
