HJ75RP-MRQ3 (1984)
Toyota Land Cruiser
ILLUST NO. 3 OF 4(8411- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-12200 | ||||
| 82711-12480 | ||||
| 82711-14360 | ||||
| 82711-22870 | ||||
| 82711-30360 | ||||
| 82711-30640 | ||||
| 82711-90K01 | ||||
| 82711-90K03 | ||||
| 82711-90K04 | ||||
| 82711-90K05 | ||||
| 90461-06645 | ||||
| 90461-08202 | ||||
| 90461-08265 | ||||
| 90461-08348 | ||||
| 90462-08015 | ||||
| 90463-08207 | ||||
| 90463-10032 | ||||
| 90463-10060 | ||||
| 90463-10521 | ||||
| 90463-13003 | ||||
| 90463-15003 | ||||
| 90463-15004 | ||||
| 90464-00073 | ||||
| 90464-00165 | ||||
| 90467-09007 | ||||
ILLUST NO. 4 OF 4(8411- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 64777-90A00 | ||||
| 82817-90351 | ||||
| 82817-90K00 | ||||
| 82819-90B00 | ||||
| 90480-25020 | ||||
| 90480-34001 | ||||
| 90480-36508 | ||||

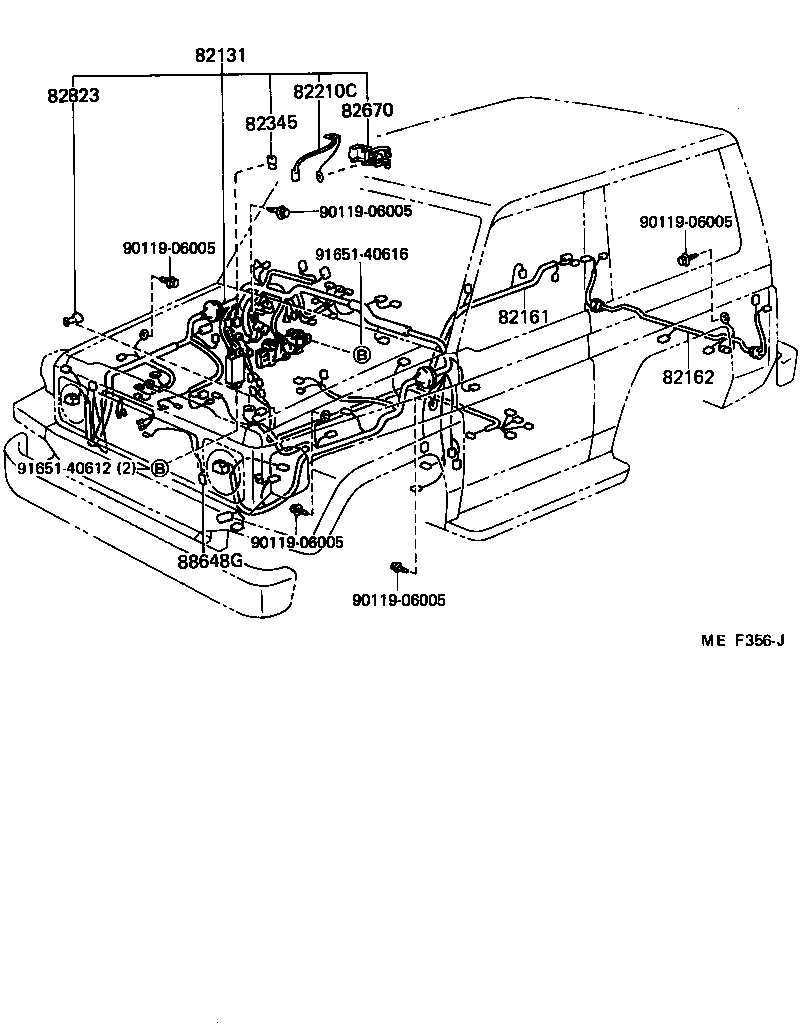

ILLUST NO. 1 OF 4(8411- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82131 - WIRE, COWL | ||||
| 82131-90K09 |
HJ75..ARL |
1 | ||
| 82131-90K77 |
HJ75..ARL |
1 | ||
| 82131-90308 |
HJ75..ARL |
1 | ||
| 82131-90L41 |
HJ75..ARL |
1 | ||
| 82131-90340 |
HJ75..ARL |
1 | ||
| 82161 - WIRE, FLOOR | ||||
| 82161-90K09 |
BJ75,FJ75,HJ75..PIC |
1 | ||
| 82161-90K34 |
BJ75,FJ75,HJ75..PIC |
1 | ||
| 82161-90K54 |
BJ75,FJ75,HJ75..PIC |
1 | ||
| 82162 - WIRE, FLOOR, NO.2 | ||||
| 82162-90K05 |
BJ75,FJ75,HJ75..PIC W/TRAILER SOCKET;W/SUB FUEL TANK |
1 | ||
| 82161-90K23 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) *LPL:BUMPER |
1 | ||
| 82162-90K22 |
BJ75,FJ75,HJ75..PIC |
1 | ||
| 82162-90K23 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) W/DEFF LOCK OR TRAILER SOCKET |
1 | ||
| 82162-90K36 |
BJ75,FJ75,HJ75..PIC |
1 | ||
| 82161-90K49 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) *LPL:BUMPER |
1 | ||
| 82162-90K23 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) W/SUB FUEL TANK |
1 | ||
| 82162-90K48 |
BJ75,FJ75,HJ75..PIC |
1 | ||
| 82162-90K07 |
BJ75,FJ75,HJ75..PIC |
1 | ||
| 82162-90K49 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) W/DEFF LOCK OR TRAILER SOCKET;W/SUB FUEL TANK |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08236 |
HJ75..ARL,GEN ALTERNATOR=12V 80A |
1 | ||
| 90982-08233 |
BJ70,73,HJ75..ARL L=110X2 & L=100 |
1 | ||
| 90982-08236 |
BJ70,73,75 L=110X2 & L=110 |
1 | ||
| 82345 - DIODE | ||||
| 82345-12050 |
BJ7#,FJ7#,HJ75,LJ70 |
2 | ||
| 82670 - BLOCK ASSY, JUNCTION, NO.1 | ||||
| 82670-90K00 |
BJ7#,HJ75,LJ70 |
1 | ||
| 82670-90K02 |
HJ75..ARL,GEN |
1 | ||
| 82670-90K00 |
BJ7#,HJ75..ARL,GEN,SA |
1 | ||
| 82670-90K01 |
HJ75..ARL,GEN ALTERNATOR=12V 80A |
1 | ||
| 82670-90K00 |
HJ75 |
1 | ||
| 82671-28010 |
HJ75..ARL,GEN |
1 | ||
| 82670-90K01 |
BJ70,73,75 |
1 | ||
| 82823 - CAP, TERMINAL, NO.1 | ||||
| 82823-12020 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 ALTERNATOR |
1 | ||
| 82823-22060 |
BJ70,73,75 ALTERNATOR |
1 | ||
| 82823-12020 |
FJ7#,HJ75,LJ70,RJ70 ALTERNATOR |
1 | ||
| Common parts | ||||
| 90119-06005 | ||||
| 91651-40612 | ||||
| 91651-40616 | ||||
ILLUST NO. 3 OF 4(8411- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-12120 | ||||
| 82711-14110 | ||||
| 82711-1A210 | ||||
| 82711-20490 | ||||
| 82711-22240 | ||||
| 82711-22460 | ||||
| 82711-22710 | ||||
| 82711-24130 | ||||
| 82711-2A140 | ||||
| 82711-2A190 | ||||
| 82711-60010 | ||||
| 82711-90K00 | ||||
| 82711-90K02 | ||||
| 82711-90K06 | ||||
| 90461-08385 | ||||
| 90461-08430 | ||||
| 90462-10047 | ||||
| 90463-00366 | ||||
| 90463-10031 | ||||
| 90464-00108 | ||||
| 90464-00115 | ||||
| 90464-00311 | ||||
| 90464-00373 | ||||
| 90467-13030 | ||||

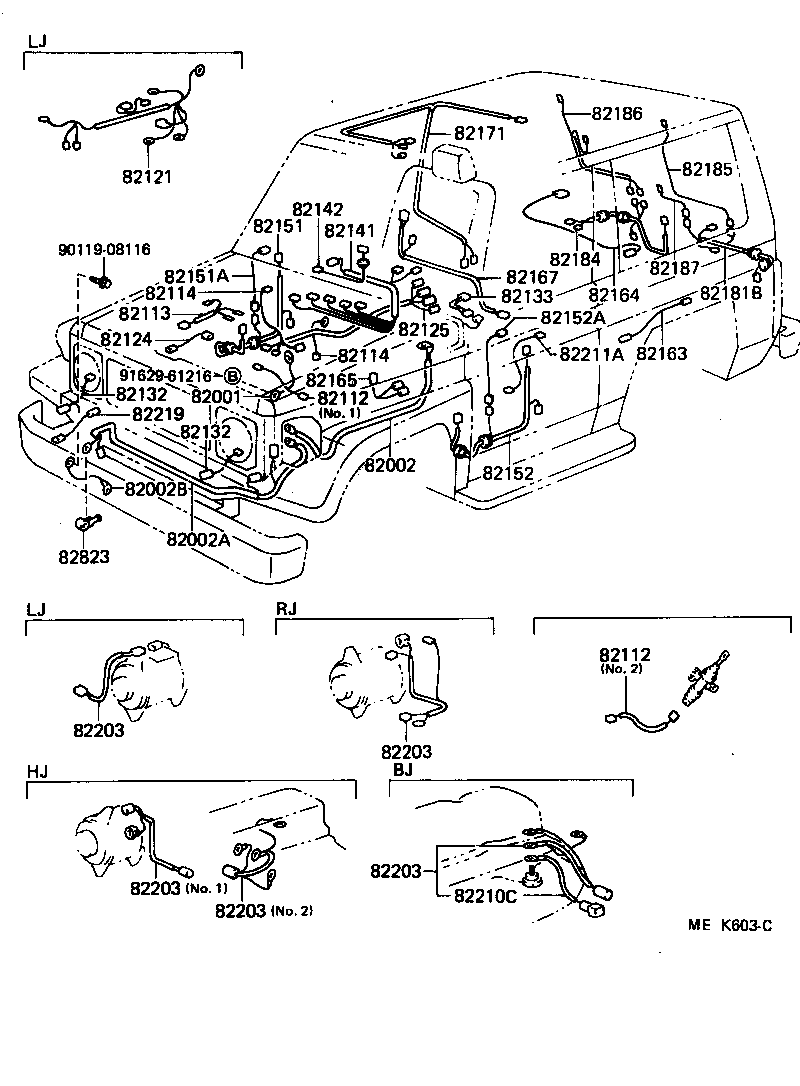

ILLUST NO. 2 OF 4(8411- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07003 |
FJ7#,HJ75 CLUTCH HOUSING |
1 | ||
| 82112 - WIRE, ENGINE ROOM, NO.2 | ||||
| 82112-90K00 |
HJ75 NO.1 |
1 | ||
| 82134-90A00 |
HJ75 NO.1 |
1 | ||
| 82112-90K02 |
BJ7#,FJ7#,HJ75,LJ70,RJ70..RHD..(ARL,GEN) NO.2 |
1 | ||
| 82112 - WIRE, ENGINE ROOM, NO.2 | ||||
| 82112-90K00 |
HJ75 NO.1 |
1 | ||
| 82134-90A00 |
HJ75 NO.1 |
1 | ||
| 82112-90K02 |
BJ7#,FJ7#,HJ75,LJ70,RJ70..RHD..(ARL,GEN) NO.2 |
1 | ||
| 82113 - WIRE, ENGINE ROOM, NO.3 | ||||
| 82113-90K00 |
HJ75 |
1 | ||
| 82114 - WIRE, ENGINE ROOM, NO.4 | ||||
| 82114-90K01 |
HJ75..ARL GROW PLUG RESISTOR |
1 | ||
| 82114-90K06 |
BJ7#,FJ7#,HJ75..ARL,GEN,ME DEFF LOCK INDICATOR SW. |
1 | ||
| 82114 - WIRE, ENGINE ROOM, NO.4 | ||||
| 82114-90K01 |
HJ75..ARL GROW PLUG RESISTOR |
1 | ||
| 82114-90K06 |
BJ7#,FJ7#,HJ75..ARL,GEN,ME DEFF LOCK INDICATOR SW. |
1 | ||
| 82125 - WIRE, TRANSMISSION | ||||
| 82125-90K03 |
BJ75,HJ75 |
1 | ||
| 82133 - WIRE, COWL, NO.3 | ||||
| 82133-90K00 |
BJ70,73,74,HJ75..ARL |
1 | ||
| 82141 - WIRE, INSTRUMENT PANEL | ||||
| 82141-90K00 |
LJ70,RJ70..HT;BJ7#,FJ7#,HJ75 W/*RWD,*RW OR *ACW |
1 | ||
| 82141-90K12 |
BJ70,73,74,FJ7#,HJ75,LJ70,RJ70..ARL |
1 | ||
| 82141-90K09 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 W/CLOCK,W/O FOG LAMP |
1 | ||
| 82141-90K02 |
BJ7#,FJ7#,HJ75,LJ70,RJ70..ARL,GEN W/CIGARETTE LIGHTER,W/O CLOCK |
1 | ||
| 82141-90K22 |
BJ70,73,74,FJ7#,HJ75,LJ70,RJ70..ARL |
1 | ||
| 82142 - WIRE, INSTRUMENT PANEL, NO.2 | ||||
| 82142-90K02 |
BJ70,73,74,FJ7#,HJ75,LJ70,RJ70..ARL W/THERMOMETER |
1 | ||
| 82142-90K05 |
FJ75,HJ75..PIC..ARL W/THERMOMETER |
1 | ||
| 82142-90K05 |
BJ70,73,74,FJ7#,HJ75,LJ70,RJ70..ARL W/THERMOMETER |
1 | ||
| 82142-90K04 |
BJ7#,FJ7#,HJ75,LJ70,RJ70..ARL,GEN,ME W/CLINOMETER OR SUB FUEL GAGE |
1 | ||
| 82142-90K02 |
BJ7#,FJ7#,HJ75,LJ70,RJ70..ARL,GEN,ME W/THERMOMETER |
1 | ||
| 82142-90K01 |
BJ7#,FJ7#,HJ75,LJ70,RJ70..ARL,GEN,ME W/CLINOMETER OR SUB FUEL GAGE |
1 | ||
| 82142-90K00 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 |
1 | ||
| 82151 - WIRE, FRONT DOOR, RH | ||||
| 82152-90K02 |
BJ7#,FJ7#,HJ75,LJ70,RJ70..RHD..(ARL,GEN) W/*EL OR *RCM |
1 | ||
| 82151A - WIRE, FRONT DOOR, NO.2, RH | ||||
| 82151-90K05 |
BJ7#,FJ7#,HJ75,LJ70,RJ70..ARL,GEN,ME |
1 | ||
| 82152 - WIRE, FRONT DOOR, LH | ||||
| 82151-90K02 |
BJ7#,FJ7#,HJ75,LJ70,RJ70..RHD..(ARL,GEN) W/*EL OR *RCM |
1 | ||
| 82152A - WIRE, FRONT DOOR, NO.2, LH | ||||
| 82151-90K05 |
BJ7#,FJ7#,HJ75,LJ70,RJ70..ARL,GEN,ME |
1 | ||
| 82164 - WIRE, FRAME | ||||
| 82164-90K03 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) |
1 | ||
| 82165 - WIRE, FRAME, NO.2 | ||||
| 82165-90K00 |
BJ75,HJ75..ARL,GEN |
1 | ||
| 82165-90K00 |
BJ75,HJ75..ARL,GEN,ME |
1 | ||
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-90K02 |
BJ75,FJ75,HJ75..RHD..PIC |
1 | ||
| 82171-90K07 |
BJ75,FJ75,HJ75..RHD..(ARL,GEN) W/ALTI METER & THERMO METER |
1 | ||
| 82203 - WIRE SUB-ASSY, ALTERNATOR | ||||
| 82114-90K08 |
HJ75..ARL NO.2 |
1 | ||
| 82114-90K05 |
HJ75..ARL,GEN NO.1 |
1 | ||
| 82203 - WIRE SUB-ASSY, ALTERNATOR | ||||
| 82114-90K08 |
HJ75..ARL NO.2 |
1 | ||
| 82114-90K05 |
HJ75..ARL,GEN NO.1 |
1 | ||
| 82203 - WIRE SUB-ASSY, ALTERNATOR | ||||
| 82114-90K08 |
HJ75..ARL NO.2 |
1 | ||
| 82114-90K05 |
HJ75..ARL,GEN NO.1 |
1 | ||
| 82203 - WIRE SUB-ASSY, ALTERNATOR | ||||
| 82114-90K08 |
HJ75..ARL NO.2 |
1 | ||
| 82114-90K05 |
HJ75..ARL,GEN NO.1 |
1 | ||
| 82203 - WIRE SUB-ASSY, ALTERNATOR | ||||
| 82114-90K08 |
HJ75..ARL NO.2 |
1 | ||
| 82114-90K05 |
HJ75..ARL,GEN NO.1 |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08236 |
HJ75..ARL,GEN ALTERNATOR=12V 80A |
1 | ||
| 90982-08233 |
BJ70,73,HJ75..ARL L=110X2 & L=100 |
1 | ||
| 90982-08236 |
BJ70,73,75 L=110X2 & L=110 |
1 | ||
| 82219 - WIRE, THERMO SENSOR | ||||
| 82219-90K00 |
FJ70..HT;FJ75..HT..ME;FJ75..ARL,GEN;FJ70..LHD..SOT;BJ7#,FJ73,HJ75..ARL,GEN,ME |
1 | ||
| 82219-90K00 |
FJ75..HT..ME;FJ75..ARL,GEN;BJ70,75,FJ70,73,HJ75..ARL,GEN,ME |
1 | ||
| 82219-90K00 |
BJ70,75,FJ7#,HJ75..(PIC,SOT)..(ARL,GEN,ME) |
1 | ||
| 82823 - CAP, TERMINAL, NO.1 | ||||
| 82823-12020 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 ALTERNATOR |
1 | ||
| 82823-22060 |
BJ70,73,75 ALTERNATOR |
1 | ||
| 82823-12020 |
FJ7#,HJ75,LJ70,RJ70 ALTERNATOR |
1 | ||
| Common parts | ||||
| 90119-08116 | ||||
| 91629-61216 | ||||
ILLUST NO. 2 OF 9(9001-0701)
COWL & INSTRUMENT PANEL WIRE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 64777-90A00 | ||||
| 90119-06390 | ||||
| 91651-60614 | ||||
| Linked diagrams | ||||
| 8401 | ||||

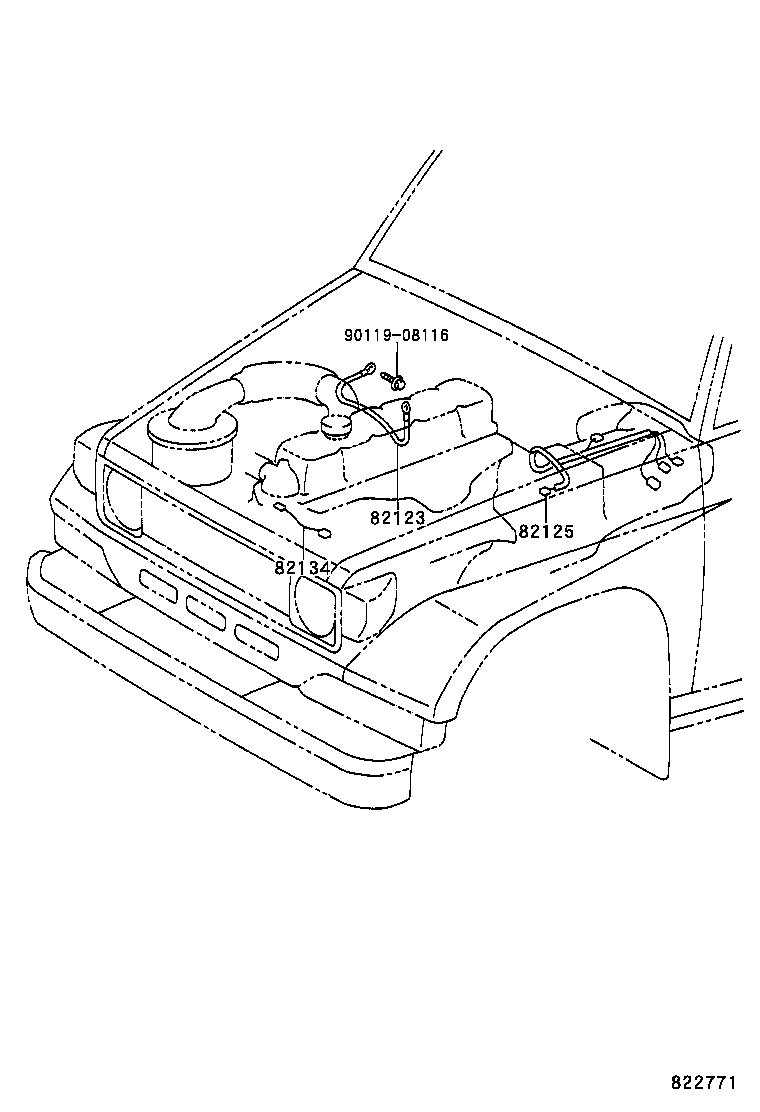

ILLUST NO. 1 OF 9(9001-9108)HJ75
ENGINE & TRANSMISSION WIRE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-08116 | ||||
