HJ75RP-MRQ3 (1984)

Toyota Land Cruiser

Production Nov 1984 - Jan 1990
Engine 2H
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8411- )PIC

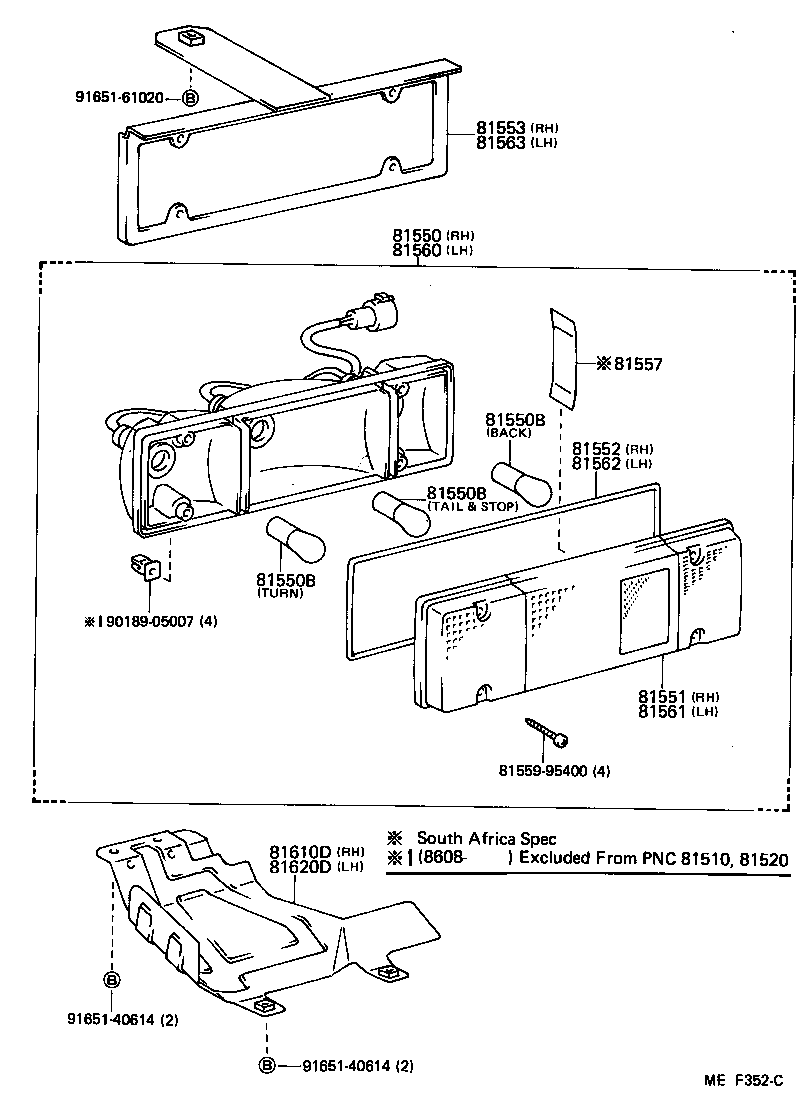

Click highlighted areas on diagram

diagram 81550 81550B 81550B 81550B 81551 81552 81553 81557 8155995400 81560 81561 81562 81563 81610D 81620D 9018905007 9165140614 9165140614 9165161020
Part # Description Qty Price
81550 - LAMP ASSY, REAR COMBINATION, RH
81550-69165

BJ75,FJ75,HJ75..PIC

 1
81550-90K08

BJ75,FJ75,HJ75..PIC

 1
81550-90K09

BJ70,73,74,FJ7#,HJ75..ARL

 1
81550-69175

BJ70,73,74,FJ7#,HJ75..ARL

 1
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-11230

BJ7#,FJ7#,HJ75,LJ70,RJ70..ARL,GEN,ME

12V 23W,12V 23W(TURN & BACK)

 4
99132-21210

BJ7#,FJ7#,HJ75,LJ70,RJ70

12V 21/5W,12V 21/5W(TAIL & STOP)

 2
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-11230

BJ7#,FJ7#,HJ75,LJ70,RJ70..ARL,GEN,ME

12V 23W,12V 23W(TURN & BACK)

 4
99132-21210

BJ7#,FJ7#,HJ75,LJ70,RJ70

12V 21/5W,12V 21/5W(TAIL & STOP)

 2
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-11230

BJ7#,FJ7#,HJ75,LJ70,RJ70..ARL,GEN,ME

12V 23W,12V 23W(TURN & BACK)

 4
99132-21210

BJ7#,FJ7#,HJ75,LJ70,RJ70

12V 21/5W,12V 21/5W(TAIL & STOP)

 2
81551 - LENS, REAR COMBINATION LAMP, RH
81551-90K09

BJ70,73,74,FJ7#,HJ75..ARL

 1
81551-95400

BJ75,FJ75,HJ75..PIC

 1
81552 - GASKET, REAR COMBINATION LAMP LENS, RH
81552-95400

BJ75,FJ75,HJ75..PIC

 1
81553 - BRACKET, REAR COMBINATION LAMP, NO.1 RH
75105-90K00

BJ75,FJ75,HJ75..IV

 1
81560 - LAMP ASSY, REAR COMBINATION, LH
81560-69165

BJ75,FJ75,HJ75..PIC

 1
81560-90K08

BJ75,FJ75,HJ75..PIC

 1
81560-69175

BJ70,73,74,FJ7#,HJ75..ARL

 1
81560-90K09

BJ70,73,74,FJ7#,HJ75..ARL

 1
81561 - LENS, REAR COMBINATION LAMP, LH
81561-90K09

BJ70,73,74,FJ7#,HJ75..ARL

 1
81561-95400

BJ75,FJ75,HJ75..PIC

 1
81562 - GASKET, REAR COMBINATION LAMP LENS, LH
81552-95400

BJ75,FJ75,HJ75..PIC

 1
81563 - BRACKET, REAR COMBINATION LAMP, NO.1 LH
75105-90K00

BJ75,FJ75,HJ75..IV

 1
Common parts
81559-95400
90189-05007
91651-40614
91651-61020
