HJ75RP-MRQ3 (1984)

Toyota Land Cruiser

Production Nov 1984 - Jan 1990
Engine 2H
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8411- )BJ7#,FJ7#,HJ75

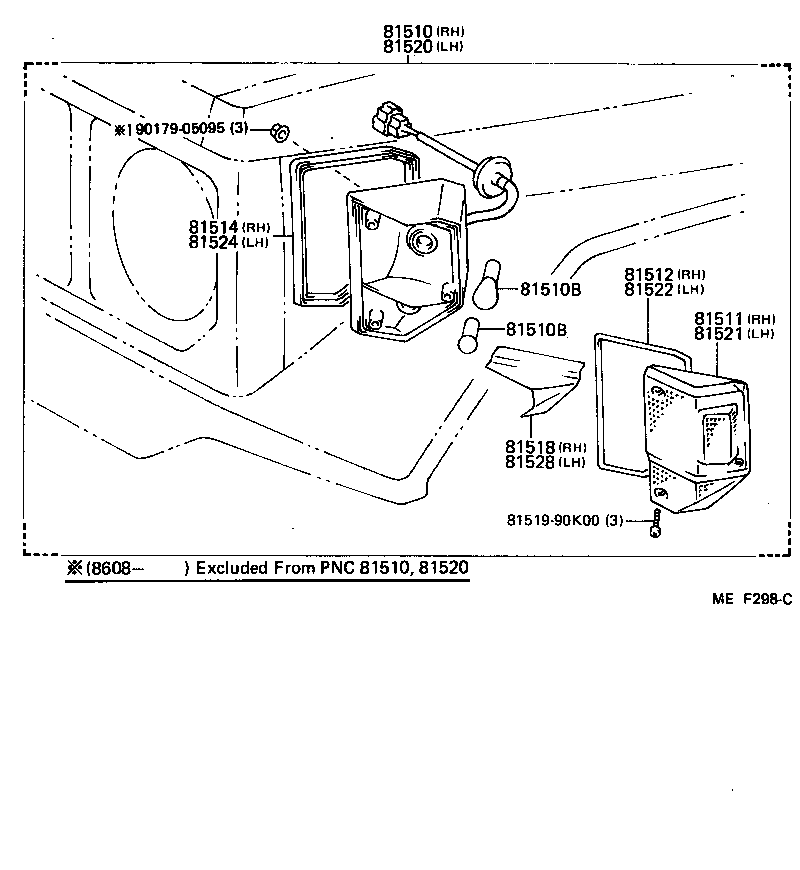

Click highlighted areas on diagram

diagram 81510 81510B 81510B 81511 81512 81514 81518 8151990K00 81520 81521 81522 81524 81528 9017905095
Part # Description Qty Price
81510 - LAMP ASSY, FRONT TURN SIGNAL, RH
81510-69255

BJ7#,FJ7#,HJ75..ARL,GEN,ME

12V

 1
81510-90K01

BJ7#,FJ7#,HJ75..ARL,GEN

12V

 1
81510B - BULB (FOR FRONT TURN SIGNAL LAMP)
99132-11230

BJ7#,FJ7#,HJ75,LJ70,RJ70..ARL,GEN,ME

12V 23W,12V 23W(TURN)

 2
99132-11050

BJ7#,FJ7#,HJ75

12V 5W,12V 5W(CLEARANCE)

 2
81510B - BULB (FOR FRONT TURN SIGNAL LAMP)
99132-11230

BJ7#,FJ7#,HJ75,LJ70,RJ70..ARL,GEN,ME

12V 23W,12V 23W(TURN)

 2
99132-11050

BJ7#,FJ7#,HJ75

12V 5W,12V 5W(CLEARANCE)

 2
81511 - LENS, FRONT TURN SIGNAL LAMP, RH
81511-90K01

BJ7#,FJ7#,HJ75

12V

 1
81512 - GASKET, FRONT TURN SIGNAL LAMP LENS, RH
81512-90K01

BJ7#,FJ7#,HJ75

 1
81514 - GASKET, FRONT TURN SIGNAL LAMP BODY, RH
81514-90K01

BJ7#,FJ7#,HJ75

 1
81518 - SHADE, FRONT TURN SIGNAL LAMP, RH
81517-90K01

BJ7#,FJ7#,HJ75

 1
81520 - LAMP ASSY, FRONT TURN SIGNAL, LH
81520-69255

BJ7#,FJ7#,HJ75..ARL,GEN,ME

12V

 1
81520-90K01

BJ7#,FJ7#,HJ75..ARL,GEN

12V

 1
81521 - LENS, FRONT TURN SIGNAL LAMP, LH
81521-90K01

BJ7#,FJ7#,HJ75

12V

 1
81522 - GASKET, FRONT TURN SIGNAL LAMP LENS, LH
81512-90K01

BJ7#,FJ7#,HJ75

 1
81524 - GASKET, FRONT TURN SIGNAL LAMP BODY, LH
81524-90K01

BJ7#,FJ7#,HJ75

 1
81528 - SHADE, FRONT TURN SIGNAL LAMP, LH
81527-90K01

BJ7#,FJ7#,HJ75

 1
Common parts
81519-90K00
90179-05095

(9001-9908)FJ7#,FZJ7#,HJ75,HZJ7#,PZJ7# ; (9908-)FZJ70,73,75,HZJ70,75

Click highlighted areas on diagram

diagram 81510 81510B 81510B 81511 81512 81514 81517B 8151990K00 81520 81521 81522 81524 9017905095
Part # Description Qty Price
Common parts
81519-90K00
90179-05095
