HJ75RP-MRQ3 (1984)
Toyota Land Cruiser

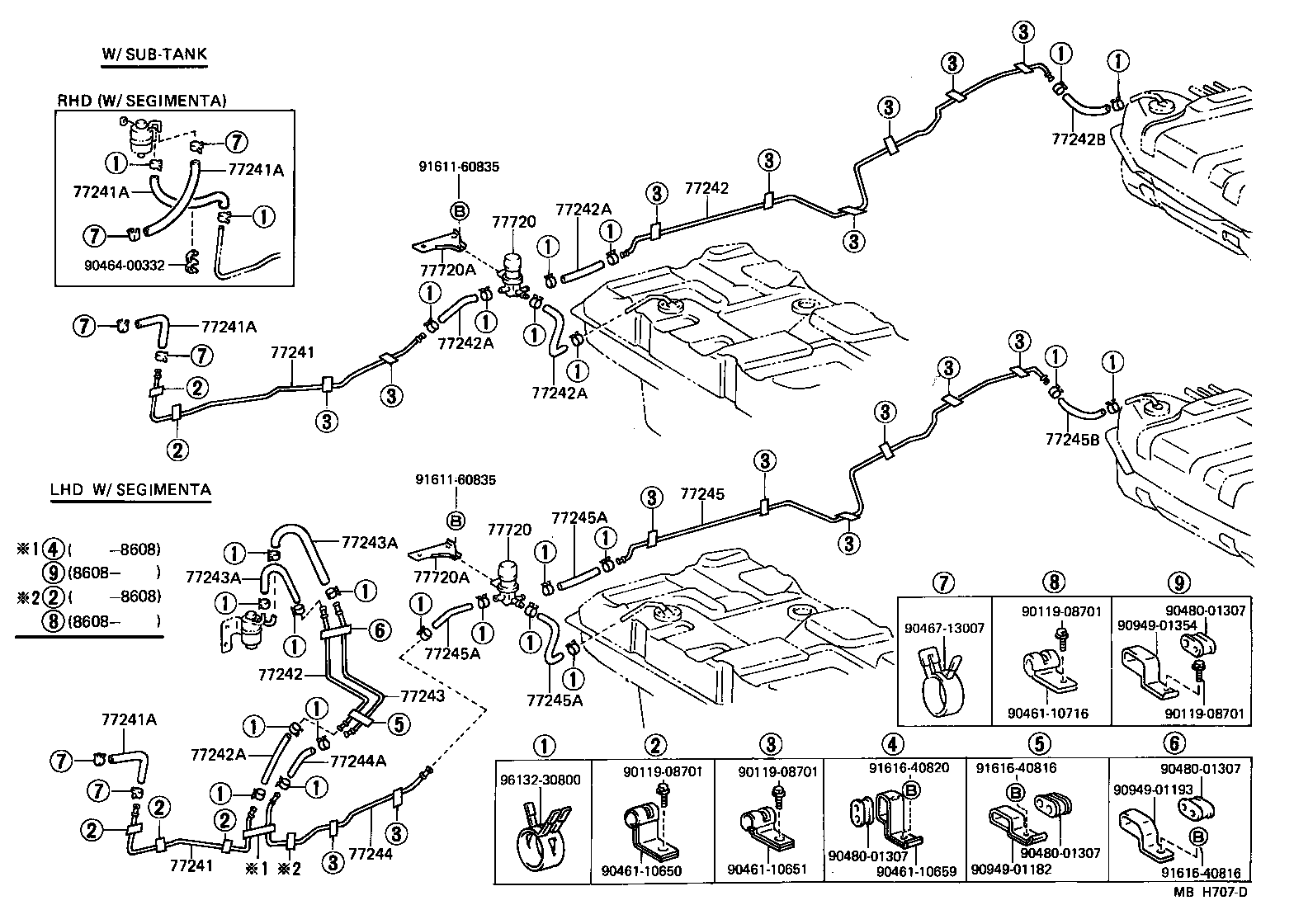

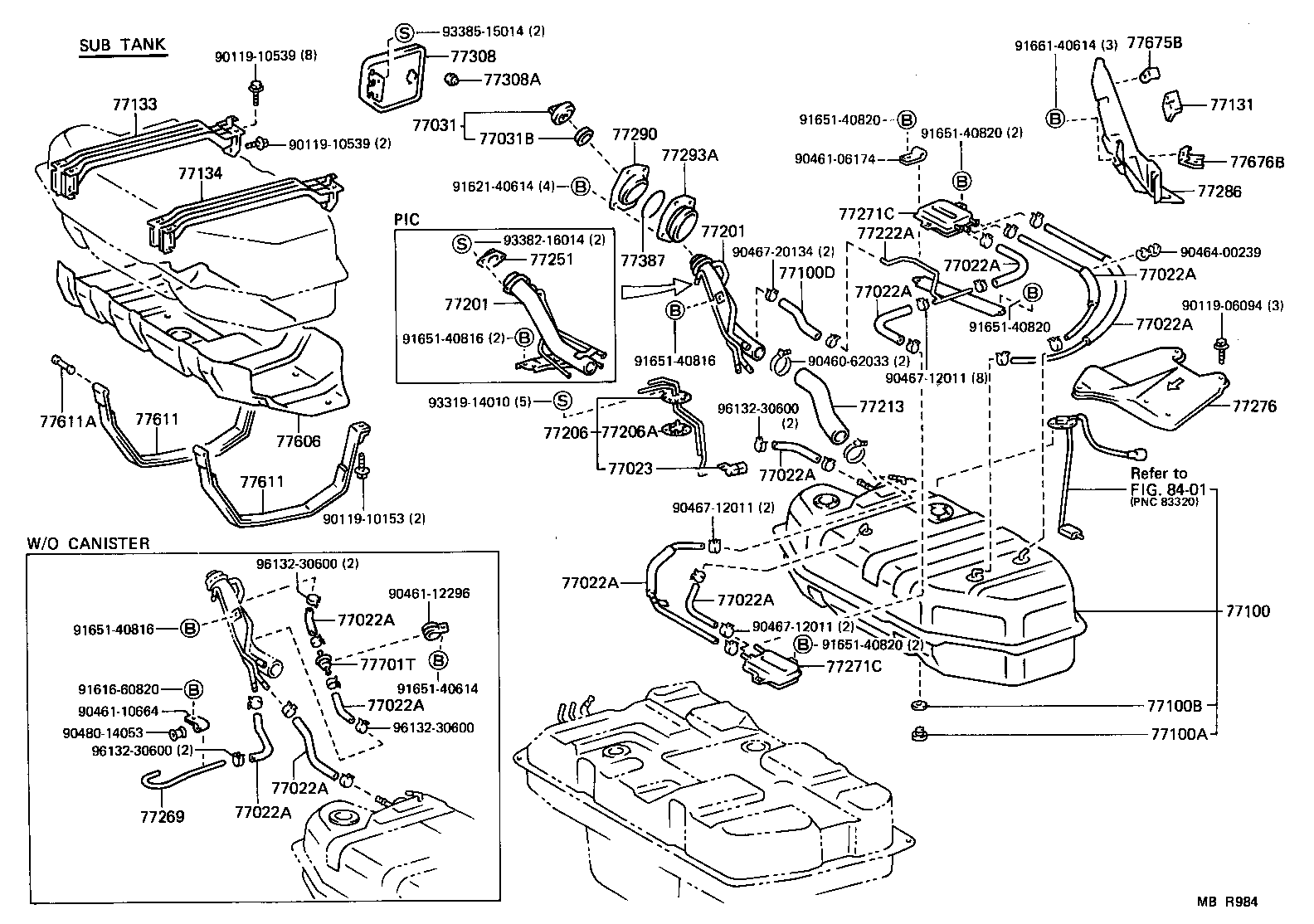

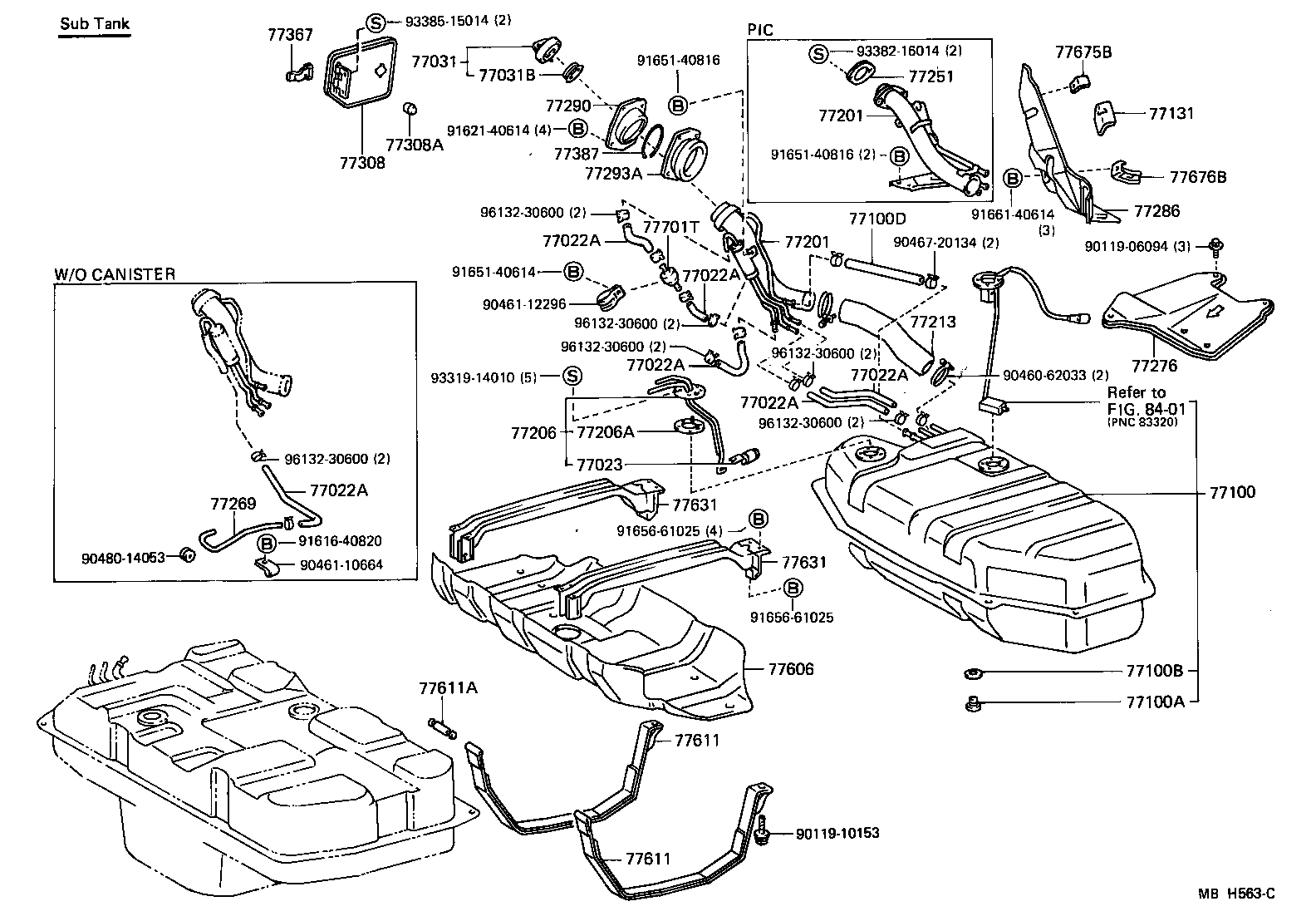

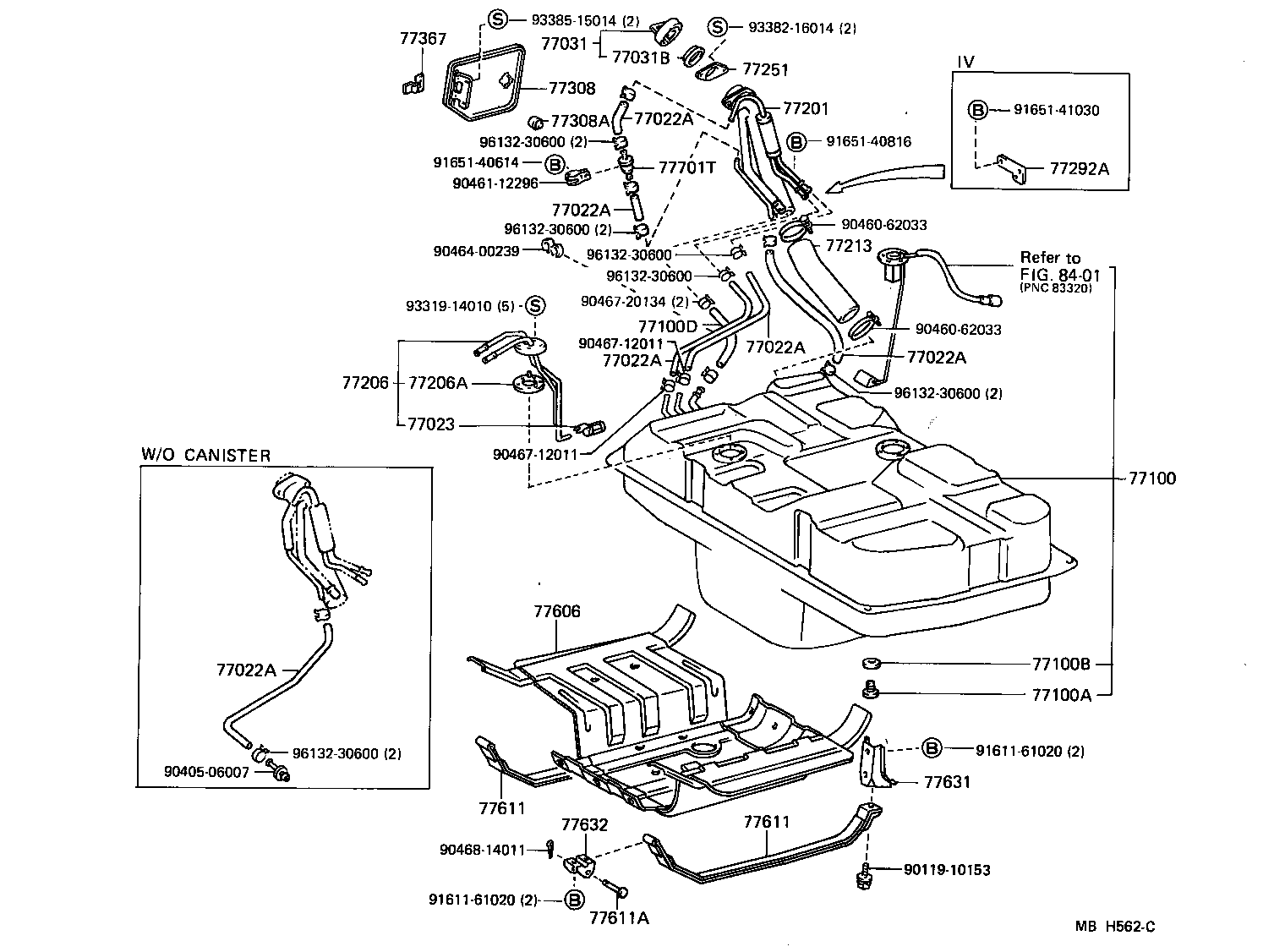

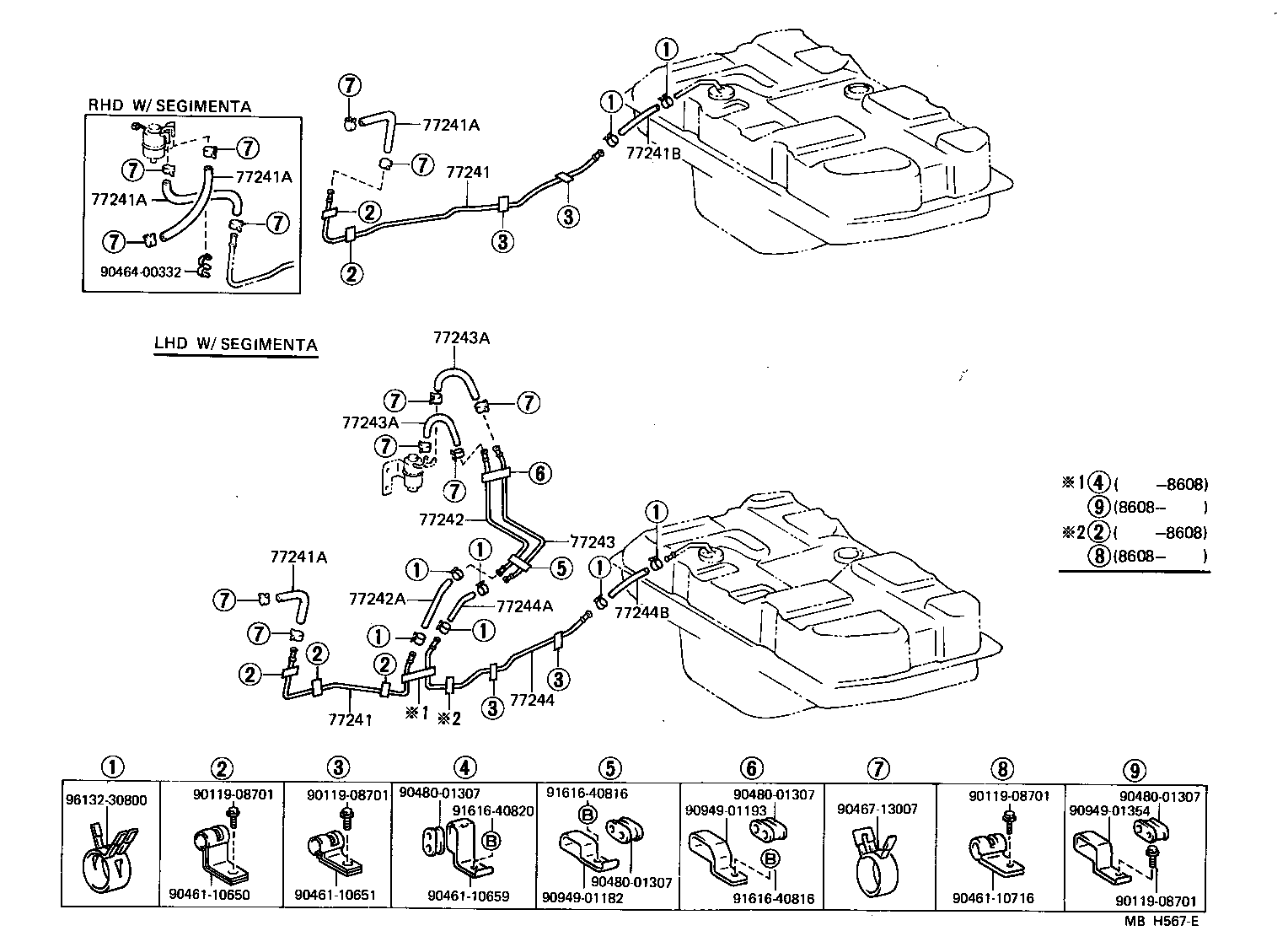

ILLUST NO. 1 OF 2(8411- )BJ75,FJ75,HJ75
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95332-06030 |
BJ75,FJ75,HJ75..PIC *H,L=280,W/SUB TANK |
1 | ||
| 95332-06010 |
BJ75,FJ75,HJ75..PIC *H,L=80,W/SUB TANK |
2 | ||
| 95332-06040 |
BJ75,FJ75,HJ75..PIC *H,L=320,W/SUB TANK |
2 | ||
| 95333-06032 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) *H,L=320,W/SUB TANK |
2 | ||
| 95332-06060 |
BJ75,FJ75,HJ75 *H,L=420 |
2 | ||
| 95332-06040 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) *H,L=320,W/SUB TANK |
2 | ||
| 95332-06060 |
BJ75,HJ75 *H,L=550 |
1 | ||
| 90447-12105 |
BJ75,FJ75,HJ75 L=450,W/SUB TANK |
1 | ||
| 90447-12104 |
BJ75,FJ75,HJ75 L=540,W/SUB TANK |
1 | ||
| 95332-06010 |
BJ75,FJ75,HJ75 *H,L=80 |
2 | ||
| 95332-06010 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) *H,L=80,W/SUB TANK |
2 | ||
| 95333-06042 |
BJ75,FJ75,HJ75 *H,L=420 |
2 | ||
| 95332-06030 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) *H,L=280,W/SUB TANK |
1 | ||
| 95333-06040 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) *H,L=400,W/SUB TANK,*,L=380 |
1 | ||
| 90447-12106 |
BJ75,FJ75,HJ75 L=670,W/SUB TANK |
1 | ||
| 95333-06020 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) *H,L=180,W/SUB TANK |
1 | ||
| 95333-06030 |
BJ75,FJ75,HJ75 *H,L=220,W/SUB TANK |
2 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95332-06030 |
BJ75,FJ75,HJ75..PIC *H,L=280,W/SUB TANK |
1 | ||
| 95332-06010 |
BJ75,FJ75,HJ75..PIC *H,L=80,W/SUB TANK |
2 | ||
| 95332-06040 |
BJ75,FJ75,HJ75..PIC *H,L=320,W/SUB TANK |
2 | ||
| 95333-06032 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) *H,L=320,W/SUB TANK |
2 | ||
| 95332-06060 |
BJ75,FJ75,HJ75 *H,L=420 |
2 | ||
| 95332-06040 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) *H,L=320,W/SUB TANK |
2 | ||
| 95332-06060 |
BJ75,HJ75 *H,L=550 |
1 | ||
| 90447-12105 |
BJ75,FJ75,HJ75 L=450,W/SUB TANK |
1 | ||
| 90447-12104 |
BJ75,FJ75,HJ75 L=540,W/SUB TANK |
1 | ||
| 95332-06010 |
BJ75,FJ75,HJ75 *H,L=80 |
2 | ||
| 95332-06010 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) *H,L=80,W/SUB TANK |
2 | ||
| 95333-06042 |
BJ75,FJ75,HJ75 *H,L=420 |
2 | ||
| 95332-06030 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) *H,L=280,W/SUB TANK |
1 | ||
| 95333-06040 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) *H,L=400,W/SUB TANK,*,L=380 |
1 | ||
| 90447-12106 |
BJ75,FJ75,HJ75 L=670,W/SUB TANK |
1 | ||
| 95333-06020 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) *H,L=180,W/SUB TANK |
1 | ||
| 95333-06030 |
BJ75,FJ75,HJ75 *H,L=220,W/SUB TANK |
2 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95332-06030 |
BJ75,FJ75,HJ75..PIC *H,L=280,W/SUB TANK |
1 | ||
| 95332-06010 |
BJ75,FJ75,HJ75..PIC *H,L=80,W/SUB TANK |
2 | ||
| 95332-06040 |
BJ75,FJ75,HJ75..PIC *H,L=320,W/SUB TANK |
2 | ||
| 95333-06032 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) *H,L=320,W/SUB TANK |
2 | ||
| 95332-06060 |
BJ75,FJ75,HJ75 *H,L=420 |
2 | ||
| 95332-06040 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) *H,L=320,W/SUB TANK |
2 | ||
| 95332-06060 |
BJ75,HJ75 *H,L=550 |
1 | ||
| 90447-12105 |
BJ75,FJ75,HJ75 L=450,W/SUB TANK |
1 | ||
| 90447-12104 |
BJ75,FJ75,HJ75 L=540,W/SUB TANK |
1 | ||
| 95332-06010 |
BJ75,FJ75,HJ75 *H,L=80 |
2 | ||
| 95332-06010 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) *H,L=80,W/SUB TANK |
2 | ||
| 95333-06042 |
BJ75,FJ75,HJ75 *H,L=420 |
2 | ||
| 95332-06030 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) *H,L=280,W/SUB TANK |
1 | ||
| 95333-06040 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) *H,L=400,W/SUB TANK,*,L=380 |
1 | ||
| 90447-12106 |
BJ75,FJ75,HJ75 L=670,W/SUB TANK |
1 | ||
| 95333-06020 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) *H,L=180,W/SUB TANK |
1 | ||
| 95333-06030 |
BJ75,FJ75,HJ75 *H,L=220,W/SUB TANK |
2 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95332-06030 |
BJ75,FJ75,HJ75..PIC *H,L=280,W/SUB TANK |
1 | ||
| 95332-06010 |
BJ75,FJ75,HJ75..PIC *H,L=80,W/SUB TANK |
2 | ||
| 95332-06040 |
BJ75,FJ75,HJ75..PIC *H,L=320,W/SUB TANK |
2 | ||
| 95333-06032 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) *H,L=320,W/SUB TANK |
2 | ||
| 95332-06060 |
BJ75,FJ75,HJ75 *H,L=420 |
2 | ||
| 95332-06040 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) *H,L=320,W/SUB TANK |
2 | ||
| 95332-06060 |
BJ75,HJ75 *H,L=550 |
1 | ||
| 90447-12105 |
BJ75,FJ75,HJ75 L=450,W/SUB TANK |
1 | ||
| 90447-12104 |
BJ75,FJ75,HJ75 L=540,W/SUB TANK |
1 | ||
| 95332-06010 |
BJ75,FJ75,HJ75 *H,L=80 |
2 | ||
| 95332-06010 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) *H,L=80,W/SUB TANK |
2 | ||
| 95333-06042 |
BJ75,FJ75,HJ75 *H,L=420 |
2 | ||
| 95332-06030 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) *H,L=280,W/SUB TANK |
1 | ||
| 95333-06040 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) *H,L=400,W/SUB TANK,*,L=380 |
1 | ||
| 90447-12106 |
BJ75,FJ75,HJ75 L=670,W/SUB TANK |
1 | ||
| 95333-06020 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) *H,L=180,W/SUB TANK |
1 | ||
| 95333-06030 |
BJ75,FJ75,HJ75 *H,L=220,W/SUB TANK |
2 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95332-06030 |
BJ75,FJ75,HJ75..PIC *H,L=280,W/SUB TANK |
1 | ||
| 95332-06010 |
BJ75,FJ75,HJ75..PIC *H,L=80,W/SUB TANK |
2 | ||
| 95332-06040 |
BJ75,FJ75,HJ75..PIC *H,L=320,W/SUB TANK |
2 | ||
| 95333-06032 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) *H,L=320,W/SUB TANK |
2 | ||
| 95332-06060 |
BJ75,FJ75,HJ75 *H,L=420 |
2 | ||
| 95332-06040 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) *H,L=320,W/SUB TANK |
2 | ||
| 95332-06060 |
BJ75,HJ75 *H,L=550 |
1 | ||
| 90447-12105 |
BJ75,FJ75,HJ75 L=450,W/SUB TANK |
1 | ||
| 90447-12104 |
BJ75,FJ75,HJ75 L=540,W/SUB TANK |
1 | ||
| 95332-06010 |
BJ75,FJ75,HJ75 *H,L=80 |
2 | ||
| 95332-06010 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) *H,L=80,W/SUB TANK |
2 | ||
| 95333-06042 |
BJ75,FJ75,HJ75 *H,L=420 |
2 | ||
| 95332-06030 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) *H,L=280,W/SUB TANK |
1 | ||
| 95333-06040 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) *H,L=400,W/SUB TANK,*,L=380 |
1 | ||
| 90447-12106 |
BJ75,FJ75,HJ75 L=670,W/SUB TANK |
1 | ||
| 95333-06020 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) *H,L=180,W/SUB TANK |
1 | ||
| 95333-06030 |
BJ75,FJ75,HJ75 *H,L=220,W/SUB TANK |
2 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95332-06030 |
BJ75,FJ75,HJ75..PIC *H,L=280,W/SUB TANK |
1 | ||
| 95332-06010 |
BJ75,FJ75,HJ75..PIC *H,L=80,W/SUB TANK |
2 | ||
| 95332-06040 |
BJ75,FJ75,HJ75..PIC *H,L=320,W/SUB TANK |
2 | ||
| 95333-06032 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) *H,L=320,W/SUB TANK |
2 | ||
| 95332-06060 |
BJ75,FJ75,HJ75 *H,L=420 |
2 | ||
| 95332-06040 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) *H,L=320,W/SUB TANK |
2 | ||
| 95332-06060 |
BJ75,HJ75 *H,L=550 |
1 | ||
| 90447-12105 |
BJ75,FJ75,HJ75 L=450,W/SUB TANK |
1 | ||
| 90447-12104 |
BJ75,FJ75,HJ75 L=540,W/SUB TANK |
1 | ||
| 95332-06010 |
BJ75,FJ75,HJ75 *H,L=80 |
2 | ||
| 95332-06010 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) *H,L=80,W/SUB TANK |
2 | ||
| 95333-06042 |
BJ75,FJ75,HJ75 *H,L=420 |
2 | ||
| 95332-06030 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) *H,L=280,W/SUB TANK |
1 | ||
| 95333-06040 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) *H,L=400,W/SUB TANK,*,L=380 |
1 | ||
| 90447-12106 |
BJ75,FJ75,HJ75 L=670,W/SUB TANK |
1 | ||
| 95333-06020 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) *H,L=180,W/SUB TANK |
1 | ||
| 95333-06030 |
BJ75,FJ75,HJ75 *H,L=220,W/SUB TANK |
2 | ||
| 77023 - FILTER SUB-ASSY, FUEL SUCTION TUBE | ||||
| 77023-22040 |
BJ7#,FJ7#,HJ75,LJ70 |
2 | ||
| 77031 - CAP ASSY, FUEL TANK | ||||
| 69058-90K06 |
BJ75,HJ75..PIC..(ARL,GEN,ME) W/KEY |
2 | ||
| 69058-90K06 |
BJ75,HJ75..PIC W/KEY |
2 | ||
| 77310-55080 |
BJ75,HJ75..PIC W/O KEY |
2 | ||
| 77310-55080 |
BJ75,HJ75..PIC..(ARL,GEN,ME) W/O KEY |
2 | ||
| 77031B - GASKET (FOR FUEL TANK CAP) | ||||
| 77316-27010 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) |
2 | ||
| 77316-27010 |
BJ75,FJ75,HJ75..PIC |
2 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77100-60300 |
BJ75,FJ75,HJ75 |
1 | ||
| 77100-60280 |
BJ75,FJ75,HJ75 SUB TANK |
1 | ||
| 77100-60280 |
BJ75,FJ75,HJ75..ARL,GEN,ME SUB TANK |
1 | ||
| 77100-60240 |
BJ75,FJ75,HJ75..ARL,GEN,ME SUB TANK |
1 | ||
| 77100A - PLUG(FOR FUEL TANK) | ||||
| 90341-20004 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 |
2 | ||
| 90341-20003 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 |
2 | ||
| 77100B - GASKET(FOR FUEL TANK) | ||||
| 90430-20007 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 T=2.5 |
2 | ||
| 90430-20006 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 T=2.0 |
2 | ||
| 77100D - HOSE, FUEL, NO.1(FOR FUEL TANK) | ||||
| 90445-22002 |
BJ75,FJ75,HJ75 L=200 |
1 | ||
| 90445-22024 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) L=385,SUB TANK |
1 | ||
| 90445-22024 |
BJ75,FJ75,HJ75..PIC L=385,SUB TANK |
1 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-60190 |
BJ75,FJ75,HJ75..PIC SUB TANK |
1 | ||
| 77201-60180 |
BJ75,HJ75..PIC |
1 | ||
| 77201-60180 |
BJ75,FJ75,HJ75..PIC |
1 | ||
| 77201-60190 |
BJ75,HJ75..PIC..(ARL,GEN) SUB TANK |
1 | ||
| 77201-60191 |
BJ75,HJ75..PIC..(ARL,GEN) SUB TANK |
1 | ||
| 77206 - TUBE SUB-ASSY, FUEL TANK SUCTION | ||||
| 77240-60150 |
BJ75,HJ75..ARL,GEN |
1 | ||
| 77240-60130 |
BJ75,HJ75 SUB TANK |
1 | ||
| 77240-60151 |
BJ75,HJ75..ARL,GEN,ME |
1 | ||
| 77240-60130 |
BJ75,HJ75..ARL,GEN,ME SUB TANK |
1 | ||
| 77240-60130 |
HJ75..ARL SUB TANK |
1 | ||
| 77240-60151 |
HJ75..ARL |
1 | ||
| 77206A - GASKET (FOR FUEL TANK SUCTION TUBE) | ||||
| 77169-14020 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 |
2 | ||
| 77213 - HOSE, FUEL TANK SUB INLET | ||||
| 77213-60080 |
BJ75,FJ75,HJ75..PIC SUB TANK |
1 | ||
| 77213-60070 |
BJ75,FJ75,HJ75..PIC |
1 | ||
| 77213-60080 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) SUB TANK |
1 | ||
| 77213-60081 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) SUB TANK |
1 | ||
| 77251 - SHIELD, FUEL TANK, INLET, NO.1 | ||||
| 77293-60030 |
BJ75,FJ75,HJ75..PIC SUB TANK |
1 | ||
| 77293-60030 |
BJ75,FJ75,HJ75 |
1 | ||
| 77293-60030 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) SUB TANK |
1 | ||
| 77292A - STAY, FUEL TANK FILLAR UPPER PIPE | ||||
| 77292-60010 |
BJ75,FJ75,HJ75..IV |
1 | ||
| 77606 - PROTECTOR SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77606-60040 |
BJ75,FJ75,HJ75 |
1 | ||
| 77606-60030 |
BJ75,FJ75,HJ75 SUB TANK |
1 | ||
| 77606-60030 |
BJ75,FJ75,HJ75..ARL,GEN,ME SUB TANK |
1 | ||
| 77606-60041 |
BJ75,FJ75,HJ75 |
1 | ||
| 77611 - BAND, FUEL TANK | ||||
| 77601-60130 |
BJ75,FJ75,HJ75..ARL,GEN,ME SUB TANK |
2 | ||
| 77601-60090 |
BJ75,FJ75,HJ75..ARL,GEN,ME SUB TANK |
2 | ||
| 77601-60090 |
BJ75,FJ75,HJ75 SUB TANK |
2 | ||
| 77601-60100 |
BJ75,FJ75,HJ75 |
2 | ||
| 77611 - BAND, FUEL TANK | ||||
| 77601-60130 |
BJ75,FJ75,HJ75..ARL,GEN,ME SUB TANK |
2 | ||
| 77601-60090 |
BJ75,FJ75,HJ75..ARL,GEN,ME SUB TANK |
2 | ||
| 77601-60090 |
BJ75,FJ75,HJ75 SUB TANK |
2 | ||
| 77601-60100 |
BJ75,FJ75,HJ75 |
2 | ||
| 77611A - PIN (FOR FUEL TANK BAND) | ||||
| 90240-10011 |
BJ75,FJ75,HJ75 |
2 | ||
| 90249-14002 |
BJ75,FJ75,HJ75 SUB TANK |
2 | ||
| 90249-14002 |
BJ75,FJ75,HJ75..ARL,GEN,ME SUB TANK |
2 | ||
| 77631 - BRACKET, FUEL TANK, NO.1 | ||||
| 77133-60020 |
BJ75,FJ75,HJ75 SUB TANK |
2 | ||
| 77133-60020 |
BJ75,FJ75,HJ75..ARL,GEN,ME SUB TANK |
2 | ||
| 77616-60050 |
BJ75,FJ75,HJ75 |
2 | ||
| 77632 - BRACKET, FUEL TANK, NO.2 | ||||
| 77615-60020 |
BJ75,FJ75,HJ75 |
2 | ||
| 77701T - VALVE, CHECK (FOR MAIN FUEL TANK) | ||||
| 90917-10020 |
BJ75,FJ75,HJ75 |
2 | ||
| Common parts | ||||
| 90119-10153 | ||||
| 90405-06007 | ||||
| 90460-62033 | ||||
| 90461-12296 | ||||
| 90464-00239 | ||||
| 90467-12011 | ||||
| 90467-20134 | ||||
| 90468-14011 | ||||
| 91611-61020 | ||||
| 91651-40614 | ||||
| 91651-40816 | ||||
| 91651-41030 | ||||
| 93319-14010 | ||||
| 93382-16014 | ||||
| 93385-15014 | ||||
| 96132-30600 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 1 OF 2(8411-8808)BJ75,FJ75,HJ75
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95332-06030 |
BJ75,FJ75,HJ75..PIC *H,L=280,W/SUB TANK |
1 | ||
| 95332-06010 |
BJ75,FJ75,HJ75..PIC *H,L=80,W/SUB TANK |
2 | ||
| 95332-06040 |
BJ75,FJ75,HJ75..PIC *H,L=320,W/SUB TANK |
2 | ||
| 95333-06032 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) *H,L=320,W/SUB TANK |
2 | ||
| 95332-06060 |
BJ75,FJ75,HJ75 *H,L=420 |
2 | ||
| 95332-06040 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) *H,L=320,W/SUB TANK |
2 | ||
| 95332-06060 |
BJ75,HJ75 *H,L=550 |
1 | ||
| 90447-12105 |
BJ75,FJ75,HJ75 L=450,W/SUB TANK |
1 | ||
| 90447-12104 |
BJ75,FJ75,HJ75 L=540,W/SUB TANK |
1 | ||
| 95332-06010 |
BJ75,FJ75,HJ75 *H,L=80 |
2 | ||
| 95332-06010 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) *H,L=80,W/SUB TANK |
2 | ||
| 95333-06042 |
BJ75,FJ75,HJ75 *H,L=420 |
2 | ||
| 95332-06030 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) *H,L=280,W/SUB TANK |
1 | ||
| 95333-06040 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) *H,L=400,W/SUB TANK,*,L=380 |
1 | ||
| 90447-12106 |
BJ75,FJ75,HJ75 L=670,W/SUB TANK |
1 | ||
| 95333-06020 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) *H,L=180,W/SUB TANK |
1 | ||
| 95333-06030 |
BJ75,FJ75,HJ75 *H,L=220,W/SUB TANK |
2 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95332-06030 |
BJ75,FJ75,HJ75..PIC *H,L=280,W/SUB TANK |
1 | ||
| 95332-06010 |
BJ75,FJ75,HJ75..PIC *H,L=80,W/SUB TANK |
2 | ||
| 95332-06040 |
BJ75,FJ75,HJ75..PIC *H,L=320,W/SUB TANK |
2 | ||
| 95333-06032 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) *H,L=320,W/SUB TANK |
2 | ||
| 95332-06060 |
BJ75,FJ75,HJ75 *H,L=420 |
2 | ||
| 95332-06040 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) *H,L=320,W/SUB TANK |
2 | ||
| 95332-06060 |
BJ75,HJ75 *H,L=550 |
1 | ||
| 90447-12105 |
BJ75,FJ75,HJ75 L=450,W/SUB TANK |
1 | ||
| 90447-12104 |
BJ75,FJ75,HJ75 L=540,W/SUB TANK |
1 | ||
| 95332-06010 |
BJ75,FJ75,HJ75 *H,L=80 |
2 | ||
| 95332-06010 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) *H,L=80,W/SUB TANK |
2 | ||
| 95333-06042 |
BJ75,FJ75,HJ75 *H,L=420 |
2 | ||
| 95332-06030 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) *H,L=280,W/SUB TANK |
1 | ||
| 95333-06040 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) *H,L=400,W/SUB TANK,*,L=380 |
1 | ||
| 90447-12106 |
BJ75,FJ75,HJ75 L=670,W/SUB TANK |
1 | ||
| 95333-06020 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) *H,L=180,W/SUB TANK |
1 | ||
| 95333-06030 |
BJ75,FJ75,HJ75 *H,L=220,W/SUB TANK |
2 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95332-06030 |
BJ75,FJ75,HJ75..PIC *H,L=280,W/SUB TANK |
1 | ||
| 95332-06010 |
BJ75,FJ75,HJ75..PIC *H,L=80,W/SUB TANK |
2 | ||
| 95332-06040 |
BJ75,FJ75,HJ75..PIC *H,L=320,W/SUB TANK |
2 | ||
| 95333-06032 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) *H,L=320,W/SUB TANK |
2 | ||
| 95332-06060 |
BJ75,FJ75,HJ75 *H,L=420 |
2 | ||
| 95332-06040 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) *H,L=320,W/SUB TANK |
2 | ||
| 95332-06060 |
BJ75,HJ75 *H,L=550 |
1 | ||
| 90447-12105 |
BJ75,FJ75,HJ75 L=450,W/SUB TANK |
1 | ||
| 90447-12104 |
BJ75,FJ75,HJ75 L=540,W/SUB TANK |
1 | ||
| 95332-06010 |
BJ75,FJ75,HJ75 *H,L=80 |
2 | ||
| 95332-06010 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) *H,L=80,W/SUB TANK |
2 | ||
| 95333-06042 |
BJ75,FJ75,HJ75 *H,L=420 |
2 | ||
| 95332-06030 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) *H,L=280,W/SUB TANK |
1 | ||
| 95333-06040 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) *H,L=400,W/SUB TANK,*,L=380 |
1 | ||
| 90447-12106 |
BJ75,FJ75,HJ75 L=670,W/SUB TANK |
1 | ||
| 95333-06020 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) *H,L=180,W/SUB TANK |
1 | ||
| 95333-06030 |
BJ75,FJ75,HJ75 *H,L=220,W/SUB TANK |
2 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95332-06030 |
BJ75,FJ75,HJ75..PIC *H,L=280,W/SUB TANK |
1 | ||
| 95332-06010 |
BJ75,FJ75,HJ75..PIC *H,L=80,W/SUB TANK |
2 | ||
| 95332-06040 |
BJ75,FJ75,HJ75..PIC *H,L=320,W/SUB TANK |
2 | ||
| 95333-06032 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) *H,L=320,W/SUB TANK |
2 | ||
| 95332-06060 |
BJ75,FJ75,HJ75 *H,L=420 |
2 | ||
| 95332-06040 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) *H,L=320,W/SUB TANK |
2 | ||
| 95332-06060 |
BJ75,HJ75 *H,L=550 |
1 | ||
| 90447-12105 |
BJ75,FJ75,HJ75 L=450,W/SUB TANK |
1 | ||
| 90447-12104 |
BJ75,FJ75,HJ75 L=540,W/SUB TANK |
1 | ||
| 95332-06010 |
BJ75,FJ75,HJ75 *H,L=80 |
2 | ||
| 95332-06010 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) *H,L=80,W/SUB TANK |
2 | ||
| 95333-06042 |
BJ75,FJ75,HJ75 *H,L=420 |
2 | ||
| 95332-06030 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) *H,L=280,W/SUB TANK |
1 | ||
| 95333-06040 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) *H,L=400,W/SUB TANK,*,L=380 |
1 | ||
| 90447-12106 |
BJ75,FJ75,HJ75 L=670,W/SUB TANK |
1 | ||
| 95333-06020 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) *H,L=180,W/SUB TANK |
1 | ||
| 95333-06030 |
BJ75,FJ75,HJ75 *H,L=220,W/SUB TANK |
2 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95332-06030 |
BJ75,FJ75,HJ75..PIC *H,L=280,W/SUB TANK |
1 | ||
| 95332-06010 |
BJ75,FJ75,HJ75..PIC *H,L=80,W/SUB TANK |
2 | ||
| 95332-06040 |
BJ75,FJ75,HJ75..PIC *H,L=320,W/SUB TANK |
2 | ||
| 95333-06032 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) *H,L=320,W/SUB TANK |
2 | ||
| 95332-06060 |
BJ75,FJ75,HJ75 *H,L=420 |
2 | ||
| 95332-06040 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) *H,L=320,W/SUB TANK |
2 | ||
| 95332-06060 |
BJ75,HJ75 *H,L=550 |
1 | ||
| 90447-12105 |
BJ75,FJ75,HJ75 L=450,W/SUB TANK |
1 | ||
| 90447-12104 |
BJ75,FJ75,HJ75 L=540,W/SUB TANK |
1 | ||
| 95332-06010 |
BJ75,FJ75,HJ75 *H,L=80 |
2 | ||
| 95332-06010 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) *H,L=80,W/SUB TANK |
2 | ||
| 95333-06042 |
BJ75,FJ75,HJ75 *H,L=420 |
2 | ||
| 95332-06030 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) *H,L=280,W/SUB TANK |
1 | ||
| 95333-06040 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) *H,L=400,W/SUB TANK,*,L=380 |
1 | ||
| 90447-12106 |
BJ75,FJ75,HJ75 L=670,W/SUB TANK |
1 | ||
| 95333-06020 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) *H,L=180,W/SUB TANK |
1 | ||
| 95333-06030 |
BJ75,FJ75,HJ75 *H,L=220,W/SUB TANK |
2 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95332-06030 |
BJ75,FJ75,HJ75..PIC *H,L=280,W/SUB TANK |
1 | ||
| 95332-06010 |
BJ75,FJ75,HJ75..PIC *H,L=80,W/SUB TANK |
2 | ||
| 95332-06040 |
BJ75,FJ75,HJ75..PIC *H,L=320,W/SUB TANK |
2 | ||
| 95333-06032 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) *H,L=320,W/SUB TANK |
2 | ||
| 95332-06060 |
BJ75,FJ75,HJ75 *H,L=420 |
2 | ||
| 95332-06040 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) *H,L=320,W/SUB TANK |
2 | ||
| 95332-06060 |
BJ75,HJ75 *H,L=550 |
1 | ||
| 90447-12105 |
BJ75,FJ75,HJ75 L=450,W/SUB TANK |
1 | ||
| 90447-12104 |
BJ75,FJ75,HJ75 L=540,W/SUB TANK |
1 | ||
| 95332-06010 |
BJ75,FJ75,HJ75 *H,L=80 |
2 | ||
| 95332-06010 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) *H,L=80,W/SUB TANK |
2 | ||
| 95333-06042 |
BJ75,FJ75,HJ75 *H,L=420 |
2 | ||
| 95332-06030 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) *H,L=280,W/SUB TANK |
1 | ||
| 95333-06040 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) *H,L=400,W/SUB TANK,*,L=380 |
1 | ||
| 90447-12106 |
BJ75,FJ75,HJ75 L=670,W/SUB TANK |
1 | ||
| 95333-06020 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) *H,L=180,W/SUB TANK |
1 | ||
| 95333-06030 |
BJ75,FJ75,HJ75 *H,L=220,W/SUB TANK |
2 | ||
| 77023 - FILTER SUB-ASSY, FUEL SUCTION TUBE | ||||
| 77023-22040 |
BJ7#,FJ7#,HJ75,LJ70 |
2 | ||
| 77031 - CAP ASSY, FUEL TANK | ||||
| 69058-90K06 |
BJ75,HJ75..PIC..(ARL,GEN,ME) W/KEY |
2 | ||
| 69058-90K06 |
BJ75,HJ75..PIC W/KEY |
2 | ||
| 77310-55080 |
BJ75,HJ75..PIC W/O KEY |
2 | ||
| 77310-55080 |
BJ75,HJ75..PIC..(ARL,GEN,ME) W/O KEY |
2 | ||
| 77031B - GASKET (FOR FUEL TANK CAP) | ||||
| 77316-27010 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) |
2 | ||
| 77316-27010 |
BJ75,FJ75,HJ75..PIC |
2 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77100-60300 |
BJ75,FJ75,HJ75 |
1 | ||
| 77100-60280 |
BJ75,FJ75,HJ75 SUB TANK |
1 | ||
| 77100-60280 |
BJ75,FJ75,HJ75..ARL,GEN,ME SUB TANK |
1 | ||
| 77100-60240 |
BJ75,FJ75,HJ75..ARL,GEN,ME SUB TANK |
1 | ||
| 77100A - PLUG(FOR FUEL TANK) | ||||
| 90341-20004 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 |
2 | ||
| 90341-20003 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 |
2 | ||
| 77100B - GASKET(FOR FUEL TANK) | ||||
| 90430-20007 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 T=2.5 |
2 | ||
| 90430-20006 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 T=2.0 |
2 | ||
| 77100D - HOSE, FUEL, NO.1(FOR FUEL TANK) | ||||
| 90445-22002 |
BJ75,FJ75,HJ75 L=200 |
1 | ||
| 90445-22024 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) L=385,SUB TANK |
1 | ||
| 90445-22024 |
BJ75,FJ75,HJ75..PIC L=385,SUB TANK |
1 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-60190 |
BJ75,FJ75,HJ75..PIC SUB TANK |
1 | ||
| 77201-60180 |
BJ75,HJ75..PIC |
1 | ||
| 77201-60180 |
BJ75,FJ75,HJ75..PIC |
1 | ||
| 77201-60190 |
BJ75,HJ75..PIC..(ARL,GEN) SUB TANK |
1 | ||
| 77201-60191 |
BJ75,HJ75..PIC..(ARL,GEN) SUB TANK |
1 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-60190 |
BJ75,FJ75,HJ75..PIC SUB TANK |
1 | ||
| 77201-60180 |
BJ75,HJ75..PIC |
1 | ||
| 77201-60180 |
BJ75,FJ75,HJ75..PIC |
1 | ||
| 77201-60190 |
BJ75,HJ75..PIC..(ARL,GEN) SUB TANK |
1 | ||
| 77201-60191 |
BJ75,HJ75..PIC..(ARL,GEN) SUB TANK |
1 | ||
| 77206 - TUBE SUB-ASSY, FUEL TANK SUCTION | ||||
| 77240-60150 |
BJ75,HJ75..ARL,GEN |
1 | ||
| 77240-60130 |
BJ75,HJ75 SUB TANK |
1 | ||
| 77240-60151 |
BJ75,HJ75..ARL,GEN,ME |
1 | ||
| 77240-60130 |
BJ75,HJ75..ARL,GEN,ME SUB TANK |
1 | ||
| 77240-60130 |
HJ75..ARL SUB TANK |
1 | ||
| 77240-60151 |
HJ75..ARL |
1 | ||
| 77206A - GASKET (FOR FUEL TANK SUCTION TUBE) | ||||
| 77169-14020 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 |
2 | ||
| 77213 - HOSE, FUEL TANK SUB INLET | ||||
| 77213-60080 |
BJ75,FJ75,HJ75..PIC SUB TANK |
1 | ||
| 77213-60070 |
BJ75,FJ75,HJ75..PIC |
1 | ||
| 77213-60080 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) SUB TANK |
1 | ||
| 77213-60081 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) SUB TANK |
1 | ||
| 77251 - SHIELD, FUEL TANK, INLET, NO.1 | ||||
| 77293-60030 |
BJ75,FJ75,HJ75..PIC SUB TANK |
1 | ||
| 77293-60030 |
BJ75,FJ75,HJ75 |
1 | ||
| 77293-60030 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) SUB TANK |
1 | ||
| 77269 - TUBE, FUEL CONNECTING | ||||
| 77269-60010 |
BJ75,HJ75..ARL,GEN |
1 | ||
| 77276 - PROTECTOR, FUEL HOSE | ||||
| 58279-90K00 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) |
1 | ||
| 58279-90K00 |
BJ75,FJ75,HJ75..PIC |
1 | ||
| 77606 - PROTECTOR SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77606-60040 |
BJ75,FJ75,HJ75 |
1 | ||
| 77606-60030 |
BJ75,FJ75,HJ75 SUB TANK |
1 | ||
| 77606-60030 |
BJ75,FJ75,HJ75..ARL,GEN,ME SUB TANK |
1 | ||
| 77606-60041 |
BJ75,FJ75,HJ75 |
1 | ||
| 77611 - BAND, FUEL TANK | ||||
| 77601-60130 |
BJ75,FJ75,HJ75..ARL,GEN,ME SUB TANK |
2 | ||
| 77601-60090 |
BJ75,FJ75,HJ75..ARL,GEN,ME SUB TANK |
2 | ||
| 77601-60090 |
BJ75,FJ75,HJ75 SUB TANK |
2 | ||
| 77601-60100 |
BJ75,FJ75,HJ75 |
2 | ||
| 77611 - BAND, FUEL TANK | ||||
| 77601-60130 |
BJ75,FJ75,HJ75..ARL,GEN,ME SUB TANK |
2 | ||
| 77601-60090 |
BJ75,FJ75,HJ75..ARL,GEN,ME SUB TANK |
2 | ||
| 77601-60090 |
BJ75,FJ75,HJ75 SUB TANK |
2 | ||
| 77601-60100 |
BJ75,FJ75,HJ75 |
2 | ||
| 77611A - PIN (FOR FUEL TANK BAND) | ||||
| 90240-10011 |
BJ75,FJ75,HJ75 |
2 | ||
| 90249-14002 |
BJ75,FJ75,HJ75 SUB TANK |
2 | ||
| 90249-14002 |
BJ75,FJ75,HJ75..ARL,GEN,ME SUB TANK |
2 | ||
| 77631 - BRACKET, FUEL TANK, NO.1 | ||||
| 77133-60020 |
BJ75,FJ75,HJ75 SUB TANK |
2 | ||
| 77133-60020 |
BJ75,FJ75,HJ75..ARL,GEN,ME SUB TANK |
2 | ||
| 77616-60050 |
BJ75,FJ75,HJ75 |
2 | ||
| 77631 - BRACKET, FUEL TANK, NO.1 | ||||
| 77133-60020 |
BJ75,FJ75,HJ75 SUB TANK |
2 | ||
| 77133-60020 |
BJ75,FJ75,HJ75..ARL,GEN,ME SUB TANK |
2 | ||
| 77616-60050 |
BJ75,FJ75,HJ75 |
2 | ||
| 77701T - VALVE, CHECK (FOR MAIN FUEL TANK) | ||||
| 90917-10020 |
BJ75,FJ75,HJ75 |
2 | ||
| Common parts | ||||
| 90119-06094 | ||||
| 90119-10153 | ||||
| 90460-62033 | ||||
| 90461-10664 | ||||
| 90461-12296 | ||||
| 90467-20134 | ||||
| 90480-14053 | ||||
| 91616-40820 | ||||
| 91621-40614 | ||||
| 91651-40614 | ||||
| 91651-40816 | ||||
| 91656-61025 | ||||
| 91661-40614 | ||||
| 93319-14010 | ||||
| 93382-16014 | ||||
| 93385-15014 | ||||
| 96132-30600 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 2 OF 2(8411- )HJ75
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77241 - TUBE, FUEL MAIN, NO.1 | ||||
| 77252-60150 |
HJ75 |
1 | ||
| 77252-60150 |
HJ75..ARL,GEN |
1 | ||
| 77252-60151 |
HJ75..ARL,GEN |
1 | ||
| 77241 - TUBE, FUEL MAIN, NO.1 | ||||
| 77252-60150 |
HJ75 |
1 | ||
| 77252-60150 |
HJ75..ARL,GEN |
1 | ||
| 77252-60151 |
HJ75..ARL,GEN |
1 | ||
| 77241A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1) | ||||
| 95332-08060 |
HJ75..RHD *H,L=440,ID=7.6,W/SEDIMENTER |
1 | ||
| 95332-08040 |
BJ70,73,75 *H,L=360,ID=7.6 |
1 | ||
| 95333-08040 |
BJ70,73,75 L=400 |
1 | ||
| 95332-08060 |
HJ75..RHD..(ARL,GEN) *H,L=500,ID=7.6,W/SEDIMENTER |
1 | ||
| 95333-08030 |
BJ70,73,75..RHD *H,L=240 |
1 | ||
| 77241A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1) | ||||
| 95332-08060 |
HJ75..RHD *H,L=440,ID=7.6,W/SEDIMENTER |
1 | ||
| 95332-08040 |
BJ70,73,75 *H,L=360,ID=7.6 |
1 | ||
| 95333-08040 |
BJ70,73,75 L=400 |
1 | ||
| 95332-08060 |
HJ75..RHD..(ARL,GEN) *H,L=500,ID=7.6,W/SEDIMENTER |
1 | ||
| 95333-08030 |
BJ70,73,75..RHD *H,L=240 |
1 | ||
| 77241A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1) | ||||
| 95332-08060 |
HJ75..RHD *H,L=440,ID=7.6,W/SEDIMENTER |
1 | ||
| 95332-08040 |
BJ70,73,75 *H,L=360,ID=7.6 |
1 | ||
| 95333-08040 |
BJ70,73,75 L=400 |
1 | ||
| 95332-08060 |
HJ75..RHD..(ARL,GEN) *H,L=500,ID=7.6,W/SEDIMENTER |
1 | ||
| 95333-08030 |
BJ70,73,75..RHD *H,L=240 |
1 | ||
| 77241A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1) | ||||
| 95332-08060 |
HJ75..RHD *H,L=440,ID=7.6,W/SEDIMENTER |
1 | ||
| 95332-08040 |
BJ70,73,75 *H,L=360,ID=7.6 |
1 | ||
| 95333-08040 |
BJ70,73,75 L=400 |
1 | ||
| 95332-08060 |
HJ75..RHD..(ARL,GEN) *H,L=500,ID=7.6,W/SEDIMENTER |
1 | ||
| 95333-08030 |
BJ70,73,75..RHD *H,L=240 |
1 | ||
| 77241B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1) | ||||
| 95332-08030 |
BJ70,73,75..RHD *H,L=240,ID=7.6 |
1 | ||
| 95332-08060 |
HJ75 *H,L=420,ID=7.6 |
1 | ||
| 95333-08042 |
HJ75 *H,L=420 |
1 | ||
| 77242 - TUBE, FUEL MAIN, NO.2 | ||||
| 77254-60020 |
HJ75 |
1 | ||
| 77254-60020 |
HJ75..ARL,GEN |
1 | ||
| 77242A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.2) | ||||
| 95332-08040 |
BJ70,73,75..RHD *H,L=380,ID=7.6,W/SEDIMENTER |
1 | ||
| 95332-08020 |
FJ75,HJ75 *H,L=200,ID=7.6 |
2 | ||
| 95332-08040 |
FJ75,HJ75..ARL,GEN,ME *H,L=340,ID=7.6 |
1 | ||
| 95332-08040 |
FJ75,HJ75 *H,L=340,ID=7.6 |
1 | ||
| 95332-08020 |
FJ75,HJ75..ARL,GEN,ME *H,L=200,ID=7.6 |
2 | ||
| 95333-08030 |
FJ75,HJ75..ARL,GEN,ME *H,L=300 |
1 | ||
| 95333-08020 |
FJ75,HJ75..ARL,GEN,ME L=200,ID=8 |
2 | ||
| 95333-08040 |
BJ70,73,75..RHD *H,L=380,ID=7.6,W/SEDIMENTER |
1 | ||
| Common parts | ||||
| 90119-08701 | ||||
| 90461-10650 | ||||
| 90461-10651 | ||||
| 90461-10659 | ||||
| 90461-10716 | ||||
| 90464-00332 | ||||
| 90467-13007 | ||||
| 90480-01307 | ||||
| 90949-01182 | ||||
| 90949-01193 | ||||
| 90949-01354 | ||||
| 91616-40816 | ||||
| 91616-40820 | ||||
| 96132-30800 | ||||
ILLUST NO. 2 OF 2(8411- )HJ75
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77241 - TUBE, FUEL MAIN, NO.1 | ||||
| 77252-60150 |
HJ75 |
1 | ||
| 77252-60150 |
HJ75..ARL,GEN |
1 | ||
| 77252-60151 |
HJ75..ARL,GEN |
1 | ||
| 77241 - TUBE, FUEL MAIN, NO.1 | ||||
| 77252-60150 |
HJ75 |
1 | ||
| 77252-60150 |
HJ75..ARL,GEN |
1 | ||
| 77252-60151 |
HJ75..ARL,GEN |
1 | ||
| 77241A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1) | ||||
| 95332-08060 |
HJ75..RHD *H,L=440,ID=7.6,W/SEDIMENTER |
1 | ||
| 95332-08040 |
BJ70,73,75 *H,L=360,ID=7.6 |
1 | ||
| 95333-08040 |
BJ70,73,75 L=400 |
1 | ||
| 95332-08060 |
HJ75..RHD..(ARL,GEN) *H,L=500,ID=7.6,W/SEDIMENTER |
1 | ||
| 95333-08030 |
BJ70,73,75..RHD *H,L=240 |
1 | ||
| 77241A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1) | ||||
| 95332-08060 |
HJ75..RHD *H,L=440,ID=7.6,W/SEDIMENTER |
1 | ||
| 95332-08040 |
BJ70,73,75 *H,L=360,ID=7.6 |
1 | ||
| 95333-08040 |
BJ70,73,75 L=400 |
1 | ||
| 95332-08060 |
HJ75..RHD..(ARL,GEN) *H,L=500,ID=7.6,W/SEDIMENTER |
1 | ||
| 95333-08030 |
BJ70,73,75..RHD *H,L=240 |
1 | ||
| 77241A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1) | ||||
| 95332-08060 |
HJ75..RHD *H,L=440,ID=7.6,W/SEDIMENTER |
1 | ||
| 95332-08040 |
BJ70,73,75 *H,L=360,ID=7.6 |
1 | ||
| 95333-08040 |
BJ70,73,75 L=400 |
1 | ||
| 95332-08060 |
HJ75..RHD..(ARL,GEN) *H,L=500,ID=7.6,W/SEDIMENTER |
1 | ||
| 95333-08030 |
BJ70,73,75..RHD *H,L=240 |
1 | ||
| 77241A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1) | ||||
| 95332-08060 |
HJ75..RHD *H,L=440,ID=7.6,W/SEDIMENTER |
1 | ||
| 95332-08040 |
BJ70,73,75 *H,L=360,ID=7.6 |
1 | ||
| 95333-08040 |
BJ70,73,75 L=400 |
1 | ||
| 95332-08060 |
HJ75..RHD..(ARL,GEN) *H,L=500,ID=7.6,W/SEDIMENTER |
1 | ||
| 95333-08030 |
BJ70,73,75..RHD *H,L=240 |
1 | ||
| 77242 - TUBE, FUEL MAIN, NO.2 | ||||
| 77254-60020 |
HJ75 |
1 | ||
| 77254-60020 |
HJ75..ARL,GEN |
1 | ||
| 77242 - TUBE, FUEL MAIN, NO.2 | ||||
| 77254-60020 |
HJ75 |
1 | ||
| 77254-60020 |
HJ75..ARL,GEN |
1 | ||
| 77242A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.2) | ||||
| 95332-08040 |
BJ70,73,75..RHD *H,L=380,ID=7.6,W/SEDIMENTER |
1 | ||
| 95332-08020 |
FJ75,HJ75 *H,L=200,ID=7.6 |
2 | ||
| 95332-08040 |
FJ75,HJ75..ARL,GEN,ME *H,L=340,ID=7.6 |
1 | ||
| 95332-08040 |
FJ75,HJ75 *H,L=340,ID=7.6 |
1 | ||
| 95332-08020 |
FJ75,HJ75..ARL,GEN,ME *H,L=200,ID=7.6 |
2 | ||
| 95333-08030 |
FJ75,HJ75..ARL,GEN,ME *H,L=300 |
1 | ||
| 95333-08020 |
FJ75,HJ75..ARL,GEN,ME L=200,ID=8 |
2 | ||
| 95333-08040 |
BJ70,73,75..RHD *H,L=380,ID=7.6,W/SEDIMENTER |
1 | ||
| 77242A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.2) | ||||
| 95332-08040 |
BJ70,73,75..RHD *H,L=380,ID=7.6,W/SEDIMENTER |
1 | ||
| 95332-08020 |
FJ75,HJ75 *H,L=200,ID=7.6 |
2 | ||
| 95332-08040 |
FJ75,HJ75..ARL,GEN,ME *H,L=340,ID=7.6 |
1 | ||
| 95332-08040 |
FJ75,HJ75 *H,L=340,ID=7.6 |
1 | ||
| 95332-08020 |
FJ75,HJ75..ARL,GEN,ME *H,L=200,ID=7.6 |
2 | ||
| 95333-08030 |
FJ75,HJ75..ARL,GEN,ME *H,L=300 |
1 | ||
| 95333-08020 |
FJ75,HJ75..ARL,GEN,ME L=200,ID=8 |
2 | ||
| 95333-08040 |
BJ70,73,75..RHD *H,L=380,ID=7.6,W/SEDIMENTER |
1 | ||
| 77242A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.2) | ||||
| 95332-08040 |
BJ70,73,75..RHD *H,L=380,ID=7.6,W/SEDIMENTER |
1 | ||
| 95332-08020 |
FJ75,HJ75 *H,L=200,ID=7.6 |
2 | ||
| 95332-08040 |
FJ75,HJ75..ARL,GEN,ME *H,L=340,ID=7.6 |
1 | ||
| 95332-08040 |
FJ75,HJ75 *H,L=340,ID=7.6 |
1 | ||
| 95332-08020 |
FJ75,HJ75..ARL,GEN,ME *H,L=200,ID=7.6 |
2 | ||
| 95333-08030 |
FJ75,HJ75..ARL,GEN,ME *H,L=300 |
1 | ||
| 95333-08020 |
FJ75,HJ75..ARL,GEN,ME L=200,ID=8 |
2 | ||
| 95333-08040 |
BJ70,73,75..RHD *H,L=380,ID=7.6,W/SEDIMENTER |
1 | ||
| 77242A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.2) | ||||
| 95332-08040 |
BJ70,73,75..RHD *H,L=380,ID=7.6,W/SEDIMENTER |
1 | ||
| 95332-08020 |
FJ75,HJ75 *H,L=200,ID=7.6 |
2 | ||
| 95332-08040 |
FJ75,HJ75..ARL,GEN,ME *H,L=340,ID=7.6 |
1 | ||
| 95332-08040 |
FJ75,HJ75 *H,L=340,ID=7.6 |
1 | ||
| 95332-08020 |
FJ75,HJ75..ARL,GEN,ME *H,L=200,ID=7.6 |
2 | ||
| 95333-08030 |
FJ75,HJ75..ARL,GEN,ME *H,L=300 |
1 | ||
| 95333-08020 |
FJ75,HJ75..ARL,GEN,ME L=200,ID=8 |
2 | ||
| 95333-08040 |
BJ70,73,75..RHD *H,L=380,ID=7.6,W/SEDIMENTER |
1 | ||
| 77242B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.2) | ||||
| 95332-08030 |
FJ75,HJ75 *H,L=260,ID=7.6 |
1 | ||
| 95332-08030 |
FJ75,HJ75..ARL,GEN,ME *H,L=260,ID=7.6 |
1 | ||
| 95333-08028 |
FJ75,HJ75..ARL,GEN,ME *H,L=280 |
1 | ||
| 77720 - VALVE SUB-ASSY, SAFETY | ||||
| 77710-60020 |
BJ75,FJ75,HJ75..ARL,GEN,ME MAIN |
1 | ||
| 77710-60020 |
BJ75,FJ75,HJ75 MAIN |
1 | ||
| 77720 - VALVE SUB-ASSY, SAFETY | ||||
| 77710-60020 |
BJ75,FJ75,HJ75..ARL,GEN,ME MAIN |
1 | ||
| 77710-60020 |
BJ75,FJ75,HJ75 MAIN |
1 | ||
| 77720A - BRACKET, SAFETY VALVE | ||||
| 77716-60020 |
BJ75,HJ75..ARL,GEN |
1 | ||
| 77716-60020 |
HJ75..ARL |
1 | ||
| 77716-60020 |
BJ75,HJ75 |
1 | ||
| 77720A - BRACKET, SAFETY VALVE | ||||
| 77716-60020 |
BJ75,HJ75..ARL,GEN |
1 | ||
| 77716-60020 |
HJ75..ARL |
1 | ||
| 77716-60020 |
BJ75,HJ75 |
1 | ||
| Common parts | ||||
| 90119-08701 | ||||
| 90461-10650 | ||||
| 90461-10651 | ||||
| 90461-10659 | ||||
| 90461-10716 | ||||
| 90464-00332 | ||||
| 90467-13007 | ||||
| 90480-01307 | ||||
| 90949-01182 | ||||
| 90949-01193 | ||||
| 90949-01354 | ||||
| 91611-60835 | ||||
| 91616-40816 | ||||
| 91616-40820 | ||||
| 96132-30800 | ||||
ILLUST NO. 2 OF 2(8808- )BJ75,FJ75,HJ75
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95332-06030 |
BJ75,FJ75,HJ75..PIC *H,L=280,W/SUB TANK |
1 | ||
| 95332-06010 |
BJ75,FJ75,HJ75..PIC *H,L=80,W/SUB TANK |
2 | ||
| 95332-06040 |
BJ75,FJ75,HJ75..PIC *H,L=320,W/SUB TANK |
2 | ||
| 95333-06032 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) *H,L=320,W/SUB TANK |
2 | ||
| 95332-06060 |
BJ75,FJ75,HJ75 *H,L=420 |
2 | ||
| 95332-06040 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) *H,L=320,W/SUB TANK |
2 | ||
| 95332-06060 |
BJ75,HJ75 *H,L=550 |
1 | ||
| 90447-12105 |
BJ75,FJ75,HJ75 L=450,W/SUB TANK |
1 | ||
| 90447-12104 |
BJ75,FJ75,HJ75 L=540,W/SUB TANK |
1 | ||
| 95332-06010 |
BJ75,FJ75,HJ75 *H,L=80 |
2 | ||
| 95332-06010 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) *H,L=80,W/SUB TANK |
2 | ||
| 95333-06042 |
BJ75,FJ75,HJ75 *H,L=420 |
2 | ||
| 95332-06030 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) *H,L=280,W/SUB TANK |
1 | ||
| 95333-06040 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) *H,L=400,W/SUB TANK,*,L=380 |
1 | ||
| 90447-12106 |
BJ75,FJ75,HJ75 L=670,W/SUB TANK |
1 | ||
| 95333-06020 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) *H,L=180,W/SUB TANK |
1 | ||
| 95333-06030 |
BJ75,FJ75,HJ75 *H,L=220,W/SUB TANK |
2 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95332-06030 |
BJ75,FJ75,HJ75..PIC *H,L=280,W/SUB TANK |
1 | ||
| 95332-06010 |
BJ75,FJ75,HJ75..PIC *H,L=80,W/SUB TANK |
2 | ||
| 95332-06040 |
BJ75,FJ75,HJ75..PIC *H,L=320,W/SUB TANK |
2 | ||
| 95333-06032 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) *H,L=320,W/SUB TANK |
2 | ||
| 95332-06060 |
BJ75,FJ75,HJ75 *H,L=420 |
2 | ||
| 95332-06040 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) *H,L=320,W/SUB TANK |
2 | ||
| 95332-06060 |
BJ75,HJ75 *H,L=550 |
1 | ||
| 90447-12105 |
BJ75,FJ75,HJ75 L=450,W/SUB TANK |
1 | ||
| 90447-12104 |
BJ75,FJ75,HJ75 L=540,W/SUB TANK |
1 | ||
| 95332-06010 |
BJ75,FJ75,HJ75 *H,L=80 |
2 | ||
| 95332-06010 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) *H,L=80,W/SUB TANK |
2 | ||
| 95333-06042 |
BJ75,FJ75,HJ75 *H,L=420 |
2 | ||
| 95332-06030 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) *H,L=280,W/SUB TANK |
1 | ||
| 95333-06040 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) *H,L=400,W/SUB TANK,*,L=380 |
1 | ||
| 90447-12106 |
BJ75,FJ75,HJ75 L=670,W/SUB TANK |
1 | ||
| 95333-06020 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) *H,L=180,W/SUB TANK |
1 | ||
| 95333-06030 |
BJ75,FJ75,HJ75 *H,L=220,W/SUB TANK |
2 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95332-06030 |
BJ75,FJ75,HJ75..PIC *H,L=280,W/SUB TANK |
1 | ||
| 95332-06010 |
BJ75,FJ75,HJ75..PIC *H,L=80,W/SUB TANK |
2 | ||
| 95332-06040 |
BJ75,FJ75,HJ75..PIC *H,L=320,W/SUB TANK |
2 | ||
| 95333-06032 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) *H,L=320,W/SUB TANK |
2 | ||
| 95332-06060 |
BJ75,FJ75,HJ75 *H,L=420 |
2 | ||
| 95332-06040 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) *H,L=320,W/SUB TANK |
2 | ||
| 95332-06060 |
BJ75,HJ75 *H,L=550 |
1 | ||
| 90447-12105 |
BJ75,FJ75,HJ75 L=450,W/SUB TANK |
1 | ||
| 90447-12104 |
BJ75,FJ75,HJ75 L=540,W/SUB TANK |
1 | ||
| 95332-06010 |
BJ75,FJ75,HJ75 *H,L=80 |
2 | ||
| 95332-06010 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) *H,L=80,W/SUB TANK |
2 | ||
| 95333-06042 |
BJ75,FJ75,HJ75 *H,L=420 |
2 | ||
| 95332-06030 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) *H,L=280,W/SUB TANK |
1 | ||
| 95333-06040 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) *H,L=400,W/SUB TANK,*,L=380 |
1 | ||
| 90447-12106 |
BJ75,FJ75,HJ75 L=670,W/SUB TANK |
1 | ||
| 95333-06020 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) *H,L=180,W/SUB TANK |
1 | ||
| 95333-06030 |
BJ75,FJ75,HJ75 *H,L=220,W/SUB TANK |
2 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95332-06030 |
BJ75,FJ75,HJ75..PIC *H,L=280,W/SUB TANK |
1 | ||
| 95332-06010 |
BJ75,FJ75,HJ75..PIC *H,L=80,W/SUB TANK |
2 | ||
| 95332-06040 |
BJ75,FJ75,HJ75..PIC *H,L=320,W/SUB TANK |
2 | ||
| 95333-06032 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) *H,L=320,W/SUB TANK |
2 | ||
| 95332-06060 |
BJ75,FJ75,HJ75 *H,L=420 |
2 | ||
| 95332-06040 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) *H,L=320,W/SUB TANK |
2 | ||
| 95332-06060 |
BJ75,HJ75 *H,L=550 |
1 | ||
| 90447-12105 |
BJ75,FJ75,HJ75 L=450,W/SUB TANK |
1 | ||
| 90447-12104 |
BJ75,FJ75,HJ75 L=540,W/SUB TANK |
1 | ||
| 95332-06010 |
BJ75,FJ75,HJ75 *H,L=80 |
2 | ||
| 95332-06010 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) *H,L=80,W/SUB TANK |
2 | ||
| 95333-06042 |
BJ75,FJ75,HJ75 *H,L=420 |
2 | ||
| 95332-06030 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) *H,L=280,W/SUB TANK |
1 | ||
| 95333-06040 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) *H,L=400,W/SUB TANK,*,L=380 |
1 | ||
| 90447-12106 |
BJ75,FJ75,HJ75 L=670,W/SUB TANK |
1 | ||
| 95333-06020 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) *H,L=180,W/SUB TANK |
1 | ||
| 95333-06030 |
BJ75,FJ75,HJ75 *H,L=220,W/SUB TANK |
2 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95332-06030 |
BJ75,FJ75,HJ75..PIC *H,L=280,W/SUB TANK |
1 | ||
| 95332-06010 |
BJ75,FJ75,HJ75..PIC *H,L=80,W/SUB TANK |
2 | ||
| 95332-06040 |
BJ75,FJ75,HJ75..PIC *H,L=320,W/SUB TANK |
2 | ||
| 95333-06032 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) *H,L=320,W/SUB TANK |
2 | ||
| 95332-06060 |
BJ75,FJ75,HJ75 *H,L=420 |
2 | ||
| 95332-06040 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) *H,L=320,W/SUB TANK |
2 | ||
| 95332-06060 |
BJ75,HJ75 *H,L=550 |
1 | ||
| 90447-12105 |
BJ75,FJ75,HJ75 L=450,W/SUB TANK |
1 | ||
| 90447-12104 |
BJ75,FJ75,HJ75 L=540,W/SUB TANK |
1 | ||
| 95332-06010 |
BJ75,FJ75,HJ75 *H,L=80 |
2 | ||
| 95332-06010 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) *H,L=80,W/SUB TANK |
2 | ||
| 95333-06042 |
BJ75,FJ75,HJ75 *H,L=420 |
2 | ||
| 95332-06030 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) *H,L=280,W/SUB TANK |
1 | ||
| 95333-06040 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) *H,L=400,W/SUB TANK,*,L=380 |
1 | ||
| 90447-12106 |
BJ75,FJ75,HJ75 L=670,W/SUB TANK |
1 | ||
| 95333-06020 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) *H,L=180,W/SUB TANK |
1 | ||
| 95333-06030 |
BJ75,FJ75,HJ75 *H,L=220,W/SUB TANK |
2 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95332-06030 |
BJ75,FJ75,HJ75..PIC *H,L=280,W/SUB TANK |
1 | ||
| 95332-06010 |
BJ75,FJ75,HJ75..PIC *H,L=80,W/SUB TANK |
2 | ||
| 95332-06040 |
BJ75,FJ75,HJ75..PIC *H,L=320,W/SUB TANK |
2 | ||
| 95333-06032 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) *H,L=320,W/SUB TANK |
2 | ||
| 95332-06060 |
BJ75,FJ75,HJ75 *H,L=420 |
2 | ||
| 95332-06040 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) *H,L=320,W/SUB TANK |
2 | ||
| 95332-06060 |
BJ75,HJ75 *H,L=550 |
1 | ||
| 90447-12105 |
BJ75,FJ75,HJ75 L=450,W/SUB TANK |
1 | ||
| 90447-12104 |
BJ75,FJ75,HJ75 L=540,W/SUB TANK |
1 | ||
| 95332-06010 |
BJ75,FJ75,HJ75 *H,L=80 |
2 | ||
| 95332-06010 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) *H,L=80,W/SUB TANK |
2 | ||
| 95333-06042 |
BJ75,FJ75,HJ75 *H,L=420 |
2 | ||
| 95332-06030 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) *H,L=280,W/SUB TANK |
1 | ||
| 95333-06040 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) *H,L=400,W/SUB TANK,*,L=380 |
1 | ||
| 90447-12106 |
BJ75,FJ75,HJ75 L=670,W/SUB TANK |
1 | ||
| 95333-06020 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) *H,L=180,W/SUB TANK |
1 | ||
| 95333-06030 |
BJ75,FJ75,HJ75 *H,L=220,W/SUB TANK |
2 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95332-06030 |
BJ75,FJ75,HJ75..PIC *H,L=280,W/SUB TANK |
1 | ||
| 95332-06010 |
BJ75,FJ75,HJ75..PIC *H,L=80,W/SUB TANK |
2 | ||
| 95332-06040 |
BJ75,FJ75,HJ75..PIC *H,L=320,W/SUB TANK |
2 | ||
| 95333-06032 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) *H,L=320,W/SUB TANK |
2 | ||
| 95332-06060 |
BJ75,FJ75,HJ75 *H,L=420 |
2 | ||
| 95332-06040 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) *H,L=320,W/SUB TANK |
2 | ||
| 95332-06060 |
BJ75,HJ75 *H,L=550 |
1 | ||
| 90447-12105 |
BJ75,FJ75,HJ75 L=450,W/SUB TANK |
1 | ||
| 90447-12104 |
BJ75,FJ75,HJ75 L=540,W/SUB TANK |
1 | ||
| 95332-06010 |
BJ75,FJ75,HJ75 *H,L=80 |
2 | ||
| 95332-06010 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) *H,L=80,W/SUB TANK |
2 | ||
| 95333-06042 |
BJ75,FJ75,HJ75 *H,L=420 |
2 | ||
| 95332-06030 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) *H,L=280,W/SUB TANK |
1 | ||
| 95333-06040 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) *H,L=400,W/SUB TANK,*,L=380 |
1 | ||
| 90447-12106 |
BJ75,FJ75,HJ75 L=670,W/SUB TANK |
1 | ||
| 95333-06020 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) *H,L=180,W/SUB TANK |
1 | ||
| 95333-06030 |
BJ75,FJ75,HJ75 *H,L=220,W/SUB TANK |
2 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95332-06030 |
BJ75,FJ75,HJ75..PIC *H,L=280,W/SUB TANK |
1 | ||
| 95332-06010 |
BJ75,FJ75,HJ75..PIC *H,L=80,W/SUB TANK |
2 | ||
| 95332-06040 |
BJ75,FJ75,HJ75..PIC *H,L=320,W/SUB TANK |
2 | ||
| 95333-06032 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) *H,L=320,W/SUB TANK |
2 | ||
| 95332-06060 |
BJ75,FJ75,HJ75 *H,L=420 |
2 | ||
| 95332-06040 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) *H,L=320,W/SUB TANK |
2 | ||
| 95332-06060 |
BJ75,HJ75 *H,L=550 |
1 | ||
| 90447-12105 |
BJ75,FJ75,HJ75 L=450,W/SUB TANK |
1 | ||
| 90447-12104 |
BJ75,FJ75,HJ75 L=540,W/SUB TANK |
1 | ||
| 95332-06010 |
BJ75,FJ75,HJ75 *H,L=80 |
2 | ||
| 95332-06010 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) *H,L=80,W/SUB TANK |
2 | ||
| 95333-06042 |
BJ75,FJ75,HJ75 *H,L=420 |
2 | ||
| 95332-06030 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) *H,L=280,W/SUB TANK |
1 | ||
| 95333-06040 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) *H,L=400,W/SUB TANK,*,L=380 |
1 | ||
| 90447-12106 |
BJ75,FJ75,HJ75 L=670,W/SUB TANK |
1 | ||
| 95333-06020 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) *H,L=180,W/SUB TANK |
1 | ||
| 95333-06030 |
BJ75,FJ75,HJ75 *H,L=220,W/SUB TANK |
2 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95332-06030 |
BJ75,FJ75,HJ75..PIC *H,L=280,W/SUB TANK |
1 | ||
| 95332-06010 |
BJ75,FJ75,HJ75..PIC *H,L=80,W/SUB TANK |
2 | ||
| 95332-06040 |
BJ75,FJ75,HJ75..PIC *H,L=320,W/SUB TANK |
2 | ||
| 95333-06032 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) *H,L=320,W/SUB TANK |
2 | ||
| 95332-06060 |
BJ75,FJ75,HJ75 *H,L=420 |
2 | ||
| 95332-06040 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) *H,L=320,W/SUB TANK |
2 | ||
| 95332-06060 |
BJ75,HJ75 *H,L=550 |
1 | ||
| 90447-12105 |
BJ75,FJ75,HJ75 L=450,W/SUB TANK |
1 | ||
| 90447-12104 |
BJ75,FJ75,HJ75 L=540,W/SUB TANK |
1 | ||
| 95332-06010 |
BJ75,FJ75,HJ75 *H,L=80 |
2 | ||
| 95332-06010 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) *H,L=80,W/SUB TANK |
2 | ||
| 95333-06042 |
BJ75,FJ75,HJ75 *H,L=420 |
2 | ||
| 95332-06030 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) *H,L=280,W/SUB TANK |
1 | ||
| 95333-06040 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) *H,L=400,W/SUB TANK,*,L=380 |
1 | ||
| 90447-12106 |
BJ75,FJ75,HJ75 L=670,W/SUB TANK |
1 | ||
| 95333-06020 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) *H,L=180,W/SUB TANK |
1 | ||
| 95333-06030 |
BJ75,FJ75,HJ75 *H,L=220,W/SUB TANK |
2 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95332-06030 |
BJ75,FJ75,HJ75..PIC *H,L=280,W/SUB TANK |
1 | ||
| 95332-06010 |
BJ75,FJ75,HJ75..PIC *H,L=80,W/SUB TANK |
2 | ||
| 95332-06040 |
BJ75,FJ75,HJ75..PIC *H,L=320,W/SUB TANK |
2 | ||
| 95333-06032 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) *H,L=320,W/SUB TANK |
2 | ||
| 95332-06060 |
BJ75,FJ75,HJ75 *H,L=420 |
2 | ||
| 95332-06040 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) *H,L=320,W/SUB TANK |
2 | ||
| 95332-06060 |
BJ75,HJ75 *H,L=550 |
1 | ||
| 90447-12105 |
BJ75,FJ75,HJ75 L=450,W/SUB TANK |
1 | ||
| 90447-12104 |
BJ75,FJ75,HJ75 L=540,W/SUB TANK |
1 | ||
| 95332-06010 |
BJ75,FJ75,HJ75 *H,L=80 |
2 | ||
| 95332-06010 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) *H,L=80,W/SUB TANK |
2 | ||
| 95333-06042 |
BJ75,FJ75,HJ75 *H,L=420 |
2 | ||
| 95332-06030 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) *H,L=280,W/SUB TANK |
1 | ||
| 95333-06040 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) *H,L=400,W/SUB TANK,*,L=380 |
1 | ||
| 90447-12106 |
BJ75,FJ75,HJ75 L=670,W/SUB TANK |
1 | ||
| 95333-06020 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) *H,L=180,W/SUB TANK |
1 | ||
| 95333-06030 |
BJ75,FJ75,HJ75 *H,L=220,W/SUB TANK |
2 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95332-06030 |
BJ75,FJ75,HJ75..PIC *H,L=280,W/SUB TANK |
1 | ||
| 95332-06010 |
BJ75,FJ75,HJ75..PIC *H,L=80,W/SUB TANK |
2 | ||
| 95332-06040 |
BJ75,FJ75,HJ75..PIC *H,L=320,W/SUB TANK |
2 | ||
| 95333-06032 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) *H,L=320,W/SUB TANK |
2 | ||
| 95332-06060 |
BJ75,FJ75,HJ75 *H,L=420 |
2 | ||
| 95332-06040 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) *H,L=320,W/SUB TANK |
2 | ||
| 95332-06060 |
BJ75,HJ75 *H,L=550 |
1 | ||
| 90447-12105 |
BJ75,FJ75,HJ75 L=450,W/SUB TANK |
1 | ||
| 90447-12104 |
BJ75,FJ75,HJ75 L=540,W/SUB TANK |
1 | ||
| 95332-06010 |
BJ75,FJ75,HJ75 *H,L=80 |
2 | ||
| 95332-06010 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) *H,L=80,W/SUB TANK |
2 | ||
| 95333-06042 |
BJ75,FJ75,HJ75 *H,L=420 |
2 | ||
| 95332-06030 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) *H,L=280,W/SUB TANK |
1 | ||
| 95333-06040 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) *H,L=400,W/SUB TANK,*,L=380 |
1 | ||
| 90447-12106 |
BJ75,FJ75,HJ75 L=670,W/SUB TANK |
1 | ||
| 95333-06020 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) *H,L=180,W/SUB TANK |
1 | ||
| 95333-06030 |
BJ75,FJ75,HJ75 *H,L=220,W/SUB TANK |
2 | ||
| 77023 - FILTER SUB-ASSY, FUEL SUCTION TUBE | ||||
| 77023-22040 |
BJ7#,FJ7#,HJ75,LJ70 |
2 | ||
| 77031 - CAP ASSY, FUEL TANK | ||||
| 69058-90K06 |
BJ75,HJ75..PIC..(ARL,GEN,ME) W/KEY |
2 | ||
| 69058-90K06 |
BJ75,HJ75..PIC W/KEY |
2 | ||
| 77310-55080 |
BJ75,HJ75..PIC W/O KEY |
2 | ||
| 77310-55080 |
BJ75,HJ75..PIC..(ARL,GEN,ME) W/O KEY |
2 | ||
| 77031B - GASKET (FOR FUEL TANK CAP) | ||||
| 77316-27010 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) |
2 | ||
| 77316-27010 |
BJ75,FJ75,HJ75..PIC |
2 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77100-60300 |
BJ75,FJ75,HJ75 |
1 | ||
| 77100-60280 |
BJ75,FJ75,HJ75 SUB TANK |
1 | ||
| 77100-60280 |
BJ75,FJ75,HJ75..ARL,GEN,ME SUB TANK |
1 | ||
| 77100-60240 |
BJ75,FJ75,HJ75..ARL,GEN,ME SUB TANK |
1 | ||
| 77100A - PLUG(FOR FUEL TANK) | ||||
| 90341-20004 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 |
2 | ||
| 90341-20003 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 |
2 | ||
| 77100B - GASKET(FOR FUEL TANK) | ||||
| 90430-20007 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 T=2.5 |
2 | ||
| 90430-20006 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 T=2.0 |
2 | ||
| 77100D - HOSE, FUEL, NO.1(FOR FUEL TANK) | ||||
| 90445-22002 |
BJ75,FJ75,HJ75 L=200 |
1 | ||
| 90445-22024 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) L=385,SUB TANK |
1 | ||
| 90445-22024 |
BJ75,FJ75,HJ75..PIC L=385,SUB TANK |
1 | ||
| 77133 - SUPPORT, FUEL SUB-TANK, RH | ||||
| 77133-60030 |
BJ75,FJ75,HJ75..ARL,GEN,ME SUB TANK |
1 | ||
| 77134 - SUPPORT, FUEL SUB-TANK, LH | ||||
| 77134-60020 |
BJ75,FJ75,HJ75..ARL,GEN,ME SUB TANK |
1 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-60190 |
BJ75,FJ75,HJ75..PIC SUB TANK |
1 | ||
| 77201-60180 |
BJ75,HJ75..PIC |
1 | ||
| 77201-60180 |
BJ75,FJ75,HJ75..PIC |
1 | ||
| 77201-60190 |
BJ75,HJ75..PIC..(ARL,GEN) SUB TANK |
1 | ||
| 77201-60191 |
BJ75,HJ75..PIC..(ARL,GEN) SUB TANK |
1 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-60190 |
BJ75,FJ75,HJ75..PIC SUB TANK |
1 | ||
| 77201-60180 |
BJ75,HJ75..PIC |
1 | ||
| 77201-60180 |
BJ75,FJ75,HJ75..PIC |
1 | ||
| 77201-60190 |
BJ75,HJ75..PIC..(ARL,GEN) SUB TANK |
1 | ||
| 77201-60191 |
BJ75,HJ75..PIC..(ARL,GEN) SUB TANK |
1 | ||
| 77206 - TUBE SUB-ASSY, FUEL TANK SUCTION | ||||
| 77240-60150 |
BJ75,HJ75..ARL,GEN |
1 | ||
| 77240-60130 |
BJ75,HJ75 SUB TANK |
1 | ||
| 77240-60151 |
BJ75,HJ75..ARL,GEN,ME |
1 | ||
| 77240-60130 |
BJ75,HJ75..ARL,GEN,ME SUB TANK |
1 | ||
| 77240-60130 |
HJ75..ARL SUB TANK |
1 | ||
| 77240-60151 |
HJ75..ARL |
1 | ||
| 77206A - GASKET (FOR FUEL TANK SUCTION TUBE) | ||||
| 77169-14020 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 |
2 | ||
| 77213 - HOSE, FUEL TANK SUB INLET | ||||
| 77213-60080 |
BJ75,FJ75,HJ75..PIC SUB TANK |
1 | ||
| 77213-60070 |
BJ75,FJ75,HJ75..PIC |
1 | ||
| 77213-60080 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) SUB TANK |
1 | ||
| 77213-60081 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) SUB TANK |
1 | ||
| 77222A - TUBE, FUEL VAPOR LIQUID SEPARATOR, NO.1 | ||||
| 77222-60150 |
BJ75,FJ75,HJ75 |
1 | ||
| 77251 - SHIELD, FUEL TANK, INLET, NO.1 | ||||
| 77293-60030 |
BJ75,FJ75,HJ75..PIC SUB TANK |
1 | ||
| 77293-60030 |
BJ75,FJ75,HJ75 |
1 | ||
| 77293-60030 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) SUB TANK |
1 | ||
| 77269 - TUBE, FUEL CONNECTING | ||||
| 77269-60010 |
BJ75,HJ75..ARL,GEN |
1 | ||
| 77271C - SEPARATOR, FUEL VAPOR LIQUID | ||||
| 77271-60060 |
BJ75,FJ75,HJ75 |
2 | ||
| 77271C - SEPARATOR, FUEL VAPOR LIQUID | ||||
| 77271-60060 |
BJ75,FJ75,HJ75 |
2 | ||
| 77276 - PROTECTOR, FUEL HOSE | ||||
| 58279-90K00 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) |
1 | ||
| 58279-90K00 |
BJ75,FJ75,HJ75..PIC |
1 | ||
| 77606 - PROTECTOR SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77606-60040 |
BJ75,FJ75,HJ75 |
1 | ||
| 77606-60030 |
BJ75,FJ75,HJ75 SUB TANK |
1 | ||
| 77606-60030 |
BJ75,FJ75,HJ75..ARL,GEN,ME SUB TANK |
1 | ||
| 77606-60041 |
BJ75,FJ75,HJ75 |
1 | ||
| 77611 - BAND, FUEL TANK | ||||
| 77601-60130 |
BJ75,FJ75,HJ75..ARL,GEN,ME SUB TANK |
2 | ||
| 77601-60090 |
BJ75,FJ75,HJ75..ARL,GEN,ME SUB TANK |
2 | ||
| 77601-60090 |
BJ75,FJ75,HJ75 SUB TANK |
2 | ||
| 77601-60100 |
BJ75,FJ75,HJ75 |
2 | ||
| 77611 - BAND, FUEL TANK | ||||
| 77601-60130 |
BJ75,FJ75,HJ75..ARL,GEN,ME SUB TANK |
2 | ||
| 77601-60090 |
BJ75,FJ75,HJ75..ARL,GEN,ME SUB TANK |
2 | ||
| 77601-60090 |
BJ75,FJ75,HJ75 SUB TANK |
2 | ||
| 77601-60100 |
BJ75,FJ75,HJ75 |
2 | ||
| 77611A - PIN (FOR FUEL TANK BAND) | ||||
| 90240-10011 |
BJ75,FJ75,HJ75 |
2 | ||
| 90249-14002 |
BJ75,FJ75,HJ75 SUB TANK |
2 | ||
| 90249-14002 |
BJ75,FJ75,HJ75..ARL,GEN,ME SUB TANK |
2 | ||
| 77701T - VALVE, CHECK (FOR MAIN FUEL TANK) | ||||
| 90917-10020 |
BJ75,FJ75,HJ75 |
2 | ||
| Common parts | ||||
| 90119-06094 | ||||
| 90119-10153 | ||||
| 90119-10539 | ||||
| 90460-62033 | ||||
| 90461-06174 | ||||
| 90461-10664 | ||||
| 90461-12296 | ||||
| 90464-00239 | ||||
| 90467-12011 | ||||
| 90467-20134 | ||||
| 90480-14053 | ||||
| 91616-60820 | ||||
| 91621-40614 | ||||
| 91651-40614 | ||||
| 91651-40816 | ||||
| 91651-40820 | ||||
| 91661-40614 | ||||
| 93319-14010 | ||||
| 93382-16014 | ||||
| 93385-15014 | ||||
| 96132-30600 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 1 OF 3(9001-9201)FJ75,HJ75,HZJ75,PZJ75 ; (9201-9208)FJ75
FUEL TANK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-10153 | ||||
| 90159-40155 | ||||
| 90405-06007 | ||||
| 90460-65002 | ||||
| 90461-12296 | ||||
| 90464-00239 | ||||
| 90467-20134 | ||||
| 90468-14017 | ||||
| 90468-14022 | ||||
| 91611-61020 | ||||
| 91651-40614 | ||||
| 91651-41030 | ||||
| 91651-60814 | ||||
| 91651-61022 | ||||
| 91661-40614 | ||||
| 93382-16014 | ||||
| 93383-15014 | ||||
| 96132-30600 | ||||
ILLUST NO. 1 OF 3(9001-9908)FZJ75,HZJ70..ARL ; (9001-0701)FJ75,FZJ75,HZJ75,PZJ75..CBR,DSL ; (9401-99
FUEL SUB TANK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-06621 | ||||
| 90119-08701 | ||||
| 90119-10153 | ||||
| 90119-10539 | ||||
| 90119-10556 | ||||
| 90159-40155 | ||||
| 90460-65002 | ||||
| 90461-06174 | ||||
| 90461-12296 | ||||
| 90464-00239 | ||||
| 90467-20134 | ||||
| 91626-B0818 | ||||
| 91651-40614 | ||||
| 91651-60814 | ||||
| 91651-60820 | ||||
| 91665-40616 | ||||
| 93383-15014 | ||||
| 93383-A6014 | ||||
| 96132-41100 | ||||
| Linked diagrams | ||||
| 8401 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
