HJ75RP-MRQ3 (1984)

Toyota Land Cruiser

Production Nov 1984 - Jan 1990
Engine 2H
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

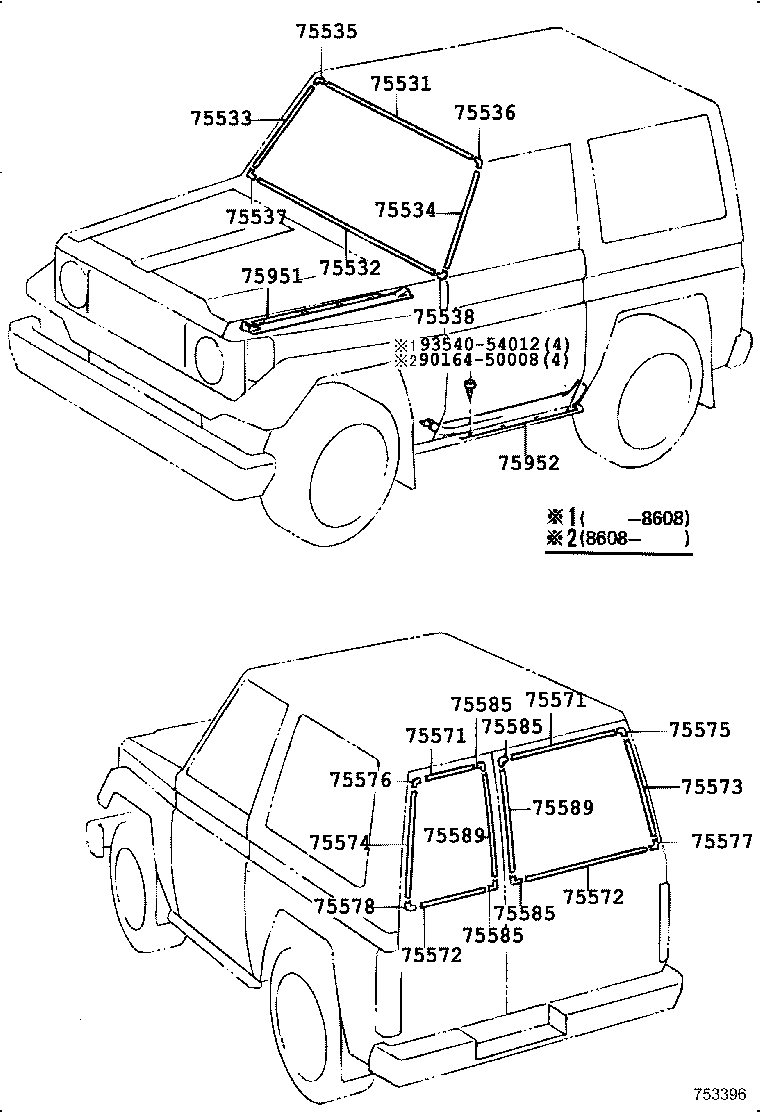

ILLUST NO. 1 OF 2(8411- )

Click highlighted areas on diagram

diagram 75531 75532 75533 75534 75535 75536 75537 75538 75571 75571 75572 75572 75573 75574 75575 75576 75577 75578 75585 75585 75585 75585 75589 75589 75951 75952 9016450008 9354054012
Part # Description Qty Price
75951 - PLATE, FRONT DOOR SCUFF, OUTSIDE RH
67913-90K0003

BJ7#,FJ7#,HJ75,LJ70,RJ70

GRAY,SHADOW GRAY

 1
67913-90K0006

BJ7#,FJ7#,HJ75,LJ70,RJ70

BROWN,SEPIA BROWN

 1
75952 - PLATE, FRONT DOOR SCUFF, OUTSIDE LH
67913-90K0003

BJ7#,FJ7#,HJ75,LJ70,RJ70

W/MAT OR CARPET,GRAY,SHADOW GRAY

 1
67913-90K0006

BJ7#,FJ7#,HJ75,LJ70,RJ70

BROWN,SEPIA BROWN

 1
67913-90K0003

BJ7#,FJ7#,HJ75,LJ70,RJ70

GRAY,SHADOW GRAY

 1
67913-90K0006

BJ7#,FJ7#,HJ75,LJ70,RJ70

W/MAT OR CARPET,BROWN,SEPIA BROWN

 1
Common parts
90164-50008
93540-54012

ILLUST NO. 2 OF 2(8411- )

Click highlighted areas on diagram

diagram 75551 75551 75551 75551 75551 75552 75552 75552 75552 75552 75553 75553 75553 75554 75554 75554 75555 75555 75556 75556 75557B 75586A 75586A 75586A 75586A 75596 75596 75596 75596 75596 75597 75597 75597 75597 75597
Part # Description Qty Price
