HJ75RP-MRQ3 (1984)

Toyota Land Cruiser

Production Nov 1984 - Jan 1990
Engine 2H
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

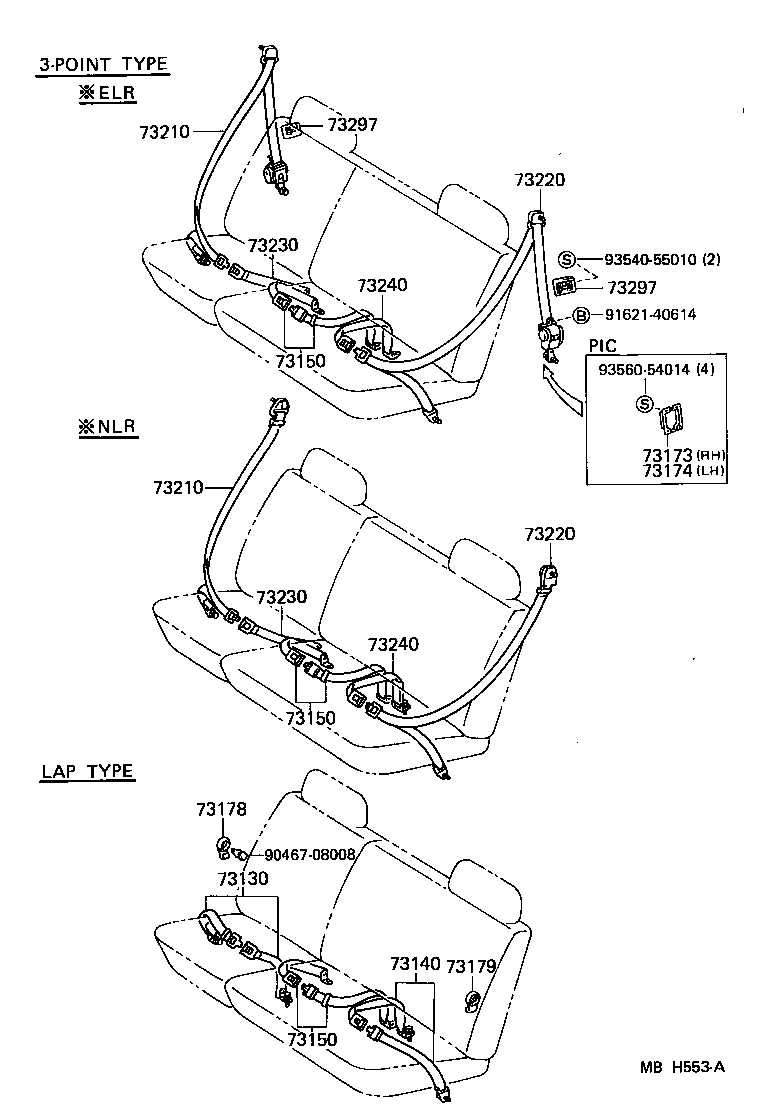

ILLUST NO. 1 OF 2(8411- )

Click highlighted areas on diagram

diagram 73130 73140 73150 73150 73150 73173 73174 73178 73179 73210 73210 73220 73220 73230 73230 73240 73240 73297 73297 9046708008 9162140614 9354055010 9356054014
Part # Description Qty Price
73150 - BELT ASSY, FRONT SEAT LAP TYPE, CENTER
73150-90K0103

BJ75,FJ75,HJ75..ARL,GEN,SA

GRAY,GRAY

 1
73150-90K0503

FJ75,HJ75..ARL,SA

GRAY,SHADOW GRAY

 1
73150-90K0106

BJ75,FJ75,HJ75..ARL,GEN,SA

BROWN,SEPIA BROWN

 1
73150-90K0506

FJ75,HJ75..ARL,SA

BROWN,SEPIA BROWN

 1
73150-90K0503

FJ75,HJ75..ARL

GRAY,SHADOW GRAY

 1
73150-90K0506

FJ75,HJ75..ARL

BROWN,SEPIA BROWN

 1
73150-90K0906

FJ75,HJ75..ARL

BROWN,SEPIA BROWN

 1
73150-90K0903

FJ75,HJ75..ARL

GRAY,SHADOW GRAY

 1
73150 - BELT ASSY, FRONT SEAT LAP TYPE, CENTER
73150-90K0103

BJ75,FJ75,HJ75..ARL,GEN,SA

GRAY,GRAY

 1
73150-90K0503

FJ75,HJ75..ARL,SA

GRAY,SHADOW GRAY

 1
73150-90K0106

BJ75,FJ75,HJ75..ARL,GEN,SA

BROWN,SEPIA BROWN

 1
73150-90K0506

FJ75,HJ75..ARL,SA

BROWN,SEPIA BROWN

 1
73150-90K0503

FJ75,HJ75..ARL

GRAY,SHADOW GRAY

 1
73150-90K0506

FJ75,HJ75..ARL

BROWN,SEPIA BROWN

 1
73150-90K0906

FJ75,HJ75..ARL

BROWN,SEPIA BROWN

 1
73150-90K0903

FJ75,HJ75..ARL

GRAY,SHADOW GRAY

 1
73150 - BELT ASSY, FRONT SEAT LAP TYPE, CENTER
73150-90K0103

BJ75,FJ75,HJ75..ARL,GEN,SA

GRAY,GRAY

 1
73150-90K0503

FJ75,HJ75..ARL,SA

GRAY,SHADOW GRAY

 1
73150-90K0106

BJ75,FJ75,HJ75..ARL,GEN,SA

BROWN,SEPIA BROWN

 1
73150-90K0506

FJ75,HJ75..ARL,SA

BROWN,SEPIA BROWN

 1
73150-90K0503

FJ75,HJ75..ARL

GRAY,SHADOW GRAY

 1
73150-90K0506

FJ75,HJ75..ARL

BROWN,SEPIA BROWN

 1
73150-90K0906

FJ75,HJ75..ARL

BROWN,SEPIA BROWN

 1
73150-90K0903

FJ75,HJ75..ARL

GRAY,SHADOW GRAY

 1
73173 - COVER, FRONT SEAT BELT HOLE, RH
73173-90K0006

BJ75,FJ75,HJ75..PIC..(ARL,GEN,SA)

BROWN,SEPIA BROWN

 1
73173-90K0003

FJ75,HJ75..PIC..(ARL,SA)

GRAY,GRAY

 1
73173-90K0006

FJ75,HJ75..PIC..(ARL,SA)

BROWN,SEPIA BROWN

 1
73173-90K0003

BJ75,FJ75,HJ75..PIC..(ARL,GEN,SA)

GRAY,GRAY

 1
73174 - COVER, FRONT SEAT BELT HOLE, LH
73173-90K0003

FJ75,HJ75..PIC..(ARL,SA)

GRAY,GRAY

 1
73173-90K0006

FJ75,HJ75..PIC..(ARL,SA)

BROWN,SEPIA BROWN

 1
73173-90K0003

BJ75,FJ75,HJ75..PIC..(ARL,GEN,SA)

GRAY,GRAY

 1
73173-90K0006

BJ75,FJ75,HJ75..PIC..(ARL,GEN,SA)

BROWN,SEPIA BROWN

 1
73210 - BELT ASSY, FRONT SEAT OUTER, RH
73210-90K0803

BJ75,FJ75,HJ75..PIC..(ARL,GEN)

*ELR,GRAY,GRAY

 1
73210-90K0806

BJ75,FJ75,HJ75..PIC..(ARL,GEN)

*ELR,BROWN,SEPIA BROWN

 1
73210-90K2903

FJ75,HJ75..PIC..(ARL,SA)

GRAY,SHADOW GRAY

 1
73210-90K2003

BJ75,FJ75,HJ75..PIC..(ARL,GEN,SA)

*ELR,GRAY,SHADOW GRAY

 1
73210-90K2906

FJ75,HJ75..PIC..(ARL,SA)

BROWN,SEPIA BROWN

 1
73210-90K2006

BJ75,FJ75,HJ75..PIC..(ARL,GEN,SA)

*ELR,BROWN,SEPIA BROWN

 1
73210-90K2906

FJ75,HJ75..PIC..ARL

BROWN,SEPIA BROWN

 1
73210-90K4203

FJ75,HJ75..PIC..ARL

GRAY,SHADOW GRAY

 1
73210-90K4206

FJ75,HJ75..PIC..ARL

BROWN,SEPIA BROWN

 1
73210 - BELT ASSY, FRONT SEAT OUTER, RH
73210-90K0803

BJ75,FJ75,HJ75..PIC..(ARL,GEN)

*ELR,GRAY,GRAY

 1
73210-90K0806

BJ75,FJ75,HJ75..PIC..(ARL,GEN)

*ELR,BROWN,SEPIA BROWN

 1
73210-90K2903

FJ75,HJ75..PIC..(ARL,SA)

GRAY,SHADOW GRAY

 1
73210-90K2003

BJ75,FJ75,HJ75..PIC..(ARL,GEN,SA)

*ELR,GRAY,SHADOW GRAY

 1
73210-90K2906

FJ75,HJ75..PIC..(ARL,SA)

BROWN,SEPIA BROWN

 1
73210-90K2006

BJ75,FJ75,HJ75..PIC..(ARL,GEN,SA)

*ELR,BROWN,SEPIA BROWN

 1
73210-90K2906

FJ75,HJ75..PIC..ARL

BROWN,SEPIA BROWN

 1
73210-90K4203

FJ75,HJ75..PIC..ARL

GRAY,SHADOW GRAY

 1
73210-90K4206

FJ75,HJ75..PIC..ARL

BROWN,SEPIA BROWN

 1
73220 - BELT ASSY, FRONT SEAT OUTER, LH
73210-90K1003

BJ75,FJ75,HJ75..PIC..(ARL,GEN)

*ELR,GRAY,GRAY

 1
73210-90K1006

BJ75,FJ75,HJ75..PIC..(ARL,GEN)

*ELR,BROWN,SEPIA BROWN

 1
73210-90K2106

BJ75,FJ75,HJ75..PIC..(ARL,GEN,SA)

*ELR,BROWN,SEPIA BROWN

 1
73210-90K2103

BJ75,FJ75,HJ75..PIC..(ARL,GEN,SA)

*ELR,GRAY,SHADOW GRAY

 1
73220-90K1803

FJ75,HJ75..PIC..ARL

*ELR,GRAY,SHADOW GRAY

 1
73220-90K1806

FJ75,HJ75..PIC..ARL

*ELR,BROWN,SEPIA BROWN

 1
73220 - BELT ASSY, FRONT SEAT OUTER, LH
73210-90K1003

BJ75,FJ75,HJ75..PIC..(ARL,GEN)

*ELR,GRAY,GRAY

 1
73210-90K1006

BJ75,FJ75,HJ75..PIC..(ARL,GEN)

*ELR,BROWN,SEPIA BROWN

 1
73210-90K2106

BJ75,FJ75,HJ75..PIC..(ARL,GEN,SA)

*ELR,BROWN,SEPIA BROWN

 1
73210-90K2103

BJ75,FJ75,HJ75..PIC..(ARL,GEN,SA)

*ELR,GRAY,SHADOW GRAY

 1
73220-90K1803

FJ75,HJ75..PIC..ARL

*ELR,GRAY,SHADOW GRAY

 1
73220-90K1806

FJ75,HJ75..PIC..ARL

*ELR,BROWN,SEPIA BROWN

 1
73230 - BELT ASSY, FRONT SEAT INNER, RH
73230-90K0306

BJ75,FJ75,HJ75..ARL,GEN,SA

*ELR,BROWN,SEPIA BROWN

 1
73230-90K0303

BJ75,FJ75,HJ75..ARL,GEN,SA

*ELR,GRAY,GRAY

 1
73230-90K0703

FJ75,HJ75..ARL,SA

GRAY,SHADOW GRAY

 1
73230-90K0706

FJ75,HJ75..ARL,SA

BROWN,SEPIA BROWN

 1
73230-90K1106

FJ75,HJ75..ARL,SA

BROWN,SEPIA BROWN

 1
73230-90K1103

FJ75,HJ75..ARL,SA

GRAY,SHADOW GRAY

 1
73230 - BELT ASSY, FRONT SEAT INNER, RH
73230-90K0306

BJ75,FJ75,HJ75..ARL,GEN,SA

*ELR,BROWN,SEPIA BROWN

 1
73230-90K0303

BJ75,FJ75,HJ75..ARL,GEN,SA

*ELR,GRAY,GRAY

 1
73230-90K0703

FJ75,HJ75..ARL,SA

GRAY,SHADOW GRAY

 1
73230-90K0706

FJ75,HJ75..ARL,SA

BROWN,SEPIA BROWN

 1
73230-90K1106

FJ75,HJ75..ARL,SA

BROWN,SEPIA BROWN

 1
73230-90K1103

FJ75,HJ75..ARL,SA

GRAY,SHADOW GRAY

 1
73240 - BELT ASSY, FRONT SEAT INNER, LH
73240-90K0403

BJ75,FJ75,HJ75..ARL,GEN,SA

*ELR,W/BENCH SEAT,GRAY,GRAY

 1
73240-90K0406

BJ75,FJ75,HJ75..ARL,GEN,SA

*ELR,W/BENCH SEAT,BROWN,SEPIA BROWN

 1
73240-90K0803

FJ75,HJ75..ARL,SA

GRAY,SHADOW GRAY

 1
73240-90K0806

FJ75,HJ75..ARL,SA

BROWN,SEPIA BROWN

 1
73230-90K1203

FJ75,HJ75..ARL

*ELR,GRAY,SHADOW GRAY

 1
73230-90K1206

FJ75,HJ75..ARL

*ELR,BROWN,SEPIA BROWN

 1
73240 - BELT ASSY, FRONT SEAT INNER, LH
73240-90K0403

BJ75,FJ75,HJ75..ARL,GEN,SA

*ELR,W/BENCH SEAT,GRAY,GRAY

 1
73240-90K0406

BJ75,FJ75,HJ75..ARL,GEN,SA

*ELR,W/BENCH SEAT,BROWN,SEPIA BROWN

 1
73240-90K0803

FJ75,HJ75..ARL,SA

GRAY,SHADOW GRAY

 1
73240-90K0806

FJ75,HJ75..ARL,SA

BROWN,SEPIA BROWN

 1
73230-90K1203

FJ75,HJ75..ARL

*ELR,GRAY,SHADOW GRAY

 1
73230-90K1206

FJ75,HJ75..ARL

*ELR,BROWN,SEPIA BROWN

 1
Common parts
90467-08008
91621-40614
93540-55010
93560-54014

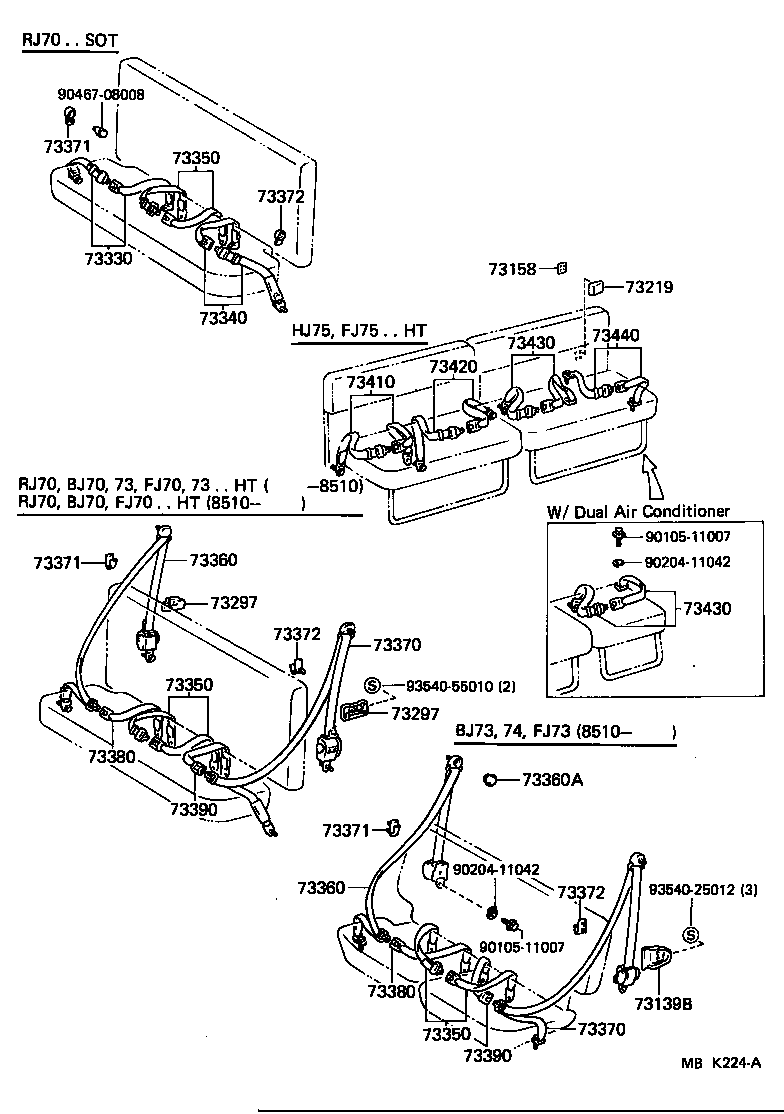

(8411- )ARL

Click highlighted areas on diagram

diagram 73139B 73158 73219 73297 73297 73330 73340 73350 73350 73350 73360 73360 73360A 73370 73370 73371 73371 73371 73372 73372 73372 73380 73380 73390 73390 73410 73420 73430 73430 73440 9010511007 9010511007 9020411042 9020411042 9046708008 9354025012 9354055010
Part # Description Qty Price
Common parts
90105-11007
90204-11042
90467-08008
93540-25012
93540-55010

ILLUST NO. 1 OF 2(9001-0701) ; (0701-0808)LX

Click highlighted areas on diagram

FRONT SEAT

diagram 73130 73140 73150 73150 73150 73173 73174 73181C 73181C 73210 73210 73220 73220 73220 73230 73230 73240 73240 73297B 73298B 9046708008 9162140614 9166160616 9354055010 9356054014
Part # Description Qty Price
Common parts
90467-08008
91621-40614
91661-60616
93540-55010
93560-54014

ILLUST NO. 2 OF 2(9001-0701) ; (0701-0808)LX

Click highlighted areas on diagram

REAR SEAT

diagram 73139B 73158 73178A 73219 73298 73299 73320B 73330 73330B 73340 73340B 73350 73350 73350 73350B 73350B 73360 73360 73370 73370 73371A 73371A 73371A 73371A 73380 73380 73390 73390 9010511007 9010511007 9018304046 9020411042 9020411042 9046708008 9354025012 9354055010
Part # Description Qty Price
Common parts
90105-11007
90183-04046
90204-11042
90467-08008
93540-25012
93540-55010
