HJ75RP-MRQ3 (1984)
Toyota Land Cruiser

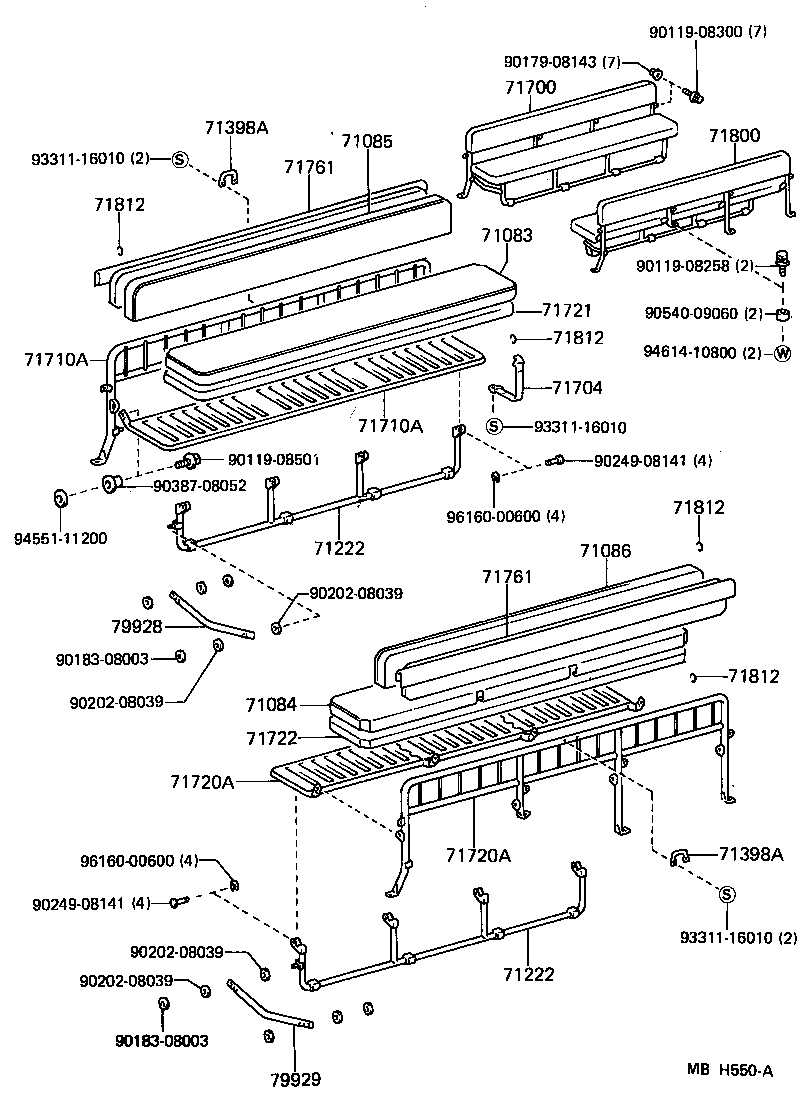

ILLUST NO. 2 OF 2(8411- )PIC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71812 - CLIP (FOR FRONT SEAT CUSHION COVER) | ||||
| 90468-18071 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 |
1 | ||
| 71812 - CLIP (FOR FRONT SEAT CUSHION COVER) | ||||
| 90468-18071 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 |
1 | ||
| 71812 - CLIP (FOR FRONT SEAT CUSHION COVER) | ||||
| 90468-18071 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 |
1 | ||
| 71812 - CLIP (FOR FRONT SEAT CUSHION COVER) | ||||
| 90468-18071 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 |
1 | ||
| Common parts | ||||
| 90119-08258 | ||||
| 90119-08300 | ||||
| 90119-08501 | ||||
| 90179-08143 | ||||
| 90183-08003 | ||||
| 90202-08039 | ||||
| 90249-08141 | ||||
| 90387-08052 | ||||
| 90540-09060 | ||||
| 93311-16010 | ||||
| 94551-11200 | ||||
| 94614-10800 | ||||
| 96160-00600 | ||||

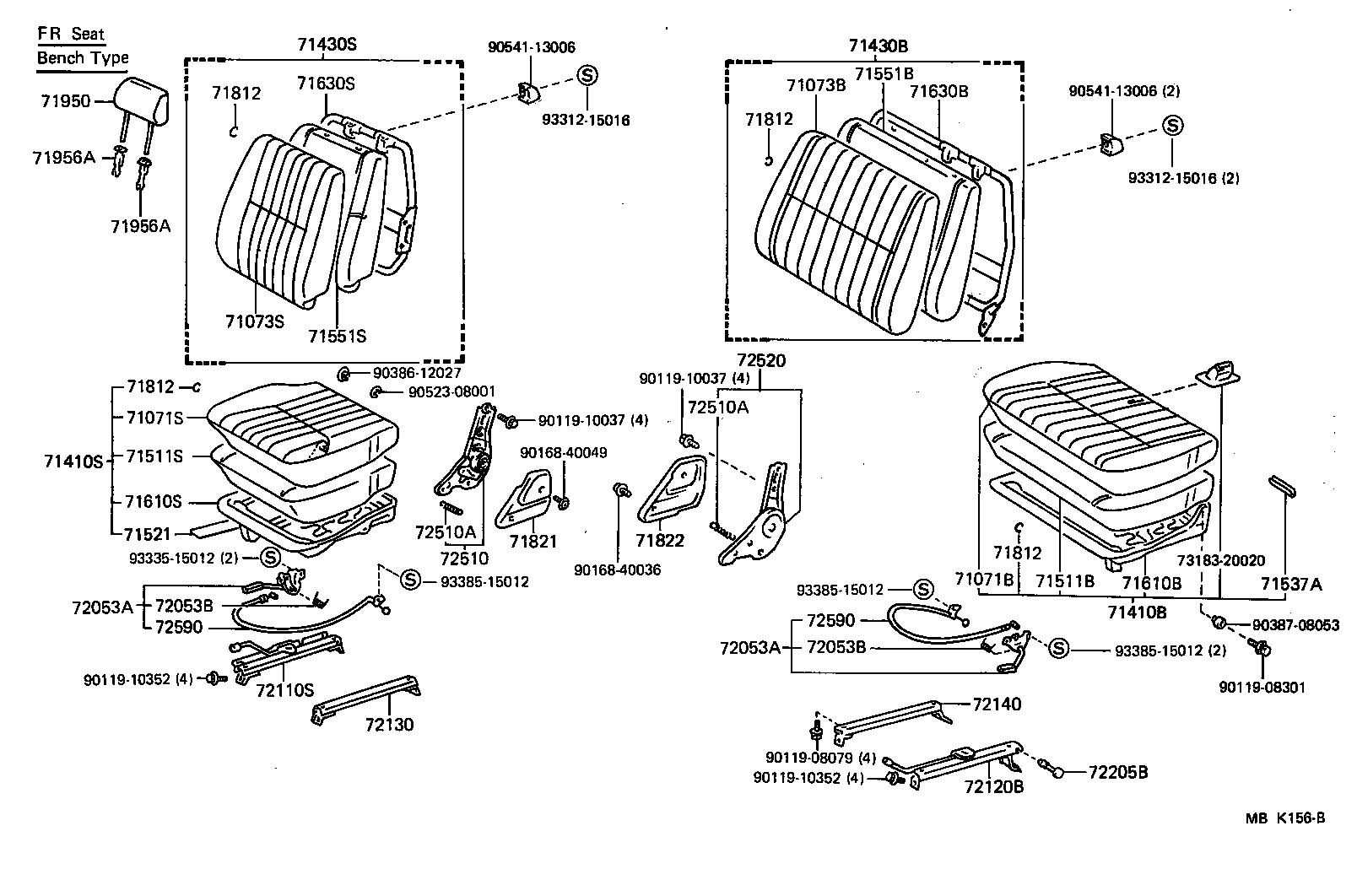

ILLUST NO. 1 OF 2(8411- )RHD..PIC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071B - COVER, FRONT SEAT CUSHION(FOR BENCH TYPE) | ||||
| 71072-90K0705 |
BJ75,FJ75,HJ75..RHD..PIC VL,W/*SBE,BEIGE,BEIGE |
1 | ||
| 71072-90K0703 |
BJ75,FJ75,HJ75..RHD..PIC VL,W/*SBE,GRAY,GRAY |
1 | ||
| 71072-90K0403 |
FJ75,HJ75..ARL FB,GRAY,GRAY |
1 | ||
| 71072-90K0405 |
FJ75,HJ75..ARL FB,BEIGE,BEIGE |
1 | ||
| 71072-90K2203 |
FJ75,HJ75..PIC..ARL VL,GRAY,GRAY |
1 | ||
| 71072-90K2205 |
FJ75,HJ75..PIC..ARL VL,BEIGE,BEIGE |
1 | ||
| 71072-90K2603 |
FJ75,HJ75..ARL FB,GRAY,SHADOW GRAY |
1 | ||
| 71072-90K2606 |
FJ75,HJ75..ARL FB,BROWN,SEPIA BROWN |
1 | ||
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-90K0803 |
BJ75,FJ75,HJ75..RHD..PIC VL,GRAY,GRAY |
1 | ||
| 71071-90K0805 |
BJ75,FJ75,HJ75..RHD..PIC VL,BEIGE,BEIGE |
1 | ||
| 71071-90K0803 |
BJ70,73,75,FJ70,75,HJ75,LJ70,RJ70..RHD..STD VL,GRAY,GRAY |
1 | ||
| 71071-90K1405 |
FJ75,HJ75..ARL FB,BEIGE,BEIGE |
1 | ||
| 71071-90K1403 |
FJ75,HJ75..ARL FB,GRAY,GRAY |
1 | ||
| 71071-90K0805 |
BJ70,73,75,FJ70,75,HJ75,LJ70,RJ70..RHD..STD VL,BEIGE,BEIGE |
1 | ||
| 71071-90K2906 |
FJ75,HJ75..ARL FB,BROWN,SEPIA BROWN |
1 | ||
| 71071-90K2903 |
FJ75,HJ75..ARL FB,GRAY,SHADOW GRAY |
1 | ||
| 71073B - COVER, FRONT SEAT BACK(FOR BENCH TYPE) | ||||
| 71074-90K0303 |
FJ75,HJ75..ARL FB,GRAY,GRAY |
1 | ||
| 71074-90K0305 |
FJ75,HJ75..ARL FB,BEIGE,BEIGE |
1 | ||
| 71074-90K0105 |
BJ75,FJ75,HJ75..RHD..PIC VL,BEIGE,BEIGE |
1 | ||
| 71074-90K0103 |
BJ75,FJ75,HJ75..RHD..PIC VL,GRAY,GRAY |
1 | ||
| 71074-90K3106 |
FJ75,HJ75..ARL FB,BROWN,SEPIA BROWN |
1 | ||
| 71074-90K3103 |
FJ75,HJ75..ARL FB,GRAY,SHADOW GRAY |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-90K1705 |
FJ75,HJ75..PIC..ARL FB,BEIGE,BEIGE |
1 | ||
| 71073-90K1703 |
FJ75,HJ75..PIC..ARL FB,GRAY,GRAY |
1 | ||
| 71073-90K1605 |
BJ75,FJ75,HJ75..RHD..PIC VL,BEIGE,BEIGE |
1 | ||
| 71073-90K1603 |
BJ75,FJ75,HJ75..RHD..PIC VL,GRAY,GRAY |
1 | ||
| 71073-90K5103 |
FJ75,HJ75..PIC..ARL FB,GRAY,SHADOW GRAY |
1 | ||
| 71073-90K5106 |
FJ75,HJ75..PIC..ARL FB,BROWN,SEPIA BROWN |
1 | ||
| 71410B - CUSHION ASSY, FRONT SEAT(FOR BENCH TYPE) | ||||
| 71420-90K2405 |
BJ75,FJ75,HJ75..RHD..PIC VL,W/*SBE,BEIGE,BEIGE |
1 | ||
| 71420-90K2403 |
BJ75,FJ75,HJ75..RHD..PIC VL,W/*SBE,GRAY,GRAY |
1 | ||
| 71420-90K4003 |
FJ75,HJ75..PIC..ARL FB,GRAY,GRAY |
1 | ||
| 71420-90K4005 |
FJ75,HJ75..PIC..ARL FB,BEIGE,BEIGE |
1 | ||
| 71420-90K3903 |
FJ75,HJ75..PIC..ARL VL,GRAY,GRAY |
1 | ||
| 71420-90K3905 |
FJ75,HJ75..PIC..ARL VL,BEIGE,BEIGE |
1 | ||
| 71420-90K6303 |
FJ75,HJ75..PIC..ARL FB,GRAY,SHADOW GRAY |
1 | ||
| 71420-90K6306 |
FJ75,HJ75..PIC..ARL FB,BROWN,SEPIA BROWN |
1 | ||
| 71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71410-90K3403 |
BJ75,FJ75,HJ75..RHD..PIC VL,GRAY,GRAY |
1 | ||
| 71410-90K1303 |
FJ75,HJ75..ARL FB,GRAY,GRAY |
1 | ||
| 71410-90K1305 |
FJ75,HJ75..ARL FB,BEIGE,BEIGE |
1 | ||
| 71410-90K3405 |
BJ75,FJ75,HJ75..RHD..PIC VL,BEIGE,BEIGE |
1 | ||
| 71410-90K3405 |
BJ75,FJ75,HJ75..RHD VL,BEIGE,BEIGE |
1 | ||
| 71410-90K6706 |
FJ75,HJ75..ARL FB,BROWN,SEPIA BROWN |
1 | ||
| 71410-90K3403 |
BJ75,FJ75,HJ75..RHD VL,GRAY,GRAY |
1 | ||
| 71410-90K6703 |
FJ75,HJ75..ARL FB,GRAY,SHADOW GRAY |
1 | ||
| 71430B - BACK ASSY, FRONT SEAT(FOR BENCH TYPE) | ||||
| 71440-90K4803 |
FJ75,HJ75..PIC..ARL FB,GRAY,GRAY |
1 | ||
| 71440-90K4805 |
FJ75,HJ75..PIC..ARL FB,BEIGE,BEIGE |
1 | ||
| 71440-90K1303 |
BJ75,FJ75,HJ75..RHD..PIC VL,W/*HR,GRAY,GRAY |
1 | ||
| 71440-90K1305 |
BJ75,FJ75,HJ75..RHD..PIC VL,W/*HR,BEIGE,BEIGE |
1 | ||
| 71440-90K7706 |
FJ75,HJ75..PIC..ARL FB,BROWN,SEPIA BROWN |
1 | ||
| 71440-90K7703 |
FJ75,HJ75..PIC..ARL FB,GRAY,SHADOW GRAY |
1 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71430-90K0505 |
BJ75,FJ75,HJ75..RHD..PIC VL,W/*HR,BEIGE,BEIGE |
1 | ||
| 71430-90K4705 |
FJ75,HJ75..PIC..ARL FB,BEIGE,BEIGE |
1 | ||
| 71430-90K0503 |
BJ75,FJ75,HJ75..RHD..PIC VL,W/*HR,GRAY,GRAY |
1 | ||
| 71430-90K4703 |
FJ75,HJ75..PIC..ARL FB,GRAY,GRAY |
1 | ||
| 71430-90K7706 |
FJ75,HJ75..PIC..ARL FB,BROWN,SEPIA BROWN |
1 | ||
| 71430-90K7703 |
FJ75,HJ75..PIC..ARL FB,GRAY,SHADOW GRAY |
1 | ||
| 71511B - PAD, FRONT SEAT CUSHION(FOR BENCH TYPE) | ||||
| 71502-90K00 |
BJ70,73,74,FJ7#,HJ75..ARL |
1 | ||
| 71502-90K00 |
BJ70,73,FJ7#,HJ75..ARL |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71501-90K02 |
BJ7#,FJ7#,HJ75,LJ70,RJ70..RHD..(LX,STD) |
1 | ||
| 71521 - PAD, FRONT SEAT CUSHION SILENCER, A | ||||
| 71521-90K00 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 |
4 | ||
| 71537A - PROTECTOR, FRONT SEAT CUSHION | ||||
| 71537-90K00 |
BJ70,73,FJ7#,HJ75..(LX,STD)..ARL |
1 | ||
| 71537-90K00 |
BJ70,73,74,FJ7#,HJ75..ARL |
1 | ||
| 71551B - PAD, FRONT SEAT BACK(FOR BENCH TYPE) | ||||
| 71506-90K00 |
BJ70,73,FJ7#,HJ75..(LX,STD)..ARL |
1 | ||
| 71506-90K00 |
BJ70,73,74,FJ7#,HJ75..ARL |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71505-90K02 |
BJ7#,FJ7#,HJ75,LJ70,RJ70..RHD..(LX,STD) |
1 | ||
| 71610B - SPRING ASSY, FRONT SEAT CUSHION(FOR BENCH TYPE) | ||||
| 71620-90K04 |
BJ75,FJ75,HJ75..RHD W/O *WI |
1 | ||
| 71610S - SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71610-90K01 |
BJ75,FJ75,HJ75..RHD |
1 | ||
| 71630B - SPRING ASSY, FRONT SEAT BACK(FOR BENCH TYPE) | ||||
| 71014-90K07 |
BJ75,FJ75,HJ75..RHD..PIC |
1 | ||
| 71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71013-90K02 |
BJ75,FJ75,HJ75..RHD..PIC |
1 | ||
| 71812 - CLIP (FOR FRONT SEAT CUSHION COVER) | ||||
| 90468-18071 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 |
1 | ||
| 71812 - CLIP (FOR FRONT SEAT CUSHION COVER) | ||||
| 90468-18071 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 |
1 | ||
| 71812 - CLIP (FOR FRONT SEAT CUSHION COVER) | ||||
| 90468-18071 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 |
1 | ||
| 71812 - CLIP (FOR FRONT SEAT CUSHION COVER) | ||||
| 90468-18071 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 |
1 | ||
| 71821 - SHIELD, FRONT SEAT SIDE, RH | ||||
| 71811-90K0106 |
BJ7#,FJ7#,HJ75,LJ70,RJ70..RHD BROWN,SEPIA BROWN |
1 | ||
| 71811-90K0103 |
BJ7#,FJ7#,HJ75,LJ70,RJ70..RHD GRAY,SHADOW GRAY |
1 | ||
| 71822 - SHIELD, FRONT SEAT SIDE, LH | ||||
| 71812-90K0103 |
BJ75,FJ75,HJ75..RHD..PIC GRAY,SHADOW GRAY |
1 | ||
| 71812-90K0106 |
BJ70,FJ70,75,HJ75..ARL W/O *WI,BROWN,SEPIA BROWN |
1 | ||
| 71812-90K0106 |
BJ75,FJ75,HJ75..RHD..PIC BROWN,SEPIA BROWN |
1 | ||
| 71812-90K0103 |
BJ70,FJ70,75,HJ75..ARL W/O *WI,GRAY,SHADOW GRAY |
1 | ||
| 71812-90K0003 |
BJ73,74,FJ73,75,HJ75,LJ70,RJ70..ARL GRAY,SHADOW GRAY |
1 | ||
| 71812-90K0006 |
BJ73,74,FJ73,75,HJ75,LJ70,RJ70..ARL BROWN,SEPIA BROWN |
1 | ||
| 71950 - HEADREST ASSY, FRONT SEAT | ||||
| 71910-90K0206 |
BJ75,FJ75,HJ75..PIC BROWN,SEPIA BROWN |
2 | ||
| 71910-90K0203 |
BJ75,FJ75,HJ75..PIC GRAY,SHADOW GRAY |
2 | ||
| 71956A - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-1006036 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 W(LOCK),W/LOCK,BROWN,SEPIA BROWN |
2 | ||
| 71931-1001036 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 W/O(LOCK),W/O LOCK,BROWN,SEPIA BROWN |
2 | ||
| 71930-1006033 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 W(LOCK),W/LOCK,GRAY,SHADOW GRAY |
2 | ||
| 71931-1001033 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 W/O(LOCK),W/O LOCK,GRAY,SHADOW GRAY |
2 | ||
| 71956A - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-1006036 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 W(LOCK),W/LOCK,BROWN,SEPIA BROWN |
2 | ||
| 71931-1001036 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 W/O(LOCK),W/O LOCK,BROWN,SEPIA BROWN |
2 | ||
| 71930-1006033 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 W(LOCK),W/LOCK,GRAY,SHADOW GRAY |
2 | ||
| 71931-1001033 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 W/O(LOCK),W/O LOCK,GRAY,SHADOW GRAY |
2 | ||
| 72053A - LEVER SUB-ASSY, RECLINING REMOTE CONTROL | ||||
| 72053-90K0003 |
BJ7#,FJ7#,HJ75,LJ70,RJ70..RHD RH,GRAY,SHADOW GRAY |
1 | ||
| 72053-90K0006 |
BJ7#,FJ7#,HJ75,LJ70,RJ70..RHD RH,BROWN,SEPIA BROWN |
1 | ||
| 72054-90K0106 |
BJ70,73,74,FJ7#,HJ75..ARL LH,W/BENCH SEAT,BROWN,SEPIA BROWN |
1 | ||
| 72054-90K0103 |
BJ70,73,FJ7#,HJ75..(LX,STD)..ARL LH,W/BENCH SEAT,GRAY,SHADOW GRAY |
1 | ||
| 72054-90K0106 |
BJ70,73,FJ7#,HJ75..(LX,STD)..ARL LH,W/BENCH SEAT,BROWN,SEPIA BROWN |
1 | ||
| 72053A - LEVER SUB-ASSY, RECLINING REMOTE CONTROL | ||||
| 72053-90K0003 |
BJ7#,FJ7#,HJ75,LJ70,RJ70..RHD RH,GRAY,SHADOW GRAY |
1 | ||
| 72053-90K0006 |
BJ7#,FJ7#,HJ75,LJ70,RJ70..RHD RH,BROWN,SEPIA BROWN |
1 | ||
| 72054-90K0106 |
BJ70,73,74,FJ7#,HJ75..ARL LH,W/BENCH SEAT,BROWN,SEPIA BROWN |
1 | ||
| 72054-90K0103 |
BJ70,73,FJ7#,HJ75..(LX,STD)..ARL LH,W/BENCH SEAT,GRAY,SHADOW GRAY |
1 | ||
| 72054-90K0106 |
BJ70,73,FJ7#,HJ75..(LX,STD)..ARL LH,W/BENCH SEAT,BROWN,SEPIA BROWN |
1 | ||
| 72053B - SPRING(FOR RECLINING REMOTE CONTROL LEVER) | ||||
| 90508-16079 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 RH |
1 | ||
| 90508-16080 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 LH |
1 | ||
| 72053B - SPRING(FOR RECLINING REMOTE CONTROL LEVER) | ||||
| 90508-16079 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 RH |
1 | ||
| 90508-16080 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 LH |
1 | ||
| 72110S - TRACK ASSY, RH SEAT, OUTER (FOR SEPARATE SEAT) | ||||
| 72110-90K08 |
BJ75,FJ75,HJ75..RHD |
1 | ||
| 72110-90K20 |
BJ75,FJ75,HJ75..RHD |
1 | ||
| 72120B - TRACK ASSY, SEAT, OUTER LH (FOR BENCH SEAT) | ||||
| 72120-90K11 |
BJ75,FJ75,HJ75..RHD |
1 | ||
| 72120-90K18 |
BJ75,FJ75,HJ75..RHD |
1 | ||
| 72130 - TRACK ASSY, RH SEAT, INNER | ||||
| 72130-90K04 |
BJ75,FJ75,HJ75..RHD |
1 | ||
| 72140 - TRACK ASSY, LH SEAT, INNER | ||||
| 72140-90K08 |
BJ75,FJ75,HJ75..RHD W/BENCH SEAT |
1 | ||
| 72205B - PIN SUB-ASSY, SEAT TRACK OPEN LEVER | ||||
| 72205-90K00 |
BJ75,FJ75,HJ75 |
1 | ||
| 72510 - ADJUSTER ASSY, RECLINING SEAT BACK, RH | ||||
| 72510-90K02 |
BJ75,FJ75,HJ75..RHD..PIC |
1 | ||
| 72510A - SPRING, TENSION, NO.1(FOR RECLINING SEAT ADJUSTER) | ||||
| 90507-16007 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 |
2 | ||
| 72510A - SPRING, TENSION, NO.1(FOR RECLINING SEAT ADJUSTER) | ||||
| 90507-16007 |
BJ7#,FJ7#,HJ75,LJ70,RJ70 |
2 | ||
| 72520 - ADJUSTER ASSY, RECLINING SEAT BACK, LH | ||||
| 72520-90K02 |
BJ75,FJ75,HJ75..RHD W/BENCH SEAT |
1 | ||
| 72590 - CABLE ASSY, SEAT BACK CONTROL | ||||
| 72580-90K01 |
BJ70,73,74,FJ7#,HJ75..ARL LH,W/BENCH SEAT |
1 | ||
| 72570-90K00 |
BJ7#,FJ7#,HJ75,LJ70,RJ70..RHD RH |
1 | ||
| 72580-90K01 |
BJ70,73,FJ7#,HJ75..(LX,STD)..ARL LH,W/BENCH SEAT |
1 | ||
| 72590 - CABLE ASSY, SEAT BACK CONTROL | ||||
| 72580-90K01 |
BJ70,73,74,FJ7#,HJ75..ARL LH,W/BENCH SEAT |
1 | ||
| 72570-90K00 |
BJ7#,FJ7#,HJ75,LJ70,RJ70..RHD RH |
1 | ||
| 72580-90K01 |
BJ70,73,FJ7#,HJ75..(LX,STD)..ARL LH,W/BENCH SEAT |
1 | ||
| Common parts | ||||
| 73183-20020 | ||||
| 90119-08079 | ||||
| 90119-08301 | ||||
| 90119-10037 | ||||
| 90119-10352 | ||||
| 90168-40036 | ||||
| 90168-40049 | ||||
| 90386-12027 | ||||
| 90387-08053 | ||||
| 90523-08001 | ||||
| 90541-13006 | ||||
| 93312-15016 | ||||
| 93335-15012 | ||||
| 93385-15012 | ||||
ILLUST NO. 1 OF 3(9001-9908)LHD..HT,SOT ; (9908-0701)FZJ70,71,73,74,75,HZJ71..LHD..CBU ; (0701-0808)
BENCH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 71389-60040 | ||||
| 90119-08079 | ||||
| 90119-08301 | ||||
| 90119-10560 | ||||
| 90119-10619 | ||||
| 90119-10708 | ||||
| 90119-10896 | ||||
| 90159-40206 | ||||
| 90159-40269 | ||||
| 90167-40044 | ||||
| 90168-40011 | ||||
| 90168-40036 | ||||
| 90168-40049 | ||||
| 90202-14007 | ||||
| 90386-12041 | ||||
| 90386-12051 | ||||
| 90387-08053 | ||||
| 90389-08104 | ||||
| 90467-07032 | ||||
| 90468-04006 | ||||
| 90523-08001 | ||||
| 90562-18094 | ||||
| 93383-15012 | ||||
ILLUST NO. 1 OF 3(9001-0701)RHD..PIC
BENCH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 71389-60040 | ||||
| 90119-08079 | ||||
| 90119-08301 | ||||
| 90119-10560 | ||||
| 90119-10708 | ||||
| 90119-10896 | ||||
| 90167-40044 | ||||
| 90168-40036 | ||||
| 90168-40049 | ||||
| 90202-14007 | ||||
| 90386-12041 | ||||
| 90386-12051 | ||||
| 90387-08053 | ||||
| 90389-08104 | ||||
| 90467-07032 | ||||
| 90523-08001 | ||||
| 90541-13006 | ||||
| 90562-18094 | ||||
| 93219-55016 | ||||
| 93312-15016 | ||||
| 93383-15012 | ||||
ILLUST NO. 2 OF 3(9001-0701)FJ70,73,FZJ70,71,73,74,HZJ70,71,73,KZJ70,LJ70,72,PZJ70,73,RJ70 ; (0701-0
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-12120 | ||||
| 90105-11007 | ||||
| 90119-10035 | ||||
| 90119-10037 | ||||
| 90119-10101 | ||||
| 90119-10493 | ||||
| 90159-60108 | ||||
| 90168-40011 | ||||
| 90183-08003 | ||||
| 90202-08039 | ||||
| 90204-11042 | ||||
| 90249-08141 | ||||
| 90387-10069 | ||||
| 90389-09005 | ||||
| 90467-08053 | ||||
| 91651-60620 | ||||
| 93313-16014 | ||||
| 93316-16014 | ||||
| 96160-00600 | ||||
ILLUST NO. 2 OF 3(9001-0701)PIC ; (0701-0808)FZJ79
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 79977-60040 | ||||
| 90119-08258 | ||||
| 90119-08300 | ||||
| 90119-08653 | ||||
| 90179-08143 | ||||
| 90183-08003 | ||||
| 90202-08039 | ||||
| 90249-08141 | ||||
| 90387-08052 | ||||
| 90540-09060 | ||||
| 93311-16010 | ||||
| 94531-01200 | ||||
| 94613-10800 | ||||
| 94614-10800 | ||||
| 96160-00600 | ||||
ILLUST NO. 2 OF 3(9001-0701)FJ70,73,FZJ70,71,73,74,HZJ70,71,73,KZJ70,LJ70,72,PZJ70,73,RJ70 ; (0701-0
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 79977-60040 | ||||
| 90119-08364 | ||||
| 90249-08141 | ||||
| 90508-20072 | ||||
| 96160-00600 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
