HJ75RP-MRQ3 (1984)
Toyota Land Cruiser
Production
Nov 1984
-
Jan 1990
Engine
2H
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8411- )PIC

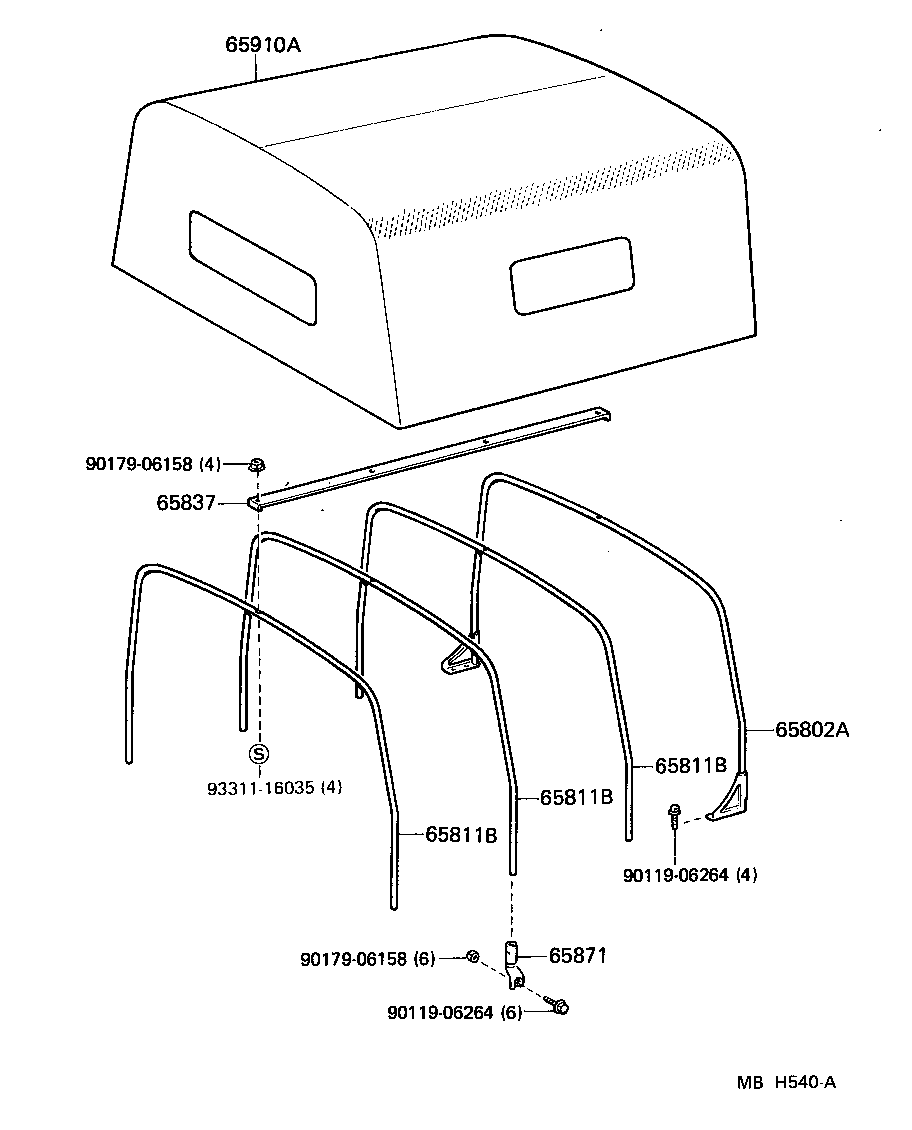

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 65802A - BOW SUB-ASSY, TOP, NO.2 | ||||
| 65802-90K00 |
BJ75,FJ75,HJ75..PIC |
1 | ||
| 65802-90K00 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) |
1 | ||
| 65811B - BOW, TOP, NO.1 | ||||
| 65811-90K02 |
BJ75,FJ75,HJ75..PIC |
3 | ||
| 65811-90K02 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) |
3 | ||
| 65811B - BOW, TOP, NO.1 | ||||
| 65811-90K02 |
BJ75,FJ75,HJ75..PIC |
3 | ||
| 65811-90K02 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) |
3 | ||
| 65811B - BOW, TOP, NO.1 | ||||
| 65811-90K02 |
BJ75,FJ75,HJ75..PIC |
3 | ||
| 65811-90K02 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) |
3 | ||
| 65837 - PLATE, TOP BOW | ||||
| 65837-90K00 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) |
1 | ||
| 65837-90K00 |
BJ75,FJ75,HJ75..PIC |
1 | ||
| 65871 - HOLDER, TOP BOW | ||||
| 65871-90K00 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) |
6 | ||
| 65871-90K00 |
BJ75,FJ75,HJ75..PIC |
6 | ||
| 65910A - TARPAULIN ASSY | ||||
| 65910-90K02 |
BJ75,FJ75,HJ75..PIC |
1 | ||
| 65910-90K02 |
BJ75,FJ75,HJ75..PIC..(ARL,GEN,ME) |
1 | ||
| Common parts | ||||
| 90119-06264 | ||||
| 90179-06158 | ||||
| 93311-16035 | ||||
(9001-9908)FZJ75..ARL..IV ; (9001- )FJ75,FZJ75,79,HJ75,HZJ75,79,PZJ75..PIC
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-06588 | ||||
| 90179-06158 | ||||
| 91111-40612 | ||||
| 93311-16035 | ||||
| 94130-60600 | ||||
